SRG-4858P
IoT Gateway System
User’s Manual 1st Ed

Preface II
IoT Gateway System SRG-4858P
Copyright Notice
This document is copyrighted, 2021. All rights are reserved. The original manufacturer
reserves the right to make improvements to the products described in this manual at
any time without notice.
No part of this manual may be reproduced, copied, translated, or transmitted in any
form or by any means without the prior written permission of the original
manufacturer. Information provided in this manual is intended to be accurate and
reliable. However, the original manufacturer assumes no responsibility for its use, or for
any infringements upon the rights of third parties that may result from its use.
The material in this document is for product information only and is subject to change
without notice. While reasonable efforts have been made in the preparation of this
document to assure its accuracy, AAEON assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information contained herein.
AAEON reserves the right to make changes in the product design without notice to its
users.

Preface III
IoT Gateway System SRG-4858P
Acknowledgements
All other products’ name or trademarks are properties of their respective owners.
⚫Microsoft Windows is a registered trademark of Microsoft Corp.
⚫Intel® is a registered trademark of Intel Corporation
⚫ARM, Cortex, and Cortex-A8 are registered trademarks of Arm Limited (or its
subsidiaries).
⚫ITE is a trademark of Integrated Technology Express, Inc.
⚫IBM and VGA are trademarks of International Business Machines Corporation.
⚫Ubuntu is a registered trademark of Canonical
All other product names or trademarks are properties of their respective owners. No
ownership is implied or assumed for products, names or trademarks not herein listed
by the publisher of this document.

Preface IV
IoT Gateway System SRG-4858P
Packing List
Before setting up your product, please make sure the following items have been
shipped:
Item
Quantity
⚫SRG-4858P
1
If any of these items are missing or damaged, please contact your distributor or sales
representative immediately.

Preface V
IoT Gateway System SRG-4858P
About this Document
This User’s Manual contains all the essential information, such as detailed descriptions
and explanations on the product’s hardware and software features (if any), its
specifications, dimensions, jumper/connector settings/definitions, and driver installation
instructions (if any), to facilitate users in setting up their product.
Users may refer to the product page at AAEON.com for the latest version of this
document.

Preface VI
IoT Gateway System SRG-4858P
Safety Precautions
Please read the following safety instructions carefully. It is advised that you keep this
manual for future references
1. All cautions and warnings on the device should be noted.
2. All cables and adapters supplied by AAEON are certified and in accordance with
the material safety laws and regulations of the country of sale. Do not use any
cables or adapters not supplied by AAEON to prevent system malfunction or
fires.
3. Make sure the power source matches the power rating of the device.
4. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
5. Always completely disconnect the power before working on the system’s
hardware.
6. No connections should be made when the system is powered as a sudden rush
of power may damage sensitive electronic components.
7. If the device is not to be used for a long time, disconnect it from the power
supply to avoid damage by transient over-voltage.
8. Always disconnect this device from any AC supply before cleaning.
9. While cleaning, use a damp cloth instead of liquid or spray detergents.
10. Make sure the device is installed near a power outlet and is easily accessible.
11. Keep this device away from humidity.
12. Place the device on a solid surface during installation to prevent falls
13. Do not cover the openings on the device to ensure optimal heat dissipation.
14. Watch out for high temperatures when the system is running.
15. Do not touch the heat sink or heat spreader when the system is running
16. Never pour any liquid into the openings. This could cause fire or electric shock.

Preface VII
IoT Gateway System SRG-4858P
17. As most electronic components are sensitive to static electrical charge, be sure to
ground yourself to prevent static charge when installing the internal components.
Use a grounding wrist strap and contain all electronic components in any
static-shielded containers.
18. If any of the following situations arises, please the contact our service personnel:
i. Damaged power cord or plug
ii. Liquid intrusion to the device
iii. Exposure to moisture
iv. Device is not working as expected or in a manner as described in
this manual
v. The device is dropped or damaged
vi. Any obvious signs of damage displayed on the device
19. DO NOT LEAVE THIS DEVICE IN AN UNCONTROLLED ENVIRONMENT WITH
TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES
(SEE CHAPTER 1) TO PREVENT DAMAGE.

Preface VIII
IoT Gateway System SRG-4858P
FCC Statement
This device complies with Part 15 FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received including interference that may cause
undesired operation.
Caution:
There is a danger of explosion if the battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer. Dispose of used batteries
according to the manufacturer’s instructions and your local government’s recycling or
disposal directives.
Attention:
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte.
Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur.
Recycler les batteries usées en accord avec les instructions du fabricant et les directives
gouvernementales de recyclage.

Preface IX
IoT Gateway System SRG-4858P
China RoHS Requirements (CN)
产品中有毒有害物质或元素名称及含量
AAEON System QO4-381 Rev.A0
部件名称
有毒有害物质或元素
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯
醚(PBDE)
印刷电路板
及其电子组件
×
○
○
○
○
○
外部信号
连接器及线材
×
○
○
○
○
○
外壳
○
○
○
○
○
○
中央处理器
与内存
×
○
○
○
○
○
硬盘
×
○
○
○
○
○
液晶模块
×
×
○
○
○
○
光驱
×
○
○
○
○
○
触控模块
×
○
○
○
○
○
电源
×
○
○
○
○
○
电池
×
○
○
○
○
○
本表格依据 SJ/T 11364 的规定编制。
○ ：表示该有毒有害物质在该部件所有均质材料中的含量均在
GB/T 26572标准规定的限量要求以下。
×：表示该有害物质的某一均质材料超出了GB/T 26572的限量要求，然而该
部件
仍符合欧盟指令2011/65/EU 的规范。
备注：
一、此产品所标示之环保使用期限，系指在一般正常使用状况下。
二、上述部件物质中央处理器、内存、硬盘、光驱、电源为选购品。
三、上述部件物质液晶模块、触控模块仅一体机产品适用。

Preface X
IoT Gateway System SRG-4858P
China RoHS Requirement (EN)
Hazardous and Toxic Materials List
AAEON System QO4-381 Rev.A0
Component
Name
Hazardous or Toxic Materials or Elements
Lead (Pb)
Mercury (Hg)
Cadmium (Cd)
Hexavalent Chromium (Cr(VI))
Polybrominat ed biphenyls (PBBs)
Polybrominat ed diphenyl ethers (PBDEs)
PCB and
Components
X
O
O
O
O
O
Wires &
Connectors for
Ext.Connections
X
O
O
O
O
O
Chassis
O
O
O
O
O
O
CPU & RAM
X
O
O
O
O
O
HDD Drive
X
O
O
O
O
O
LCD Module
X
X
O
O
O
O
Optical Drive
X
O
O
O
O
O
Touch Control
Module
X
O
O
O
O
O
PSU
X
O
O
O
O
O
Battery
X
O
O
O
O
O
This form is prepared in compliance with the provisions of SJ/T 11364.
O: The level of toxic or hazardous materials present in this component and its parts is
below the limit specified by GB/T 26572.
X: The level of toxic of hazardous materials present in the component exceed the
limits specified by GB/T 26572, but is still in compliance with EU Directive 2011/65/EU
(RoHS 2).
Notes:
1. The Environment Friendly Use Period indicated by labelling on this product is
applicable only to use under normal conditions.
2. Individual components including the CPU, RAM/memory, HDD, optical drive, and
PSU are optional.
3. LCD Module and Touch Control Module only applies to certain products which
feature these components.

Preface XI
IoT Gateway System SRG-4858P
Table of Contents
Chapter 1 - Product Specifications.......................................................................................... 1
1.1 Specifications............................................................................................................ 2
Chapter 2 –Hardware Information ....................................................................................... 4
2.1 Dimensions ............................................................................................................... 5
2.2 I/O Location.............................................................................................................. 6
2.3 Wireless Hardware Setup....................................................................................... 8
2.3.1 Mini Card Installation .................................................................................. 8
2.3.2 SIM Card Installation ................................................................................... 9
Chapter 3 –Gateway Setup and Configuration..................................................................10
3.1 Connecting to System ........................................................................................... 11
3.2 User Account Management .................................................................................14
3.3 Network Settings ....................................................................................................15
3.3.1 Check IP Settings: .......................................................................................15
3.3.2 Set Static IP ..................................................................................................16
3.3.3 Set Dynamic IP ............................................................................................17
3.4 Cellular Network Settings......................................................................................18
3.4.1 Check Cellular Module Status ..................................................................18
3.4.2 Dial Up Cellular Module ............................................................................19
3.5 Wi-Fi and Bluetooth Network Settings .............................................................20
3.5.1 Scan for Wi-Fi Access Points ...................................................................20
3.5.2 Connect to Wi-Fi Access Point................................................................20
3.5.3 Disconnect from Wi-Fi Access Point.......................................................21
3.5.4 Check Wi-Fi Connection Status ...............................................................21
3.5.5 Enter Bluetooth Control Panel ................................................................22
3.5.6 Scan for Bluetooth Device .......................................................................22
3.5.7 Pair Bluetooth Device................................................................................23

Preface XII
IoT Gateway System SRG-4858P
3.5.8 Check Pared Bluetooth Devices..............................................................23
3.6 System Management............................................................................................24
3.6.1 Check OS Version ......................................................................................24
3.6.2 Check Storage Status................................................................................25
3.6.3 Shut Down the System .............................................................................25
3.6.4 Set Date and Time.....................................................................................26
3.7 I/O Management...................................................................................................27
3.7.1 Control GPIO (LEDs)..................................................................................27
3.7.2 RS-485 2-wire Pin Definition ...................................................................28

IOT Gateway System SRG-4858P
Chapter 1
Chapter 1 - Product Specifications

Chapter 1 –Product Specifications 2
IoT Gateway System SRG-4858P
1.1 Specifications
General
CPU
ARM Cortex-A8 800 MHz RISC Processor
Memory
DDR3L 1GB
Storage
eMMC 8GB
OS Support
Debian 10 (Buster)
RTC Supported
Yes
Security
−
Interface
Ethernet Ports
2 x Auto-sensing 10/100/1000 Mbps ports (RJ45
connector)
USB Ports
1 x USB2.0 (Type A Connector)
Serial Ports
10 x RS485 (Terminal Block)
Expansion Ports
1 x Mini PCIe Slot
SIM Slot
1 x Micro SIM
SD Slot
1 x microSD
Debug Port
1 x Mini USB
Function Port
−
Radio Frequency Interface
Wi-Fi
−
Bluetooth
−

Chapter 1 –Product Specifications 3
IoT Gateway System SRG-4858P
Physical Characteristics
Dimensions
5.67” x 3.94” x 1.73” (144mm x 100mm x 44mm)
Weight
512 g
Mounting
DIN-rail mounting,
Wall Mount
Environmental
Operating Temperature
32°F ~ 140°F (0°C ~ 60°C)
Operating Humidity
10% ~ 95% relative humidity, non-condensing
Storage Temperature
-40°F ~ 176°F (-40°C ~ 80°C)
Vibration
2 Grms at IEC 60068-2-64, random wave, 5-500
Hz, 1 hour per axis (without USB devices attached)
Certification
EMC
EN 55032/24
EMI
FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD:Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 0.5 kV
IEC 61000-4-6 CS: 0.15 to 80MHz; 3 Vrms
IEC 61000-4-8 PFMF: 50Hz/60Hz, 1 A/m
CE Red
−
Green Product
RoHS
MTBF
855,890 Hours

IOT Gateway System SRG-4858P
Chapter 2
Chapter 2 –Hardware Information

Chapter 2 –Hardware Information 5
IoT Gateway System SRG-4858P

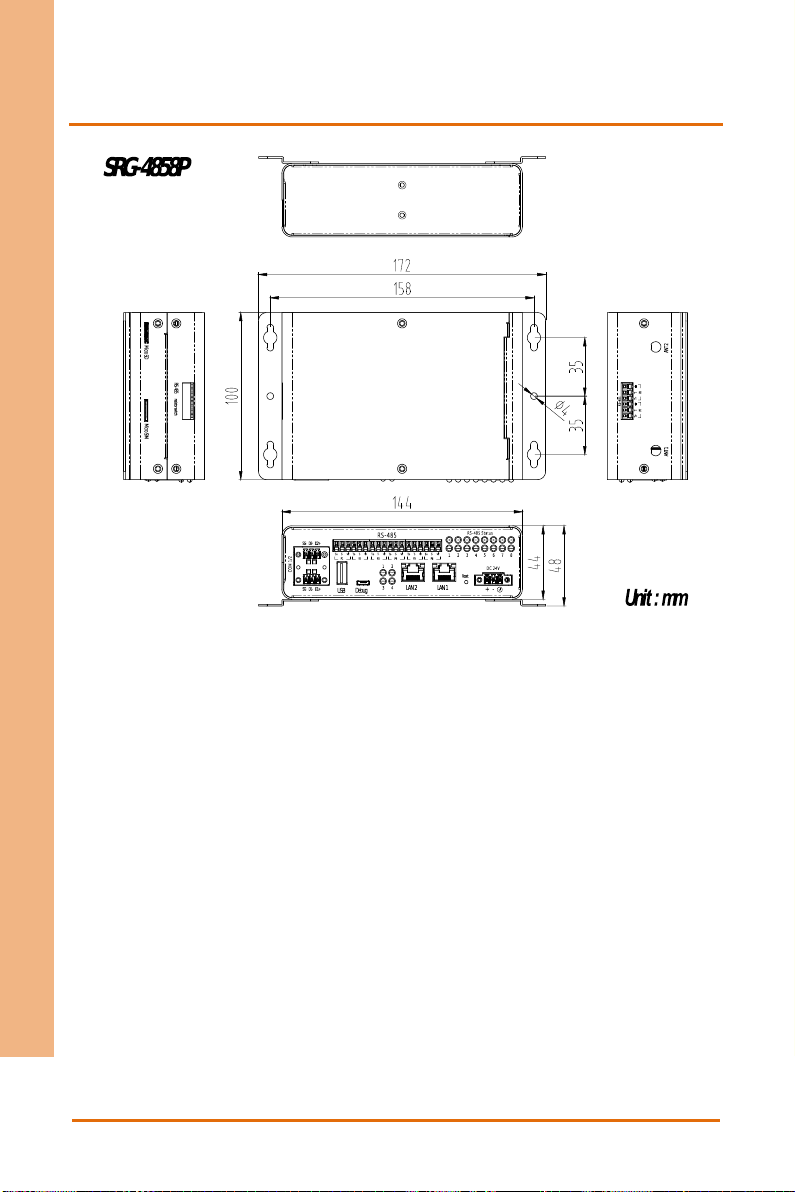

2.1 Dimensions

Chapter 2 –Hardware Information 6
IoT Gateway System SRG-4858P
2.2 I/O Location
Reference
Function
1
DC Power Jack
Supports DC 9~ 30V input
2
Reset Button
Reboots the system
3
Gigabit LaN Port
Standard RJ-45 jack for connection to Local Area Network (LAN).
LED
Function
Status
Yellow
Active status
ON: LAN link is established.
OFF: LAN link is not established.
Blink: Data received and transmitted.
Orange
/Green
Link Speed
status
Green on: 10/100Mbps.
Orange on: 1000Mbps.
4
LED
User can control LED with GPIO.
Control command for LED 1:
See Chapter 3 for more information
turn on: echo 1 > /sys/class/leds/srt3352:led1/brightness
turn off: echo 0 > /sys/class/leds/srt3352:led1/brightness

Chapter 2 –Hardware Information 7
IoT Gateway System SRG-4858P
Reference
Function
5
Debug Port
User can log into the gateway’s operating system via SSH with debug
port (Micro USB connector)
6
USB2.0 Port
USB2.0 Type A Connector, supports USB mass storage devices
7
RS-485 Port
Dual RS-485 Port
8
RS-485 Port
6 x RS-485 Ports
9
RS-485 Port
Dual RS-485 Port
10
Antenna Connector
Supports Antennas for 2.4GHz or LTE
11
RS-485 Terminal Resistor
Used with long distance connection between gateway and RS-485
device
12
microSD Slot
Inserting a microSD slot can help increase storage capacity
13
Micro SIM Slot
Insert a Micro SIM card here when using an LTE Mini Card Module

Chapter 2 –Hardware Information 8
IoT Gateway System SRG-4858P
2.3 Wireless Hardware Setup
The SRG-4858P features both a SIM Card and Mini Card slot for connecting to wireless
networks such as 4G. This section details how to install a SIM Card and 4G/LTE module
on the mini card slot.
2.3.1 Mini Card Installation
Step 1: Remove the six screws securing the top cover.
Step 2: Insert the 4G/LTE module into the Mini Card slot at an angle, then push down
gently and secure with a screw. Connect the coaxial cable to the 4G/LTE module.
Step 3: Replace the top cover and secure with the screws.
