AiGuru SV1
Internet Video Phone
User Manual

Copyright © 2008 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may
be reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language in any form or by any means, except documentation kept by the
purchaser for backup purposes, without the express written permission of ASUSTeK
COMPUTER, INC. (“ASUS”).
Products and corporate names mentioned in this manual may or may not be
registered trademarks or copyrights of their respective companies, and are used
for identification purposes only. All trademarks are the property of their respective
owners.
Every effort has been made to ensure that the contents of this manual are correct
and up to date. However, the manufacturer makes no guarantee regarding the
accuracy of its contents, and reserves the right to make changes without prior
notice.
E4001
First Edition V1
August 2008
Skype™ Version 1.9
Copyright 2003-2008 Skype Limited
Patents Pending, Skype Limited
Skype, SkypeIn, SkypeOut, associated trade marks and logos and the“S”symbol are
trade marks of Skype Limited.
Portions Copyright © 2001-2008 Joltid™ Limited. All rights reserved.
Patents Pending, Joltid Limited. www.joltid.com

ASUS AiGuru SV1 3
Contents
Contents....................................................................................................... 3
Notices..........................................................................................................5
Safety precautions....................................................................................6
Notes for this manual.............................................................................. 6
Safety information....................................................................................7
Welcome......................................................................9
What is Skype?..................................................................................... 9
Enjoy ASUS AiGuru SV1 Internet Video Phone!.......................9
Package contents....................................................................................10
AiGuru SV1 product specifications...................................................11
Getting to know your SV1........................................12
Front view..................................................................................................12
Rear view....................................................................................................14
Installing the battery .............................................................................15
Turning on the videophone................................................................16
Setting up your SV1..................................................17
Basic and network settings .................................................................17
Using your SV1..........................................................21
Idle screen .................................................................................................21
Main menu ................................................................................................21
Calls .............................................................................................................22
Video calling people in your Contact list .......................................22
Calling a mobile or telephone number....................................24
Answering calls .................................................................................25
Contacts .....................................................................................................26
Viewing a Contact............................................................................26
Adding a Contact .............................................................................27
Searching a Contact ........................................................................27
History.........................................................................................................28

4 ASUS AiGuru SV1
Contents
Status...........................................................................................................29
See myself..................................................................................................29
Account ......................................................................................................29
Settings.......................................................................................................30
Network settings ..............................................................................30
Advanced settings ...........................................................................32

ASUS AiGuru SV1 5
Notices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with manufacturer’s instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
The use of shielded cables for connection of the monitor to
the graphics card is required to assure compliance with FCC
regulations. Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate this equipment.

6 ASUS AiGuru SV1
Safety precautions
For your safety and to keep the product in good operating
condition, read the following tips and reminders carefully before
using the product.
Always keep the product dry and free from dust.
Make sure that the product is switched off before
removing/replacing the battery.
Refer product servicing only to qualified personnel.
Use the product following the instructions in this User
Manual.
Notes for this manual
To ensure that you perform certain tasks properly, take note of the
following symbols used throughout this manual.
WARNING: Vital information that you MUST follow to prevent
injury to yourself.
IMPORTANT: Instructions that you MUST follow to complete a
task.
TIP: Tips and useful information that help you complete a task.
NOTE: Additional information for special situations.

ASUS AiGuru SV1 7
Safety information
This device is designed and tested to meet the latest standards of
safety for information technology equipment. However, to ensure
your safety, it is important that you read the following safety
instructions.
Setting up your device
• Do not use this device near water or a heated source such as a
radiator.
• Set up the device on a stable surface.
• Use this device in environments with ambient temperatures
between 5˚C and 40˚C.
• If you use an extension cord, ensure that the total ampere rating
of the devices plugged into the extension cord does not exceed
its ampere rating.
Care during use
• This device is intended for use with power supplied fromdevice is intended for use with power supplied fromis intended for use with power supplied from
supplied battery charger and/or power supply unit. Other usage
will invalidate any certification given to this device and may bedevice and may beand may be
dangerous.
• The supplied battery model is ASUS, AL21-SV1. Risk of explosionRisk of explosion
if battery is replaced by an incorrect type. Dispose of used
batteries according to the manufacturer’s instructions.
• Do not walk on the power cord or allow anything to rest on it.
• Do not spill water or any other liquids on the device.
• When the device is turned off, a small amount of electrical
current still flows. Always unplug power and network cables from
the power outlets before cleaning the device.
• If you encounter the following technical problems with the
device, unplug the power cord and contact a qualified service
technician or your retailer.
• The power cord or plug is damaged.

8 ASUS AiGuru SV1
• Liquid has been spilled into the device.
• The device does not function properly even if you follow
the operating instructions.
• The device was dropped or the cabinet is damaged.
• The device performance changes.
This symbol of the crossed out wheeled bin indicates that the
product (electrical, electronic equipment, and mercury-containing
button cell battery) should not be placed in municipal waste.
Check local regulations for disposal of electronic products.

ASUS AiGuru SV1 9
Welcome
Thank you for choosing ASUS AiGuru SV1 Internet Video Phone.
This device is designed to facilitate Skype™-related features,
allowing you to make calls using your wired/wireless network
connection.
What is Skype?
With Skype you can make free voice and video calls to other people
on Skype.You can also call landlines and mobiles anywhere in the
world at fantastically low rates.
Get started by creating your own unique Skype Name and then
signing in—done directly on ASUS AiGuru SV1.You will soon be
enjoying free Skype-to-Skype calls to friends and family. And best of
all, you will hear them with excellent sound quality and see them in
perfect vision.
Enjoy ASUS AiGuru SV1 Internet Video Phone!
ASUS AiGuru SV1 gives you the calling functionality of using
Skype—without needing a computer.Your Skype contact list is
displayed on the SV1 screen. Choose who you want to talk to from
the list, press the Call key, and get ready to talk. SV1 also supports
calling landlines and mobiles. It rings when you have an incoming
call, and shows the caller’s ID on the screen.You can also listen to
your Skype voicemail on SV1.

10 ASUS AiGuru SV1
Package contents
Congratulations on your purchase of ASUS AiGuru SV1.The
following illustration displays the package contents of your new
videophone. If any of the below items is damaged or missing,
contact your retailer.
AiGuru SV1 AC adapter Power cord
Quick Guide
Lithium battery Ethernet cable Quick Start Guide
Support CD Warranty card

ASUS AiGuru SV1 11
AiGuru SV1 product specications
Key feature
Videophone for Skype supports
• Skype-to-Skype calls (video & audio)
• Calls to landlines and mobiles
• Incoming calls via an online number
• Call forwarding
• Skype Voicemail
• Conference calls (as a guest only)
Interface Wireless: 802.11 b/g
Wired: 10/100Mb Ethernet port
Protocols DHCP/Static IP/PPPOE
Dimension 202 (L) x 123 (W) x 253 (H) mm
Weight 1.6 kg
Display 800 x 480 Pixel 7”TFT-LCD
Camera type 0.3 Megabyte Pixels CMOS (640 x 480)
Audio Speaker
Internal Microphone
Power supply AC Adaptor: 12V/3A
Battery life Talking Time: 20 mins
Standby Time: 30 mins
Battery charging time 2 hours
Operating distance Wireless : 50 m (actual transmission distance may vary
depending on operating conditions)
Keys
Power button
Volume keys
5-way Navigation keys (Up, Down, Left, Right, and
Select)
Menu key
Back key
Call key
End key
I/O connectors
3.5 mm Headphone jack and Microphone jack
RJ-45 connector
USB type A connector
DC Jack
Battery connector

12 ASUS AiGuru SV1
Getting to know your SV1
Front view
Webcam
This built-in webcam allows you to make video calls and can
also take a snapshot of yourself.
Webcam LED
This LED lights up green to indicate that the webcam is
activated.
Microphone
This is a built-in microphone.
1
2
3
1 2 3
4
5
6
7
9
11 8
12
10

ASUS AiGuru SV1 13
4
5
6
7
9
10
8
11
LCD screen
Navigate through your contacts and see the person you are
talking to.
You can adjust the screen angle by gently pushing down or pulling
up the front panel.
Back key
Press to go back to the previous menu. Press repeatedly to
return to the idle screen.
Select key
Press to confirm your choice. From the idle screen, press to open
the main menu.
Up, Down, Left, Right Navigation keys
Press to scroll up/down/left/right through the menu options to
make selections. From the idle screen, press Up to select Skype
presence, Down to enter Contact list, and Left/Right to open
the main menu.
Speaker
The built-in loudspeaker lets you hear the person you are
talking to.
End key
Press to stop an incoming call or cancel a call you are dialing.
Press to go directly to the idle screen.
Volume keys
Press to increase/decrease the volume.
Call key
Press to dial or answer calls. From the idle screen, press to show
the Contact list.
Menu key
Press to go directly to the main menu.
12

14 ASUS AiGuru SV1
Power button
Press to turn on/off the videophone.
Microphone jack
This jack allows you to connect a microphone. Using this jack
automatically disables the built-in microphone.
Headphone jack
This jack allows you to connect amplified speakers or
headphones. Using this jack automatically disables the built-in
speakers.
LAN port
The RJ-45 LAN port supports a standard Ethernet cable for
connection to a local network.
Rear view
13
14
15
16
18 17
13
14
15
16

ASUS AiGuru SV1 15
Installing the battery
USB port
The Universal Serial Bus (USB) port is compatible with USB
devices.
Power input (DC 12V)
The supplied power adapter converts AC power to DC power
for use with this jack. Power supplied through this jack
supplies power to the videophone.To prevent damage to the
videophone, always use the supplied power adapter.
The power adapter may become warm or hot when in use. Do not
cover the adapter and keep it away from your body.
18
17

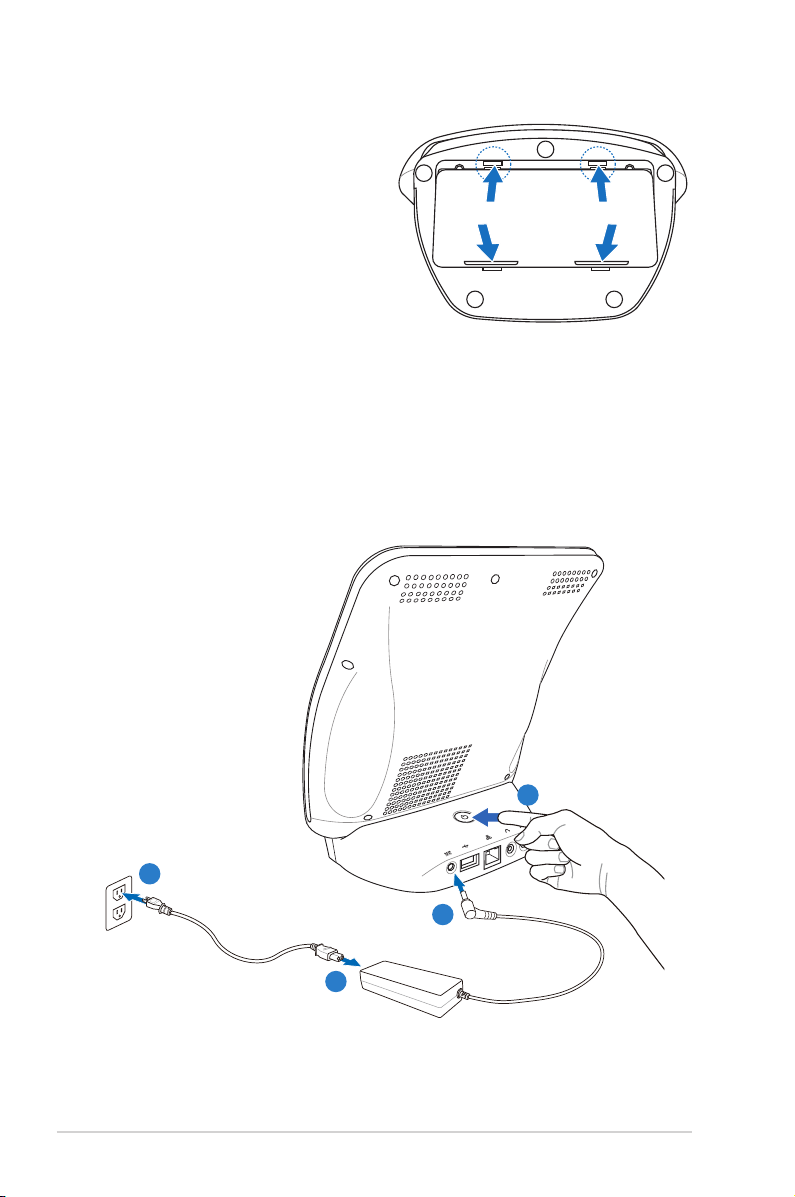

1. Lay the device on its back
with the screen facing up.
Use your thumbs to release
the battery compartment
cover tabs to open the
cover.
2. Insert the battery into
the battery compartment
noting the correct
orientation.

16 ASUS AiGuru SV1
Turning on the videophone
Connect the supplied AC adapter to the DC IN jack on the rear panel,
and then press the power button to turn on the device.The device
screen lights up to show the Skype welcome message.
2
3
1
4
3. Insert the battery cover into
the compartment slots and
firmly press down the cover
until it snaps in place.

ASUS AiGuru SV1 17
Setting up your SV1
After turning on your SV1 for the first time, you will need to
configure the following settings.
Basic and network settings

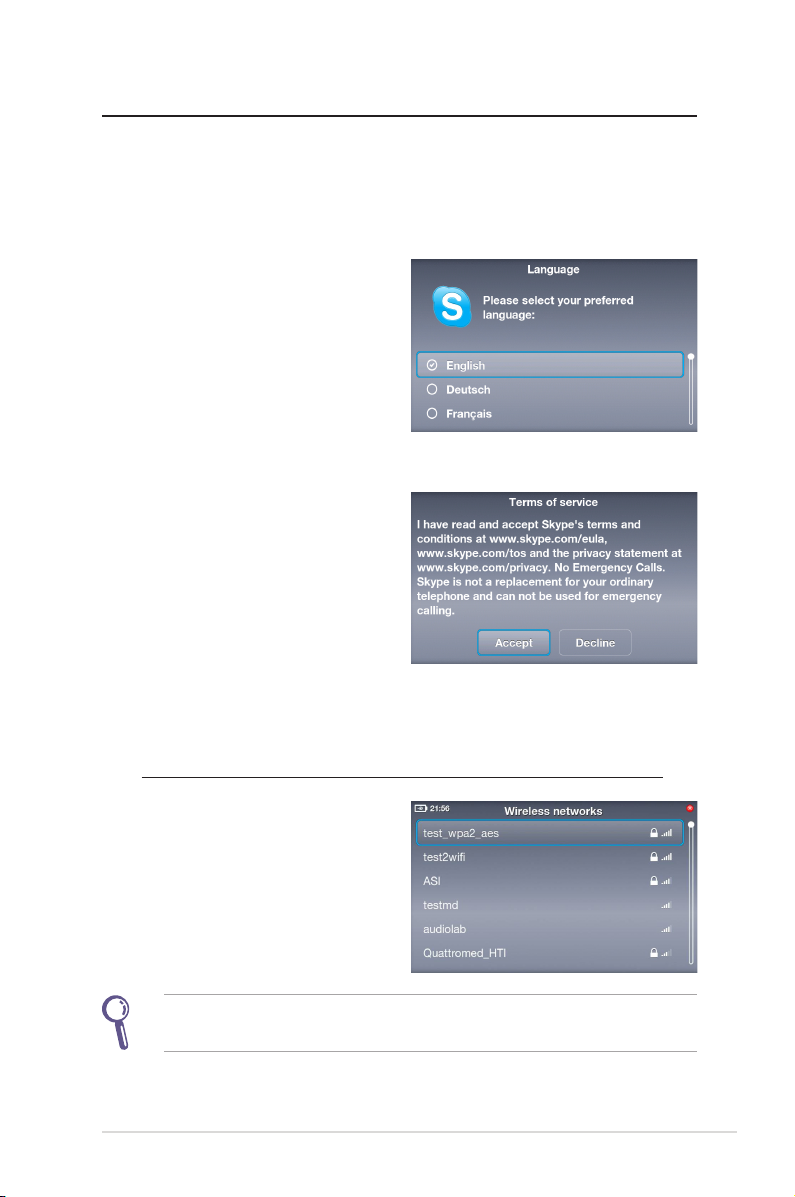

1. Press the Up/Down key
to choose your language
and press the Select key to
confirm your choice.
2. Read Skype’s Terms of
service. Press the Left/Right
key to highlight Accept, and
then press the Select key.
3A. Configure network settings for the device.
Wireless connection (not plugging in the Ethernet cable)
A list of wireless networks
displays. Highlight one you
have access to and then
press the Select key to start
connecting.
If the network is secured, enter the password using the onscreen
keybaord.

18 ASUS AiGuru SV1
4. To set hour, press the
Up/Down key to select
a number and press the
Select key to confirm. Set
minute in the same way, and
then select OK.
5. To set day, month, and year,
follow the instructions as
above.When done, select
OK.
6. To time zone, press the
Up/Down key to highlight
your time zone and press
the Select key to confirm.
3B. Wired connection (plugging in the Ethernet cable)
If the device has already been connected to your home router, it
will connect to the Internet automatically.
• For other types of network connections, refer to“Network
settings”section on page 30.
• It is not possible to connect to networks that require web
browser authentication.

ASUS AiGuru SV1 19

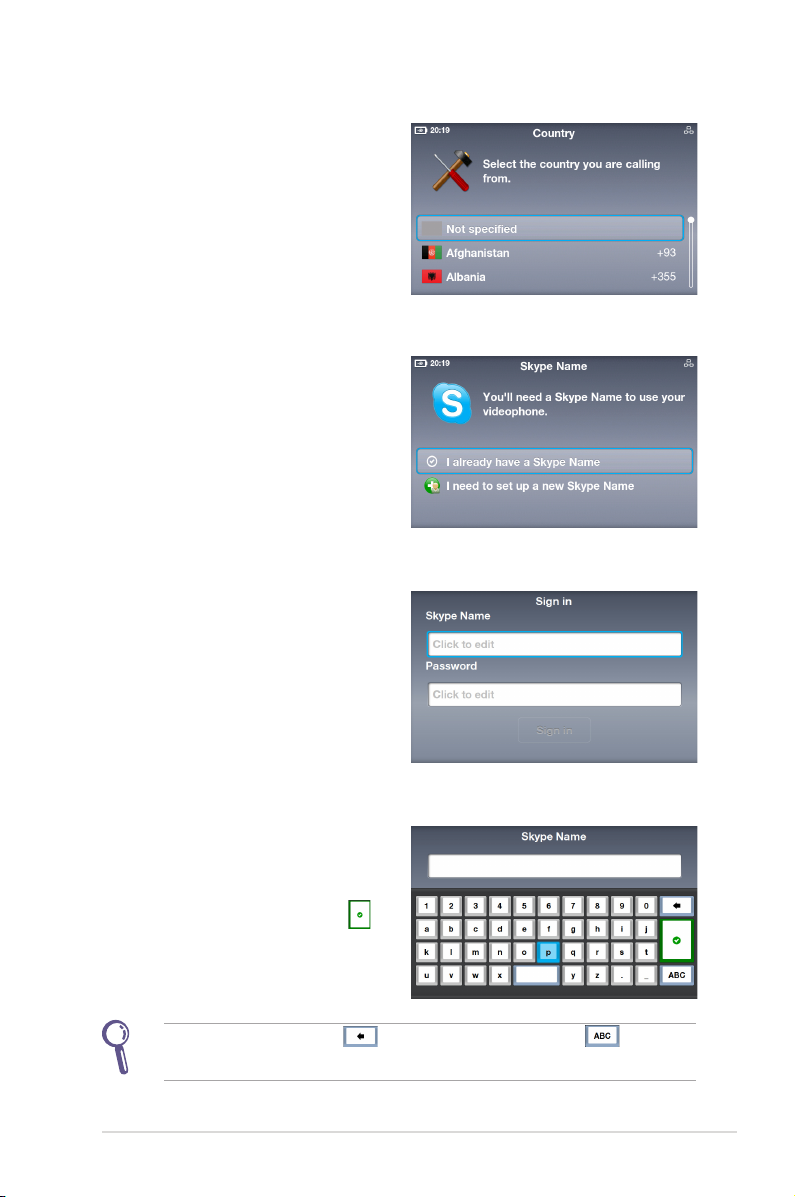

7. Highlight the country you
are calling from and press
the Select key to confirm.
8. Choose a Skype Name.
If you already have one,
select the first option. If not,
select the second option
and follow the onscreen
instructions to set up a new
name.
9. Highlight the Skype Name
field and press the Select
key to display the onscreen
keyboard.
10. Highlight a letter/number
and press the Select key to
enter.When done, highlight
the onscreen Enter key
and then press the Select
key to confirm.
Select the Delete key to delete text. Select ABC to
display more text options.

20 ASUS AiGuru SV1

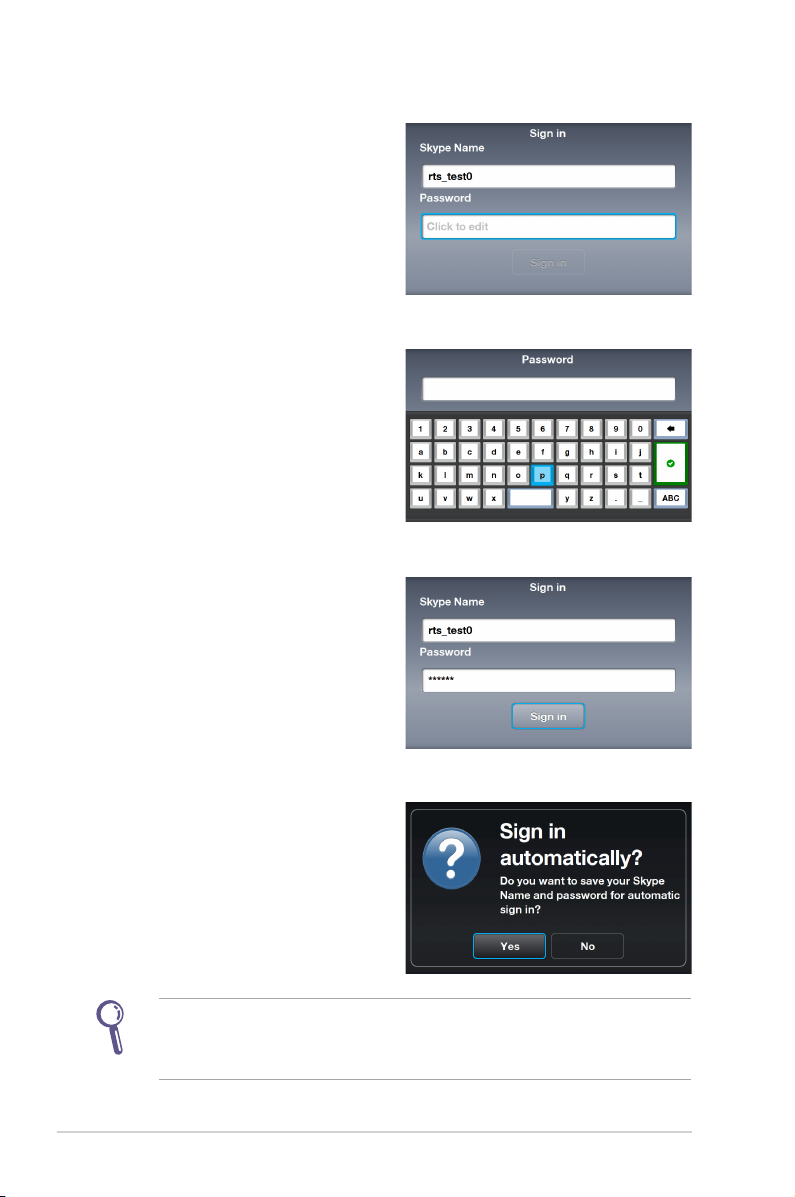

13. Highlight Sign in and press
the Select key.
14. If you want to sign yourself
in automatically when you
turn on the device, select
Yes. If not, select No.
You will be asked if you would like to take a video snapshot of
yourself to use in your profile. Select Yes and the device webcam
will be activated. Select Snapshot and your photo will be taken.
12. Enter your password
following the instructions in
step 10.
11. Highlight the Password
field and press the Select
key to display the onscreen
keyboard.
