Asus MCC-25G/41202-2S User manual

25 Gigabit/s Ethernet card
MCC-25G/41202-2S
User Guide

ii
E14807
First Edition
September 2018
Copyright © 2018 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any language in any form or by any means,
except documentation kept by the purchaser for backup purposes, without the express written permission
of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.

iii
Contents
About this guide......................................................................................................... iv
How this guide is organized ............................................................................iv
Where to nd more information.......................................................................iv
Conventions used in this guide ....................................................................... v
Typography ..................................................................................................... v
MCC-25G/41202-2S specifications summary........................................................... vi
Chapter 1: Product Introduction
1.1 Welcome! ....................................................................................................1-2
1.2 Package contents ...................................................................................... 1-2
1.3 System requirements.................................................................................1-2
1.4 Card layout .................................................................................................1-3
1.5 LED indications..........................................................................................1-4
1.6 Installing the MCC-25G/41202-2S Ethernet card..................................... 1-5
Chapter 2: Driver Installation
2.1 Windows®Server OS Driver Installation.................................................. 2-2
2.2 Linux OS Driver Installation...................................................................... 2-3
Appendix
Simplified EU Declaration of Conformity.............................................................. A-2
ASUS contact information...................................................................................... A-3

iv
About this guide
This user guide contains the information you need when installing and conguring the server
management board.
How this guide is organized
This guide contains the following parts:
• Chapter1:ProductIntroduction
This chapter describes the MCC-25G/41202-2S Ethernet card features and the new
technologies it supports.
• Chapter2DriverInstallation
This chapter provides instructions for installing the Ethernet card drivers on different
operating systems.
Where to find more information
Refer to the following sources for additional information and for product and software updates.
1. ASUS websites
The ASUS website provides updated information on ASUS hardware and software
products. Refer to the ASUS contact information.
2. Optional documentation
Your product package may include optional documentation, such as warranty yers,
that may have been added by your dealer. These documents are not part of the
standard package.

v
Typography
Bold text Indicates a menu or an item to select.
Italics Used to emphasize a word or a phrase.
<Key> Keys enclosed in the less-than and greater-than sign means
that you must press the enclosed key.
Example: <Enter> means that you must press the Enter or
Return key.
<Key1+Key2+Key3> If you must press two or more keys simultaneously, the key
names are linked with a plus sign (+).
Example: <Ctrl+Alt+Del>
Command Means that you must type the command exactly as shown,
then supply the required item or value enclosed in brackets.
Example: At the DOS prompt, type the command line:
format a:
DANGER/WARNING: Information to prevent injury to yourself when trying to
complete a task.
CAUTION: Information to prevent damage to the components when trying to
complete a task.
NOTE: Tips and additional information to help you complete a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
Conventions used in this guide
To make sure that you perform certain tasks properly, take note of the following symbols
used throughout this manual.

vi
MCC-25G/41202-2S specifications summary
Controller Cavium QL41202
Data Transfer Rate 25Gbps Ethernet
Connection Ports Dual Port, SFP28
Host Interface PCIe 3.0 x8
I/O Virtualization
SR-IOV
NIC Partitioning (NPAR)
Network Virtualization using Generic Routing Encapsulation
(NVGRE)
Virtual Extensible LAN (VXLAN)
Generic Network Virtualization Encapsulation (GENEVE)
Jumbo Frame Yes (9,600 bytes)
RDMA Yes (RoCE v2, iWARP)
Boot Support Pre-eXecution Environment (PXE)
iSCSI boot
Form Factor OCP Mezzanine Card
Dimensions 2.68 x 4.33 inch
* Specifications are subject to change without notice.

1
Product Introduction
This chapter offers the MCC-25G/41202-2S Ethernet card
features and the new technologies it supports.
Chapter 1: Product Introduction

1-2 Chapter 1: Product Introduction
1.1 Welcome!
Thank you for buying an ASUS®MCC-25G/41202-2S 25 Gigabit/s Ethernet card!
Before you start installing the Ethernet card, check the items in your package with the list
below.
1.2 Package contents
Check your package for the following items.
1.3 System requirements
Before you install the MCC-25G/41202-2S Ethernet card, check if the system meets the
following requirements:
• ServerorworkstationmotherboardwithanOCPslot.
• SupportedoperatingsystemsareWindows® andLinuxoperatingsystems.Pleaserefer
to ASUS website for the latest updates.
Standard Gift Box Pack
ASUS MCC-25G/41202-2S
Ethernet card 1
Front LED Signal Cable* 1
Packing Quantity 1 pc per carton
* The Front LED Signal Cable is for ASUS Server Systems only.
Ifanyoftheaboveitemsaredamagedormissing,contactyourretailer.

ASUS MCI-10G/82599-2S 1-3

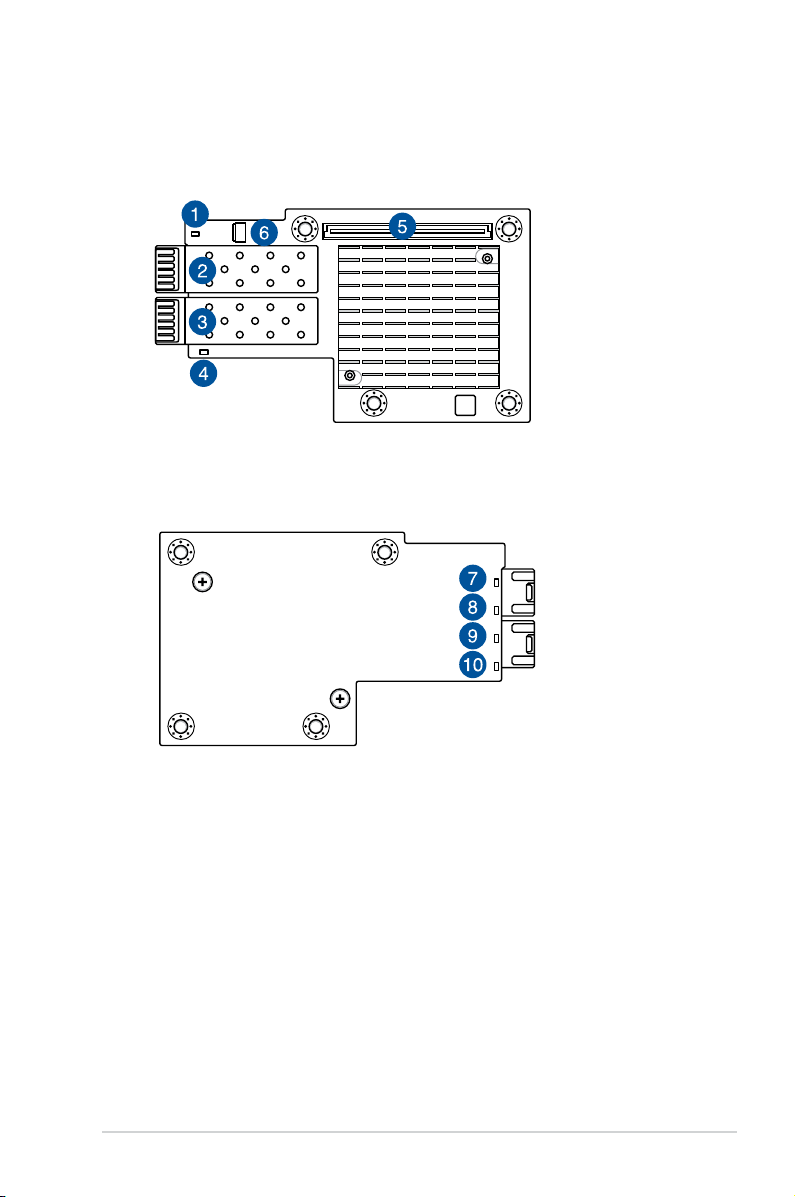

1.4 Card layout
1. SFP1LED3(Speed) 6. AUXLED_CON1Connector
2. LANPort1(SFP28Cage) 7. SFP1LED2(Speed)
3. LANPort2(SFP28Cage) 8. SFP1LED1(Activity)
4. SFP2LED3(Speed) 9. SFP2LED2(Speed)
5. OCP2.0ConnectorA 10. SFP2LED1(Activity)
Front view
Back view

1-4 Chapter 1: Product Introduction
SFP1LED3 (Speed)
SFP1LED2 (Speed)
SFP1LED1 (Activity)
SFP2LED3 (Speed)
SFP2LED1 (Activity)
SFP2LED2 (Speed)

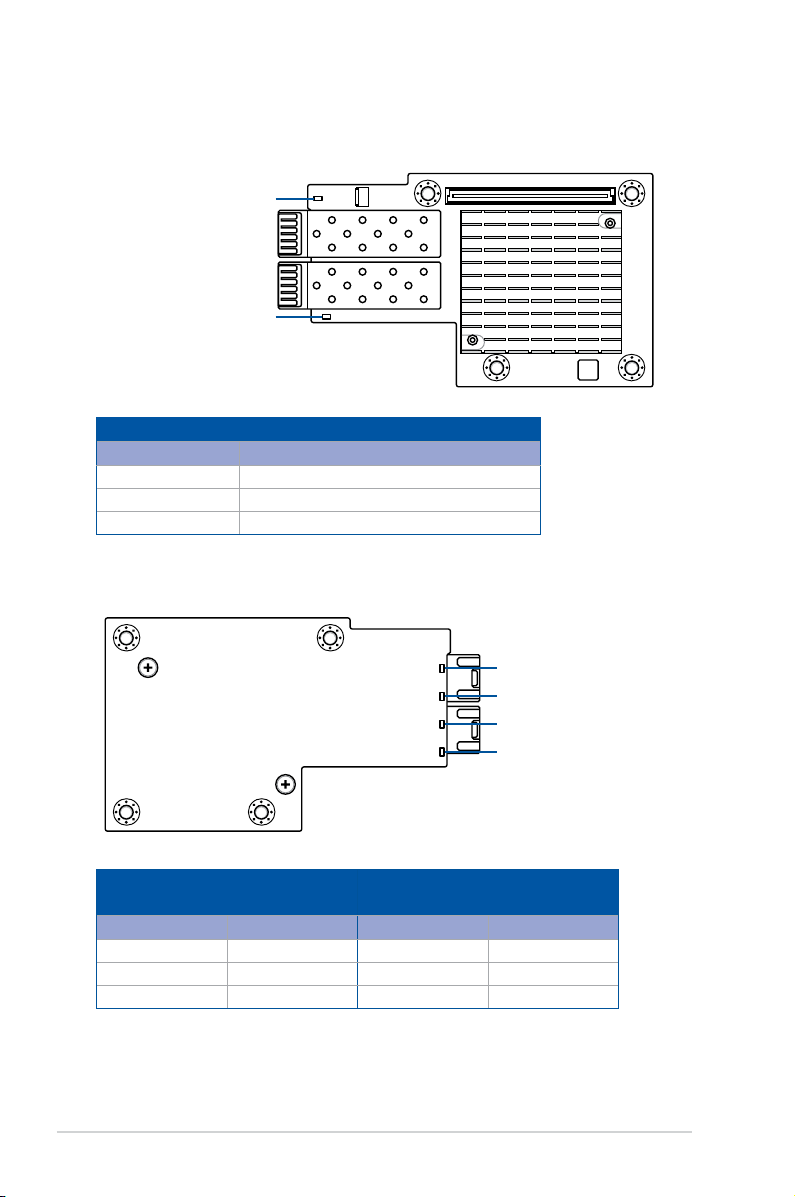

1.5 LED indications
Activity / Link LED
(SFP1LED1 / SFP2LED1)
Speed link LED
(SFP1LED2 / SFP2LED2)
Status Description Status Description
OFF Noactivity OFF Nolink
Blinking Green Dataactivity Amber 10 Gb/s link
Green 25 Gb/s link
Speed LED (SFP1LED3 / SFP2LED3)
Status Description
OFF Nolink
Amber 10 Gb/s link
Green 25 Gb/s link
Front view
Back view

ASUS MCI-10G/82599-2S 1-5
1.6 Installing the MCC-25G/41202-2S Ethernet card
To install a MCC-25G/41202-2S Ethernet card:
1. PreparetheMezanninecard.
2. ConnecttheblackendoftheLEDSignalCabletotheOCP_LED1headeronthe
motherboard.
OCP_LED1
LED Signal Cable
3. ConnectthewhiteendoftheLEDSignalCabletotheAUXLED_CON1Connectoron
the card.
AUXLED_CON1 LED Signal Cable

1-6 Chapter 1: Product Introduction

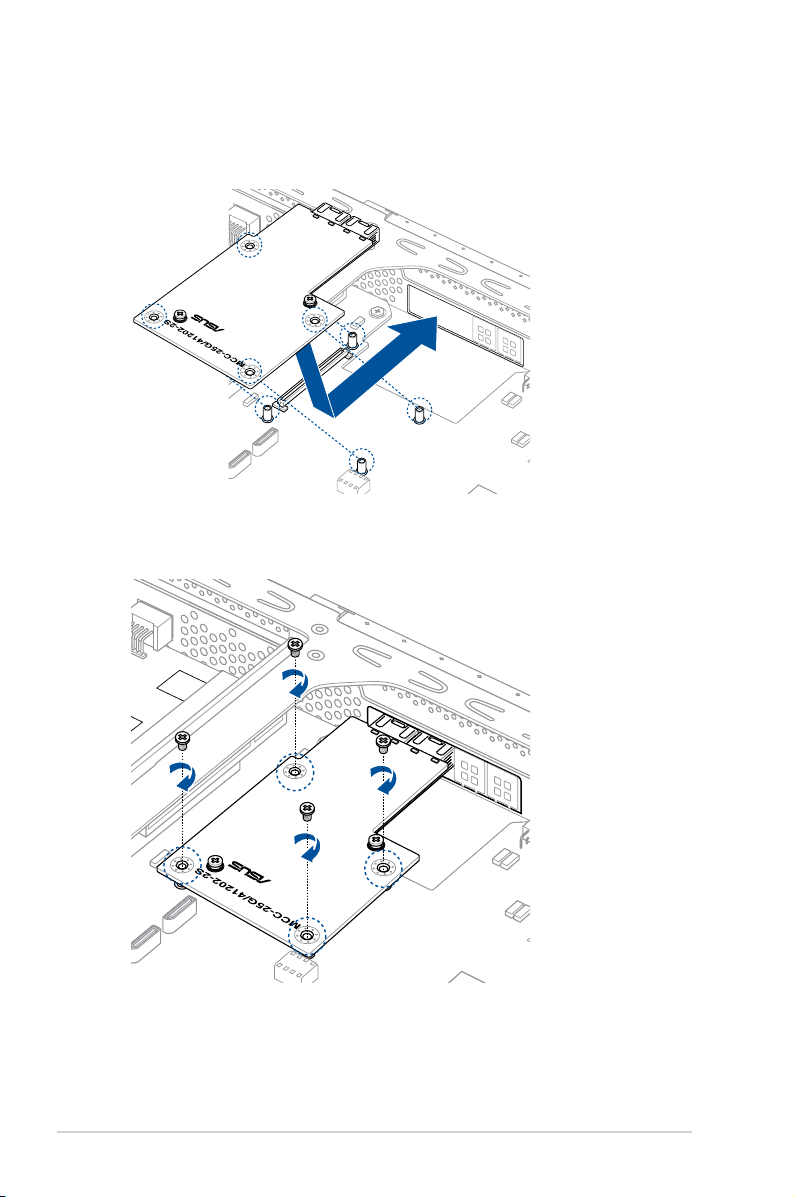

4. Align and insert the screw holes of the MCC-25G/41202-2S Ethernet card into the
stand screws, then insert the ports of the MCC-25G/41202-2S Ethernet card into the
portslotsontheserverchassisasshown.
5. SecuretheMCC-25G/41202-2SEthernetcardwiththefour(4)bundledscrews.

2
Driver Installation
This chapter provides instructions for installing the Ethernet card
drivers on different operating systems.
Chapter 2: Driver Installation

2-2 Chapter 2: Driver Installation
2.1 Windows®Server OS Driver Installation
To install the Ethernet card driver for Windows®Server OS:
1. Restart the computer, and then log on with Administrator privileges.
2. Insert the Support DVD to the optical drive. The Support DVD automatically displays
the Driver menu if Autorun is enabled in your computer.
• IfWindows®automatically detects the LAN controllers and displays a New Hardware
Found window, click Cancel to close this window.
• IfAutorunisNOTenabledinyourcomputer,browsethecontentsoftheSupportDVD
tolocatetheleSetup.exe. Double-click Setup.exe to run the support DVD.
3. Check
QLogic FastLinQ Driver, then select Install.
4. The installation window appears.

ASUS MCI-10G/82599-2S 2-3
5. Follow the onscreen instructions to complete the installation.
2.2 Linux OS Driver Installation
1. Copy the rhel7u4 folder on the support DVD onto your system.
2. Install the following drivers:
• rpm–Uvhkmod-qlgc-fastlinq-<Version>.rhel7u4.x86_64.rpm
• rpm–Uvhqlgc-fastlinq-<Version>.rhel7u4.src.rpm
3. Check if the drivers are installed properly:
dmesg
1. Copy the sles12sp3 folder on the support DVD onto your system.
2. Install the following drivers:
• rpm–Uvhqlgc-fastlinq-kmp-default-<Version>.sles12sp3.x86_64.rpm
• rpm–Uvhqlgc-fastlinq-<Version>.sles12sp3.src.rpm
3. Check if the drivers are installed properly:
dmesg
To install the Ethernet card driver for Red Hat Enterprise Linux 7.4:
To install the Ethernet card driver for SUSE Linux Enterprise Server 12.3:
• ToinstalltheEthernetcarddriverforotherLinuxOS,pleaserefertotheINSTALL.txt
leunderDriver DVD\Linux on the support DVD for more information.
• ForRDMAfunctionsupport,pleaseinstalltheRDPMdriverundertherespectiveLinux
OS folder on the support DVD.

2-4 Chapter 2: Driver Installation

A
Appendix
Appendix

A-2 Appendix
Română ASUSTeK Computer Inc. declară că acest dispozitiv se conformează
cerinţelor esenţiale şi altor prevederi relevante ale directivelor conexe. Textul
complet al declaraţiei de conformitate a Uniunii Europene se găseşte la:
www.asus.com/support
Srpski ASUSTeK Computer Inc. ovim izjavljuje da je ovaj uređaj u saglasnosti
sa osnovnim zahtevima i drugim relevantnim odredbama povezanih
Direktiva. Pun tekst EU deklaracije o usaglašenosti je dostupan da adresi:
www.asus.com/support
Slovensky Spoločnosť ASUSTeK Computer Inc. týmto vyhlasuje, že toto
zariadenie vyhovuje základným požiadavkám a ostatým príslušným
ustanoveniam príslušných smerníc. Celý text vyhlásenia o zhode pre štáty EÚ
je dostupný na adrese: www.asus.com/support
Slovenščina ASUSTeK Computer Inc. izjavlja, da je ta naprava skladna z
bistvenimi zahtevami in drugimi ustreznimi določbami povezanih direktiv.
Celotno besedilo EU-izjave o skladnosti je na voljo na spletnem mestu:
www.asus.com/support
Español Por la presente, ASUSTeK Computer Inc. declara que este dispositivo
cumple los requisitos básicos y otras disposiciones pertinentes de las
directivas relacionadas. El texto completo de la declaración de la UE de
conformidad está disponible en: www.asus.com/support
Svenska ASUSTeK Computer Inc. förklarar härmed att denna
enhet överensstämmer med de grundläggande kraven och andra
relevanta föreskrifter i relaterade direktiv. Fulltext av EU-försäkran om
överensstämmelse nns på: www.asus.com/support
Українська ASUSTeK Computer Inc. заявляє, що цей пристрій відповідає
основним вимогам та іншим відповідним положенням відповідних
Директив. Повний текст декларації відповідності стандартам ЄС
доступний на: www.asus.com/support
Türkçe AsusTek Computer Inc., bu aygıtın temel gereksinimlerle ve ilişkili
Yönergelerin diğer ilgili koşullarıyla uyumlu olduğunu beyan eder. AB
uygunluk bildiriminin tam metni şu adreste bulunabilir:
www.asus.com/support
Bosanski ASUSTeK Computer Inc. ovim izjavljuje da je ovaj uređaj usklađen
sa bitnim zahtjevima i ostalim odgovarajućim odredbama vezanih direktiva.
Cijeli tekst EU izjave o usklađenosti dostupan je na: www.asus.com/support
English ASUSTeK Computer Inc. hereby declares that this device is in
compliance with the essential requirements and other relevant provisions of
related Directives. Full text of EU declaration of conformity is available at:
www.asus.com/support
Français AsusTek Computer Inc. déclare par la présente que cet appareil est
conforme aux critères essentiels et autres clauses pertinentes des directives
concernées. La déclaration de conformité de l’UE peut être téléchargée à
partir du site Internet suivant : www.asus.com/support
Deutsch ASUSTeK Computer Inc. erklärt hiermit, dass dieses Gerät mit
den wesentlichen Anforderungen und anderen relevanten Bestimmungen
der zugehörigen Richtlinien übereinstimmt. Der gesamte Text der EU-
Konformitätserklärung ist verfügbar unter: www.asus.com/support
Italiano ASUSTeK Computer Inc. con la presente dichiara che questo
dispositivo è conforme ai requisiti essenziali e alle altre disposizioni pertinenti
con le direttive correlate. Il testo completo della dichiarazione di conformità
UE è disponibile all’indirizzo: www.asus.com/support
Русский Компания ASUS заявляет, что это устройство соответствует
основным требованиям и другим соответствующим условиям
соответствующих директив. Подробную информацию, пожалуйста,
смотрите на www.asus.com/support
Български С настоящото ASUSTeK Computer Inc. декларира, че това
устройство е в съответствие със съществените изисквания и другите
приложими постановления на свързаните директиви. Пълният текст на
декларацията за съответствие на ЕС е достъпна на адрес:
www.asus.com/support
Hrvatski ASUSTeK Computer Inc. ovim izjavljuje da je ovaj uređaj sukladan
s bitnim zahtjevima i ostalim odgovarajućim odredbama vezanih direktiva.
Cijeli tekst EU izjave o sukladnosti dostupan je na: www.asus.com/support
Čeština Společnost ASUSTeK Computer Inc. tímto prohlašuje, že toto
zařízení splňuje základní požadavky a další příslušná ustanovení souvisejících
směrnic. Plné znění prohlášení o shodě EU je k dispozici na adrese:
www.asus.com/support
Dansk ASUSTeK Computer Inc. erklærer hermed, at denne enhed er i
overensstemmelse med hovedkravene og andre relevante bestemmelser i de
relaterede direktiver. Hele EU-overensstemmelseserklæringen kan ndes på:
www.asus.com/support
Nederlands ASUSTeK Computer Inc. verklaart hierbij dat dit apparaat
voldoet aan de essentiële vereisten en andere relevante bepalingen van
de verwante richtlijnen. De volledige tekst van de EU-verklaring van
conformiteit is beschikbaar op: www.asus.com/support
Eesti Käesolevaga kinnitab ASUSTeK Computer Inc, et see seade vastab
asjakohaste direktiivide oluliste nõuetele ja teistele asjassepuutuvatele
sätetele. EL vastavusdeklaratsiooni täielik tekst on saadaval järgmisel
aadressil: www.asus.com/support
Suomi ASUSTeK Computer Inc. ilmoittaa täten, että tämä laite on
asiaankuuluvien direktiivien olennaisten vaatimusten ja muiden tätä
koskevien säädösten mukainen. EU-yhdenmukaisuusilmoituksen koko teksti
on luettavissa osoitteessa: www.asus.com/support
Ελληνικά Με το παρόν, η AsusTek Computer Inc. δηλώνει ότι αυτή η
συσκευή συμμορφώνεται με τις θεμελιώδεις απαιτήσεις και άλλες σχετικές
διατάξεις των Οδηγιών της ΕΕ. Το πλήρες κείμενο της δήλωσης συμβατότητας
είναι διαθέσιμο στη διεύθυνση: www.asus.com/support
Magyar Az ASUSTeK Computer Inc. ezennel kijelenti, hogy ez az eszköz
megfelel a kapcsolódó Irányelvek lényeges követelményeinek és egyéb
vonatkozó rendelkezéseinek. Az EU megfelelőségi nyilatkozat teljes szövege
innen letölthető: www.asus.com/support
Latviski ASUSTeK Computer Inc. ar šo paziņo, ka šī ierīce atbilst saistīto
Direktīvu būtiskajām prasībām un citiem citiem saistošajiem nosacījumiem.
Pilns ES atbilstības paziņojuma teksts pieejams šeit: www.asus.com/support
Lietuvių „ASUSTeK Computer Inc.“ šiuo tvirtina, kad šis įrenginys atitinka
pagrindinius reikalavimus ir kitas svarbias susijusių direktyvų nuostatas. Visą
ES atitikties deklaracijos tekstą galima rasti: www.asus.com/support
Norsk ASUSTeK Computer Inc. erklærer herved at denne enheten er i
samsvar med hovedsaklige krav og andre relevante forskrifter i relaterte
direktiver. Fullstendig tekst for EU-samsvarserklæringen nnes på:
www.asus.com/support
Polski Firma ASUSTeK Computer Inc. niniejszym oświadcza, że
urządzenie to jest zgodne z zasadniczymi wymogami i innymi właściwymi
postanowieniami powiązanych dyrektyw. Pełny tekst deklaracji zgodności UE
jest dostępny pod adresem: www.asus.com/support
Português A ASUSTeK Computer Inc. declara que este dispositivo está em
conformidade com os requisitos essenciais e outras disposições relevantes
das Diretivas relacionadas. Texto integral da declaração da UE disponível em:
www.asus.com/support
Simplified EU Declaration of Conformity

ASUS MCI-10G/82599-2S A-3
ASUS contact information
ASUSTeK COMPUTER INC.
Address 4F, No. 150, Li-Te Rd., Peitou, Taipei 112, Taiwan
Telephone [phone]
Fax [phone]
Web site https://www.asus.com
Technical Support
Telephone [phone]
Fax [phone] ext: 9101
Online Support https://www.asus.com/support/Product/ContactUs/
Services/questionform/?lang=en
ASUSTeK COMPUTER INC. (Taiwan)
Address 4F, No. 150, Li-Te Rd., Peitou, Taipei 112, Taiwan
Telephone [phone]
Fax [phone]
Web site https://www.asus.com/tw/
Technical Support
Telephone [phone] (0800-093-456)
Online Support https://www.asus.com/support/Product/ContactUs/
Services/questionform/?lang=zh-tw
ASUSTeK COMPUTER INC. (China)
Address No. 5077, Jindu Road, Minhang District, Shanghai, China
Telephone [phone]
Fax [phone]
Web site https://www.asus.com.cn
Technical Support
Telephone [phone] (400-620-6655)
Online Support https://www.asus.com/support/Product/ContactUs/
Services/questionform/?lang=zh-cn

A-4 Appendix
ASUS contact information
ASUS COMPUTER INTERNATIONAL (America)
Address 48720 Kato Rd., Fremont, CA 94538, USA
Fax [phone]
Web site https://www.asus.com/us/
Technical Support
Support fax [phone]
General support [phone]
Online support https://www.asus.com/support/Product/ContactUs/
Services/questionform/?lang=en-us
ASUS COMPUTER GmbH (Germany and Austria)
Address Harkort Str. 21-23, 40880 Ratingen, Germany
Fax [phone]
Web site https://www.asus.com/de/
Technical Support
Telephone [phone]
Support Fax [phone]
Online support https://www.asus.com/support/Product/ContactUs/
Services/questionform/?lang=de-de
ASUS Czech Service s.r.o. (Europe)
Address Na Rovince 887, 720 00 Ostrava – Hrabová,
Czech Republic
Telephone [phone]
Web site https://www.asus.com/cz/
Technical Support
Telephone [phone]
Fax [phone]
E-mail [email protected]
Online Support https://www.asus.com/support/Product/ContactUs/
Services/questionform/?lang=cs-cz
