User Manual
E6987 / November 2011
USB-N13
ASUS 802.11n Network Adapter
(For 802.11 b/g/n Wireless Networks)
®

Copyright © 2011 ASUSTeK Computer Inc. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any
form or by any means, except documentation kept by the purchaser for backup purposes,
without the express written permission of ASUSTeK Computer Inc. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or
altered, unless such repair, modication of alteration is authorized in writing by ASUS; or (2)
the serial number of the product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE
LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE
OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR
ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED
FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME
WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY
ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR
INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND
SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identication or
explanation and to the owners’ benet, without intent to infringe.

Manufacturer contact information
ASUSTeK Computer Inc. (Asia-Pacic)
Company address: 15 Li-Te Road, Beitou, Taipei 11259
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
Web site: http://www.asus.com.tw
ASUS Computer International (America)
Company address: 800 Corporate Way, Fremont, CA 94539, USA
General (tel): [phone]
General (fax): [phone]
Web site address: http://usa.asus.com
Technical support
General support: [phone]
Support (fax): [phone]
Online support: http://vip.asus.com/eservice/techserv.aspx
ASUS Computer GmbH (Germany & Austria)
Company address: Harkortstr. 21-23, D-40880 Ratingen, Deutschland
General (tel): [phone]
General (fax): [phone]
Web site address: http://www.asus.de
Online contact: http://www.asus.de/sales
Technical support
Components: [phone]
Fax: [phone]
Online support: http://vip.asus.com/eservice/techserv.aspx?SLanguage=de-de

USB-N13 WLAN Adapter User Manual
1
ASUS Wireless-N Adapter
Table of contents
Notices.......................................................................................................2
Federal Communications Commission ..................................................2
Prohibition of Co-location.......................................................................2
FCC Radiation Exposure Statement......................................................2
CE Mark Warning...................................................................................3
DGT Warning Statement .......................................................................3
IC Warning Statement............................................................................3
IC Radiation Exposure Statement:.........................................................4
ASUS Recycling/Takeback Services......................................................4
REACH ..................................................................................................4
1. Introduction ..........................................................................................6
1.1Package contents .............................................................................6
1.2 System requirements ........................................................................6
1.3 Hardware ..........................................................................................6
2. Installing the USB-N13 driver and utilities ........................................7
3. Conguring USB-N13 using ASUS utility ..........................................8
3.1 Connecting to a wireless network manually......................................8

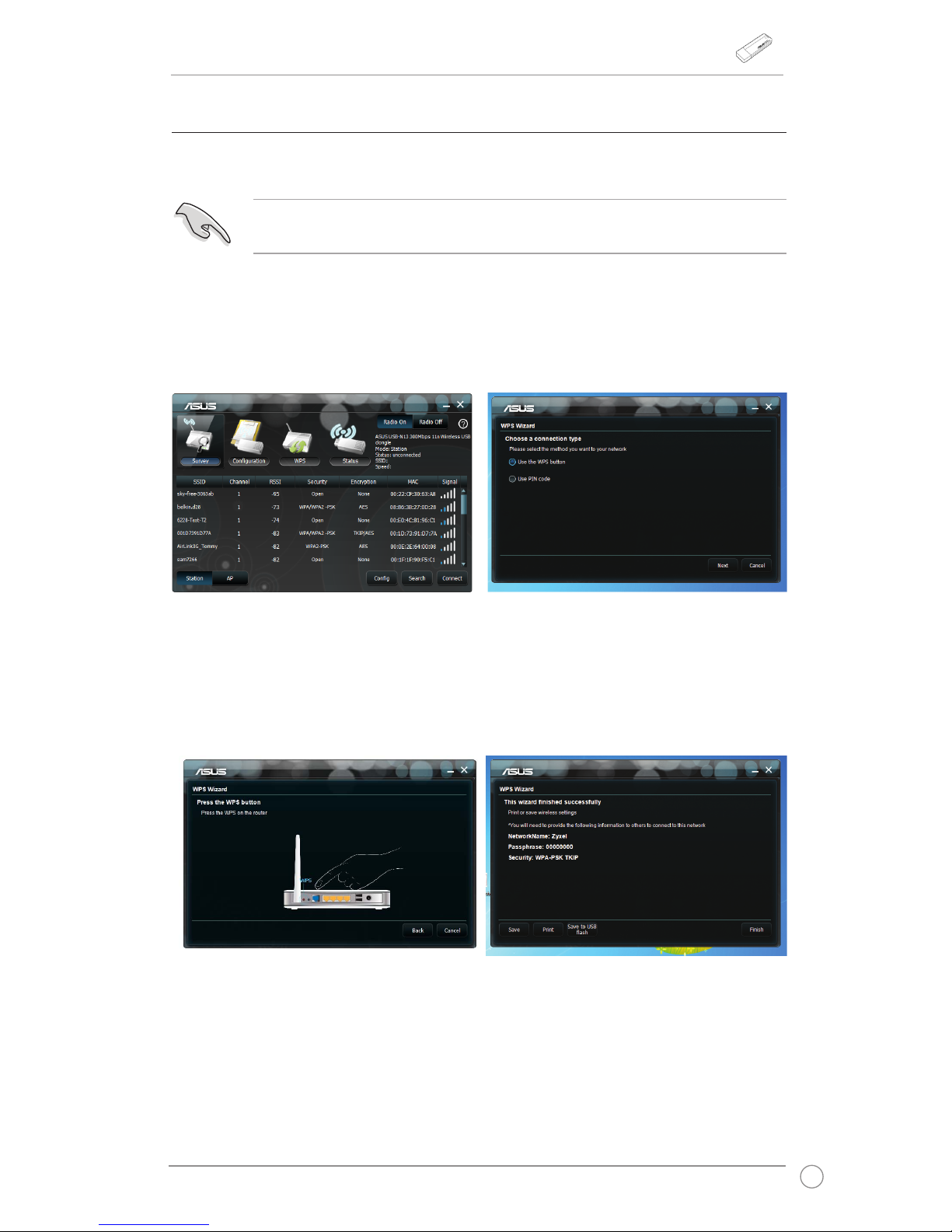

3.2 Connecting to a wireless network using WPS ..................................9
3.3 Soft AP mode (Windows® XP/Vista/7)............................................. 11
4. Software information .........................................................................13

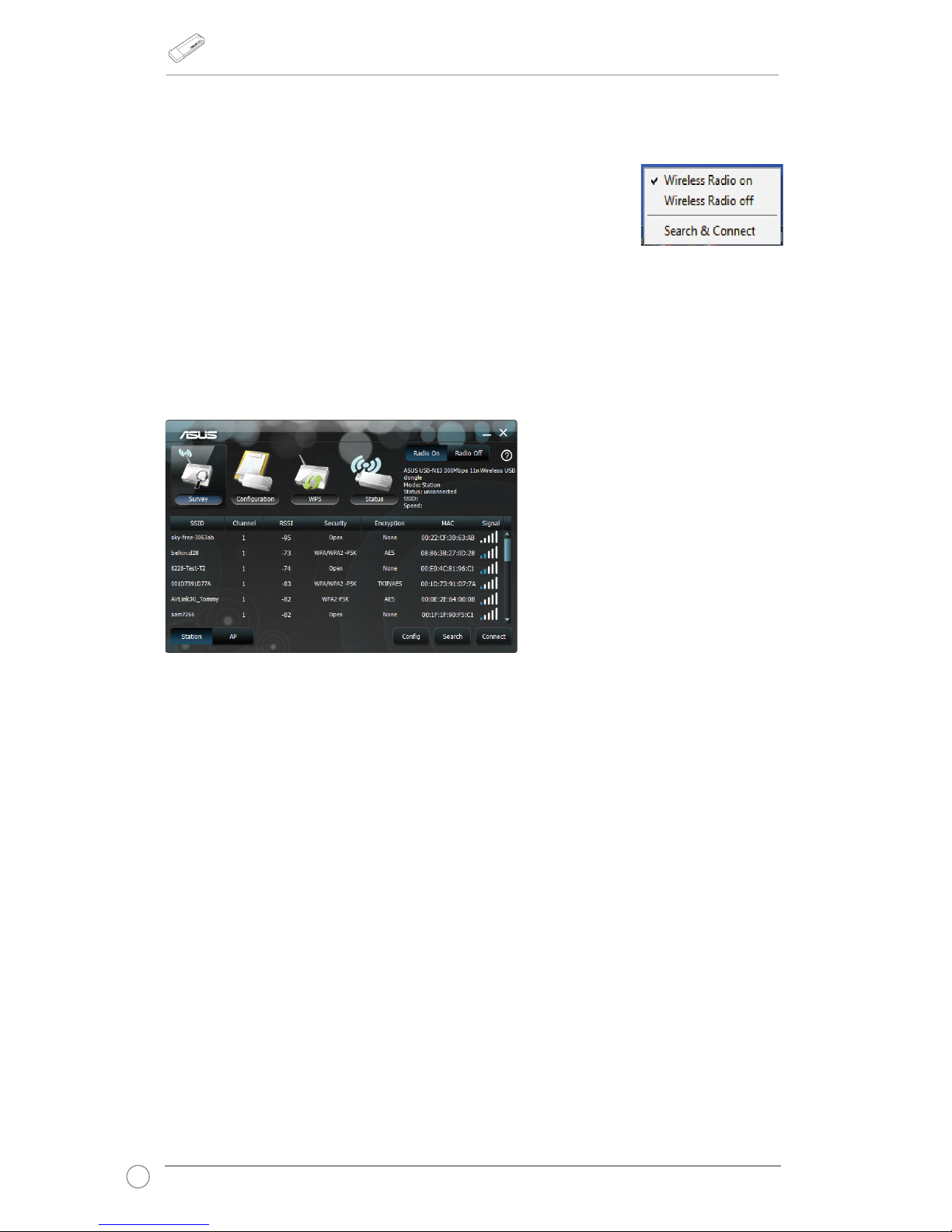

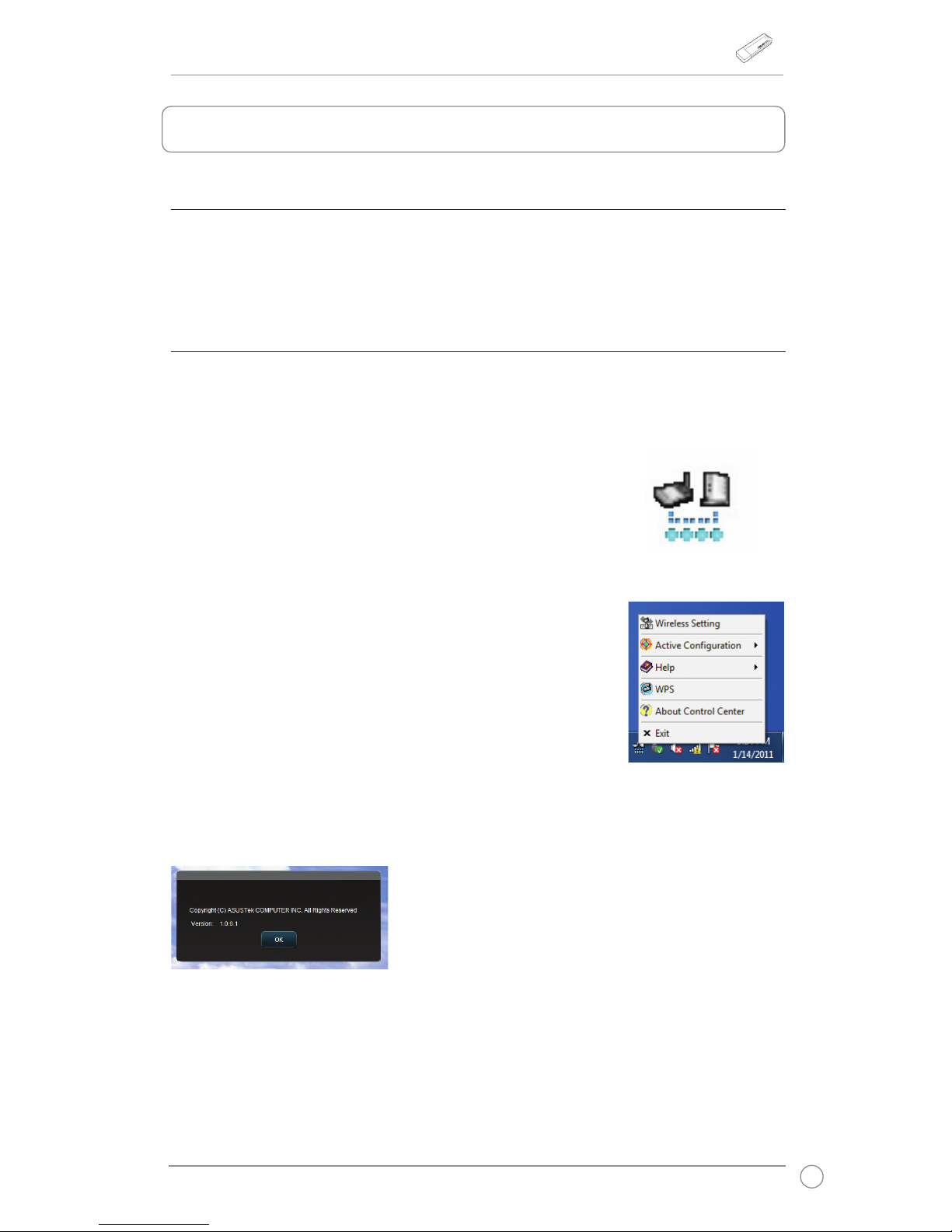

4.1 ASUS WLAN Control Center ..........................................................13
4.2 ASUS WLAN Adapter Setting Utility ...............................................13
5. Conguring USB-N13 using Windows®WZC service.....................18
6. Troubleshooting.................................................................................19
7. Glossary..............................................................................................20

USB-N13 WLAN Adapter User Manual
2ASUS Wireless-N Adapter
Federal Communications Commission
This device complies with FCC Rules Part 15. Operation is subject to the following
two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class
B digital device pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING: Any changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
Prohibition of Co-location
This device and its antenna(s) must not be co-located or operating in conjunction
with any other antenna or transmitter.
FCC Radiation Exposure Statement
This equipment complies with RFCC radiation exposure limits set forth for an
uncontrolled environment .
This equipment should be installed and operated with minimum 20cm between the
radiator and your body.
Notices

USB-N13 WLAN Adapter User Manual
3
ASUS Wireless-N Adapter
CE Mark Warning
This is a Class B product, in a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
Operation Channels: Ch1~11 for N. America, Ch1~14 Japan, Ch1~ 13 Europe
(ETSI)
DGT Warning Statement
Article 12
Without permission, any company, rm or user shall not alter the frequency,
increase the power, or change the characteristics and functions of the original
design of the certied lower power frequency electric machinery.
Article 14
The application of low power frequency electric machineries shall not affect the
navigation safety nor interfere a legal communication, if an interference is found,
the service will be suspended until improvement is made and the interference no
longer exists.
低功率電波輻射性電機管理辦法
(1)「經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻
率、加大功率或變更原設計之特性及功能」以及(2)「低功率射頻電機之使用不得影響飛航安全
及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項
合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學
及醫療用電波輻射性電機設備之干擾」。
IC Warning Statement
Under Industry Canada regulations, this radio transmitter may only operate using
an antenna of a type and maximum (or lesser) gain approved for the transmitter by
Industry Canada. To reduce potential radio interference to other users, the antenna
type and its gain should be so chosen that the equivalent isotropically radiated
power (e.i.r.p.) is not more than that necessary for successful communication.
This radio transmitter(IC: 3568A-USBN13) has been approved by Industry Canada
to operate with the antenna types listed below with the maximum permissible gain
and required antenna impedance for each antenna type indicated. Antenna types
not included in this list, having a gain greater than the maximum gain indicated for
that type, are strictly prohibited for use with this device.

USB-N13 WLAN Adapter User Manual
4ASUS Wireless-N Adapter
This Class [B] digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du
Canada.
For product available in the USA/Canada market, only channel 1~11 can be
operated. Selection of other channels is not possible.
IC Radiation Exposure Statement:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the highest
standards for protecting our environment. We believe in providing solutions for you
to be able to responsibly recycle our products, batteries, other components as well
as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm
for the detailed recycling information in different regions.
REACH
Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction
of Chemicals) regulatory framework, we published the chemical substances in our
products at ASUS REACH website at http://csr.asus.com/english/REACH.htm.

USB-N13 WLAN Adapter User Manual
5
ASUS Wireless-N Adapter
Manufacturer: ASUSTeK Computer Inc.
Tel: [phone]
Address: No. 150, LI-DE RD., PEITOU, TAIPEI
112, TAIWAN
Authorised representative
in Europe:
ASUS Computer GmbH
Address: HARKORT STR. 21-23, D-40880
RATINGEN, DEUTSCHLAND
Authorised distributors
in Turkey:
BOGAZICI BIL GISAYAR SAN. VE TIC. A.S.
Tel: [phone]
Address: AYAZAGA MAH. KEMERBURGAZ
CAD. NO.10 AYAZAGA/ISTANBUL
CIZGI Elektronik San. Tic. Ltd. Sti.
Tel: [phone]
Address: CEMAL SURURI CD. HALIM MERIC IS
MERKEZI
No: 15/C D:5-6 34394 MECIDIYEKOY/
ISTANBUL
EEE Yönetmeliğine Uygundur.

USB-N13 WLAN Adapter User Manual
6ASUS Wireless-N Adapter
1. Introduction
1.2 System requirements
Before using the USB-N13 WLAN adapter, check if your system meets the
following requirements:
• Windows® Vista/XP/7 • USB 2.0 for PC or Laptop
• 512MB system memory or larger • Optical disk drive
1.1 Package contents
Check your USB-N13 WLAN adapter package for the following items.
• ASUS USB-N13 WLAN adapter x1 • Quick Start Guide x1
• Support CD x1 • Warranty card x1
• USB cable x1 or Cradle x1 (US SKU)
NOTE: If any of the above items is damaged or missing, contact your retailer
immediately.
1.3 Hardware
Status indicator
LED Status Description
Link On Solid light 5 seconds means WPS connection is established
successfully.
Off The WLAN adapter is disabled.
Blinking Data is being transmitted or received.
Fast blinking 3 times per second means WPS function is
enabled. Wait for 2 minutes before the WPS connection is
established.
Enabling the WPS (for Windows®OS only)
To enable the WPS feature, you may either press the WPS button on the LAN card
or select Use the WPS button in the WLAN ’s web interface.

USB-N13 WLAN Adapter User Manual
7
ASUS Wireless-N Adapter

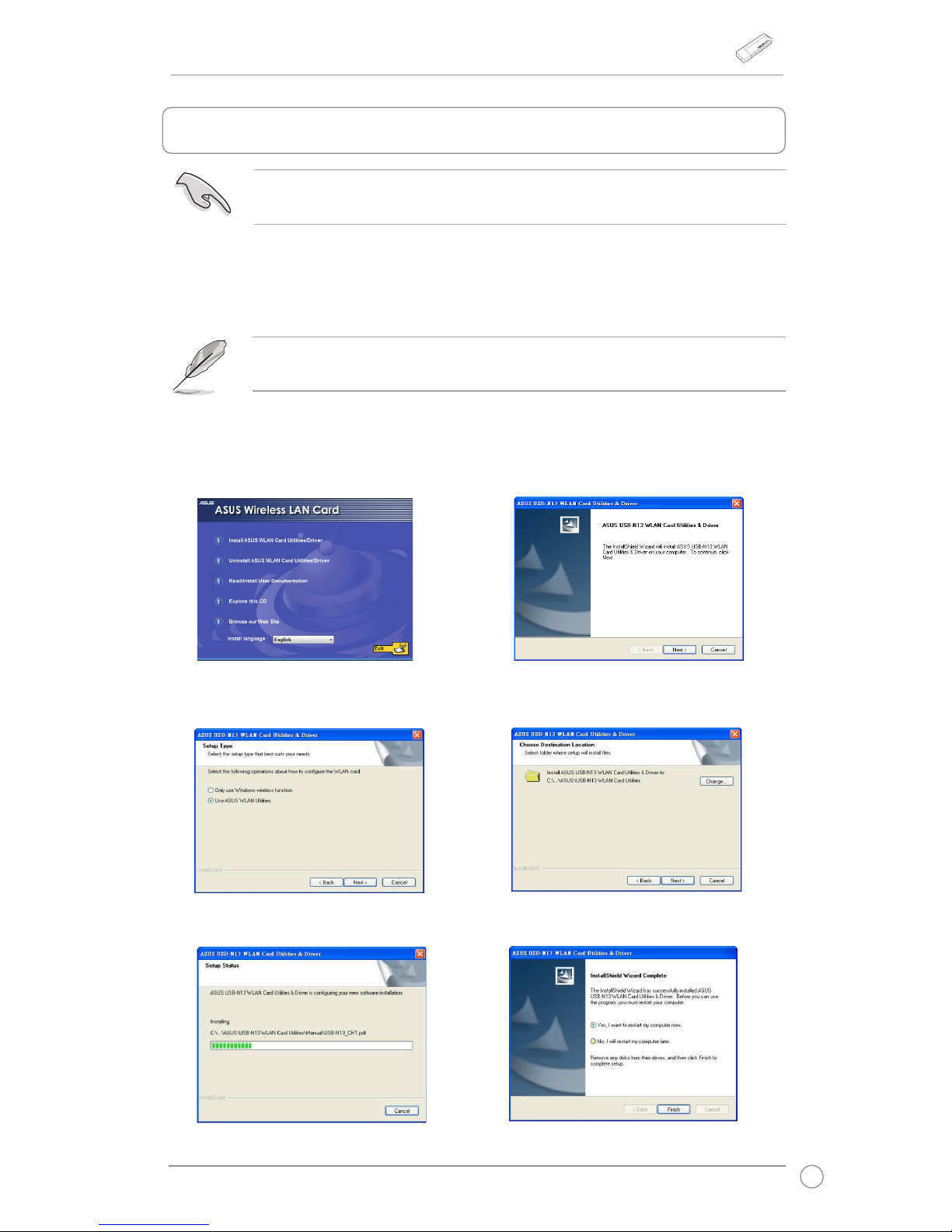

To install the driver and utilities for your ASUS USB-N13 WLAN adapter:
1. Place the bundled Support CD into the optical drive. An Autorun screen appears
if the Autorun function is enabled on your computer.
NOTE: If the Autorun function is not enabled on your computer, double-click
SETUP.EXE from the root directory to run the Support CD.
2. Installing the USB-N13 driver and utilities
2. From the Autorun screen, select your
language and click Install Utilities/
Driver.
3. The InstallShield Wizard screen
appears. Click Next to continue.
IMPORTANT: Install the ASUS USB-N13 WLAN adapter into your computer
before installing the driver and utilities from the bundled Support CD.
4. Select Use ASUS WLAN utilities.
6. Click Install to start the installation.
5. Choose destination location.
7. Click Finish to complete the installation.

USB-N13 WLAN Adapter User Manual
8ASUS Wireless-N Adapter
3.1 Connecting to a wireless network manually
To connect USB-N13 to a station (Ad Hoc mode) manually:
2. You may click Survey > Search to
search for the wireless networks.
Select a network (AP from the
available network list) and then click
Connect.
1. Right-click the ASUS WLAN Adapter
Setting Utility icon in the
Windows®system tray, then select
Wireless Setting.
3. Conguring USB-N13 using ASUS utility
Setup is completed. The Status page
displays information such as the
association state, current data rate,
and radio state.
3. If Security is enabled on the AP or
station, do the same security settings
on your WLAN as those on the AP or
station. Click Save.

USB-N13 WLAN Adapter User Manual
9
ASUS Wireless-N Adapter
3.2 Connecting to a wireless network using WPS
The ASUS USB-N13 WLAN adapter supports the WPS function that helps you set
up a secure wireless network easily.
To connect USB-N13 to a WPS-enabled AP or station using the WPS push button:
IMPORTANT: Ensure that the AP or station you are trying to connect to
supports the WPS function.
2. Select Use the WPS button, then
click Next.
3. Press the WPS button on the AP
or station to establish a wireless
connection. Wait until your WLAN
adapter nishes scanning for the
network.
4. Click Finish.
1. Click WPS.

USB-N13 WLAN Adapter User Manual
10 ASUS Wireless-N Adapter
3. Click Finish.
1. Select Use PIN code.2. Key in the eight-digit PIN code that
you can get from the AP's web user
interface, then click Next.
To connect USB-N13 to a WPS-enabled AP or station using the PIN code:

USB-N13 WLAN Adapter User Manual
11
ASUS Wireless-N Adapter
2. Click General and then click ICS
to enable ICS. The General table
displays the wireless clients that are
currently connecting to the Soft AP.
3. Select a network(station) from the
available networks list, then click
Apply.
To switch to the Soft AP mode:
1. Click AP to switch to the Soft AP
mode.
3.3 Soft AP mode (Windows®XP/Vista/7)
The ASUS USB-N13 WLAN adapter supports the Soft AP mode. In this mode, the
WLAN adapter acts as a virtual AP.
4. Wait for a while until your WLAN
adapter changes to the Soft AP mode
successfully.
IMPORTANT: Before conguring the Soft AP mode, connect your computer to a
wired network to provide network access for your wireless clients.
Note:The ASUS WLAN Adapter Setting icon in the system tray switches
to the ASUS Wireless Access Point icon .

USB-N13 WLAN Adapter User Manual
12 ASUS Wireless-N Adapter
To disable the access control function, select Disable from the Access Control
Policy dropdown list.
To allow a wireless client to associate
with the WLAN adapter:
1. Select Accept from the Access
Control Policy dropdown list.
2. Key in its MAC address in the
Access Control List eld.
3. Click Add.
Note: Only the wireless clients on the Accept list are allowed to associate with
the WLAN adapter.
To prevent a wireless client from associating with the WLAN adapter:
1. Select Reject from the Access Control Policy dropdown list.
2. Key in its MAC address in the Access Control Policy eld.
3. Click Add MAC.
Note: The wireless clients on the Reject list are not allowed to associate with
the WLAN adapter.
In the Soft AP mode, you can limit the wireless clients that associate with the WLAN
adapter through the access control function. Click Conguration > Edit Cong >
ACL.

USB-N13 WLAN Adapter User Manual
13
ASUS Wireless-N Adapter
4.1 ASUS WLAN Control Center
ASUS WLAN Control Center includes ASUS WLAN adapter Setting Utility (Station
mode) and ASUS Wireless Access Point Utility (Soft AP mode) to help you manage
your WLAN adapter easily.
4. Software information
To launch WLAN utility, click Start > All Programs > ASUS Utility.
The system tray icon switches as is shown in the picture.
4.2 ASUS WLAN Adapter Setting Utility
ASUS WLAN Adapter Setting utility provides you with an easy interface to set up
wireless connections.
ASUS WLAN Adapter Setting
From the taskbar area, right-click the ASUS WLAN Adapter
Setting icon to display these options:
• Wireless Settings - Launches the ASUS WLAN Setting
Utility.
• Activate Conguration - Activates a preset prole.
• Help - Launches the help le.
• WPS - Launches the WPS wizard.
• About Control Center - Displays the version of your Control Center.
• Exit Control Center - Closes the ASUS WLAN Control Center.

USB-N13 WLAN Adapter User Manual
14 ASUS Wireless-N Adapter
From the taksbar area, left-click the ASUS WLAN Adapter Setting icon to display
these options:
• Wireless Radio On - Turns the wireless signal ON.
• Wireless Radio Off - Turns the wireless signal OFF.
• Search & Connect - Displays the available wireless
networks.
Double-click the icon to launch the ASUS WLAN Setting utility.
Survey
The Survey page displays the connection status and contails these information:
SSID - Displays the name of the wireless network that the WLAN adapter is
connecting to.
MAC Address - Indicates the hardware address of the WLAN adapter. A MAC
address is a unique identier assigned to networking devices. It consists of six
groups of two hexadecimal digits (0 through 9 and A through F) separated by
colons, e.g. 00:E0:18:F0:05:C0.
Channel - Displays the channel of the wireless network.
Current Data Rate -Displays the current data transmission rate.
Network Type -Displays the WLAN adapter type such as infrastructure type.
Security -Displays the encryption of the wireless networks.
Search- Lists the wireless networks that the WLAN adapter is connecting to.

USB-N13 WLAN Adapter User Manual
15
ASUS Wireless-N Adapter
Conguration - Basic
Network Type
Infrastructure -Select the Infrastructure
mode to establish a connection with an
AP.
Ad Hoc - Select the Ad Hoc mode to
communicate with a station. An Ad Hoc
network is formed quickly and easily
without pre-planning. For example, you can share meeting notes among
network computers in a meeting room.
Action mode name & Network Name (SSID) - Key in or select from the dropdown
list the SSID of an AP or station you are trying to connect to. An SSID must be valid
characters and have a maximum of 32 case sensitive characters, such as Wireless
LAN.
NOTE: Set the SSID to a null string if you want to allow your WLAN adapter to
connect to any AP it can nd. You cannot use a null string in the Ad Hoc mode.
Channel - Select a radio channel for your WLAN adapter. In the Infrastructure
mode, your WLAN adapter automatically selects the correct channel required to
communicate with an AP and this eld shows Auto. In the Ad Hoc mode, you are
allowed to select a channel for your WLAN adapter. WLAN adapter in the same
network can communicate with each other if they have the same channel setting.
The radio channels you can use depend on the regulations in your country. In the
United States (FCC) and Canada (IC), channels 1 to 11 are supported. In Europe
(ETSI), channels 1 to 13 are supported. In Japan (MKK), channels 1 to 14 are
supported.
Data Rate - Auto: The WLAN adapter adjusts to the most suitable transmission
rate automatically.
Others
Encryption - Launches the Encryption page.
Advanced - Launches the Advanced page. In most cases, you do not need to
change the default values.
Troubleshooting - Displays the troubleshooting solutions.

USB-N13 WLAN Adapter User Manual
16 ASUS Wireless-N Adapter
Conguration - Encryption
The Encryption page allows you to set
up the encryption settings for your WLAN
adapter For data condentiality in a wireless
environment, IEEE 802.11 species a Wired
Equivalent Privacy (WEP) algorithm to
offer transmission privacy similar to wired
network. WEP uses keys to encrypt data
packets sent and decrypt data packets
received. The encryption process can
scramble frame bits to avoid disclosure to others. Wi-Fi Protected Access (WPA) is
an improved security system for 802.11 that encrypts data sent over radio waves.
WPA is developed to overcome the weakness of the WEP protocol.
Network Authentication - Set up authentication for your WLAN adapter. Options
are:
Open - Sets the network in the Open System mode that disables authentication
protection for the network or use the WEP encryption for the network.
Shared - Sets the network in the Shared Key mode that uses the WEP
encryption for your network.
WPA-PSK/WPA2-PSK - Use the WPA Pre-Shared Key/WPA2 Pre-Shared Key
in the Infrastructure mode for authentication.
Data Encryption - In the Open and Shared authentication modes, options are:
Disabled and WEP.
Disabled - Disables the encryption protection for your WLAN adapter.
WEP - Encrypts the data before it is transmitted over the air. You can
communicate with wireless devices that use the same WEP keys.
In the WPA-PSK and WPA2-PSK authentication modes, options are: Temporal Key
Integrity Protocol (TKIP) and Advanced Encryption Standard (AES).
TKIP - Dynamically generates unique keys to encrypt data packet.
AES - Offers stronger protection and increases the complexity of wireless
encryption. It is a symmetric 128-bit block encryption method that works
simultaneously on multiple network layers.

USB-N13 WLAN Adapter User Manual
17
ASUS Wireless-N Adapter
Wireless Network Key (WEP) - This option becomes congurable when you
select WEP in the Data encryption eld. 64-bit WEP key uses 5 ASCII characters
(10 hexadecimal digits). 128-bit WEP key uses 13 ASCII (26 hexadecimal digits).
Key Format - Allows you to select the key format.
Manual Assignment (WPA and WPA2)- Allows you to assign WEP Keys
manually.
Key Length - Allows you to select the key length. For 64bits encryption, each
key consists of 10 hexadecimal digits or 5 ASCII characters. For 128bits
encryption, each key consists of 26 hexadecimal digits or 13 ASCII characters.
Select one as your Default Key - Allows you to select one of the four WEP
Keys as the default key.
Conguration - Advanced
TheAdvanced page is intended for experienced
users to set up additional parameters for the
WLAN adapter. We recommend that you keep
the default values.
RTS Threshold (0-2347) - The Request to
Send/Clear to Send (RTS/CTS) function is
used to minimize collisions among wireless
stations. When RTS/CTS is enabled, the router
refrains from sending a data frame until another RTS/CTS handshake is completed.
Enable RTS/CTS by setting a specic packet size threshold. The default value (2347)
is recommended.
Fragmentation Threshold (256-2346) - Fragmentation is used to divide 802.11
frames into smaller pieces (fragments) that are sent separately to the destination.
Enable fragmentation by setting a specic packet size threshold. If there is an
excessive number of collisions on the WLAN , experiment with different fragmentation
values to increase the reliability of frame transmissions. The default value (2346) is
recommended for normal use.
Preamble Mode - Select the preamble mode. The default value is Auto.
