Asus AiMesh-AC1900 User manual

AiMesh-AC1900
Wireless-AC1900
with AiMesh Wi-Fi System
(RT-AC67U 2-Pack)
Quick
Start Guide Ⅱ
U13939-2 / First Edition / March 2018
U13939-2_RT-AC1900U_AiMesh_QSG.indb 1 2018/3/29 14:24:18

Table of Contents
English...........................................................................................................3
Hrvatski.........................................................................................................15
Dansk.............................................................................................................27
Suomi.............................................................................................................39
Lietuvių .........................................................................................................51
Latviski ..........................................................................................................63
Norsk..............................................................................................................75
Polski..............................................................................................................87
Română.........................................................................................................99
Srpski .............................................................................................................111
Slovensky......................................................................................................123
Slovenščina..................................................................................................135
Svenska .........................................................................................................147
Українська...................................................................................................159
U13939-2_RT-AC1900U_AiMesh_QSG.indb 2 2018/3/29 14:24:18

3
English
Power
(DC-IN) port
Power
switch
USB
2.0 port
Reset
button
WAN
port
LAN
port 1-4
WPS
button
1
Plug the adapter into the DCIN port, and press the power button.
2
The Power, 2.4GHz/5GHz LEDs will light up when your hardware is ready.
Hardware Explanations
USB3.0 port LAN 1-4 WAN 5GHz 2.4GHz Power
Button Explanations
LED Explanations
RESET BUTTON
Reset the system to its factory defaults.
WAN PORT
Connect your modem to this port with a network cable.
LAN PORT 1-4
Connect your PC to a LAN port with a network cable.
U13939-2_RT-AC1900U_AiMesh_QSG.indb 3 2018/3/29 14:24:18

4
English

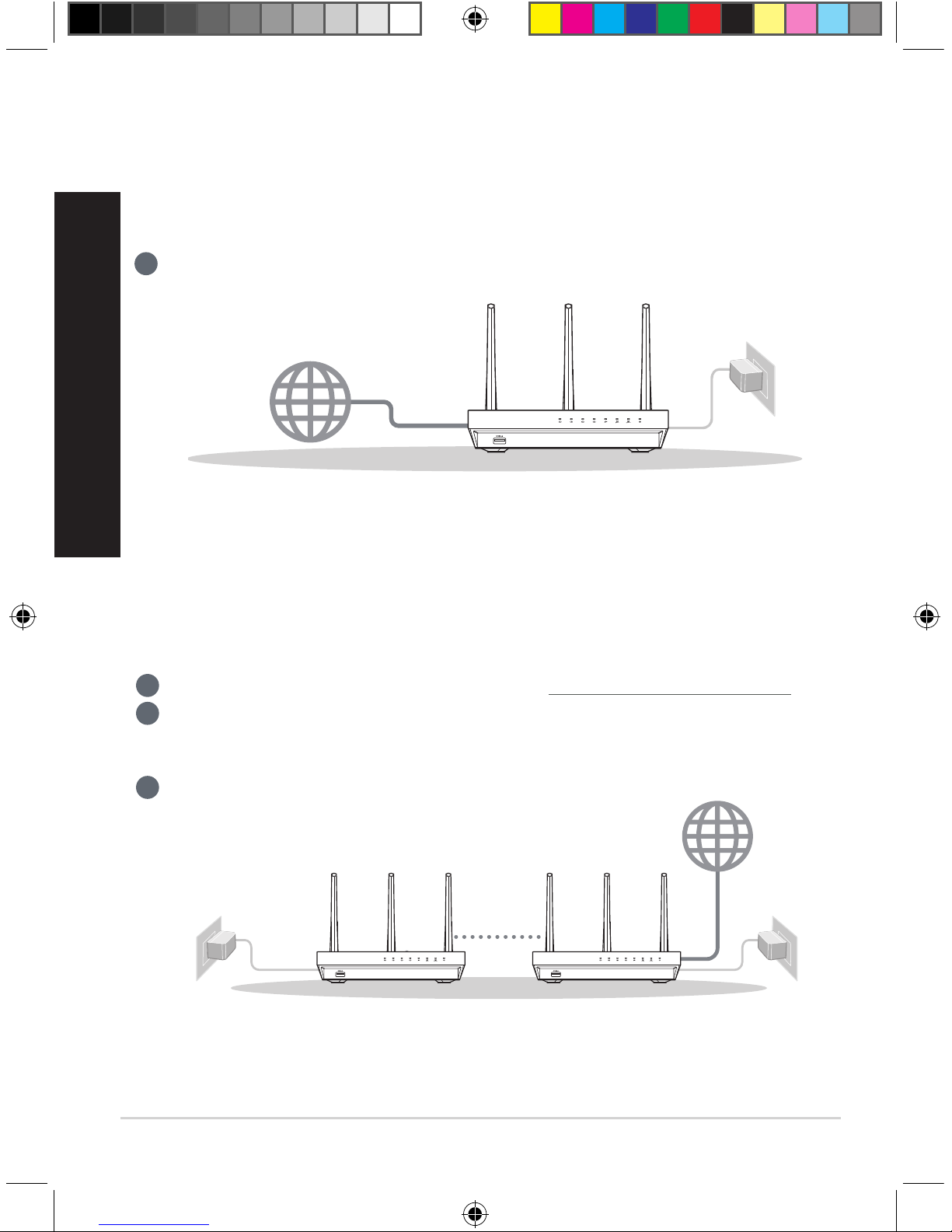

Preparing to setup a standalone router
01
BEFORE SETTING
1
Go to ONE ROUTER SETUP STEPS.
ONE ROUTER SETUP
Preparing to setup an AiMesh
Wi-Fi system
02
AiMesh node
AiMesh router
1
Two (2) ASUS routers (models supporting AiMesh https://www.asus.com/AiMesh/).
2
Assign one as AiMesh router, and another one as AiMesh node.
** If you have multiple AiMesh routers, we recommend using the router with the highest specifications as
your AiMesh router and the others as AiMesh nodes.
3
Go to AiMesh SETUP STEPS.
AiMesh SETUP STEPS
U13939-2_RT-AC1900U_AiMesh_QSG.indb 4 2018/3/29 14:24:19

5
English

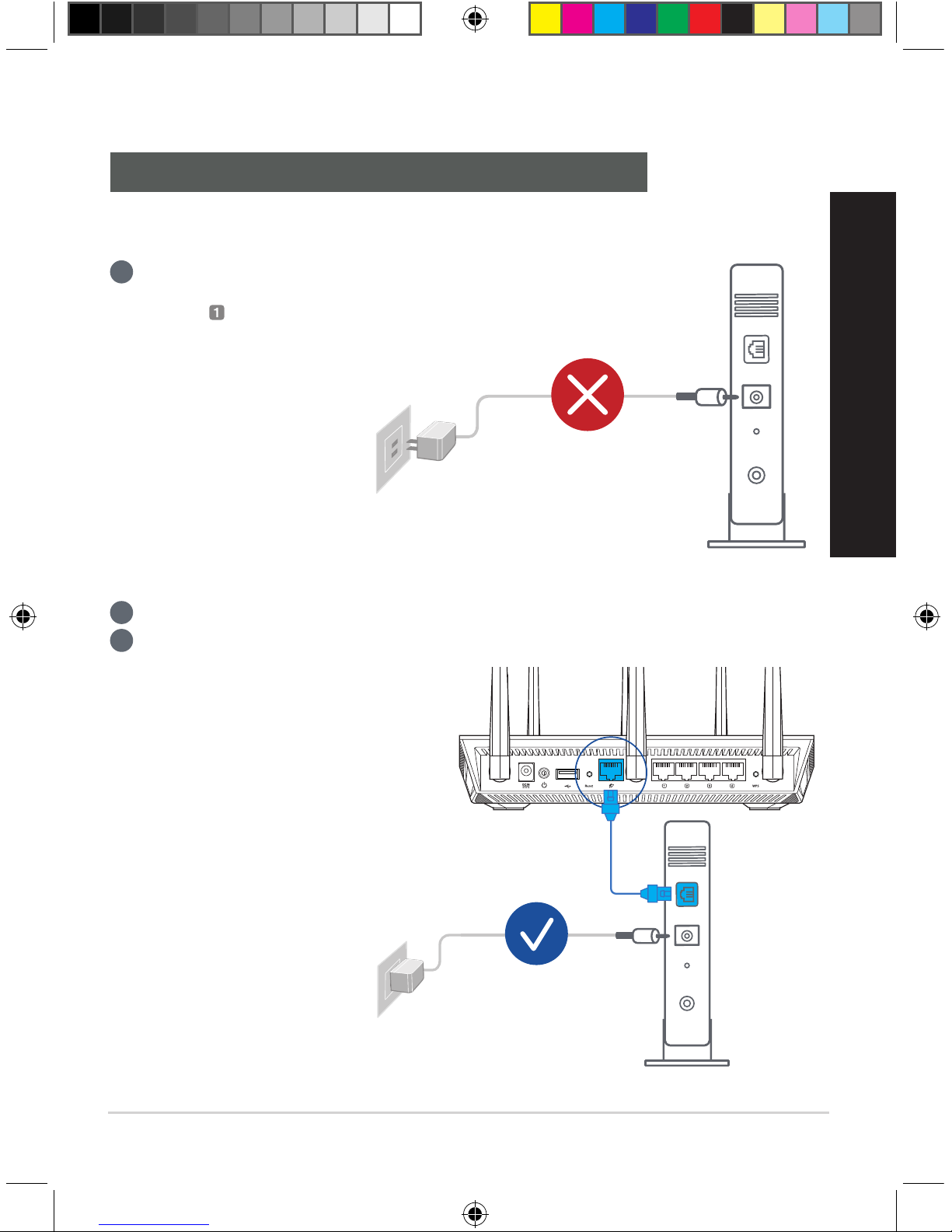

ONE ROUTER SETUP STEPS
Modem back
Preparing your Modem
01
1
Unplug the power of cable / DSL modem. If it
has a battery backup, remove the battery.
2
Connect your modem to the router with the network cable provided.
3
Power on the modem. Plug modem to the power outlet and power on.
Modem back
WE SUGGEST...
U13939-2_RT-AC1900U_AiMesh_QSG.indb 5 2018/3/29 14:24:19

6
English
4
Check the modem LED lights to ensure the
connection is active.
Modem front
If you are using DSL for internet, you will need your
username / password from your Internet service
provider (ISP) to properly configure your router.
Connect your Device
02
1
Power on the router. Plug in and press the power button at the back of your router.
2
Check the WAN and 2.4GHz/5GHz LED lights to ensure the hardware connection is
ready.
U13939-2_RT-AC1900U_AiMesh_QSG.indb 6 2018/3/29 14:24:19

7
English

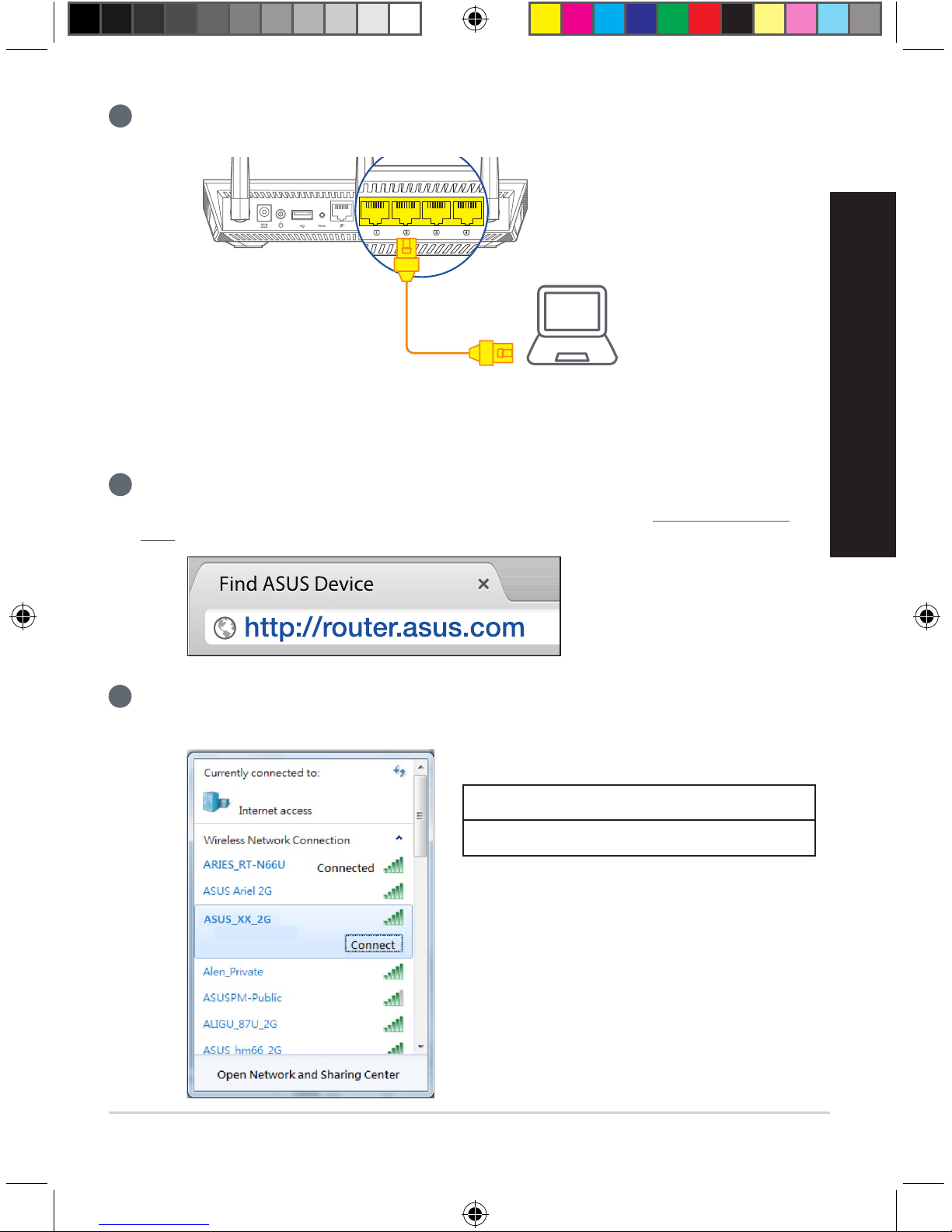

3
Connect your PC to the router using an additional network cable.
Login and Connect
03
1
Open a web browser.
You will be redirected to the ASUS Setup Wizard. If not, navigate to http://router.asus.
com.
2
Connect to the network name (SSID) shown on the product label on the back side of the
router. For better network security, change to a unique SSID and assign a password.
ASUS router
2.4G WiFi Name (SSID): ASUS_XX_2G
5G WiFi Name (SSID): ASUS_XX_5G
* XX refers to the last two digits of 2.4GHz
MAC address. You can find it on the
label on the back of your router.
U13939-2_RT-AC1900U_AiMesh_QSG.indb 7 2018/3/29 14:24:19

8
English

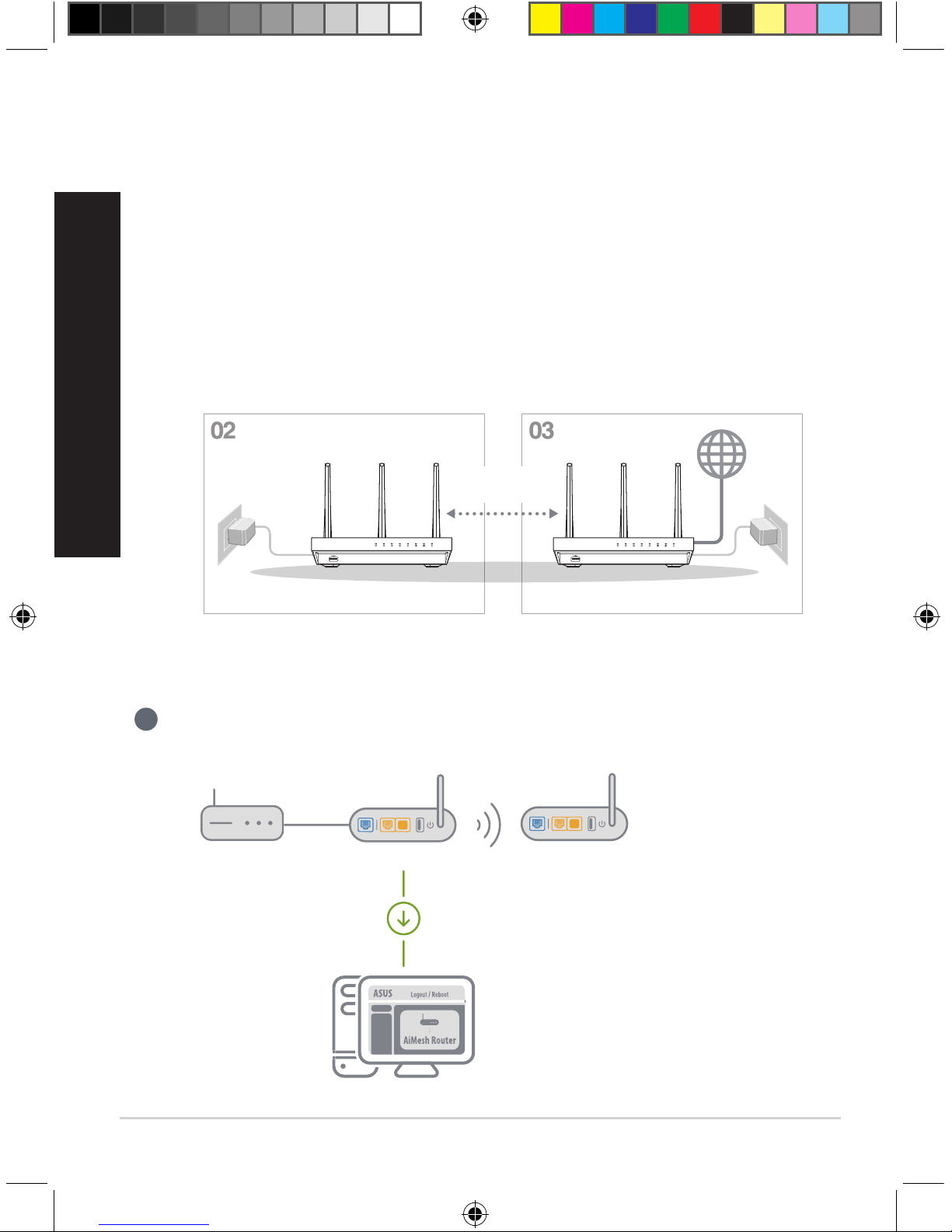

AiMesh SETUP STEPS
within
1-3 meter
AiMesh node AiMesh router
Prepare
01
Place your AiMesh router and node within 1-3 meters of each other during the setup
process.
1
Refer to ONE ROUTER SETUP STEPS to connect your AiMesh router to your PC and
modem, and then log in into the web GUI.
AiMesh node
02
Factory default status. Keep power on and standby for AiMesh system settings.
AiMesh router
03
Modem AiMesh router AiMesh node
U13939-2_RT-AC1900U_AiMesh_QSG.indb 8 2018/3/29 14:24:19

9
English

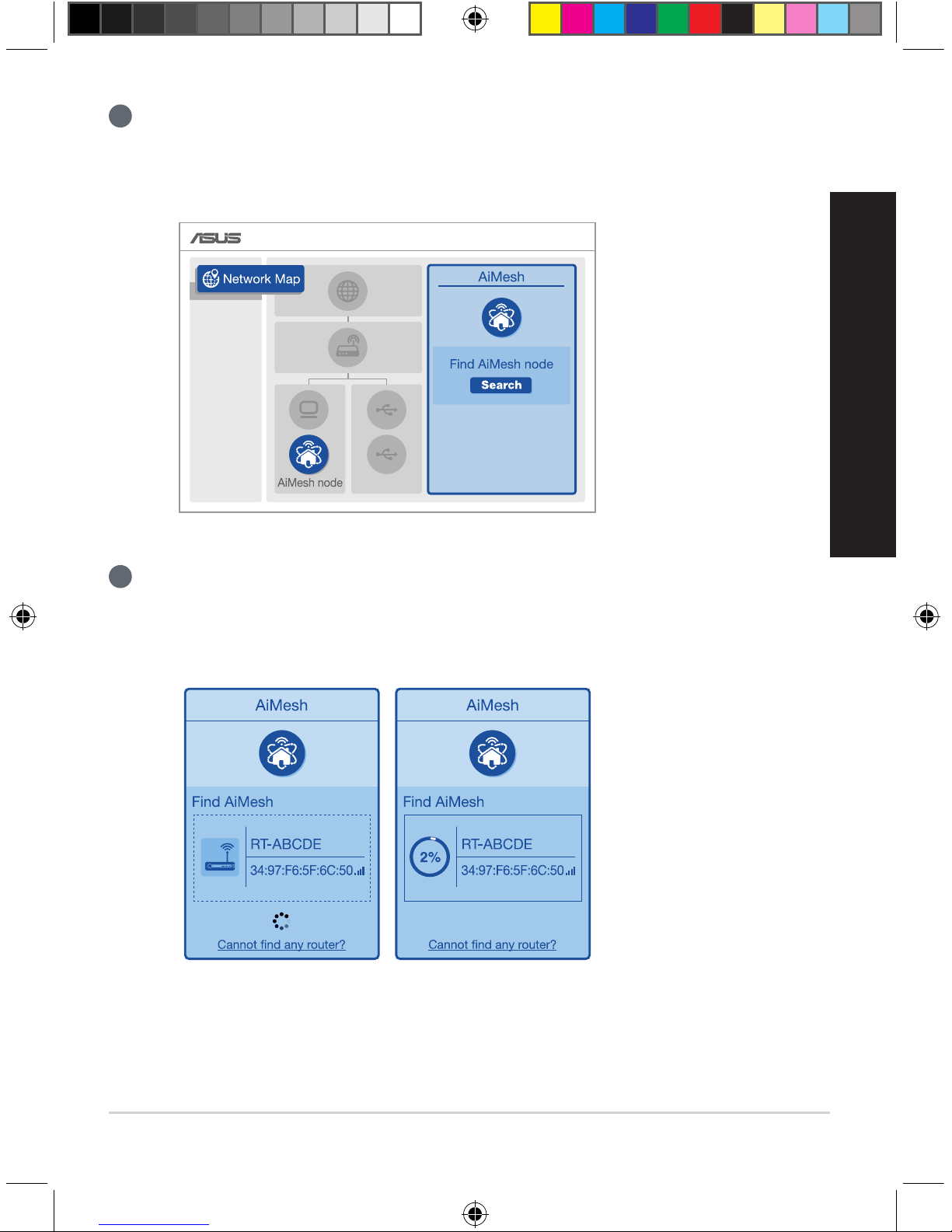

2
Go to Network Map page, click AiMesh icon and then Search for your extending AiMesh
node.
** If you cannot find the AiMesh icon here, click on firmware version and update the
firmware.
3
Click Search, it will automatically search for your AiMesh node. When the AiMesh node
shows on this page, click it to add it into the AiMesh system.
** If you cannot find any AiMesh node, please go to TROUBLE SHOOTING.
U13939-2_RT-AC1900U_AiMesh_QSG.indb 9 2018/3/29 14:24:20

10
English
4
A message is displayed when synchronization is completed.
5
Congratulations! You will find the pages below show up when an AiMesh node has been
successfully added to the AiMesh network.
U13939-2_RT-AC1900U_AiMesh_QSG.indb 10 2018/3/29 14:24:20

11
English
TROUBLESHOOTING
If your AiMesh router cannot find any AiMesh node nearby or synchronization
fails, please check followings and try again.
a
Move your AiMesh node closer to the AiMesh router ideally. Ensure it is within 1-3
meters.
b
Your AiMesh node is powered on.
c
Your AiMesh node is upgraded to AiMesh supported firmware.
i
Download AiMesh - supported fireware at: https://www.asus.com/AiMesh/
ii
Power on your AiMesh node and connect it to your PC via a network cable.
iii
Launch a web GUI. You will be redirected to the ASUS Setup Wizard. If not,
navigate to http://router.asus.com
iv
Go to Administration > Firmware Upgrade. Click on Choose File, and upload
the AiMesh-supported firmware.
v
After firmware uploaded, please go to Network Map page to confirm whether
AiMesh icon showed up.
U13939-2_RT-AC1900U_AiMesh_QSG.indb 11 2018/3/29 14:24:20

12
English
vi
Press the reset button on your AiMesh node for at least 5 seconds. Release the
reset button when the power LED is flashing slowly.
Reset
NOTES: Use only the adapter that came with your package. Using other adapters may damage the
device.
Specifications:
DC Power adapter DC Output: +19V with max 1.75A current
Operating Temperature 0~40oC Storage 0~70oC
Operating Humidity 50~90% Storage 20~90%
U13939-2_RT-AC1900U_AiMesh_QSG.indb 12 2018/3/29 14:24:20

13
English
RELOCATION
Locate AiMesh router and node at best place.
THE BEST PERFORMANCE
NOTES: To minimize interference, keep the routers away from devices like cordless phones,
Bluetooth devices and microwave ovens.
We recommend that you place the routers in an open or spacious location.
ASUS ROUTER APP
Download free ASUS Router APP to setup and manage your router(s).
U13939-2_RT-AC1900U_AiMesh_QSG.indb 13 2018/3/29 14:24:20

14
English
FAQ FREQUENTLY ASKED QUESTIONS
Q1
Does the AiMesh router support Access Point mode?
A:Yes. You can choose to set the AiMesh router as router mode or
access point mode. Please go to web GUI (http://router.asus.com),
and go to the page Administration > Operation Mode.
Q2
Could I setup wired connection between AiMesh routers (Ethernet
backhaul)?
A:Yes. AiMesh system supports both wireless and wired connection
between AiMesh router and node to maximize throughput and
stability. AiMesh analyzes the wireless signal strength for each
frequency band available, and then determines automatically
whether a wireless or wired connection is best to serve as the inter-
router connection backbone.
1
Follow the setup steps to establish a connection between the AiMesh router
and node via Wi-Fi first.
2
Place the node in the ideal locations for best coverage. Run an Ethernet cable
from the LAN port of the AiMesh router to the WAN port of AiMesh node.
3
AiMesh system will auto-select the best path for data transmission, whether
wired or wireless.
U13939-2_RT-AC1900U_AiMesh_QSG.indb 14 2018/3/29 14:24:20

15
Hrvatski
Power
(DC-IN) port
Power
switch
USB
2.0 port
Reset
button
WAN
port
LAN
port 1-4
WPS
button
1
Ukopčajte adapter u ulaz za napajanje i pritisnite dugme napajanja.
2
Kad hardver bude spreman, zasvijetlit će LED napajanja i LED 2,4 GHz/ 5 GHz.
Objašnjenja u vezi hardvera
USB3.0 port LAN 1-4 WAN 5GHz 2.4GHz Power
Objašnjenja u vezi gumba
Objašnjenja u vezi LED-a
DUGME ZA RESETIRANJE
Vraćanje sustava na tvorničke postavke.
WAN PRIKLJUČAK
Spojite modem na ovaj priključak mrežnim kabelom.
LAN PRIKLJUČCI 1-4
Spojite računalo na LAN priključak mrežnim kabelom.
USB 3.0 priključak Uključivanje
Gumb za
napajanja
Gumb za
resetiranje WAN priključak LAN 1-4 priključci WPS
gumb
USB 2.0
priključak
Ulaz za
napajanje
(DC-IN)
LAN 1-4
priključci
U13939-2_RT-AC1900U_AiMesh_QSG.indb 15 2018/3/29 14:24:21

16
Hrvatski
Priprema za postavljanje samostalnog usmjerivača
01
PRIJE POSTAVLJANJA
1
Otvorite ONE ROUTER SETUP STEPS (POSTUPAK ZA POSTAVLJANJE JEDNOG
USMJERIVAČA).
POSTAVLJANJE JEDNOG
USMJERIVAČA
Priprema za postavljanje AiMesh
Wi-Fi sustava
02
AiMesh node
AiMesh router
1
Dva (2) ASUS usmjerivača (modeli koji podržavaju AiMesh https://www.asus.com/
AiMesh/).
2
Jednom dodijelite ulogu AiMesh usmjerivača, a drugom AiMesh modula.
** Ako imate više AiMesh usmjerivača, preporučujemo da usmjerivač s najboljim specifikacijama postavite
kao AiMesh usmjerivač, a ostale kao AiMesh module.
3
Otvorite AiMesh SETUP STEPS (AiMesh KORACI POSTAVLJANJA).
AiMesh POSTUPAK POSTAVLJANJA
AiMesh usmjerivač
AiMesh modul
U13939-2_RT-AC1900U_AiMesh_QSG.indb 16 2018/3/29 14:24:21

17
Hrvatski
POSTUPAK POSTAVLJANJA JEDNOG USMJERIVAČA
Modem back
01
2
Povežite modem na usmjerivač pomoću priloženog mrežnog kabela.
3
Uključite modem. Ukopčajte modem u utičnicu i uključite ga.
Modem back
PREPORUČUJEMO...
Stražnja strana modema
Pripremanje modema
1
Iskopčajte kabel za napajanje/DSL modem.
Ako postoji baterijsko napajanje, uklonite
bateriju.
Stražnja strana modema
U13939-2_RT-AC1900U_AiMesh_QSG.indb 17 2018/3/29 14:24:21

18
Hrvatski
Modem front
Povezivanje uređaja
02
1
Uključite usmjerivač. Ukopčajte usmjerivač i pritisnite gumb napajanja na stražnjoj
strani.
2
Provjerite WAN i 2,4 GHz/ 5 GHz LED svjetla da vidite je li hardverska veza spremna.
Prednja strana modema
4
Pogledajte LED indikatore kabelskog/DSL
modema za provjeru aktivnosti veze.
Ako koristite DSL za internet, za ispravnu
konfiguraciju usmjerivača biti će vam potrebno
korisničko ime i lozinka od dobavljača
internetske usluge (ISP) .
U13939-2_RT-AC1900U_AiMesh_QSG.indb 18 2018/3/29 14:24:21

19
Hrvatski

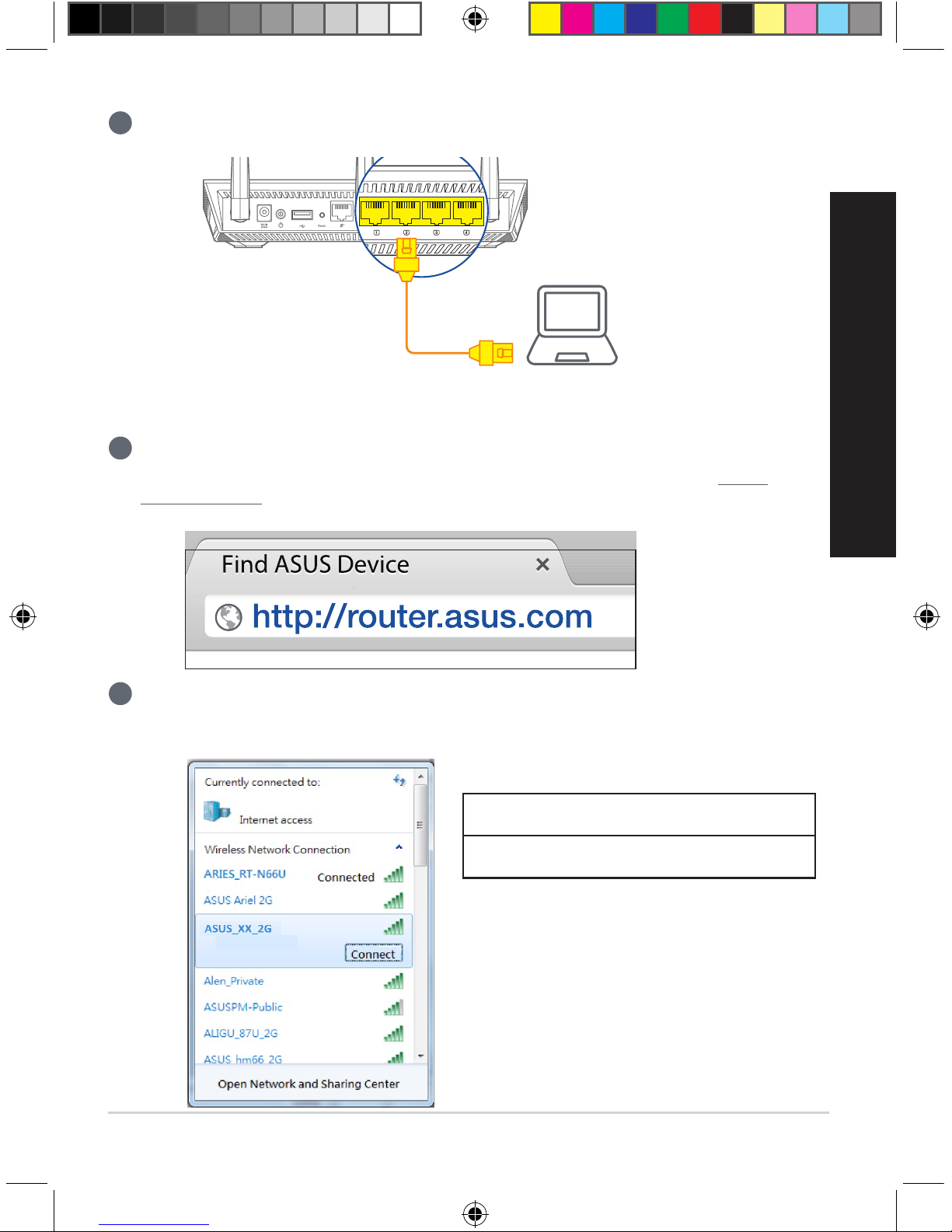

3
Spojite računalo na usmjerivač korištenjem dodatnog mrežnog kabela.
Prijava i povezivanje
03
1
Otvorite web preglednik.
Bit ćete preusmjereni na ASUS čarobnjak za postavu. U protivnom posjetite http://
router.asus.com.
2
Povežite se pod mrežnim nazivom (SSID) prikazanim na naljepnici proizvoda sa stražnje
strane usmjerivača. Za bolju sigurnost mreže, promijenite na jedinstveni SSID i dodijelite
lozinku.
ASUS router
Naziv za 2,4G Wi-Fi
(SSID): ASUS_XX_2G
Naziv za 5G Wi-Fi
(SSID): ASUS_XX_5G
* XX se odnosi na posljednje dvije zna-
menke 2,4 GHz MAC adrese. Možete
ih pronaći na naljepnici na stražnjoj
strani uređaja ruter.
U13939-2_RT-AC1900U_AiMesh_QSG.indb 19 2018/3/29 14:24:22

20
Hrvatski
AiMesh POSTUPAK POSTAVLJANJA
within
1-3 meter
AiMesh node AiMesh router
Priprema
01
Postavite AiMesh usmjerivač i modul tako da međusobno budu razmaknuti 1-3 metra.
1
Provjerite ONE ROUTER SETUP STEPS (KORACI POSTAVLJANJA JEDNOG
USMJERIVAČA)za povezivanje AiMesh usmjerivača na računalo i modem i zatim se
prijavite na web sučelje.
AiMesh modul
02
Stanje tvorničkih postavki. Ostavite uređaj uključenim i pričekajte postavke sustava
AiMesh.
AiMesh usmjerivač
03
Modem AiMesh router AiMesh node
Modem AiMesh usmjerivač AiMesh modul
udaljeni
1-3 metra
AiMesh modul AiMesh usmjerivač
U13939-2_RT-AC1900U_AiMesh_QSG.indb 20 2018/3/29 14:24:22
