Asus RT-AC66U User manual

¨
K7417 / First Edition / July 2014
RT-AC66U Dual Band
3x3 802.11AC Gigabit Router
Quick Start Guide
apac7417_rt-ac66u_qsg_korean_added.indb 1 2014/8/4 15:06:08

NOTE /
注意
/ 注意 / 참고/CATATAN / หมายเหต
• For more details, refer to the user manual included
in the support CD.
• 更多資訊，請參考驅動程式與公用程式光碟中的使用手
冊。
• 更多信息，請參考驅動程序與應用程序光盤中的
用戶手冊。
• 보다 자세한 내용은 동봉된 CD 에 담긴 사용자 매뉴얼을
참조하십시오
• Untuk rincian lebih lanjut, lihat panduan pengguna
yang disertakan dalam CD dukungan.
• สำ�หรับร�ยละเอียดเพิ่มเติม
ให้ดูคู่มือผู้ใช้ที่ให้ม�ในแผ่น CD สนับสนุน
Table of contents
English.............................................................................................3
繁體中文 ........................................................................................16
簡體中文 ........................................................................................29
한국어.............................................................................................42
Bahasa Indonesia.........................................................................55
ไทย ..................................................................................................68
apac7417_rt-ac66u_qsg_korean_added.indb 2 2014/8/4 15:06:09

3
English
English
Package contents
RT-AC66U AC adapter
Network cable Quick Start Guide
Support CD (User Manual/utilities) Warranty card
Stand

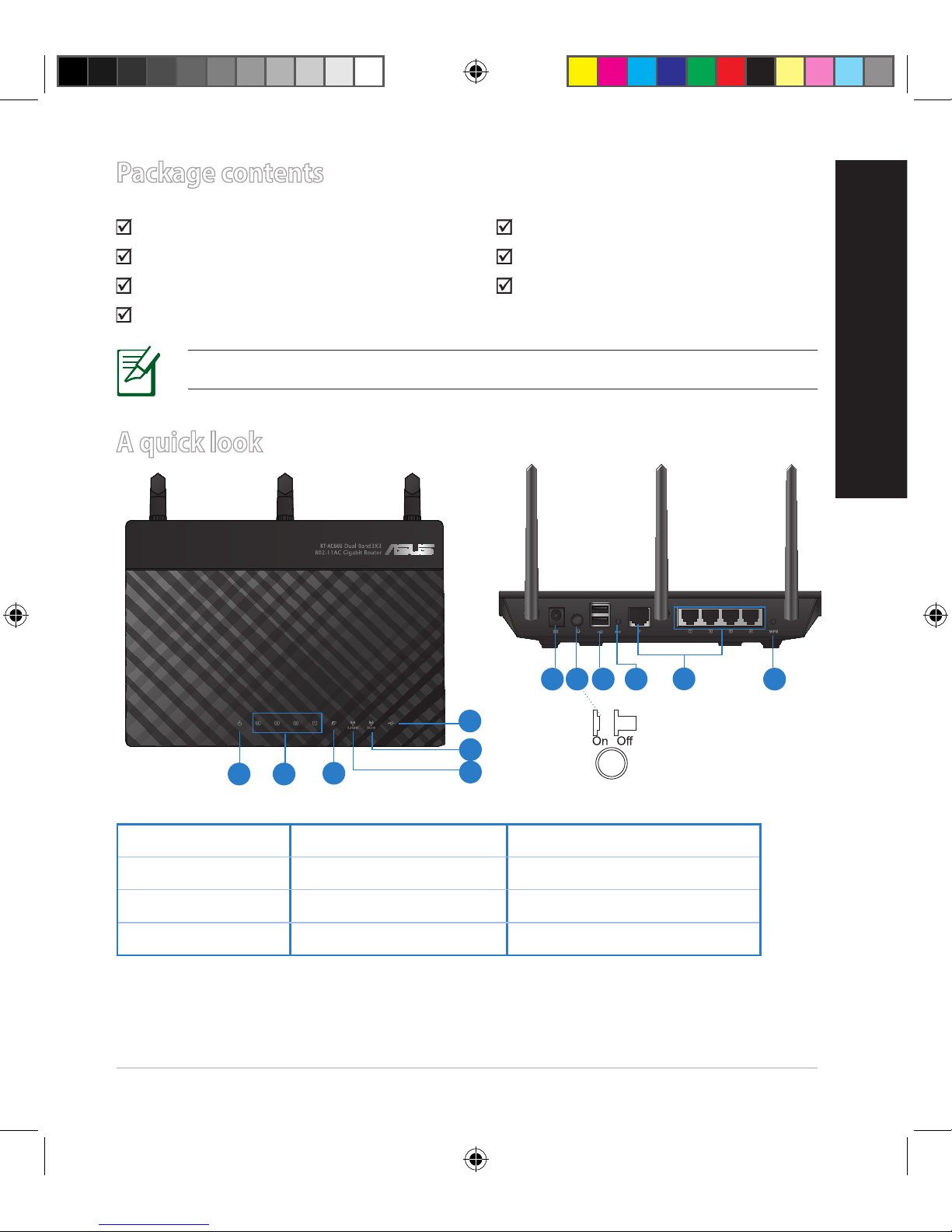

A quick look
1) Power LED 5) 5GHz LED 9) USB 2.0 ports
2) LAN LED 6) USB 2.0 LED 10) Reset button
3) WAN LED 7) Power (DC-IN) port 11) Internet & LAN ports
4) 2.4GHz LED 8) Power switch 12) WPS button
NOTE: If any of the items is damaged or missing, contact your retailer.
7 9 10 12
11
8
1 2 3
5
6
4
apac7417_rt-ac66u_qsg_korean_added.indb 3 2014/8/4 15:06:09

4
English
NOTES:
• USB External HDD/Flash disk:
• The wireless router works with most USB HDDs/Flash disks up to
2TB and supports read-write access for FAT16, FAT32, EXT2, EXT3,
and NTFS.
• To safely remove the USB disk, launch the web GUI
(http://192.168.1.1), then in the Network Map page's upper right
corner, click the USB icon and click Eject USB 1.
• Incorrect removal of the USB disk may cause data corruption.
• For the list of le system and hard disk partitions that the
wireless router supports, visit http://event.asus.com/networks/
disksupport
• For the list of printers that the wireless router supports, visit
http://event.asus.com/networks/printersupport
apac7417_rt-ac66u_qsg_korean_added.indb 4 2014/8/4 15:06:09

5
English
Positioning your wireless router
For the best wireless signal transmission between the wireless router and the
network devices connected to it, ensure that you:
• Place the wireless router in a centralized area for a maximum wireless coverage
for the network devices.
• Keep the device away from metal obstructions and away from direct sunlight.
• Keep the device away from 802.11g or 20MHz only Wi-Fi devices, 2.4GHz
computer peripherals, Bluetooth devices, cordless phones, transformers,
heavy-duty motors, uorescent lights, microwave ovens, refrigerators, and other
industrial equipment to prevent signal interference or loss.

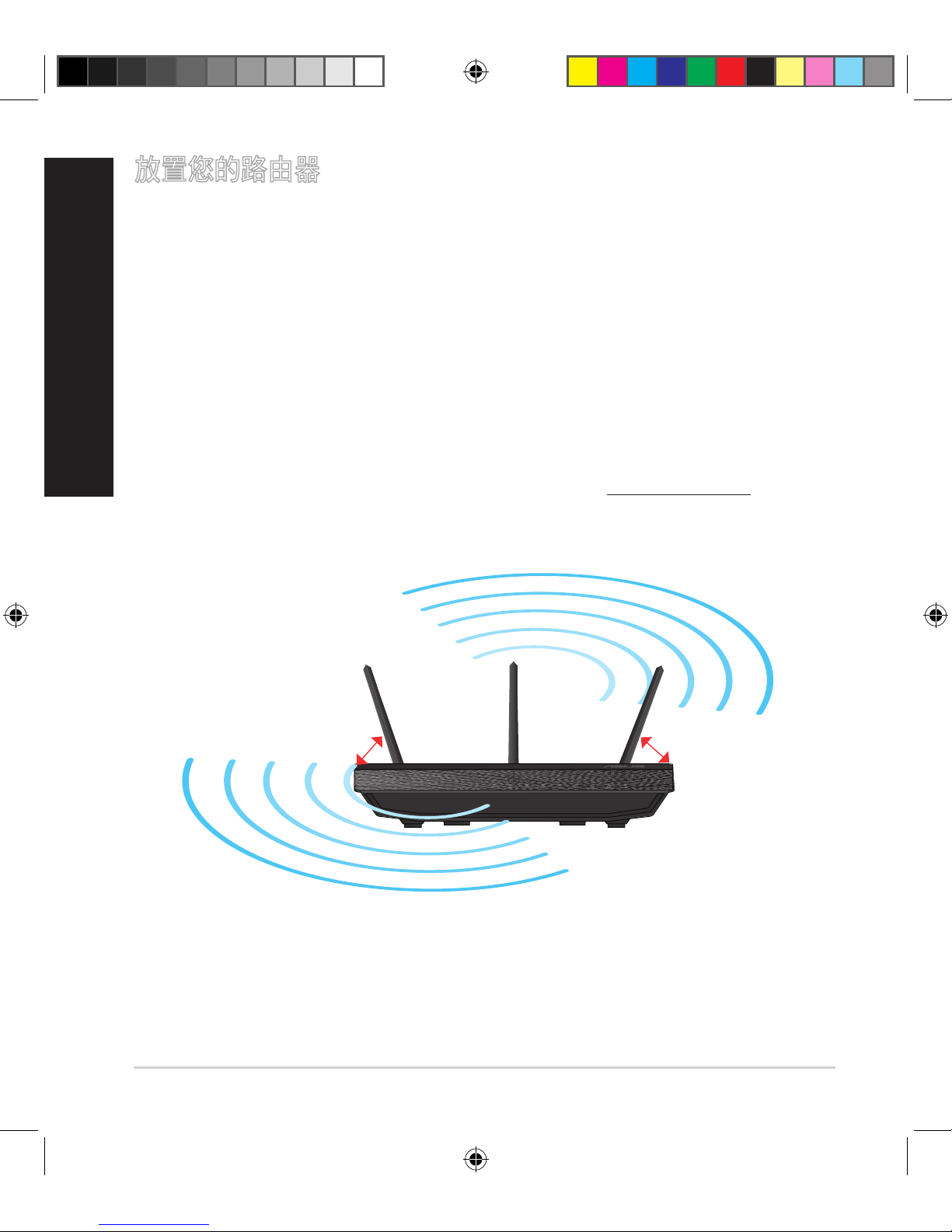

• To ensure the best wireless signal, orient the three detachable antennas as
shown in the drawing below.
• For optimum performance, adjust the internal cooling system. Refer to the user
manual for details.
• Always update to the latest rmware. Visit the ASUS website at
http://www.asus.com to get the latest rmware updates.
450
450
900
apac7417_rt-ac66u_qsg_korean_added.indb 5 2014/8/4 15:06:09

6
English

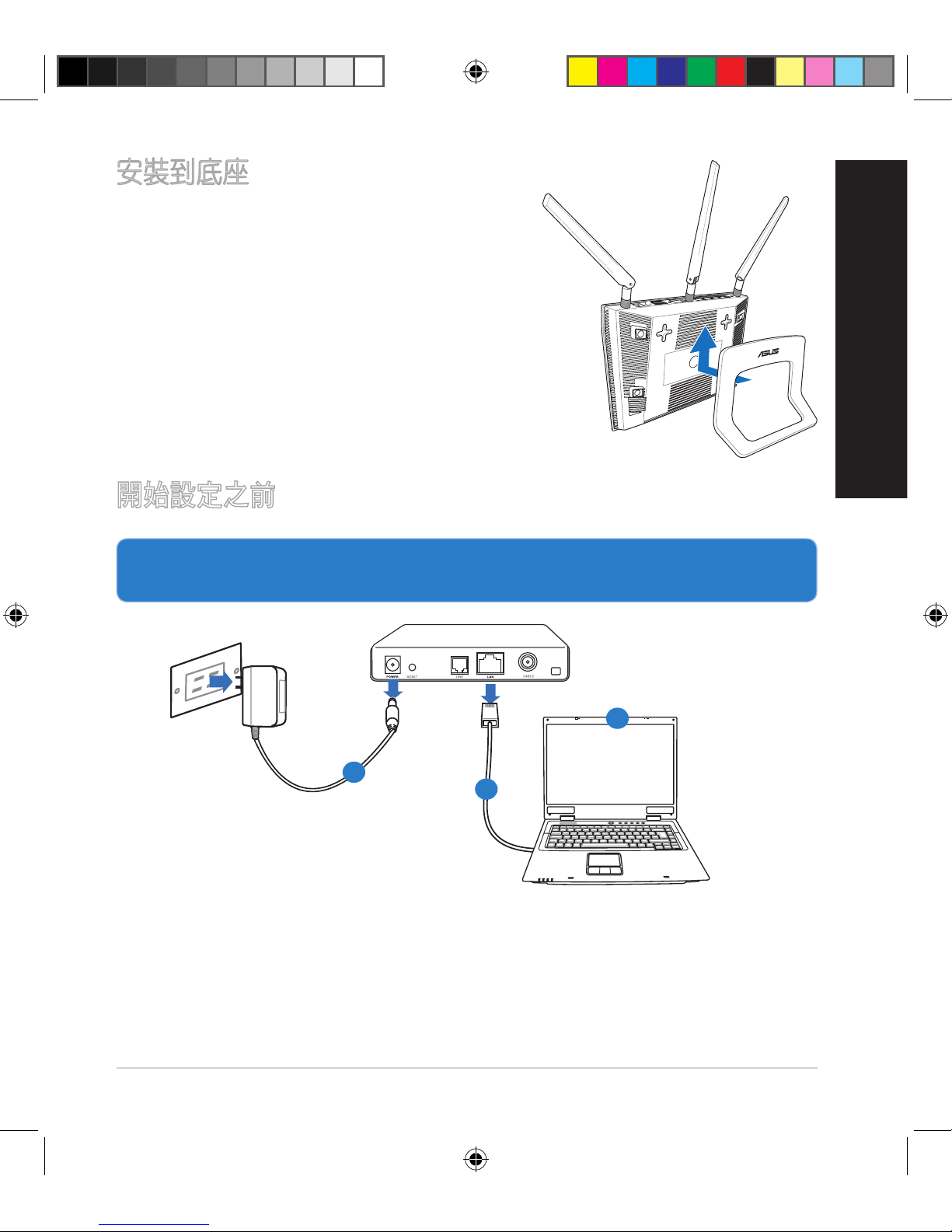

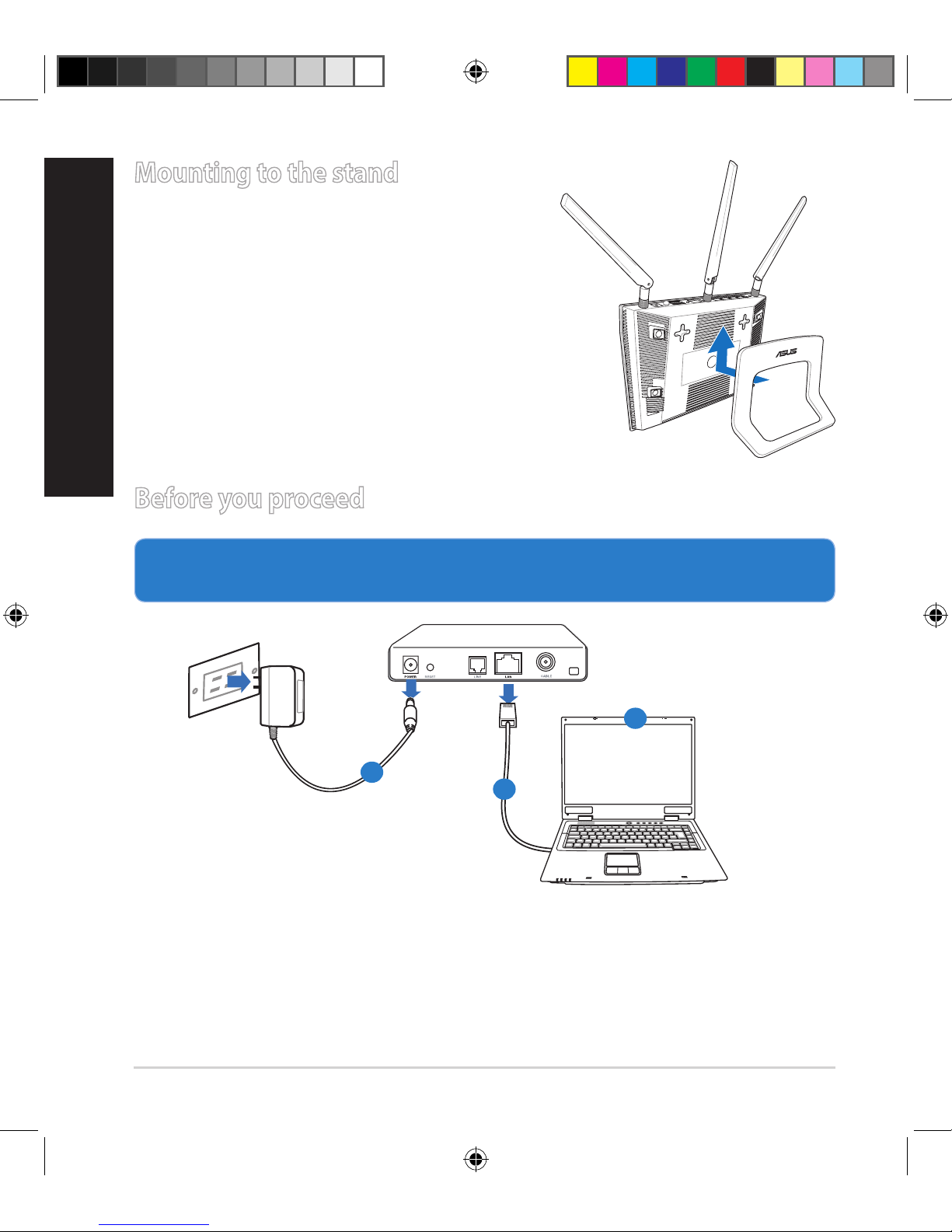

Mounting to the stand
• Align and insert the stand’s mounting hooks
to the wireless router’s mounting holes.
Before you proceed
1. Unplug and disconnect the wires/cables from your existing modem setup
and release your computer’s outmoded IP address.
a: Unplug the AC adapter from the power outlet and disconnect it from your
cable/ADSL modem.
b: Disconnect the network cable from your cable/ADSL modem.
c: Reboot your computer (recommended).
Modem
OFF!
a
b
c
apac7417_rt-ac66u_qsg_korean_added.indb 6 2014/8/4 15:06:10

7
English
WARNING! Before disconnecting the wires/cables, ensure that your
cable/ADSL modem has been turned o for at least two minutes. If your
modem has a backup battery, remove it as well.
2. Set up your wireless environment.
a: Insert your wireless router’s AC adapter to the DC-IN port and plug it to a
power outlet.
b: Using the bundled network cable, connect your computer to your wireless
router’s LAN port.
IMPORTANT! Ensure that the WAN and LAN LEDs are blinking.
c: Using another network cable, connect your modem to your wireless router’s
WAN port.
d: Insert your modem’s AC adapter to the DC-IN port and plug it to a power
outlet.
RT-AC66U
Computer
Modem
LAN
Power
Wall Power Outlet
Power
WAN
a
b
c
d
apac7417_rt-ac66u_qsg_korean_added.indb 7 2014/8/4 15:06:10

8
English
3. Disable some settings on your computer.
A. Disable the proxy server, if enabled.
B. Set the TCP/IP settings to automatically obtain an IP address.
C. Disable the dial-up connection, if enabled.
NOTE: For more details on disabling your computer settings, refer to
Frequently Asked Questions (FAQs).
1. Congure your wireless settings via the wireless router’s web graphics
user interface (web GUI).
a: Launch your web browser such as Internet Explorer, Firefox, Google Chrome,
or Safari.
Getting started
b
a
apac7417_rt-ac66u_qsg_korean_added.indb 8 2014/8/4 15:06:10

9
English
NOTE: If QIS does not launch automatically, follow these steps to
manually launch QIS:
• On your web browser, key in http://192.168.1.1 and run the Quick
Internet Setup (QIS) Wizard again.
• Disable the proxy settings, dial-up connection, and set your TCP/IP
settings to automatically obtain an IP address. For more details, refer
to the FAQs section or use the Setup Wizard in the support CD for
auto-diagnosis.
b: The wireless router’s Quick Internet Setup (QIS) feature automatically detects
if your ISP connection type is Dynamic IP, PPPoE, PPTP, L2TP, and Static IP.
Key in the necessary information for your connection type.
IMPORTANT! Obtain the necessary information about your Internet
connection type from your Internet Service Provider (ISP).
NOTE: The auto-detection of your ISP connection type takes place
when you congure the wireless router for the rst time or when your
wireless router is reset to its default settings.
NOTE: You can assign a network name with up to 32 characters.

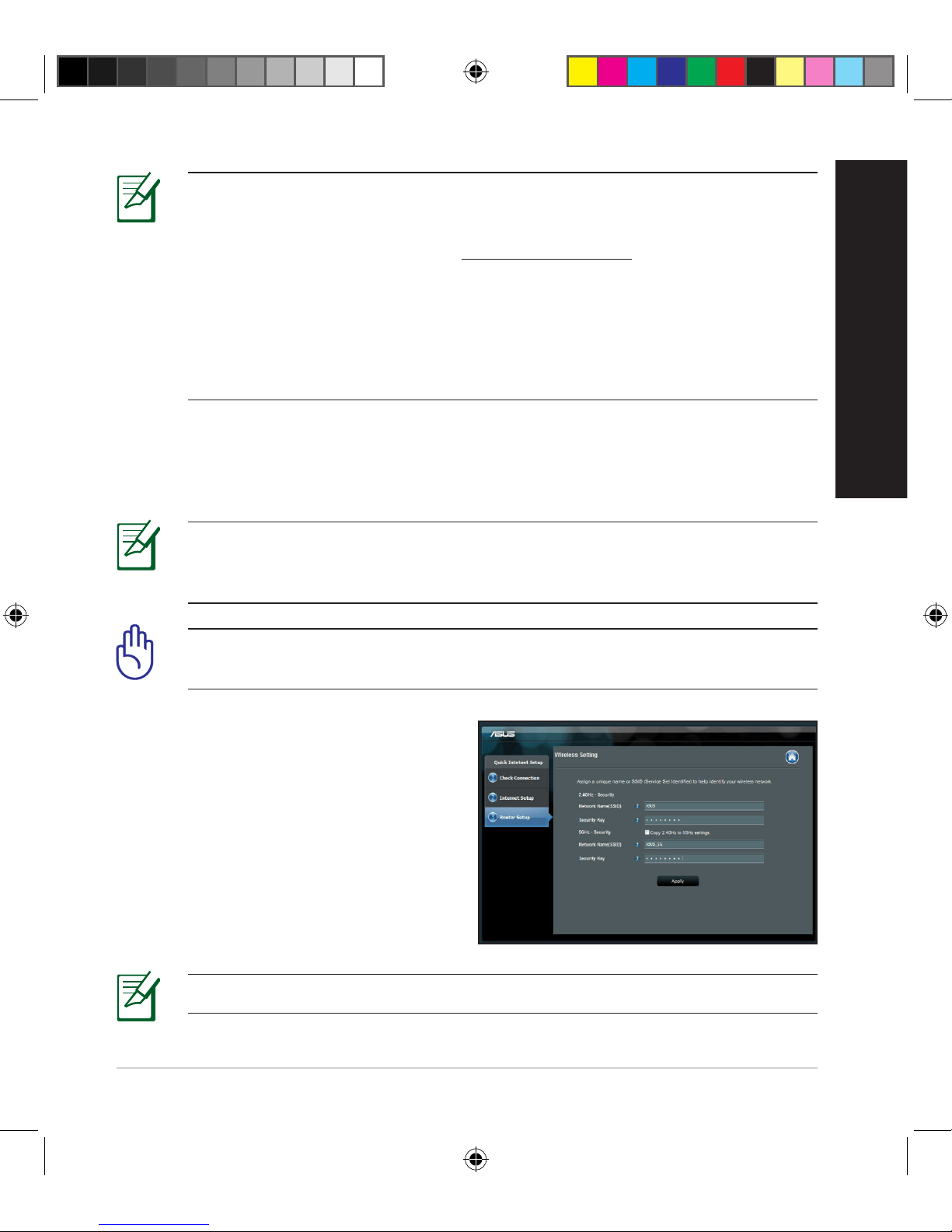

c: Assign the network name (SSID)
and security key for your 2.4GHz
and 5GHz wireless connection. Click
Apply when done.
d: Your Internet and wireless settings
are displayed. Click Next to contin-
ue.
e: Read the wireless network con-
nection tutorial. When done, click
Finish.
apac7417_rt-ac66u_qsg_korean_added.indb 9 2014/8/4 15:06:10

10
English
Frequently Asked Questions (FAQs)
After following the steps, I still cannot access the wireless router’s web
graphics user interface (web GUI) to congure the wireless router settings.
A. Disable the proxy server, if enabled.
Windows® 7
1. Click Start > Internet Explorer to launch the web
browser.
2. Click Tools > Internet options > Connections tab
> LAN settings.
3. From the Local Area Network (LAN) Settings
screen, untick Use a proxy server for your
LAN.
4. Click OK when done.
