1 Getting to know your wireless
router
NOTES:
• Ifanyoftheitemsaredamagedormissing,contactASUSfor
technical inquiries and support, Refer to the ASUS Support Hotline
list at the back of this user manual.
• Keeptheoriginalpackagingmaterialincaseyouwouldneedfuture
warranty services such as repair or replacement.
RT-AC750 Wireless Router Network cable (RJ-45)
Power adapter Quick Start Guide
Support CD (Manual) Warranty card
1.1 Welcome!
Thank you for purchasing an ASUS RT-AC750 Wireless Router!
The ultra-thin and stylish RT-AC750 features a 2.4GHz and 5GHz
dual bands for an unmatched concurrent wireless HD streaming;
SMB server, UPnP AV server, and FTP server for 24/7 le sharing.
1.2 Package contents

7
1.3 Your wireless router
LAN LED
O: No power or no physical connection.
On: Has physical connection to a local area network (LAN).
WAN (Internet) LED
O: No power or no physical connection.
On: Has physical connection to a wide area network (WAN).
USB LED
O: No power or no physical connection.
On: Has physical connection to USB device.
2.4GHz LED / 5GHz LED
O: No 2.4GHz or 5GHz signal.
On:Wireless system is ready.
Flashing:Transmitting or receiving data via wireless connection.
Power LED
O: No power.
On: Device is ready.
Flashing slow: Rescue mode
Flashing quick:WPS is processing.
Reset button
This button resets or restores the system to its factory default settings.
RT-AC750

8
NOTES:
• Useonlytheadapterthatcamewithyourpackage.Usingother
adapters may damage the device.
• Specications:
DC Power adapter DC Output: +12V with max 1.5A current;
Operating
Temperature 0~40oCStorage 0~70oC
Operating Humidity 50~90% Storage 20~90%
Power button
Press this button to power on or off the stystem.
Power (DC-IN) port
Insert the bundled AC adapter into this port and connect your router to a power source.
USB port
Insert a USB device such as USB hard disk or USB flash drive into the port.
Insert your iPad’s USB cable into the port to charge your iPad.
WPS button
This button launches the WPS Wizard.
WAN (Internet) port
Connect a network cable into this port to establish WAN connection.
LAN 1 ~ 4 ports
Connect network cables into these ports to establish LAN connection.

9
1.4 Positioning your router
For the best wireless signal transmission between the wireless
router and the network devices connected to it, ensure that you:
• Placethewirelessrouterinacentralizedareaforamaximum
wireless coverage for the network devices.
• Keepthedeviceawayfrommetalobstructionsandawayfrom
direct sunlight.
• Keepthedeviceawayfrom802.11gor20MHzonlyWi-Fi
devices, 2.4GHz computer peripherals, Bluetooth devices,
cordlessphones,transformers,heavy-dutymotors,fluorescent
lights, microwave ovens, refrigerators, and other industrial
equipment to prevent signal interference or loss.
• Alwaysupdatetothelatestfirmware.VisittheASUSwebsiteat
http://www.asus.com to get the latest firmware updates.

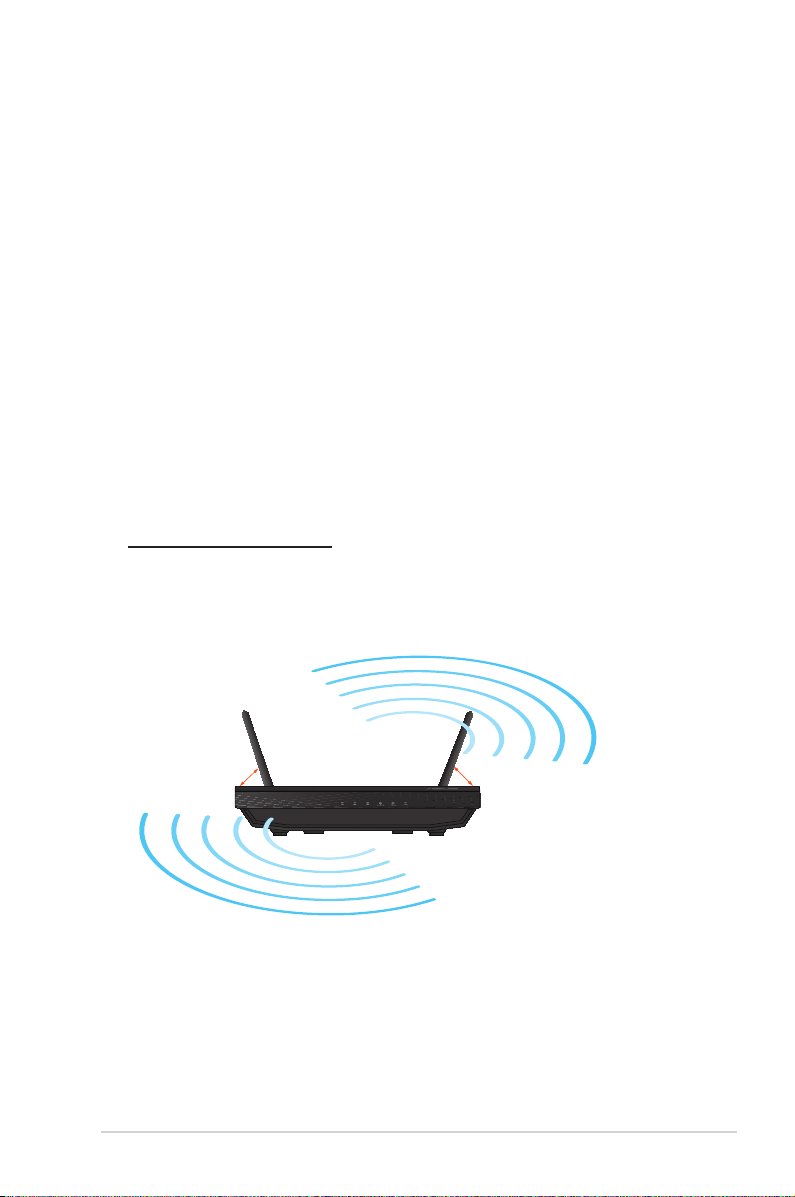

• Toensurethebestwirelesssignal,orientthetwodetachable
antennas as shown in the drawing below.
45°45 °

10

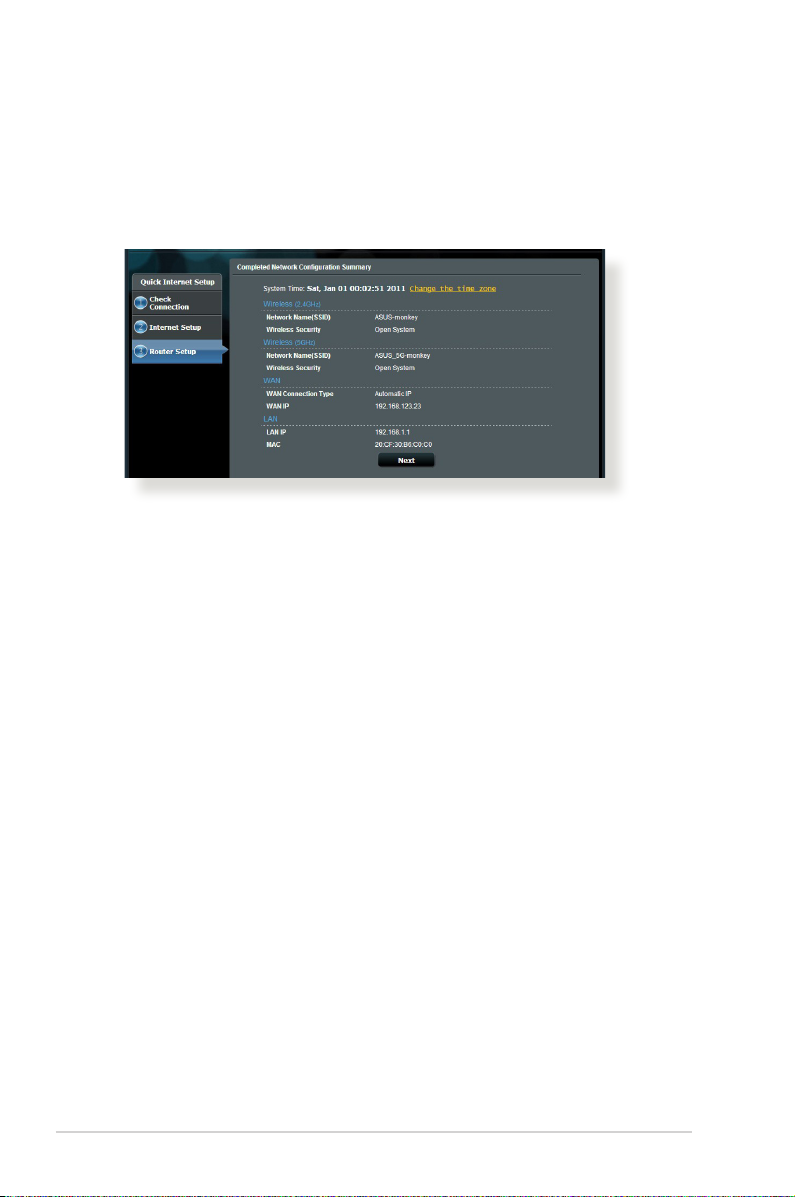

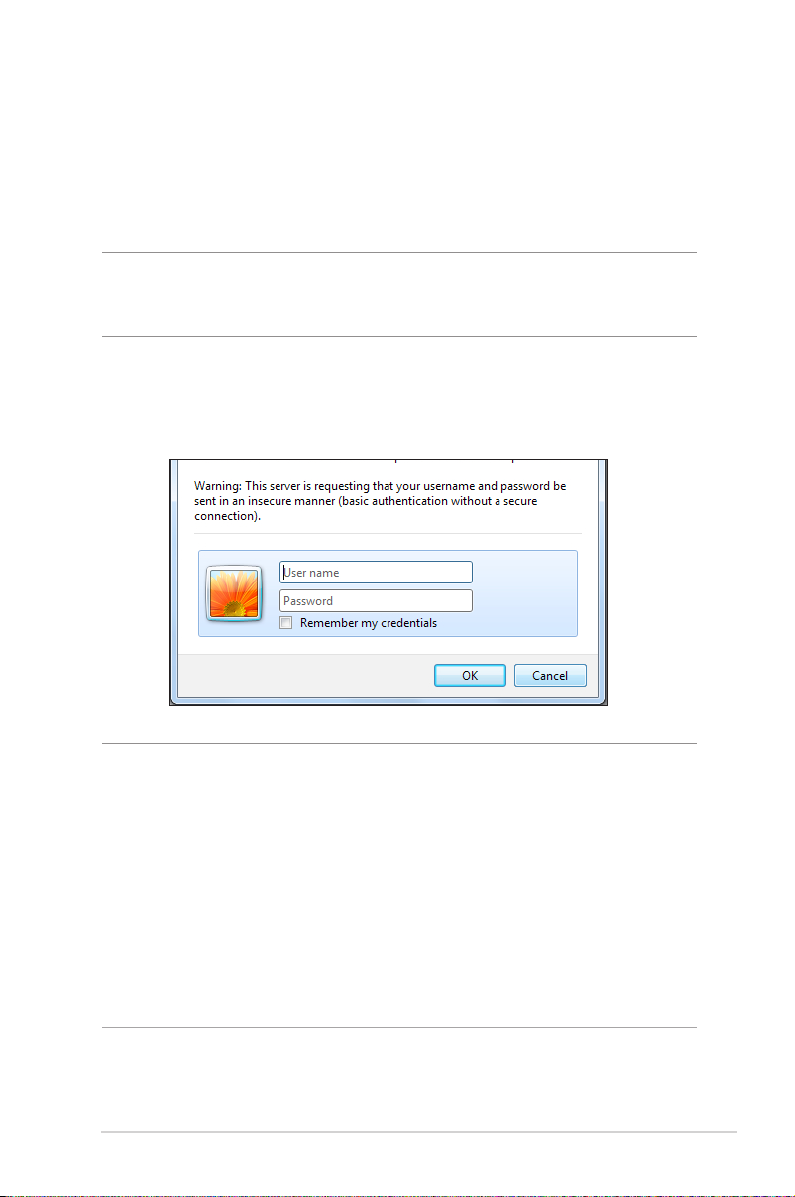

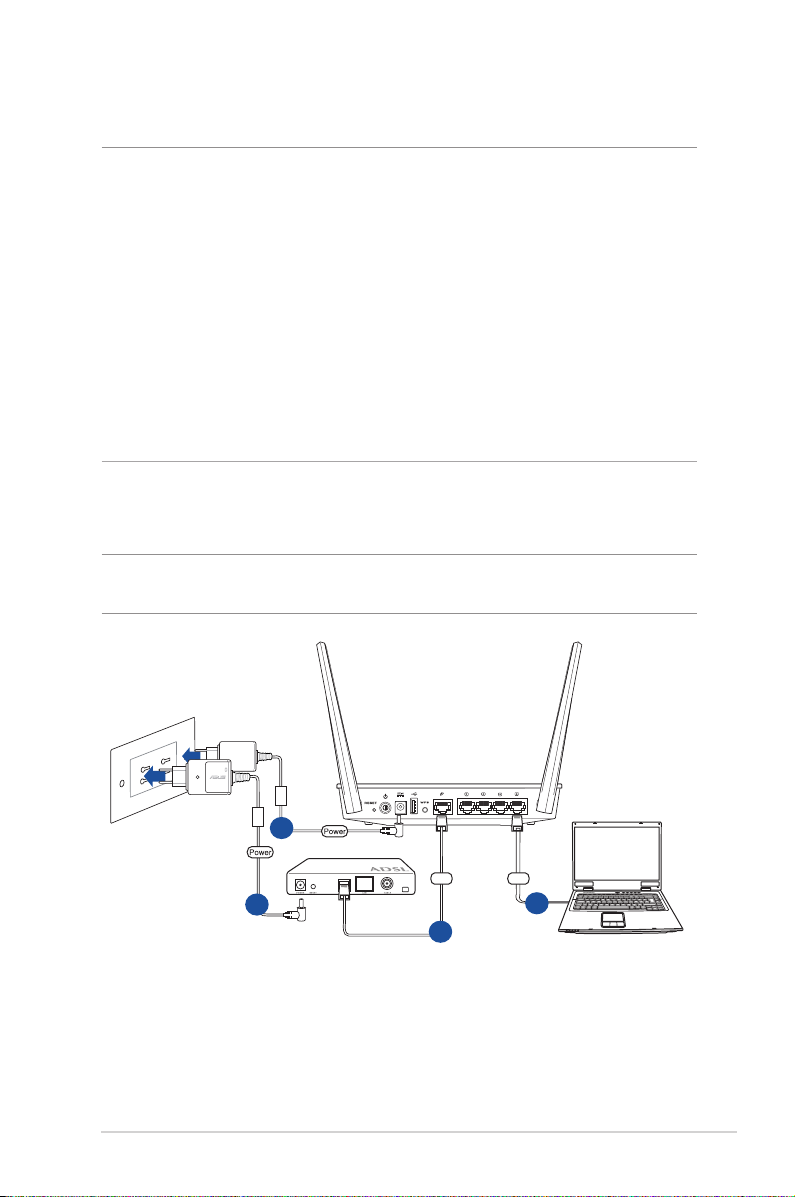

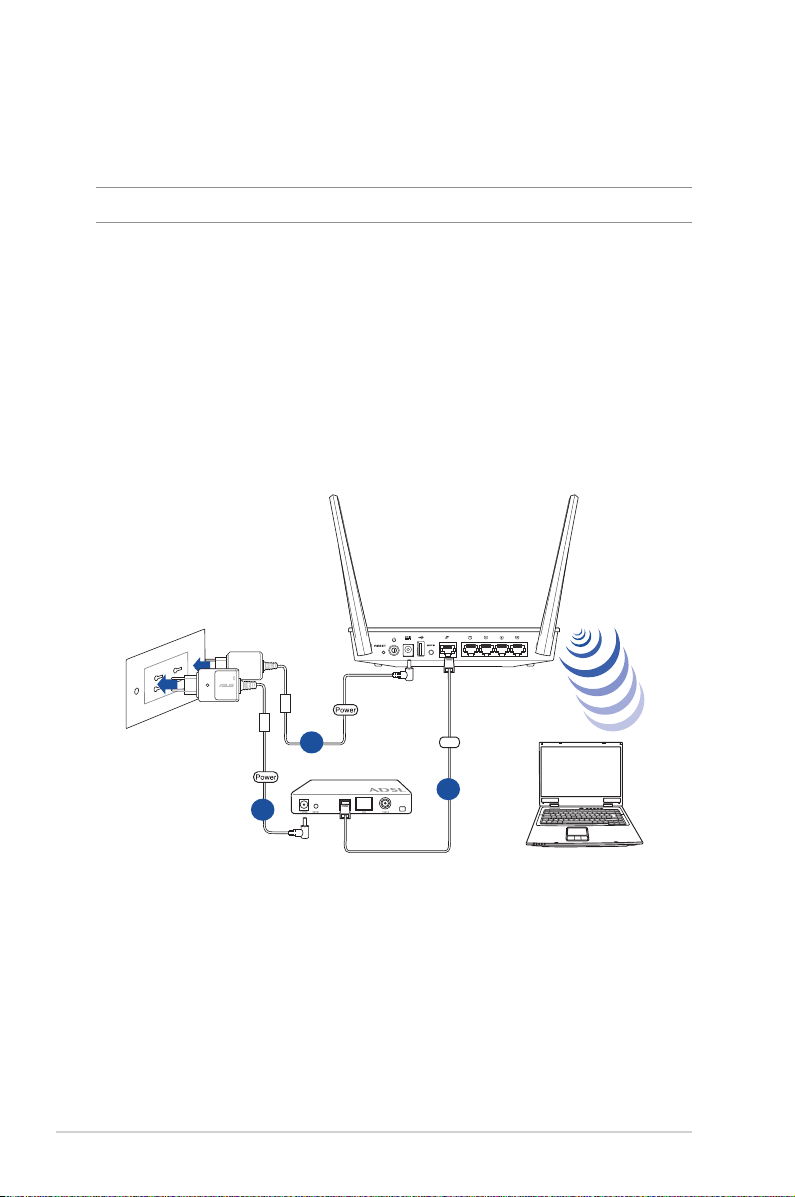

1.5 Setup Requirements
To set up your wireless network, you need a computer that meets
the following system requirements:
• EthernetRJ-45(LAN)port(10Base-T/100Base-TX)
• IEEE802.11a/b/g/n/acwirelesscapability
• AninstalledTCP/IPservice
• WebbrowsersuchasInternetExplorer,Firefox,Safari,or
Google Chrome
NOTES:
• Ifyourcomputerdoesnothavebuilt-inwirelesscapabilities,youmay
install an IEEE 802.11a/b/g/n/ac WLAN adapter to your computer to
connect to the network.
• Withitsdualbandtechnology,yourwirelessroutersupports2.4GHz
and 5GHz wireless signals simultaneously. This allows you to do
Internet-related activities such as Internet surng or reading/writing
e-mail messages using the 2.4GHz band while simultaneously
streaming high-denition audio/video les such as movies or music
using the 5GHz band.
• SomeIEEE802.11ndevicesthatyouwanttoconnecttoyournetwork
may or may not support 5GHz band. Refer to the device's manual for
specications.
• TheEthernetRJ-45cablesthatwillbeusedtoconnectthenetwork
devices should not exceed 100 meters.
