Asus GigaX 2008EX User manual

GigaX 2008EX
User Manual
Layer 2 Managed Switch

E2328
First Edition V1
Nov 2005
Copyright © 2005 ASUSTeK COMPUTER INC. All Rights Reserved. No part
of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language in any form or by any means, except documentation kept by
the purchaser for backup purposes, without the express written permission of
ASUSTeK COMPUTER INC. (ASUS).
Product warranty or service will not be extended if: (1) the product is repaired,
modified or altered, unless such repair, modification of alteration is authorized in
writing by ASUS; or (2) the serial number of the product is defaced or missing.
ASUS provides this manual “as is” without warranty of any kind, either express
or implied, including but not limited to the implied warranties or conditions of
merchantability or fitness for a particular purpose. In no event shall ASUS,
its directors, officers, employees, or agents be liable for any indirect, special,
incidental, or consequential damages (including damages for loss of profits,
loss of business, loss of use or data, interruption of business and the like), even
if ASUS has been advised of the possibility of such damages arising from any
defect or error in this manual or product.
Specifications and information contained in this manual are furnished for
informational use only, and are subject to change at any time without notice,
and should not be construed as a commitment by ASUS. ASUS assumes no
responsibility or liability for any errors or inaccuracies that may appear in this
manual, including the products and software described in it.
Products and corporate names appearing in this manual may or may not be
registered trademarks or copyrights of their respective companies, and are used
only for identification or explanation and to the ownersʼ benefit, without intent to
infringe.

Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with manufacturerʼs
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING! The use of shielded cables for connection of the monitor to the
graphics card is required to assure compliance with FCC regulations. Changes
or modifications to this unit not expressly approved by the party responsible for
compliance could void the userʼs authority to operate this equipment.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus set out in the Radio Interference Regulations of
the Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.

ASUS contact information
ASUSTeK COMPUTER INC. (Asia-Pacific)
Address: 15 Li-Te Road, Peitou, Taipei 112, Taiwan
General Tel: [phone]
General Fax: [phone]
Web Site: www.asus.com.tw
Technical Support
MB/Others (Tel): [phone] (English)
Notebook (Tel): [phone] (English)
Desktop/Server (Tel): [phone] (English)
Support Fax: [phone]
ASUS COMPUTER INTERNATIONAL (America)
Address: 44370 Nobel Drive, Fremont, CA 94538, USA
General Fax: [phone]
General Email: [email protected]
Web Site: usa.asus.com
Technical Support
Support Fax: [phone]
General Support: [phone]
Notebook Support: [phone] x5110
Support Email: [email protected]
ASUS COMPUTER GmbH (Germany and Austria)
Address: Harkort Str. 25, D-40880 Ratingen, BRD, Germany
General Fax: [phone]
General Email: [e-mail] (for marketing requests only)
Technical Support
Support Hotlines: (Components) [phone]
(Notebook PC) [phone]
Support Fax: [phone]
Support Email: www.asuscom.de/de/support (for online support)
Web Site: www.asuscom.de

i
GigaX2008EX L2 Managed Switch User Manual
Table of Contents
1 Introduction ............................................................................1
1.1 L2 managed features ................................................................. 1
1.2 Conventions used in this document ........................................... 2
1.2.1 Notations .......................................................................................2
1.2.2 Typography ....................................................................................2
1.2.3 Symbols .........................................................................................2
2 Getting to know the GigaX2008EX .......................................3
2.1 Package contents ...................................................................... 3
2.2 Front Panel ................................................................................. 4
2.3 Rear Panel ................................................................................. 5
2.4 Technical specifications .............................................................. 5
3 Quick start guide ...................................................................6
3.1 Part 1 — Install the hardware .................................................... 6
3.1.1 Install the switch on a flat surface ..................................................6
3.1.2 Mount the switch on a rack ............................................................6
3.2 Part 2 — Set up the switch ........................................................ 6
3.2.1 Connect the console port ...............................................................6
3.2.2 Connect to the computers or a LAN ..............................................7
3.2.3 Attach the power adapter .............................................................7
3.3 Part 3 — Basic switch setting for management .......................... 8
3.3.1 Setting up through the console port ...............................................8
3.3.2 Setting up through the Web interface ............................................9
4 Management with the Web Interface .................................11
4.1 Log into Web user interface ..................................................... 11
4.2 Functional layout ...................................................................... 12
4.2.1 Menu navigation tips ....................................................................13
4.2.2 Commonly used buttons and icons .............................................14

ii
GigaX2008EX L2 Managed Switch User Manual
4.3 System Pages .......................................................................... 14
4.3.1 Management ................................................................................14
4.3.2 IP setup .......................................................................................15
4.3.3 Administration .............................................................................15
4.3.4 Reboot ........................................................................................16
4.3.5 Firmware Upgrade .......................................................................16
4.4 Physical Interface ................................................................... 17
4.5 Bridge ....................................................................................... 18
4.5.1 Link Aggregation ..........................................................................18
4.5.2 Mirroring ......................................................................................19
4.5.3 Traffic Control ..............................................................................20
4.5.4 Dynamic Addresses .....................................................................20
4.5.5 Static Addresses ..........................................................................21
4.5.6 Tagged VLAN ..............................................................................22
4.5.7 Default Port VLAN and CoS ........................................................23
4.5.8 CoS Queue Mapping ...................................................................23
4.6 SNMP ....................................................................................... 25
4.6.1 Community Table .........................................................................25
4.6.2 Host Table ....................................................................................25
4.6.3 Trap Setting .................................................................................26
4.7 Security .................................................................................... 27
4.7.1 Port Access Control .....................................................................27
4.7.2 Dial-In User ..................................................................................28
4.7.3 RADIUS .......................................................................................29
4.8 Power over Ethernet (PoE) ........................................................ 29
4.9 Cable diagnosis ....................................................................... 30
4.10 Statistics Chart ....................................................................... 31
4.10.1 Traffic Comparison ......................................................................31
4.10.2 Error Group ...............................................................................32

iii
GigaX2008EX L2 Managed Switch User Manual
4.10.3 Historical Status .........................................................................32
4.11 Save Configuration .................................................................. 33
5 Console Interface ................................................................34
5.1 Power On Self Test .................................................................. 34
5.1.1 Boot ROM Command Mode ........................................................35
5.1.2 Boot ROM Commands ................................................................35
5.2 Login and Logout ...................................................................... 36
5.3 CLI Commands ........................................................................ 36
5.3.1 System Commands .....................................................................37
5.3.2 Physical Interface Commands .....................................................39
5.3.3 Bridge Commands .......................................................................39
5.3.4 SNMP ..........................................................................................43
5.3.5 Security Commands ....................................................................45
5.3.6 PoE ..............................................................................................47
5.4 Miscellaneous Commands ....................................................... 49
6 IP Addresses, Network Masks, and Subnets ....................50
6.1 IP Addresses ............................................................................. 50
6.1.1 Structure of an IP address ...........................................................50
6.1.2 Network classes ..........................................................................51
6.2 Subnet masks .......................................................................... 51
7 Troubleshooting ..................................................................53
7.1 Diagnosing problems using IP utilities ..................................... 53
7.1.1 ping ..............................................................................................53
7.1.2 nslookup ......................................................................................54
7.2 Simple fixes .............................................................................. 55
8 Glossary ...............................................................................57

iv
GigaX2008EX L2 Managed Switch User Manual
List of figures
Figure 1. GigaX2008EX L2 managed switch package contents ............ 3

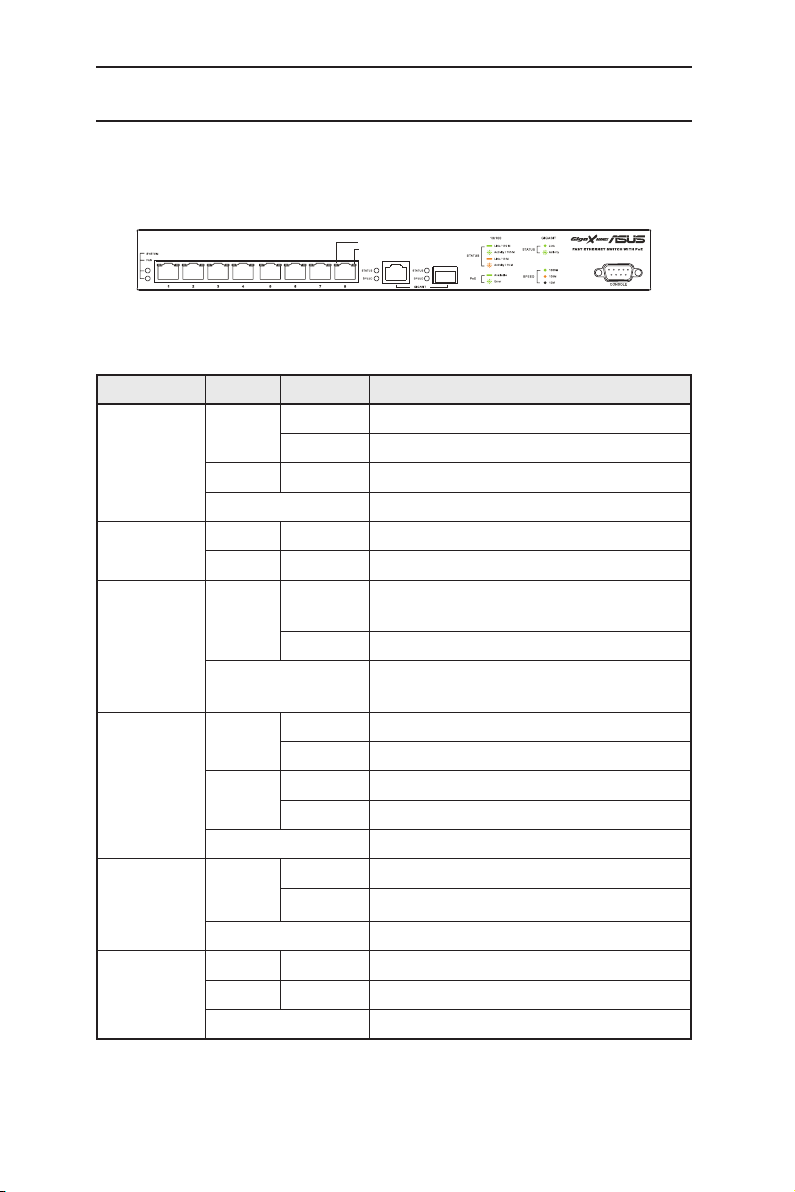

Figure 2. Front panel .............................................................................. 4
Figure 3. Rear panel ............................................................................... 5
Figure 4. Overview of hardware connections ......................................... 8
Figure 5. Login and IP setup screen ..................................................... 10
Figure 6. Login screen .......................................................................... 10
Figure 7. IP setup ................................................................................ 10
Figure 8. Configuration manager login screen ..................................... 11
Figure 9. Home page ............................................................................ 12
Figure 10. Top frame ............................................................................ 12
Figure 11. Expanded menu list ............................................................. 13
Figure 12. Management ....................................................................... 15
Figure 13. IP Setup ............................................................................... 15
Figure 14. Administration ...................................................................... 16
Figure 15. Reboot ................................................................................. 16
Figure 16. Firmware upgrade ............................................................... 17
Figure 17. Physical interface ................................................................ 17
Figure 18. Link aggregation .................................................................. 19
Figure 19. Mirroring page .................................................................... 19
Figure 20. Traffic control ....................................................................... 20
Figure 21. Dynamic address ................................................................ 20
Figure 22. Static address ..................................................................... 21
Figure 23. Tagged VLAN ...................................................................... 22
Figure 24. Default port VLAN and CoS ................................................ 23
Figure 25. Cos queue mapping ............................................................ 24
Figure 26. Community table ................................................................ 25
Figure 27. Host table ............................................................................ 25

v
GigaX2008EX L2 Managed Switch User Manual
Figure 28. Trap setting ......................................................................... 26
Figure 29. Port access control .............................................................. 28
Figure 30. Dial-In user .......................................................................... 28
Figure 31. RADIUS .............................................................................. 29
Figure 32. Power over Ethernet ........................................................... 30
Figure 33. Cable diagnosis ................................................................... 31
Figure 34. Traffic comparison ............................................................... 32
Figure 35. Error group .......................................................................... 32
Figure 36. Historical status ................................................................... 32
Figure 37. Save configuration .............................................................. 33
Figure 38. CLI interface ........................................................................ 34
Figure 39. Boot ROM command mode ................................................. 35
Figure 40. System commands .............................................................. 37
Figure 41. Using the ping utility ............................................................ 53
Figure 42. Using the nslookup utility .................................................... 54
List of tables
Table 1. Front panel labels and LEDs .................................................... 4
Table 2. Rear panel labels ...................................................................... 5
Table 3. Technical specifications ............................................................ 5
Table 4. LED indicators .......................................................................... 8
Table 5. Port color description .............................................................. 13
Table 6. Commonly used buttons and icons ......................................... 14
Table 7. Boot ROM commands ............................................................ 35
Table 8. IP address structure ................................................................ 50
Table 9. Troubleshooting ...................................................................... 55

vi
GigaX2008EX L2 Managed Switch User Manual

1
GigaX2008EX L2 Managed Switch User Manual
1 Introduction
Congratulations on becoming the owner of the ASUS GigaX2008EX L2 managed
switch! You may now manage your LAN (local area network) through a friendly
and powerful user interface.
This user guide tells you how to set up GigaX2008EX, and how to customize its
configuration to get the most out of this product.
1.1 L2 managed features
• Eight 10/100 Base-TX auto-sensing Fast Ethernet ports
• One 10/100/1000Base-T auto-sensing gigabit Ethernet switching port
• One small form factor (SFP) Gigabit interface converter (GBIC) slots
• Automatic MDI/MDIX support for 10/100Base-TX and 10/100/1000Base-T
ports
• 8K MAC address cache with hardware-assisted aging
• 802.3x flow control
• 802.1Q-based tagged VLAN, up to 256 VLANs
• 802.1p class of service, 4 queues per port
• 802.3ad link aggregation (manual), up to 15 trunk groups
• Port Mirroring
• 802.1x port-based network access control
• RADIUS remote authentication dial-in user service
• RMON: support 4 groups (1, 2, 3, 9)
• SNMP v1, v2
• MIB-II
• Enterprise MIB for PSU, fan, and system temperature, voltage
• Telnet remote login
• FTP for firmware update and configuration backup
• Syslog.
• Command Line Interpreter through console and telnet
• Web GUI
• LEDs for port link status
• LEDs for system and fan status

2
GigaX2008EX L2 Managed Switch User Manual
1.2 Conventions used in this document
1.2.1 Notations
• Acronyms are defined the first time they appear in text and in the glossary.
• For brevity, the GigaX switch is referred to as “the switch.”
• The terms LAN and network are used interchangeably to refer to a group of
Ethernet-connected computers at one site.
1.2.2 Typography
• Boldface type text is used for items you select from menus and drop-down
lists, and text strings you type when prompted by the program.
1.2.3 Symbols
This document uses the following icons to call your attention to specific
instructions or explanations.
Note: Provides clarification or additional information on the
current topic.
Definition: Explains terms or acronyms that may be unfamiliar to
many readers. These terms are also included in the Glossary.
Warning: Provides messages of high importance, including
messages relating to personal safety or system integrity.

3
GigaX2008EX L2 Managed Switch User Manual
2 Getting to know the GigaX2008EX
2.1 Package contents
The GigaX2008EX switch package comes with the following items:
• GigaX2008EX (10-port) L2 managed switch
• AC Power cord
• Null modem cable for console interface (DB9)
• Rack installation kit (two brackets with six #6-32 screws)
• Installation CD-ROM
• User Manual
• Quick installation guide
Figure 1. GigaX2008EX L2 managed switch package contents
12
SYSTEM
RPS
FAN
CONSOLE
RS-232
8
4
2
1
7
5
3
6

4
GigaX2008EX L2 Managed Switch User Manual
2.2 Front Panel
The front panel includes eight 10/100Base-TX RJ-45 port, one 10/100/1000Base-T
port, one SPF GBIC slot and LED indicators that show the system,fan, and port
status.
Figure 2. Front panel
Table 1. Front panel labels and LEDs
Label Color Status Description
SYSTEM Green ON Unit is powered on
Flashing Self-test, initiating, or downloading
Amber ON Abnormal temperature or voltage
OFF No power
FAN Green ON The fan is working properly
Amber ON The fan stops
PoE Green ON PD (Powered Devices) is connected and
ready to provide power
Flashing PoE is off due to a fault on the port
OFF PD is not connected or not a valid power
device
10/100 port
status
Green ON Link is present at 100Mbps
Flashing Transmitting data
Amber ON Link is present at 10Mbps
Flashing Transmitting data
OFF No Ethernet link
GIGABIT
port status
Green ON Link is present
Flashing Transmitting data
OFF No Ethernet link
GIGABIT
port speed
Green ON 1000Mbps (RJ-45 or SFP)
Amber ON 100Mbps (RJ-45)
OFF 10Mbps (RJ-45)
Status
PoE

5
GigaX2008EX L2 Managed Switch User Manual
2.3 Rear Panel
The switch rear panel consists of the fan modules and a power connector.
Figure 3. Rear panel
Table 2. Rear panel labels
No. Label Description
1 Power Connector Connects to the supplied power cord
2 FAN System fan
2.4 Technical specifications
Table 3. Technical specifications
Physical
Dimensions 43.5mm(H) x 444mm(W) x 265mm(D)
Power
Input Consumption
100-240V AC/2.5A
50-60Hz <90 watts
Environmental
Ranges
Operating Storage
Temperature -10 to 50°C (14
to 122°F)
-40 to 70°C(-40 to
158°F)
Humidity 15 to 90% 0 to 95%
Altitude up to 10,000ft
(3,000m) 40,000ft (12,000m)
System Fan Dimensions Voltage and
Current Speed
40 x 40 x 20 mm 12V DC/0.13A 8200RPM
100-240VAC~
1
2

6
GigaX2008EX L2 Managed Switch User Manual
3 Quick start guide
This section provides the basic instructions to set up the GigaX2008EX working
environment. Refer also to the GigaX2008EX Installation Guide.
Part 1 shows you how to install the GigaX2008EX on a flat surface or on a rack.
Part 2 provides instructions to set up the hardware.
Part 3 shows you how to configure basic settings on the GigaX2008EX.
Obtain the following information from your network administrator before
proceeding:
IP address for the switch
Default gateway for the network
Network mask for this network
3.1 Part 1 — Install the hardware
Connect the device to the power outlet, and your computer or network.
3.1.1 Install the switch on a flat surface
The switch should be installed on a level surface that can support the weight
of the switches and their accessories. Attach four rubber pads on the marked
location on the bottom of the switch.
3.1.2 Mount the switch on a rack
1. Attach brackets to each side of the switch and make the posts insert to the
switch.
2. Insert and tighten two screws to securely attach the bracket to the rack on
each side.
3.2 Part 2 — Set up the switch
Connect the device to the power outlet, and your computer or network.
3.2.1 Connect the console port
For console management, use an RS232 (DB9) to connect the switch. If you
want to use Web interface, connect your PC to the switch using the Ethernet
cable.

7
GigaX2008EX L2 Managed Switch User Manual
3.2.2 Connect to the computers or a LAN
You can use Ethernet cable to connect computers directly to the switch ports.
You can also connect hubs/switches to the switch ports by Ethernet cables.
You can use either the crossover or straight-through Ethernet cable to connect
computers, hubs, or switches.
Use a twisted-pair Category 5 Ethernet cable to connect the
1000BASE-T port. Otherwise, the link speed can not reach
1Gbps.
3.2.3 Attach the power adapter
1. Connect the AC power cord to the power receptacle on the back of the
switch and plug the other end of the power cord into a wall outlet or a power
strip.
2. Check the front LED indicators with the description in Table 4. If the LEDs
light up as described, the switch hardware is working properly.
Figure 4. Overview of hardware connections
S
Expansion Switch/Hub
Client
Client
Cat 5 (or better)
Network Cables
AC Power
RS232
Console
(RS232)
GigaX2008EX
SYSTEM
RPS
FAN
CONSOLE
RS-232
8
4
2
1
7
5
3
6
12
SYSTEM
RPS
FAN
CONSOLE
RS-232
8
4
2
1
7
5
3
6
GigaX2008EX

8
GigaX2008EX L2 Managed Switch User Manual
Table 4. LED indicators
No. LED Description
1 SYSTEM
Solid green indicates that the device is turned on. If this light
is off, make sure the power cord is attached to the switch and
plugged into a power source
210/100 port
STATUS
Solid green indicates that link is present on the port; flashing
means the attached device is sending or receiving data
310/100 port
PoE
Solid green indicates that a Power Device (PD) is connected
4GIGABIT
port STATUS
Solid green indicates that link is present; flashing means data is
being transmitted; if the LED is off, no device is connected
5GIGABIT
port SPEED
Solid green means the link speed is 1000Mbps, solid amber
means 100Mbps; if the LED is off, the port speed is 10Mbps
6 FAN Solid green indicates that the system fan works properly
3.3 Part 3 — Basic switch setting for management
After completing the hardware connections, configure the basic settings for your
switch. You can manage the switch using the following methods:
• Web interface: the switch has a set of pages to allow to you manage it using
Java®-enabled IE5.0 or higher version.
• Command Line Interface: use console port to manage the switch.
3.3.1 Setting up through the console port
1. Use the supplied crossover RS-232 cable to connect to the console port on
the front panel of the switch. This port is a male DB-9 connector, implemented
as data terminal equipment (DTE) connection. Tighten the retaining screws
on the cable to secure it on the connector. Connect the other end of the cable
to a PC running terminal emulation software. e.g. Hyper Terminal.
2. Make sure the settings of your terminal emulation software as follows:
a) Choose the appropriate serial port number
b) Set the data baud rate to 9600
c) Set the data format to no parity, 8 data bits and 1 stop bit
d) No flow control
e) Set VT1000 for emulation mode
3. After setting up the terminal, you can see the prompt “(ASUS)%” on the
terminal.
4. Type “login” to access the command line interface. The default user name is

9
GigaX2008EX L2 Managed Switch User Manual
“admin”. Skip the password by pressing <Enter>.
You can change the password at any time through CLI (see
section 5.3.1). To protect your switch from unauthorized access,
you must change the default password as soon as possible.
5. Follow these steps to assign an IP address to the switch:
a) Type “net interface ip sw0 <your ip address> <your network mask>”.
For example, if your switch IP is 192.168.10.1 and the network mask is
255.255.255.0. Then you should type “net interface ip sw0 192.168.10.1
255.255.255.0”.
b) If the switch has to be managed across networks, then a default gateway
or a static route entry is required. Type “net route static add 0.0.0.0 <your
network gateway IP> 0.0.0.0 1” as your default route entry, as shown in
Figure 5.
Figure 5. Login and IP setup screen
3.3.2 Setting up through the Web interface
To successfully connect your PC to the switch, your PC must a valid IP in your
network. Contact your network administrator to obtain a valid IP for the switch. If you
wish to change the default IP address of the switch, follow section 3.3.1 to change
the IP address.
1. It is not necessary to login Web interface at the first time to use Web interface
because the default configuration for Web access authentication is disabled.
To secure the system configuration, please enable the authentication function
at the Administration page under System category. Skip step 2 if the
authentication is disabled.
2. At any PC connected to the network that the switch can access, open your
Web browser (Internet Explorer), and type the following URL in the address/
location box, and press <Enter>:

10
GigaX2008EX L2 Managed Switch User Manual
http://192.168.1.1
This is the factory default IP address of the switch.
A login screen appears, as shown in Figure 6.
Figure 6. Login screen
Enter your user name and password, and then click OK to enter the
Configuration Manager. Use the following defaults the first time you log into this
interface:
Default User Name: admin
Default Password: (no password)
You can change the password at any time (see section 5.3.1
System Commands).
3. To setup a new IP address, click System, then IP Setup (see Figure 7). Fill
in the IP address, network mask and default gateway, then click OK.
4. If your new address is different from the default, the browser cannot update
the switch status window or retrieve any page. This is normal. You have to
retype the new IP address in the address/location box, and press <Enter>.
The WEB link returns.
5. To enable authentication for Web access, click Administration on the menu
list, then select Enabled to start the protection.
A login window appears immediately after you click OK.
Figure 7. IP setup
