AT&T Trimline 230 User manual

TRIMLINE
Memory
Telephone 230
User’s Manual
Part 2
© 1998 Philips Consumer Communications, L.P. All rights reserved.
Printed in Mexico. 848234530 Issue 1AT&T
AT&T 230 Quark pdf 7/22/98 12:13 PM Page 1

PARTS CHECKLIST
Remember to save your sales receipt in case you ever
need warranty service, and make sure this telephone
package includes the items shown below:
1
TELEPHONEBASE
TELEPHONE
HANDSET
Handset Tab
Switchhook
Coiled handset cord7-foot line cord
Ringer
Volume
Receiver
Volume
Program
Button
Dial
Mode
Switch
AT&T 230 Quark pdf 7/22/98 12:13 PM Page 2

TABLE/DESK INSTALLATION
This telephone includes a 7-foot line cord with a
modular plug on each end. Use this cord to connect
the telephone to a modular jack.
1. Fill in directory card
Remove the directory card and
write in your own telephone
number. Also write the tele-
phone numbers (or names)
that you want to store in each
memory location.
Reinstall the card and clear
plastic cover.
2. Connect line cord to telephone
Plug the long line cord into the
jack on the underside of the tele-
phone base. Then feed the line
cord through the channel pro-
vided so the telephone sits flat
on your table or desk during use
(Figure 1).
3. Connect line cord to wall jack
Plug free end of
the line cord into a modular
jack. Make sure it snaps firmly
into place.
4. Set DIAL Mode switch
This product comes set in the
tone (TT) mode. Make sure you choose the
correct dialing method (TT/DP); touch tone dial-
ing will not work if you have dial pulse service.
5. Connect handset to base
Plug one end of the coiled handset cord into the
handset, and the other end into the base. Then
hang up.
6. Check for dial tone
Lift the handset and listen for dial tone. If you can-
not hear a dial tone, refer to “In Case of Difficulty”
and try to correct the problem.
TO DISCONNECT the telephone, squeeze the
clip on the modular plug and pull it out of the jack.
Figure 1
Figure 2
2
AT&T 230 Quark pdf 7/22/98 12:13 PM Page 3

WALL INSTALLATION
1. Fill in directory card
Remove the directory card and write in your own
telephone number. Also write the telephone num-
bers (or names) that you want to store in each
memory location.
2. Reverse handset tab
To install the telephone on a wall jack, you must
reverse a small tab beneath the directory card. This
tab holds the handset in place when you hang up.
Remove the directory card and plastic cover. Use
a paper clip to lift and remove the handset tab.
Reverse the tab and reinstall it as shown (Figure
1). Then replace the directory card and cover.
3. Plug the line cord into the
jack on the underside of the
base. Feed the line cord into the
channel and wind it around the
mounting area. Feed the last
portion (as short as possible),
through one of the slots in the
mounting area (Figure 2).
(Continued)
B
C
D
A
Figure 2
Figure 1
3
AT&T 230 Quark pdf 7/22/98 12:13 PM Page 4

4

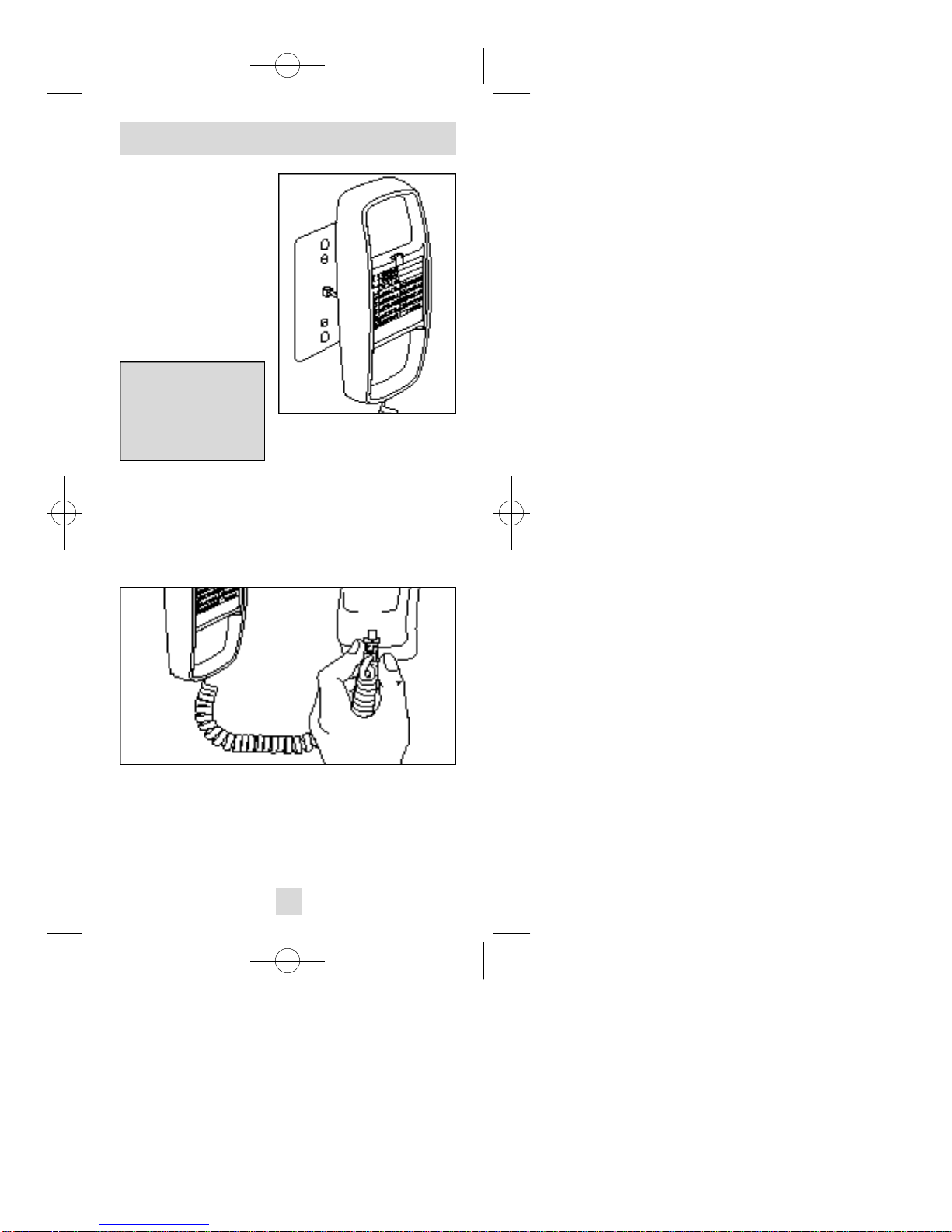

WALL INSTALLATION (continued)
4. Install telephone
base on wall jack
Hold the base up
next to the wall jack,
and plug in the line
cord (Figure 3).
Then push the base
againstthe wall jack
and down until it is
held securely by the
mounting studs.
5. Set DIAL Mode switch
Refer to step 4 in Table/Desk Installation.
6. Connect handset to telephone
Connect one end of the coiled handset cord into
the base. Plug the other end into the handset
(Figure 4). Then hang up.
7. Check for dial tone
Lift the handset and listen for dial tone. If you
cannot hear a dial tone, refer to “In Case of
Difficulty” and try to correct the problem.
NOTE: If you
cannot fit the base
onto the wall jack,
remove the four
non-slip pads.
Figure 4
Figure 3
AT&T 230 Quark pdf 7/22/98 12:13 PM Page 5

OPERATION
Redial
This telephone always stores in memory the last
phone number dialed.
The redial memory can accept numbers up to 24
digits long. The number will remain in memory until
you change it by dialing another telephone number.
To dial the same number again, lift the handset, and
press .
Erasing Redial
For privacy, you can erase the redial memory. Lift the
handset, then press and hang up.
Mute
Hold down to turn off the handset micro-
phone. You will still be able to hear the other person,
but anything you say will not be heard.
Flash
Press then instead of pressing the
switchhook to activate custom calling services such
as call waiting or 3-way calling.
You may have to press other buttons before or after
Flash as explained in custom calling instructions
provided by your local telephone company.
5
AT&T 230 Quark pdf 7/22/98 12:13 PM Page 6

Ringer Volume
The Ringer Volume switch allows you to turn the
telephone ringer OFF, or set it to ring at LO or HI
volume. You can dial or answer calls normally when
the ringer is off. Other telephones in your home will
still ring; they are not affected by the switch.
Receiver (Handset) Volume
The Receiver Volume switch on the side of the hand-
set can be adjusted for a comfortable listening level.
The switch has three volume positions.

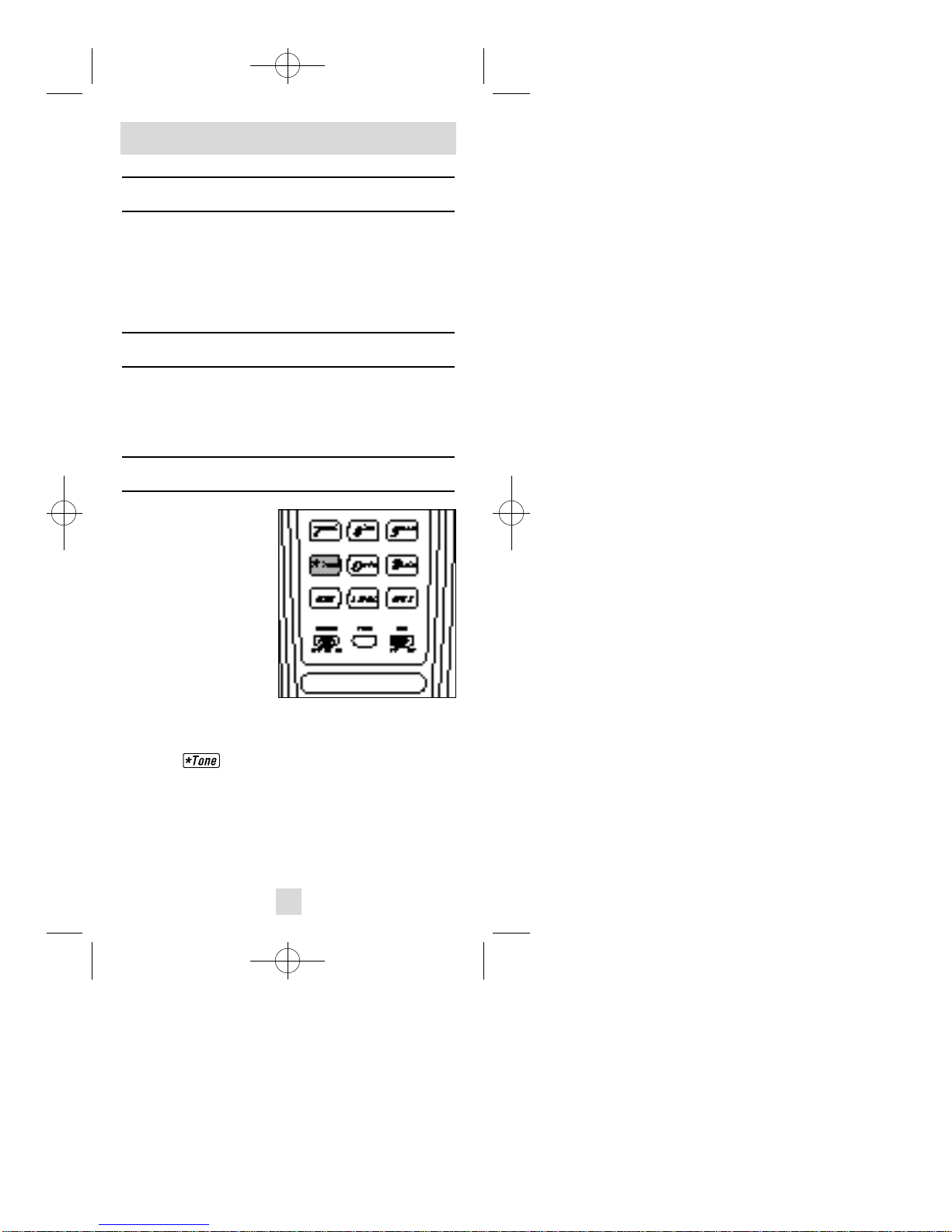

Temporary Tone Dialing
Temporary tone dialing
is used only when you
have rotary service. It
allows you access to
services that require
tone signaling, includ-
ing some tone-activated
computer systems (e.g.,
telephone banking).
To change from pulse
(rotary) to tone dialing
during a call:
1. Dial a telephone
number with the DIALMode switch set to
PULSE.
2. Press ; all buttons pressed after this will
send tone signals.
3. After you hang up, the phone automatically
returns to rotary service.
6
OPERATION (continued)
AT&T 230 Quark pdf 7/22/98 12:13 PM Page 7

7
MEMORY DIALING
Memory Features
Numbers will remain stored in memory unless you
erase or change them by entering other numbers.
Capacity: This telephone can store up to 12 different
phone numbers, each up to 24 digits long.
One-Touch Dialing: Three numbers can be stored in
one-touch memory locations. You can dial these
numbers by pressing one of the buttons marked with
an emergency symbol.
Speed Dialing: Nine telephone numbers can be
stored in standard speed-dialing locations. You can
dial any of these numbers by pressing two buttons.
Directory Card: Remove the directory card. Write
your telephone number in the space provided. Also
write the telephone numbers (or names) that you want
to store in each memory location. Reinstall the card
and clear plastic cover.
NOTE: Numbers programmed into a memory
location might not be retained if the telephone has
been unplugged from the line jack for a half hour
or more.
AT&T 230 Quark pdf 7/22/98 12:13 PM Page 8

Emergency Numbers: You may choose to store
emergency numbers in the one-touch memory loca-
tions marked with fire, police and medical symbols.
However, we recommend that you also write the
telephone number on the directory card so that if
the memory feature does not function, you can still
manually dial an emergency number.
If you choose to store non-emergency numbers in
these locations, it is important to remember that
someone visiting your household may assume that
they are dialing an emergency telephone number
when they press one of these emergency symbols.
8
NOTE: Although testing the programming of emer-
gency numbers is nota recommended procedure, if
you do make a call to an emergency number:
A. You must remain on the line and briefly explain
the reason for the call before hanging up.
B. Programming/testing of emergency numbers
should be performed in the early morning or
late evening (off-peak hours).
NOTE: You may choose to store emergency
numbers in memory locations marked with fire,
police and medical symbols. However, speed
dialing and emergency calling symbols are
provided only as a convenience. The manufacturer
does not assume responsibility for customer
reliance upon this memory feature.
MEMORY DIALING (continued)
AT&T 230 Quark pdf 7/22/98 12:13 PM Page 9

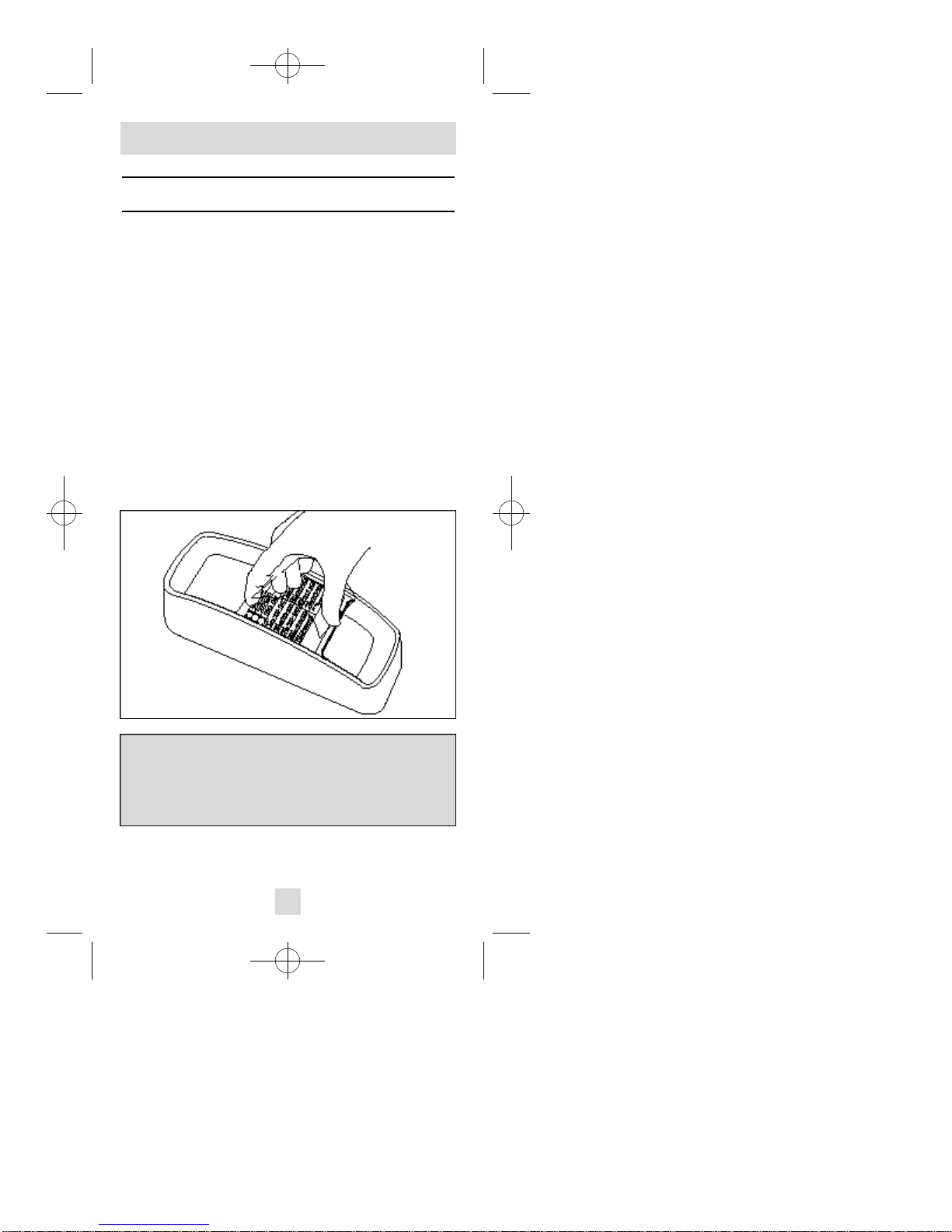

One-Touch Dialing
To program numbers into memory
1. Press .
2. Enter telephone number. You will hear a click
when each button is pressed.
3. Press the memory button , or , where
the number is to be stored.
4. Hang up after the number is entered correctly.
Repeat steps 1-4 to store another number.
To dial
1. Listen for dial tone.
2. Press the one-touch memory button
( , or ,). (continued)
(Turn over for more Memory
Dialing and In Case of Difficulty)
9
1. Press .
2. Enter telephone
number.
3. Press the
one-touch
memory
button.
MEMORY DIALING (continued)
AT&T 230 Quark pdf 7/22/98 12:13 PM Page 10

10
Speed Dialing
To program numbers into memory
1. Press .
2. Enter telephone number. You will hear a click
when each button is pressed.
3. Press .
4. Enter a digit (1-9) for the memory location where
the number is to be stored.
5. Hang up after the number is entered correctly.
Repeat steps 1-5 to store another number.
To dial
1. Listen for dial tone.
2. Press .
3. Press memory location (1-9).
Memory Erase
To erase any number from memory, you can enter
another number in the same location.
3. Press .
2. Enter
telephone
number.
4. Press
memory
location (1-9).
1. Press .
MEMORY DIALING (continued)
AT&T 230 Quark pdf 7/22/98 12:13 PM Page 11

11
IN CASE OF DIFFICULTY
If this telephone does not work properly, try the fol-
lowing suggestions before seeking repair assistance.
No Dial Tone
☞Make sure all plugs are connected properly.
Inspect the line cord connections at the modular
jack and at the telephone. Also inspect the coiled
handset cord connections at both ends.
☞Unplug the telephone and connect it to another
modular jack. If it still does not work, try another
telephone; if neither telephone works, the problem
is not in your telephone. The trouble may be
caused by local telephone company lines, central
office equipment, or the wiring in your home.
Calls Cannot Be Dialed, Or Are Dialed Slowly
This product comes set in the tone (TT) mode. Make
sure you choose the correct dialing method (TT/DP);
touch tone dialing will not work if you have dial pulse
service.
If you have tone dialing service, you can use either
tone or dial pulse mode. If you set the switch to TT,
numbers are dialed much more quickly.
Telephone Does Not Ring
☞Make sure the Ringer volume switch is not set
to OFF.
☞If there are several other phones on the same line,
try disconnecting some of the other telephones.
Having too many telephones can also create
problems such as low ringer volume or impaired
quality during calls.
Other Problems
Make sure you have followed all the instructions in
this manual. If you continue to have problems, call
1 800 222-3111. If you cannot correct the problem,
disconnect the telephone and refer to the warranty
information.
