This Quick Start Guide provides basic instructions. For additional
installation options and complete instructions which allow you to use
all features of this phone, refer to your AT&T Small Business System
Speakerphone with Digital Answering System and Caller ID/Call
Waiting 984 User's Manual, Part 2.
Installation
Installation of a DSL splitter may be required to use the advanced
features of this telephone if you have DSL (digital subscriber line)
service. Please see DSL users starting on page 4 of your User’s
Manual, Part 2 for details.
If you are installing multiple phones in your phone system, you must
install and program one set at a time. Each phone MUST be assigned
a unique extension number.
Battery installation
Install a 9V alkaline battery (purchased separately) in order to use some features
of this telephone in the event of a power failure. If power fails and a working
battery is installed, all four lines of this phone will work only to answer calls
with the handset or headset, and to dial calls using the dial pad keys and the
one touch or redial features. No other features will work until power is
restored.
1. Remove the wedge from the underside of the base unit. Press
on the tabs and pull the wedge away from the phone.
continued on page 2
QUICK START GUIDE
AT&T Small Business System
Speakerphone with Digital Answering
System and Caller ID/Call Waiting 984
984QSG_(Rev6)ml23.05.06 5/23/06 11:27 AM Page 1

2
Battery installation
continued from page 1
2. Remove the battery compartment screw with a small Phillips
head screwdriver.
3. Pull on the tab to remove the battery compartment cover.
4. Insert a 9V battery (purchased separately) following the
polarity markings in the battery compartment.
5. Replace the battery compartment cover and the screw.
6. Reattach the wedge to the base unit by sliding the tabs into the
holes. Snap the wedge onto the base.
Table/desk installation
For best results, follow the directions in Battery installation beginning on
page 1 of this Quick Start Guide before installing the phone.
Recommended wiring configuration for phone system
NOTE: The total length of telephone wire used in your system should not
be more than 600 feet as it may cause interference with the advanced
features of this telephone.
NOTE: Users should use ONLY the line cords provided. .

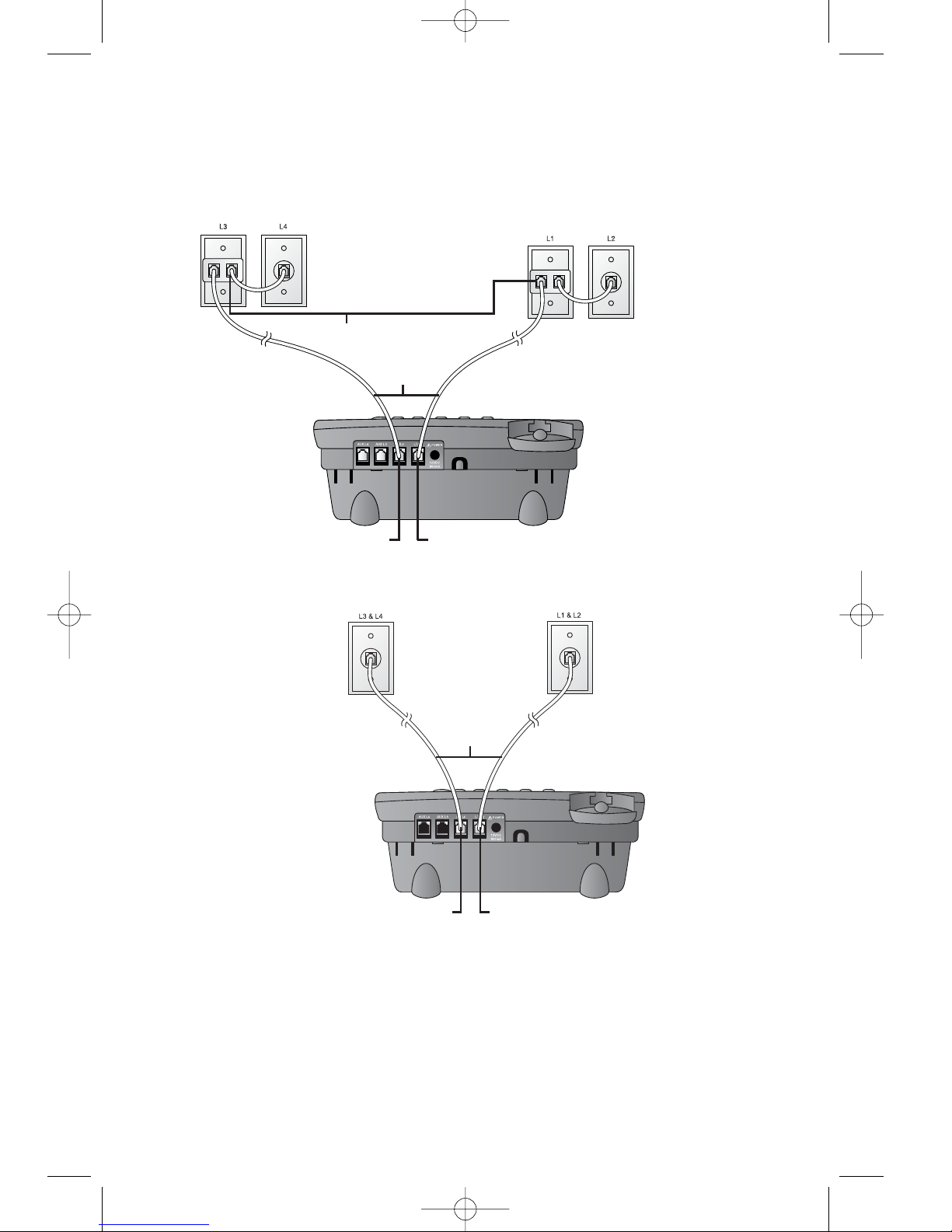

1. Connect the telephone line cords to the telephone and wall
jacks as shown in the following illustration on page 3.
984QSG_(Rev6)ml23.05.06 5/23/06 11:27 AM Page 2

•Four one-line jacks (To use this installation option, you’ll need
to purchase two two-line adapters. Adapters are available at retail
stores or by calling 1 (800) 222–3111.)
•Two two-line jacks
2. Connect the handset cord.
Plug one end of the coiled handset cord into the jack on the left
side of the phone. Plug the other end into the handset and hang up.
continued on page 4
3
Two-line adapters
Telephone
line cords
Modular telephone
jacks lines 3 and 4 Modular
telephone jacks
lines 1 and 2
L1/L2 jack
L3/L4 jack
Modular
telephone jack
lines 3 and 4
Modular telephone
jack lines 1 and 2
Telephone
line cords
L1/L2 jack
L3/L4 jack
984QSG_(Rev6)ml23.05.06 5/23/06 11:27 AM Page 3

4
Table/desk installation
continued from page 3
3. Connect the power adapter to the telephone.
Use only the power adapter provided with this product.
To obtain a replacement, call 1 (800) 222–3111.
Plug one end of the power adapter into the jack labeled POWER
on the back of the phone. Plug the other end into a standard
electrical outlet not controlled by a wall switch.
4. Initialization.
If no battery is installed when you connect the power cord, the phone
runs a quick self-test and the screen displays Initializing for about
seven seconds.
NOTE: The phone will run through this same initialization any time it is
reconnected to AC power if a working battery is not installed (for example,
after a power failure or when the unit has been unplugged).
5. Check for dial tone.
Lift the handset and listen for a dial tone. If you cannot hear a dial
tone, please see In case of difficulty beginning on page 121 of your
User’s Manual, Part 2 for details.
Standard
electrical
outlet
Power adapter
Power jack
984QSG_(Rev6)ml23.05.06 5/23/06 11:27 AM Page 4

5

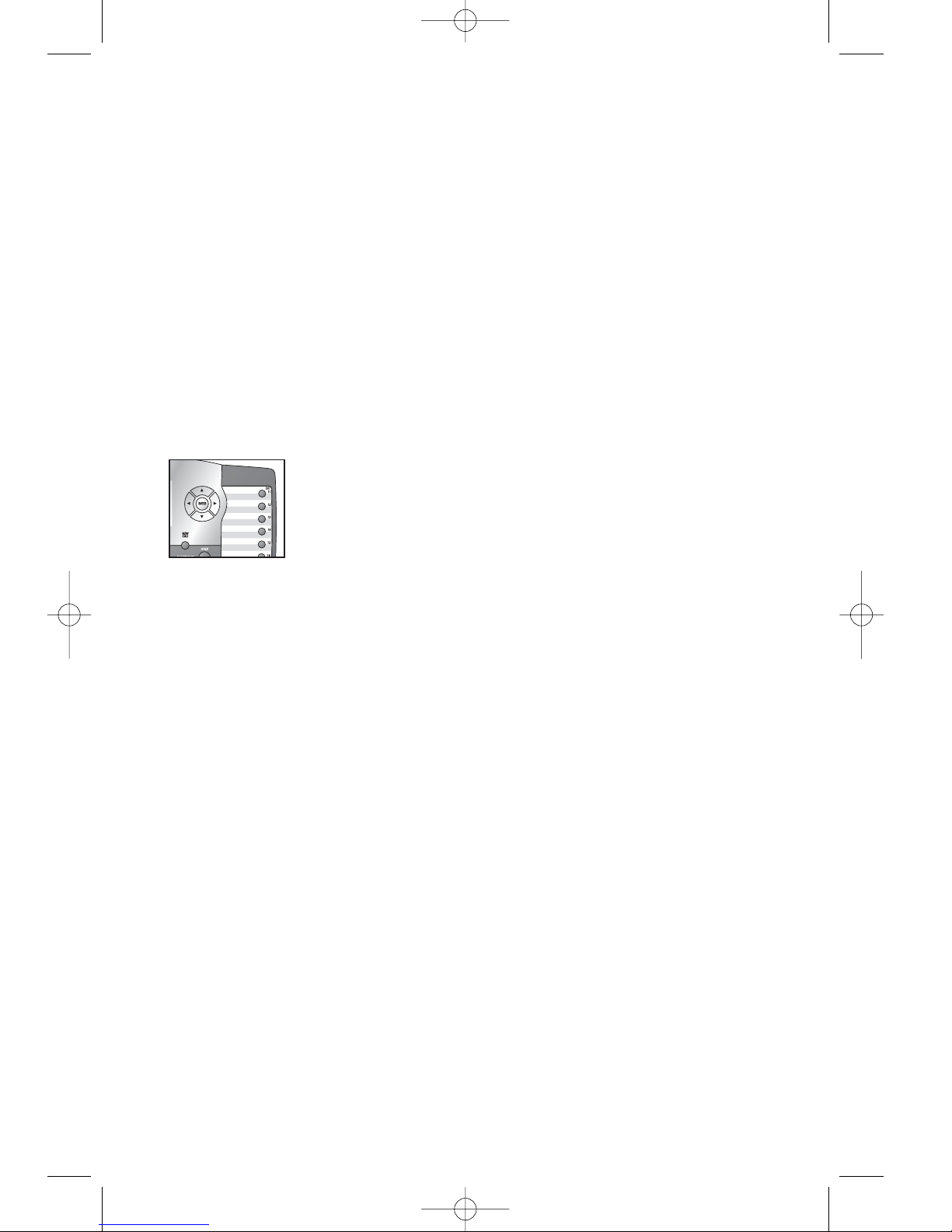

Feature setup
Feature setup, memory programming and some individual
feature operations for the 984 use menus shown in the
screen display. For detailed instructions for using the menus,
see Menu operation beginning on page 22 of your User’s
Manual, Part 2.
Assign an extension number to
your phone
Every individual phone in your telephone system MUST be
assigned a unique extension number for the intercom feature
to work.
1. Press Eto begin feature setup.
2. Press -until the screen display includes
PHONEHSETTINGS.
3. Press E. The screen display includes
EXTENSIONHNO and the current setting.
4. Press <or >to change the extension
number (11h…h26).
5. When the desired extension number is shown,
press -to save your choice. The screen display
includes RINGERHON/OFF.
NOTE: If you duplicate an extension number already in
use, you will hear a repeating short ring (error ring) and
the screen display will include EXThXXhishalready
usedhAssignhnewhEXTh#hif the phone is in idle mode.
If the phone is in the programming mode, you will hear the
repeating short ring only. Repeat steps 1-5 at the ringing
phone to assign a different extension number (from
11-26).
6. Press and hold Eto return to the idle screen.
NOTE: You can exit feature setup and return to the idle
screen any time. Simply press and hold E.
i
ii
ii
k
kk
kk
o
oo
oo
n
nn
nn
984QSG_(Rev6)ml23.05.06 5/23/06 11:27 AM Page 5

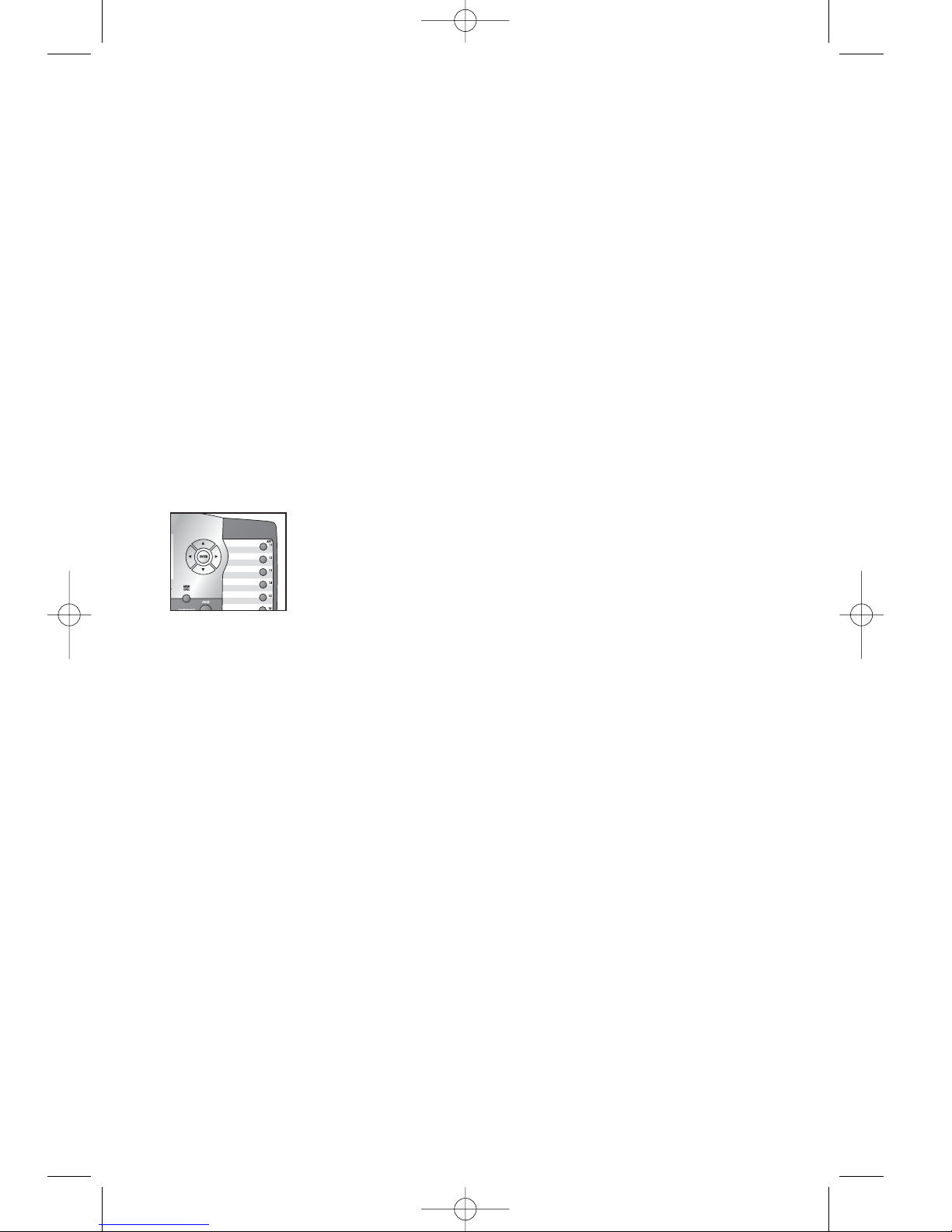

Turn line usage on or off for each
line
If you are not using all four phone lines at this extension,
you need to turn off line usage for the unused lines. If you
expand to a second, third or fourth line, turn line usage back
on. Line 1 must be turned on for the intercom to work.
NOTE: You may use any combination of lines. Lines used
do not need to be in order. For example, line usage can
be turned on for Lines 1 and 3 and turned off for Lines 2
and 4.
You may also restrict the use of certain lines on this phone to
intercom and paging only, by turning off line usage for each
line you want restricted. When line usage is turned off, that
line cannot be used to answer incoming calls or to make
outgoing or transfer calls.
1. Press Eto begin feature setup.
2. Press -until the screen display includes
SPECIALHOPTIONS.
3. Press E. The screen display includes
LINEHUSAGE.
4. Press E. The screen display includes
L1HUSAGE and the current setting for this line.
5. Press <or >to toggle between On and Off for
the line shown.
6. Press -to save the current setting for this line
and move to the next line with its current line
usage setting.
7. Repeat steps 5 and 6to set line usage for other
lines at this extension.
8. When you are finished setting line usage, press -
until the screen display includes DONE.
9. Press E. The screen display includes
LINEHUSAGE.
10. Press and hold Eto return to the idle
screen.
NOTE: You can exit feature setup and return to the idle
screen any time. Simply press and hold E.
6
i
ii
ii
k
kk
kk
o
oo
oo
n
nn
nn
984QSG_(Rev6)ml23.05.06 5/23/06 11:27 AM Page 6

7
Program home and local area codes
You can program this phone to recognize one home and
up to five local area codes. See Home area code and
Local area code on page 6 of your User’s Manual, Part 2
for definitions.
1. Press Eto begin feature setup.
2. Press -until the screen display includes
SPECIAL OPTIONS.
3. Press E. The screen display includes
LINE USAGE.
4. Press -until the screen display includes
AREA CODES.
5. Press E. The screen display includes
HOMEHAC and a prompt to enter a three-digit
home area code.
6. Use the dial pad keys to enter your home area
code, then press -. The screen display includes
LOCALhAC1 and a prompt to enter a three-digit
local area code.
If you need to enter any local area codes, use the
dial pad keys and then press -to scroll to the next
screen (LOCALhAC2,hLOCALhAC3,hLOCALhAC4,
andhLOCALhAC5).
NOTE: If you must dial the area code to place calls
within your own area code, enter 000 for the home area
code and enter your area code as a local area code.
7. When you are finished entering all of the area
codes you need to program, press -until the
screen display includes DONE.
8. Press E. The screen display includes
AREA CODES.
9. Press and hold Eto return to the idle screen.
NOTE: You can exit feature setup and return to the idle
screen any time. Simply press and hold E.
i
ii
ii
n
nn
nn
984QSG_(Rev6)ml23.05.06 5/23/06 11:27 AM Page 7

8
Telephone operation
NOTE: This phone comes programmed to use line 1
(default prime line) for calls if you do not press a LINE
button. (To change the prime line, see Assign the
prime line on page 34 of your User’s Manual, Part 2.)
When you answer a call, the phone automatically selects
the ringing line.
Make or answer a call using the
handset
NOTE: If you dial a phone number longer than 15 digits,
the screen will display only the last 13 digits.
To make a call, lift the handset and dial the call.
To answer a call, lift the handset. Replace the handset to
end the call.
To override automatic line selection, press the LINE
button for the line you wish to select, then lift the handset.
Make or answer conference calls
Please refer to page 65 of your User's Manual, Part 2 for
more details in setting up conference calls.
NOTE: The outside line call must be established first
because an intercom call cannot be placed on hold.
NOTE: If you are experiencing difficulty in using the
conference features on this phone, please consider using
AT&T's complete line of teleconference services to find a
solution that best meets your needs. AT&T
TeleConference Services reduces travel time and expense
while increasing productivity wherever people are located,
allowing you to host truly virtual meetings and share
important information in real time. To sign up for AT&T
TeleConference Services, go to:
www.att.com/orderconference for details.
i
ii
ii
i
ii
ii
i
ii
ii
i
ii
ii
984QSG_(Rev6)ml23.05.06 5/23/06 11:27 AM Page 8

9
One touch operation
This telephone has 32 one touch locations where you can store phone numbers
you wish to dial using fewer keys than usual. You can store up to 24 digits in
each location. The steps used to dial numbers stored in one touch locations
vary according to how you programmed the one touch preference. See Set
one touch preference on page 25 and Dial a one touch number on page
74 of your User’s Manual, Part 2 for more details.

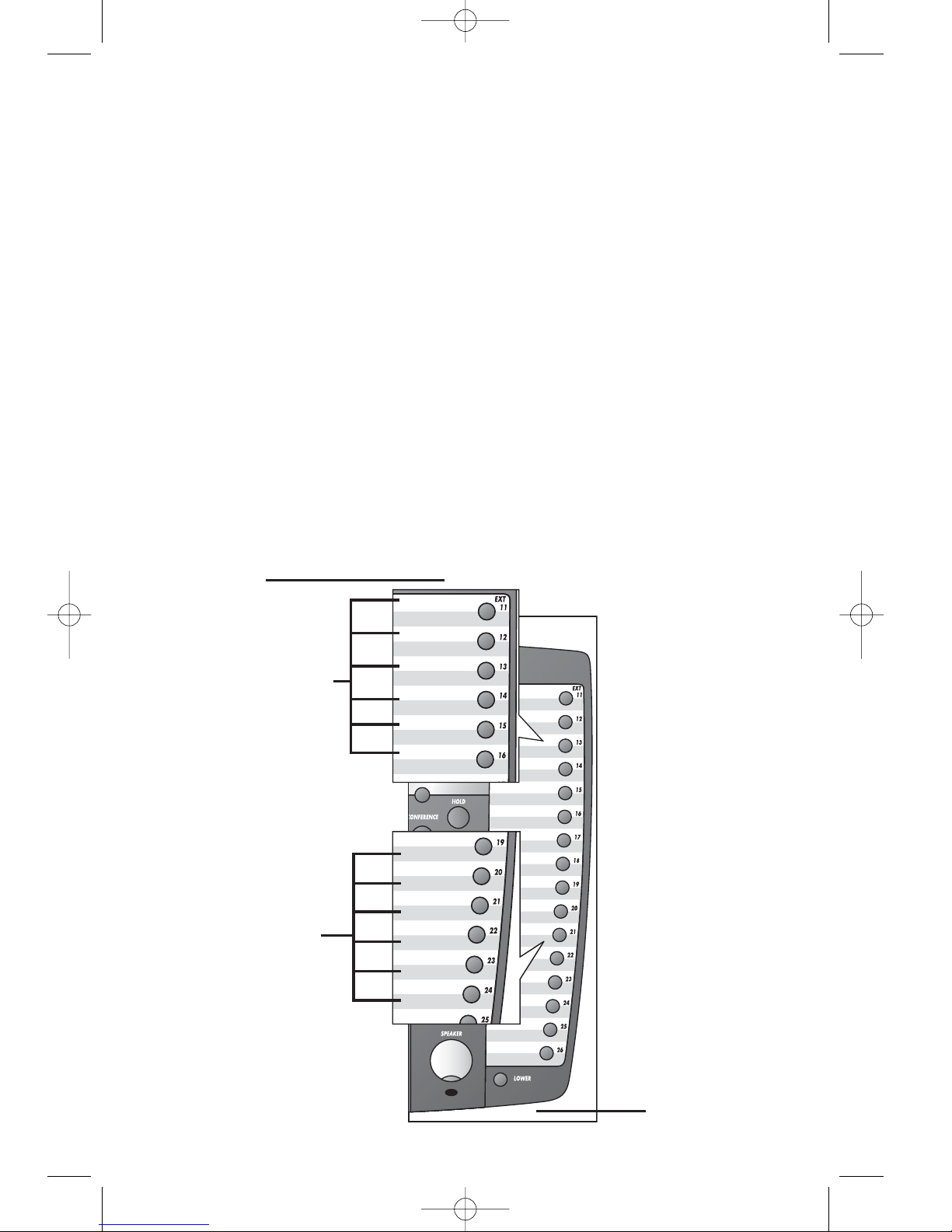

The first 16 locations can be accessed using only the EXT buttons. To access
the remaining 16 locations, press Wand then the EXT button for the
desired location.
NOTE: The EXT buttons are also used to place intercom calls. See
Intercom operation beginning on page 83 of your User’s Manual, Part 2
for details.
You may wish to write the names or telephone numbers of one touch entries

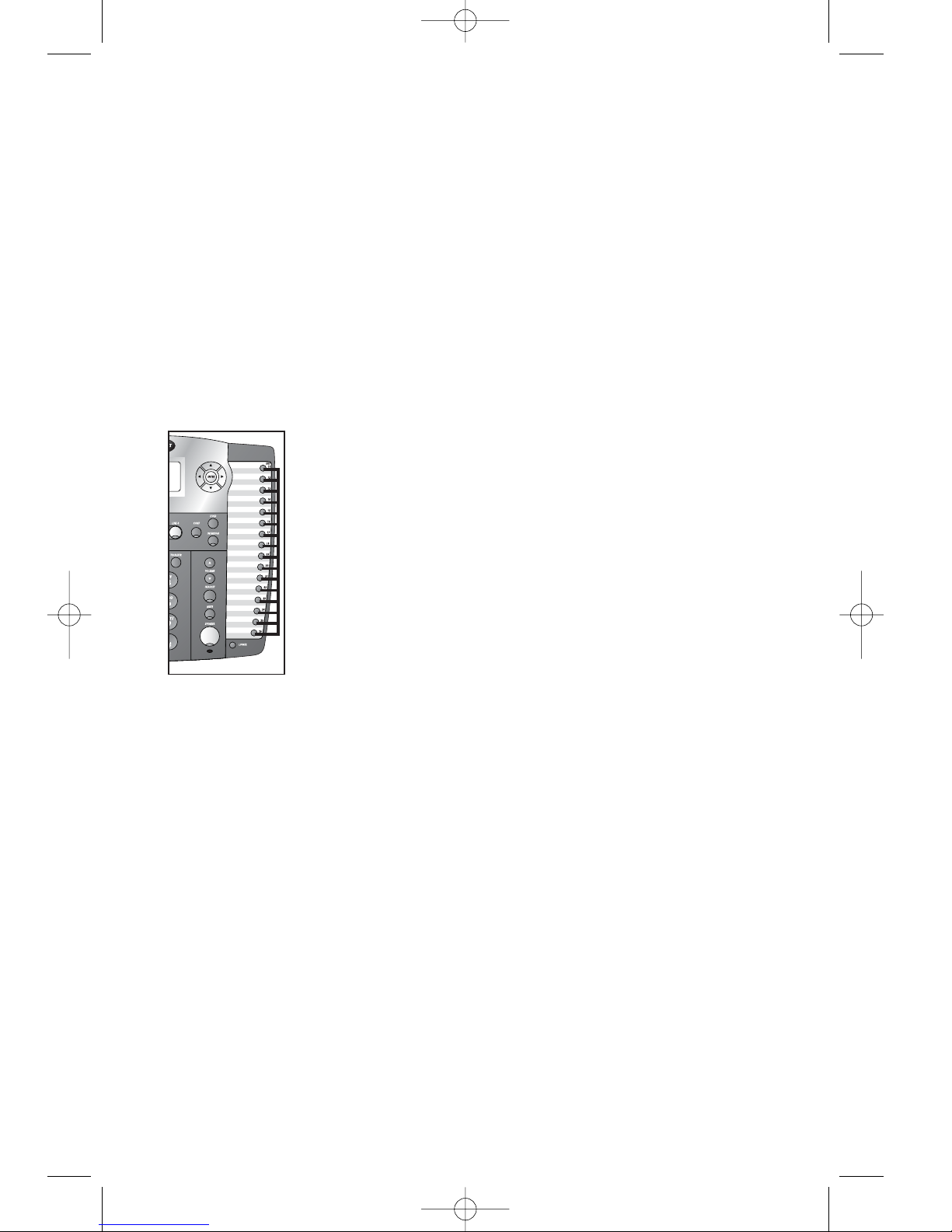

on the directory card, using the light gray spaces for the first 16 locations and
the dark gray spaces for the second 16 locations.
locations
(all dark gray spaces)
EXT buttons
LOWER button
16 one touch locations
(all light gray spaces)
l
ll
ll
p
pp
pp
16 lower one touch
984QSG_(Rev6)ml23.05.06 5/23/06 11:27 AM Page 9

10
Store a number in a one touch
location
For information about using the screen menus, see Menu
operation beginning on page 22 of your User’s Manual,
Part 2.
1. Press Eto enter the feature menu.
The screen displays ONEhTOUCH.
2. Press E. The screen display includes
PREFERENCE and the current setting.
3. Press -until the screen display includes
PROGRAM.
4. Press E. The screen display includes
<Enterhnumber>.
5. Enter the phone number using the dial pad keys.
—OR—
Press Rto copy the last number dialed
from this extension to this location.
The screen will show the number as you enter it.
You can press <to backspace.
6. When you are finished entering the number, choose
a one touch location:
Press the EXT button.
—OR—
Press W, then press the EXT button.
The screen displays the number entered and
Stored!.
NOTE: Only the last number dialed from this extension
can be copied to a one touch location. The other
numbers in the redial stack cannot be copied.
NOTE: You can store a pause, flash or touch tone signals
in a one touch entry. Please refer to page 72 of your
User's Manual, Part 2 for more details.
NOTE: You can exit storing a number at any time.
Press -until the screen shows CANCEL, then press
E.
—OR—
Press and hold E.
p
pp
pp
l
ll
ll
i
ii
ii
i
ii
ii
n
nn
nn
984QSG_(Rev6)ml23.05.06 5/23/06 11:27 AM Page 10
