ATC CUB Z-2651M User manual

Installation Method
Mounting Back Plate
•Drill mounting holes according
to the area that the back plate
is installed in (see
& mount the back plate
Mounting
•Mount the Hand Dryer onto the
back plate ensuing that the
anti-theft screw holes are
aligned on both the Hand Dryer
and the back plate.
•Connect the electrical cables
and ensure correct Polarity.
Anti-Theft
•Screw the anti-theft screw into
the threaded holes to fix the
Hand Dryer to the back plate.
Daily Use &Maintenance
External Maintenance:
•Regularly clean cover with a
soft cloth, do not use harsh
detergents, Acid or Alkali Based
Cleaning products or cleaning
brushes as they may damage
the cover finish.
•If using a chemically
impregnated cloth,please test
on an inconspicuous area prior
to use to check suitability.
Internal Maintenance
•After turning off the power supply, remove cover and
check all connections,
•Clean away any dirt that hasdeposited inside the hand
dryer and clean the air filter.
•Remove the motor housing and check the brushes on the
motor for wear. Replace worn Brushes.
Please note: Brushes are a consumable item and are not
covered under warranty
Method Of Operation:
Insert the back
of your hands
Turn your hands
over
Rub your hands
together until dry
Packing List
User Manual
Allen Key
ATC Cub Hand Dryer 5mm
Plastic wall plug x4 30mm
Self Tapping Screws x4
ATC
CUB HIGHSPEED
Hand Dryer
Z-2651M/BL
•Attach the air intake grill to the
Hand Dryer making sure it is
securely fastened.
•Test Hand Dryer
Inlet grille
Self tapping
screw
Hook
Hook
groove
Safety
screw
Safety screw hole
First Fix
•A Recessed Junction box
should be installed to allow
hand dryer to sit flush with the
wall.
Overleaf)

Specification
Voltage 230v ~50Hz Motor Brush Motor
Phase 1Φ Sensor Range 15-20cm
Load 1150WIP Class IPX1
Air Speed 65m/s Size (mm) 280x153x162
Heat level 650w-750w Nett Weight 3.2kg
Features
•Infra-Red operated Hygienic High Speed hand dryer
•Solid Stainless Steel or Cast Aluminium Cover
•Auto stop Function after 40s to prevent overrun
Product Description

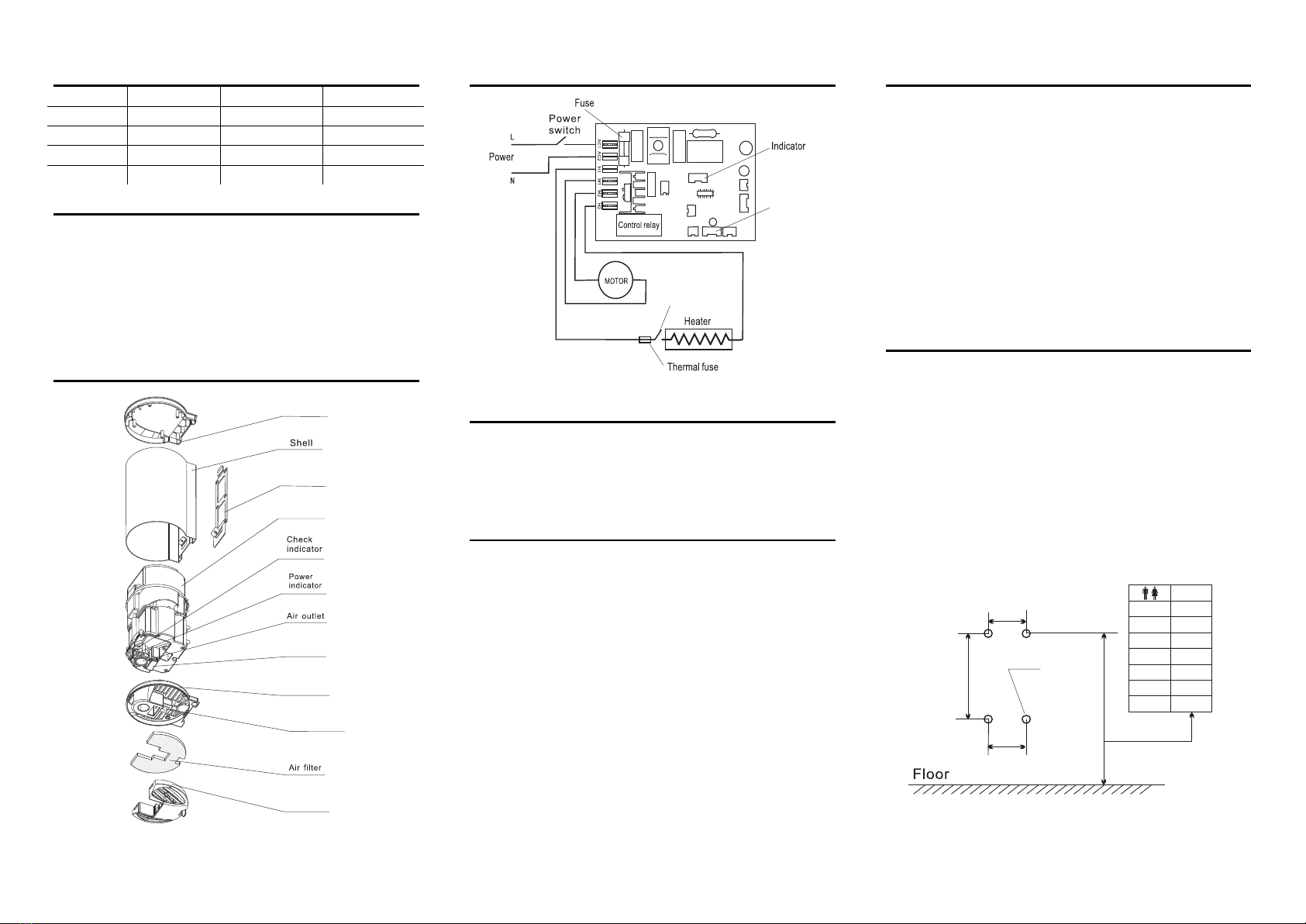

Circuit Diagram
Environmental Protection
♻Waste electrical products should not be disposed
of with household waste, please recycle this
product where the facilities exist.
Please check with your local authority
Warranty
ATC Electrical &Mechanical provides a 12 months limited
parts warranty for the Z-2651M/BL as long asthe following
conditions are followed:
Installation and use of the hand dryer isin accordance with the
instruction manual, which is packed with hand dryer.
In order to arrange service for the hand dryer the following
information is required.
Receipt number:
____________________________________________
Date of Manufacture:
__________________________________________
Date of Purchase:
__________________________________________
Precautions before installation
Do not install in the following locations; Installation in these
areas can cause the unit to malfunction
•Areas with Temperatures below 0oC or above 40oC
•In direct Sunlight or areas above reflective surfaces
•Areas where the unit can come into direct contact with
water
•Above counters or sinks
•Areas of High moisture and Humidity levels
•Locations containing Corrosive or Oxidizing gasses
•Areas at Altitude above 2000m
Installation Location
•The Chart below shows the recommended mounting
height for the Hand Dryer.
•Make sure the dryer is mounted more than 150mm away
from walls on either side of the dryer.
•Ensure the wall the hand dryer is mounted on is flat and
smooth.
•Do not mount the unit behind doors where the opening of
the door may damage the dryer
•Do not install the dryer with the power connected; the
dryer must be connected by a qualified electrician when
being installed.
The power cord Supplying the hand dryer should be at least
1.5m² 2 Core & Earth
Installation
panel
Inlet grille
Upper cover
Core
structure
Infrared
Sensor
Element
Switch
Thermal
Cut Off
Infrared
Sensor
120cm 108cm
130cm 115cm
140cm
150cm 129cm
160cm 136cm
170cm 143cm
180cm 150cm
122cm
44mm
44mm
152mm
Φ6mm
Lower Cover
