ATC Z-2801 M/W User manual

Installation Method
First Fix
•
A Recessed Junction box
should be installed to allow
hand dryer to sit flush with the
wall.
Height should be
determined from table
overleaf
Cover Removal
•Remove the Allen Screws on
either side of the hand dryer,
lift off cover and disconnect
earth cable. Make sure to put
the cover in a location where it
will not be damaged.
Mounting
•Drill mounting holes according
to the area that the Hand
Dryer is to be installed in (see
Overleaf) & mount the hand
dryer.
•Connect the electrical cables
and ensure correct Polarity.
•Adjust Sensitivity to installed
location using the adjustment
on the PCB.
Replace Cover
•Reconnect the earth cable and
replace
the cover onto the
base of the hand dryer. NOTE:
Z-2801M does not
have an
earth cable on the cover
•Install the two Allen Screws
and test the hand dryer
Daily Use & Maintenance
External Maintenance:
•Regularly c
lean cover with a
soft cloth, do
not use harsh
detergents, Acid or Alkali Based
Cleaning products or cleaning
brushes as they may damage
the cover finish.
•
If using a chemically
impregnated cloth please test
on an inconspicuous area prior
to use to check suitability.
Internal Maintenance
•After turning off the power supply, remove cover and
check all connections,
•Clean away any dirt that has deposited inside the hand
dryer.
•Remove the motor housing and check the brushes on the
motor for wear. Replace worn Brushes.
Please note: Brushes are a consumable item and are not
covered under warranty
Method Of Operation:
Insert the back
of your hands
Turn your hands
over
Rub your hands
together until dry
Packing List
ATC Cheetah Hand Dryer User Manual
5mm Plastic wall plug x4 Allen Key
30mm Self Tapping Screws x4

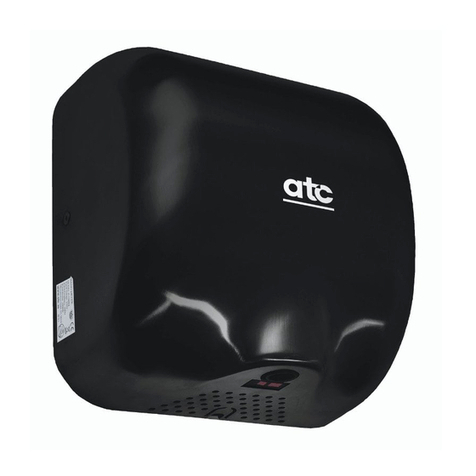

ATC CHEETAH
Hand Dryer
Z-2801 M/W

Specification
Voltage
230v ~ 50Hz
Sound Level
78.7dB@1m
Phase
1Φ
Sensor Range
15-20cm
Load
1400w
IP Class
IPX1
Air Speed
65m/s
Size (mm)
295x320x170
Heat level
850w
Nett Weight
4.1kg
Features
•Infra-Red operated Hygienic High Speed hand dryer
•Solid Stainless Steel or Cast Aluminium Cover
•Auto stop Function after 40s to prevent overrun
•Automatic Heating System shuts the element down when
incoming air temperature is sufficient to dry your hands.
Product Description
Circuit Diagram
Environmental Protection
♻
Waste electrical products should not be disposed
of with household waste, please recycle this
product where the facilities exist.
Please check with your local authority
Warranty
ATC Electrical &Mechanical provides a 1-year limited parts
warranty for the Z-2801 M/L as long as the following conditions
are followed:
Installation and use of the hand dryer is in accordance with the
instruction manual, which is packed with hand dryer.
In order to arrange service for the hand dryer the following
information is required.
Receipt number:
____________________________________________
Date of Manufacture:
__________________________________________
Date of Purchase:
__________________________________________
Precautions before installation
Do not install in the following locations; Installation in these
areas can cause the unit to malfunction
•Areas with Temperatures below 0oC or above 40oC
•In direct Sunlight or areas above reflective surfaces
•Areas where the unit can come into direct contact with
water
•Above counters or sinks
•Areas of High moisture and Humidity levels
•Locations containing Corrosive or Oxidizing gasses
•Areas at Altitude above 2000m
Installation Location
•The Chart below shows the recommended mounting
height for the Hand Dryer.
•Make sure the dryer is mounted more than 150mm away
from walls on either side of the dryer.
•Ensure the wall the hand dryer is mounted on is flat and
smooth.
•Do not mount the unit behind doors where the opening of
the door may damage the dryer
•Do not install the dryer with the power connected; the
dryer must be connected by a qualified electrician when
being installed.
The power cord Supplying the hand dryer should be at least
1.5m² 2 Core & Earth
