ATC GS-2006H SLV Instruction Manual

^
Blade Hand Dryer
Model: GS-2006H SLV
InstallatIon & User ManUal
R
E
D
U
C
I
N
G
T
H
E
C
A
R
B
O
N
F
O
O
T
P
R
I
N
T
•
S
A
V
I
N
G
E
N
E
R
G
Y
•
oThis hand dryer should
be installed by a qualified
electrician or a trained
service technician.
oRead this manual thoroughly
before using the hand dryer
to ensure safe and correct
operation. Please keep this
manual in a safe place for
reference at a later date
Issue 4.0 :201411

2|^BLADE HAND DRYER INSTALLATION & USER MANUAL
specIfIcatIon
Product Code ^- GS2006H -SLV
Finish Silver
Warranty 3 Years
Activation Automatic
Voltage 230v Ac 1~
Frequency (Hz) 50
Power output (w) 650w + 1000w (heater)
Motor power (w) 650w
Current (A) 7.5
Sensor (Adjustable or Fixed) Fixed
Noise Level (dB @1m) 72
Filter Washable
Approvals
Motor thermal Protection Turns unit off at 105˚C
Heater Thermal Protection Turns unit off at 85˚C
IP Rating X4
Dimensions (WxHxD mm) 300 x 685 x 220
Weight 10.5kg
packIng lIst
GS-2006H-SLV 1
Installation Plate 1
5mm Plastic Wall Plug 6
5x 30mm Self tapping screws 6
User Manual 1
Usage label 1
Recommended Installation Heights
to top of installation panel from FFL.
Mens Bathroom: 890mm
Ladies Bathroom: 870mm
Recommended Installation Heights
to top of installation panel from FFL.
Mens Bathroom: 890mm
Ladies Bathroom: 870mm

^BLADE HAND DRYER INSTALLATION & USER MANUAL |3
precaUtIons before InstallIng
Do not install the unit in the following locations; installation in these areas will cause the unit to
malfunction:
• Locationswheretheunitisunderdirectsunlightorwheredirectsunlightcanpassovertheunit.
• Locationswheretheunitcancomeintodirectcontactwithwater.
• Locationswherethereishighlevelsofhumidityandcondensation.
• Locationswherecorrosive,reductiveorneutralgasesarepresent.
• Locationswherethetemperaturecanfallbelow-10˚Corexceed40˚C.
• Locationsthatarelowerthan-20morhigherthan2000mabovesealevel.
Installation Location
• Installtheunitwhereiswillbeeasytouseasshowninthefigurebelow.
• Pleaseuseadedicatedfusedspurforeachhanddryer.
• ThehandDryermustbereliablyearthed.
• Thebottomoftheunitmustbeatleast150mmabovethefloortoallowforairflowintothehanddryer.
• Theleftsideoftheunitmustbeatleast150mmawayfromwallsasthepowerswitchisaccessed
from the left side of the hand dryer.
• Donotmountthehanddryerbehinddoorswheretheopeningofthedoormaydamagethedryer.
• TheMountingplatemustbemountedonacompletelyflatsurface.Ifthewallisnotflat,mountaflat
timber or board on the wall to give a completely flat surface to mount the hand dryer on to.
• Donotinstallthehanddryerwiththepowerconnected;thedryermustbeconnectedbyaqualified
electrician when being installed

4|^B L A D E H A N D D R Y E R I N S T A L L A T I O N & U S E R M A N U A L
InstallatI o n

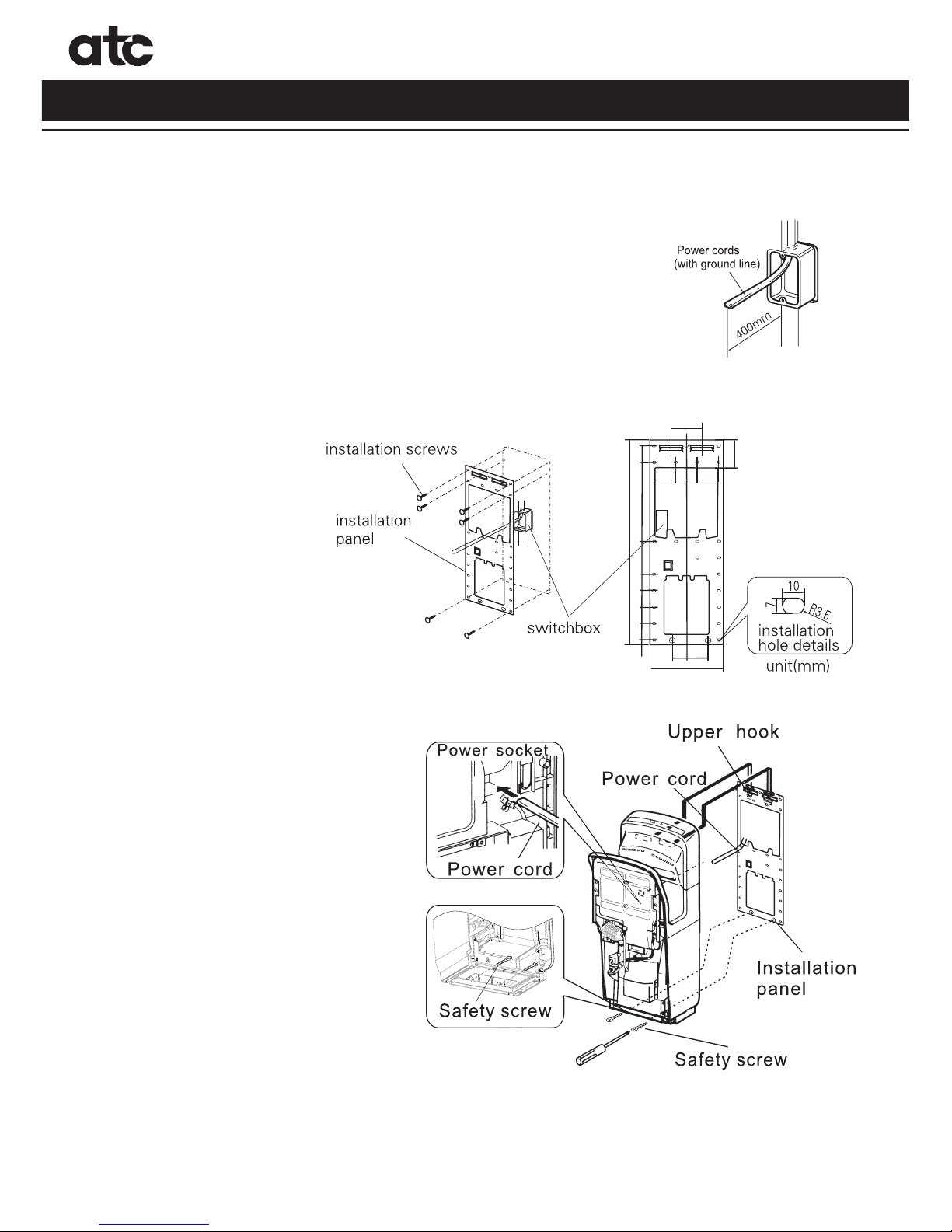

1. Install a wall box.
Install a flush mounting wall box as per diagram 1
NB. If a wall box is not used the power cable will not sit flush with the
wall and prevent the unit from being firmly installed against the wall.
2. Install the mounting panel to the wall
Install the mounting plate supplied with the hand dryer to the wall using
appropriate fixings. At least 6 fixings should be used as indicated.
Make sure wall is capable of suporting the weight of the dryer
before installing the installation panel
Connecting to Fixed wiring
1) Terminate the cable from the hand
dryer into the flush mounting wall
box.
2) Attach the dryer to the wall using
the 3 hooks on the mounting panel.
3) Secure the dryer to the mounting
plate with the fixing screw in the
lower right side (behind the drip
tray)
Ensure the dryer is fixed to the
installation panel with the saftey
screws otherwise the dryer is liable to
be damaged when it is subjected to
knocks etc during use.
IMportant
Do not operate the Power or Heat switches while the front cover of the hand dryer is removed.
If the self check indicator on the display lights is flashing, turn off the power switch, wait 1 minute, and
then turn the power switch back on.
81.5
57.5
57.557.5
57.5
38
12 5 0 05 50 5 0 50
62 1
10 0 42 0
85
58
195

^BLADE HAND DRYER INSTALLATION & USER MANUAL |5
operatIon

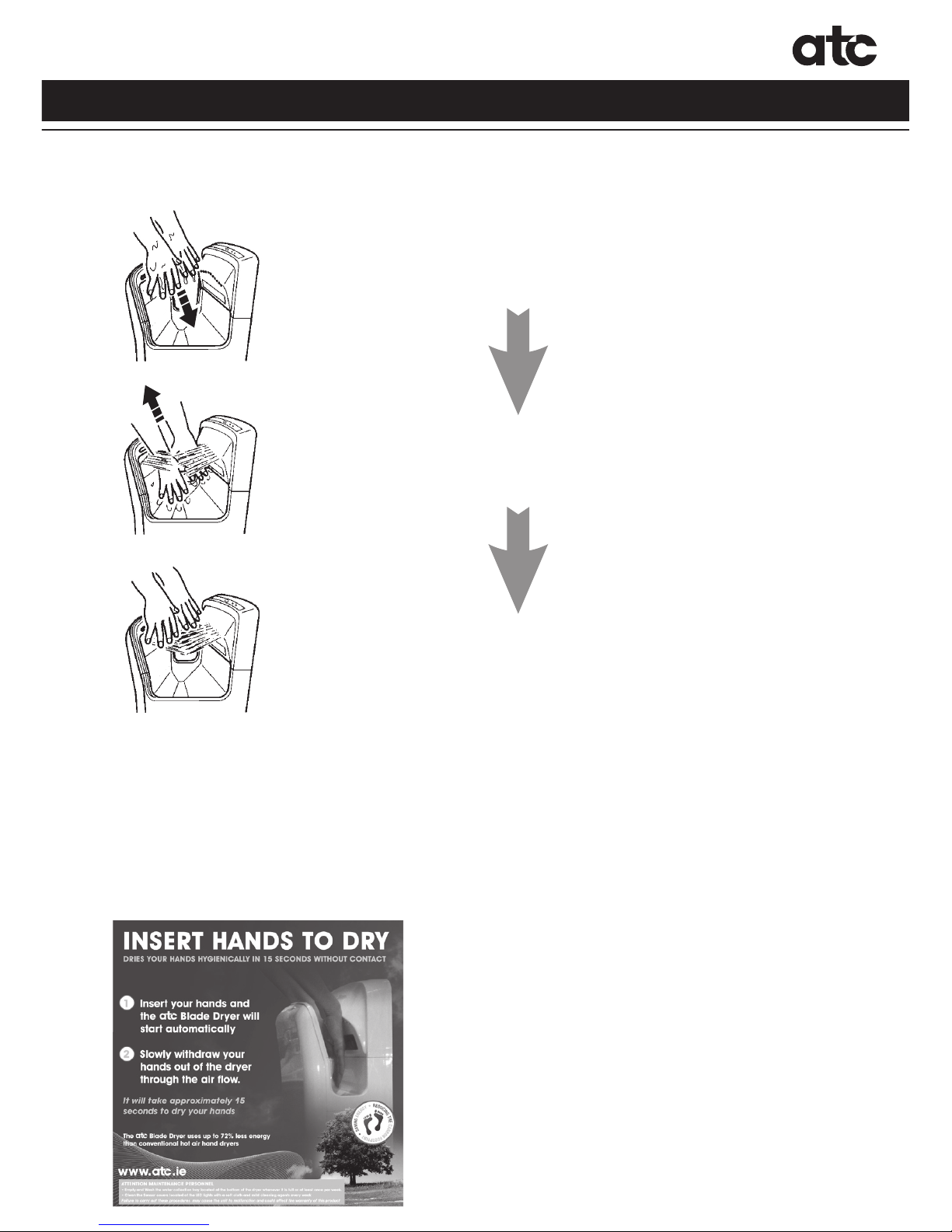

Stretch out both wet hands and insert them all the way into the hand dryer
until the dryer starts
Pullyourhandsoutslowly,lettingtheairblowthewateroff.Thiswilltake
between 10 and 15 seconds
Pull your hands out completely
Should a malfunction occur the self check indicator pilot light on the right hand side of the display will
either light up or flash. Alternatively an error code such as E2 may come up on the display.
If this happens turn off the hand dryer and wait one minute until all the indicators on the display turn off.
After this time switch the power back on. If the indicator is still flashing and/or the error code is still on
the display please contact the ^Technical Department for advice.
operatIon label
This ^Blade dryer is supplied with a operation
label supplied with adhesive backing. Please mount the
label in a convenient location next to the unit.

6|^BLADE HAND DRYER INSTALLATION & USER MANUAL
part naMes and dIMensIons
Recommended Installation Heights
to top of installation panel from FFL.
Mens Bathroom: 890mm
Ladies Bathroom: 870mm
Heating Switch Air Speed Switch

^BLADE HAND DRYER INSTALLATION & USER MANUAL |7
roUtIne cleanIng
Cleaning the Unit body
• Beforecleaningswitchoffthepowertothehand
dryer. Do not spray water on the hand dryer
• Weargloveswhencleaningthehanddryer.
• Clean the unit with a soft cloth. If the
Unit gets very dirty clean with a soft cloth
dampened with a neutral cleaning agent,
and then clean with a dry soft cloth.
• Removedirtfromthesensorareas
NOTE
Only use Neutral cleaning agents
Donotusethinner,acidic,
or alkaline cleaners or Nylon
brushes;thesewilldamagethe
finish of the unit.
Only use denatured alcohol to
clean the hand drying area
If chemically impregnated cloths
areused,readtheirinstructions
first and make sure that they
comply with the above.
• The antibacterial coating is effective when
bacteria are exposed to the coated surfaces.
The coating is not effective when the unit
becomes very dirty
Draining and Cleaning the Drain tank.
• Empty and wash the water collection tray
located at the bottom of the dryer whenever
it is full or at least once per week
• Ifaccumulatedwaterisstandinginthetank
for too long a period it
will start to smell.
1. Pull the tank out in
a horizontal direction
toward you.
2. Open the cover and
empty the water from
the tank, (pull the
cover in the direction
of the arrow on top
of the cover. and then
remove the cover
completely.
3. Wash out the interior of the
drain tray
4. Re-install the cover of the
drain tray and re-attach to
the hand dryer
• After confirming the tank
is in the correct position,
pour 200ml of water
through the drain hole to
prevent it clogging up.
(empty the drain try after
this procedure)
Cleaning the Filter
• Removetheairfilter
by pulling out the
filter by the handle
• To clean the air
filter, lightly beat
the edge of the filter
by hand or use a
vacuum cleaner
• If the filter is very
dirty wash in warm
soapy water, rinse
and dry.
• Replace the filter
backintothedryer,
making sure it is
inserted completely.
Failure to use the
dust filter will impact
on the efficiency
of the hand dryer
and may affect the
service life of the
unit.
NOTE:
• If you wash the air filter make sure it is
completely dry before placing back into the
hand dryer.
• Do not expose the filter to fire or high
temperatures as this will damage the filter

Warranty
^Electrical &Mechanical provides a limited 3-year parts and labour warranty for the GS-2006H-SLV
