ATD AIR ATD-5850 User manual

ATD-5850
3/16” AIR RIVETER INSTRUCTION MANUAL
SpeciĮcaƟons:
Nosepieces: 3/32", 1/8", 5/32", 3/16"
Rivet Capacity: 3/16”
Motor: 1/2 Hp
Air Inlet Thread NPT: 1/4”
Air Hose I.D. Size: 3/8” (10mm)
Avg. Air Consumption: 4 CFM
Air Pressure: 90-120 psi
Pulling Force: 1984.50 lbs.
California Prop 65 WARNING: This product contains chemicals including lead, known to the State of
California to cause cancer, birth defects, or other reproduĐƟve harm. Wash hands aŌer handling.

General Safety Warnings:
WARNING: The instrucƟons and warnings contained in this manual should be read and understood before using
or operaƟng this tool. Do not allow anyone to use or operate this tool unƟl they have read this manual and have
developed a thorough understanding of how this tool works. Failure to observe any of the following instrucƟons could
result in severe personal injury to tool user and bystanders, or cause damage to the tool and property. Keep this manual
for future reference.
Note: The warnings and cauƟons discussed in this instruĐƟon manual cannot cover all possible condiƟons and
situaƟons that may occur. It must be understood by the operator that common sense and cauƟon are factors which
cannot be built into this product, but must be supplied by the operator.
WARNING: Use safety equipment. Users and bystanders should use safety goggles or safety glasses with side
shields which comply with current naƟonal standards, or when needed, a face shield. Use an ANSI approved dust mask or
respirator when working around metal, wood, and chemical dusts and mists. This applies to all persons in the work area.
Also use non-skid safety shoes, hardhat, gloves, dust collecƟon systems, and hearing protecƟon when appropriate.
WARNING: Keep bystanders and children out of the work area while operaƟng this tool.
WARNING: Always keep your work area clean, uncluƩered, and well lit. CluƩered or dark areas invite accidents
and injuries. DO NOT work on Ňoor surfaces that are slippery.
WARNING: Do not operate this tool if you are Ɵred or under the inŇuence of alcohol, drugs, or medicaƟons that
could Ăīect your ability to use the tool properly.
WARNING: Dress properly. Do not wear loose clothing or jewelery as they can be caught in moving parts. Wear
restricƟve hair covering to contain long hair.
WARNING: Do not reach over or across running machines. Keep proper fooƟng and balance at all Ɵmes. Non-
skid footwear is recommended when working.
Air Tools SpeciĮc Safety Warnings:
WARNING: Air under pressure can cause severe injury. Never point an air tool at anyone or direct air at yourself
or others. It could cause serious injury.
WARNING: Always turn oīthe air supply, drain the hose of air pressure and detach the tool from the air supply
before installing, removing or adjusƟng any accessory on this tool, or before performing any maintenance on this tool.
Failure to do so could result in injury.

WARNING: Always check for damaged, frayed or loose hoses and Įƫngs. Have any defecƟve or damaged parts
replaced immediately by quĂůŝĮed personnel.
WARNING: Do not carry the tool by the hose. Protect the hose from sharp objects and heat.
WARNING: Always use air hose and couplings with a minimum working pressure raƟng of at least 1-1/2 Ɵmes
the maximum working pressure raƟng of the tool.
WARNING: Do not depress the tool trigger/lever when connecƟng the air supply hose.
WARNING: Do not lock, tape, wire, or otherwise disable the “ON/OFF” valve in the “ON” posiƟon. The trigger
must always be free to return to the “OFF” posiƟon when released.
WARNING: When the tool is not in use, shut oīthe air supply and press the trigger/lever to drain the air supply
line. If the tool is not to be used for a period of Ɵme, Įrst lubricate, disconnect from the air supply and store in a clean
and dry locaƟon at average room temperature.
NOTE:
Typical Air Supply InstallaƟon
Always use clean, dry air. Dust, corrosive fumes and/or water in the airline will cause damage to the tool. Drain the air
tank daily. Clean the air inlet Įlter screen on at least a weekly schedule. The recommended hook up procedure can be
viewed in the above Įgure/ƚŝƐƌĞĐŽŵŵĞŶĚĞĚƚŽƵƐĞĂŶdͲϳϴϲϵdͲϳϴϳϮŽƌƐŝŵŝůĂƌĮůƚĞƌƌĞŐƵůĂƚŽƌ & lubricator with
this tool.
Lubricate the tool’s air motor daily with quality air tool oil. If no airline oiler is used, run 1/2 oz. of oil through the tool.
The oil can be squirted into the tool air inlet or into the hose at the nearest conneĐƟon to the air supply, then run into the
tool. OverĮůůŝng will cause a reduĐƟon in the power of the tool.

Unpacking:
When unpacking this unit, check the parts diagram and part number lisƟng to make sure all parts are included. If any
parts are missing or damaged please call your distributor.
Maintenance/Adding Oil for Hydraulic Riveter
1. Turn oīair supply
2. Use wrench to dismantle the riveter head (Įg. 1).
3. Use wrench to open boƩom cover of the riveter (Įg. 2).
4. Remove piston from cylinder (Įg. 3).
5.Clean inside of the cylinder and lubricate cover seal (Įg. 4).
6. Lubricate the intake (chamber where the piston stem sits) with oil unƟl full (Įg. 5).
7.Clean piston stem and add grease on the inner wall of the cylinder and the ring.
8. Reassemble (Įg.6).
Cleaning/Maintenance for the Head of Riveter
1. Turn oīair supply. Assure all pressure is released prior to disassembly.
2. Use wrench to dismantle the riveter head (Įg.1 below).
3. Use wrench to disassemble (Įg. 2 below).
).
4. Clean all inner/assembly parts of the riveter head with a brush.
5. Reassemble the inner/assembly parts.
6. Oil the parts and reassemble riveter head completely.
Your ATD-5850 riveter should be ready to use from the box, however maintenance will be needed periodically, and varies
ĚĞƉĞŶĚŝŶŐŚŽǁŽŌĞŶLJŽƵƌƌŝǀĞƚĞƌŝƐƵƐĞĚtŚĞŶƚŚĞƌŝǀĞƚŝƐŶŽƚďƌŽŬĞŶĂŌĞƌϱƉƵůůƐŽĨƚŚĞƚƌŝŐŐĞƌŝƚŶĞĞĚƐŽŝůhƐĞĂƋƵĂŝůƚLJ
hydraulic oil such as Mobil DTE 10 or equivalent.

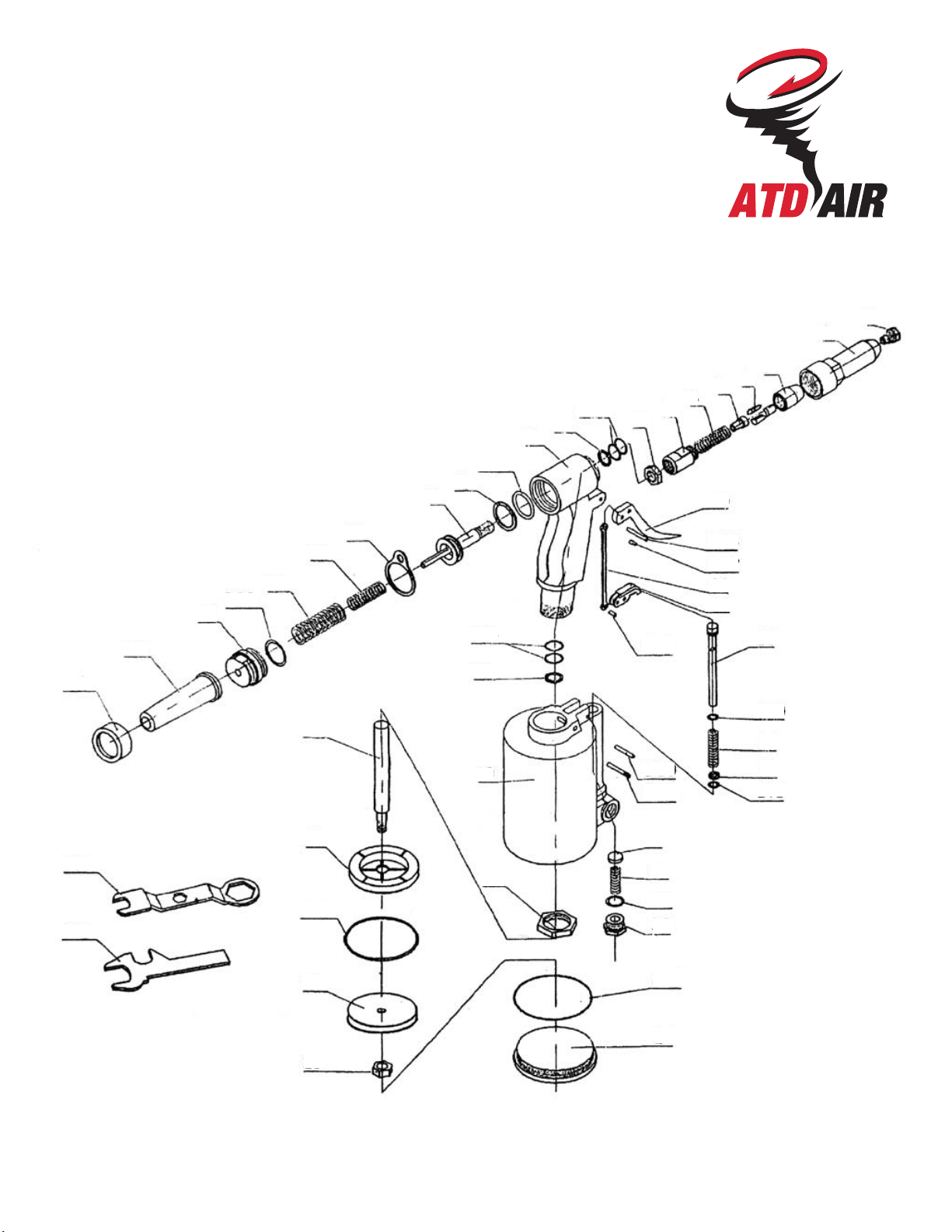

B01
B02
B06
B07
B07
B04
B10
B09
13
10
19
18
B08 B13
B11
B05
1
2
3
4
5
6
7
8
25
10
11
9
15
12
14
B03
16
C01
C02
20
21
18
B12
22
23
24
33
32
31
29
30
C03
C04
28
27
26
ATD-5850

ATD-5850
ITEM# ORDERING PART# PART DESCRIPTION ITEM# ORDERING PART# PART DESCRIPTION
1 PRT5850-01 NOSEPIECE
(
SET OF 4
)
27 PRT5850-27 PRESS PLANK
2 PRT5850-02 OUTER CYLINDER 28 PRT5850-28 AIR VALVE
3 PRT5850-03 JAW CARRIER 29 PRT5850-29 VALVE SPRING
REHSAWREPPOC03-0585TRP03WAJ40-0585TRP4
5 PRT5850-05 JAW PUSHER 31 PRT5850-31 AIRPROOF PLASTIC
6 PRT5850-06 JAW PUSH SPRING 32 PRT5850-32 AIRPROOF SPRING
7 PRT5850-07 JAW CYLINDER 33 PRT5850-33 AIRPROOF NUT
8 PRT5850-08 CASE LOCK NUT B01 PRT5850-B01 O-RING
9 PRT5850-09 PRINCIPAL AXIS B02 PRT5850-B02 O-RING
10 PRT5850-10 PLASTIC RING B03 PRT5850-B03 O-RING
11 PRT5850-11 HANDLE B04 PRT5850-B04 O-RING
12 PRT5850-12 RESTORE SPRING B05 PRT5850-B05 O-RING
13 PRT5850-13 PLASTIC RING B06 PRT5850-B06 SPRING PIN
14 PRT5850-14 RESTORE SPRING B07 PRT5850-B07 SPRING PIN
15 PRT5850-15 POTHOOK B08 PRT5850-B08 PIN
16 PRT5850-16 AIRPROOF LID B09 PRT5850-B09 SPRING PIN
18 PRT5850-18 LOCK NUT B10 PRT5850-B10 O-RING
19 PRT5850-19 AIR CYLINDER B11 PRT5850-B11 O-RING
20 PRT5850-20 POLE PISTON B12 PRT5850-B12 O-RING
21 PRT5850-21 CUSHION B13 PRT5850-B13 O-RING
ELTTOB10C-0585TRP10CNOTSIP22-0585TRP22
TUN20C-0585TRP20CTUN8M32-0585TRP32
24 PRT5850-24 AIR CYLINDER LID C03 PRT5850-C03 WRENCH
25 PRT5850-25 TRIGGER C04 PRT5850-C04 WRENCH
26 PRT5850-26 LINKER
