ATEMPOWER AP30DC User manual

USERMANUAL
AP30DC
DC-DC CHARGER
V1.1

1
IMPORTANT SAFETY INSTRUCTIONS !
Children or adults under the influence of alcohol or drug, or those who lack of experience or professional
knowledge are not allowed to use this unit.
The user must read and understand all of the warning and safety messages supplied with your product
prior to installation or use.
Do not use or store this charger near heat sources such as fire or heaters or expose it to flammable
chemicals, vapors or corrosive gases.
Please only use this product as intended.
Do not strike, throw the charger.
Do not mount the product in places where there is a risk of gas explosion.
Please do not expose the charger to moisture or harsh environments.
Please do not disassemble this charger as such action will not only cause potential damage to you and
your unit, but also void the warranty.
Please disconnect the charger before maintenance or cleaning.
This DC-DC charger can only be repaired by professional personnel.
Before charging, please wear proper eye protections.
Keep fresh water and soap on hand in the event battery acid comes in contact with eyes. If this occurs,
cleanse right away with soap and water for a minimum of 15 minutes and seek medical attention.
Do not smoke or have an open spark or fire near this unit.
Avoid dropping any metal tool or object on the battery. Doing so could create a spark or short circuit
which goes through the battery or another electrical tool that may create an explosion.
Examine the battery charger regularly for damage. If the battery charger is damaged, it must not be
used until it has been repaired.
Please note that this DC-DC charger is not waterproof.
This product should be firmly fastened to prevent fall down or tip over.
Inadequate ventilation may lead to overheat and inefficient charging.
ABOUT US
ATEM POWER, born in June 2017, as a synonym for exciting outdoor experience, is an Australian
company with dedication and passion for the R&D of high quality products in the field of renewable
energy products, batteries and related accessories.
Since the company was founded, we have committed to innovation that aims to make your life
infinitely more convenient. And the belief in our conviction for quality and commitment allows us to
innovate in developing products that are optimally tailored to the needs of our amazing customers.
We engineer and supply solar products for homes, 4x4s, recreational vehicles and virtually any
application you can think of. And we also develop reliable, high performing deep-cycled batteries
and lithium batteries for standby or daily power needs. Accessories include battery chargers and
inverters that are ideal for RV's, commercial vehicles, boats, yachts and many more applications!
At ATEM POWER, we stay true to our DNA by prioritizing technological innovation designed to
improve our products and striving to provide excellent customer care. Because we are motivated
to explore the limits of solar power!

KEY FEATURES

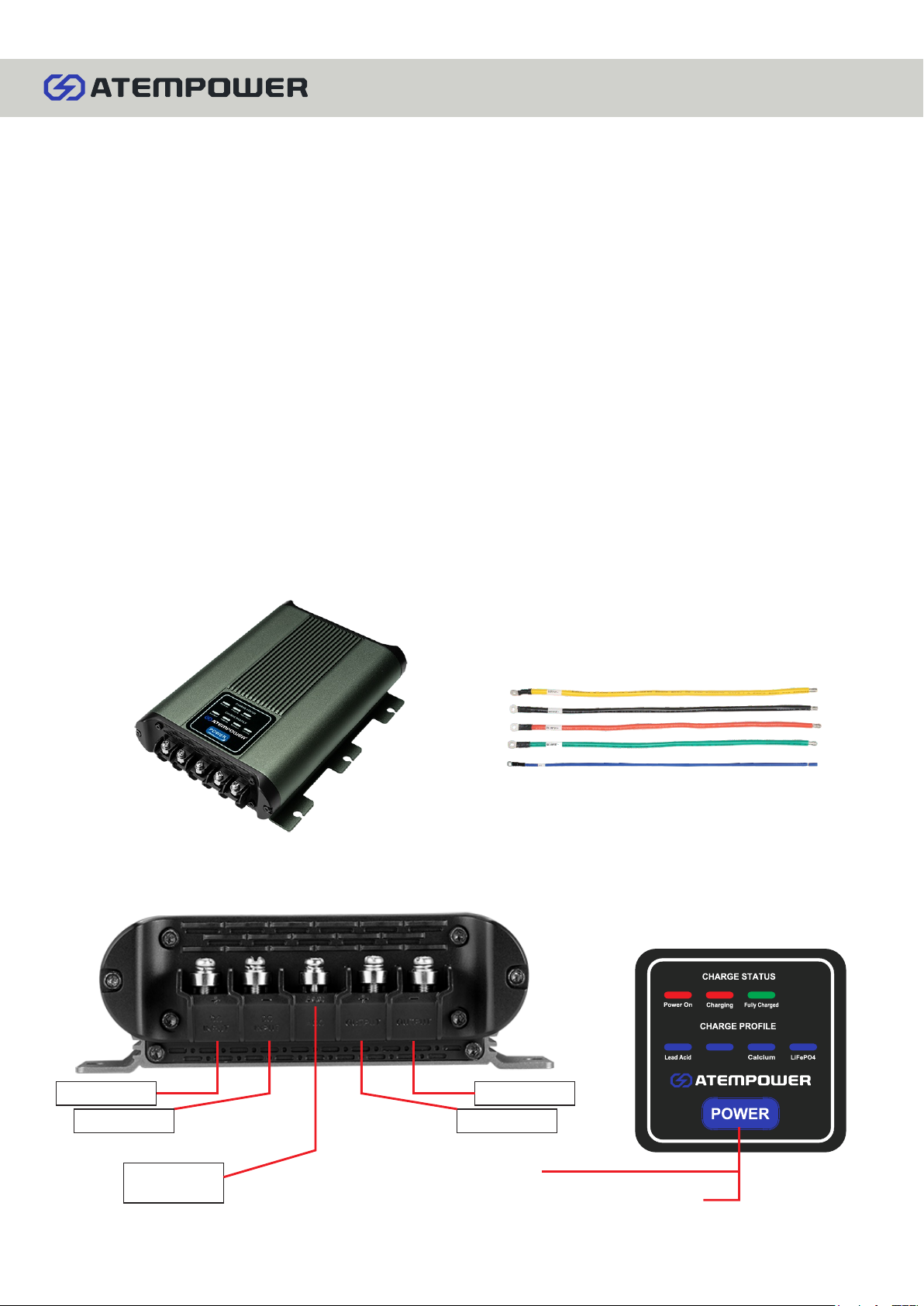

IDENTIFICATION OF PARTS
STAGE OF CHARGING
This DC-DC charger by ATEM POWER, which is ideal for 4WDs, caravans, RVs, trucks, campers, trailers,
campervans, commercial vehicles and boats, offers an effective way to charge your auxiliary batteries
from the alternator (up to 30A) to charge LiFePO4 and lead acid: AGM, gel & calcium batteries. And
overcharge, short circuit, overtemperature, input/output reverse polarity protection have been integrated to
offer an extra layer of protection. Furthermore, the charger allows you to re-select the battery during
charging by long pressing “POWER”, and LED indicator showing stage of charging. And memory function
is integrated to make charging more convenient.
(1) Qualification
(3) Bulk
(5) Full and Analysis
DC Input (+)
DC Input (-) Output (+)
Output (-)
Press to select battery type.
Long press to re-select batteries during charging.
(2) Recondition
(4) Absorption
(6) Recharge
PACKING LIST
2
ACCIgnition
Line(optional)
AGM/GEL

INSTALLATION INSTRUCTIONS
3
PleasecheckwhetherthespecificationofyourcableiscompatiblewiththisDC-DCcharger.
Thischargercanbeinstalledbothhorizontallyandvertically.
Pleasemakesurethatthechargerisinstalledascloseaspossibletothebatteryyouaregoingto
charge,andyoualsoneedtomakesurethattheareaisnotsusceptibletomoisture,water,dustor
hightemperatures.
Pleaseensurethatthereisnoheatsourceorflammablegasaroundtheunit.
Andersonplugisrecommendedwhenthischargerisinstalledonacaravanoracamper(seepicture
below).
Twincorecablewillbeusedbetweenthestartbatteryandthecharger,andyouneedtoconnectthe
commonnegativeandcommonpositivewiresfromthestarterbatterytotheinputoftheDC-DCinthe
appropriatepositiveandnegativeterminals.
Itishighlyrecommendedtoinstalla50Ampcircuitbreaker(notincludedinthispackage)thatshould
beinstallednearthestarterbattery.
Checkwhetherallconnectionsarecleanandtight.
positionwhenenginestarts,whichwillbedetectedbytheDC-DCcharger.Andthemainbatterywill
startchargingyourauxiliarybattery.
Note: thechargermaydischargeyourmainbatteryiftheACClineisconnectedbutyourkeyisnot
turnedtotheSTARTposition.
You can connect the optional ACC line to the ignition of your vehicle, then turn your key to the ACC

HOW TO USE
Start your vehicle and let it idle.
And the charger will recognize that there is a charge being applied to the main starting battery.
The charger will charge the auxiliary battery when the main starting battery has reached 13V (ACC
line not connected).The main battery will start charging the auxiliary battery when its voltage is or above
11.5V (ACC line connected).
Press “POWER” to re-select batteries (The default setting is for lead acid battery, and your setting will
be saved once selection is made).
The charger will continue to operate even after the vehicle has been switched off, however when the
main starting battery falls below 12.5V the charger will automatically shut off (ACC line not connected).
When the main starting battery falls below 10.8V, the charger will automatically shut off (ACC line
connected).
Note: When the voltage drops to 13.2V for LiFePO4 battery/12.3V for AGM, Gel & Calcium after
a full charge, a recharge will begin.
Wake-up of Lithium-Ion Batteries in Sleep Mode: this DC-DC charger cannot charge a lithium-ion
battery in sleep mode. To charge the lithium-ion battery, first make sure the DC-DC charger is
correctly connected to the battery. Then select the “LiFePo4” mode, and long press “POWER”
for 5s. The “charging” (red) indicator will flash for 10s. If the battery is successfully waken up,
the “charging” (red) indicator will be constantly on and the DC-DC charger begins to charge the
battery. Otherwise, the DC-DC charger will enter the standby state and the “Power On” indicator
will be on.
DEEP CYCLE BATTERY MAINTENANCE
This DC-DC charger by ATEM POWER will be used to charge your auxiliary battery, for example, deep
cycle batteries that are designed to provide power for your fridges and light in caravan or camper.
Your fridge might use appropriately 24AH per day. In this light, if your 100AH battery is only used to
power your fridge while receiving no charge, and it would require charging after 48 hours.
To replenish the capacity of the battery (100AH capacity, 50AH discharged), you may need to use a 40
amp DC-DC charger that would further require at least 1.25 hours of driving/solar charging. A 30 amp
unit will require at least 1.67 hours of driving/solar charging to fully recharge the battery. A 20 amp unit
will require at least 2.5 hours of driving/solar charging to fully recharge the battery.
4

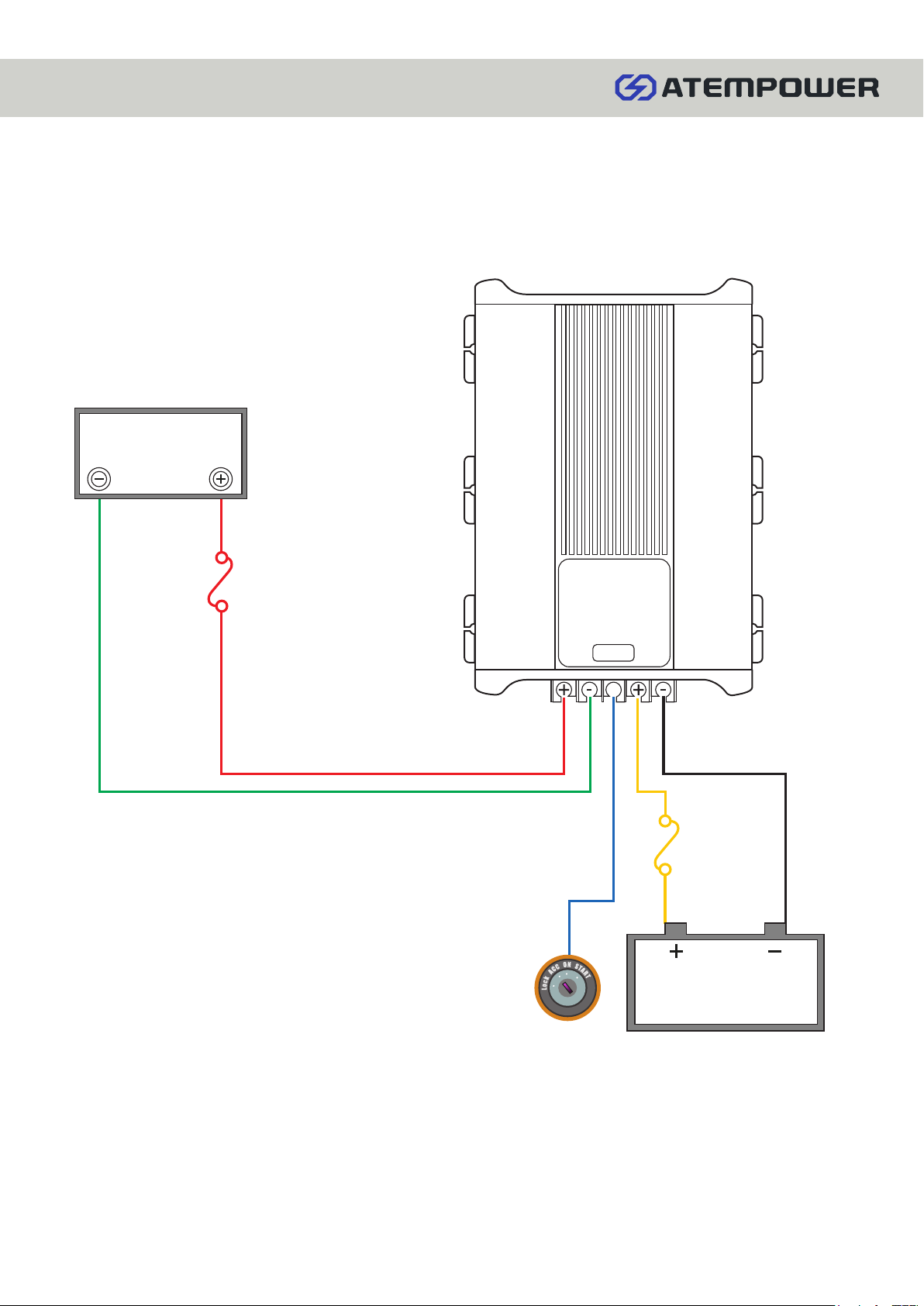

BATTERY WIRING
This diagram is for a reference only. Local rules and regulations should be followed when installing
this unit.
12V Start / Vehicle Battery
Fuse / Breaker (Optional)
12V - 50A
Fuse /
40A
Temp Sensor Cable
(Included)
12V House Battery Bank
(Optional)
5
ACC Ignition
Wire(Optional)
NOTE: First connect the ACC line to the ignition of your vehicle. Then turn your key to the ACC
position when engine starts, which will be detected by the DC-DC charger. And your auxiliary
battery will be charged via the main battery.
Breaker

TECHNICAL SPECIFICATIONS
Type
Model:
Input
Output / Charging Voltage
Minimum Start Voltage
Soft Start
Soft Charge Current
Bulk Charge Voltage
Absorption
Equalisation
Float Charge Voltage
Float Charge Current
Battery Range
0 - 1 Metres
5 Metres +
AP30DC
Multi Stage
DC Battery:13.0 -16.0 Volts
14.4 - 15.4 Volts ( Stops charging when vehicle battery below 12.5V without
ACC line connected/below 10.8V with ACC line connected )
2.5 Volts - For battery being charged
YES
14.7V (AGM/Gel)14.4(Lead Acid)15.4(Calcium)14.4V(LiFePO4)
Constant voltage with automatic amperage control
Automatic
13.5 (AGM/Gel)13.5V(Lead Acid)13.5V(Calcium)
0-30A
90 to 900Ah
10AWG
8 AWG
6 AWG
DC Output:30A
Charge Control
1 - 5 Metres
Cable Length / Twin Core
TROUBLESHOOTING
30A
6
Display shows that the charger is not charging: check where the battery is connected; check the
terminals; check whether the battery is 12V.
Battery is not charging: check whether all connections are connected correctly; check the status of the
battery; check the status of your vehicle.
Battery cannot be fully charged or power cannot be maintained: please check whether your battery has
been used for over 3 years; overheat; low in electrolyte; over-charging or battery vulcanized; You need
to consult your battery manufacturer to check its condition or make a replacement.
Output Current

CHARGING VOLTAGE
AGM/GEL LEAD ACID CALCIUM LiFePO4
BOOST
CHARGING
MAINTENANCE
14.3 V 14.0 V 15.0 V 14.0 V
14.7V 14.4 V 15.4 V 14.4 V
13.5 V 13.5 V 13.5 V
CHARGING ALGORITHM
Charging algorithm will change according to battery type.
NOTE: Charging voltage is specified by your battery manufacturer. Non observance of instructions
will void the warranty of your battery.
7

WARRANTY 12
MONTH
WARRANTY PERIOD:
Full 12 months warranty from date of purchase against all manufacturing defects.
This DC-DC charger by ATEM POWER comes with guarantees that cannot be
excluded under the Australian Consumer Law.
WHAT DOES THE WARRANTY COVER?
Under normal usage conditions, this warranty covers:
Any defect in design or manufacture which results in its failure to perform correctly as
described.
Damage or loss incurred in transit.
We will either replace the product or provide you with a refund at our discretion
provided that the fault is found to have been caused by a design or manufacturing
defect and not misuse or tampering.
Shipping costs of returning the product for a proven defect.
The limited warranty is the only one that applies to this unit, and it sets forth all the
responsibilities of ATEM POWER.

THE WARRANTY DOES NOT COVER:
Travel and /or other expenses due to customer's location.
Damage caused by mould, adverse weather, extreme temperature, accidents and
daily wear and tear.
This unit is not intended for commercial use. This warranty does not apply to damage
to units from misuse or incorrect installation/connection. Misuse includes wiring or
connecting to improper polarity power sources.
