CE700A
USER MANUAL
USB KVM Extender

FCC Information
This is an FCC Class A product. In a domestic environment this product
may cause radio interference in which case the user may be required to
take adequate measures.
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
User Notice
This ATEN product is specifically designed and manufactured for the
operation and management of computer mainframe and communications
equipment used in network management centers. As such, it may not be
completely appropriate for those environments and sites where special
standards for performance and high reliability are required – such as
military equipment, traffic management, nuclear facilities, security
systems, communications equipment, medical facilities, etc.
RoHS
This product is RoHS compliant.

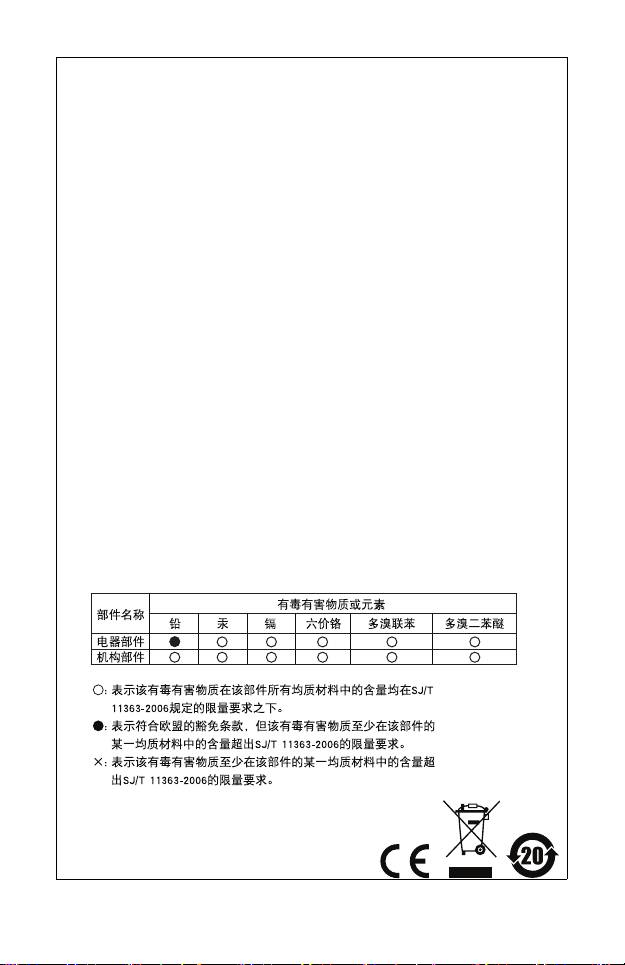

SJ/T 11364-2006
The following contains information that relates to China.

- 3 -
CE700A User Manual
Online Registration
Telephone Support
Technical Support
For international online technical support – including
troubleshooting, documentation, and software updates:
http://support.aten.com
For North American technical support:
International http://support.aten.com
North America http://www.aten-usa.com/product_registration
International 886-2-8692-6959
China 86-10-5255-0110
Japan 81-3-5615-5811
Korea 82-2-467-6789
North America 1-888-999-ATEN ext 4988
United Kingdom 44-8448-158923
Email Support [email protected]
Online
Technical
Support
Troubleshooting
Documentation
Software Updates
http://www.aten-usa.com/support
Telephone Support 1-888-999-ATEN ext 4998

- 4 -
Package Contents
The CE700A USB KVM Extender package contains the following:
1 CE700AL USB KVM Extender (Local Unit)
1 CE700AR USB KVM Extender (Remote Unit)
1 USB KVM Cable (1.8 m)
2 Power Adapters
2 Rack Mount Kits
1 User Instructions*
Check to make sure that all the components are present and that
nothing got damaged in shipping. If you encounter a problem,
contact your dealer.
Read this manual thoroughly and follow the installation and
operation procedures carefully to prevent any damage to the unit,
and/or any of the devices connected to it.
*Features may have been added to the CE700A since this
manual was printed. Please visit our website to download the
most up-to-date version of the manual.
Copyright © 2009–2012 ATEN® International Co., Ltd.
Manual Part No. PAPE-1341-AT2G
Manual Date: 2012-02-06
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights
reserved. All other trademarks are the property of their respective owners.

- 5 -
Overview
The CE700A is a USB KVM Extender with superior video quality
and built-in ESD and surge protection that allows access to a
computer system from a remote USB console (USB keyboard,
monitor, and USB mouse).
Because it allows access to a computer system from a remote
console, the CE700A is perfect for use in any type of installation
where you need to place the console where it is conveniently
accessible, but you want the system equipment to reside in a safe
location – away from the dust and dirt of the factory floor, or the
harsh environmental influence of a construction site, for example.
The CE700A is also useful for control and security purposes,
where you can have the system unit in a secure area at the same
time that you put the console in the most convenient location for
user access.
The CE700A improves on previous designs by: 1) incorporating
15KV ESD protection and 2KV surge protection; 2) providing
superior video quality – up to 1920 x 1200 resolution; 3) using
inexpensive Cat 5 cable, instead of bulkier, more expensive,
standard cables, for a much neater, more convenient, more
reliable data transfer connection; 4) it is able to sense the
distance to the system and automatically adjusts the gain
accordingly; and 5) it features a custom ASIC to ensure the
utmost in reliability and compatibility.
Setup is as easy as can be – simply connect the computer
system box and local console to the Local CE700A Module; run
the Cat 5 cable to the Remote CE700A Module (up to 150 meters
away); and plug the remote console into the Remote Module.
Note: You can control numerous remote systems from a single
console by combining the CE700A with a KVM switch.

- 6 -
Features
Local and Remote Units connect at distances up to 150 m
using Cat 5e cable
Dual console operation – control your system from both the
local and remote USB keyboard, monitor, and mouse
consoles
Built-in ASIC for greater reliability and compatibility
Auto Signal Compensation (ASC)
USB Keyboard and USB Mouse Ports
USB overcurrent detection and prevention
Pushbutton operating mode selection (Local Unit only) –
select between Local and Auto operating modes.
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air
voltage 15KV) and 2KV surge protection
Automatic gain control – adjusts signal strength to
compensate for distance
High resolution video – up to 1920 x 1200@60Hz (30 m );
1600 x 1200@60Hz (100 m); 1280 x 1024@60Hz (150 m)
Supports VGA, SVGA, SXGA, UXGA, WUXGA, and
multisync monitors; local monitor supports DDC; DDC2;
DDC2B
Hot pluggable
Rack mountable
Easy to install – no software required – connecting cables to
the devices is all it takes

- 7 -
System Requirements
Consoles
A VGA, SVGA, SXGA, UXGA, WUXGA, or Multisync monitor
capable of the highest resolution that you will be using on the
installation
A USB keyboard
A USB mouse
Computers
The following equipment must be installed on each computer that
is to be connected to the system:
A VGA, SVGA, SXGA, UXGA, WUXGA, or Multisync card
USB Host Controller and Type A USB Port
Cables
For optimal signal integrity, and to simplify the layout, we
strongly recommend that you use the high quality custom
USB KVM Cable that is provided with this package.
Cat 5e cable is the minimum required to connect the local and
remote CE700A units. Cable of a lesser standard will result in
degrading the video signal. For best performance, we
strongly recommend Cat 5e cable.
Supported Operating Systems
OS Version
Windows 2000, XP, Vista
Linux RedHat 7.1 and higher
SuSE 9.0 and higher
Mandriva (Mandrake) 9.0 and higher
UNIX FreeBSD 4.2 and higher
Novell Netware 6.0 and higher

- 8 -
Components
CE700AL (Local Unit) Front View
CE700AR (Remote Unit) Front View
No. Component Description
1 KVM Port The custom USB KVM cable that links
the unit to the computer plugs in here.
2 Remote LED The CE700AL has two LEDs to
indicate operating status. See LED
Display, page 17, for details.
3 Local LED
4 Operating Mode
Selection Pushbutton
This pushbutton toggles the operating
mode between Auto and Local. See
Operating Modes, page 16, for details.
5 Link LED The CE700AR has two LEDs to
indicate operating status. See LED
Display, page 17, for details.
6 Remote LED
1234
AUTO / LOCAL
56
REMOTE

- 9 -
CE700AL / CE700AR Rear View
CE700AL / CE700AR Side View
No. Component Description
1 Console Ports The local and remote console’s USB
keyboard, USB mouse, and monitor
plug into these ports.
2 Power Jack The power adapter cable plugs into
this jack.
3 Remote I/O The Cat 5e cable that connects the
local and remote units plugs in here.
4 Grounding Terminal The grounding wire attaches here.
See Installation, page 11, for details.
1
23
4

- 10 -
Hardware Setup

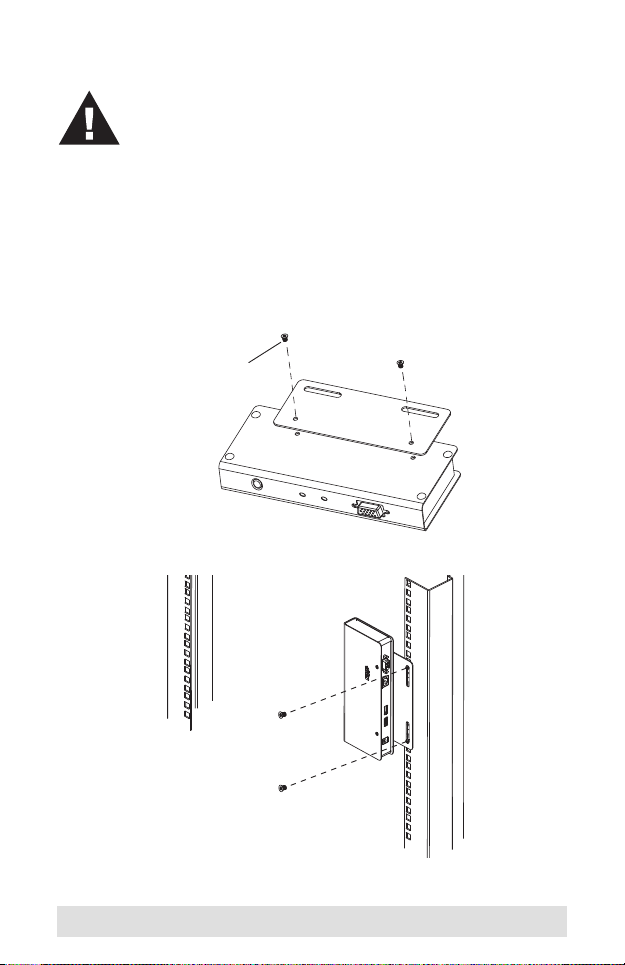

Rack Mounting
For convenience and flexibility, the CE700AL and CE700AR can
be mounted on system racks.
1. Using the screws provided in the Rack Mount Kit, screw the
mounting bracket into the top or bottom of the unit as shown:
2. Screw the bracket into any convenient location on the rack.
Make sure that the power to any device that you
connect to the installation has been turned off. You
must unplug the power cords of any computers that
have the Keyboard Power On function.
Phillips hex head
M3 x 6

- 11 -
Installation

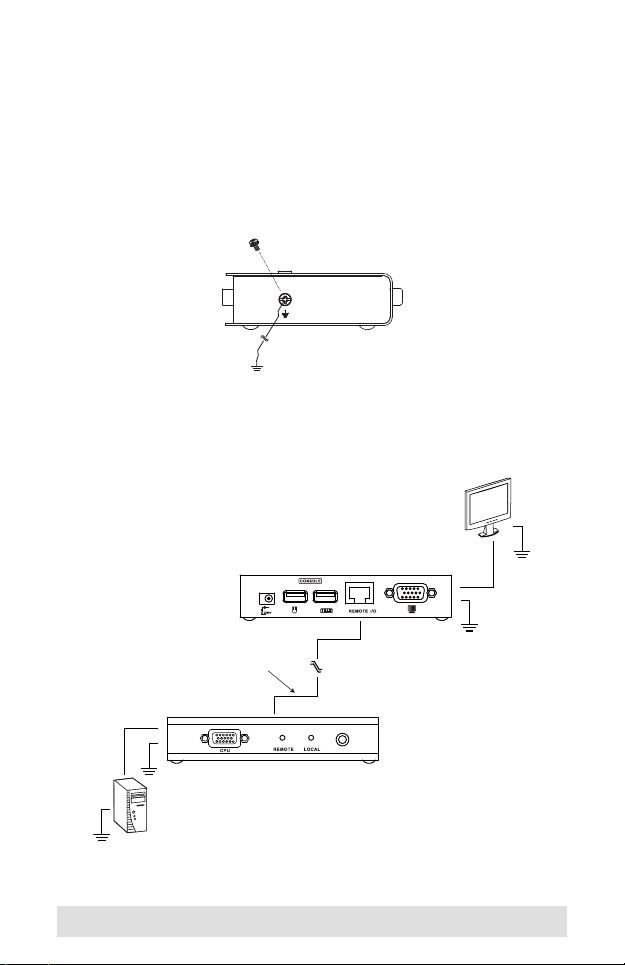

Grounding
To prevent damage to your installation it is important that all
devices are properly grounded.
1. Use two grounding wires to ground both units by connecting
one end of the wire to the grounding terminal, and the other
end of the wire to a suitable grounded object.
2. Make sure that the computer that the CE700AL connects to
and the monitor that the CE700AR connects to are properly
grounded.
STP Cable
(Cat 5e or higher)
up to 150 m
AUTO / LOCAL

- 12 -

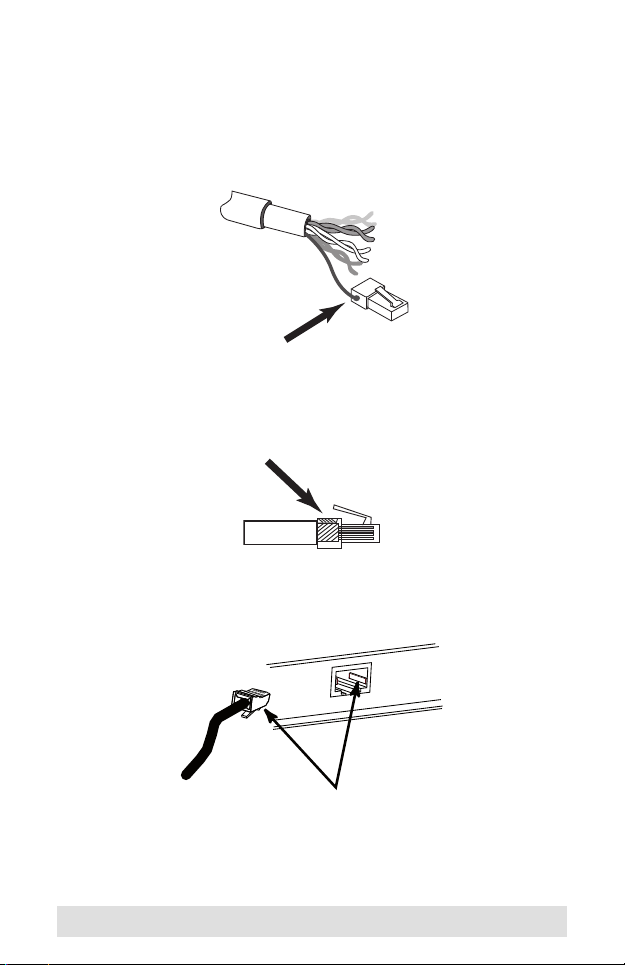

3. For increased grounding protection, use STP (shielded
twisted pair) cable to connect the Local and Remote Units.
There are two methods that can be used:
a) In addition to the eight paired wires, STP cable also
contains a grounding wire. Solder this wire to the RJ-45
connector as shown in the diagram below:
b) The second method is to use the STP cable shielding for
grounding. In this case, make sure that the shielding
makes tight contact with the top inside of the RJ-45
connector as shown in the diagram below:
In either case, make sure that the sides of the RJ-45
connector make tight contact with the grounding contacts on
the sides of the RJ-45 socket as shown in the diagram below:
Setting up the USB KVM Extender system is simply a matter of
plugging in the cables. Refer to the installation diagram on the
following page and do the following:

- 13 -
Connecting the Cables
1. Plug the cables from the local console devices (mouse,
keyboard, monitor, microphone, speakers) into their ports on
the Console section on the rear of the Local Unit (CE700AL).
2. Plug the appropriate connectors on the USB KVM cable
supplied with this unit into their ports on the KVM section on
the front of the Local Unit (CE700AL).
3. Plug the connectors on the other end of the USB KVM cable
into the appropriate ports on the local computer.
Note: If you are combining the CE700A with a KVM switch,
the other end of the USB KVM cable plugs into the
appropriate ports on the KVM switch.
4. Plug one end of the Cat 5e cable into the CE700AL's Remote
I/O port. Plug the other end of the Cat 5e cable into the I/O
port of the Remote Unit (CE700AR).
5. Plug one of the power adapters (supplied with this package)
into an AC source; plug the adapter's power cable into the
CE700AL's Power Jack
6. Plug the cables from the remote console devices into their
ports on the Console side of the CE700AR.
7. Plug the second power adapter (supplied with this package)
into an AC source; plug the adapter's power cable into the
CE700AR's Power Jack.

- 14 -
Installation Rear View
CE700AR
CE700AL
Cat 5e cable
6
7
4
4
51

- 15 -
Installation Front View
2
Local PC
3
USB KVM Cable Set
AUTO / LOCAL

- 16 -
Operating Modes
The CE700A USB KVM Extender system has three operating
modes: Local, Auto, and Remote, as shown in the table, below:
Note: The default operating mode is Auto.
Mode Description
Local Only the local console has KVM access. The
remote console’s keyboard and mouse input is
disabled.
Auto Both the local and remote consoles can have
KVM access, but not at the same time. The
console without access has to wait until the
active console stops inputting data before it
can gain access.
Remote The remote console has KVM access. Remote
cannot be selected; it can only occur when the
pushbutton on the CE700AL is set to Auto and
the local console is idle. If the remote console
is then idle for more than five seconds, the
local console can gain access.

- 17 -
LED Display
The Local and Remote Units each have two LEDs to indicate
their operating status, as shown in the tables, below:
CE700AL (Local Unit)
CE700AR (Remote Unit)
LED Indication
Local (Green) Lights to indicate that the local console is
active (Remote LED is off)
Off when remote console is active
Flashes to indicate Auto mode (neither
console is active)
Remote (Green) Lights to indicate that the remote console is
active (Local LED is off)
Off when local console is active
Flashes to indicate Auto mode (neither
console is active)
LED Indication
Link (Green) Lights steadily to indicate that the
connection to the local unit is working.
Flashes to indicate a problem with the
connection to the local unit (remote LED is
off)
Remote (Green) Lights to indicate that the remote console is
active (Local LED is off)
Off when local console is active
Flashes to indicate Auto mode (neither
console is active)

- 18 -
Specifications
Function CE700AL CE700AR
Connectors Console
Ports
Keyboard 1 x USB Type A Female (White)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x USB Type A Female (White)
KVM Ports KB / Video /
Mouse
1 x SPHD-17
Female (Green)
N/A
Unit to Unit 1 x RJ-45 Female (Black)
Power 1 x DC Jack (Black)
Pushbuttons Operating Mode Selection 1 x Pushbutton N/A
LEDs Local 1 (Green) N/A
Remote 1 (Green) 1 (Green)
Link N/A 1 (Green)
Emulation Keyboard / Mouse USB
Power Consumption DC 5.3V, 2.31W DC 5.3V, 2.84W
Video Resolution Up to 1920 x 1200 @ 60 Hz
Environment Operating Temp. 0–50ºC
Storage Temp -20–60ºC
Humidity 0–80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.32 kg 0.31 kg
Dimensions (L x W x H) 12.50 x 8.15 x 2.5 cm

- 19 -
TP Wiring Diagrams
TP Pin Assignments
Pin Assignment
1VOUTB
2/VOUTB
3VOUTG
4VOUTR
5/VOUTR
6/VOUTG
7/DO
8DO
1
2
3
6
4
5
7
8
1 WHITE/ORANGE /VOUTB
2 ORANGE VOUTB
3 WHITE/GREEN /VOUTG
6 GREEN VOUTG
4 BLUE /VOUTR
5 WHITE/BLUE VOUTR
7 WHITE/BROWN /DO
8 BROWN DO
JACK POSITIONS
PAIR 2 PAIR 1
PAIR 3
PAIR 4
T568B
AT&T 258A
123456 78
W-O O W-G Bl W-Bl G W-Br Br

- 20 -
Troubleshooting
About SPHD Connectors
Problem Action
No video Make sure that all cables are securely plugged
into their sockets.
Poor video quality. The video quality can be improved by reducing
the refresh rate.
This product uses SPHD connectors for its KVM
and/or Console ports. We have specifically
modified the shape of these connectors so that
only KVM cables that we have designed to work
with this product can be connected.
Limited Warranty
IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE
PAID FOR THE PRODUCT FROM THE DIRECT, INDIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE
OF THE PRODUCT, DISK OR ITS DOCUMENTATION.
The direct vendor makes no warranty or representation, expressed, implied, or
statutory with respect to the contents or use of this documentation, and specially
disclaims its quality, performance, merchantability, or fitness for any particular
purpose.
The direct vendor also reserves the right to revise or update the device or
documentation without obligation to notify any individual or entity of such revisions,
or update. For further inquires please contact your direct vendor.
