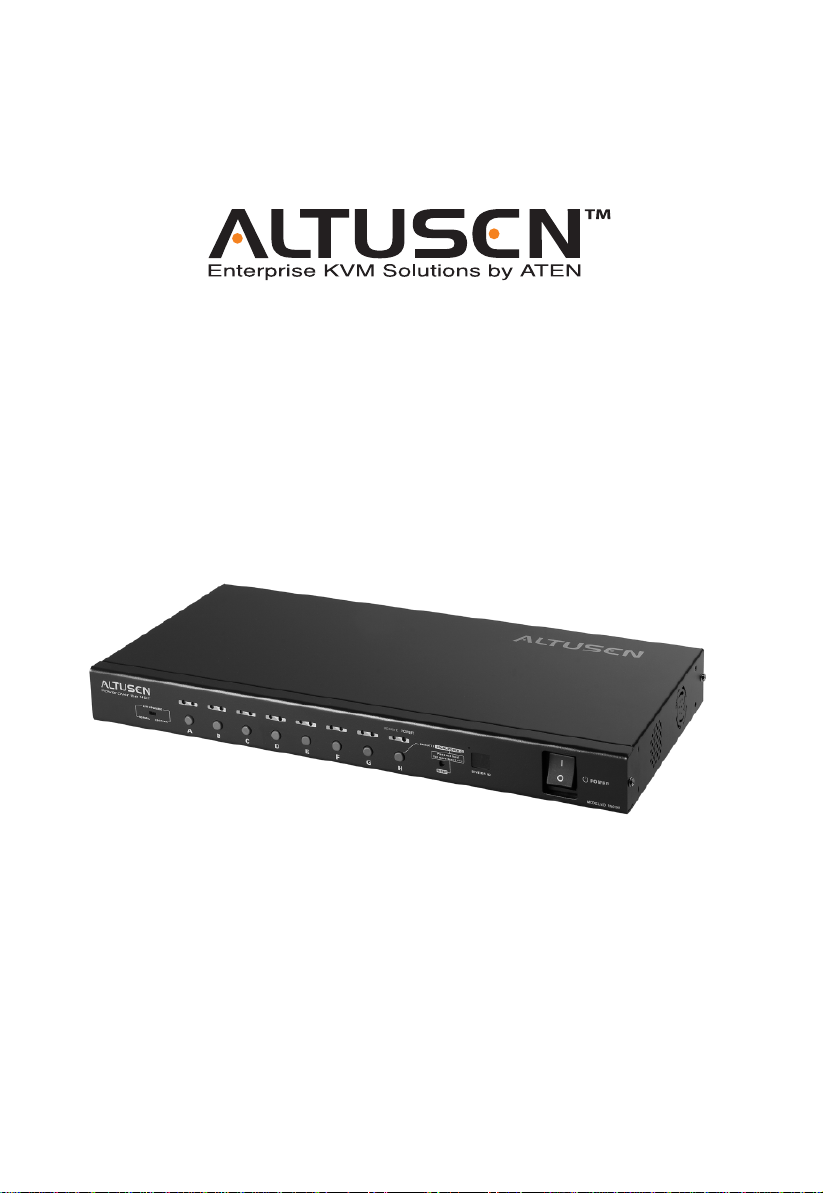

ATEN ALTUSEN PN0108 User manual

Power over the NET™
PN0108
User Manual
www.aten.com
pn0108.book Page i Friday, December 14, 2007 4:15 PM

PN0108 User Manual
ii
FCC Information
This is an FCC Class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
RoHS
This product is RoHS compliant.

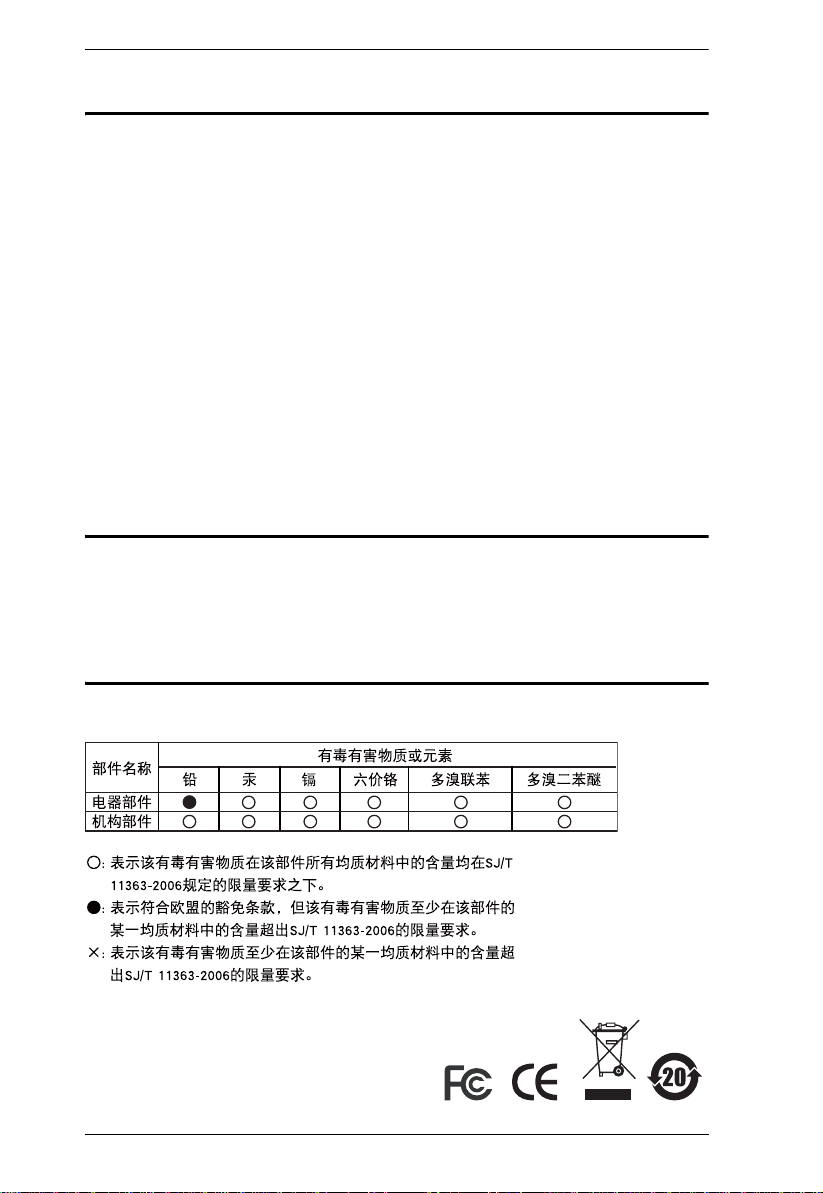

SJ/T 11364-2006
The following contains information that relates to China.
pn0108.book Page ii Friday, December 14, 2007 4:15 PM

PN0108 User Manual
iii
User Information
Online Registration
Be sure to register your product at our online support center:
Telephone Support
For telephone support, call this number:
User Notice
All information, documentation, and specifications contained in this manual
are subject to change without prior notification by the manufacturer. The
manufacturer makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties as to merchantability or fitness for any particular purpose. Any of
the manufacturer's software described in this manual is sold or licensed as is.
Should the programs prove defective following their purchase, the buyer (and
not the manufacturer, its distributor, or its dealer), assumes the entire cost of all
necessary servicing, repair and any incidental or consequential damages
resulting from any defect in the software.
The manufacturer of this system is not responsible for any radio and/or TV
interference caused by unauthorized modifications to this device. It is the
responsibility of the user to correct such interference.
The manufacturer is not responsible for any damage incurred in the operation
of this system if the correct operational voltage setting was not selected prior
to operation. PLEASE VERIFY THAT THE VOLTAGE SETTING IS
CORRECT BEFORE USE.
International http://support.aten.com
North America ATEN TECH http://www.aten-usa.com/product_registration
ATEN NJ http://support.aten.com
International 886-2-8692-6959
North America ATEN TECH 1-888-999-ATEN
ATEN NJ 1-732-356-1703
pn0108.book Page iii Friday, December 14, 2007 4:15 PM

PN0108 User Manual
iv
Package Contents
The PN0108 package consists of:
1 PN0108 Station
1 AC Source Power Cord
8 Power Outlet Power Cords
8 Safe Shutdown Cables
1PONCable(DB9FtoDB9M)
1 Rack Mount Kit
1 Foot Pad Set (4 pcs.)
1 Software CD
1 User Manual*
1 Quick Start Guide
Check to make sure that all of the components are present and in good order.
If anything is missing, or was damaged in shipping, contact your dealer.
Read this manual thoroughly and follow the installation and operation
procedures carefully to prevent any damage to the switch or to any other
devices on the PN0108 installation.
*Features may have been added to the PN0108 since this manual was printed.
Please visit our website to download the most up-to-date version of the
manual.
C
opyr
i
g
ht
©
2004
-
2007
ATEN®
I
n
t
erna
ti
ona
l
C
o.,
Ltd
.
Manual Part No. PAPE-0239-3AXG
Printing Date:12/2007
Altusen and the Altusen logo are registered trademarks of ATEN International Co., Ltd. All rights
reserved.
All other brand names and trademarks are the registered property of their respective owners.
pn0108.book Page iv Friday, December 14, 2007 4:15 PM

PN0108 User Manual
v
Contents
FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
RoHS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
User Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
Power Cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .viii
About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xiii
ALTUSEN Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xiv
Online Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xiv
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xiv
Product Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv
Chapter 1.
Introduction
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Front View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Chapter 2.
Hardware Setup
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Stacking and Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

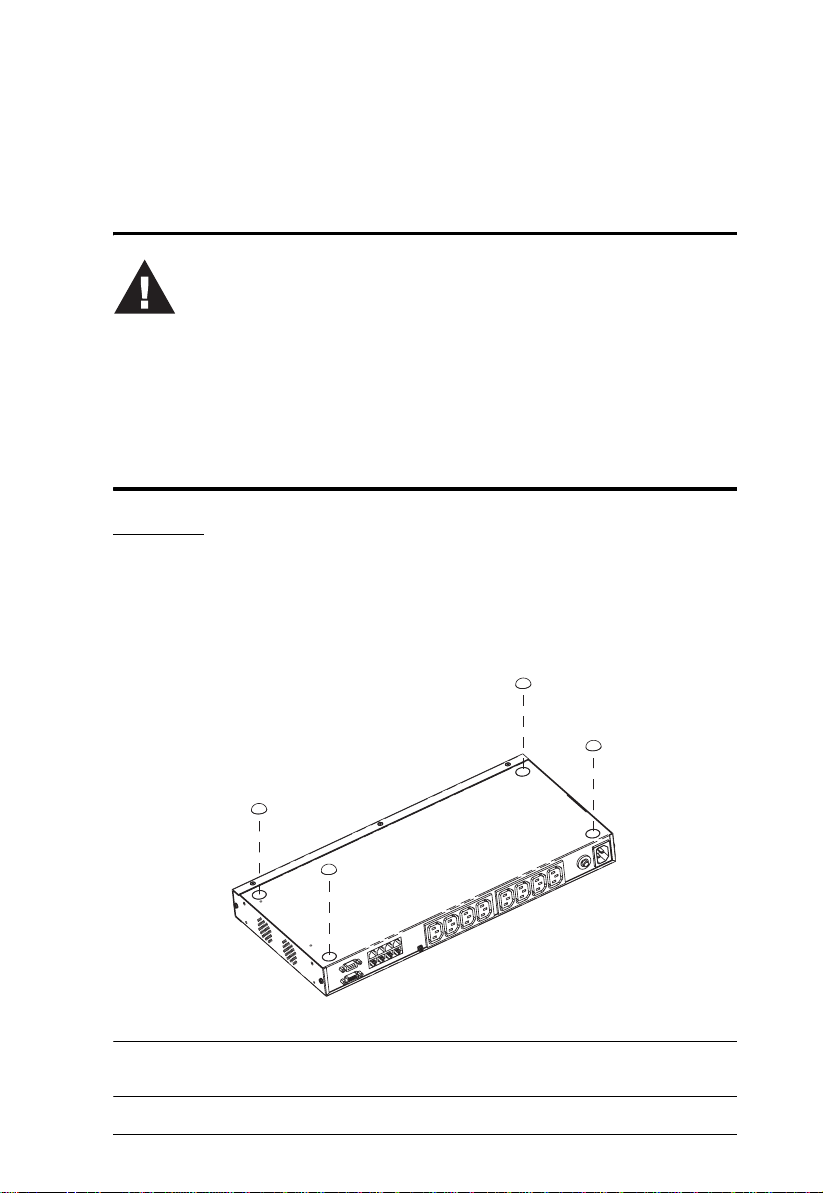

Stacking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

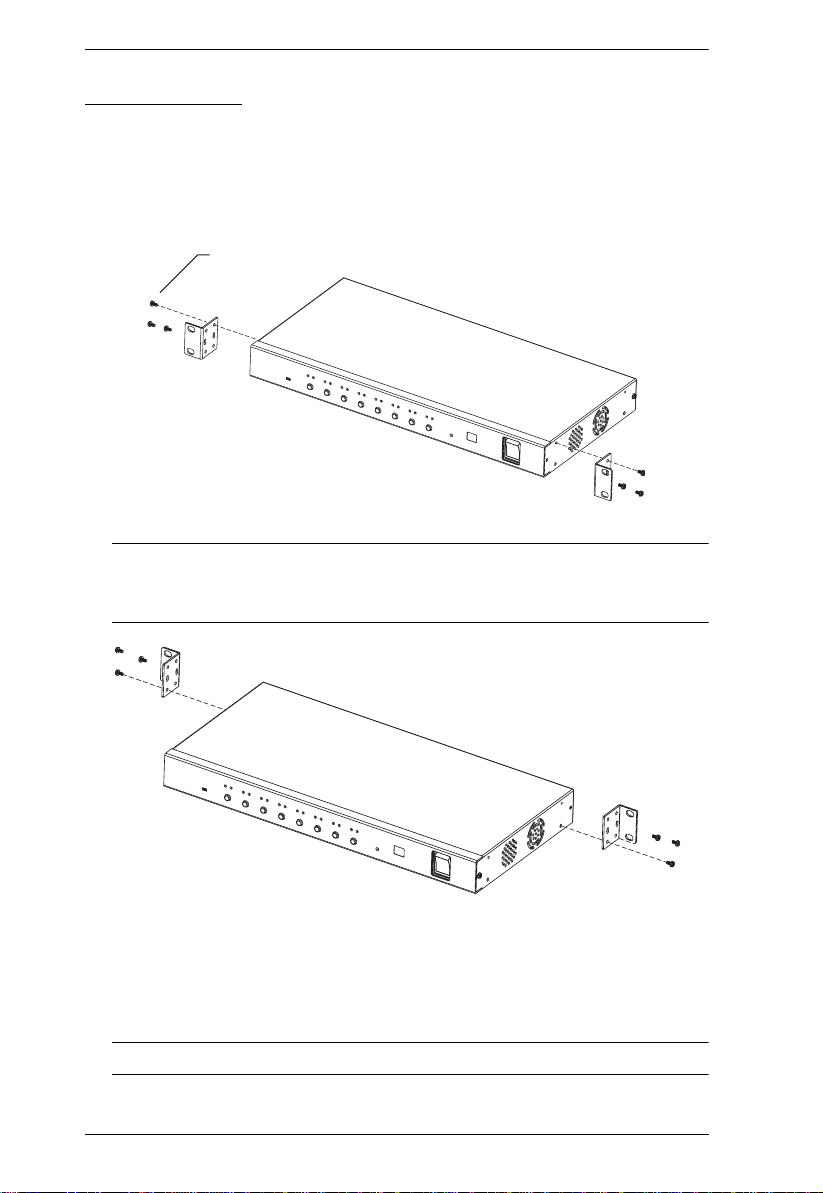

Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

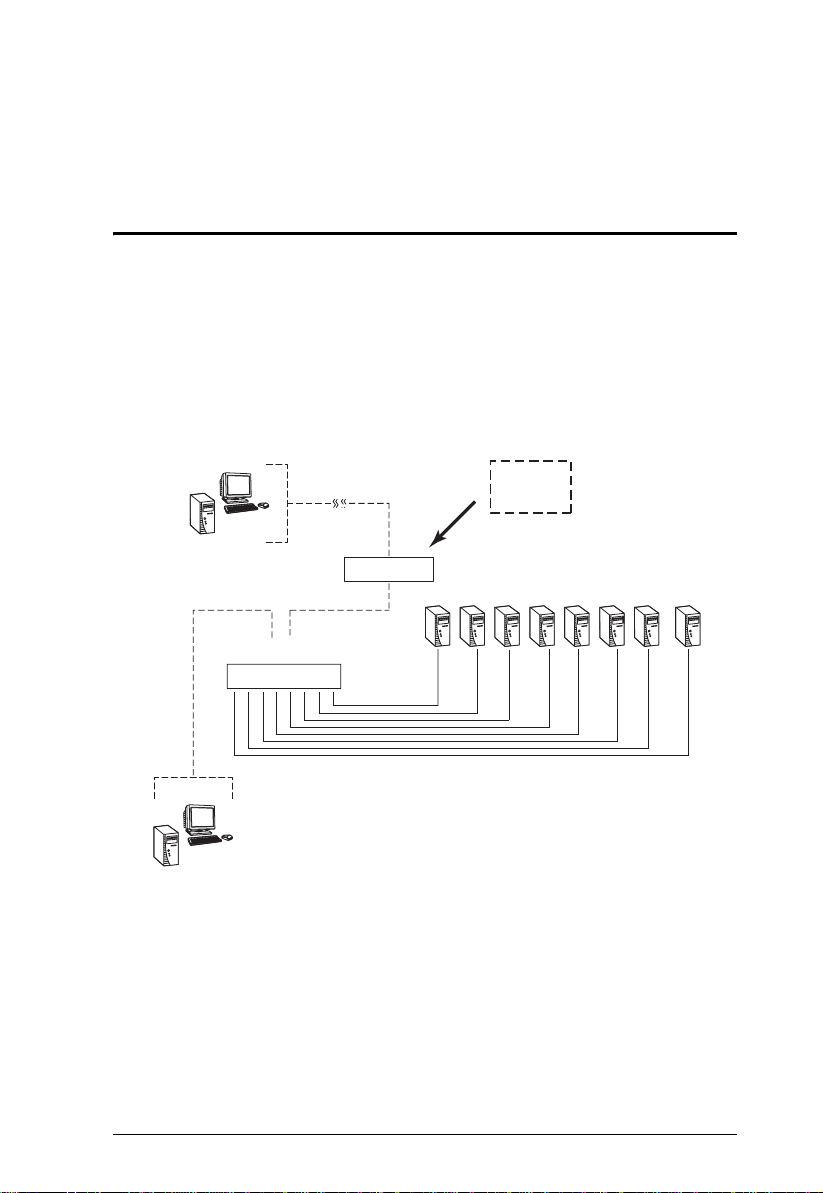

Single Stage Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Daisy Chaining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Chapter 3.
Browser Operation
Logging In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
The PN9108 Main Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Device Selector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Device Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
The Power Status Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
The Top Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
The Bottom Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
pn0108.book Page v Friday, December 14, 2007 4:15 PM

PN0108 User Manual
vi
Chapter 4.
Administration
Working Environment Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Date / Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Firmware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Logout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Power Management Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Schedule. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
User Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Chapter 5.
Safe Shutdown and Reboot
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Automated Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Uninstalling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Manual Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Windows 2000 / XP / Server 2003:. . . . . . . . . . . . . . . . . . . . . . . . . . . 40
NT: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Chapter 6.
Out of Band Operation
OOB Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Computer Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Modem Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Dialog Box Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Direct Terminal Connection (HyperTerminal) . . . . . . . . . . . . . . . . . . . . . . 48
HyperTerminal Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Logging In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Indirect Terminal Connection (HyperTerminal). . . . . . . . . . . . . . . . . . . . . 52
Connection Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Final Check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Logging In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Direct Dial In Connection (PPP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Connection Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Finishing Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Logging In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Indirect Dial In Connection (PPP). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Connection Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Finishing Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Logging In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
pn0108.book Page vi Friday, December 14, 2007 4:15 PM

PN0108 User Manual
vii
Dial Out Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Connection Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Logging In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Telnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Terminal Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Browser Access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Chapter 7.
Upgrading The Firmware
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Starting the Upgrade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Appendix
IP Address Determination. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Trusted Certificates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Installing the Certificate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Certificate Trusted. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Administrator Login Failure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Null Modem Cable Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Battery Replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
pn0108.book Page vii Friday, December 14, 2007 4:15 PM

PN0108 User Manual
viii
About This Manual
This User Manual is provided to help you get the most from your PN0108
system. It covers all aspects of installation, configuration and operation. An
overview of the information found in the manual is provided below.
Overview
Chapter 1, Introduction, introduces you to the PN0108 system. Its
purpose, features and benefits are presented, and its front and back panel
components are described.
Chapter 2, Hardware Setup, provides step-by-step instructions for setting
up your installation.
Chapter 3, Logging In, describes the various methods that can be used to
access the PN0108.
Chapter 4, Operation, explains how to set up and operate the PN0108 once
you are logged in.
Chapter 5, Administration, describes the administrative procedures that
are employed to configure the PN0108's working environment.
Chapter 6, Safe Shutdown and Reboot, shows you how to safely close
a system down and reboot your devices without involving the danger to the file
systems that simply killing the power supply does.
Chapter 7, Upgrading The Firmware, explains how to upgrade the
PN0108's firmware with the latest available versions.
An Appendix, provides specifications and other technical information
regarding the PN0108.
pn0108.book Page viii Friday, December 14, 2007 4:15 PM

PN0108 User Manual
ix
Conventions
This manual uses the following conventions:
Product Information
For information about all of ALTUSEN's products and how they can help you
connect without limits, visit ALTUSEN on the web or contact an ALTUSEN
Authorized Reseller.
In the United States of America, call: 866-ALTUSEN (258-8736)
In Canada and South America, call: 949-453-8885
In all other locations, call: 886-2-8692-6789
Visit ALTUSEN on the web at http://www.aten.com for a list of locations
and telephone numbers
Monospaced Indicates text that you should key in.
[ ] Indicates keys you should press. For example, [Enter] means
to press the Enter key. If keys need to be chorded, they
appear together in the same bracket with a plus sign
between them: [Ctrl+Alt].
1. Numbered lists represent procedures with sequential steps.
♦Bullet lists provide information, but do not involve sequential
steps.
→Indicates selecting the option (on a menu or dialog box, for
example), that comes next. For example, Start →Run
means to open the Start menu, and then select Run.
Indicates critical information.
pn0108.book Page ix Friday, December 14, 2007 4:15 PM

PN0108 User Manual
x
This Page Intentionally Left Blank
pn0108.book Page x Friday, December 14, 2007 4:15 PM

1
Chapter 1
Introduction
Overview
The PN0108 Power Over the NET™ is a control unit that offers remote power
management for up to eight devices (computers, hubs, routers, etc.). When
connected to an ATEN or Altusen TCP/IP accessible module via its PON
(RS232) port – see the diagram below – it allows administrators from any
computer connected to the internet, whether down the hall, or half way around
the world – to control the power off, power on, and reboot status for each
attached device. See Supported Devices, page 69 for a list of compatible
ATEN/ALTUSEN devices.
PN0108
Remote
Administrator
TCP/IP
Local Terminal
Connection
PON (RS232)
Port
ATEN/ALTUSEN
Over IP
Device
pn0108.book Page 1 Friday, December 14, 2007 4:15 PM

PN0108 User Manual
2
For flexibility, the PON port can also be used to administer the PN0108 locally
via a serial terminal session.
Up to 15 additional PN0108 units can be daisy chained down from the original
unit, providing remote power management for up to 128 devices. Installation
is fast and easy: plugging cables into their appropriate ports and a simple setup
is all that is entailed.
Since the PN0108's firmware is upgradeable, you can stay current with the
latest functionality improvements simply by downloading firmware updates
from our website as they become available.
With its advanced features and ease of operation, the PN0108 is the most
convenient, most reliable, and most cost effective way to remotely manage
power access for multiple computer installations.
PN0108
Local Terminal
Connection
PON (RS232)
Port
pn0108.book Page 2 Friday, December 14, 2007 4:15 PM

Chapter 1. Introduction
3
Features
Remote power on/off/reboot control for eight outlets via TCP/IP and a
built in RS-232 PON (Power over the Net™) port
Local power on/off/reboot control via the PN0108's PON port to the
computer's RS-232 port
Daisy chain up to 15 additional stations to control up to 128 outlets
Manual switching between Local and Remote access for each port via
front panel push button switches
Individual control of each port – users can set the power on sequence and
delay time for each port to allow equipment to be turned on in the proper
order
Easy setup and operation via a GUI interface
Provides three configuration/management methods: Browser; Telnet; or
Console Terminal
Safe shutdown and rebooting for Windows systems*
Overcurrent protection and recovery for each AC port (110 V model only);
total port overcurrent protection (both models) – remote users can monitor
the current status via the GUI interface
Separate circuits for the unit's power and the power to the devices – the
power control status menu is still accessible even when an overcurrent
condition trips the devices' circuit breaker
On/Off scheduling – allows everything from a one-time start/shutdown, to
daily, weekly, etc. starts/shutdowns at user-specified times
Port grouping – perform the same action on a specified group of ports
LEDs for easy status monitoring
Two level (Administrator and User) security
Configuration can be reset
Firmware upgradeable – daisy chained stations receive the upgrade via the
daisy chain bus
*Safe shutdown and rebooting is supported if the Power Monitor utility has
been installed (see Automated Setup, page 48).
pn0108.book Page 3 Friday, December 14, 2007 4:15 PM

PN0108 User Manual
4
Requirements
Browsers accessing the PN0108 must support SSL 128 bit encryption.
For the Java access, you must have Java J2RE (1.4 or higher) installed on
your computer. Java is available for free download from the Sun Java
website: http://java.sun.com
For cold booting of attached computers, the computer's BIOS must
support this feature.
For Safe Shutdown:
The computer must be running Windows (Windows 98 or higher).
The computer's BIOS must support Safe Shutdown – see Overview,
page 47, for detailed information.
There must be an available COM port on the computer for the Safe
Shutdown cable to plug into.
pn0108.book Page 4 Friday, December 14, 2007 4:15 PM

Chapter 1. Introduction
5
Components
Front View
(Continues on next page.)
No. Item Description
1 Port LEDs The Port LEDs provide status information about their
corresponding AC outlet ports. There is one pair of LEDs for each
port. The one on the left is the Remote Access LED; the one on
the right is the Power LED:
A Remote Access LED lights GREEN to indicate that the device
attached to its corresponding port is capable of being controlled
remotely.
A Power LED lights ORANGE to indicate that there is electricity
going to its corresponding outlet. The LED flashes under the
following conditions:
If Modem Ring Resume is enabled (see Modem Ring
Resume*, page 39), an outlet still receives electricity even
when its corresponding computer has been powered OFF.
The Power LED blinks OFF, then ON for 8 seconds, then
OFF, then ON for 8 seconds, etc., to indicate this situation.
When a power status change is pending, the LED flashes
until the change has taken place.
If both LEDs flash it indicates that there is either an overcurrent
situation, or the relay has failed. See Flashing Lightbulb,
page 33, for more details.
2 Firmware
Upgrade
Switch
During normal operation this switch is in the NORMAL position.
The RECOVER position is used when performing a firmware
upgrade. See Upgrading The Firmware, page 53, for upgrading
details.
2 4 5 63
1
pn0108.book Page 5 Friday, December 14, 2007 4:15 PM

PN0108 User Manual
6
(Continued from previous page.)
No. Item Description
3 Power
Control
Buttons
Each button (A to H), controls the power status of its
corresponding AC output port as follows:
Pressing the button for less than 3 seconds toggles the port
between Remote Access enabled and Remote Access disabled
(Local Mode). If Remote Access is disabled, the switch does not
allow the port to be managed from a remote connection. (The
Remote Access LED is off when Remote Access Mode has
been disabled for its corresponding port.)
Under Local Mode, pressing and holding the button in for more
than 3 seconds switches the power to its corresponding port On
or Off.
4 Reset
Switch Pressing and holding this switch in for more that three seconds resets the PN9108 to its factory default settings. This switch is
recessed and must be pushed with a thin object, such as the end
of a paper clip, or a ballpoint pen.
5 Station ID
LED The PN0108's Station ID displays here. If this is a Single Station
installation (See Single Stage Installation, page 11, or the First
Station on a Daisy Chained installation (see Daisy Chaining,
page 13), the PN0108 has a Station ID of 01.
6 Power
Switch This standard rocker switch powers the PN0108 On and Off.
pn0108.book Page 6 Friday, December 14, 2007 4:15 PM

Chapter 1. Introduction
7
Rear View
No. Item Description
1 Power
Socket The power cable from the AC source plugs in here.
2Circuit
Breaker Press to reset the circuit.
3 AC Power
Outlets The power cables that connect to the computers plug in here.
4 Safe
Shutdown
Ports
Provides safe shutdown and rebooting for Windows 98SE, ME,
NT, 2000, XP and 2003 Server systems.
5PON
(Power
over the
NET™)
Output Port
When daisy chaining PN9108 Stations, this is the Chain Out port.
See p. 13 for daisy chaining details.
6 PON Input
Port For a single unit installation, or for the first station of a daisy
chained installation, the PON cable that connects to the CN-
6000 (or other compatible device - see Supported Devices,
page 69), plugs in here.
In a daisy chained installation, the PON cable from the Chain
Out port of the parent unit plugs in here.
When performing a firmware upgrade, the PON cable that
connects the PN0108 to the computer that will transfer the
upgraded firmware (see Preparation, page 53), plugs in here.
6
3 41 2 5
pn0108.book Page 7 Friday, December 14, 2007 4:15 PM

PN0108 User Manual
8
This Page Intentionally Left Blank
pn0108.book Page 8 Friday, December 14, 2007 4:15 PM

9
Chapter 2
Hardware Setup
Before You Begin
Stacking and Rack Mounting
Stacking
The PN0108can be placed on any appropriate level surface that can safely
support its weight plus the weight of its attached cables. To place or stack the
PN0108, remove the backing material from the bottom of the rubber feet that
came with this package, and stick them onto the switch's bottom panel at the
corners, as shown in the diagram, below
Note: To ensure adequate ventilation, allow at least 5.1 cm on each side, and
12.7cm at the back for power cord and cable clearance.
1. Important safety information regarding the placement of this
device is provided on page 61. Please review it before
proceeding.
2. Make sure that power to all the devices you will be connecting
up have been turned off. You must unplug the power cords of
any computers that have the Keyboard Power On function.
pn0108.book Page 9 Friday, December 14, 2007 4:15 PM

PN0108 User Manual
10
Rack Mounting
The PN0108 can be installed in most standard 19" (1U) racks. To rack mount
the unit do the following:
1. Use the screws supplied with your rack mounting kit to attach the rack
mounting brackets to each side of the device:
Note: The unit can be installed either at the front or the back of the rack.
To install it at the back, simply screw the brackets into the holes at
the rear of the unit.
2. Position the device in the rack and align the holes in the mounting brackets
with the hole in the rack.
3. Screw the mounting brackets to the rack.
Note: Cage nuts are provided for racks that are not prethreaded.
Phillips Hex Head
