Ather Dot Assembly instructions

1
Home Charging Point
TM

1
2
Manuals might be boring, but
do ip through every page.
We have cut the fa to keep
this manual to the point, so
that it’s easy to read.
USER
MANUAL
& GUIDE

32
All about the Ather Dot™
What’s in the box? 2
Specifications 3
01
02
03
04
05
Installation
Pre-checks 5
How to install? 6
Connecting the Ather Dot™ to your meter 11
Safety instructions 15
How to take care of the Ather Dot™ ?
The PRCD 18
The Dos & Don’ts 19
Cleaning 20
Learn its language 21
Other safety instructions
Warnings! 23
Cautions 24
Troubleshoot 24

21
What’s in the box?
The package contains 6 items in total -
01
All about the
Ather Dot
Ather Dot™ is a home charging point
for your Ather 450. The step-by-step
installation process has been jotted
down clearly here, along with the dos
& don’ts, warnings and cautions.
™
Charger 6A Three Pin Plug
Wall Inserts
C-clamp with Screws
Mounting Screws
Stencil

43
02
Installation
We have detailed out every
step here to ensure a smooth
installation. Pre-checks are a
must, so flip the page and go
through each one of them.
Specifications
Input
Operating voltage and wiring
185V AC - 275V AC single-phase
Frequency
50 Hz
Current
3.5A maximum
Output
59V 12A
Weight including bracket
3.6 kgs
Cable length
1 meter input cable
2 meter output cable
Operating temperature
0�C - 45�C
Dimensions
(D)363.5 mm X (W)233 mm X (H)98 mm

65
Make sure that your home has proper earthing.
If the voltage between Neutral-Earth terminals
of any socket in your home is less than 25V, the
earthing qualifies to be healthy.
Installation pre-checks
Ensure that the electric source is close by.
The Ather Dot™ comes with 1 meter of input
cable. The open terminals of the input cable
must be connected to the circuit breaker that is
next to the utility energy meter of your home, as
explained in the “How to install?” section (pg. 11).
Note: Do assess beforehand, just in case you need
a longer wire, as we do not recommend using
extension cords.
You can also use a 6A socket, by connecting the
3 pin plug to the open terminals of the input
cable, incase you do not have access to the
energy meter of your home.
Note: Get your local electrician to check the voltage
or DIY using the multimeter in case you want to
check the health of the socket’s earth connection.
Drill machine with M6 wall drilling attachment and hammer
Multimeter
Screwdriver
Cables and conduit (For wire extension to the meter)
4 things you need
How to install?
Steps to set-up the Ather Dot™
Use the stencil to precisely mark all the 4
screws’ position on the wall. The arrow mark
on stencil should be pointing upwards for an
accurate marking.
Recommended height: 1.5 m from the ground.
Step 1
Note - In case of uneven surface or obstacles at the
recommended height, you can mount the
Ather Dot™ at your convenient height. Just that, it
should not be too low for it to get affected by water
clogging or splashing.
Earth
Neutral
Healthy Earthing
< 25V

87
Clear any clutter around the Ather Dot™
-100mm on the docking side for an easy
access to the charging connector.

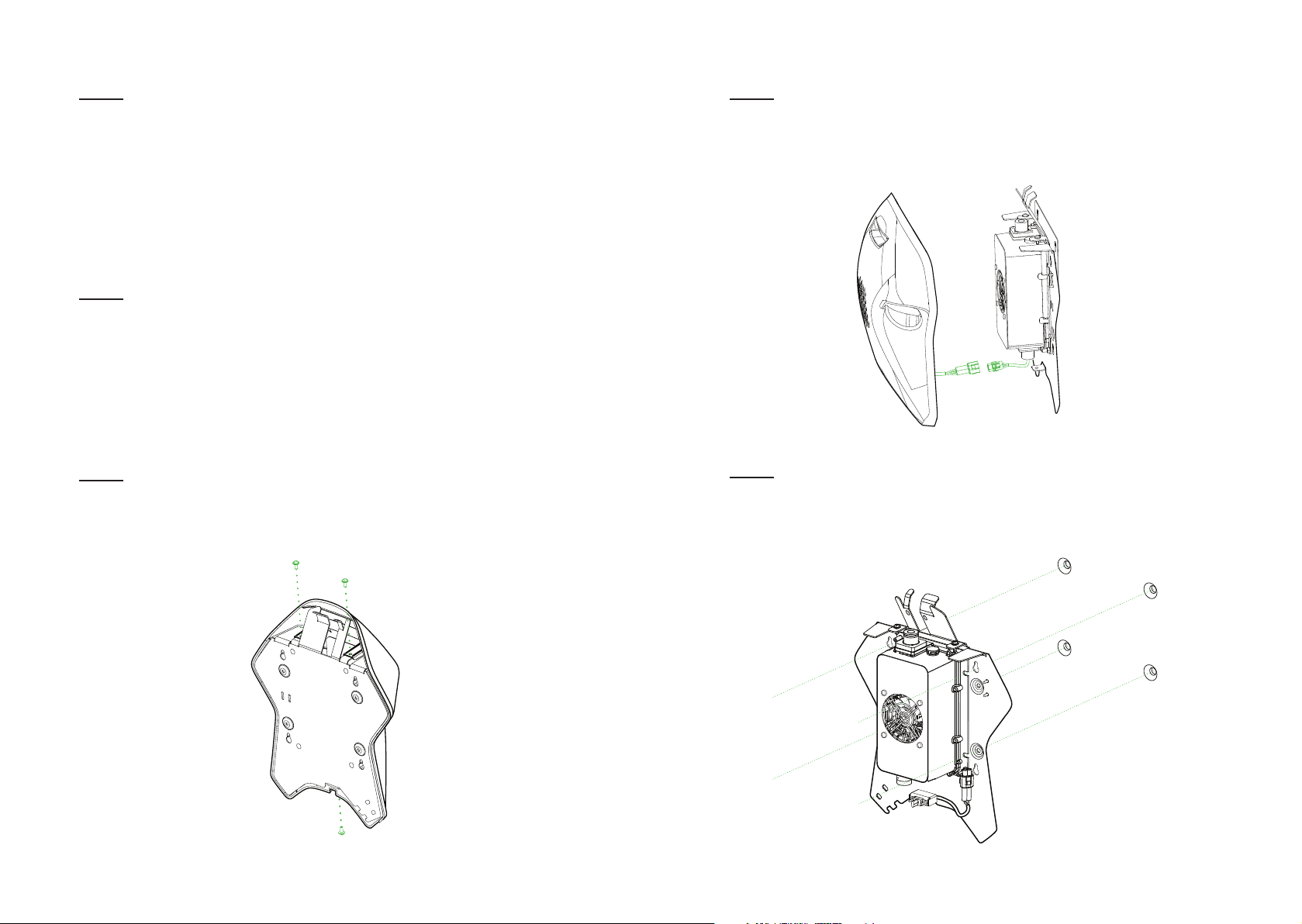

Step 2
Drill holes with an M6 drill attachment and
install the wall inserts in the drilled holes.
Step 3
Unscrew the 3 bolts present on the
face of the home charger.
Step 4
Pick the body of the charger, align the holes
on the outer area of the charger to the
marking on the wall.
Step 6
Detach the wire that’s connecting the face
and the body to separate them.
Step 5

109
Make sure the charging wire passes from
above, through the center of the Ather Dot™.
Now fix all the 4 wall mounting screws.
Step 7
Step 8
Take the face of the Ather Dot™, connect the
wire that’s hanging from its face to the wire
that’s hanging loose from its body.
Adjust the face to fit the body perfectly and bolt
in the 3 screws.
Step 9
Step 10

1211
How to connect your Ather Dot™ to the meter
There are two ways to connect the Ather Dot™
to your meter. Read through to understand
what suits you better.
Direct connection (the preferred one)
Via 6A socket
Direct connection
Caution: Before attempting the instructions
given below, make sure that the electrical
mains switch is turned OFF to avoid any
accidental electric shocks. Use a multimeter to
make sure you have no voltage between line
and neutral terminals.
PRCD
Earth
Ather Dot™
Circuit Breaker
Electric Meter
Line
Neutral
Earth
Line
Neutral
Step 1
Connect the three open terminals of the
Ather Dot™ to the energy meter of your home.
Make sure that the brown wire is connected
to the Live terminal, blue wire is connected to
the Neutral terminal and yellow-green wire is
connected to the Earth terminal of the
energy meter.

1413
Step 2
Use the C-clamps to fix the Portable Residual
Current Device (PRCD) intact over the
wall surface.
Step 3
Switch ON the mains power.
Via 6A socket
Step 1
Connect the 3 pin plug to the 3 open terminals
of Ather Dot™.
Step 2
Use the C-clamps to hold the PRCD intact over
the wall surface.
Step 3
Plug the charger into the socket using the
connected 3 pin plug and power it ON. An
earthed 3 pin 6A socket is a must for smooth
and safe charging at all times.
Note: In case you would like to install Ather
Dot™ in a shared parking space in apartment
complexes etc., it is advised to install a utility
energy meter and connect the Ather Dot™
through the meter. This will help you to bill the
power consumed by Ather Dot™ and pay back
your apartment society. Alternatively, you could
connect the socket directly to your dedicated
utility meter.
Ideal state of the charger
Solid Green LED- It signifies that the charger is
healthy and is available for charging.

1615
Installation safety instructions
Warnings!
The Ather Dot™ must be grounded only via the
Ather plug provided in this package.
Do not install or use the Ather Dot™ near
flammable, explosive, harsh, or combustible
materials, chemicals, or vapours.
Do not forcefully fold or apply pressure to any
part of the charger or damage it by using any
sharp objects.
Use of the Ather Dot™ may aect or impair
the operation of any medical or implantable
electronic devices, such as an implantable
cardiac pacemaker or an implantable
cardioverter defibrillator. Before using
Ather Dot™, check with your electronic device
manufacturer if charging may have any
adverse eect on such electronic devices.
For Indoor use only. It could be used outdoors
when installed by an Ather Technician or by
using the Ather recommended additional
accessories to make any pre-installed socket
water resistant.
Do not use the Ather Dot™ if it is defective,
appears cracked, frayed, broken, or otherwise
damaged, or if it fails to operate.
To prevent wiring damage or abrasion, do not
expose wiring to edges of sheet metal or other
sharp objects. The Ather Dot™ wiring and
electrical parts may be damaged when drilling
for installation. Check for enclosed wiring and
components. Do not install if the Ather Dot™ is
damaged. Before installation, turn power o.
Caution!
Carefully handle circuit boards and the
components during installation to prevent any
damage.
Do not use an extension cord to power the
Ather Dot™.
Ensure that the fuse or MCB (Miniature Circuit
Breaker) is present before installing the Ather
Dot™ on the Live line.
Risk of personal injury: The Ather Dot™ may
have sharp edges. Wear gloves to prevent
cuts or abrasions when removing from carton,
handling and maintaining the Ather Dot™.

1817
03
How to take
care of the
Ather Dot ?
A few monthly checks, keeping in
mind the cleaning tips and following
the dos and don’ts will keep the
Ather Dot™ well maintained. Here’s
all you need to do.
™

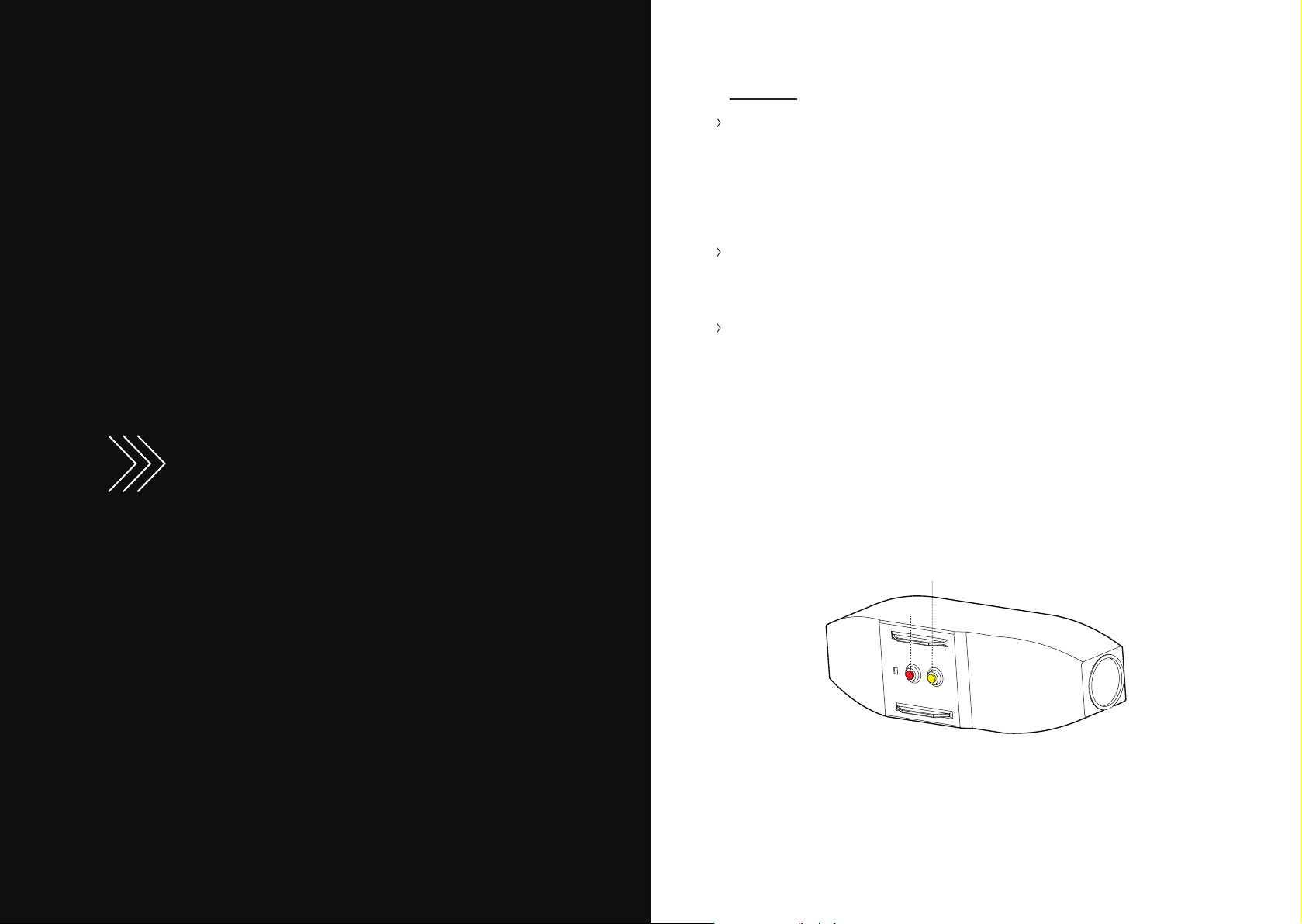

The PRCD
Why is PRCD important?
Portable Residual Current Device (PRCD)
protects you from any electrical shocks in the
event of charger malfunction, just in case of any
manufacturing defects. It has 2 switches -
Reset button and Test button.
Reset Button: Just in case the home charging
point trips, simply press this button. If it trips
repeatedly, please contact customer support.
Test Button: This is used to test the PRCD. If the
home charging point turns OFF when you press
the Test Button, it means your PRCD is working
just fine.
Note: Do not keep the Reset Button in pressed
condition. It poses a safety risk in the event of
actual electrical hazard on the Ather Dot™.
Reset
Test
RReseteset
TTestest

2019
Monthly checks
Test PRCD using its Test Button at least once a
month. Press the Test Button to check if PRCD
cuts-o power from the Ather Dot™. In case
power doesn’t cut o, please contact customer
support.
Note: Press the Reset Button to restore Ather Dot™,
right after you have checked the PRCD Test Button.
Ensure that the charging cable is always well
secured, so that it’s never stepped on, driven
over, tripped on, or undergoes any damage
or stress.
Always turn o the Ather Dot™ when not plugged
into the vehicle.
Make sure the Ather Dot™’s air flow is never
blocked to ensure its proper functioning.
The Dos & Don’ts
Do not use cleaning solvents to clean any part or
component of the Ather Dot™.
The facade of the Ather Dot™, charging cable,
and the connector end of the charging cable
should be regularly wiped with a clean, dry cloth
to prevent accumulation of dirt and dust.
Cleaning
Warning!
Unplug the power cord before cleaning the
Ather Dot™.
Do not use any chemicals to clean the
Ather Dot™. Never spray any liquid onto the
charger handle or wall plug.
Store the charger handle in the dock to
prevent unnecessary exposure to moisture and
contamination.
Never submerge the Ather Dot™’s handle or wall
plug in any kind of liquid.

2221
04
Other safety
instructions
Here is all the additional critical
information that’s a must read
for your safety and to maintain
the health of the Ather Dot™. Go
through them carefully before you
start using it.
The Ather Dot™ - your home charging point,
speaks to you. The changing state of the LED
light communicates to you about how it’s doing.
Every colour tells you something.
Learn its language
Solid amber light
Your home charging point’s software is being
updated over-the-air (OTA)
Solid green light
When not connected to the vehicle - Your home
charging point is healthy and is available for
charging
When connected to the vehicle - Charging is done
Blinking green light
Charging in progress
No light
No power flow
Note: If you don’t see any light (when there is power
in your premises), press Reset Button on PRCD. If
the Ather Dot™ still remains non-functional, please
contact customer support.
Solid red light
A fault has been detected in your home charging
point. Please contact customer support

2423
Warnings!
Daily usage
This device should not be operated by children.
Do not touch the Ather Dot™’s end terminals
with fingers or sharp metallic objects, such as
wire, tools, or needles. No goofing around.
Do not insert foreign objects into any part
of the Ather Dot™.
Use Ather Dot™ only within the specified
operating parameters.
Repair work
Do not attempt to disassemble, repair, tamper
with, or modify the Ather Dot™. It is not user
serviceable. Get in touch with customer support
for any repairs or modification.
Transportation
When transporting the Ather Dot™, handle it with
care. Do not subject it to strong force or impact
or pull, twist, tangle, drag, or step on.
If the LED on the Ather Dot™ shows a solid red
light, switch OFF the power for 10 seconds and
switch it ON again.
If the above step fails to restart the Ather Dot™
even after 3 trials, get in touch with customer
support for further instructions.
Troubleshoot
Caution
Do not use private power generators as a power
source for charging.
Do not operate the Ather Dot™ in temperatures
outside its operating range. Acceptable limits are
mentioned in the product specifications (pg: 8).
Incorrect installation and testing of the Ather
Dot™ could potentially damage either the
vehicle’s battery and/or the Ather Dot™ itself.
Any resulting damage is excluded from the
New Vehicle Limited Warranty and the Charging
Equipment Limited Warranty.
Electrical equipment
Please handle with care.

2625
DISCLAIMER
Ather Energy Private Limited (‘’Ather’’) takes reasonable care to
ensure accuracy of the information contained herein, but it shall not be
responsible for any inadvertent errors or omissions that may appear in
this document. The use of Ather Dot™- home charging point shall be
governed by the terms and conditions of the agreement entered between
you and Ather during purchase (’’Agreement’’). Ather makes no warranties
of merchantability and/or fitness for a particular purpose, in relation to the
accuracy, reliability or contents of this document. You acknowledge that
any usage of Ather Dot™in contravention with this document may render
the warranty void. Ather reserves the right to update this document and/or
discontinue Ather Dot™at any time without notice.
WARNING: FAILURE TO FOLLOW THESE INSTRUCTIONS AND WARNINGS
MAY RESULT IN SERIOUS INJURY OR SIGNIFICANT PROPERTY DAMAGE.
For your own protection, carefully read this installation manual in its
entirety before installing or while maintaining the Ather Dot™. These
instructions do not attempt to cover all installation and maintenance
situations. If you do not understand these instructions or if additional
information is required, contact your local Ather representative. Retain
these instructions for maintenance reference.
WARNING: RISK OF FIRE OR ELECTRIC SHOCK
The Ather Dot™ must be installed and maintained in accordance with
the applicable laws, regulations and electrical codes, and the installation
instructions provided in this document. It is recommended that the Ather
Dot™ be installed and maintained by a professional electrician familiar
with the operation and any hazards involved with the Ather Dot™.

27
Customer Support Number
[phone]
