ATL IP300S User manual

IP300S
User Guide
www.atltelecom.com

IP SIP Phone v2 User’s Guide Mar. 2005
[2/100]
Directory
DIRECTORY ............................................................................................................................................................... 2
1. OVERVIEW....................................................................................................................................................... 6
1.1. FEATURES ................................................................................................................................................... 6
1.2. TECHNICAL SPECIFICATIONS ...................................................................................................................... 7
1.2.1. CALL CONTROL CAPABILITY ...................................................................................................................... 7
1.2.2. REAL-TIME VOICE STREAMING................................................................................................................... 8
1.2.3. NAT AND FIREWALL .................................................................................................................................. 8
1.2.4. MANAGEMENT............................................................................................................................................ 8
2. LAYOUT......................................................................................................................................................... 10
2.1. HARDWARE .............................................................................................................................................. 10
2.1.1. FRONT VIEW............................................................................................................................................. 10
2.1.2. REAR VIEW............................................................................................................................................... 10
2.1.3. BACK VIEW .............................................................................................................................................. 11
2.2. KEYS ........................................................................................................................................................ 11
2.3. KEYPAD .................................................................................................................................................... 14
3. OPERATION.................................................................................................................................................... 15
3.1. KEY DEFINITIONS IN MENU MODE ........................................................................................................... 15
3.2. ENTER ALPHABETS AND NUMBERS........................................................................................................... 16
3.3. ADDRESS-OF-RECORD (SIP AOR) ............................................................................................................ 16
4. STARTUP........................................................................................................................................................ 17
4.1. PREREQUISITE........................................................................................................................................... 17
4.1.1. NETWORK................................................................................................................................................. 17
4.1.1.1. DHCP .................................................................................................................................................. 18
4.1.1.2. STATIC IP (FIXED IP) ........................................................................................................................... 18
4.1.1.3. PPPOE ................................................................................................................................................. 18
4.1.1.4. VERIFY NETWORK CONFIGURATION .................................................................................................... 19
4.1.2. SIP SERVICE ............................................................................................................................................. 19
4.1.3. CONFIGURE NAT AND FIREWALL............................................................................................................. 20
4.2. INITIALIZATION......................................................................................................................................... 21
4.3. REGISTRATION.......................................................................................................................................... 22
5. SHUTDOWN ................................................................................................................................................... 22
5.1. UNREGISTRATION ..................................................................................................................................... 22
6. IDLE............................................................................................................................................................... 23
6.1. REGISTERED ............................................................................................................................................. 23
6.2. NOT REGISTERED YET OR REGISTRATION EXPIRES .................................................................................... 23
6.3. REGULAR REGISTRATION ......................................................................................................................... 23
7. TAKE CALLS.................................................................................................................................................. 24

IP SIP Phone v2 User’s Guide Mar. 2005
[3/100]
7.1. RINGING ................................................................................................................................................... 24
7.2. REJECT CALL ............................................................................................................................................ 25
7.3. FORWARD CALL ....................................................................................................................................... 25
7.4. ANSWER CALL.......................................................................................................................................... 25
7.5. CONNECTED.............................................................................................................................................. 26
7.6. DISCONNECTED ........................................................................................................................................ 26
7.7. FORWARD AND DND ................................................................................................................................ 28
7.7.1. DO NOT DISTURB (DND) ......................................................................................................................... 28
7.7.2. CALL FORWARD ....................................................................................................................................... 28
7.7.2.1. ALL CALLS FORWARD ......................................................................................................................... 29
7.7.2.2. BUSY FORWARD .................................................................................................................................. 29
7.7.2.3. NO ANSWER FORWARD........................................................................................................................ 29
7.7.3. FORWARDING RULES ................................................................................................................................29
8. MAKE CALLS................................................................................................................................................. 30
8.1. DIAL SCHEME ........................................................................................................................................... 31
8.1.1. GUARDING TIME ....................................................................................................................................... 34
8.1.2. ENUM SAMPLE ........................................................................................................................................ 35
8.2. REDIAL ..................................................................................................................................................... 37
8.3. ADDRESS BOOK ........................................................................................................................................ 37
8.4. CALL HISTORY ......................................................................................................................................... 38
8.5. SPEED DIAL .............................................................................................................................................. 39
8.6. CALL RETURN .......................................................................................................................................... 41
8.7. CALLING ................................................................................................................................................... 41
8.8. CALL FAILURE .......................................................................................................................................... 42
8.9. AUTO-REDIAL ........................................................................................................................................... 42
8.10. ONE-TOUCH DIAL..................................................................................................................................... 43
9. CALL PROCESSING......................................................................................................................................... 45
9.1. HANDSET,SPEAKER-PHONE,EAR-PHONE AND LOUD-SPEAKER ................................................................ 45
9.2. HOLD ........................................................................................................................................................ 45
9.3. MUTE........................................................................................................................................................ 46
9.4. TRANSFER................................................................................................................................................. 46
9.4.1. CONSULTATIVE TRANSFER ....................................................................................................................... 47
9.4.2. BLIND TRANSFER...................................................................................................................................... 48
9.4.3. PHONE LOCKED ........................................................................................................................................ 48
9.5. CONFERENCE ............................................................................................................................................ 49
9.5.1. HEURISTICS AND CONSTRAINT .................................................................................................................. 49
9.5.2. CONFERENCE TIPS .................................................................................................................................... 50
9.6. BLOCK CALLS........................................................................................................................................... 51
10. CALL PREFERENCE ................................................................................................................................... 54

IP SIP Phone v2 User’s Guide Mar. 2005
[4/100]
10.1. CALL WAITING ......................................................................................................................................... 54
10.2. DIAL TIMEOUT.......................................................................................................................................... 55
10.3. HOLD RECALL .......................................................................................................................................... 55
10.4. AUTO HOLD ON CALL SWITCH ................................................................................................................. 56
10.5. AUTO REDIAL ........................................................................................................................................... 56
10.6. SILENTLY FOLLOW REDIRECTION............................................................................................................. 57
10.7. DIAL PLAN................................................................................................................................................ 57
10.7.1. INTER-DIGIT TIMEOUT ......................................................................................................................... 57
10.7.2. DIAL KEY ............................................................................................................................................. 58
10.7.3. LAN DIAL ........................................................................................................................................... 58
10.7.4. CALL COMMAND ................................................................................................................................. 59
10.7.4.1. CALL RETURN...................................................................................................................................... 60
10.7.4.2. ANONYMOUS CALL (CLIP &CLIR) .................................................................................................... 60
10.8. MESSAGE ALERT ....................................................................................................................................... 61
10.9. AUTO-ANSWER......................................................................................................................................... 61
10.10. CODEC PREFERENCE .......................................................................................................................... 64
10.10.1. ENABLE PERSONAL PREFERENCE......................................................................................................... 67
10.11. COMFORT NOISE GENERATION ............................................................................................................ 67
10.12. REGISTRATION ON DEMAND ................................................................................................................ 68
10.13. MULTI-DOMAIN REGISTRATION .......................................................................................................... 70
11. VOICE VOLUME ADJUSTMENT .................................................................................................................. 72
11.1. RINGER ..................................................................................................................................................... 72
11.2. HANDSET .................................................................................................................................................. 72
11.3. SPEAKER PHONE ....................................................................................................................................... 72
11.4. EAR PHONE............................................................................................................................................... 73
12. SERVICE.................................................................................................................................................... 74
12.1. VOICE MAIL ............................................................................................................................................. 74
12.1.1. SET UP VOICE MAIL ............................................................................................................................. 75
12.1.2. ACCESS VOICE MAIL ........................................................................................................................... 76
12.2. INSTANT MESSAGING ............................................................................................................................... 76
12.3. SYNCHRONIZE TIME ................................................................................................................................. 77
12.4. AUTO PROVISION...................................................................................................................................... 79
12.5. SOFT-SWITCH (PBX) FEATURE ACCESS ................................................................................................... 82
13. NAT TRAVERSAL ..................................................................................................................................... 85
13.1. PUBLIC INTERNET CONFIGURATION.......................................................................................................... 85
13.2. LAN CONFIGURATION TO TRAVERSE NAT AND FIREWALL ..................................................................... 86
13.2.1. STATIC NAT ROUTE ............................................................................................................................ 86
13.2.2. NAT TRAVERSAL BY STUN ................................................................................................................ 89
APPENDIX A-AVAILABLE NTP SERVERS ............................................................................................................... 91

IP SIP Phone v2 User’s Guide Mar. 2005
[5/100]
APPENDIX B–TROUBLE SHOOTING ........................................................................................................................ 96
APPENDIX C–TONES............................................................................................................................................ 100

IP SIP Phone v2 User’s Guide Mar. 2005
[6/100]
1. Overview
1.1. Features
zDHCP or PPPoE for host IP, gateway, network mask, DNS (optional, 2 DNS at most), TFTP
server, NTP server, and TTL; all those settings could be static assigned as well.
zIf provided by DHCP server, it could use DHCP to get NTP server.
zEar-phone, speaker-phone for hand-free, handset and loud-speaker support (all are volume
adjustable). Changeable ringing tone.
zSupports 2 concurrent calls.
zMultiple service domains for easy access to different ISPs (3 domains at most).
zAddress book (up to 500 entries) and call history (10 most recently received calls, 10 most
recently missed calls and 10 most recently dialed numbers).
zCall return, speed dials (20 numbers), redial, auto-redial, call-screening (20 numbers) and
detail records of the latest three calls.
zCall forwarding: configurable forwarding number, unconditionally forward all calls, forward
calls on busy and forward calls on no response (adjustable waiting time).
zCall processing includes: hold (music on hold), mute, Caller ID, Call waiting (alerting tone,
LED indication and screen popup), call transfer (blind transfer, consultative transfer,
semi-supervised transfer, and take-back), call forward, call reject, do not disturb (DND).
zCall preferences include: call waiting, auto-answer (server-side invoked, locally activated
and selectively auto-answer), dial-timeout, adjustable hold recall timer, auto-hold on call
switch, auto-redial criterion (stop-on-ringing or stop-on-connected), accept call diversion or
not, inter-digit time-out, message alerting, and per call Calling Line Identification
Restriction.
z3-way local conferencing
zMessage Waiting Indication (MWI)
z180 locally generated ringing and 183 remotely generated call progress tone.
zOut-of-dialog instant messaging, and flashing SMS without user interaction.
zNAT & firewall support by STUN or pre-configured NAT Gateway port mapping;
Auto-update or notify the change of NAT IP by STUN if NAT employs DHCP as well (such
as xDSL dial-up).
zSymmetric RTP flow for cases where only one endpoint is behind a NAT.
zVoice activity detection to reduce network bandwidth consumption.
zComfort noise generation and dynamic de-jitter buffer to deliver better voice quality.
z8 Programmable DSS keys.
zOne-touch dialing (Hot lines)
zConfigurable dial-key (#, *, & or dedicated DSS key as 【Dial- 】
key ) to facilitate the
inclusion of “#, *, or &” in dial strings.

IP SIP Phone v2 User’s Guide Mar. 2005
[7/100]
zRegular alarm and one-time alarm.
zPrompt user on call diversion for better security support (Configurable)
zMenu driven configuration by keypad, Web browser or TELNET.
zUse of Simple Network Time Protocol (SNTP) to synchronize time with network time server
and adjust to time-zone (configurable) and daylight saving time (configurable).
zUse of Trivial File Transport Protocol (TFTP) and HTTP for auto-provisioning and image
update
zIEEE 802.1Q VLAN tagging support
zSupport both 802.1P link layer precedence bits and IP layer type-of-service (ToS) bits for
voice streaming, such that IP SIP Phone would perfectly replace your desktop analog phone
within a switched network.
zSNMPv2 for network management and supervision.
zCall-related statistics, including total inbound/outbound calls, average conversation duration,
connected ratio of the last 50 calls, and the conversation time distribution (less than 3
minutes, 3-20 minutes and longer than 20 minutes) during the last 72 hours, or since system
startup.
1.2. Technical Specifications
1.2.1. Call Control Capability
zFully complies with RFC 3261 (SIP) with RFC 2543 backward compatible.
zFully complies with RFC 2327 (SDP) and RFC 3264 for capability negotiation based on SDP
offer and answer model.
zMultiple Outbound Proxy, Registrar and Redirect server support, up to 3 different service
domains.
zSupport SIP server authentication procedure (HTTP digest authentication scheme)
zOn-demand registration and re-registration on network configuration changed (auto-detect
the changed IP of host, NAT, Dynamic DNS)
zAuto-locating SIP server (RFC 3263) by DNS NAPTR/SRV record (RFC 2782) lookup
zSupports SIP multicast registration to 224.0.1.75
zCall Transfer (RFC3515 for REFER method, RFC3420 for sipfrag support, RFC3891 for
replaces header and RFC3892 for Referred-by header).
zMessage waiting indication, MWI, (RFC 3842).
zFully Implementation of RFC 2916 (E.164 and DNS) for ENUM translation by NAPTR
(RFC 2915)
zConfigurable SIP signaling port (default 5060), support both UDP and TCP.
zSupport rport and received in VIA header (RFC3581) (Configurable)
zRedundancy SIP proxy server support by DNS NAPTR/SRV/AAAA records.

IP SIP Phone v2 User’s Guide Mar. 2005
[8/100]
zSupport REGISTER, INVITE, ACK, CANCEL, BYE, OPTION, REFER, MESSAGE,
SUBSCRIBE, NOTIFY, INFO methods
zSupport “alert-info” header for distinctive ring.
1.2.2. Real-time Voice Streaming
zFully complies with RFC 1889 (RTP / RTCP), RFC 1890 (AVT profiles), RFC 3551 (RTP
Profile for Audio and Video Conference with Minimal Control) and RFC 3555 (MIME Type
Registration of RTP Payload Formats).
zSupport both in-band DTMF mixed with RTP voice stream and out-of-band DTMF over RTP
(RFC2833).
zDynamic RTP de-jitter buffer and lost packets concealment management.
zSpeech CODEC supports: G.711 (A-law and µ-law), G.723.1/G.723.1A (both 5.3 and 6.4
kbps), and G.729A/G.729AB. CODEC precedence is configurable to adjust to your network
link speed.
z3-way local conferencing
zVoice activity detection (VAD) and comfort noise generation (CNG).
zVoice and ringer volume control
zReal-time acoustic echo canceller.
zIP Type of Service (ToS) bits set for RTP/RTCP packet prioritization
z802.1P precedence bits support to prioritize RTP voice frames within switched network.
zConfigurable RTP / RTCP ports.
1.2.3. NAT and Firewall
zSupport static NAT mapping (both NAT IP and SIP/RTP ports are configurable)
zSupport Simple Traversal of UDP through NAT, (RFC 3489 STUN).
zSupport auto-detect (auto-update) the change of NAT IP by STUN (in case the NAT has no
static IP and employ dial-up to public internet).
zdraft-ietf-mmusic-sdp4nat-03.txt (RTCP attribute in SDP)
zSymmetric RTP flow for the cases where only one endpoint behind NAT.
zSupport STUN server redundancy by DNS SRV/AAAA records
1.2.4. Management
zTFTP and HTTP for Auto-Provision
zHTTP configuration by web browser
zKey-pad configuration
zTELNET configuration

IP SIP Phone v2 User’s Guide Mar. 2005
[9/100]
zSNMPv2 for network management:
MIB2: RFC1213
Get and Set operation for internal state (Proprietary Enterprise MIB for system
configuration access).
Trap:
System startup
System shutdown (by command/SNMP/Image upgrade)
SIP Registrar availability
Call-Channel Status.

IP SIP Phone v2 User’s Guide Mar. 2005
[10/100]

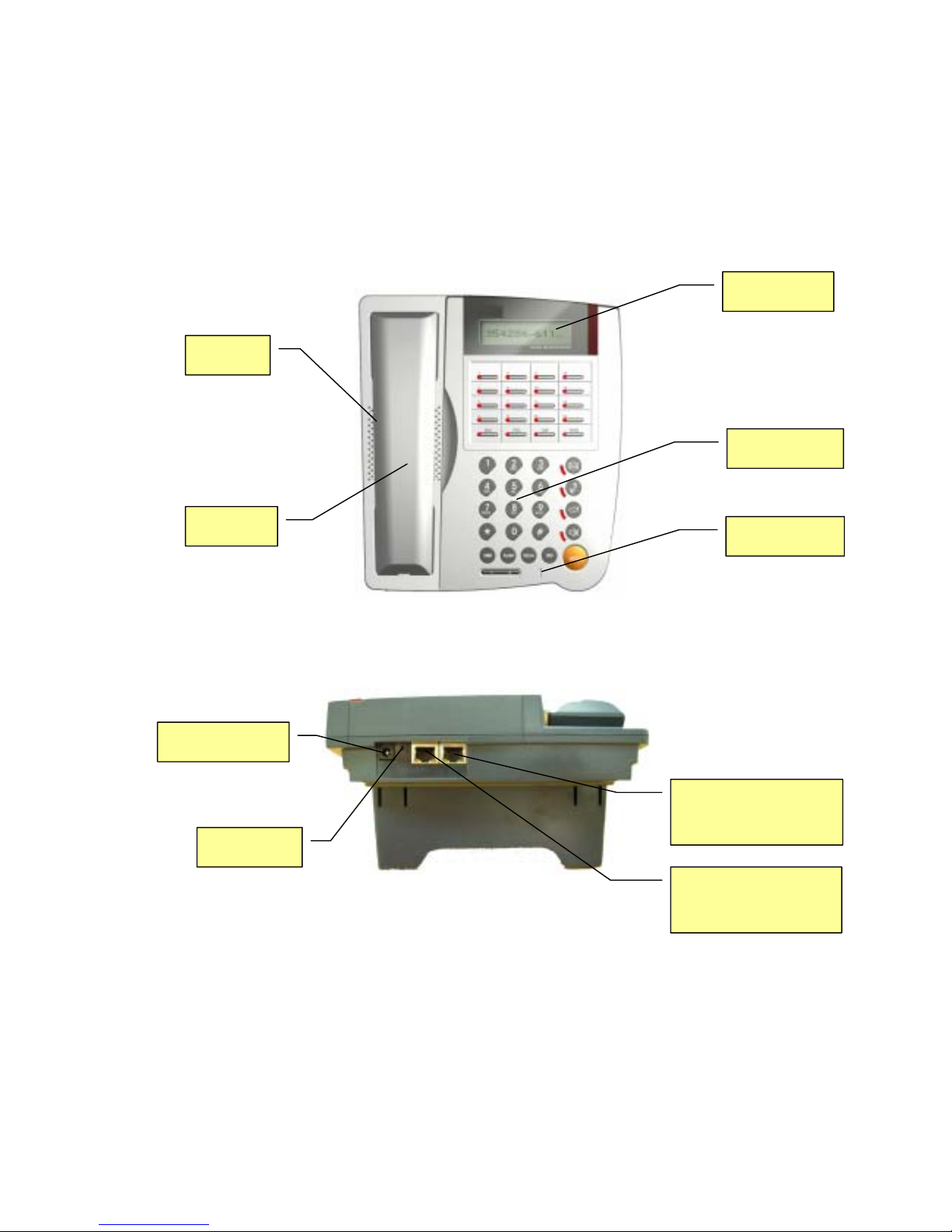

2. Layout
2.1. Hardware
2.1.1. Front View
2.1.2. Rear View
RJ-45 Ethernet
switch to PC
RJ-45 Ethernet Jack
to LAN
Power adaptor
Reset SW
2x16 LCD
Microphone
Handset
Speaker
Keypad

IP SIP Phone v2 User’s Guide Mar. 2005
[11/100]

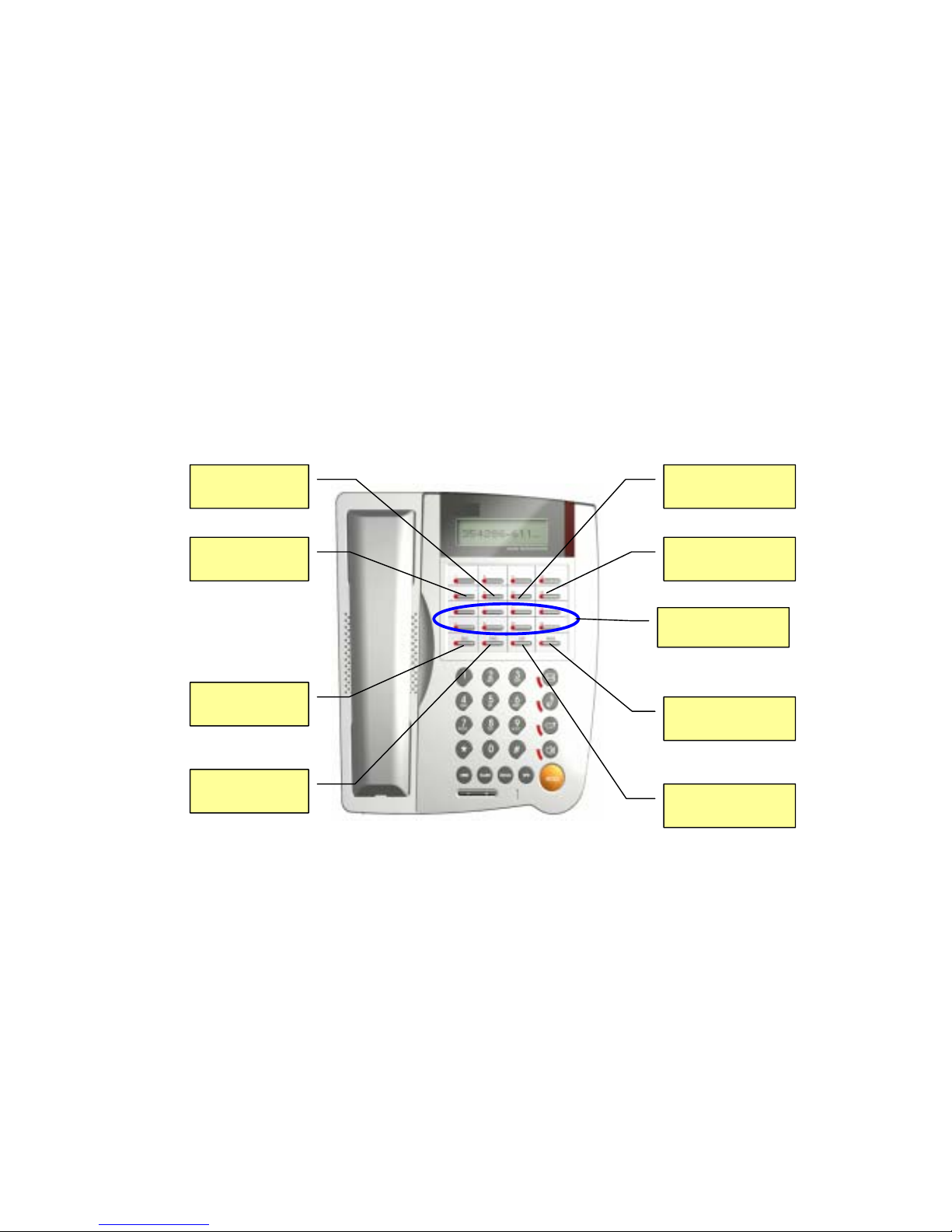

2.1.3. Back View
2.2. Keys
【 Keys 】： Function when in-call or idle | Function on menu mode
【A / B Channel】：Call lines (2 concurrent calls at most) / Review the calling information on this
channel during conversation.
【Service Realm】：Display the registration status of each active service domain on idle; switch
target service domain (ISP) while making calls.
RJ-11 Earphone Jack
RJ-11 Handset Jack
Wall mount
FUNC
MUTE
SPK/Hands-free
HOLD
SPD
XFER
REDIAL
MWI
Volume【−,＋】
A/B Channel
Reject
FLASH
Service Realm

IP SIP Phone v2 User’s Guide Mar. 2005
[12/100]
【Reject】：Reject incoming waiting calls
【MWI】：Message Waiting Indication, MWI: Access to voice mail system
【MUTE】： Mute | Delete character
【FUNC】：Menu | Return to upper level submenu
【SPK】：Hands-free | Exit menu
【HOLD】：Hold | Confirm, Save
【SPD】：Speed Dial
【Redial】：Redial the last dialed number.
【FLASH】：Take back or cancel transferring calls; cancel conference.
【XFER】：Transfer
【Volume】:
【＋】：Volume UP (Ringer, headset, handset, speaker) | Next item 、 Move cursor to right
【－】：Volume down (Ringer, headset, handset, speaker) | Previous item 、 Move cursor to left
【Registration】：Re-register. The LED indicates the registration status of each active service
domain:
Green LED On: Successfully register to all active service domains.
Red LED On: At least one service domain could not be registered.
Green LED Flashes: Registration is in progress. Note, IP SIP Phone will regularly refresh
SIP Address-or-Record registration as necessary.
Red LED Flashes: No service domains have ever registered successfully.
LED is off: Users explicitly logs out all SIP service and goes off-line ‘till user presses the
【Registration】key again to go on-line (re-register to all SIP service).
【Auto-redial】：Auto-redial the last dialed number ‘till connected (ringing)
【DND】：Do Not Disturb (red LED indicates on)
DSS: F1-F8
Conference
Call History
DND
Forward
Auto-redial Address Book
Registration URL

IP SIP Phone v2 User’s Guide Mar. 2005
[13/100]
【Forward】：Forward incoming waiting calls
【URL】：Use keypad to enter alphabets and numbers (red LED on).
【Address Book】：Access to address book (search an entry or list all entries).
【Call History】：Missed calls / Received calls / Dialed Number. If the red LED is on, it indicates
there are unread records of missed calls.
【Conference】：Three-way local conferencing
【F1-F8】：User programmable DSS keys for easy access to various phone features. The default
mappings of these function keys are:
【F1】:Forward menu – shortcut to activate incoming calls forwarding menu.
【F2】: Channel info–show information of the last call on each call channel【A / B】.
【F3】: Call Detail - show detail records of the latest three connected and finished calls.
【F4】: Speed dials – activate speed dial list.
【 F5 】 : Messaging; Out-of-dialog instant messaging.
【F6】: Packetization - adjust the voice packetization based on your network link speed.
【F7】: Network Info - show the current active host IP, MAC address and DNS IP(s).
【F8】: Call Return - place a call to the last incoming call, either a missed or received one.

IP SIP Phone v2 User’s Guide Mar. 2005
[14/100]
2.3. Keypad
Those keys in blue font (which are referred as DSS function keys hereafter) can be
dynamically re-configured by user from menu-3.2 DSS Functions.
LCD 2x16
R
i
ng
Lamp
1 2(abc) 3(def) MWI
4(ghi) 5(jkl) 6(mno) MUTE
7(pqrs) 8(tuv) 9(wxyz) FUNC
XFE
R
Re-Dial
Vol Down Vol Up
＊0(oper) ＃SPK
HOLD
Flash SPD
A Call B Call Service Realm Reject
DND Forward Conference Call History
Auto-Redial Registration URL Addr. Book
Fwd Menu Channel info Call detail(CDR) Speed dials
Messaging Packetization Network info Call Return

IP SIP Phone v2 User’s Guide Mar. 2005
[15/100]
3. Operation
3.1. Key Definitions in Menu Mode
【】HOLD Enter the selected menu item or confirm the modification.
【MUTE】Delete the current character or the previous character if the cursor is
positioned at the end.
【】FUNC Return to upper level menu.
【】SPK Exit the menu
【Õ】/ 【Ö】Circle through the selected menu items and adjust volume.
【0 - 】9 Direct-selection / setting / jump-to-specific-item.
Cursor
1. Insert mode only
2. Positioned on the currently setting value.
3. Positioned on the 1st menu item.

IP SIP Phone v2 User’s Guide Mar. 2005
[16/100]
3.2. Enter Alphabets and Numbers
Circular input by pressing the same key
Key Alphabet & Number
1 1
2 2->a->b->c->A->B->C
3 3->d->e->f->D->E->F
4 4-> g->h->i->G-> H->I
5 5->j->k->l->J->K->L
6 6->m->n->o->M->N->O
7 7->p->q->r->s->P->Q->R->S
8 8->t->u->v->T->U->V
9 9->w->x->y->z->W->X->Y->Z
0 0->[Space]
* Punctuation Table:
. @- * # _ ? & $ / \ , : ; + (
)
‘ ! “ ¥ % < > | § = ٪{}Φ±
# #
3.3. Address-of-Record (SIP AoR)
The general form of SIP address-of-record is:
“Display” <protocol:email-like-address>;tag=param
zThe “Display” field is optional. If present, it consists of any ASCII characters except
for ‘<’ and ‘>’. If the “Display” is present, the following address must be enclosed in a
paired ‘<’ and ‘>’.
zProtocol: Usually in lower case, such as “sip”, “tel” or “sips”. Note, “sip”, “tel” and
“sips” protocol names MUST be specified in lower case, which is stipulated on
RFC3261.
zemail-like-address: in the form of “user-part@domain” where user-part is optional and
the domain part could be either a dotted IP or a domain name record, such as:
[email protected]
[email protected]
192.168.3.100 (Note, the user-part is optional in direct IP dialing mode)
[phone]
z“tag=param”: Multiple parameters could be present (separated by ‘;’)
Example Note
Michael <sip:[e-mail]>

IP SIP Phone v2 User’s Guide Mar. 2005
[17/100]
Mike Jackson <sip:[e-mail]>
“Voice Mailbox” <sip:[email protected]IP.isp.com> Display with enclosing ‘”’.
sip:[email protected] AoR without display
sip:192.168.3.100 AoR without user part (in dotted IP)
tel:[phone] ENUM AoR
sip:[email protected];user=phone ENUM AoR with SIP proxy support
4. Startup
Basically you have the following ways to configure your IP SIP Phone.
zPress 【】
FUNC + 【】 # to activate the configuration menu and configure it via
keypad.
zUse any modern web browser to configure the phone from a PC. The default login
password for both privileged and user-level password is “0000”.
zTELNET into the phone by any TELNET client. The default TELNET port is TCP port
23, login password is as the same as your phone password set in menu-3.1 on “IP SIP
Phone v2 Keypad-TELNET Administration“ (the default phone password is “0000”)
and the max concurrency is 4. IP-Range will not apply the changes until user presses
[Ctrl] +’s’ to apply the modifications or the client disconnected by [Ctrl] +’c’.
zAuto-provision on phone startup. Please refer to “Menu-7.4 Auto-provision.” on “IP SIP
Phone v2 Keypad- TELNET Administration”.
Note, before you can configure your phone-set from your PC, such as by a TELNET
client or point your browser to the phone-set, you must have configured its IP via
keypad properly.
4.1. Prerequisite
Initially, your phone can only be configured via keypad since it bears no valid IP yet. After
finishing configuring your network, you could use either a web browser (HTTP port 80) or a
TELNET client (TCP port 23) if you have a small number phone-sets to configure.
However, we recommend you to use TFTP for auto-provision if you have to administer
large amounts of phone-sets. For TFTP provision, please refer to 12.4 Auto Provisioning on this
document.
4.1.1. Network
To configure your network:
zPress 【FUNC】+ 【#】
zGo to 【6.Network】\【1.General】
Please configure the phone based on your network configuration: DHCP, static IP or

IP SIP Phone v2 User’s Guide Mar. 2005
[18/100]
PPPoE.
4.1.1.1. DHCP
zPick【1.Mode】\【1.DHCP】
zDisable【4.Use Static DNS】by choosing 【2.DHCP】
Note: if you want to assign a different domain name server instead of using those obtained by
DHCP, you should choose【1.Static DNS】and set the IP of your specific DNS into
【5.Static DNS】, such as “1.Primary DNS” = 192.168.3.254 (modify this as necessary).
The supported DHCP options are:
zClient PC address
zDHCP option 1—Client Subnet Mask
zDHCP option 3—Gateway IP on the client’s subnet
zDHCP option 6—One or two Domain Name servers
zDHCP option 15—Domain name
zDHCP option 42—Network Time Protocol servers
zDHCP option 66 (TFTP server name)
Note: To make DHCP option 6 take effect, you must disable
【 MENU 】 => 【 6.Network 】
/ 【 1.General” / 【 4.Use static DNS 】 by picking 【 2.DHCP 】
Note: If DHCP option 42 is present, it will overwrite the SNTP server in menu-7.3.2
【 Server IP 】
Note: DHCP option 66 will overwrite the Auto-provision server in Menu-7.4.2 【 TFTP
server 】
4.1.1.2. Static IP (Fixed IP)
zPick【1.Mode】\【2.Static assign】
zGo to【2.Static Settings】, and enter your network configurations based on your ISP.
For example:
1. Host IP = 210.201.210.132 (modify this as necessary)
2. Network mask = 255.255.255.0 (modify this as necessary)
3. Gateway IP = 210.201.210.128 (modify this as necessary)
zEnable【4.Use Static DNS】by choosing【1.Static DNS】
zAssign【5.Static DNS】, such as: 【1.Primary DNS
】 = “168.95.1.1” (modify this as
necessary)
4.1.1.3. PPPoE
zPick【1.Mode】\【3.PPPoE】
zGo to【3.PPPoE settings】and enter your PPPoE authentication information, such as:
1. Login ID = MyPPPoEAccount (modify this as necessary)
2. Password = PPPoEDialupPassword (modify this as necessary)

IP SIP Phone v2 User’s Guide Mar. 2005
[19/100]
3. Service Name = Optional, some ISP requires it (modify this as necessary).
4.1.1.4. Verify Network Configuration
Press 【F7】(which default is a shortcut to menu【8.Advanced】\【4.System Status】\
【1.Network】) to check current active network settings:
1 9 2 . 1 6 8 . 2 1 0 . 1 1 3
MA C :
1 9 2 . 1 6 8 . 2 1 0 . 1
It will display the host IP, Ethernet MAC address and the active DNS IP (secondary DNS IP
will be shown if available) in order.
Once finishing network configuration, you should be able to place a point-to-point call. For
example, if your phone IP is “192.168.1.10” and you want to dial another SIP phone which IP is
“192.168.1.20”, please dial “*20**5060” (or just “*20” if the target phone listens on UDP port
5060; otherwise you must dial the target UDP port as well). This is “LAN dialing” (Refer to
section 8.1-“Dialing Scheme” on this document). If the call could be set up correctly, then your
network configuration is fine; otherwise, please refer to B-1 on Appendix B-“Trouble Shooting”.
Note, if you reside on a LAN without gateway, you should specify the gateway IP as
“0.0.0.0” rather than assigning a non-existent or an invalid IP; otherwise the network packets may
not be routed correctly (which may result in no voice packets could be sent from this phone)!
This constrain applies to DHCP and PPPoE as well: DHCP and PPPoE server should not
designate a non-existent or invalid gateway.
4.1.2. SIP Service
Before you start, you should ensure you have SIP-related data from your ISP. For example,
if you get the following information from your SIP ISP:
i. Account: Michael
ii. Password: secret
iii. SIP address-of-record: [email protected]
iv. SIP Proxy / Registrar Server: sip.isp.com, which serves on UDP port 5060
Then you could configure your IP SIP Phone by a web browser as below:

IP SIP Phone v2 User’s Guide Mar. 2005
[20/100]
Alternatively, you mayo to『Main Menu』=>”6.Network” / ”2.SIP settings” / ”1.1st Realm”
to configure these information by keypad.
i. If you have applied for more than one service domains, please repeat step I and II
until all active domains are properly configured. IP SIP Phone supports three
different service domains at most.
ii. After saving the configuration, the system will try to register to those activated SIP
domains. The flashing green LED of 【Registration】key indicates that the
registration is undergoing. Once the green LED stops flashing, you could know the
registration result by the LED. Please refer to section-10.11 “Registration on
Demand” and section-10.12 “Multi-domain Registration” on this user’s guide for
detail.
iii. If you failed to register your phone to SIP registrar, please refer to Appendix
B-“Trouble Shooting” on this document.
4.1.3. Configure NAT and Firewall
If your SIP server locates on public internet, whereas your phone resides on a local area
