Atlantic Flat 30 User manual

Op6ºç5-87 ccy TAZ<
U0586874
EN
ELECTRIC WATER HEATER
Enamelled steel tank
RU
ЭЛЕКТРИЧЕСКИЙ ВОДОНАГРЕВАТЕЛЬ
Эмалированный стальной бак
UA
ЕЛЕКТРИЧНІ ВОДОНАГРІВАЧІ
Емальований сталевий бак
ES
TERMO ELÉCTRICO
Cuba de acero vitrificada
PL
ELEKTRYCZNY PODGRZEWACZ WODY
Zbiornik ze stali emaliowanej
PT
TERMOACUMULADOR
Cuba em aço vitrificado

2
Model
Модель
Max Power
output/
Максимальна
я мощность
(W) (Bт)
Voltage/
Напряже
ние
(V~) (B)
Water
Connexions/
Подсоединен
ие воды
Flat 30 (25L)
1000
230
½”
p. 2/3
p. 4
p. 5
Flat 50 (40L)
1500
230
½”
p. 2/3
p. 4
p. 5
Flat 80 (65L)
1500
230
½”
p. 2/3
p. 4
p. 5
Flat 100 (80L)
1500
230
½”
p. 2/3
p. 4
p. 5

3
1
1.1
1.2
1.3a
1.4a
Vertical
Вертикальний
Horizontal
Горизонтальний
1.3a
1.3b

4
1.3b
1.4b
1.5b
1.6b
1.5a
1.6a

5

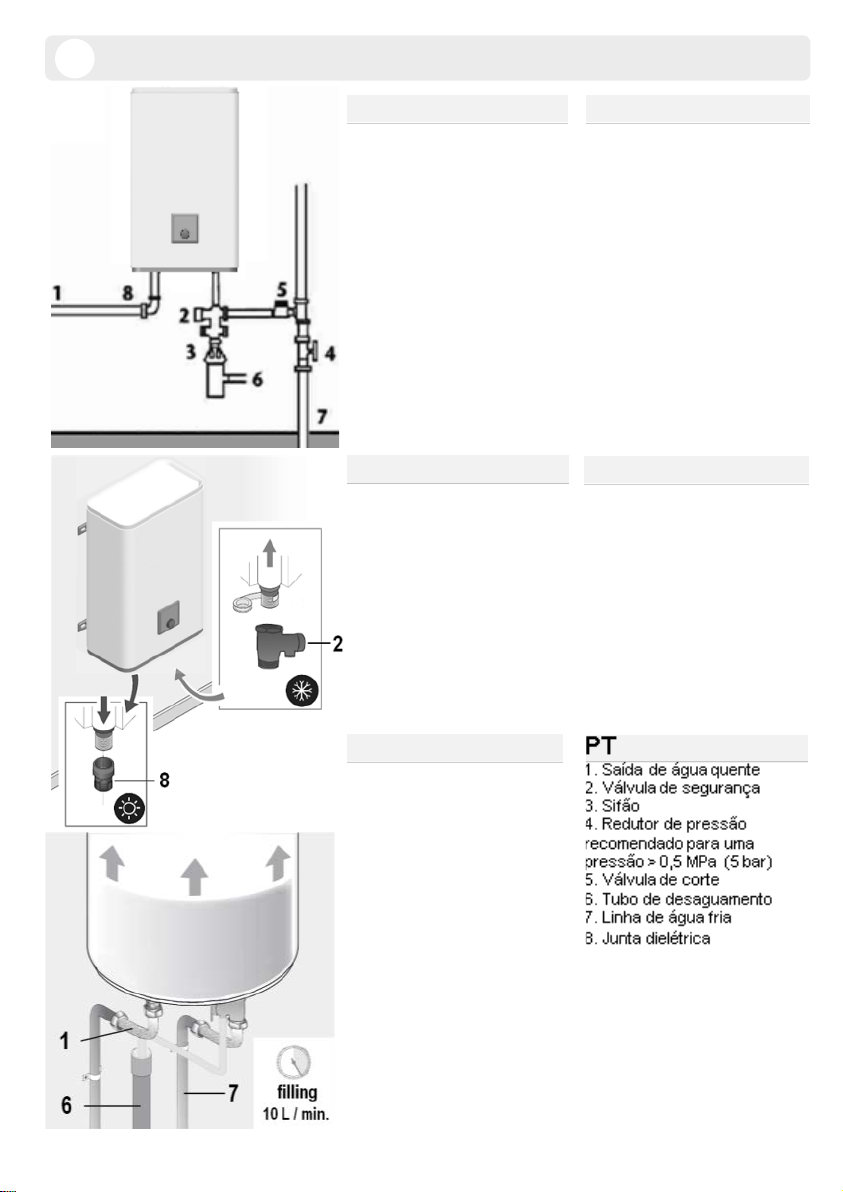

EN
1. Hot water tube
2. Safety relief valve
3.
Funnel
4. Pressure reducer
recommended if pressure > 5
bar (0,5 MPa)
5. Stop valve
6. Drain to sewage
7. Cold water pipe
8. Dielectric union
RU
1. Π
аτρубок выходагорячей
во
ды
2. Пр
едохранительный
клапа
н
3.
Дренажная трубка
4.
Клапан редукции дав
ления
(Уст
анавливается при
давл
ении свыше 5 бар в
системе (0,5 мпа)
5. Запорный кран
6. Выход в канализац
ию
7. Труба подачи холодной
воды
8.
Диэлектрическая муфта
UA
1.Труба горячої води
2. Запобіжний клапан
3-6. Дренажна трубка
4. Редуктор тиску (при тиску
більш 4 бар)
5. Запірна арматура
6. Дренажна трубка
7. Труба холодної води
8. Діэлектрична муфта
PL
1. Wyjście ciepłej wody
2. Zespół zaworów
bezpieczeństwa
3. L ejek
-Syfon
4. Reduktor ciśnienia
większego niż bara (0,5MPa)
5. Zawór zatrzymania
6. podłączenie do kanalizacji
7. zasilanie zimną wodą
8. Zlączka dielektryczna
2
ES
1. Salida de agua caliente
2. Grupo o válvula de
seguridad
3. Embudo Sifónico
4. Reductor para presión
superior a 5 bares (0,5 MPa)
5. Válvula de corte
6. Vaciado – Desagüe
7. Conducto de agua fría
8. Manguito dieléctrico

6
Blue
Red
4
3
FLAT 30 ,50,80,100
Power cable
HMI connector
Heating element
Entry Tank
Entry tank probe
(Black color)
PCB
Exit tank probe
White (Flat 30) Green (Flat 50)
Red (Flat 80) Blue (Flat 100)
Heating element
Exit Tank
Thermal cut-out

7
GENERAL WARNINGS
This device is not intended for use by persons (including children) with
physical, sensory or mental disability, or by persons lacking experience or
knowledge, unless they have received from a person in charge of their
safety adequate supervision or preliminary instructions on how to use the
device. Children should be supervised to ensure that they do not play with
the appliance.
This unit can be used by children of not less than 8 years and people with
reduced physical, sensory or mental capabilities or without experience or
knowledge if theyare properlysupervised or if the instructionsfor using the
device safely have been given and if the risks are taking into account.
Children must not play with the device. Cleaning and maintenance must
not be done by children without supervision.
CAUTION!Heavy item, handle with care:
1. Install the appliance in a room which is protected from frost. If the
appliance is damaged because the safety device has been blocked, it is
not covered by guarantee.
2. Make sure that the wall on which the appliance is mounted can support
the weight of the appliance when filled with water.
3. If the appliance is to be fitted in a room or location where the ambient
temperature is higher than 35°C, provide sufficient ventilation.
4. When installed in a bathroom, do not install the appliance in volumes V1
and V2 (See fig. 1, p.2). If the water heater is to install above living
space, fit a retaining tank with drain to the sewer system. Place the water
heater in a place with easy access.
5. If PER pipes are used, the installation of a thermostatic regulator on the
output pipe of the device is strongly recommended. It will be set
according to the performance of the material used.
6. Installation of a vertical or horizontal wall mounted device: To allow the
replacement of the heating element leave a free space of 500mm
between the tube ends and the wall or fixed furniture.
7. Switch off the power before removing the cover, to avoid any risk of
injury or electric shock.
8. The installation must be equipped, upstream of the appliance, with a
bipolar cut-out device (fuse, breaker switch) respecting local regulations
(30 mA earth-leakage breaker).
9. If the supply cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or the after sales service.
EN

8
10. Mandatory installation of a safety device in a frost free location (or any
other new device which limits the tank pressure) to 0.7 or 0.9 MPa (7
or 9 bar) according to the nominal pressure, with a size of 1/2" in the
input of the water heater, respecting the local regulations
11. Operate regularly the discharge of safety device to prevent scaling and
check that it is not blocked.
12. Hydraulic accessories should not be located between the safety valve
and the cold water inlet. A pressure reducer (not supplied) is required
when the water supplypressure exceeds 0,5 MPa (5 bar) 0,5 MPaand
will be fitted on the main supply.
13. Connect the safety device to an unpressurised outlet pipe in a frost free
location, with a continuous slope to evacuate water during heating up
or draining the water heater.
14. The pipes used must support 1 MPa (10 bars) and 100 ° C.
15. To drain the device: Switch off the power and the supply of cold water,
open the hot water faucets and manipulate the safety valve.
16. The products described in this manual are subject to changes at any
time to be in accordance with technology and standards. The devices
comply with Electromagnetic Directive 2014/30/UE, Low Voltage
Directive 2014/35/UE, Directive 2011/65/UE for RoHS and Regulation
2013/814/UE supplementing Directive 2009/125/EC for ecodesign.
17. Do not dispose your water heater in the garbage, but hand it to a
place assigned for this purpose (collection point) where it can be
recycled.
18. This product is intended for use at a maximum altitude of 2000m.
19. Always connect the earth conductor of the cable to the earth ground or
connect the earth conductor to the appropriate terminal identified by
the symbol .
20. The instruction book of this product is available by contacting the after-
sales service.

9
INSTALLATION
1. PRODUCT MOUNTING See “General Warnings” N°.1 to N°.6
For product installation, refer to drawings section 1 page.2 and page 3.
2. HYDRAULIC CONNECTION See “General Warnings” N°.10 to N°.14
For hydraulic connection, refer to drawings section 2 page 4.
- It is necessary to clean the supply piping prior to the hydraulic connection. The connection to the hot water
outlet is to be carried out with a cast iron or steel sleeve or a dielectric connector, to avoid corrosion of the
pipe (direct contact iron / copper). The use of brass fittings is prohibited.

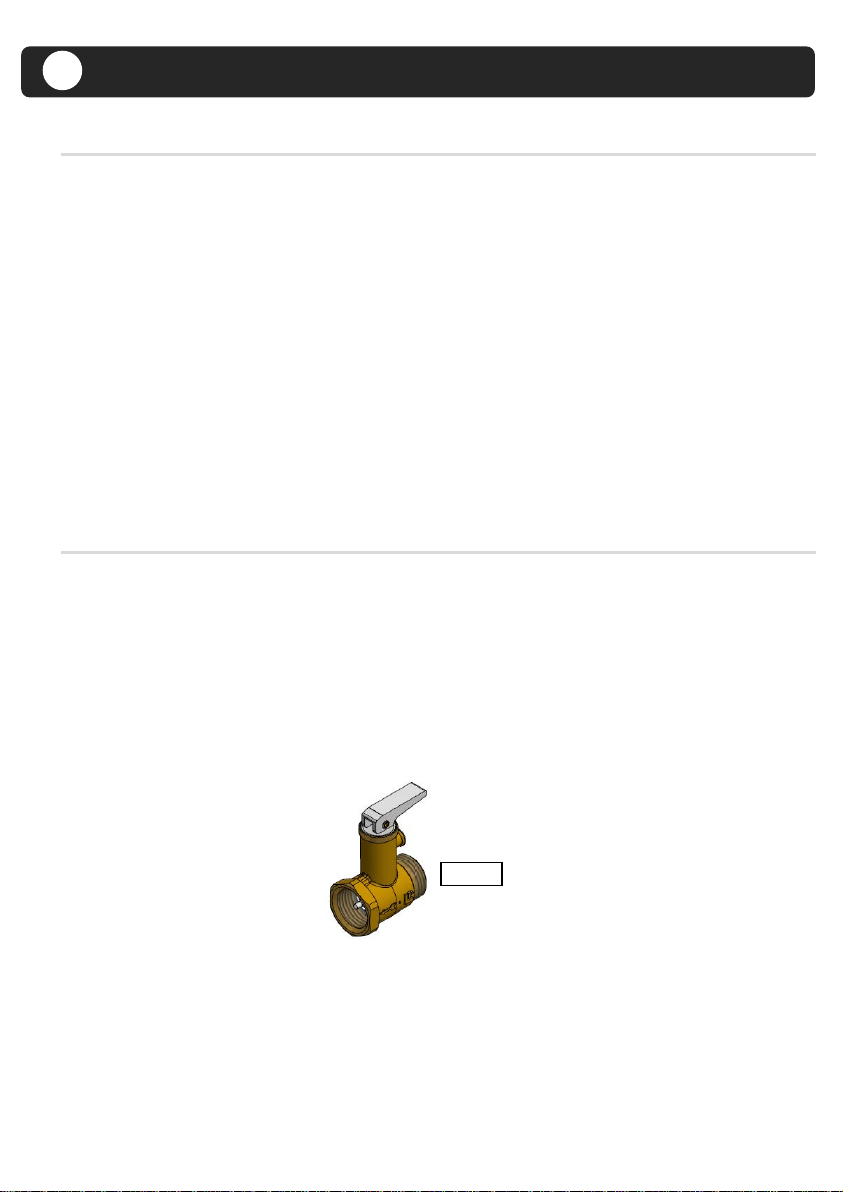

- Always install a new safety device on the cold water pipe of the water heater, which comply with the
standards (EN 1487 in Europe), with a pressure of 0.7 or 0.9 MPa (7 or 9 bars) according to the nominal
pressure, with diameter 1/2".
- CAUTION: Do not use the safety valve included in this packaging in France (home country and French
overseas).
3. ELECTRICAL CONNECTION
For electrical connection, refer to drawings section 3 page 5.
- The water heater can be connected and operated only on AC 230V. Connect the heater with a rigid cable
with conductors 2,5mm ². Use a standardised channeling (rigid or flexible conduit) until the calibrated
housing cover.
- Directly connect devices with a cable or plug. In France, a product with plug is strictly prohibited and cannot
be sold and installed.
- Always connect the earth conductor of the cable to the earth ground wire or connect the earth conductor to
the appropriate terminal identified by the symbol . This connection is compulsory for safety reasons. The
earth wire green - yellow must be longer than those of phases. The installation must be equipped, upstream
of the appliance, with a bipolar cut-out device (minimum contact distance of 3 mm fuse, breaker switch). In
the case where hydraulic connexions are in insulated material, electrical circuits shall be protected by a
differential circuit breaker 30 mA adapted to local standards.
Thermal circuit breaker (see drawings section 3 page 5): All our products are equipped with a thermostat with
thermal circuit breaker and manual resetting which cuts off the power supply to the water heater in case of
overheating. If the safety trips:
switch off the power before taking any further action,
remove the cover,
check the electrical connections,
reset the thermal circuit breaker
If the circuit breaker keeps tripping, replace the thermostat. Never short circuit the safety cut out or the
thermostat. Connect the power supply only via the terminal.
EN

10
SETUP & OPERATION
- CAUTION: NEVER POWER THE WATER HEATER WITHOUT WATER: Models with an electric heating
element will be certainly damaged.
- Fill the tank completely. Before powering up, open the hot water taps, drain the pipes in order to empty the
air.
- Check the tightness of the tubes and of the flange seal under the plastic cover. In case of leaking tighten
moderately. Check the operating of the hydraulic components and of the safety valve.
- Turn the power on. After 15 to 30 minutes, depending of the capacity of the device, the water should drip from
the drain. This is normal and due to the expansion of water. Check connection leaks and seal. During heating
and according to the water quality, hot water tanks can make a bubbling noise. This noise is normal and does
not indicate any defect of the unit.
1/ SETTING KNOB (Ref A and D): Manual selection of temperature setpoint. Position of ref. D is the
maximum position of temperature setting.
2/ FROST FREE Mode (Ref. B): Automatic regulation at frost-free temperature (7°C), in order to reduce the
electric consumption during the periods of absence of the user.
3/ HEATING LIGHT INDICATOR (Ref. C): Illuminates when the heating process is on.
UBLESHOOTING
MAINTENANCE
CAUTION: Before removing the plastic cover, make sure the power is turned off to avoid any risk of injury or
electric shock.
1. USER MAINTENANCE
Operates once a month the discharge of the safety valve to prevent scaling deposit and verify that the
safety device is not blocked. If this is not done, damage may be caused and the guarantee invalidated. For an
installation with a booster pump; before starting up, after a long period of disuse, turn the rotor following the
advice in the manufacturer’s instructions.
2. MAINTENANCE BY A QUALIFIED PERSON
- Scaling: Remove the scale sludge. Do not scrape or hammer the lime scale deposited on the casing, as this
may damage the lining.
- Magnesium anode: change the magnesium anode every 2 years or when its diameter is lower than 10 mm.
- Heating element: the replacement of a sheathed heating element involves draining of the water heater and
replacement of the flange gasket. Reassemble the heating element, reasonably tight nuts (cross tightening),
check that there is no leakage after the first heating-up, tighten again if necessary
- Drain: Turn off power and cold water supply. Open hot water taps and drain valve of the safety device.
Spare parts list: thermostat, flange gasket, heating element, heating light indicator, magnesium anode,
connection wires, electric switch. The guarantee requires genuine manufacturer’s parts to be used.
Advice to the user
When the water has a TH > 20°f, it is recommended that this be treated. When a softener is used, the
water hardness must remain above 15°f.
In case of prolonged absence, especially in winter, drain your appliance following the procedure above.
