Atlantic Vertigo 30 User manual

DOCUMENTATION FOR INSTALLATION AND OPERATION
IMPORTANT: For Vertical or Horizontal installation remove hex head screws at
the rear of the unit and replace with the countersunk socket screws provided.
INDOOR INSTALLATION ONLY
Vertigo Water Heater
Refer to full warranty conditions on pages 10 and 11

WARNING
This device is not intended for use by persons (including children) with physical, sensory or mental disability, or
by persons lacking experience or knowledge, unless they have received from a person in charge of their safety
adequate supervision or preliminary instructions on how to use the device. Care must be at all time to keep
children from playing with the device.
CAUTION
Heavy item, handle with care
•Install the appliance in a room that is protected from frost. If the appliance is damaged because the TPR
valve safety device has been blocked, it is not covered by the warranty.
•If the appliance is to be fitted in a room or location where the ambient temperature is higher than 35˚C,
sufficient ventilation must be provided.
•It is compulsory to fit a drip tray below the water heater if mounted in a suspended ceiling, under a roof
or above living areas. Position the appliance where it can be accessed.
•Make sure that the wall on which the appliance is mounted can support the weight of the appliance
when filled with water.
•This device is intended for use at a maximum altitude of 3000m.
•When installed in a bathroom, do not install in volume V1 or V2 as shown in the diagram on page 3
INSTALLATION AND OPERATION SET UP
2

IMPORTANT: REMOVE HEX HEAD SCREWS FROM BACK OF UNIT AND REPLACE WITH
COUNTERSUNK SOCKET SCREWS PROVIDED
WALL MOUNTED INSTALLATION GUIDES
V2
V1
a. Vertical Wall Mounting Guide
3

b. Horizontal Wall Mounting Guide
Installation
Installation must comply with AS/NZS 3500.4.2 and all local codes.
The clearance required needs to be adequate for service/replacement
of cold water inlet piping devices, TPR valve and tempering valve,
elements and thermostats. This may be facilitated by correct orientation
of the cover positions when installing. There are no operational clearance
limitations to surrounding structure. TPR valve removal requires up to
approximately 170-200mm for withdrawal. If the Atlantic Plumbing Cover
(shown to the right) is to be used for aesthetic purposes, please allow 300mm.
Combustible Material
It is recommended not to place combustible material on or adjacent to the water heater.
4

Hydraulic Connection
Before making the hydraulic connection, it is essential to clean the feed pipes thoroughly to avoid the risk of metal
or other particles entering the tank or water heater.
Mandatory installation of a safety TPR valve in a frost free location (or any other new device which limits the tank
pressure) to 850kPa according to the nominal pressure, with a size of ¾” on the input of the water heater,
respecting the local regulations.
Regularly operate the discharge of the TPR valve to prevent scaling and check that it is not blocked.
The pipes used must support MPa (10 bar) and 100˚C.
Cold Water Inlet
Cold water piping should be provided with a 350-500kPa pressure limiting valve at the point of cold water
connection to the water heater. In addition to the pressure limiting valve, it is a requirement of AS3500.4 and
NZBC G12 that both an isolating valve and a line strainer are installed upstream of the water heater. A non-return
relief valve must be fitted upstream of the pressure relief/cold water expansion valve.
No parts (stop valve, pressure reducer, etc) must be placed between the pressure relief/cold water expansion
valve and the cold water inlet of the water heater, apart from a copper pipe. Ref. AS/NZ 3500.4, 5.9.4 (e) and (f)
G12 6.6.6.
Note: Since limited water discharge from the pressure relief valve is normal in the heating operation, the discharge
pipe needs to be connected to an external drain.

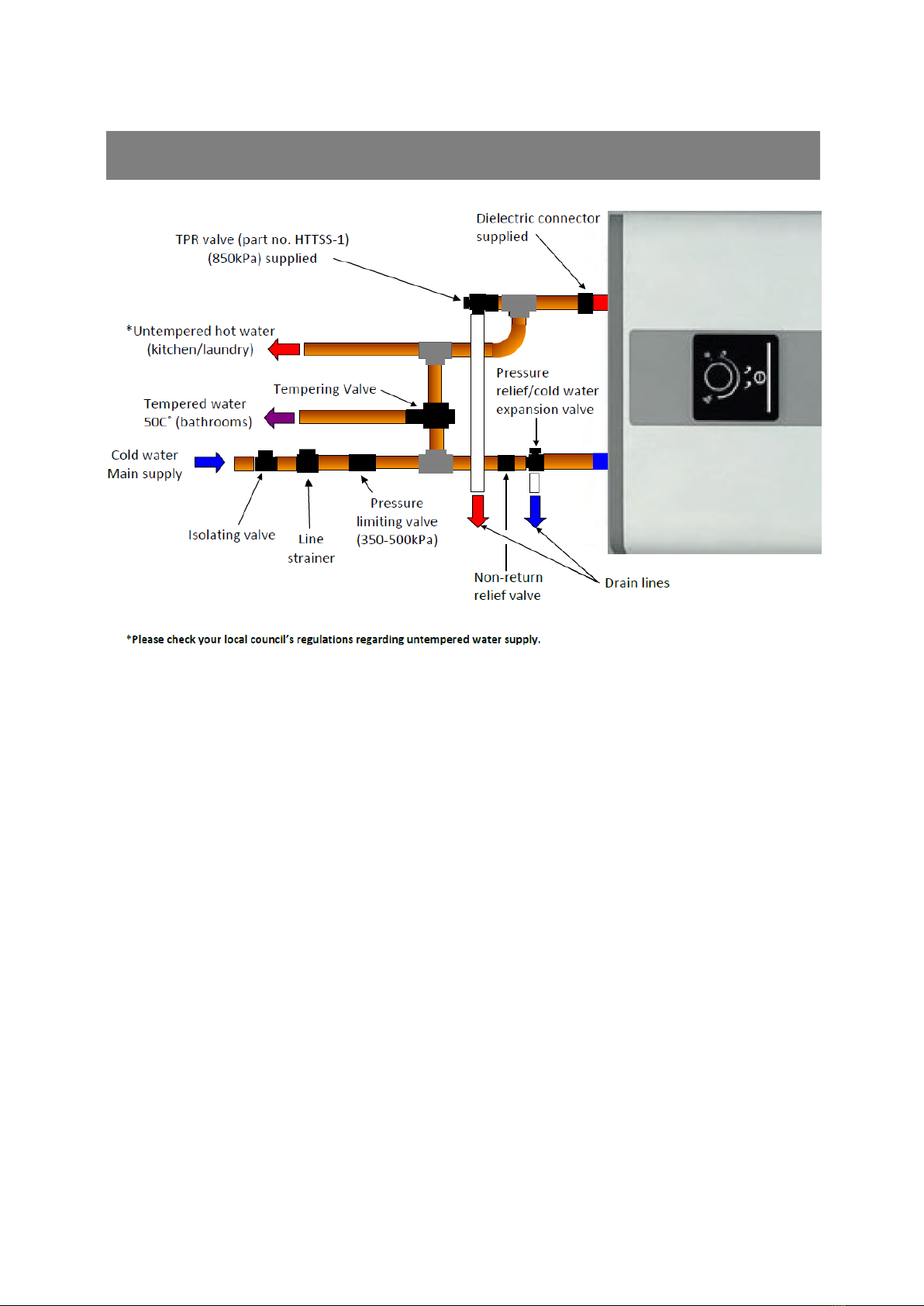

HYDRAULIC INSTALLATION DIAGRAM - VERTICAL & HORIZONTAL
5

Electrical Connection
All electrical work must be carried out by a registered electrician and in accordance with AS/NZS 3000.
The Atlantic Vertigo water heater must be filled with water before connection to a power supply.
Switch off the power before removing the cover to avoid any risk of injury or electric shock.
The installation must be equipped, upstream of the appliance, with a bipolar cut-out device (fuse breaker switch)
respecting local regulations (30 mA earth-leakage breaker).
Always connect the earth conductor of the cable to the earth ground dire or connect the earth conductor to the
appropriate terminal identified by the symbol.
ELECTRICAL INSTALLATION
Hot Water Outlet
Where a maximum hot delivery temperature is specified by local, state or federal regulations, a tempering valve
shall be installed at the hot water outlet, as required.
The supplied temperature & pressure relief (TPR) valve must be installed as shown in the hydraulic schematic. The
TPR valve should be connected to a drain point to accommodate discharge as a result of both water expansion
during heating and also pressure fluctuations.
The supplied PTR valve must be fitted with Teflon tape – do not use paste or hemp or other thread sealers.
DN15 copper drain lines must be connected to the discharge pipe of the TPR valve. The copper drain line must fall
away from the water heater and be installed in a frost-free environment.
The termination point of a drain line must comply with the requirements of AS/NZS 3500.4
WARNING: The TPR valve and drain line must not be sealed or blocked.
6

Thermal Cut-out
All Atlantic Vertigos are equipped with a thermal cut-out with manual resetting which shuts off the power to the
water heater if it becomes overheated. If the circuit breaker keeps tripping:
a) Switch off the power before taking any further action
b) Remove the cover
c) Check the electrical connections
If the cut-out continues to trip, replace the thermostat. Never by-pass the safety device or the thermostat.
Connect the power supply only via the terminal.
The thermal cut-out fitted to the auxiliary electric heating element must be replaced by an authorized agent.
Failure to respect this clause invalidates the warranty.
DANGER: The operation of the thermal cut-out indicates a possibly dangerous situation. Do not reset the thermal
cut-out until the water heater has been serviced by a qualified person.
•
NEVER POWER THE WATER HEATER WITHOUT WATER: Models with an electric heating element
will certainly be damaged.
•Fill the tank completely. Before powering up, open the hot water taps, drain the pipes in order to empty
any air.
•Check the tightness of the tubes and of the flange seal under the plastic cover. In case of leaking, tighten
moderately. Check the operating of the hydraulic components and of the safety valve (TPR).
•Turn the power on. After 15 to 30 minutes, depending on the capacity of the water heater, the water
should drip from the drain. This is normal due to the expansion of water.
•Check connection leaks and seal. During heating and according to the water quality, hot water tanks can
make a bubbling noise. This noise is normal and does not indicate any defect of the unit.
The water heater features a digital screen that allows choosing the running mode (see DIGITAL USER INTERFACE
diagram on page 8 below).
1) Mode selection knob (Ref. A): Enables to choose the running mode.
2) Operating modes:
•FROST FREE Mode (Ref. B): Automatic regulation at frost-free temperature (7˚C), in order to reduce the
electric consumption during periods of absence of the user.
•MANUAL Mode (Ref. C): User selects a hot water temperature up to 70˚C. Warning: this operating mode
may increase the electrical consumption of the product.
•SMART Mode (Ref. D): Fully automatic operation of the water heater: after a learning period, the unit
will automatically adjust the hot water temperature adapted to the user consumption. This allows
lowering the electrical consumption.
•BOOST Mode (Ref. E): Soft touch button to activate fast heating of the appliance. The BOOST mode is
automatically deactivated when full hot water is available. NOTE: no BOOST on the 25 litre model
3) Shower display (Ref. F): Displays the quantity of hot water available. When a shower symbol is blinking,
this means that a shower is in the process of heating.
4) Power indicator (Ref. G): This light appears when the water heater is connected to a power supply
SETUP & OPERATION
7

TROUBLESHOOTING

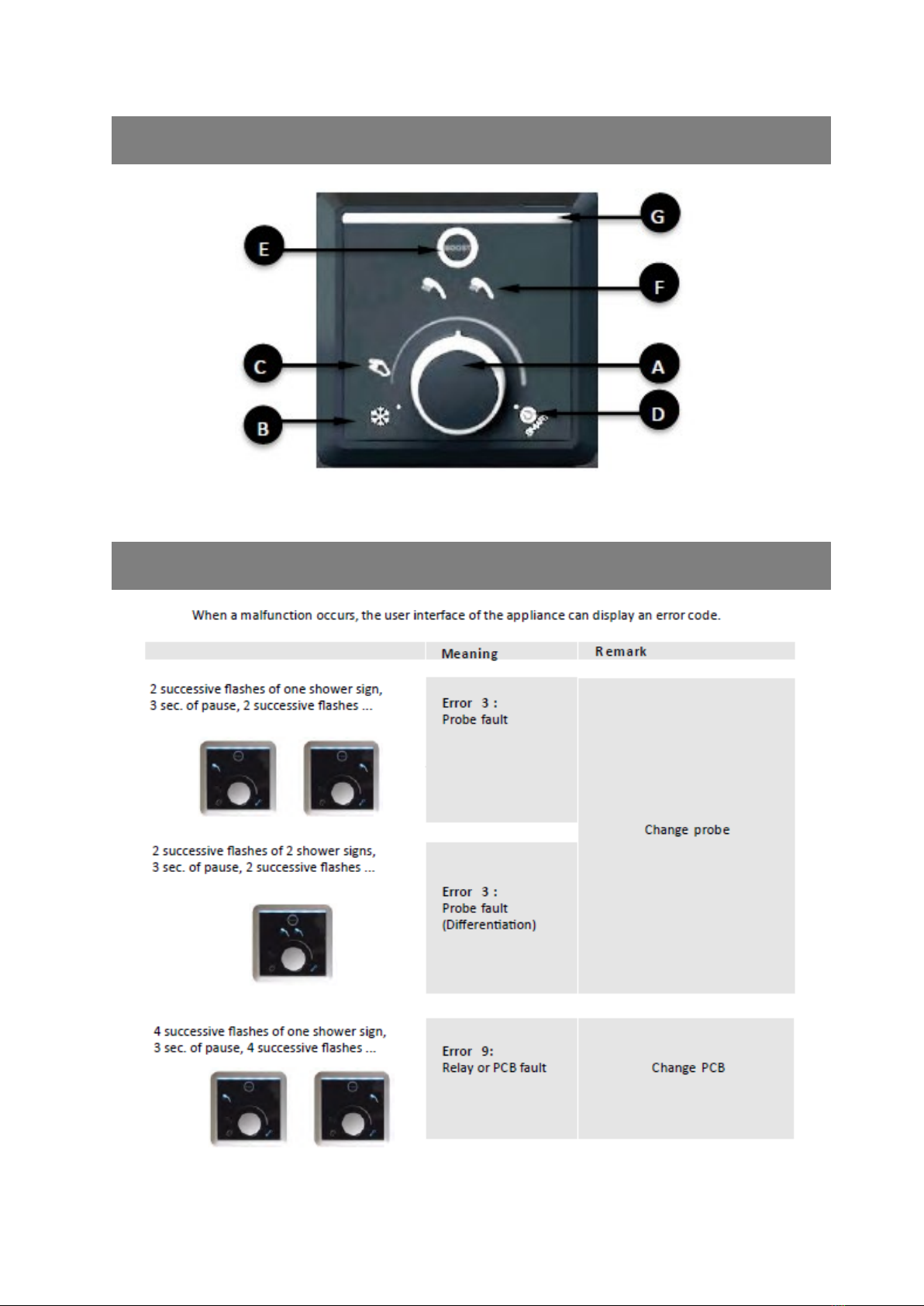

DIGITAL USER INTERFACE
8

Flushing of Sediment and Draining
To flush or drain the water heater, power must be turned off, then turn off the cold water supply to the unit. The
lever on the TPR valve should be opened but care should be taken to the lever does not snap back as it could
damage the valve seat. The pressure in the water heater will be released when the lever is opened. The union at
the cold water inlet to the water heater should be undone and a hose should be attached to the water heater side
of the union. The other end of the hose should go to a drain.
Opening the TPR valve allows air into the water heater and for the water to drain. Following complete draining of
the water heater, the closest hot water taps may be opened fully and the TPR valve closed with care. Following
reconnection at the cold water inlet, the cold water stop valve is now opened fully and the water heater may be
filled with cold water and flushed through to ensure the cylinder contains no sediment and is clean. Finally the
closest hot taps are closed and power may be turned on again to the completely filled water heater.
In the event of an anomaly – the heater does not heat or steam is released from the TPR valve – switch off the
electric power supply and contact your reseller.
Domestic/User Maintenance
Water heaters do not require much domestic maintenance by the user. Operate the TPR valve once a month to
eliminate any residue of scaling and check that it is not blocked. Open and close the TPR valve slowly to avoid
damage to the seal.
WARNING: Failure to operate the TPR valve at least once every six months may mask a problem with the water
heater. Continuous leakage of water from the TPR valve may indicate a problem with the water heater. Any damage
caused due to not regularly operating the TPR valve may invalidate the warranty.
It is not unusual for the TPR valve to allow a small quantity of water to escape during the heating cycle and this
must be left open to the atmosphere.
Maintenance by a qualified person
Remove the scale sludge. Do not scrape or chip at lime scale deposited on the casing because this may damage the
lining. Change the magnesium anode every 2 years or when its diameter is less than 10mm. Changing the heating
element or the anode requires the water heater to be drained and the seal changed.
Draining the Tank
Turn off the power and the supply of cold water. Open the hot water faucets and manipulate the safety TPR valve
before performing these operations. Refit the heating element and tighten the screws gently (opposite screws in
sequence). Check for leaks the next day and tighten if required.
If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer
or approved service agent.
Replacement Parts
Replacement parts are the thermostat, seals, heating element, boiler shell, indicator light, magnesium anode and
connection cable. The warranty requires genuine manufacturer’s parts to be used.
9

Warranty Conditions
1) The Atlantic Vertigo water heater must be installed to plumbing and electrical services that meet all
relevant statutory and local requirements of the region in which the system is installed. Relevant clauses
of AS/NZS 3500 Plumbing & Drainage Code and NZG12 NZBC, must be complied with by the installer.
2) The Atlantic Vertigo water heater requires a single phase 16 amp supply requiring a licensed electrician
for connecting. A licensed plumber must connect cold water and hot water supplies in accordance with
this manual. The installers must comply with good practice, applicable installation standards and Atlantic
New Zealand’s technical instructions included in this manual.
3) The Vertigo water heater must be regularly operated and maintained in accordance with the service &
maintenance in accordance with this manual. Supporting evidence by a service agent report or receipt
invoice detailing maintenance history would be required with any claims under this warranty. Should this
water heater be installed in a regional location where regular flushing is required due to sediment build
up, then a drain cock or tee for flushing must be fitted at the time of installation. If in doubt consult your
installation contractor.
4) The Vertigo water tank warranty is valid for 7 years in domestic installations and 5 years in commercial.
Steatite elements are warranted for 3 years. Other electrical components have a warranty of 2 years for
domestic installations and 1 year for commercial. There is a 5 year warranty on tank labour for domestic
installations and 3 years for commercial. All other parts and labour are covered for 1 year.
5) Our warranty takes effect from the date of purchase (according to invoice) and where there is no
documentary evidence, the date used will be that of manufacture as shown on the water heater
information plate, plus six months. The warranty on the replacement part or water heater (under
warranty) ends at the same time as the part or water heater is replaced. Internet registration must be
competed for warranty protection.
6) This warranty takes the form of repair or determined by Atlantic NZ in the form of exchange or supply,
free of charge, excluding all labour and transport replacement charges.
7) These warranty conditions do not exclude any of the benefits due to the purchaser that may be conferred
by Trade Practices and Consumer Guarantees Law and associated articles in the country of installation.
PLEASE NOTE: If a service call is requested and it is found that the defect is not a Warranty fault, the purchaser
may be charged for associated Warranty/Service call out costs even during the Warranty period.
Faulty Maintenance Voiding Warranty
•Abnormal scaling of heating elements or safety TPR valve
•No maintenance of safety TPR valve leading to excess pressure
•Modification of equipment without notifying the manufacturer
•Use of spare parts not recommended by manufacturer
Warranty Exclusions
The following warranty exclusions may cause the Atlantic Vertigo water heater warranty to become void. This may
also incur a service charge and cost for parts should they be necessary.
1) Any physical damage caused by impacts or falls when the water heater is handled after leaving the factory.
2) Where service is required to reconnect the water heater operation due to problems related with
abnormal water supply (i.e. high water pressure above 1000 kPa before system pressure relief), faulty
plumbing supply or downstream connection and/or electrical wiring or major variations in electrical
energy supply.
10

FOR INFORMATION, REPAIRS AND SERVICE
ATLANTIC NZ, Distributed By Superheat Ltd: 0800 422 000
For Warranty Registration, email [e-mail]
Water from springs, bores and dams is also excluded from meeting Warranty conditions because of the rapidly
variable composition of these waters due to groundwater salinity and aggressive mineralisation. Water MUST be
from a supplied, reticulated source or from rainwater to ensure Warranty compliance.
Warranty
Water Heater Tank – Domestic 7 years
Water Heater Tank – Commercial 5 years
Electrical components – Domestic 2 years
Electrical components – Commercial 1 year
Tank labour – Domestic 5 years
Tank labour – Commercial 3 years
Steatite Element, Domestic & Commercial 3 years
All other parts and labour 1 year
3) Where a 350-500 kPa pressure limiting valve as shown in the hydraulic installation diagram has not been
fitted during installation
4) Where the water heater fails due to misuse, accidental damage, acts of God, incorrect installation
including being located in premises affected by frost or bad weather conditions (humid, harsh or badly
ventilated atmospheres) or unlicensed service repair work.
5) Any damages resulting from power surge from supply such as accidental high voltage injection or lightning
strike.
6) Damage resulting from non-detectable problems due to the inaccessible location of the water heater and
that could have been avoided by immediately repairing the device if properly located.
7) Claims for damage to walls, foundations (outside), floor coverings and furnishings (inside), roofs or other
losses, directly or indirectly due to leakage for the Atlantic water heater.
8) Where the Atlantic water heater has been powered up before it has been filled (heating when dry).
9) Where the Atlantic water heater has suffered external corrosion due to non-watertight piping connections
10) If the system is either sold and/or repaired or altered by any third party without the consent of Atlantic
New Zealand.
11) Does not cover fair wear and tear, particularly from adverse conditions, for example; corrosion and
associated levels of condensation in the proximity of the water heater.
12) Exclusions due to water composition.
Water composition varies widely in New Zealand. It is important that the composition of water is not excessively
high in salt which may result in an aggressive attack of calcium carbonate (also known as water hardness). Atlantic’s
warranty is therefore excluded where the water composition is outside these values:
11
