Atlantis Land I-Fly A02-WAP-54G User manual

Where solutions begin
Wireless 108Mbps
Multi-Function Access Point
A02-WAP-54G
MANUAL
A02-WAP-54G(V1.1) _ME01

Where solutions begin

Wireless 108Mbps Multi-Function Access Point
INDEX
CHAPTER 1: INTRODUCTION 1
1.1 An Overview of the del Wireless 108Mbps Multi-Function Access Point 1
1.2 Package Contents 2
1.3 Wireless Multi-Function Access Point Features 2
1.4 System Requirements 3
1.5 Setup 3
1.6 Location 4
CHAPTER 2: USING WIRELESS ACCESS POINT 5
2.1 Cautions for using the Wireless Access Point 5

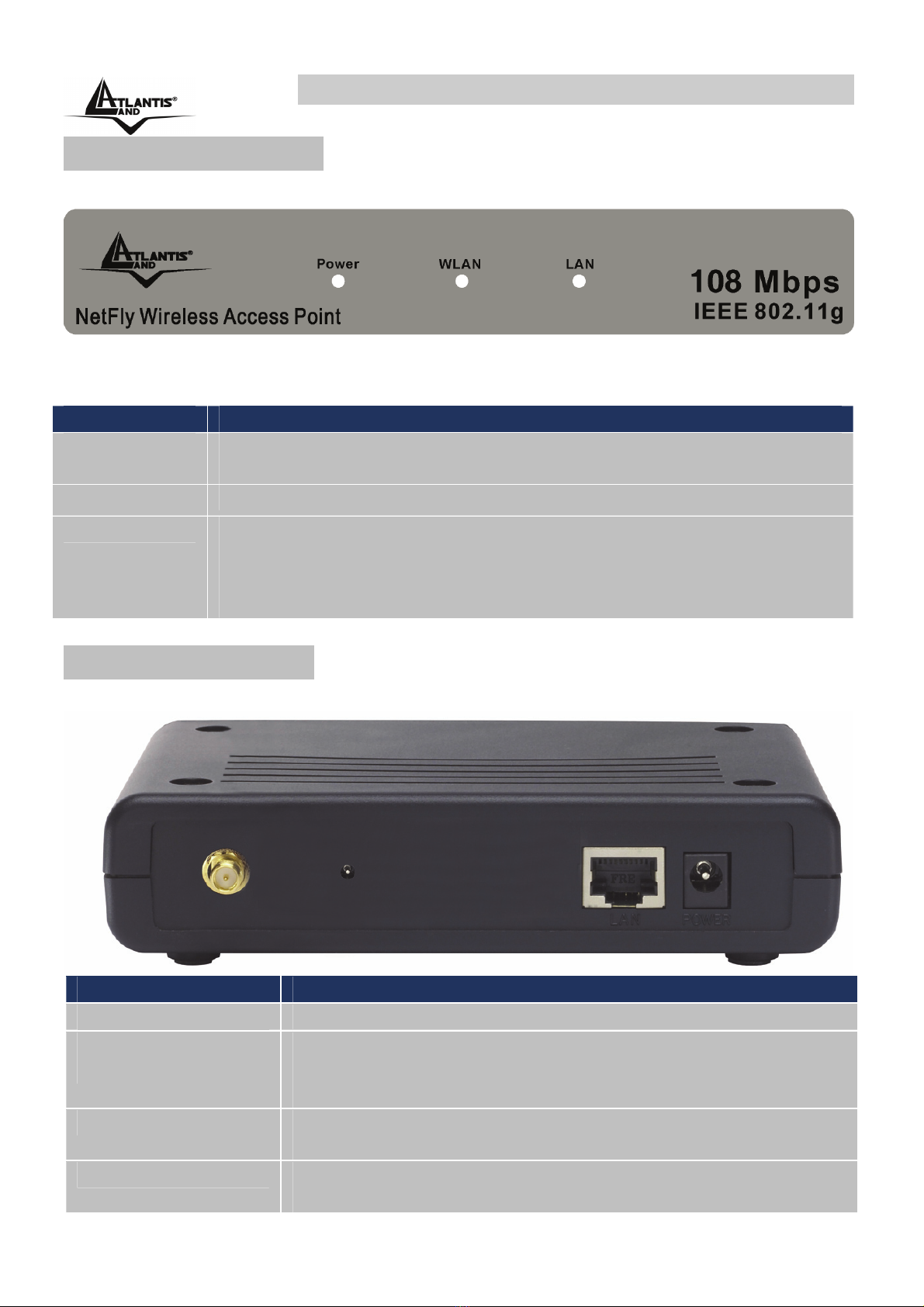

2.2 The Front LEDs 6
2.3 The Rear Ports 6
2.4 Cabling 7
CHAPTER 3: CONFIGURATION 8
3.1 Before Configuration 8
3.1.1 Windows 95/98/ME 9
3.1.2 Windows NT4.0 10
3.1.3 Windows 2000 11
3.1.4 Windows XP 12
3.1.5 Windows Vista 13
3.2 Default Settings 13
3.2.1 Password 13
3.2.2 LAN WLAN 13
3.3 Accessing the Access Point Web Configurator 14
3.3.1 Navigating the Access Point Web Configurator 15
3.4 Wizard 16
Quick Wizard Setup 16
3.5 Status 21
3.6 Basic Setting 22
3.6.1 Authentication 24
3.7 IP Setting 26
3.8 Advanced Setting 27

Wireless 108Mbps Multi-Function Access Point
3.8.1 AP Mode 29
3.8.2 AP Client Mode 30
3.8.3 Wireless Bridge / Multiple Bridge 31
3.8.4 Repeat Mode 33
3.9 Security 34
3.10 Tools 36
APPENDIX A: TROUBLESHOOTING 38
A.1 Using LEDs to Diagnose Problems 38
A.1.1 LED Power 38
A.1.2 LED LAN 38
A.1.3 LED WLAN 39
A.2 WEB 39
A.3 Login 39
A.4 FAQ 41
APPENDIX B: TECHNICAL FEATURES 45
APPENDIX C: SUPPORT 46
A02-WAP-54G(V1.1)_ME01 (V1.0 May 2007)

Wireless 108Mbps Multi-Function Access Point
Copyright Statement
No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, whether electronic, mechanical,
photocopying, recording or otherwise without the prior writing of the publisher.
Windows™ 98SE/2000/ME/XP are trademarks of Microsoft® Corp. Pentium is
trademark of Intel. All copyright reserved.
The Atlantis Land logo is a registered trademark of Atlantis Land SpA. All other
names mentioned mat be trademarks or registered trademarks of their respective
owners. Subject to change without notice. No liability for technical errors and/or
omissions.
Wireless LAN, Health and Authorization for use
Radio frequency electromagnetic energy is emitted from Wireless LAN devices.
The energy levels of these emissions however are far much less than the
electromagnetic energy emissions from wireless devices like for example mobile
phones. Wireless LAN devices are safe for use frequency safety standards and
recommendations. The use of Wireless LAN devices may be restricted in some
situations or environments for example:
·On board of airplanes, or
·In an explosive environment, or
·In case the interference risk to other devices or services is perceived or identified
as harmful
In case the policy regarding the use of Wireless LAN devices in specific
organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial
plants, private buildings etc.) is not clear, please ask for authorization to use
these devices prior to operating the equipment.
Regulatory Information/disclaimers
Installation and use of this Wireless LAN device must be in strict accordance with
the instructions included in the user documentation provided with the product. Any
changes or modifications made to this device that are not expressly approved by
the manufacturer may void the user’s authority to operate the equipment. The
Manufacturer is not responsible for any radio or television interference caused by
unauthorized modification of this device, of the substitution or attachment.
Manufacturer and its authorized resellers or distributors will assume no liability for
any damage or violation of government regulations arising from failing to comply
with these guidelines.

Wireless 108Mbps Multi-Function Access Point
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause
radio interference, in which case the user may be required to take adequate
measures.
CE in which Countries where the product may be used freely:
Germany, UK, Italy, Spain, Belgium, Netherlands, Portugal, Greece, Ireland,
Denmark, Luxembourg, Austria, Finland, Sweden, Norway and Iceland.
France: except the channel 10 through 13, law prohibits the use of other
channels.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, (example - use only shielded
interface cables when connecting to computer or peripheral devices) any changes
or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) This device may not cause harmful interference, and

Wireless 108Mbps Multi-Function Access Point
2) This device must accept any interference received, including interference that
may cause undesired operation.

Wireless 108Mbps Multi-Function Access Point
A02-WAP-54G Pag. 1
CHAPTER 1: Introduction
Congratulations on your purchase of this IEEE 802.11g Wireless LAN Access
Point. This manual helps to features the innovating wireless technology that can
help you build a wireless network easily! This manual contains detailed
instructions in operation of this product. Please keep this manual for future
reference.
With a WLAN (IEEE 802.11g) Access Point, a mobile computer can share data
with another mobile computer in a wireless way. Easy-to-use utilities are bundled
with WLAN Access Point for configuration and monitoring purposes.
WLAN networking can wirelessly transmit and receive data, minimizing the need
for wired connections, at a speed of up to Fifty-four megabit per second. With
WLAN networking, you can locate your PC wherever you want without wires and
cables.
WLAN networking provides users with an access to real-time information
anywhere in their organization. The mobility provides productivity and service,
which are not available under wired networks.
1.1 An Overview of the del Wireless 108Mbps Multi-
Function Access Point
The device for a total freedom of movement without losing the connection. Easy
to be installed and fast and flexible, with Wireless Multi-Function Access Point
there is no more obligation for a fixed working place: you can easily work or
navigate for fun from your own garden or in different rooms of your office, always
in wireless connection.
The Roaming function gives you a complete freedom of movement and two or
more Wireless Multi-Function Access Point can serve wireless also large
headquarters.
A pair of Wireless Multi-Function APs operating under Bridge mode to act as the
bridge that connect two Ethernet networks or Ethernet enabled clients together.
Repeat Mode is able to extend the effective range and coverage of the wireless
network. Last but not least the AP will be a wireless Ethernet adapter transforms
any Ethernet-enabled devices to have the wireless function.
Thanks to advanced security functions which are integrated and thanks to the
troughput of the protocol IEE802.11G you are going to have a fast and flexible
wireless net, hacker safe.
The chipsets fully support Wi-Fi Protected Access (WPA/WPA2) and the
IEEE802.11i draft security standards in hardware and high-speed encryption
engines with no performance degradation.

Wireless 108Mbps Multi-Function Access Point
A02-WAP-54G Pag. 2
Last, but not least, this product implements Atheros Super G™ (available for
devices with chipset Atheros) capabilities to deliver 108 Mbps raw data rates for
802.11g wireless LANs.
1.2 Package Contents
Unpack the package and check all the items carefully. If any item contained is
damaged or missing, please contact your local dealer as soon as possible. Also,
keep the box and packing materials in case you need to ship the unit in the future.
The package should contain the following items:
Wireless 108Mbps Multi-Function Access Point
2 dBi Antenna
CDRom with online manual
Quick Start Guide (English, French, Italian)
AC/DC power adapter (5 V, 1A)
1.3 Wireless Multi-Function Access Point Features
Wireless Multi-Function Access Poin provides the following features:
•IEEE 802.11g and IEEE 802.11b: With built-in 802.11g access point for
extending the communication media to WLAN while providing the WEP
and WPA for securing your wireless networks.
•SuperG™: This product implements Atheros Super G™ (available for
devices with chipset Atheros) capabilities to deliver 108 Mbps raw data
rates for 802.11g wireless LANs.
•Wi-Fi Protected Access (WPA) and WEP encryption: Thanks to
advanced security functions which are integrated and thanks to the
troughput of the protocol IEE802.11G you are going to have a fast and
flexible wireless net, hacker safe. The chipsets fully support Wi-Fi
Protected Access (WPA) and the IEEE 802.11i draft security standards in
hardware and high-speed encryption engines with no performance
degradation.
•Wireless Bridge: A pair of Wireless Multi-Function APs operating under
Bridge mode to act as the bridge that connect two Ethernet networks or
Ethernet enabled clients together.
•Repeater: Repeat Mode is able to extend the effective range and
coverage of the wireless network.
•Client Wireless: the AP will be a wireless Ethernet adapter transforms
any Ethernet-enabled devices to have the wireless function.

Wireless 108Mbps Multi-Function Access Point
A02-WAP-54G Pag. 3
•1 Antenna: 1 x 2 dBi Dipole detachable Antenna1 (SMA)
•1 port Fast Ethernet: A fast Ethernet 10/100Mbps port is supported in
the LAN site and automatic switching between MDI and MDI-X for
10Base-T and 100Base-TX ports is supported. An Ethernet straight or
cross-over cable can be used directly, this fast Ethernet switch will detect
it automatically.
•Mac Filtering (ACL): Access Control function allows clients whose MAC
addresses in the list will be able to connect to this Access Point.
•Web based GUI: supports web based GUI for configuration and
management. It is user-friendly with an on-line help, providing necessary
information and assist user timing. It also supports remote management
capability for remote users to configure and manage this product.
•Firmware Upgrade: the device can be upgraded to the latest firmware
through the WEB based GUI.
1.4 System Requirements
Before installing the device, your PC should meet the following:
Intel® Pentium®III 600Mhz or compatible processor with TCP/IP stack
Iinternet Explorer V6.0 on Netscape V6.0
CDRom
1.5 Setup
The setup of the Wireless Access Point can be performed using the following
steps:
•Visually inspect the Ethernet RJ45 port connector and make sure that it is
fully plugged in to the system’s Ethernet switch/hub port.
•Fix the direction of the antennas. Try to place the AP in a position that
can best cover your wireless network. Normally, the higher you place the
antenna, the better the performance will be. The antenna’s position
enhances the receiving sensitivity.
•Visually inspect if the Power Adapter was fully plugged to the device
power jack.

Wireless 108Mbps Multi-Function Access Point
A02-WAP-54G Pag. 4
1.6 Location
Locate an optimum location for the Wireless LAN Access Point (AP). The best
place for your AP is usually the center of your wireless network, with line of sight
to all of your mobile stations.
Try to place the AP in a position that can best cover your wireless network.
Normally, the higher you place the antenna, the better the performance will be.
The antenna’s position enhances the receiving sensitivity.

Wireless 108Mbps Multi-Function Access Point
A02-WAP-54G Pag. 5
CHAPTER 2: Using Wireless Access Point
2.1 Cautions for using the Wireless Access Point
Do not place the Wireless Access Point under high humidity and high
temperature.
Do not use the same power source for Wireless Access Point with other
equipment.
Do not open or repair the case yourself. If the Wireless Access Point is too
hot, turn off the power immediately and have a qualified serviceman repair it.
Place the Wireless Access Point on a stable surface.
Only use the power adapter that comes with the package.
Do NOT upgrade firmware on any Atlantis Land product over a wireless
connection. Failure of the device may result. Use only hard-wired network
connections.

Wireless 108Mbps Multi-Function Access Point
A02-WAP-54G Pag. 6
2.2 The Front LEDs
The table below shows the LED Indicator of the Wireless Access Point.
LED Meaning
POWER This indicator lights green when the Access Point receives
power. Otherwise, it turns off.
WLAN The indicator blinking green whiles the wireless LAN activity.
LAN The indicator lights green when the LAN port is connected to a
Ethernet network successful. Otherwise, the indicator blinking
green while transmitting or receiving data on the Ethernet
network.
2.3 The Rear Ports
The figure below shows the rear panel of the Wireless Access Point.
Port Meaning
ANTENNA One external dipole antenna.
RESET
The Reset function is to reset the setting back to factory
default setting, once you press the “RESET” button more
than 10 seconds.
LAN Ethernet port with 10/100Mbps Fast Ethernet
connections, connect this port to switch/hub.
POWER Connect the Power Adapter DC plug to the AP’s power
jack.

Wireless 108Mbps Multi-Function Access Point
A02-WAP-54G Pag. 7
2.4 Cabling
Connect to the Switch/Hub
•Plug in one end of the RJ45 network cable to the Switch/Hub port
•Plug in the other end of the RJ45 network cable to the Wireless Access
Point
Check the installation
The LEDs of the Access Point are clearly visible and the status of the network link
can be seen instantly:
•With the power source on, once the device is connected, the Power, LAN
and WLAN port LEDs will light up indicating a normal status.
•If the LAN Port’s Link indicator does not light up then check the RJ-45
cable if it is firmly feed to the RJ45 port, while the LAN is link up to the
Switch/Hub, the LAN port’s LED will light up.

Wireless 108Mbps Multi-Function Access Point
A02-WAP-54G Pag. 8
CHAPTER 3: Configuration
The Wireless Access Point has a Web GUI interface for the configuration. The AP
can be configured through the Web Browser. A network manager can manage,
control and monitor the AP from the local LAN. This section indicates how to
configure the AP to enable its functions.
3.1 Before Configuration
This section describes the configuration required by LAN-attached PCs that
communicate with the Wireless Access Point, either to configure the device or for
network access. These PCs must have an Ethernet interface (or wireless adapter)
installed properly, be connected to the Wireless Access Point either directly or
through an external repeater hub or by wireless, and have TCP/IP installed and
configured with a fixed IP address that must be in the same subnet of the
Wireless Access Point. The default IP address of the Wireless Access Point is
192.168.1.1 and subnet mask is 255.255.255.0.
Please follow the steps below for PC’s network environment installation. First of
all, please check your PC’s network components. The TCP/IP protocol stack and
Ethernet network adapter must be installed. If not, please refer to MS Windows
related manuals.
Any TCP/IP capable workstation can be used to communicate
with or through the Wireless Access Point to configure other
types of workstations, please consult the manufacturer’s
documentation.

Wireless 108Mbps Multi-Function Access Point
A02-WAP-54G Pag. 9
3.1.1 Windows 95/98/ME
1. Go to Start / Settings /
Control Panel. In the Control
Panel, double-click on
Network and choose the
Configuration tab.
2. Select TCP / IP -> NE2000
Compatible, or the name of
any Network Interface Card
(NIC) in your PC.
3. Click Properties.
4. Select the IP Address tab. In
this page, click the Specify an
IP address radio button (EG
IP=192.168.1.2 and subnet
Mask=255.255.255.0).

Wireless 108Mbps Multi-Function Access Point
A02-WAP-54G Pag. 10
3.1.2 Windows NT4.0
1. Go to Start / Settings / Control
Panel. In the Control Panel, double-
click on Network and choose the
Protocols tab.
2. Select TCP/IP Protocol and click
Properties.
3. Select the IP Address tab. In this
page, click the Specify an IP
address radio button (EG
IP=192.168.1.2 and subnet
Mask=255.255.255.0).

Wireless 108Mbps Multi-Function Access Point
A02-WAP-54G Pag. 11
3.1.3 Windows 2000
1. Go to Start / Settings / Control
Panel. In the Control Panel,
double-click on Network and
Dial-up Connections.
2. Double-click LAN Area
Connection.
3. In the LAN Area Connection
Status window, click Properties.
4. Select Internet Protocol
(TCP/IP) and click Properties.
5. Select Use the Following IP
Address (EG IP=192.168.1.2
and subnet
Mask=255.255.255.0).
6. Click “OK” to finish the
configuration.

Wireless 108Mbps Multi-Function Access Point
A02-WAP-54G Pag. 12
3.1.4 Windows XP
1. Go to Start / Control
Panel (in Classic View). In
the Control Panel, double-
click on Network
Connections.
2. Double-click Local Area
Connection
3. In the LAN Area
Connection Status window,
click Properties.
4. Select Internet Protocol
(TCP/IP) and click
Properties.
5. Select the Use the
following IP address
radio buttons (EG
IP=192.168.1.2 and
subnet
Mask=255.255.255.0).
6. Click “OK” to finish the
configuration.

Wireless 108Mbps Multi-Function Access Point
A02-WAP-54G Pag. 13
3.1.5 Windows Vista
1. Go to Start / Control Panel (in Classic View). In the Control Panel,
double-click on Network and Sharing Center.
2. Click Manage network connections then double click on Local Area
Connection.
3. Click Continue (Windows needs your permission to continue).
4. Select Internet Protocol Version 4(TCP/IPv4) and click Properties
5. Select the Use the following IP address radio buttons (EG IP=192.168.1.2
and subnet Mask=255.255.255.0).
6. Click OK to finish the configuration
3.2 Default Settings
Before configuring the Wireless AP through WLAN, make sure that the SSID,
Channel and the WEP was set properly.
The default setting of the Wireless AP that you will use:
User: admin
Password: admin
IP Address: 192.168.1.1
Subnet Mask: 255.255.255.0
Wep Encryption: disable
SSSID: default
Channel:6
3.2.1 Password
When there is a screen needs to enter the Network password, it means that there
is a password settle, type in the password you entered before.
3.2.2 LAN WLAN
The parameters of LAN and WLAN ports are pre-set in the factory. The default
values are shown below.
LAN WLAN
IP address 192.168.1.1
Subnet Mask 255.255.255.0
Channel=6
SSID=default
Encryption=none
