Atlas Copco POWER FOCUS 6000 Instruction sheet

MT Focus 6000
Printed Matter No. 9839 0470 01 Control and drive unit
Valid from Serial No.
2017-06-10 Product Instructions
MT Focus 6000 8432085100
WARNING
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference

2© Atlas Copco Industrial Technique AB - 9839 0470 01
Table of Contents
Product information..................................................................... 3
General information................................................................. 3
Safety signal words........................................................ 3
Warranty ........................................................................ 3
ServAid .......................................................................... 4
Website .......................................................................... 4
Safety Data Sheets MSDS/SDS .................................... 4
Country of origin............................................................. 4
Dimensional drawings.................................................... 4
Overview ................................................................................. 4
MTF 6000 navigation ..................................................... 4
On/off switch on power supply unit ................................ 5
Compatible tools ............................................................ 6
Normal environmental conditions................................... 6
Service overview ..................................................................... 6
Service recommendations ............................................. 6
Installation .................................................................................... 7
Installation requirements ......................................................... 7
Connecting accessories................................................. 7
Controller connectors................................................... 12
Built-in battery .............................................................. 12
Operation .................................................................................... 13
Ergonomic guidelines............................................................ 13
Service ........................................................................................ 14

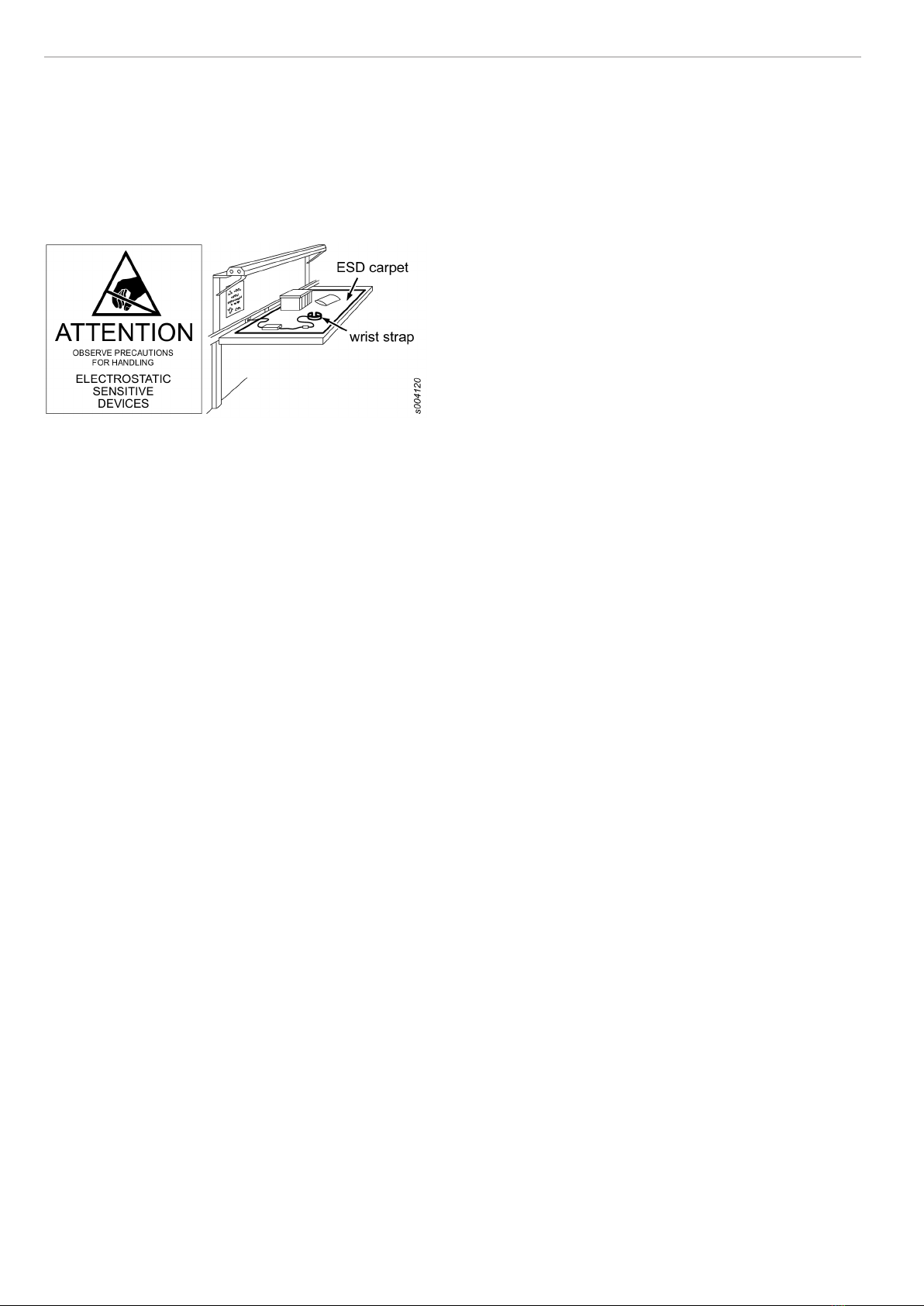

Preventing ESD problems..................................................... 14
Maintenance instructions....................................................... 14
Service recommendations ........................................... 14
Recycling .................................................................................... 15
Recycling instruction ............................................................. 15
Recycling information ............................................................ 15

MT Focus 6000 EN Product information
© Atlas Copco Industrial Technique AB - 9839 0470 01 3
Product information
General information
WARNING Risk of Property Damage or Severe Injury
Ensure that you read, understand and follow all instructions before operating
the tool. Failure to follow all the instructions may result in electric shock,
fire, property damage and/or severe bodily injury.
►Read all safety Information delivered together with the different parts of
the system.
►Read all product Instructions for installation, operation and maintenance
of the different parts of the system.
►Read all locally legislated safety regulations with regard to the system
and parts thereof.
►Save all safety information and instructions for future reference.
Safety signal words
The safety signal words Danger, Warning, Caution, and Notice have the follow-
ing meanings:
DANGER DANGER indicates a hazardous situation which, if not avoided, will result in death or
serious injury.
WARNING WARNING indicates a hazardous situation which, if not avoided, could result in death
or serious injury.
CAUTION CAUTION, used with the safety alert symbol, indicates a hazardous situation which, if
not avoided, could result in minor or moderate injury.
NOTICE NOTICE is used to address practices not related to personal injury.
Warranty
• Product warranty will expire 12 months after the product is first taken into
use, but will in any case expire at the latest 13 months after delivery.
• Normal wear and tear on parts is not included within the warranty.
• Normal wear and tear is that which requires a part change or other ad-
justment/overhaul during standard tools maintenance typical for that pe-
riod (expressed in time, operation hours or otherwise).
• The product warranty relies on the correct use, maintenance, and repair of
the tool and its component parts.
• Damage to parts that occurs as a result of inadequate maintenance or per-
formed by parties other than Atlas Copco or their Certified Service Partners
during the warranty period is not covered by the warranty.
• To avoid damage or destruction of tool parts, service the tool according to
the recommended maintenance schedules and follow the correct instruc-
tions.
• Warranty repairs are only performed in Atlas Copco workshops or by Certi-
fied Service Partners.
Atlas Copco offers extended warranty and state of the art preventive mainte-
nance through its ToolCover contracts. For further information contact your lo-
cal Service representative.

Product information EN MT Focus 6000
4© Atlas Copco Industrial Technique AB - 9839 0470 01
For electrical motors:
• Warranty will only apply when the electric motor has not been opened.
ServAid
ServAid is a portal that contains the most up-to-date product information such
as:
- Safety Information
- Installation, Operation and Service Instructions
- Exploded views
It is also possible to order spare parts, service tools and accessories for the
product of your choice directly from ServAid. It is continuously updated with
information about new and redesigned products.
If translations exist, you can view content in the language of your choice. Ser-
vAid offers advanced search functionality of our entire product range and can
also be used to display information about obsolete products.
ServAid is available on DVD and on the website:
https://servaid.atlascopco.com
For further information contact your Atlas Copco sales representative or e-mail
us at:
[email protected]
Website
Log in to Atlas Copco: www.atlascopco.com.
You can find information concerning our products, accessories, spare parts and
published matters on our website.
Safety Data Sheets MSDS/SDS
The safety data sheets describes chemical products sold by Atlas Copco.
For more information, consult the website:
www.atlascopco.com
Choose Products - Safety Data Sheets, and follow the instructions on the
page.
Country of origin
Please refer to the information on the product label.
Dimensional drawings
For information about the dimensions of a product, see the Dimensional draw-
ings archive:
http://webbox.atlascopco.com/webbox/dimdrw
Overview
MTF 6000 navigation
The front panel contains a display and a keypad.

MT Focus 6000 EN Product information
© Atlas Copco Industrial Technique AB - 9839 0470 01 5
A Display
B Indicator light
C Arrow buttons
D OK button
E Back button
Button Name Description
Arrow buttons Use the arrow buttons to navigate
in the menus on the display.
Use the arrow buttons to set numer-
ical values on the display.
Back button Use the back button to move back
between menus.
In some cases you can use the back
button to cancel a selection.
OK button Press the OK button to confirm a
selection.
Hold the OK button to open the lo-
gin/reboot menu.
On/off switch on power supply unit
The on/off switch to the controller is located on the external power supply unit
(PSU).
The on/off switch on the PSU must be easy to access.

Product information EN MT Focus 6000
6© Atlas Copco Industrial Technique AB - 9839 0470 01
Compatible tools
MT Focus 6000 is compatible with the following tools:
• ETD M xxx V2
• QMC 21
• QMC 41
The tool must be calibrated for running with MT Focus 6000.
Normal environmental conditions
This product is designed to be safe under the following conditions:
• Indoor use
• Altitude up to 2 000 m
• Temperature 5 °C to 40 °C
• Maximum relative humidity 80 % for temperatures up to 31 °C decreasing
linearly to 50 % relative humidity at 40 °C
• Mains supply voltage fluctuations up to ±10 % of the nominal voltage
• Transient overvoltages up to the levels of overvoltage category ll
• Temporary overvoltages occurring on the mains supply
• Pollution degree 2
Service overview
Service recommendations
Preventive maintenance is recommended at regular intervals. See the detailed
information on preventive maintenance. If the product is not working properly,
take it out of service and inspect it.
If no detailed information about preventive maintenance is included, follow
these general guidelines:
• Clean appropriate parts accurately
• Replace any defective or worn parts

MT Focus 6000 EN Installation
© Atlas Copco Industrial Technique AB - 9839 0470 01 7
Installation
Installation requirements
Connecting accessories
If the sum of all +24V IO loads exceeds 400 mA - use an external +24 V
source.
The internal 24 V supply can be loaded with max 1300 mA. This supply is
used for both the vacuum pump and the +24V IO.
DIGITAL I/O
The digital I/O is a configurable 26-pole D-sub socket connector for digital in-
put and output signals.
Use a 26-pole D-sub pin plug.
Voltage range 11-30 VDC (logic 1)
0-5 VDC (logic 0)
Input resistance >5 kΩ
Output resistance 23-35 Ω
Output current protection 120 mA max. peak/continuous current, over current
protected.
If the max. current is exceeded, the output voltage will switch off. This can
be resolved by switching the output off and on again.
Pin I/O
1 +24V IO
2 DO COMMON 0-3
3 DO COMMON 4-7
4 DO 0
5 DO 1
6 DO 2
7 DO 3
8 DO 4
9 DO 5
10 DO 6
11 DO 7
12 DI 0
13 DI 1
14 DI 2

Installation EN MT Focus 6000
8© Atlas Copco Industrial Technique AB - 9839 0470 01
Pin I/O
15 DI 3
16 DI 4
17 DI 5
18 DI 6
19 DI 7
20 DI 8
21 DI 9
22 DI 10
23 DI 11
24 DI COMMON 0-5
25 DI COMMON 6-11
26 GND
Pulse length must be minimum 20 ms.
All inputs are opto isolated.
Interface connection can be connected in PNP mode (source type, positive
logic), or in NPN mode (sink type, negative logic).
PNP and NPN mode can, if required, be mixed bank wise (for example DO
COMMON 0-3 PNP and DO COMMON 4-7 NPN).
PNP mode
I/O Description
+24V IO +24V output

MT Focus 6000 EN Installation
© Atlas Copco Industrial Technique AB - 9839 0470 01 9
I/O Description
DO COMMON 0-3 Connect to +24V IO
or external +24 V
(not at the same time)
DO COMMON 4-7 Connect to +24V IO
or external +24 V
(not at the same time)
DO 0-7 The outputs will be connected to the external +24 V
when activated.
DI 0-11 The inputs will be activated by a +24 V signal applied
to the input pin.
DI COMMON 0-5 Connect to GND
or external 0 V.
DI COMMON 6-11 Connect to GND
or external 0 V.
GND Ground
NPN mode
I/O Description
+24V IO +24V output
DO COMMON 0-3 Connect to GND
or external 0 V.
DO COMMON 4-7 Connect to GND
or external 0 V.
DO 0-7 The outputs will be connected to the external 0 V
when activated.
DI 0-11 The inputs will be activated by a 0 V signal applied to
the input pin.

Installation EN MT Focus 6000
10 © Atlas Copco Industrial Technique AB - 9839 0470 01
I/O Description
DI COMMON 0-5 Connect to +24V IO
or external +24V
(not at the same time)
DI COMMON 6-11 Connect to +24V IO
or external +24V
(not at the same time)
GND Ground
USB device
Type B receptacle.
This connection is used when the controller is connected to one computer.
USB host
Type A receptacle.
Supports:
• Full speed, 12 Mbps
• Low speed, 1.5 Mbps
If you connect an accessory in this connection the controller will be the host
and control the accessory.
Connect a USB hub
It is possible to connect an USB hub with up to 4 ports to the USB host port.
The total max current of the connected devices is 900 mA. If more current is
needed, connect an external power supply.
The USB hub can have two scanners connected at the same time if their total
max current is less than 900mA.
Only scan with one scanner at the time when two scanners are connected.
Do not connect more than one USB flash drive, since only one USB flash drive
can be detected by the MTF 6000.
Ethernet
RJ 45 connector.
The ethernet connection is used to connect the controller to the factory network.

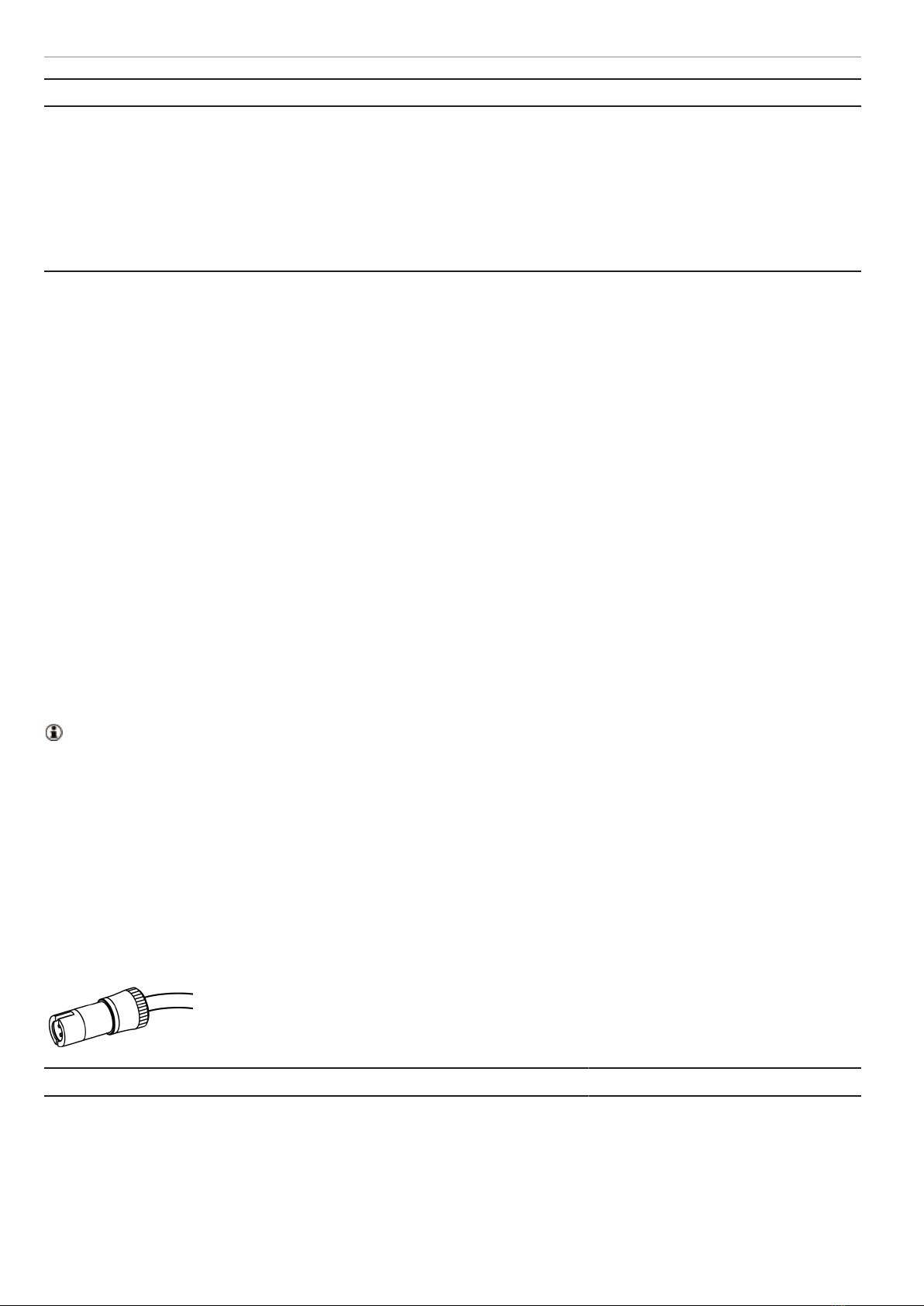

VP - Vacuum pump output
5-pole socket connector for the connection with Atlas Copco Vacuum pump.
Use a 5-pole pin plug from the Binder 719 Series.
Pin Signal Description
1 +24V Pump Internal +24V
2 Clean Digital output
3 Pump on Digital output
4 Pressure value Analogue input

MT Focus 6000 EN Installation
© Atlas Copco Industrial Technique AB - 9839 0470 01 11
Pin Signal Description
5 GND Ground
Fieldbus
Not implemented yet.
COM
3-pole socket connector for the serial interface.
COM port settings: 115200Baud, 8Data bits, 1Stop bit, No parity, No hand-
shake.
Use a 3-pole pin plug from the Binder 719 Series. Complies with RS-232.
Pin Signal Description
1 TxD Transmitted data
2 GND Data ground
3 RxD Received data
I/O - BUS
Not implemented yet.
IAM MT
The IAM MT (Intelligent Application Module MicroTorque) is a memory card
for application software and result storage.
The IAM MT may store:
• Necessary software for the MTF 6000
• Configuration data
• Result database
• Trace database
• License and MAC-address.

Installation EN MT Focus 6000
12 © Atlas Copco Industrial Technique AB - 9839 0470 01
Controller connectors
A DIGITAL I/O
B USB DEVICE
C USB HOST
D POWER
E TOOL
F Ethernet
G Connection for ESD protective wrist strap
H VP, Vacuum pump
I FIELD BUS
J COM
K I/O BUS
L IAM MT
Built-in battery
Some functions in the controller, such as the built-in clock, are powered by a
built-in battery. The charging time is 5 hours and the function is maintained for
100 days if not recharged.

MT Focus 6000 EN Operation
© Atlas Copco Industrial Technique AB - 9839 0470 01 13
Operation
Ergonomic guidelines
Consider your workstation as you read through this list of general ergonomic
guidelines and see if you can identify areas for improvement in posture, compo-
nent placement, or work environment.
• Take frequent breaks and change work positions frequently.
• Adapt the workstation area to your needs and the work task.
• Adjust for convenient reach range by determining where parts or tools
should be located to avoid static load.
• Use workstation equipment such as tables and chairs appropriate for the
work task.
• Avoid work positions above shoulder level or with static holding during as-
sembly operations.
• When working above shoulder level, reduce the load on the static mus-
cles by reducing the weight of the tool, using for example torque arms,
hose reels or weight balancers. You can also reduce the load on the static
muscles by holding the tool close to the body.
• Make sure to take frequent breaks.
• Avoid extreme arm or wrist postures, particularly for operations requir-
ing a degree of force.
• Adjust for convenient field of vision by minimizing movement of the eyes
and head during the work task.
• Use the appropriate lighting for the work task.
• Select the appropriate tool for the work task.
• Use ear protection equipment in noisy environments.
• Use high-quality inserted tools or consumables to minimize exposure to ex-
cessive levels of vibration.
• Minimize exposure to reaction forces.
• When cutting:
A cut-off wheel can get stuck if the wheel is either bent or if it is not
guided properly. Make sure to use the correct flanges for cut-off wheels
and avoid bending the wheel during cut-off operation.
• When drilling:
The drill might stall when the drill bit breaks through. Makes sure you
use support handles if the stall torque is too high. The safety standard
ISO11148 part 3 recommends using something to absorb the reaction
torque above 10 Nm for pistol grip tools and 4 Nm for straight tools.
• When using direct-driven screw or nutrunners:
Reaction forces depend on tool setting and joint characteristics. The abil-
ity to bear reaction forces depends on the operator’s strength and pos-
ture. Adapt the torque setting to the operator's strength and posture and
use a torque arm or reaction bar if the torque is too high.
• Use dust extraction system or mouth protection mask in dusty environments.

Service EN MT Focus 6000
14 © Atlas Copco Industrial Technique AB - 9839 0470 01
Service
Preventing ESD problems
The components inside the tool and controller are sensitive to electrostatic dis-
charge. To avoid future malfunction, make sure that service and maintenance is
carried out in an ESD approved work environment. The figure below shows an
example of an appropriate service work station.
Maintenance instructions
Service recommendations
Preventive maintenance is recommended at regular intervals. See the detailed
information on preventive maintenance. If the product is not working properly,
take it out of service and inspect it.
If no detailed information about preventive maintenance is included, follow
these general guidelines:
• Clean appropriate parts accurately
• Replace any defective or worn parts

MT Focus 6000 EN Recycling
© Atlas Copco Industrial Technique AB - 9839 0470 01 15
Recycling
Recycling instruction
When a product has served its purpose it has to be recycled properly. Dismantle
the product and recycle the components in accordance with local legislation.
Batteries shall be taken care of by your national battery recovery organization.
Recycling information
Part Recycle as
1 Screws Steel
2 Clamps Stainless steel
3 Display WEEE
4 Housing Aluminum
5 IAM MT lid Polypropylene
6 Front panel WEEE
7 Main board WEEE
8 Hexagon spacing nut (4 pcs) Brass
9 Back plate Stainless steel
10 Screw Stainless steel

Recycling EN MT Focus 6000
16 © Atlas Copco Industrial Technique AB - 9839 0470 01
Part Recycle as
11 Connector sleeve Stainless steel
12 Screw Stainless steel
13 Screw Stainless steel
14 LiIon battery WEEE
15 Screws Steel
16 Foot weight Zink

Original instructions
Atlas Copco Industrial
Technique AB
SE-10523 STOCKHOLM
Sweden
Telephone: [phone]
Telefax: [phone]
www.atlascopco.com
© Copyright 2017, Atlas Copco Industrial Technique AB. All rights reserved. Any
unauthorized use or copying of the contents or part thereof is prohibited. This
applies in particular to trademarks, model denominations, part numbers and
drawings. Use only authorized parts. Any damage or malfunction caused by the
use of unauthorized parts is not covered by Warranty or Product Liability.
Out of respect to wildlife and nature, our technical literature is printed on
environmentally friendly paper.
