Atlas Copco STB User manual

User Guide
STB (Static Transducer Bench)
Atlas Copco Industrial Technique AB
9836 3078 01
Edition 2.4
2014-12

STB User Guide Revision history
9836 3078 01 Edition 2.4 3 (86)
Revision history
Revision
Date
Author
Description
Bench
software
version
2007-01 14-02-2007 M. Grippa New Edition
2007-02 05-09-2007 M. Grippa Test Setup section updated
2008-01 12-02-2008 M. Grippa Introduction review
2009-01 17-09-2009 M. Grippa Tool calibration function from Torque
Supervisor added, Hardware protection
key feature added.
4.0
2.0 11 June 2013 M. Grippa New manual edition fully revised. 4.3
2.1 31 July 2013 M. Grippa Product name updated, added
customization versions (par. 2.1) 4.3
2.2 07 April 2014 M. Grippa
PowerMACS calibration added (par.
8.1.1), troubleshooting guide added (par.
13) screenshots updated to new software
version
5.0
2.3 30 June 2014 M. Grippa Added controller serial number during calibration (par. 8.1), troubleshooting guide
updated (par. 13).
5.1
2.4 19 December 2014 M. Grippa Main menu screenshots updated 5.2
Copyright Atlas Copco Industrial Technique AB
NOTE: This manual may be altered without further notice.
For further information log on to Atlas Copco www.atlascopco.com
NOTE: In the event of conflicts between translations of this user guide, always refer to the
official English version.

Content STB User Guide
4 (86) 9836 3078 01 Edition 2.4
Contents
Contents.........................................................................................................................4
SAFETY INFORMATION...................................................................................................6
BATTERIES INFORMATION according to European regulation 2006/66/CE ....................7
1Introduction ...........................................................................................................8
1.1 About This Document...............................................................................................8
1.2 Reference Documents..............................................................................................9
1.3 Specifications .........................................................................................................10
1.4 Standard Conformity...............................................................................................11
2STB Overview......................................................................................................12
2.1 STB Versions..........................................................................................................17
2.1.1 STB AD standard.................................................................................................... 17
2.1.2 STB AD with custom keyboard and monitor........................................................... 18
3User Interfaces....................................................................................................19
3.1 Static transducers...................................................................................................19
3.1.1 Mechanical joint simulators..................................................................................... 21
3.2 LCD Monitor with Touch Screen.............................................................................21
3.3 Keyboard................................................................................................................22
3.4 Test Result LEDs....................................................................................................23
3.5 External Transducers Connectors...........................................................................24
3.6 USB Ports...............................................................................................................25
3.7 Ethernet Port ..........................................................................................................25
3.8 Serial Port RS232...................................................................................................25
3.9 PC Reset Switch.....................................................................................................26
3.10 Main Panel .............................................................................................................27
3.10.1 Power supply / batteries ......................................................................................... 27
3.11 Hardware Protection Key: System Backup .............................................................28
4Executing a Free Test.........................................................................................32
4.1 Testing Wrenches...................................................................................................36
4.1.1 Wrench test setup................................................................................................... 36
4.2 Testing Impulse Tools.............................................................................................40
4.2.1 Impulse tools test setup.......................................................................................... 43
4.3 Testing Power Tools...............................................................................................44
4.3.1 Power tools test setup ............................................................................................ 45
4.4 Force Versus Torque Test......................................................................................46
5External Transducers Setup...............................................................................48
6Traces Viewer......................................................................................................52

STB User Guide Revision history
9836 3078 01 Edition 2.4 5 (86)
7Test report ...........................................................................................................55
8Working with Torque Supervisor.......................................................................57
8.1 Tool Calibration Function .......................................................................................63
8.1.1 Power Focus / PowerMACS calibration ..................................................................67
9Scheduled Maintenance .....................................................................................70
10 Transducers Test Procedure..............................................................................71
11 APPENDIX A: Tool Testing Guidelines .............................................................72
11.1 Statistic Control Test..............................................................................................73
11.2 Cm-Cmk Test.........................................................................................................76
12 APPENDIX B: Processes and Statistics............................................................77
13 Troubleshooting Guide.......................................................................................81
14 Abbreviations......................................................................................................83
15 Index.....................................................................................................................84

Safety instructions STB User Guide
6 (86) 9836 3078 01 Edition 2.4
SAFETY INFORMATION
WARNING: PLEASE READ THE SAFETY INFORMATION
No. 9836 5531 00 CAREFULLY PRIOR TO USING THE PRODUCT AND
STRICTLY FOLLOW THE SAFETY INSTRUCTIONS PROVIDED.
THE DOCUMENT IS APPLICABLE TO THE STB EXCEPT FOR THE
HYDRAULIC COMPONENTS NOT PRESENT IN THIS BENCH.

STB User Guide Battery information
9836 3078 01 Edition 2.4 7 (86)
BATTERIES INFORMATION according to European regulation
2006/66/CE
MAIN BATTERIES SPECIFICATION
TYPE: Two 12V 72 Ah gel/absorbed electrolyte type lead acid storage batteries
WEIGHT: 31.2 Kg each
PC BATTERY SPECIFICATION (for all models)
TYPE: 3V lithium battery
WEIGHT: 5 g
WARNING
All the service activities, including those related to maintenance of the batteries, must be executed
only by Atlas Copco service personnel who has been properly trained.
ONCE REMOVED, THE WASTED BATTERIES MUST BE DISMISSED ACCORDING
LOCAL REGULATIONS

Introduction STB User Guide
8 (86) 9836 3078 01 Edition 2.4
1 Introduction
1.1 About This Document
This document is a user manual for the STB and it is divided into the main following parts:
Part Name Description
Chapter 1 Introduction This part introduces this user manual and details bench
technical specifications.
Chapter 2 Bench Overview This part introduces the STB models and operating
principles.
Chapter 3 User Interfaces This chapter provides an overview of the user
interfaces available on the STB (Transducers, Monitor,
LEDs, keyboard, ports, switches).
Chapter 4 Executing a Free Test
This part explains how to conduct a free test on
wrenches, pulse tools, power tools, and torque/force
test.
Chapter 5 External Transducers Setup This part explains how to use an external transducer
(for example IRTT-B) connected to the bench.
Chapter 6 Traces Viewer This part explains how to view and save the
torque/time traces.
Chapter 7 Test Report This part explains how to generate and save test
reports.
Chapter 8 Working with Torque
Supervisor This part explains the use of the software when the bench is working in conjunction with Torque
Supervisor

STB User Guide Introduction
9836 3078 01 Edition 2.4 9 (86)
Chapter 9 Maintenance These parts list the maintenance tasks required by the
bench.
Chapter 10 Transducer test procedure This part explains a procedure to ensure that the
transducers are working properly
Chapter 11 Tool Testing Guidelines This part explains the principles of Statistic Control
and Cm-Cmk tests.
Chapter 12 Process and Statistics This part introduces a summary of the theory of
process and statistics.
Chapter 13
and 14 Abbreviations and Index List of abbreviations used in this manual and alphabetical index
1.2 Reference Documents
The following is a list of important documents useful for a complete view of the product in all its
applications:
•STB Safety Instructions (No. 9836 5531 00): Multilanguage safety instructions and declaration of
conformity
•BLM Torque Seminar
•Bench WEEE manual: Instructions about how to dispose of the product at the end of its life
•Torque Supervisor User Guide
•Torque Supervisor Client User Guide
•SRTT-B User Guide

Introduction STB User Guide
10 (86) 9836 3078 01 Edition 2.4
1.3 Specifications
MAIN FUNCTIONS
•Testing in Statistic Control, Cm and Cmk measurements and tool calibration.
•Extremely simple for the user, providing immediate results with colored lamps:
Green: OK, Red: NOT OK
•Storage of test traces and reports with date and time.
•Ability to regulate and calibrate torque wrenches on the same test bench.
•First peak detection function.
TECHNICAL
•Torque range: 0.2 Nm ÷ 3000 Nm maximum (the real range depends from the bench transducers
configuration)
•Torque measurement accuracy: 0.5 % readout ±1 digit (from 20% to 100% of cell capacity)
1 % readout ±1 digit (from 10% to 20% of cell capacity)
•Torque overload capacity: 120%
•Temperature stability of torque measurement: 0.1% of capacity/10 °C
•Battery power supply (2 batteries 12 V 72 A/h): 16 hours’ endurance in operation mode
•Recharging at 100 ÷ 230 VAC 50 ÷ 60 Hz; if the bench is switched off, recharging takes maximum 6
hours. (not for JSB 3890)
•AC Power Consumption: 1320 W maximum
•AC Fuses: One fuse 10A 500 VAC type gG, one fuse T8AL 250V (in AC power socket)
•Overvoltage category: II
•Battery Fuses: 2 fuses 25A 500 VAC type gG
•Industrial PC.
•Indication “Low battery”
•Dimensions / Weight: 1.55m (h) x 1.15m (w) x 0.53m (d) for standard version, max 250 Kg
INTERFACES
•Touch screen LCD monitor
•USB 2.0 ports
•Network port 10/100 Base-T RJ-45
•Serial port RS232
•External transducer connectors for strain gauge torque/angle transducers; +5V supply for transducer
and encoder.

STB User Guide Introduction
9836 3078 01 Edition 2.4 11 (86)
ENVIRONMENTAL
The following conditions must be observed during operation:
•Internal Use only
•Environmental Class: II
•Ambient Temperature: 5 to 40°C
•Atmospheric humidity: 95%, non-condensing
•Altitude: Up to 2000m
1.4 Standard Conformity
The STB are in conformity with the requirements of the council Directives on 06/22/1998 on the
approximation of the laws of the Member States relating:
•2006/95/EC Low Voltage Directive
•2004/108/EC Electromagnetic Compatibility
•2011/65/EU The restriction of the use of certain hazardous substances in
electrical and electronic equipment
Applicable normalized standards:
•EN 55011:2009+A1:2010 Industrial, scientific and medical equipment. Radio-frequency
disturbance characteristics. Limits and methods of measurement.
•EN 61000-3-3:2008 Limitation of voltage changes, voltage fluctuations and flicker in public
low-voltage supply systems, for equipment with rated current <= 16 A
per phase and not subject to conditional connection.
•EN 61000-3-2:2006 Limits for harmonic current emissions (equipment input current <= 16
A per phase).
•EN 61326-1:2006 Electrical equipment for measurement, control and laboratory use –
EMC requirements – Part 1: General requirements
•EN 61010-1:2010 Safety requirements for electrical equipment for measurement, control,
and laboratory use - Part 1: General requirements.
The STB are provided with an Atlas Copco BLM calibration certificate.
Optional ACCREDIA (ex SIT) certification. Atlas Copco BLM is an ACCREDIA calibration centre.

STB Overview STB User Guide
12 (86) 9836 3078 01 Edition 2.4
2 STB Overview
The STB is ideal for controlling torque wrenches and screwdrivers according to ISO 6789 and SPC
standards or for calculating their Cm – Cmk.
The user-friendly software and the touch screen allow for immediate and simple operation.
The measurements taken are shown on a widescreen color LCD and the results are summarized by three
control lamps.
Since it is powered by batteries, the test bench may be used at any point along the assembly line.
Special PC software (Torque Supervisor) is available to allow the STB to be programmed with the tests to
be carried out during the week, and to receive their results. This software has been specifically developed
for controlling a large store of tools and allows Cm and Cmk or the test results to be filed in Statistic
Control, combining them with other information concerning the life of the tool (model, class, date of
purchase, presence in line or store, repairs, tests, etc.). The tests carried out are therefore fully traceable,
including the X/R cards and the "history" of the tool, an indispensable requirement for compliance with
LCD monitor with touch screen
ISO Rig
Transducers
Drawers with
accessories
Test result lamps
Bench interfaces
Main panel

STB User Guide STB Overview
9836 3078 01 Edition 2.4 13 (86)
the standard ISO 9000. Contact your Atlas Copco sales for any further information regarding this
software.
The drawers contain a set of accessories:
Set of adapters. Number and size of adapters depend from the bench
transducers configuration.
Reaction bar. The reaction bar is a useful tool to provide the operator with
greater comfort and safety during testing; when the reaction bar is in use,
the tool under test reacts on the bar instead of reacting on the operator’s
arm.
It must be always used for testing tools over 15 Nm.
European and US AC power cables.
PC CDs: Windows CD and driver. Keep it in a safe place; it might be
used by Atlas Copco service personnel during bench maintenance.

User Interfaces STB User Guide
14 (86) 9836 3078 01 Edition 2.4
An additional box is delivered with the bench:
This box contains safety instructions, manuals, certificates, passwords for software and other important
documents. It should be removed and kept in a safe place by the bench administrator.
It also contains the following tools:
Special tool to open the side panel in case of need to reset the PC.
Keys for the bench drawers.

STB User Guide STB Overview
9836 3078 01 Edition 2.4 15 (86)
USB Recovery Key, containing the backup of the bench factory
configuration. This key must be kept in a safe place, and must be
available for service personnel during bench maintenance activities.

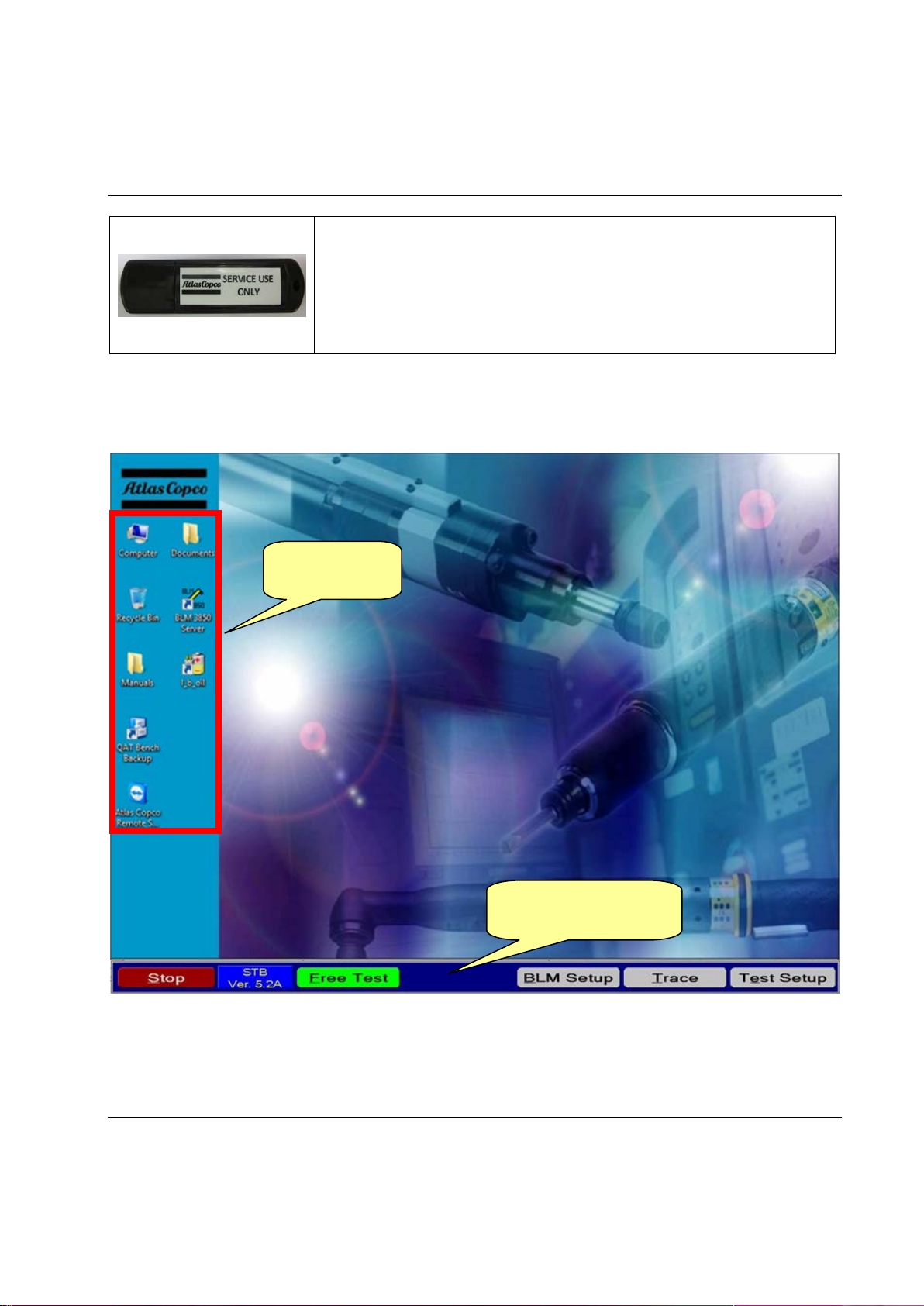

On the bench monitor desktop there are links to the JSB software(s) and some folders containing bench
documents and manuals:
Software and
documentation
Main software, started
automatically

User Interfaces STB User Guide
16 (86) 9836 3078 01 Edition 2.4
The software running on the STB are:
Main software The main software is started automatically and executes tool
testing. See the chapter Executing a Free Test for more
information.
Torque Supervisor (Full or Client)
Torque Supervisor is optional software to store the archive of the
tools to be tested, scheduling the tests, producing report and
statistics.
See the chapter Working with Torque Supervisor for more
information.
L_b_oil This application, started automatically, monitors the battery
charge inside the bench, and provides warnings if necessary.
QAT Bench Backup
This application, started automatically, executes system backup.
See the chapter Hardware Protection Key: System Backup for
more information.
Atlas Copco Remote Service This application can be used by the Atlas Copco service personnel
for maintenance activities.

STB User Guide STB Overview
9836 3078 01 Edition 2.4 17 (86)
2.1 STB Versions
The STB bench family includes different options and versions. The software and functions are the same
described in this manual. For customized bench with special software functions or additional components;
refer to this user guide and also to the specific attachment describing the customized functions.
2.1.1 STB AD standard
This is the standard bench version. The most typical customization is the number and capacity of
transducers.

User Interfaces STB User Guide
18 (86) 9836 3078 01 Edition 2.4
2.1.2 STB AD with custom keyboard and monitor
This version features a smaller chassis, a monitor 12”, and a tiltable keyboard installed outside the drawer.
The lamps are installed on the top of the monitor, and the panel with the bench interfaces is installed on
the back side of the monitor.
Keyboard
Monitor

STB User Guide User Interfaces
9836 3078 01 Edition 2.4 19 (86)
3 User Interfaces
3.1 Static transducers
The standard STB bench features a set of static transducer SRTT-B:
Static transducers are designed to test:
•Impulse power tools. When the impulse tool has a shut-off valve, a mechanical joint simulator is
required.
•Wrenches
•Power tool, for those special cases in which the test on the hydraulic would be not possible. In
this case, to permit the tool to rotate, a mechanical joint simulator must be mounted on the static
transducer.

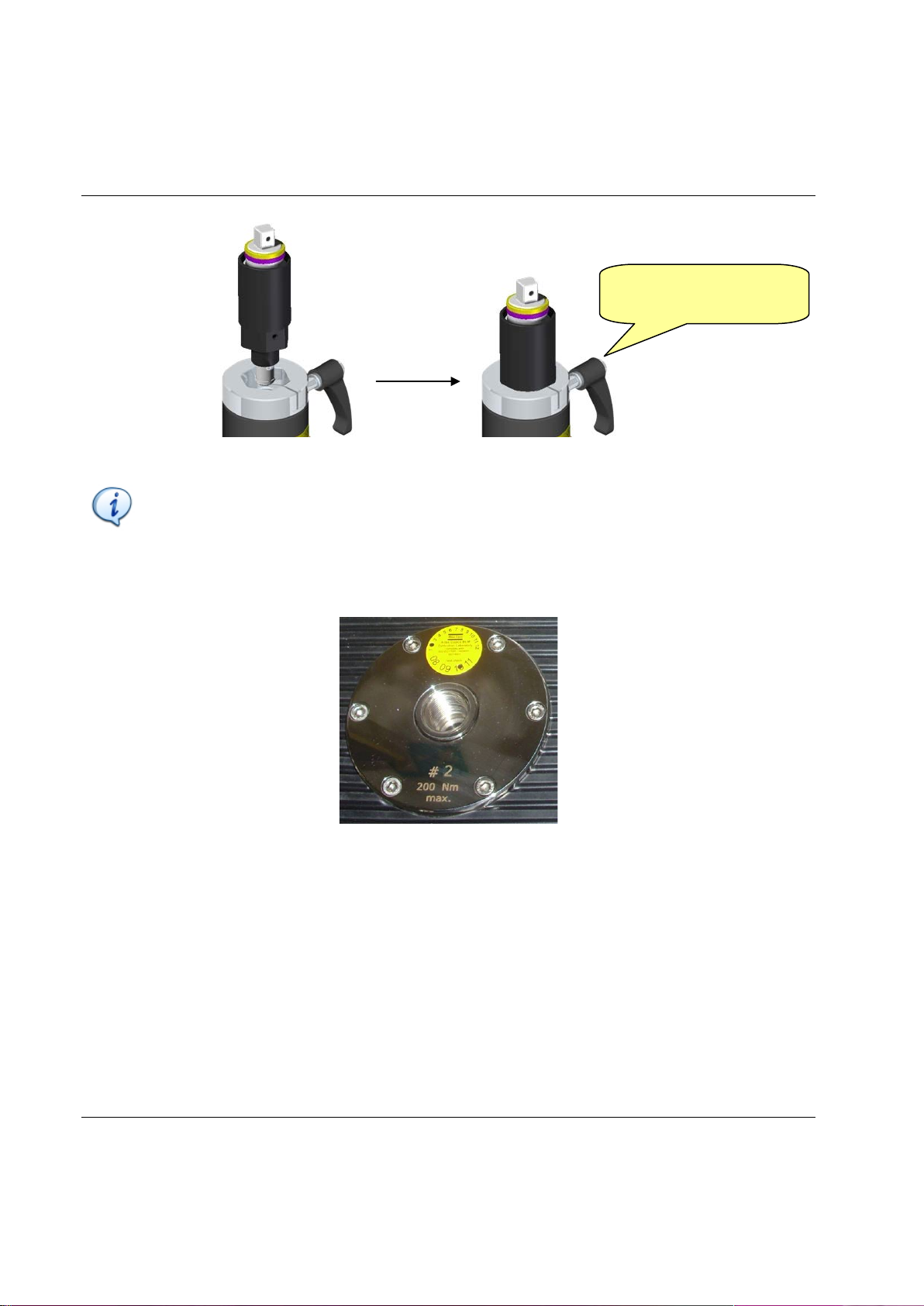

To install a mechanical joint simulator, insert the simulator in the SRTT-B, and tighten the lever before
starting the test:
Transducers

User Interfaces STB User Guide
20 (86) 9836 3078 01 Edition 2.4
NOTE: Tighten the lever before entering the test window; the zero alignment will be not
performed properly otherwise.
NOTE: For old benches, a static cell was installed instead of the SRTT-B:
The test philosophy on the static cell is the same of the one for SRTT-B. However, the static cells are
threaded and require the specific mechanical joint simulator (when a joint simulator is needed).
Tighten the lever, before
starting the test.
