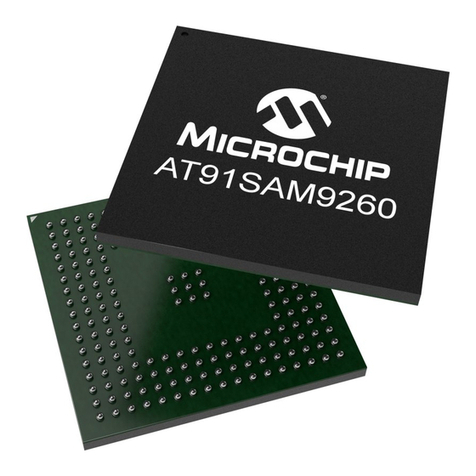

Using the ECC Controller on AT91SAM9260/9263
and AT91SAM7SE Microcontrollers
1. Scope
The purpose of this document is to explain how to use the Error Corrected Code
(ECC) Controller embedded in the AT91SAM9260/9263 and AT91SAM7SE family of
ARM®Thumb®-based microcontrollers. The ECC controller performs 2-bit data error
identification and single-bit correction to maintain integrity of data stored in NAND
Flash and SmartMedia®devices.
2. NAND Flash Device Overview
2.1 Internal Array Architecture
The NAND Flash array is organized in a series of blocks which are divided in several
pages. Data is stored either in byte (8 bits) or half-word (16 bits) format depending on
the device type. Each page consists of a main area for storing data and a spare area
(physically similar) typically used for data error identification and correction, wear lev-
elling, etc...
One particularity of NAND Flash devices is that they may contain a percentage of
invalid blocks in the memory array. Before delivering the chip, these blocks are identi-
fied and marked as “Invalid Blocks” in the first or second page of each block. The
existence of bad blocks does not affect the good ones because each block is indepen-
dent and individually isolated from the bit lines by block select transistors.
Because NAND Flash devices have a finite lifetime (approximately 100 000
write/erase cycles), additional invalid blocks may develop while being used. Storing
data requires bad-block management and data error identification and correction.
Refer to Section 3. ”Invalid Block Management”.
2.2 Basic Operation Principle
NAND Flash operations are fully controlled through a multiplexed I/O interface and
additional control signals. Commands, addresses and data are transferred through
the external input/output bus (8-bit or 16-bit) to the dedicated internal registers. In 16-
bit devices, commands, addresses and data use the lower 8 bits (7 - 0), the upper 8
bits are only used during data-transfer cycles.
Read and program operations are performed on a per page basis whereas erase
operations are performed on a block basis. To read or write from NAND Flash, a com-
mand sequence is issued to select a block and a page. After this selection, the entire
page can be read or written.
The command sequence normally consists of a Command Latch Cycle, an Address
Latch Cycle and a Data Cycle — either read or write.
AT91 ARM
Thumb
Microcontrollers
Application Note
6320B–ATARM–05-Nov-07

2
6320B–ATARM–05-Nov-07
Application Note
The waveforms shown in Figure 2-1 depict the successive accesses: Command Latch, Address
Latch and Data Output. Notice that no command can be sent to the NAND Flash during tR due to
it’s busy-state period.
Figure 2-1. Page READ Operation
Please refer to the NAND Flash manufacturer’s datasheet for command sets and full operation
description.
3. Invalid Block Management
3.1 Invalid Block Definition
As mentioned in Section 2.1 ”Internal Array Architecture”, NAND flash devices contain a certain
percentage of invalid blocks at the end of the production process. Invalid blocks are defined as
blocks that contain one or more invalid bits.
3.2 Spare Area Assignment
The invalid block status byte location and the ECC locations within the spare area depend on the
device type (small/large-page devices and 8/16- bit devices).
The widely used spare area assignment defined by SAMSUNG is illustrated in Figure 3-1, Fig-
ure 3-2, Figure 3-3 and Figure 3-4.
tR
tREA
tCEA
ALE
CLE
I/Ox Address (5 cycles)
Command
cycle 1
Command
cycle 2
Address cycles
00h 30h
WE
RE
CE
R/B
Don't Care

3
6320B–ATARM–05-Nov-07
Application Note
Figure 3-1. Small Page 8-bit Device Organization
Figure 3-2. Small Page 16-bit Device Organization
Figure 3-3. Large Page 8-bit Device Organization
Figure 3-4. Large Page 16-bit Device Organization
Abbreviations as used in Figure 3-1 through Figure 3-4 above
LSN0 LSN1 LSN2
Reserved Reserved Reserved Reserved Reserved Reserved Reserved
BI ECC0 ECC1 ECC2 S-ECC0 S-ECC1
Cell Array
512 Bytes
SpareCell Array
16 Bytes
1stB2
ndB3 rdB4 thB5 thB6 thB7 thB8 thB9 thB10 thB11 thB12 thB13 thB14 thB15 thB16 thB
LSN0 LSN1 LSN2 B1 ECCa ECCb ECCc S-ECCa S-ECCb
LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB
Cell Array
256 Half Words
SpareCell Array
8 Half Words
Reserved Reserved Reserved Reserved Reserved Reserved Reserved
1
st
Half Word 2
nd
Half Word 3
rd
Half Word 4
th
Half Word 5
th
Half Word 6
th
Half Word 7
th
Half Word 8
th
Half Word
BI LSN1LSN0 LSN2 Reserved ReservedReservedReserved Reserved Reserved Reserved ECC0 ECC1 ECC2 S-ECC0 S-ECC1
Cell Array
512 Bytes
Cell Array
512 Bytes
Cell Array
512 Bytes
Cell Array
512 Bytes
Spare Cell
Area
16 Bytes
Spare Cell
Area
16 Bytes
Spare Cell
Area
16 Bytes
Spare Cell
Area
16 Bytes
1stB2
ndB3 rdB4 thB5 thB6 thB7 thB8 thB9 thB10 thB11 thB12 thB13 thB14 thB15 thB16 thB
BI BI LSN0 S-ECC0 Reserved Reserved ECC0 ECC1 ECC2
LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB
LSN1 LSN2 Reserved S-ECC1 Reserved Reserved Reserved
Cell Array
256 Half Words
Cell Array
256 Half Words
Cell Array
256 Half Words
Cell Array
256 Half Words
Spare Cell
Area
8 Half Words
Spare Cell
Area
8 Half Words
Spare Cell
Area
8 Half Words
Spare Cell
Area
8 Half Words
1
st
Half Word 2
nd
Half Word 3
rd
Half Word 4
th
Half Word 5
th
Half Word 6
th
Half Word 7
th
Half Word 8
th
Half Word
• BI Invalid block information
• ECC ECC code for Cell Array data
• S-ECC ECC code for LSN data
• HW Half Word
• LSN Logical sector number

4
6320B–ATARM–05-Nov-07
Application Note
3.3 Invalid Block Identification
Before shipping, every NAND Flash device is tested with specific test patterns under different
voltage and temperature conditions in order to identify memory locations containing errors.
When errors are detected, the block to which the invalid memory location belongs is marked as
an “Invalid Block”.
All device locations are erased (FFh for 8-bit devices, FFFFh for 16-bit devices) except locations
where the invalid block information is written.
As illustrated above in Figure 3-1,Figure 3-2, Figure 3-3, and Figure 3-4, the bad block Informa-
tion is located in the first byte (8-bit devices) or first half word (16-bit devices) in the spare area
for Large Page devices and in the sixth byte (8-bit devices) or sixth half word (16-bit devices) in
the spare area of Small Page devices.
Manufacturers make sure that every invalid block has non-FFh (8-bit devices) or non-FFFFh
(16-bit devices) data in the bad block information location.
Since invalid block information (located in the spare area) written by the manufacturer is not
write/erase protected, it can be lost and will be almost impossible to recover. In order to prevent
loosing this information, it is highly recommended to proceed to a block status mapping before
any write or erase operation.
The flow chart below describes how this can be done by software.
Figure 3-5. Bad Block Identification Flow Chart
Important Note: Any intentional erasure of the original invalid block information is prohibited.
Start
Set Block Address = 0
Data = FFh
or FFFFh ?
Last Block ?
End
Update
Invalid Block(s) Table
Increment Block Address
No
No
Yes
Yes
Point to Bad Block Information
location
Create
Invalid Block(s) Table

5
6320B–ATARM–05-Nov-07
Application Note
4. Error Detection and Correction
NAND Flash/SmartMedia devices contain by default invalid blocks which have one or more
invalid bits. Over the NAND Flash/SmartMedia lifetime, additional invalid blocks may occur
which can be detected/corrected by ECC code. To ensure data read/write integrity, system error
checking and correction (ECC) algorithms should be implemented. The AT91SAM9260/9263
and AT91SAM7SE microcontrollers provide ECC hardware support. The embedded ECC con-
troller is capable of single-bit error correction and 2-bit error detection per page
(528/1056/2112/4224). When NAND Flash/SmartMedia have more than 2 bits of errors, the data
cannot be corrected.
4.1 ECC Calculation Algorithm
For Single-bit Error Correction and Double bit Error Detection (SEC-DED) hsiao code is used.
32-bit ECC is generated in order to perform one bit correction per 512/1024/2048/4096 8- or 16-
bit words. Of the 32 ECC bits, 26 bits are for line parity and 6 bits are for column parity. They are
generated according to the schemes shown in Figure 4-1 and Figure 4-2.
Figure 4-1. Parity Generation for 512/1024/2048/4096 8-bit Words1
Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
P8
P8'
Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
P8
P8'
P16
P16'
Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
P8
P8'
Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
P8
P8'
P16
P16'
P32
P32
1st byte
P32
2nd byte
3rd byte
4 th byte
Page size th byte
(page size -1 )th byte
PX
PX'
Page size = 512 Px = 2048
Page size = 1024 Px = 4096
Page size = 2048 Px = 8192
Page size = 4096 Px = 16384
(page size -2 )th byte
(page size -3 )th byte
P1 P1' P1'
P1 P1 P1' P1' P1
P2 P2' P2 P2'
P4 P4'
P1=bit7(+)bit5(+)bit3(+)bit1(+)P1
P2=bit7(+)bit6(+)bit3(+)bit2(+)P2
P4=bit7(+)bit6(+)bit5(+)bit4(+)P4
P1'=bit6(+)bit4(+)bit2(+)bit0(+)P1'
P2'=bit5(+)bit4(+)bit1(+)bit0(+)P2'
P4'=bit7(+)bit6(+)bit5(+)bit4(+)P4'

6
6320B–ATARM–05-Nov-07
Application Note
Figure 4-2. Parity Generation for 512/1024/2048/4096 16-bit Words
1st word
2nd word
3rd word
4th word
(Page size -3 )th word (Page size -2 )th word (Page size -1 )th word
Page size th word

7
6320B–ATARM–05-Nov-07
Application Note
4.2 ECC Controller Preliminary Requirements
In order to calculate ECC properly during write/read and read processes, the following con-
straints must be respected:
• at least 1 Hold time must be programmed in the RWHOLD field of the SMC_CSRx register
(only AT91SAM7SE family is concerned)
• read/write sequence must start at a page boundary
• read/write accesses must be done through the whole main area since ECC is calculated on
the main area data
• data accesses must be performed chronologically through the main area
• the appropriate page size must be programmed in the PAGESIZE field of the ECC_MR
register
4.3 ECC Controller Functional Description
4.3.1 Page Write Sequence
The ECC controller is automatically reset as soon as the first write command (80h) is performed
to the NAND Flash or the SmartMedia device.
The ECC calculation starts only once the required address cycles (the number of address cycles
depends on the device type) is performed to NAND Flash or the SmartMedia device.
The ECC is refreshed at each write access of the page until the last byte or half word of the main
area is written.
Once the whole main area has been written, the final ECC result is available in the ECC Parity
Register (ECC_PR) and ECC NParity Register (ECC_NPR) until a new start condition occurs. It
is up to the software application to write the Parity ECC and NParity ECC in the appropriate loca-
tions of the device spare area.
Please note that apart from data accesses (ALE = CLE = 0), the ECC controller ignores any
other command which is performed to the NAND Flash or the SmartMedia device.
Figure 4-3 below illustrates a full page write sequence with ECC calculation.
Figure 4-3. ECC Calculation During Page Write Sequence without Random Write Spare Area
I/Ox Address
Write
Command 1
Write
Command 2
Address cycles
ECC Controller
Reset
Main Area Write Accesses
Accesses Allowing ECC calculation
Start of ECC
Calculation
ECC Result
Ready in and Locked
Accesses Ignored by the ECC Controller
for ECC calculation
Spare Area ECC locations
Write Accesses
80h 10h1st 2nd ... n th ECC ECC ECC ECC
Main Area Size

8
6320B–ATARM–05-Nov-07
Application Note
Figure 4-4. ECC Calculation During Page Write Sequence with Random Write Spare Area
4.3.2 Page Read Sequence
The ECC controller is automatically reset as soon as the first read command (00h) is performed
to the NAND Flash or the SmartMedia device.
The ECC calculation starts only once the required address cycles (the number of address cycles
depends on the device type) and the second read command (30h) is performed to the NAND
Flash or the SmartMedia device.
The ECC is refreshed at each read access of the page until the last byte or half word of the main
area is read.
Once the whole main area has been read, the next four data read accesses must be performed
to the spare area locations where ECC has been previously stored by the software application. If
this condition is not respected, the ECC controller will not be able to check data integrity.
Since Parity ECC and NParity has been previously stored in locations of the spare area which
are not contiguous to the main area, it is useful to perform a random read command sequence
before performing the four ECC data accesses.
Please note that apart from data accesses (ALE = CLE = 0), the ECC controller ignores any
other command which is performed to the NAND Flash or the SmartMedia device.
The ECC controller performs error detection automatically by applying an XOR operation
between the calculated ECC and the ECC stored in the spare area.
In order to determine if an error has been detected by the ECC controller, the software applica-
tion must check the MULERR, ECCERR and RECERR fields in the ECC Status Register
(ECC_SR).
4.3.2.1 No Error
MULERR, ECCERR and RECERR fields in the ECC Status Register (ECC_SR) are all cleared.
XOR between the calculated ECC computation and the ECC code stored in the spare area is
equal to 0.
4.3.2.2 Recoverable Error
Only the RECERR field in the ECC Status register (ECC_SR) is set. The corrupted word offset
in the read page is defined by the WORDADDR field in the ECC Parity Register (ECC_PR). The
corrupted bit position in the concerned word is defined in the BITADDR field in the ECC Parity
Register (ECC_PR).
Write
Command 2
Spare Area ECC locations
Write Accesses
10h
ECC ECC ECC ECC
I/Ox Address
Write
Command 1
Address cycles
ECC Controller
Reset
Main Area Write Accesses
Accesses Allowing ECC calculation
Start of ECC
Calculation
ECC Result
Ready in and Locked
Accesses Ignored by the ECC Controller
for ECC calculation
80h 1st 2nd ... n th
Main Area Size
Address
Random
Write
Command
Column Address
cycles
85h

9
6320B–ATARM–05-Nov-07
Application Note
4.3.2.3 ECC Error
The ECCERR field in the ECC Status Register (ECC_SR) is set. An error has been detected in
the ECC code stored in the Spare area of the device. The position of the corrupted bit can be
found by applying an XOR operation between the ECC Parity and the ECC NParity codes previ-
ously stored in the spare area of the device.
4.3.2.4 Non Recoverable Error
The MULERR field in the ECC Status Register (ECC_SR) is set. Several errors have been
detected in the data stored in the device. The block to which this page belongs should be
declared as invalid.
Figure 4-5 below illustrates a full page read sequence with ECC error detection.
Figure 4-5. ECC Error Detection During Page Read Sequence with Random Read Spare Area
Figure 4-6. ECC Error Detection During Page Read Sequence without Random Read Spare Area
Main Area Size
I/Ox Address
Read
Command 1
Read
Command 2
Address Cycles
ECC Controller
Reset
Data Accesses
Main Area Read Accesses
Accesses allowing ECC calculation
Start of ECC
Calculation
ECC Result
Ready and Locked
Accesses ignored by the ECC Controller
for ECC calculation
Spare Area ECC locations
Read Accesses
00h 30h 1st 2nd ... n th Address
Random
Read
Command 1
Random
Read
Command 2
Column Address
cycles
Accesses ignored by the ECC Controller
for Error Detection
05h E0h ECC ECC ECC ECC
Start of
ECC Error Detection
ECC Error Detection
Completed
Main Area Size
I/Ox Address
Read
Command 1
Read
Command 2
Address Cycles
ECC Controller
Reset
Data Accesses
Main Area Read Accesses
Accesses allowing ECC calculation
Start of ECC
Calculation
ECC Result
Ready and Locked
Accesses ignored by the ECC Controller
for ECC calculation
Spare Area ECC locations
Read Accesses
00h 30h 1st 2nd ... n th ECC ECC ECC ECC
Start of
ECC Error Detection
ECC Error Detection
Completed

10
6320B–ATARM–05-Nov-07
Application Note
5. High-Level File System Software Compatibility
High-level software drivers for managing file systems in NAND Flash devices are available from
different sources. These drivers provide support for wear leveling, bad block management, ECC
etc...
File Systems available on the market usually manage ECC as:
• 3 bytes ECC for 256 bytes of data per page
• 3 bytes ECC for 512 bytes of data per page
The AT91SAM ECC controller manages ECC as:
• 4 bytes ECC for 512/1024/2048/4096 bytes of data per page
Since the ECC offset in the spare area and the number of ECC per page is not yet normalized, it
is highly recommended to manage ECC by software when using a high-level file system.
6. Software Example
A software example managing Bad Block Information and ECC error detection for Large Page
Devices can be downloaded from the Atmel web site via the following link:
http://atmel.com/dyn/resources/prod_documents/an-nand_flash_sam7se_software_example.zip

11
6320B–ATARM–05-Nov-07
Application Note
7. Revision History
Doc. Rev Comments
Change
Request Ref.
6320A First issue
6320B Figure 4-3 and Figure 4-4 updated,
Section 3.2 ”Spare Area Assignment”, updated sentence refering to figures. 4440

6320B–ATARM–05-Nov-07
Headquarters International
Atmel Corporation
2325 Orchard Parkway
San Jose, CA 95131
USA
Tel: [phone]
Fax: [phone]
Atmel Asia
Room 1219
Chinachem Golden Plaza
77 Mody Road Tsimshatsui
East Kowloon
Hong Kong
Tel: [phone]
Fax: [phone]
Atmel Europe
Le Krebs
8, Rue Jean-Pierre Timbaud
BP 309
78054 Saint-Quentin-en-
Yvelines Cedex
France
Tel: [phone]
Fax: [phone]
Atmel Japan
9F, Tonetsu Shinkawa Bldg.
1-24-8 Shinkawa
Chuo-ku, Tokyo 104-0033
Japan
Tel: [phone]
Fax: [phone]
Product Contact
Web Site
www.atmel.com
www.atmel.com/AT91SAM
Technical Support
AT91SAM Support
Atmel techincal support
Sales Contacts
www.atmel.com/contacts/
Literature Requests
www.atmel.com/literature
Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any
intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN ATMEL’S TERMS AND CONDI-
TIONS OF SALE LOCATED ON ATMEL’S WEB SITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY
WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDEN-
TAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, OR LOSS OF INFORMATION) ARISING OUT
OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes no
representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifica-
tions and product descriptions at any time without notice. Atmel does not make any commitment to update the information contained herein. Unless specifically pro-
vided otherwise, Atmel products are not suitable for, and shall not be used in, automotive applications. Atmel’s products are not intended, authorized, or warranted
for use as components in applications intended to support or sustain life.
© 2007 Atmel Corporation. All rights reserved. Atmel®, logo and combinations thereof and others, are registered trademarks, or trademarks of Atmel
Corporation or its subsidiaries. ARM®, Thumb®and the ARM Powered®logo are registered trademarks of ARM Limited. Other terms and product names
may be the trademarks of others.
6320B–ATARM–05-Nov-07
