user`s guide
ATN Night Raven
NIGHT VISION BINOCULAR
NIGHT RAVEN USER’S GUIDE (REV. 3, OCTOBER 2010)

The information in this manual furnished for information use only, is subject to change without notice,
is not to be construed as a commitment by ATN Corp.
ATN Corp. assumes no responsibility or liability for any errors or inaccuracies that may appear in this book.
©2010 ATN Corp. All right reserved.
This producT conTains naTur al rubber laTex which may cause allergic reacTions.
CAUTION:

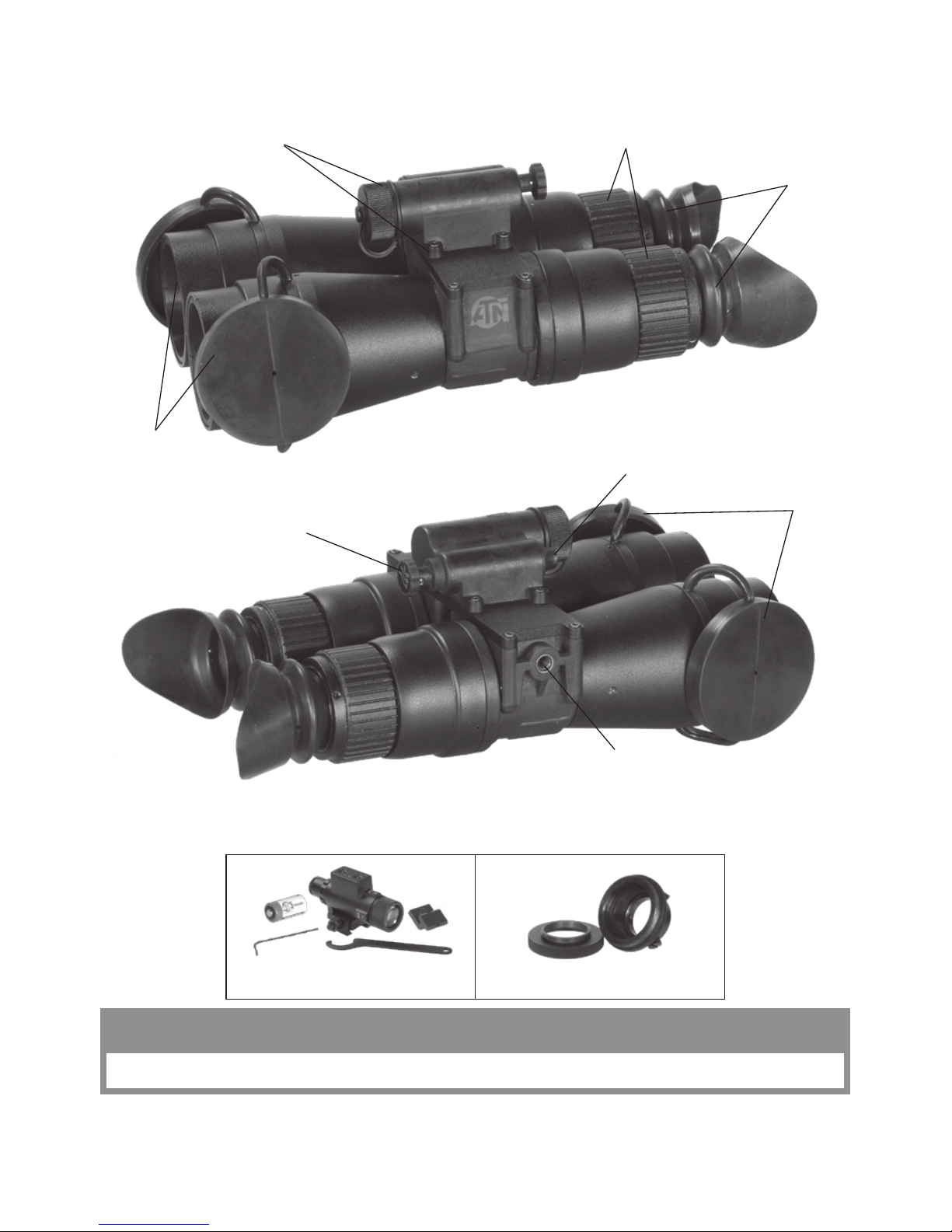

Built-in infra-red
illuminator
Operation switch
knob
Mounting
thread
85 mm lenses for
maximum clarity
1.5V AA or 3V Lithium
battery Diopter adjustment
rings
Rotating rubber
eye-caps
Protective covers/
daylight filters
OPTIONAL ACCESSORIES
INFRA-RED ILLUMINATOR IR450 KIT
Item # ACMUIR45B7
CAMERA-ADAPTER
Item #ACMUCA05
Register your product warranty online at www.atncorp.com/warranty

2
SPECIFICATIONS
Magnification ............................................ 3X
Lens System ............................................. 85 mm, F1:1.7
Field of view .............................................. 12°
Diopter adjustment .................................... ±5
Range of Focus ......................................... 50 m to infinity
Power Supply ............................................ 1.5V AA or 3V CR123A Lithium battery
Battery Life ................................................ 60 hours (30 hours w/IR illuminator)
Operating Temperature ............................. -40°C to +50°C
Storage Temperature ................................ -50°C to +70°C
Weather resistant ...................................... Yes
Dimensions ............................................... 210 mm x 75 mm x 135 mm (8.2” x 2.9” x 5.3”)
Weight ....................................................... 1.3 kg (2.8 lb)
* ATN reserves the right to change the above specifications at any time without notice
APPLICATION
The Night Raven is rugged and lightweight night vision binocular. It utilizes multicoated optics
specially coated to gather light to provide bright and clear images. Couple these optics with
state of the art quality image intensifier tubes and the Night Raven is an excellent binocular. The
Night Raven is an amazing combination of versatility, performance, and price.
The Night Raven night vision binocular is a complex optic-electronic system for individual
use. The device consists of the objective lenses assembly, eyepieces and the body. The body
contains an image intensifier tubes assembly with an integrated high voltage power source
and the battery housing.
Objective lens protective covers is intended to protect the objective lenses from dust and
scratches. It also acts as a daylight filter, allowing you to test the scope in daylight or other
bright light situations. The pinhole in the center of the protective cover allows the user to check
the operation ability of the device in daylight conditions.
NOTE: Do not test the scope in daylight conditions even with the daylight filter/lens caps on for
more than ten (10) minutes.

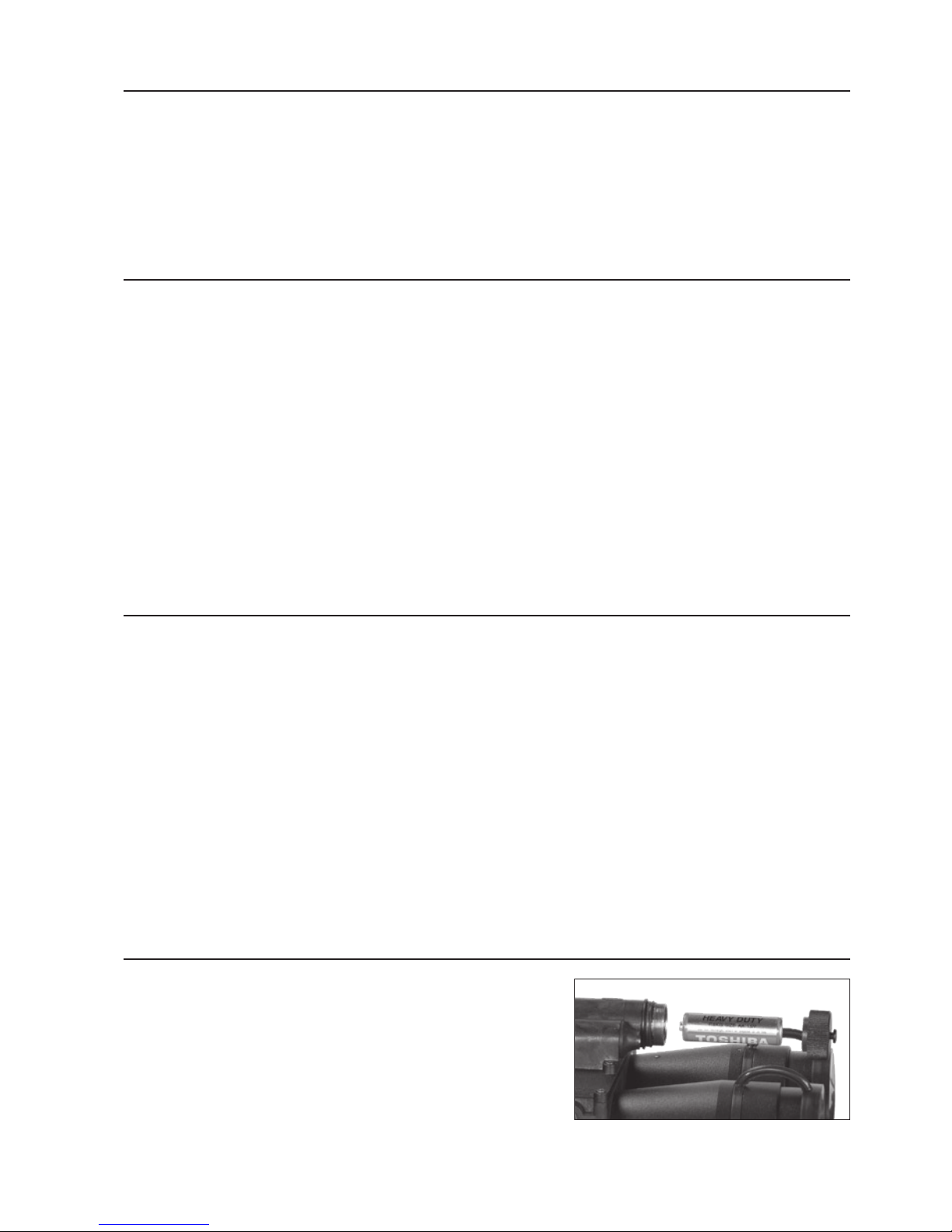

BATTERY INSTALLATION
Install standard AA batteriy in battery housing as
follows:
1. Unscrew the battery cap(A).
2. Insert AA battery(B), observing the polarity as indi-
cated.
3. Replace the battery cap and screw cap hand tight.
• High Quality light intensifier tubes
• Super fast lens systems provides the user
with a clear and sharp image
• Built-in Infra-Red illuminators lets you see
even in total darkness
• Rugged and versatile design
• Simple, easy to operate control
• Camera/camcorder-adaptable
• Flexible carrying case
• Uses one AA or one Lithium battery
• Weather resistant
• Two year warranty
FEATURES
A
B

3

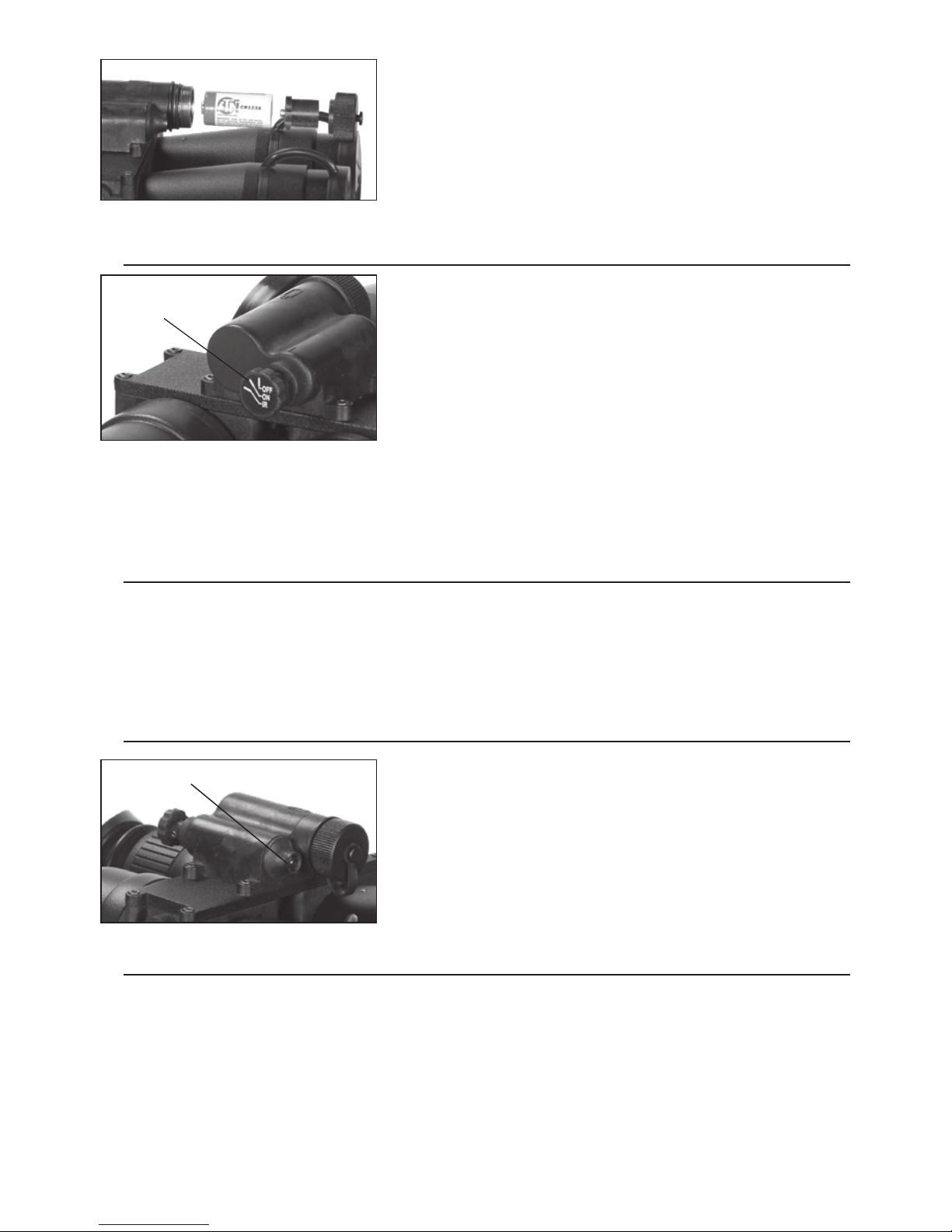

Install CR123A battery in battery housing as follows:
1. Unscrew the battery cap(A).
2. Screw the CR123 battery adapter(C) in to the cap.
3. Insert the battery(D), observing the polarity as indicated.
4. Replace the battery cap and screw cap hand tight.
OPERATION
• Take the binocular out of the case.
• Rotate operation knob from “OFF” position to “ON” posi-
tion to turn the unit on. The protective lens covers shall be
attached to the lens. Do not turn the unit on in daytime
without the protective lens caps on. You should see
green glow in the eyepieces.
• Observe the scene and adjust the diopter for optimal
image clarity.
• You may now enter a dark environment or simply shut the lights off in order to darken the room.
• Next, remove the lens cap/daylight filters. Adjust the diopters. Remember that focusing
range starts from 50 m.
• To turn the unit off, rotate the operation knob from “ON” to “OFF” position.
FOCUSING
To focus the Night Raven you will need to make the diopter adjustment. Simply turn the diopter
adjustment rings clock wise until it stops. Then, while looking the object through the oculars on
an object, slowly turn the diopter adjustment rings back counter clockwise until the grain on
the image becomes sharp.
NOTE: We suggest that you focus the diopter during daylight with the filter on.
BUILT-IN INFRA-RED ILLUMINATORS
Infra-red illuminator, or IR illuminator, are common to night
vision. The IR light greatly enhances the performance of
the Night Raven while remaining almost invisible to a naked
eye.
To turn the built-in IR on, draw and rotate the operation
knob to “IR” position.
It is important to remember that the IR illuminator is simply
an infra-red light source, and like any light source, it may
loose its effectiveness over a great distance.

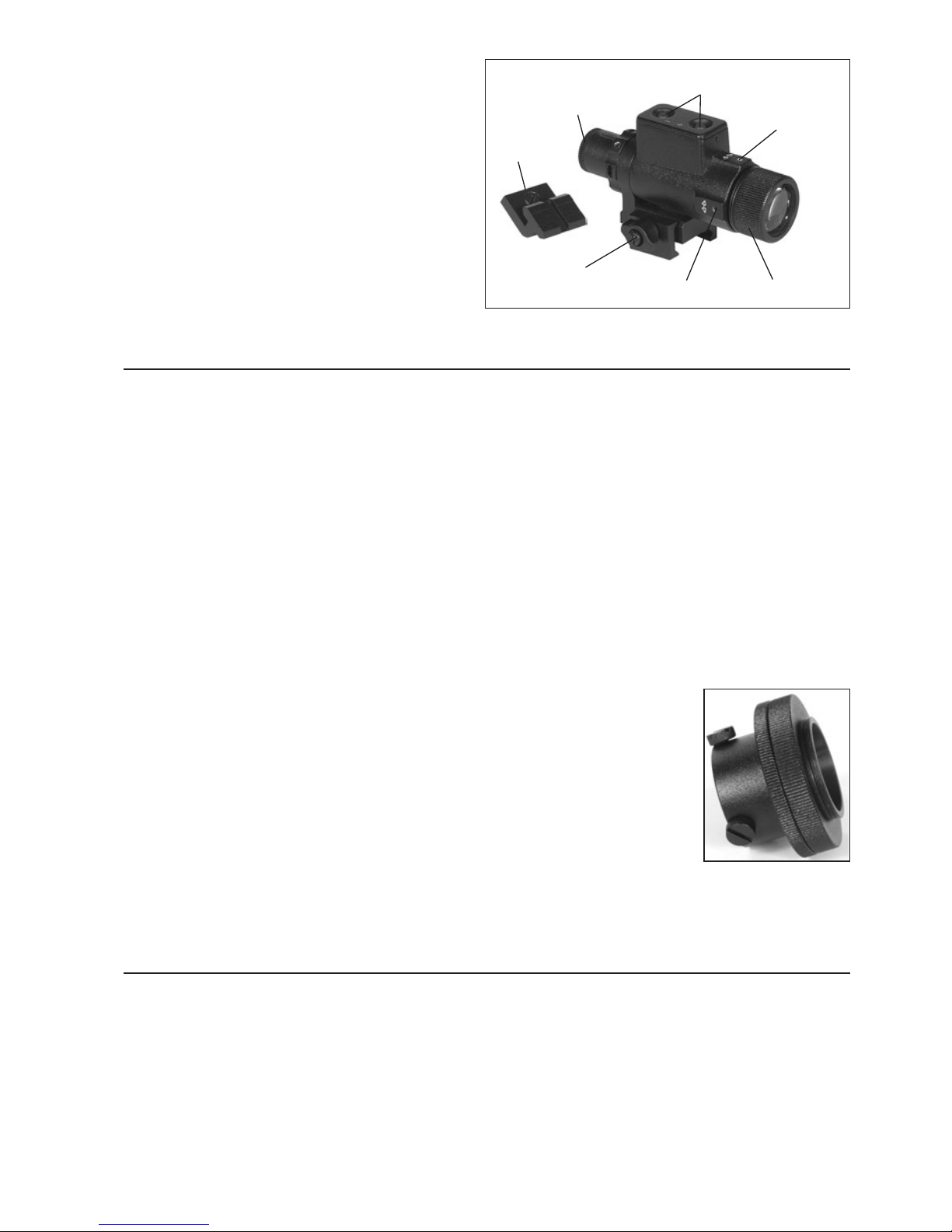

450 mW INFRA-RED ILLUMINATOR (OPTIONAL)
The 450 mW IR Illuminator is powered by a separate battery. To install the battery unscrew the
cap and insert the battery with the polarity order shown on the body of the IR450. To install the
450mW IR Illuminator onto the binocular screw the adapter into the thread on the binocular
body. Install IR450 onto the adapter’s rail and fix the clamp.
The IR illuminator control buttons are located on its side. To switch the Digital IR illuminator
on/off press “+” and “-” buttons simultaneously. When the IR illuminator is switched on you can
Operation
knob
A
C
D
Built-in Infra-red Illuminator

4
see the green LED lit. By pushing the buttons
“+” and “-” you may adjust the IR brightness.
The IR beam is focusable to change the
field of coverage. To change the beam width
slightly turn the IR lens.
You could change the IR control panel fit-
ting your needs. The screw-tool from the
kit should be used for weakening the clamp
located on the IR. Rotate the IR placing it in
the most convenient position. Tighten the
clamp with the screw-tool to fix the new posi-
tion.
CAMERA ADAPTER (OPTIONAL)
To use your Night Raven with a 35mm camera or camcorder you will need the following:
1) If you plan to use a camcorder then your camcorder must have a MACRO feature. Most
modern camcorders today have a MACRO feature built-in.
2) If you plan to use a 35mm camera, you will need a MACRO lens. If you don’t have one, we
advise that you contact your local camera store.
3) You may or may not need a STEP-UP or STEP-DOWN ring in order to adapt the camera
ad apter to your lens. NOTE: The camera adapter comes with 37mm and 52mm threads. If you
need other sizes your local camera store should be able to help.
• Remove one of the rubber eyecups from the Night Raven
• Screw the camera adapter onto the front of the lens on your Video camera’s lens or your
35mm camera’s lens.
• Loosen the three set screws on the camera adapter.
• Place the camera adapter over the Night Raven’s eyepiece.
• Tighten the three set screws to fit snugly to the Night Raven’s eyepiece
• You may need to focus the 35mm camera or video camera in combina-
tion with the Night Raven in order to get the sharpest possible image.
• We suggest that you find an open space to work in. Focus the Night
Raven so that the scene is at its sharpest. For best results you should
disable the auto focus (if any) on either the 35mm camera or the video
camera and manually focus the 35mm camera or the video camera.
Once the image is sharp, then simply adjust the Night Raven’s front lens
to change focus.
* An important part to remember is that you are not taking a picture of an object that is far away
from you, but you are actually taking a picture of a phosphorous screen of the Night Raven that
is only 2-3 inches away.
STORAGE AND CARE
• If the device will not be in use for extended period of time (more than 10 days) remove the
battery.
• Avoid touching of lenses. If fingerprints or traces of dirt or dust appear, clean their surface
with a Photographic lens cleaning tissue.
• Keep lens caps/daylight filters on when not in use.
• The Night Raven is not harmful to the user or the environment.
• Do not disassemble except to clean the front lens and eyepiece: it will void your warranty.
Battery
Housing
Clamp
IR Elevation
IR Windage IR Focusing
IR Brightness Adjustment
Adapter

5
• Evaluate the scope functionality by looking through it in a lit environment with the daylight
filter lens caps on. Never use in daylight without the daylight filter lens caps on.
• Never point the Night Raven at a bright light source.
• Adverse atmospheric conditions such as fog, smog, or haze and a lack of ambient light
(moon or starlight) may diminish the effective viewing distance.
• If you use the rubber eyecaps for a long period of time, you may suffer skin inflammation. If
you develop any symptoms, consult a doctor immediately.
TROUBLESHOOTING
Q: Flashes, flickers, or clicking occur while operating
S: If it occurs within the first five minutes of inserting new batteries, it is normal and the device
will resume normal operation soon thereafter. If it occurs for more than 10 minutes, contact for
service instructions.
Q: Dark spots on screen.
S: These are either cosmetic blemishes in the intensifier tube or dust particles.
Q: Screen becomes darker than at previous use.
S: Replace batteries. If problem persists, contact your dealer or other authorized service
representative for service instructions.
Q: Image not clear.
S: Adjust objective lenses, and/or the eyepieces.

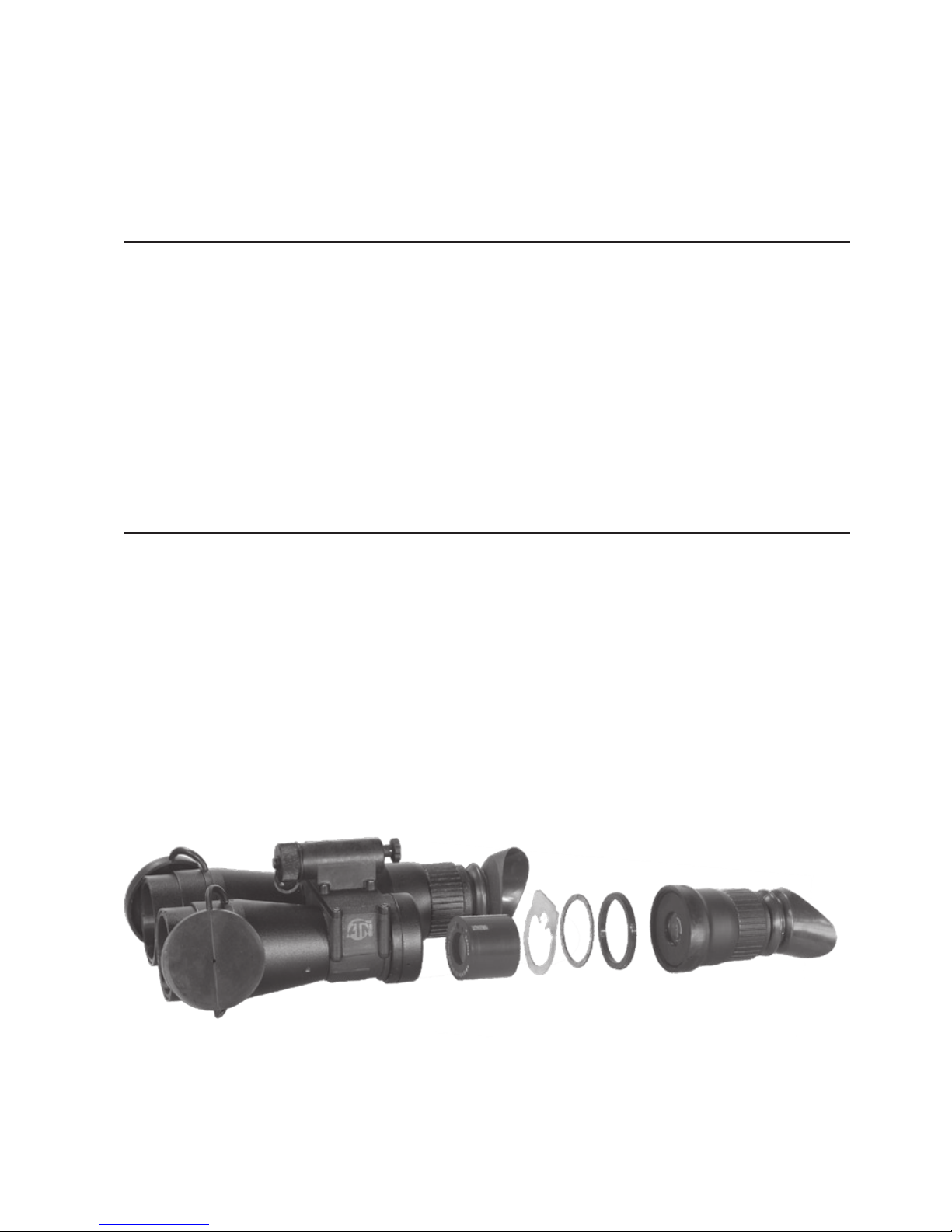

TUBE MAINTANANCE/REPLACEMENT
Tube maintenance /replac ement is to b e perform ed by qualifie d technicians only. These
procedures attempted by non-qualified personnel will void warranty.
1. Unscrew the eyepiece (F) from the case of device (A).
2. Unscrew the lock ring (E) from the case of device.
3. Extract the ring (D) from the case of device.
3. Extract the light guide (C) from the case of device.
4. Extract the tube (B) to be replaced from the case of device (A).
5. Introduce the new tube (B) into the case of device (A).
6. Set the light guide (C) onto the place in the case.
6. Set the ring (D) onto the place in the case.
7. Screw the lock ring (E) into the case of device.
8. Screw the eyepiece (F) into the case of device (A).
A
BCDEF

6
16 032011
2 YEAR PRODUCT WARRANTY
This product is guaranteed to be free from manufacturing defects in material and workmanship under
normal use for a period of 2 (two) years from the date of purchase. In the event a defect that is covered
by the foregoing warranty occurs during the applicable period stated above, ATN, at its option, will
either repair or replace the product, and such action on the part of ATN shall be the full extent of ATN’s
liability, and the Customer’s sole and exclusive remedy. This warranty does not cover a product (a)
used in other than its normal and customary manner; (b) subjected to misuse; (c) subjected to altera-
tions, modifications or repairs by the Customer of by any party other than ATN without prior written
consent of ATN; (d) special order or “close-out” merchandise or merchandise sold “as-is” by either
ATN or the ATN dealer; or (e) merchandise that has been discontinued by the manufacturer and either
parts or replacement units are not available due to reasons beyond the control of ATN. ATN shall not
be responsible for any defects or damage that in ATN’s opinion is a result from the mishandling, abuse,
misuse, improper storage or improper operation, including use in conjunction with equipment which
is electrically or mechanically incompatible with or of inferior quality to the product, as well as failure
to maintain the environmental conditions specified by the manufacturer. CUSTOMER IS HEREBY
NOTIFIED THAT OPERATION OF THE EQUIPMENT DURING DAYLIGHT HOURS OR UNDER
ANY EXCESSIVE LIGHT CONDITI ONS MAY PERMANENTLY DAMAGE THE INTERNAL COMPO -
NENTS OF THE UNIT AND SAID DAMAGE WILL NOT BE COVERED UNDER THIS WARRANTY.
This warranty is extended only to the original purchaser. Any breach of this warranty shall be waived
unless the customer notifies ATN at the address noted below within the applicable warranty period.
The customer understands and agrees that except for the foregoing warranty, no other warranties
written or oral, statutory, expressed or implied, including any implied warranty of merchantability or
fitness for a particular purpose, shall apply to the product. All such implied warranties are hereby and
expressly disclaimed.
LIMITATION OF LIABILITY
ATN will not be liable for any claims, actions, suits, proceedings, costs, expenses, damages or liabili-
ties arising out of the use of this product. Operation and use of the product are the sole responsibility of
the Customer. ATN’s sole undertaking is limited to providing the products and services outlined herein
in accordance with the terms and conditions of this Agreement. The provision of products sold and
services performed by ATN to the Customer shall not be interpreted, construed, or regarded, either
expressly or implied, as being for the benefit of or creating any obligation toward any third par ty of legal
entit y ou t si d e ATN and the Customer; ATN ’s obligations under thi s Agreement extend solely to the Cus-
tomer. ATN’s liability hereunder for damages, regardless of the form or action, shall not exceed
the fees or other charges paid to ATN by the customer or customer’s dealer. ATN shall not, in
any event, be liable for special, indirect, incidental, or consequential damages, including, but
not limi te d to, l ost income, lost revenue, or lost profit , whether such damages wer e fores e eable
or not at the time of purchase, and whether or not such damages arise out of a breach of war-
ranty, a breach of agreement, negligence, strict liability or any other theory of liability.
PRODUCT WARRANTY REGISTRATION
In order to validate the warranty on your product, ATN must receive a completed Product Warranty
Registration Card for each unit or complete warranty registration on our website at www.atncorp.com.
Please complete the included form and immediately mail it to our Service Center: ATN Corporation,
1341 San Mateo Avenue, South San Francisco, CA 94080.
Obtaining warranty service
To obtain warranty service on your unit, End-user must notify ATN service department by calling
800-910-2862 or 650-989-5100 or via e-mail ser[email protected] to receive a Return Merchan-
dise Authorization number (RMA).
When returning please take or send the product, postage paid, with a copy of your sales receipt to our
service center, ATN Corporation at the address noted above. All merchandise must be fully insured
with the correct postage; ATN will not be responsible for improper postage or, missing or damaged
merchandise during shipment.
When sending product back, please clearly mark the RMA# on the outside of the shipping box. Please
include a letter that indicates your RMA#, Name, Return Address, reason for service return, Contact
information such as valid telephone numbers and/or e-mail address and proof of purchases that will
help us to establish the valid start date of the warranty. Product merchandise returns that do not have
an RMA listed may be refused or a significant delay in processing may occur.
Estimated Warranty service time is 10-20 business days. End-user/customer is responsible for post-
age to ATN for warranty service. ATN will cover return postage/shipping to continental USA end-users/
customers after warranty repair only if product is covered by aforementioned warranty. ATN will return
product after warranty service by domestic UPS ground and/or domestic mail. Any other requested,
required or international shipping method the postage/shipping fee will be the responsibility of the
end-user/customer.

©2010 ATN Corporation
For customer service and technical support, please contact
American Technologies Network Corp.
North American Office
1341 San Mateo Avenue, South San Francisco, CA 94080
phone: [phone]; fax: [phone]
European Office
The following countries can use our toll free number:
00 800 9102-8620
Austria, France, Germany, Holland, Italy, Spain, Sweden, Switzerland
For other countries, please use
38 048-7770214 or 38 048-7770345
www.atncorp.com
