Atten GT-8102 User manual

GT-8102 Hot Air Desoldering Station User Manual
GT
compatible


Contents
Copyright information
Description of common symbols
Essential knowledge for users
Safety precautions ..
Disclaimer
Packing list
Schematic diagram of the whole equipment
Connection steps for the whole equipment
Operations of air volume / temperature setup
Parameter setup
System setup menu ....
Host system setup parameters
Total items of function setup menu

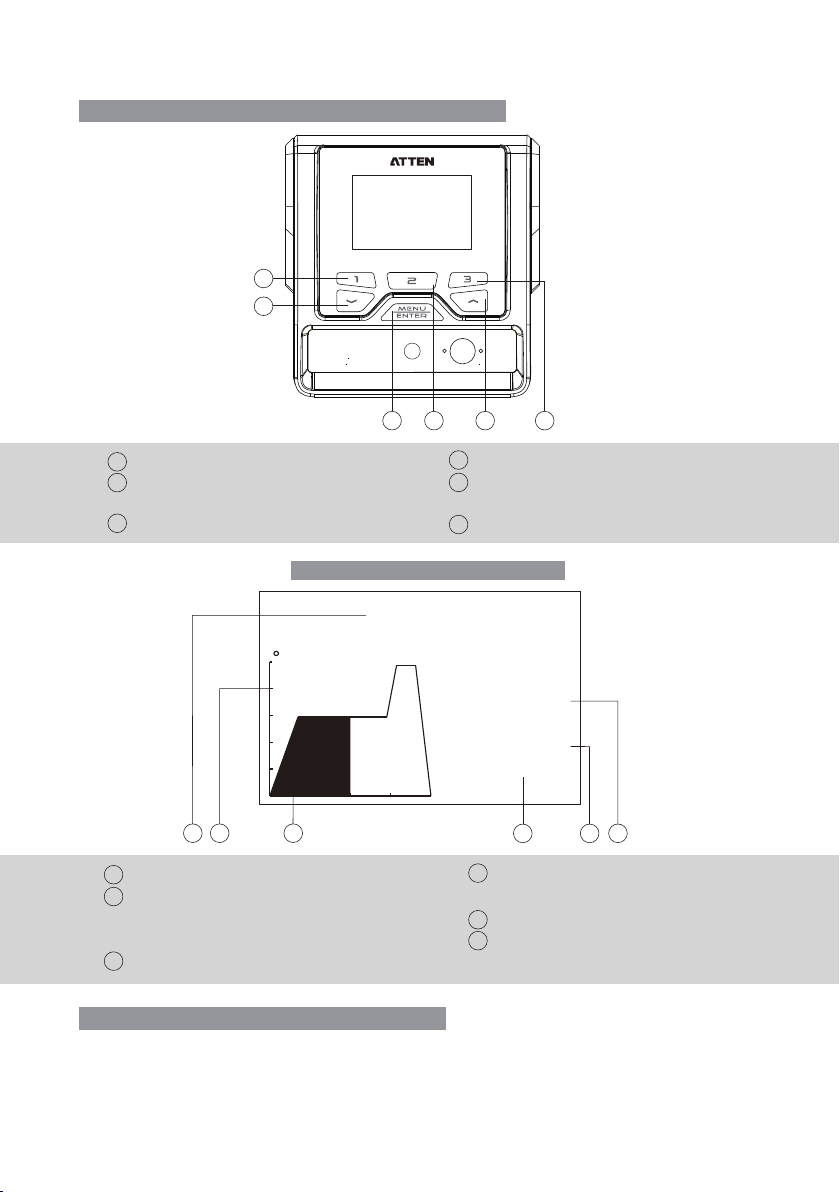

Diagram of keypad functions in curve mode
Curve working interface
Product warranty
After-sales contact
Appendix
Product warranty card
........................................................................2
........................................................2
...........................................................2
..........................................................................2
........................................................................................2
........................................................................................3
.......................................4
.........................................4
Technical parameters .. .....................................................................6
....................................8
Description of normal working interface .............................................7
Selection method of working interface ................................................7
...............................................................................9
Use method of vacuum pen ...............................................................9
Enabling / Disabling of vacuum pen function ......................................9
Call of quick air volume / quick temperature .......................................8
.....................................................................10
........................................................11
..................................................14
....................................17
...................................................................17
Care and maintenance ....................................................................22
............................................................................23
........................................................................23
.........................................................................................24
.....................................................................25
1

Warning
Warning Misuse of this product may lead to serious injury or death to the user.
Caution Misuse of this product may lead to serious injury to the user or material damage to
the object involved.
● To ensure the normal operation of this product’s ESD function, only three-core power cord
shall be used as the host connecting line.
● Do not play or do other similar dangerous actions when using this equipment, because it can
easily lead to injury to others or yourself.
● Do not use this product for purposes other than de-soldering.
● Do not modify this product and its accessories, otherwise the original warranty will be invalidated
or damage may occur to the product.
● When plugging and unplugging the power cord and handle plug, please hold the plug body and
do not pull the cord.
● Do not hit the product or its accessories too hard during the operation; otherwise damage may
occur to the product.
Caution
● Keep this product away from flammable materials.
● Keep the product out of children's reach.
● Do not use this product if you are inexperienced or have no sufficient necessary knowledge
without the guidance of related personnel.
● Do not use this product under wet environment or with wet hands to avoid electric shock.
● Do not modify this product or its accessories without authorization.
● Please turn off the power when replacing parts and iron tips, and do not resume the use until
the equipment is completely cooled down.
● Please use the accessories from the original factory when replacing the product parts.
● Make sure to turn off the power switch when the equipment is temporarily stopped or out of use.
2
Copyright information
Description of common symbols
Essential knowledge for users
Safety precautions
Disclaimer
The design of this product (including internal software) and its accessories is under the protection of
relevant state laws. Any infringement upon the relevant rights of our company will be subject to legal
sanctions. Users shall consciously abide by the relevant state laws when using this product.
Thank you for using our products. Before using the product, please read this manual carefully and pay
attention to the relevant warnings and cautions mentioned in this manual.
Users are required to have basic knowledge of common sense and electrical operations before using
the product.Minors shall use the product under the guidance of a professional or guardian.
[Caution]: To avoid damaging the equipment and keep the safety of the operational environment,
please read this manual carefully before use and keep it well so that you may read it at any time
when necessary.
To avoid electric shock or injury to the human body or fire hazard, the following basic rules must be
observed when using the equipment. In order to ensure personal safety, only parts and accessories
approved or recommended by the original factory can be used, otherwise, serious consequences may
occur!
When using this product, the spray nozzle of hot air gun, with the temperature up to 100-480℃, may
cause burns to the user or cause a fire due to improper application. So Users shall strictly observe
the following rules:
We will take no responsibility for any personal injury or property damage caused by reasons other than
the product quality problem, which may include force majeure (natural disasters, etc.) or personal
behavior during the operation of this product.
This manual is organized, compiled and released by SHENZHEN ATTEN TECHNOLOGY CO., LTD.
according to the latest product features. We will not be responsible for further notice of the subsequent
improvement of the product and this Manual.

Manual

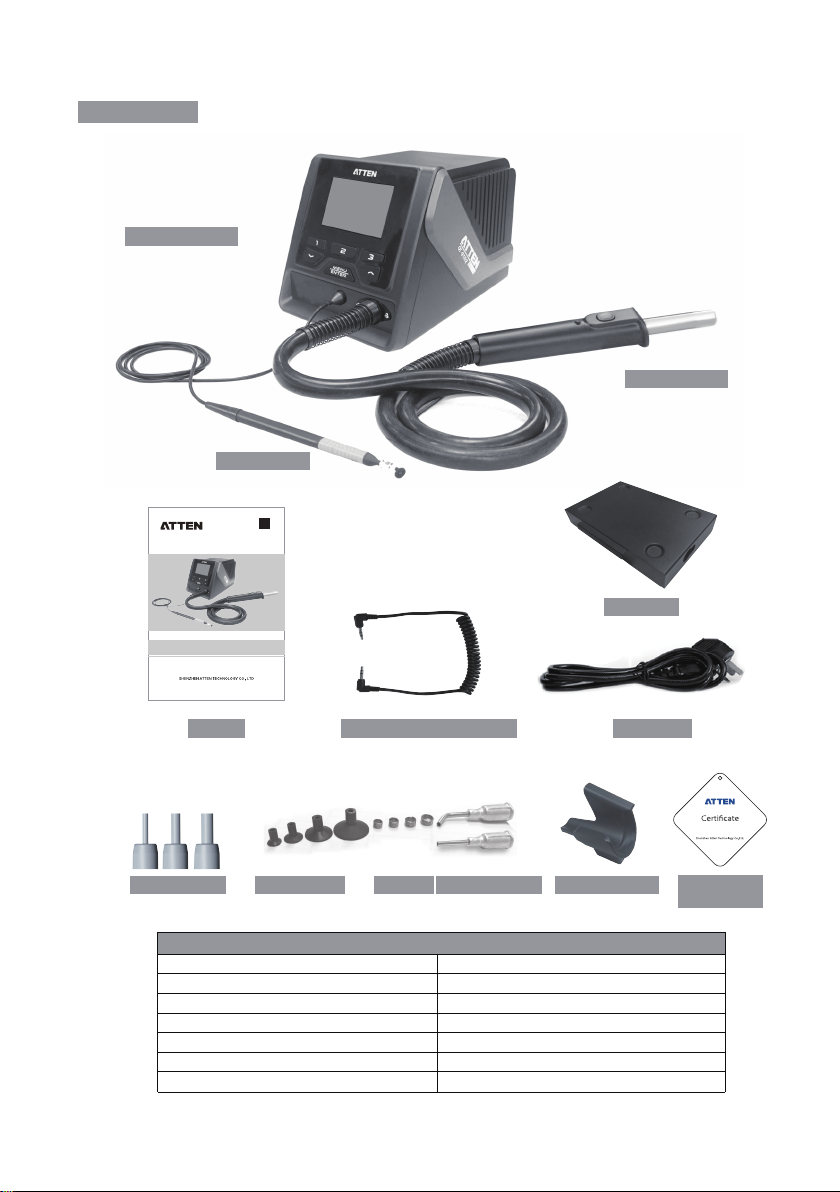

GT-8102 packing list
GT-8102 host
Operating manual
Power line
Handle holder
Spray nozzle
Suction disc
Spring
1 Set
1 Set
1 Pcs
1 Pcs
3 Set
4x3 Pcs
4 Pcs
1 Set
1 Pcs
1 Set
1 Pcs
1 Set
2×2 Pcs
Vacuum pen
Hot air gun handle
Conformity certificate
Double-male-connector
Tool box
Suction nozzle
Power lineDouble-male-connector
Conformity
certificate
Handle holderSpray nozzle
Tool box
GT-8102 host
Hot air handle
Vacuum pen
3
Packing list
GT-8102 hot air desoldering station user manual
GT
compatible
Suction disc Spring Suction nozzle

1
3
4
5 2 8 967 10 111213
Vacuum pen interface
Hot air handle interface
Down arrow key /minus key
Rapid temperature key 1
Confirm key / Menu key
Up arrow key / plus key
1
2
3
4
5
6
Rapid temperature key 2 / Vacuum pen
switch reuse key / System setup menu
switching key
7
Rapid temperature key 3 / System setup
menu switching key
Power plug, connected to rated AC power
Power master switch
RS232 communication interface
Handle holder interface
8
9
10
11
12
Power fuse
Install the hot air handle
13

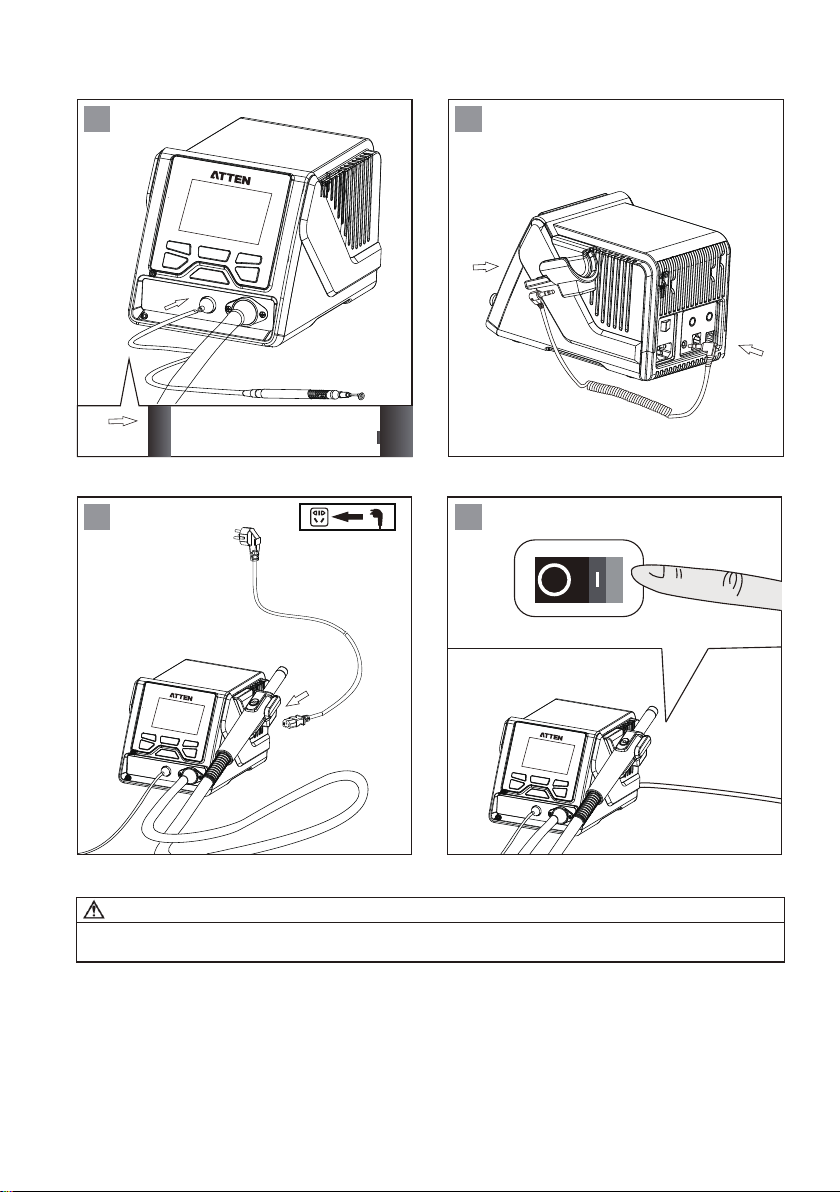

Connection steps for the whole equipment
2
4

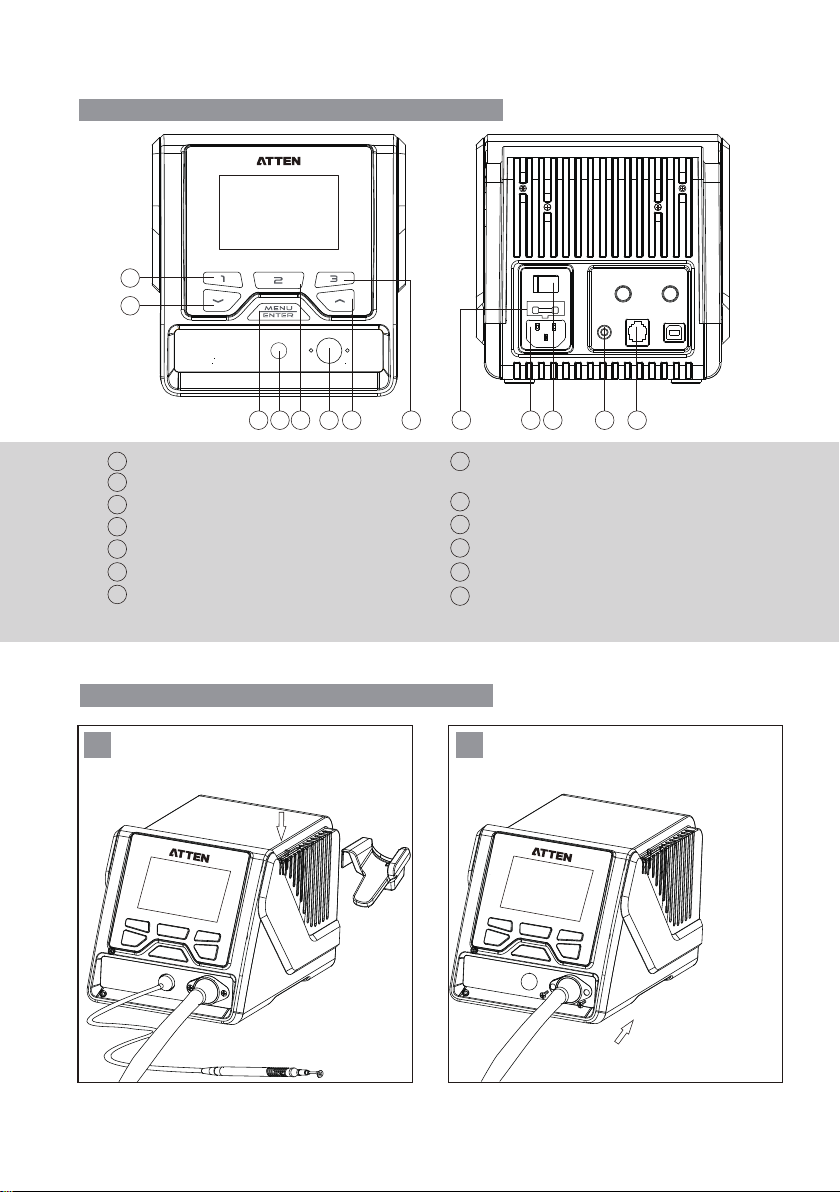

Schematic diagram of the whole equipment
USE ONLY WITH 250 V FUSE
Install the dormancysupport
1

Connect the charger Press power button, and the equipment
can be started or shut down.
Warning
When replacing the hot air handle, be sure to turn off the power switch of host, and unplug the power
plug, to avoid electric shock.
5 6
5
Connect to the signal line of dormancy
switch(With dormancy function, thus
ensuring effective use of products and
energy-saving.)
4
Connect the vacuum pen
3

Technical parameters
Rated operating voltage
Product model
Rated power
Power fuses
Setting range of temperature
Multiple language for
user interface
Setting range of air volume
Timing time
Temperature unit
Monitor contrast
Monitor resolution
Quick function
User temperature
compensation
Heating power display
Hot air flow
Cooling function of
standby heater
Vacuum pressure of
vacuum pen
Alarm function
Heating element
exception detection
Password protection
function
Temperature sensor
exception detection
Temperature adjustment
step
Air volume adjustment
step
Rapid temperature / air
volume
Working conditions
Storage conditions
Dimension
AC 230V±10% 50hz (110v±10% 60hz, optional)
GT-8102
T 6.3A (230VAC) T 12A (110V AC)
1000W(Max)
100℃ ~ 480℃/ 212℉ ~ 896℉
Support Chinese / English interface;
Chinese interface by default
25%~99%
10~900S
℃/℉; ℃ by default
10~100%
Three groups of rapid temperature
±50℃ /±90℉
Five dynamic power bars
Available (Enabled by default)
120L(Max)
Supported
-80Kpa
Heating element removal detection; heating element open
circuit detection; heating element overheating detection
Available (Disabled by default)
Sensor open circuit detection
Long press and the temperature will be adjusted at a step
of 10 units; momentarily press, and the temperature will
be adjusted at one unit.
Long press and the air volume will be adjusted at a step
of two units; momentarily press, and the air volume will
be adjusted at one unit.
3 groups of temperature / air volume,
which can be called quickly
240x160 Dots(white letters on blue)
Temperature 0℃~40℃ Relative humidity<80%
Temperature -20℃~80℃ Relative humidity<80%
315(L)×252(W)×127(H)mm
Approximately 4kgWeight
6

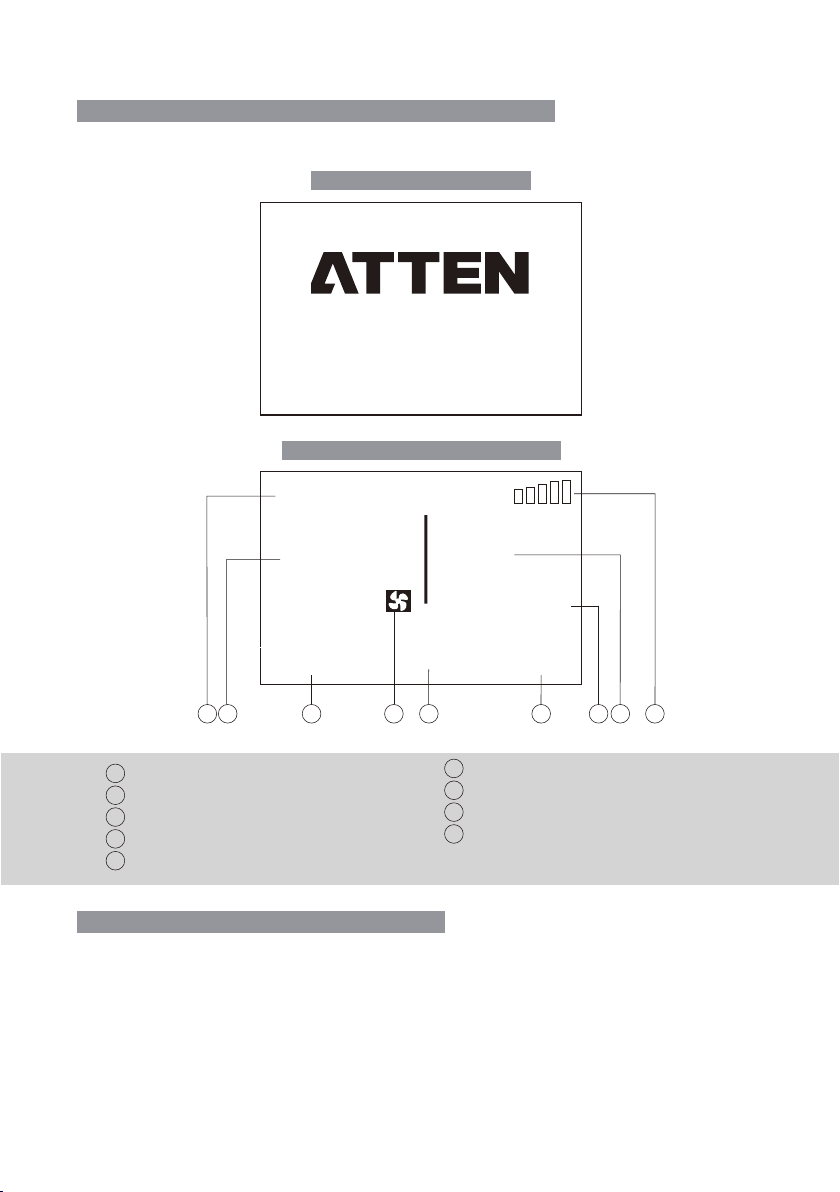

Description of GT-8102 normal working interface
Selection method of working interface
GT-8102 startup interface
Versio n:1 .00
ww w.atten.com
8102
1
2
3
4
5
Status display area.
Display of air volume.
Rapid temperature / air volume 1.
Air volume setting icon.
Rapid temperature / air volume 2.
6
7
8
9
Rapid temperature / air volume 3.
Display area of preset temperature.
Display of actual temperature.
Heating power strength display.
7
50 %
50% 50% 50%
c
300
---
o
200 300 400
GT-8102 normal working interface
Standby
1 6 743 5
2 8 9
Aften connected with charger turn on the power switch. the product will be working normally.
Aften the screen display systen version for 3 seconds.
1. Long press “MENU” key to enter the system setup interface;
2. Short press the shortcut key “3” to enter the function setup interface (short press the shortcut
key “2” to jump to the system setup interface);
3. Select the interface mode (normal / curve);

When setting the air volume, press “ ” and
the air volume will increase (increase to 99% at
most).
When setting the temperature, press “ ”
and the temperature will rise (rise to 480℃ at
most).
Operations of air volume / Temperature setup
Call of quick air volume / quick temperature
1
2
2
1
8
33
%
29% 45% 99%
c
200
---
o
380 410 480
Standby
33
%
29% 45% 99%
c
200
---
o
380 410 480
Standby
32
%
29% 45% 99%
c
200
---
o
380 410 480
Standby
200
3
1
33
%
29% 45% 99%
c
200
---
o
380 410 480
Standby
Short press “MENU” key to switch the air
volume setup and temperature setup.
If selecting the icon , it means setting the
air volume.
If selecting the icon ℃, it means setting
the temperature.
When setting the air volume, press “ ” and
the air volume will drop (drop to 25% at most).
When setting the temperature, press “ ”
and the temperature will drop (drop to 100℃ at
most).
Short press “1” (“2” or “3”), and the
corresponding quick temperature value and air
volume value can be called.
Note: The quick air volume value / temperature
value can be changed and set in the function setup
menu.
Default status:
Quick 1 temperature / air volume: 200℃/50%.
Quick 2 temperature / air volume: 300℃/50%.
Quick 3 temperature / air volume: 400℃/50%.

1

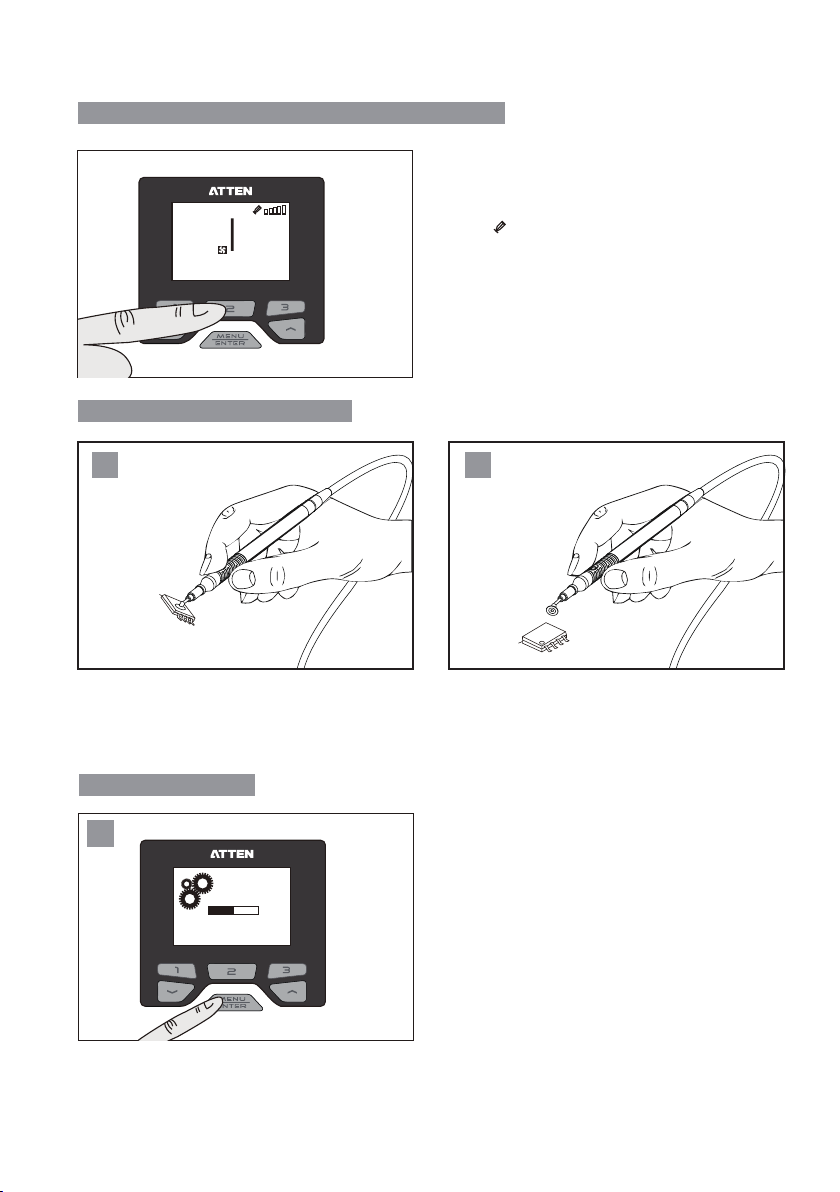

Enabling / Disabling of vacuum pen function
Use method of vacuum pen
Parameter setup
50%
5
0%
Load ing...
1 2
9
33
%
29% 45% 99%
c
200
---
o
380 410 480
Standby
In the normal working interface:
1. Long press the key “2” for 2sec, the
vacuum pen function can be enabled, and the
icon “ ” will be displayed.
2. Then long press the key “2” again and the
vacuum pen function will be disabled.
When the vacuum pen function is enabled, the
vacuum pen can be operated.
Block the air hole of vacuum pen with the finger,
and the SMD components can be sucked in.
Loosen the air hole, and put down the components.
Hold "MENU" key until the load is completed
(100%).

2
Login
* *
Exit
9
System setup menu
3
4
Languages
Unit
Password
Keypad Tone
LCM Contrast
System set
En
C
* * *
ON
4 4
Languages
Unit
Password
Keypad Tone
LCM Contrast
System set
En
C
* * *
ON
4 4
Function set
UI Mode
Temp Offset
Timing Work
Shortcut Tmep 1
Shortcut Air 1
Nor
4
10
100
30
Languages
: Language displayed on the system
and menu.
Unit
: Temperature unit displayed
on the system.
Password
: The authorization password set to
enter the system parameters interface.
Keypad Tone
: The switch to turn on and off
the key operation tone.
LCM Contrast
: Contrast ratio adjustment
displayed on the screen.
10
If the configuration page is under the protection of
password, the login to “Confirm” page shall be
authorized. Press " " or " " key to change the
input value, press “Enter" key to complete one
input, and press the key "3" to return to the main
interface.
If there is no password protection, or after the
correct password is entered, it will jump to the
system parameter setup interface. At this time,
the system parameters can be configured.
Press the key “3” to enter the function setup page.
Press the key “2” to enter the system setup page.

Used to set the system language:
Short press the “MENU” key to enter the language option;
Press “ ” or “ ” to switch the language.
EN: English.
CN: Chinese.
After selecting the required language, short press the
“MENU” key to confirm it.
The factory default is: Chinese.
Languages
Unit
Password
Keypad Tone
LCM Contrast
System set
En
C
* * *
ON
4 4
Languages
Unit
Password
Keypad Tone
LCM Contrast
System set
En
C
* * *
ON
4 4
Languages
Unit
Password
Keypad Tone
LCM Contrast
System set
En
C
* * *
ON
4 4
In any setup mode, press the key “3” to enter the function / curve setup page;
press the key “2” to enter the system setup page.
Languages
System set
〉
Languages
Unit
Password
Mode
Net Address
Factory Default
Exit
System set
Nor
1
Host system setup parameters
System set 〉
Unit
System set
〉
Password
11
Mode
: Used to define the Host communication (not
available yet).
Net Address
: Local communication address defined
during networking operation (not available yet).
Factory Default
: Used to resume the Host to the
factory settings.
Exit
: Press to exit the parameter setup to return to
the main interface.
Used to set the system temperature unit:
℃: Celsius.
℉: Fahrenheit.
The factory default is: ℃.
1. Used to lock the system and protect set
parameters of the system from being changed
by unauthorized person.
2. Coordinate with the fixed temperature of
parameter setup of the function, lock the
temperature of the whole equipment and
control the welding process.
The factory default is: OFF.

Languages
Unit
Password
Keypad Tone
LCM Contrast
System set
En
C
* * *
ON
4 4
Languages
Unit
Password
Keypad Tone
LCM Contrast
System set
En
C
* * *
ON
4 4
LCM Contrast
Enter PIN
0 - 000
-
System lock
PIN:
System lock-in
Enter PIN
0 - -
Password error
System unlock
System lock-out
Keypad Tone System set 〉Keypad Tone
System set 〉
LCM Contrast
12
System set
〉
Password
〉System lock-in
System set
〉
Password
〉System lock-out
System set
Mode
Unit
Password
Keypad Tone
LCM Contrast
C
***
ON
Nor
44
Mode
System set 〉Mode
Under the password setup state, enter a three-digit password,
and display the prompt locked by the system. Press Enter to
return to the password setup.
Enter the correct password, the system is unlocked and the
password is cancelled;
Enter the incorrect password, and wrong password will be
reminded.
Used to open or close the prompt tone for key
operation:
Open (ON): Prompt tone is given for key operation.
Close (OFF): Prompt tone is not given for key operation.
The factory default is: ON.
Used to set the contrast ratio of the display screen:
10: Minimum contrast ratio.
100: Maximum contrast ratio.
The factory default is: 44.
Used to set the product communication mode:
Normal: Close the communication function.
Host / Slave: Used for function extension.
The factory default is: normal.
(The function has not been open)

Reset the dialog box:
Select the function using “ ” or “ ” and press
Enter to execute this function.
Used to exit from parameter setup and return to the
main interface.
All parameters changed will be stored upon exit, and
will apply.
System set
Factory Default
Exit
Mode
Net Address
Factory Default
Exit
Nor
1
Reset
Factory Default?
NO YES
System set 〉Factory Default
System set 〉Exit
13
Keypad Tone
LCM Contrast
System set
ON
44
NorMode
1
Net Address
Factory Default
LCM Contrast
System set
44
NorMode
1
Net Address
Factory Default
Exit
System set
Net Address
Password
Keypad Tone
LCM Contrast
***
ON
Nor
4
1
4
Mode
Net Address
System set 〉Net Address
Used for communication among many machines and
can be connected to 255 devices at most:
Adjustment range: 1~255 (used for function extension).
The factory default is: 1.
(The function has not been open)
Used to restore system parameters to factory default.
After the factory default is restored through click
confirmation, all system parameters will be restored to
factory default.

In any setup mode, press the key “3” to enter the function / curve setup page,
and the key “2” to enter the system setup page.
UI Mode
Function setup menu
Function set
UI Mode
Temp Offset
Timing Work
Shortcut Tmep 1
Shortcut Air 1
Nor
4
10
100
30
Function set
Temp Upper
Shortcut Tmep 2
Shortcut Air 2
Shortcut Tmep 3
Shortcut Air 3
410
45
480
99
480
Function set
UI Mode
Temp Offset
Timing Work
Shortcut Tmep 1
Shortcut Air 1
Nor
4
10
100
30
Total items of function setup menu
Function set
Temp Lower
Temp Lock
Exit
100
OFF
Function set
〉
UI Mode
14
UI Mode: Used for switching among interface modes.
Temp Offset: Used to compensate the error of temperature
output.
Timing Work: Used to set the timed heating work.
Shortcut Tmep 1: Set temperature 1for user’s quick
call.
Shortcut Air 1: Set air volume1for user’s quick call.
Shortcut Tmep 2: Set temperature 2 for user’s quick
call.
Shortcut Air 2: Set air volume2 for user’s quick call.
Shortcut Tmep 3: Set temperature 3 for user’s quick
call.
Shortcut Air 3: Set air volume 3 for user’s quick call.
Temp Upper: The maximum temperature that
can be set by the user in the main working interface.
Temp Lower: The minimum temperature that
can be set by the user in the main working interface.
Temp Lock: A temperature value set to prevent
user from adjusting the operating temperature during the
use, so as to ensure the hot air gun is working at the
constant temperature.After this function is started, the
output temperature stays at the set temperature value.
Exit: Exit the function setup interface.
UI Mode: Used for switching among interface modes.
Contain “Normal” and “Curve” two modes.
Normal mode: Display the interface in text format.
Curve mode: Display the interface in reflow curve format.

Function set
UI Mode
Temp Offset
Timing Work
Shortcut Tmep 1
Shortcut Air 1
Nor
4
10
100
30
Temp Offset
Timing Work
Shortcut Tmep 1
Shortcut Air 1
Function set 〉Temp Offset
Function set
UI Mode
Temp Offset
Timing Work
Shortcut Tmep 1
Shortcut Air 1
Nor
4
10
100
30
Function set
UI Mode
Temp Offset
Timing Work
Shortcut Tmep 1
Shortcut Air 1
Nor
4
10
100
30
Function set
UI Mode
Temp Offset
Timing Work
Shortcut Tmep 1
Shortcut Air 1
Nor
4
10
100
30
Function set
〉
Timing Work
Function set
〉
Shortcut Tmep 1
Function set
〉
Shortcut Air 1
15
Used to compensate for the temperature output error o
hot air gun.
Compensation range: -50℃~+50℃, -90 ℉ ~+90 ℉.
In case of a positive value, the hot air gun temperature
will increase to the set value.
In case of a negative value, the hot air gun temperature
will decrease to the set value.
The factory default is: 0.
Note: If the user discovers that the temperature is inaccurate when replacing the heating core or the handle, it can
be corrected through parameter modification as follows:
1. Set the handle temperature to be corrected at a suitable value, e.g. 350℃/662℉.
2. After the temperature remains stable, test the actual temperature of the current handle air outlet using
temperature tester, e.g. the actual temperature is 365℃/689℉.
3. The actual temperature is 15℃/27℉higher than the set temperature when a conclusion is drawn through
analysis.
4. Set the temperature compensation value as -15℃/-27℉, that is, compensate for the output temperature error.
Used to set the timed heating time of product, and after
pressing the handle switch, it will start to work and count
down and when the timing is finished, close the heating.
Off: The timing function is closed.
10-900: Open the timing function; the timing time unit is“S”.
When there is 10sec countdown, there will be a prompt tone
“D” once.
The factory default is: Off.
3 sets of data of set temperature for users’ quick call:
The factory default is:
Quick temperature 1: 200℃/392℉.
Quick temperature 2: 300℃/572℉.
Quick temperature 3: 400℃/752℉.
3 sets of data of set air volume for users’ quick call:
The air volume value is 25%-99%.
The factory default is: 50%.

Function set
Function set
Shortcut Tmep 2 410
Shortcut Air 2 45
Shortcut Tmep 3 480
Shortcut Air 3 99
Temp Upper 480
Function set
Shortcut Air 2 45
Shortcut Tmep 3 480
Shortcut Air 3 99
Temp Upper 480
Temp Lower 100
Temp Lower
Function set 〉Temp Upper
Function set 〉Temp Lower
Function set
Shortcut Tmep 3 480
Shortcut Air 3 99
Temp Upper 480
Temp Lower 100
Temp Lock OFF
Temp Lock Function set 〉Temp Lock
Function set
Shortcut Air 3 99
Temp Upper 480
Temp Lower 100
Temp Lock OFF
Exit
Exit
Function set
〉Exit
16
The maximum temperature that can be set by the user in
the main working interface.
The set maximum temperature is 480℃/896℉.
The set minimum value of the “maximum temperature”
should be no less than or equal to the “minimum
temperature”.
The factory default is: 480℃/896℉.
The minimum temperature that can be set by the user in
the main working interface.
The set minimum temperature is 100℃/212℉.
The set maximum value of the “minimumtemperature”
should be no greater than or equal to the “maximum
temperature”.
The factory default is: 100℃/212℉.
After this function is enabled, the handle temperature stays
at the set temperature. The set fixed temperature is not
limitedto “maximum temperature” and “minimum
temperature”.
OFF: Temperature lockout function is off.
100-480℃/212-896℉: Temperature lockout is started, the
handle works at the fixed temperature, and the user cannot
change the set temperature in the main interface.
The factory default is: OFF.
Used to exit from parameter setup and return to the main
interface.
All parameters changed will be stored upon exit and will
apply.

1
2
3
4
5
Current working curve number (1-25)
Temperature scale; one division is 100℃ (500℃
/932℉(Max)); if the temperature is lower than
100℃/212℉, the heating will be closed.
Time axis (1-600S).
6
Current remaining countdown time of curve
operation.
Set air volume value of current node.
Actual temperature display.
17
4
1
5 362
Curve number minus
Shortcut key of curve 1
Short press to run the curve; long press
for curve setup
Curve number plus
1
2
3
4
5
6
Shortcut key of curve 2; long press to
run the vacuum pen function
Shortcut key of curve 3
Diagram of keypad functions in curve mode
16
4
35
2
GT-8102 curve working interface
CTemp
℃
Air
50%
Time 103 s
Profile
1
301
Selection method of working interface
1. Lon press “MENU” key to enter the system setup interface;
2. Short press the shortcut key “3” to enter the curve setup interface (short press the shortcut key
“2” to jump to the system setup interface);
3. Select the interface mode (normal / curve);

Press “ ” or “ ” key to select the curve to be
edited.
In any setup mode, press the key “3” to enter the function / curve setup page;
press the key “2” to enter the system setup page.
C
Total items of curve setup menu
Profile Setup
UI Mode
Edit Profile
Copy Profile
Delete Profile
Exit
Pro
Profile Setup
UI Mode
Edit Profile
Copy Profile
Delete Profile
Exit
Pro
Profile Setup
UI Mode
Edit Profile
Copy Profile
Delete Profile
Exit
Pro
Edit Profile
Edit Profile
Selet
Profile
Profile Setup 〉Edit Profile
UI Mode
Profile Setup
〉UI Mode
18
1
UI Mode: Current working mode is curve mode.
Edit Profile: Change the set curve parameters.
Copy Profile: Copy the existing curve.
Delete Profile: Delete the curve not needed.
Exit: Exit the curve setup mode.
Interface mode: Used for switching among the interface
modes.
Contain “normal” and “Curve” two modes.
Normal mode: Display the interface in text format.
Curve mode: Display the interface in reflow curve format.
Hold “MENU” key to enter the Edit curve.
The default curve 1-3 has been set when leaving the
factory (the user can edit it);
After restoring the factory default, the curve 1-3 will
be restored to the factory default.
Table of contents
Other Atten Power Tools manuals
