Congratulations on your purchase of the Audiovox
PROV710/PROV710S/PROV710P DVDPlayerwith
Drop-DownVideoMonitor. ThePROV710/PROV710
S /PROV710 P has been designed to give you and
your family many years of video entertainment in the
mobile environment. Please read the directions that
follow to familiarize yourself with the product and to
ensure that you obtain the best results from your
equipment.
Please note: Installation options vary, see the
individual owner’s manuals for each component in
your system to obtain a full understanding of each
component’s operation.
Safety Precaution
For safety reasons, when changing video media it is
recommended that the vehicle is not in motion, and
that you do not allow children to unfasten seat-belts
to change video media or make any adjustments to
the system. System adjustments can be
accomplished using the remote control unit, while
seat-belts remain fastened. Enjoy your Audiovox
entertainment system but remember-safety of all
passengers remains the number one priority.
Features
••
••
•7 Inch TFT (Thin Film Transistor) Active
MatrixLCD(LiquidCrystalDisplay)Monitor
••
••
•OSD (On Screen Display) for Control of
PictureQualityandFunctions
••
••
•FullFunctionRemoteControl
••
••
•Infrared Transmitter for IR Wireless
Headphones
••
••
•OneAudio/VideoInput
••
••
•DomeLights withSwitch
••
••
•BacklitControlsforLowLightOperation

128-6743
4 of 26
-4-
Controls and Indicators Diagram
OFF AUTOON
POW ER PLAY STOP EJECT
1
2
4
53
66
7
8
9
10
11
ClosedPosition Open Position
13

128-6743
5 of 26
-5-
Main Function Descriptions
1. DVD disc insertion slot.
2. Eject ( ) Button – Ejects disc.
3. Stop ( ) Button – Pressing this button will stop playback.
4. Power Button – Bright red when system is on, dim when off.
5. Play ( ) Button – This button is used to enter the play mode.
6. Dome Lights – provide additional interior illumination.
7. Three position Dome Light Switch
•Auto –Automatically switches on the dome lights in conjunction with the vehicle’s interior illumination.
•Off – The dome lights will not turn on in this position.
•On – Turns on the dome lights.
8. Infrared Transmitter and Sensor – Use to transmit audio to wireless headphones. Also allows the remote
control to operate the PROV710/PROV710 S /PROV710 P OSD (On Screen Display) and to control other
accessories in the system.
9. Drop Down LCD Panel.

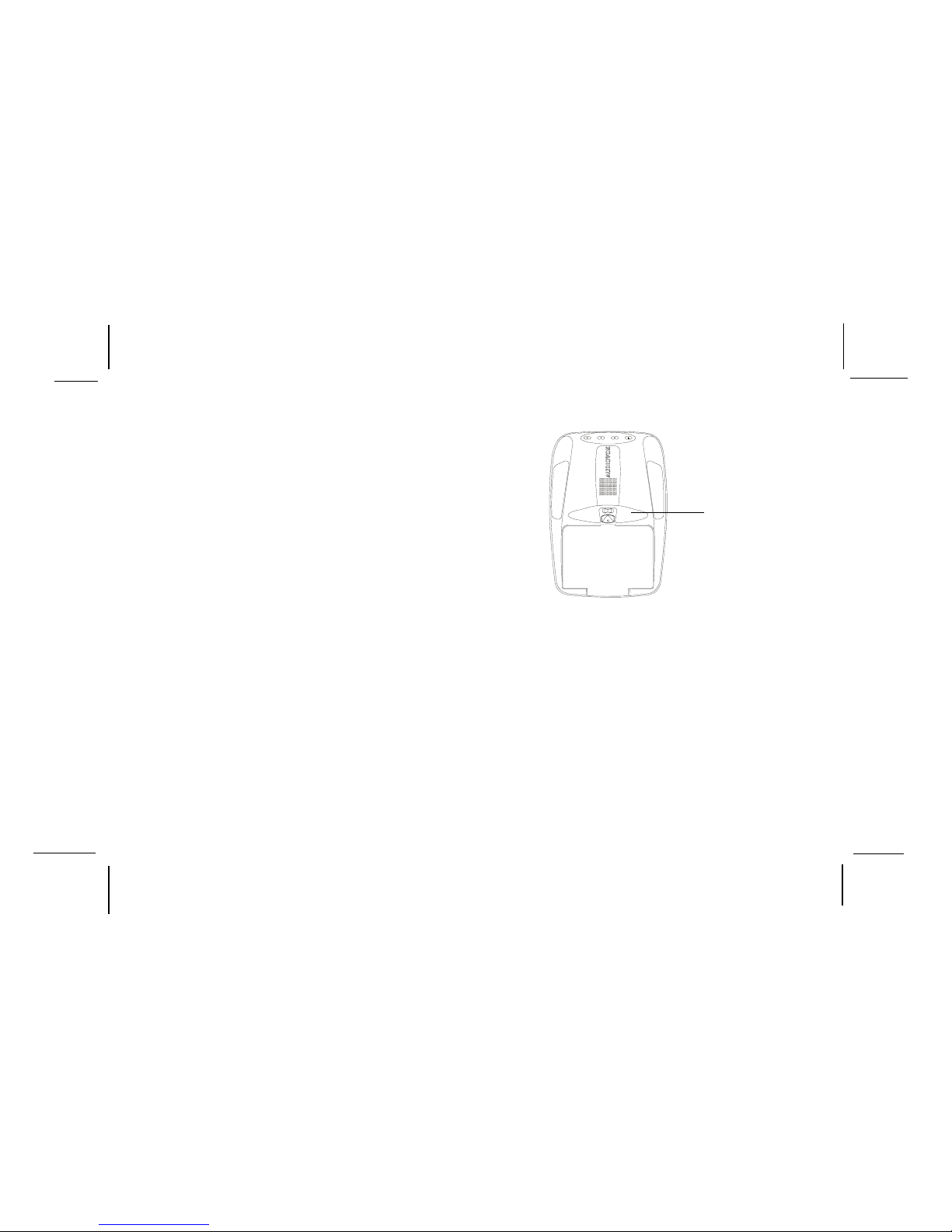

10.Screen Release – Moves in direction of the arrow to release the drop down screen.
11.PROV710/PROV710 S /PROV710 P Ventilation Opening.
12.Source Select Button - Allows the user to select the source: DVD and AV1.
13.LCD Panel Shut-Off Switch

128-6743
6 of 26
-6-
Remote Control Operation
Battery Installation
Before attempting to operate your Remote Control,
install the batteries as described below.
1) Turn the Remote Control face down. Using a
fingernail, lift the battery cover off.
2) Install two “AAA” batteries as shown. Make
sure that proper polarity (+ or -) is observed.
3) Align the cover tabs with the remote control
and press down until the cover clicks.
The remote control will operate the PROV710/
PROV710S /PROV710 P. It is not a universalremote
control and will not control equipment from other
manufacturers
MENU
RETURN
A-B
REPEAT
SETUP
+
DVD
POW ER
EJECT
DISPLAY
ANG LE
AUDIO
SOURCE
ZOOM
1
4
2
5
3
6
0
Enter
1
2
3
4
5
6
7
8
9
10
11a
11b
12
13
14
15
16
17
18
21
22
23
24
25
19
20
26

128-6743
7 of 26
-7-
DVD Function Descriptions
*Function control is available on the unit and the remote control.
1. DVD POWER ON/OFF Button*
Press this button to turn the PROV710/PROV710 S /PROV710 P on.
Press the button again to turn the PROV710/PROV710 S /PROV710 P off.
2. DISPLAY Button
Press to display DVD Disc current information.
Press DISPLAY button DVD Player Perform
Once TITLE Elapsed Time
Twice TITLE Remain Time
3 times CHAPTER Elapsed Time
4 times CHAPTER Remain Time
5 times Display is turned off
3. ANGLE Button
Press to display & select the camera angles. Each time you press the button, the angle changes.
Note:The number ofangles vary fromdisc to disc. Not all disc’s containthis option
4. SUBTITLE Button
Press to display & select the subtitle language in DVD. Each time you press the button, the subtitle language
changes.
Note:The type& numberof languagesfor subtitlesvary fromdisc todisc.
5. AUDIO Button

128-6743
8 of 26
-8-
6. ZOOM Button
Press this button to zoom the picture.
Press ZOOM button OSD DVD Player Perform
Once ZOOMx2 ZOOM picture 2 times
Twice ZOOMx3 ZOOM picture 3 times
3 times ZOOMx4 ZOOM picture 4 times
4 times ZOOMx1/2 Reduce picture to 1/2
5 times ZOOMx1/3 Reduce picture to 1/3
6 times ZOOMx1/4 Reduce picture to 1/4
7 times ZOOM OFF Normaldisplay
7. CURSOR Button ( )
Use these buttons to do items selection.
8. MENU Button
Allows the user to access main menu.
9. RETURN Button
Press to return to the main page.
5. AUDIO Button
Presstodisplay& selectAUDIOlanguage&channel.Eachtimeyou press thebutton,thelanguageorchannelchanges.
Note: The languages & channel you can select are vary from disc to disc.

128-6743
9 of 26
-9-
10. A-B REPEAT Button
Allows the user to repeat play of a DVD or CD from point A to point B.
11a. Select Down (-) Button
Used this button to make picture adjustments in picture select mode.
b. Select Up (+) Button
Used this button to make picture adjustments in picture select mode.
Description of Adjustment Items:-
Item Press Select Down(-) button Press Select Up(+) button
CONTRAST
BRIGHTNESS
TINT
COLOR
12. SLOW Button
The DVD viewing speed will be reduced at 1/2, 1/4, 1/8 and 1/16 times the normal speed.
Decrease the contrast
for soft color
To darken the picture
Increases the
greenish skin tones
To decrease the color
intensity
Increase picture
contrast for vivid color
To brighten the picture
Increases the redish
skin tones
To Increase the color
intensity

128-6743
10 of 26
-10-
13. PIX Button (PICTURE SELECT)
Each time this button is pressed, the on screen picture adjustment display the “adjustment bars” for CONTRAST/
BRIGHTNESS, COLOR or TINT. Once the desired adjustment bar is displayed, use the Select up/Select Down
buttons to adjust the setting. The display will automatically turn off if no adjustments are made within 6 seconds, or
if any other button is depressed.
14. PAUSE ( ) Button
DVD disc play will be paused.
15. STOP (
) Button *
DVD disc play will be stopped.
16. EJECT( ) Button *
The disc will be ejected disc from disc compartment.
17. NUMBERS Buttons
Allows the user to enter the numbers 0 to 9 for selection of CD tracks, DVD chapters, and password setting.
18. SOURCE Button*
Video signals from video equipment connected to the audio / video input can be displayed on the monitor by
pressingthis button. Eachtime the button is pressed,the audio /video sourcewill change inthe following sequence:
DVDandAV1.
19. ENTER Button
Used to implement setting selected.

128-6743
11 of 26
-11-
20. SETUP Button

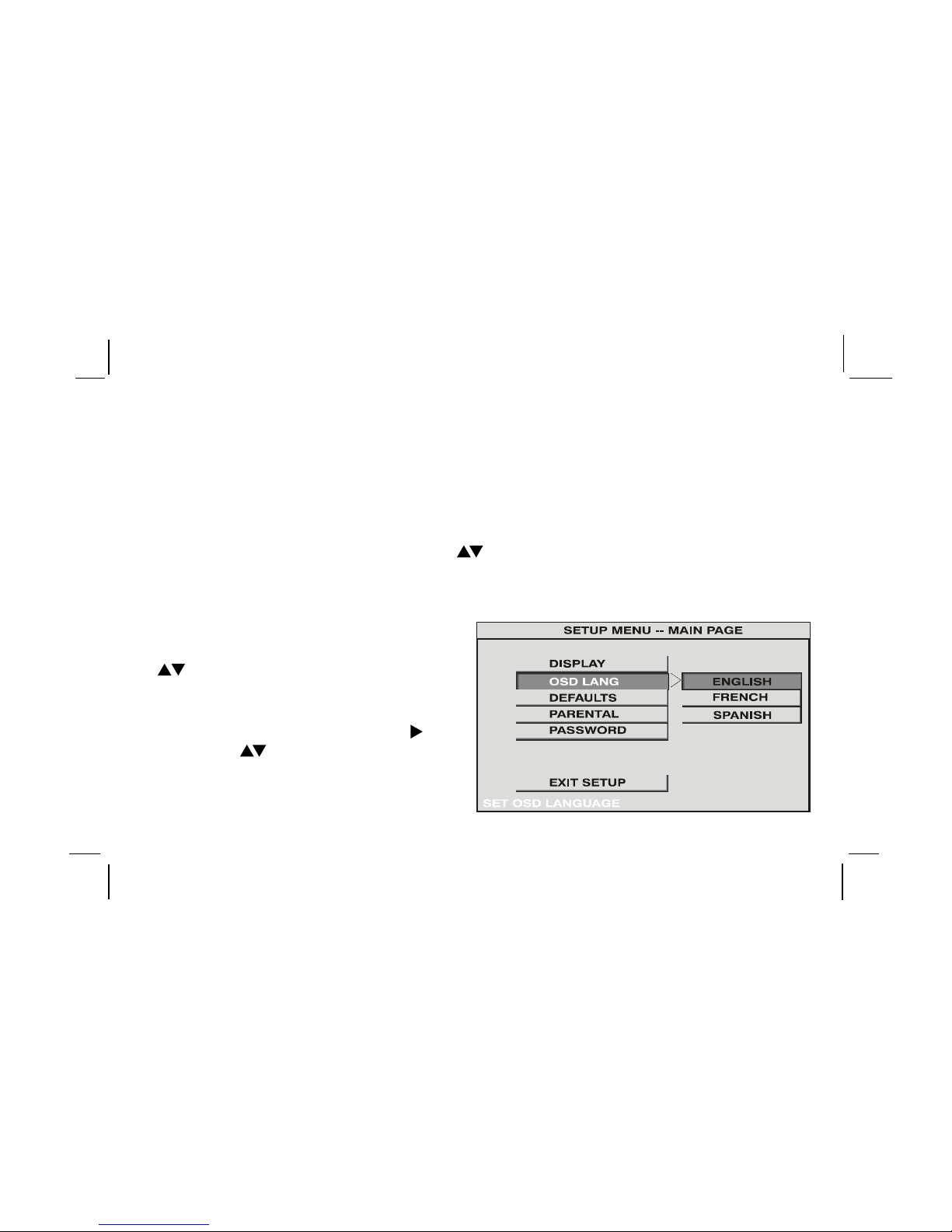

Allows the user to select the DVD player’s options (Display, OSD Language, Defaults, Parental Control, Password,
Exit Setup)
21. REPEAT Button
Allows the user to repeat various positions of a DVD, CD or MP3.
22. NEXT ( | ) Button
Allows the user to skip to the next chapter or track.
23. PREVIOUS ( | ) Button
Allows the user to return to the previous chapter or track.
24. Scan Forward ( ) Button
Allows the user to search in a forward direction at 2,4, 6, 8, 16 and 32 times the normal speed.
25. Scan Backward ( ) Button
Allows the user to search in a backward direction at 2,4, 6, 8 and 32 times the normal speed.
26. PLAY ( )Button*
Press this button to activate the play mode while a disc is loaded into the disc compartment.

128-6743
12 of 26
-12-
Turning the PROV710/PROV710 S /PROV710 P On or Off
1. Sliding the screen release lock forward will unlock the LCD screen and it will drop down slightly. Pivot the screen
downward until a comfortable viewing angle is reached. The internal friction will hold the screen in position while
the system is in use.
2. Pressing the power button on the unit or the remote control will turn the system on or off alternately. When in use
the internal backlighting will illuminate the controls.
3. After the unit has been turned on and is displaying a picture, adjust the viewing angle, by pivoting the screen to
optimize the picture quality.
4. Remember to turn the unit off and pivot the LCD Panel to the locked position when not in use.
Dome
Light
Switch
Overhead Dome Lights
The lights integrated into the PROV710/PROV710 S /
PROV710 P are controlled by a three position slide
switch. Sliding the switch to the on position will turn
the lights on. The off position will prevent the lights
from turning on at all times, and the auto position will
allow the lights to turn on and off with the vehicle’s
interiorlighting. Referto theInstallation Manual for the
wireconnections. Do not leavethe vehicle unattended
with the dome light switch in the on position, as this
could result in a discharged battery.
OFF AUTOON
POW E R PLAY STOP EJECT

128-6743
13 of 26
-13-
Remote Sensor
The PROV710/PROV710 S /PROV710 P incorporates
an infrared sensor, which will relay signals from the
remotecontrol to allow the unit to be controlled simply by
pointingits remote control at the remote sensor eye. The
repeater function allows control of auxiliary equipment
suchas anAudiovox VideoCassettePlayer. Theinfrared
sensor can relay signals from most manufacturer’s
remote controls to its respective component connected
to the Video input. In this case you must use the remote
control supplied with the component.
Accessories
Wireless Headphones
The PROV710/PROV710 S /PROV710 P includes a built-in infrared transmitter for use with Audiovox wireless
headphones (Part Number MVIRHS). The volume can then be adjusted using the controls on each headset. The
wireless headphones must be used within a line of sight from the transmitter, as infrared transmissions, like visible
light travel only in a straight line. See the documentation accompanying your Audiovox wireless headphones.
Headset Special Features
•Automatic Level Control prevents input signal over loading.
•Uses high frequency infrared light to assure a clean signal for clear reception.
OFF AUTOON
POW E R PLAY STO P EJECT
Remote
Sensor

128-6743
14 of 26
-14-
AV1Thisvideoinput may be connectedto a Videocassette Player (VCP), videogame system, orother audio / videodevice.
To access the A/V input, turn the PROV710/PROV710 S /PROV710 P on and press the source select button on the
PROV710/PROV710S /PROV710 Porthe Source button on theremote control until “AV1”is displayed on thescreen.
Turn the video source component on with its power button or remote control. The PROV710/PROV710 S /PROV710
P is now ready to play the audio and video signals from the source connected to theAV1 input.
Video Out
ThePROV710/PROV710 S /PROV710 P provides a videooutput for an optional video monitor(s). (Refer to page 6 of
the Installation Guide for more details.) This output will provide a video signal that duplicates the signal displayed by
the PROV710/PROV710 S /PROV710 P to an additional monitor or video display. Please see your installer for more
information.

128-6743
15 of 26
-15-
DVD Basics
To get the optimum use out of the DVD section, make sure you read this section completely.
Regional Coding
Both the DVD player and disc are coded by region. These regional codes must match in order for the disc to play. If
the codes don’t match, the disc won’t play. This unit’s code is region 1. Other regional codes cannot be played in
this unit. The unit will display “WRONG REGION.”
Types of Discs your DVD will play
•DVD discs – DVDs discs which contain video.
•Audio discs – Audio CDs contain musical or sound content only.
•MP3 discs – A disc that contains audio files (for example, a CD-R with downloaded MP3 files).
Loading and Playing Discs
Before you load a disc, make sure that it is compatible with the player.
Note: the following Discs CANNOT be used with this player :
•MiniDisc
•Laserdisc
•CD-I, CD-ROM, DVD-ROM
To load and Play a Disc
When you press the Power button the unit will turn on and display the source selected. Select DVD mode and insert
the disc (Label Up) into the disc compartment. When the disc is half way in it will be automatically pulled in and play
willbegin.

128-6743
16 of 26
-16-
Settings and Adjustments
This chapter describes how to set and how to adjust using the on-screen SETUP menu.
Using the Setup Menu
Using the setup menu you can do the initial setup and set the various options. You can also select a language for the
on-screen display, the setup display, and limit play back by children.
1) Press the SETUP button to display the “setup menu” on the TV screen.
2) Select the main item you want using the cursor ( ) buttons, and then press the ENTER button.
To Cancel Using the Setup Display
Press the SETUP button on the remote.
Setting the Language for On-Screen Display
Press the SETUP button and using the
(
)buttons select “OSD LANGUAGE”.
OSD (On-Screen Display) Language Menu
The OSD Language Menu allows the user to select
thelanguagefortheon-screendisplay. Press and
then use the (
) buttons to select the desired
language. TheusercanselecteitherEnglish, French
or Spanish for the OSD language.

128-6743
17 of 26
-17-
Defaults Settings
Pressthe SETUPbuttonand select Defaults.TheDEFAULTS
SETUP allows you to resetALL options to the factory default
Settings. Press andthen press Enter toimplement thereset
function.
Settings for Display
Press the SETUP button and select Display. The DISPLAY
SETUPallowsyou to adjust screensetting (aspect ratio) Press
and then use the ( )buttons to select the appropriate
settings.
4:3/ PS
This displays the wide picture on the screen with a
portion of the left & right side removed.
4:3/LB
This displays the wide picture with black bands on the
upper and lower portions of the screen.
16:9
This displays a picture with black bands on the upper
and lower portion of the screen.
Then press ENTER to confirm your selection.

128-6743
18 of 26
-18-
Settings for Parental (Parental Control)
This section of the SETUP Menu allows user to control the content of movie playback from G to NO_PARENTAL.
The Parental Control function allows you to limit viewing to your preference.
1. Use the
buttons to select
G (Children)
PG
PG 13
R
NC-17
ADULT(Adult)
NO_PARENTAL(No Parental Control)
Note:The lower the value, the more strict the limitation.
Press the Enter button to confirm the selection.
2. Input a password in 4 digits using the numeric buttons then press the Enter button.
The Default password is 3308.

128-6743
19 of 26
-19-
Settings for Password (Parental Control Password)

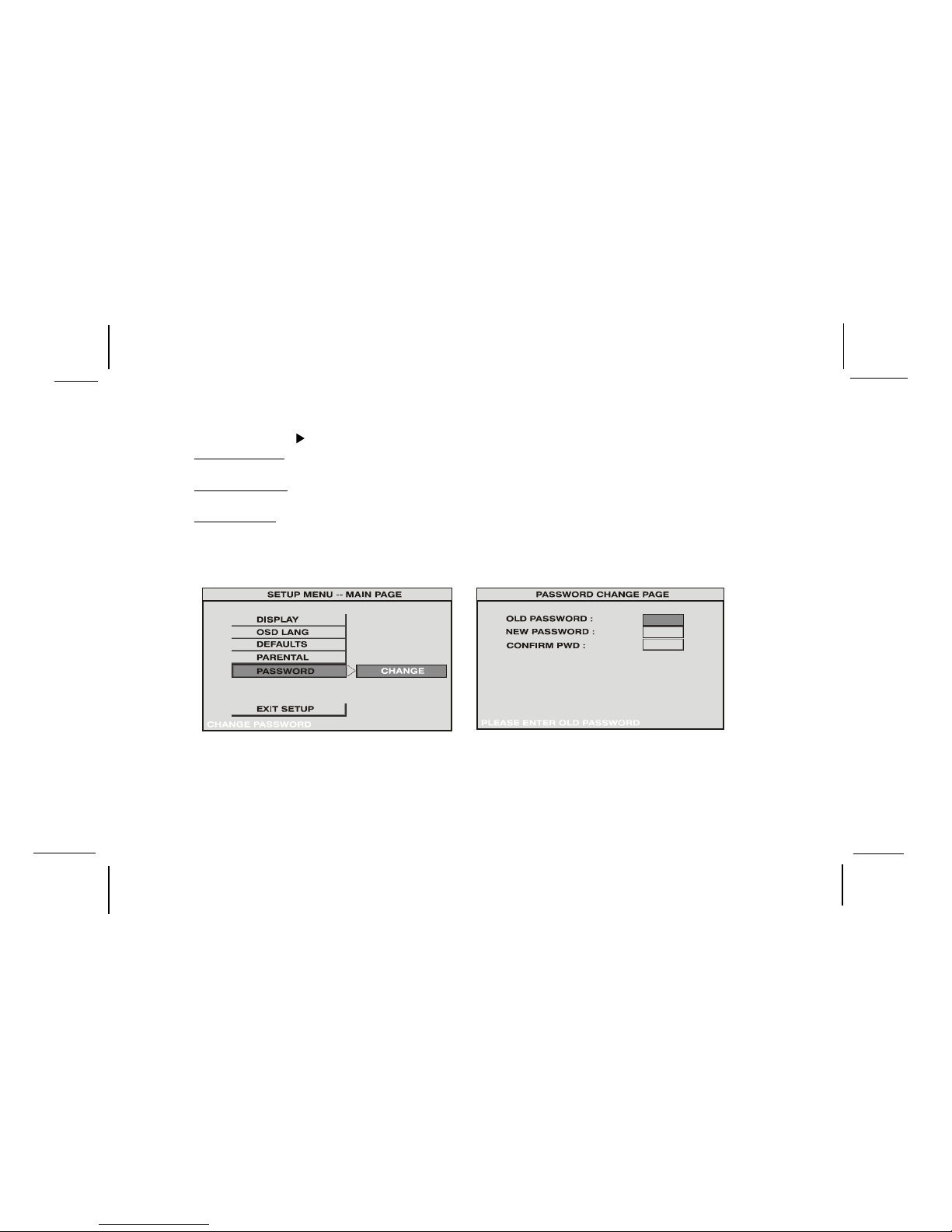

Press the SETUP button and select PASSWORD. The PASSWORD SETUP allows you to change the parental
control password. Press and then press Enter.
OLD PASSWORD
Input the OLD password or the default password (4 digits) using the numeric buttons
NEW PASSWORD
Input a NEW password (4 digits)
CONFIRM PWD
Confirm the new password by entering the same new password again.
Then press Enter to implement it.

128-6743
20 of 26
-20-
Playing Audio CDs
When playing an audio CD, the DISPLAYBanner appears automatically. It displays the current track , the total amount of
tracks, and the amount of the time for the track playing. Press the DISPLAYbutton on the remote to change the DISPLAY
Banner. The options below show you what happens when you press the DISPLAY button.
SINGLE REMAIN appears along with the current track playing the and the amount of time left.
TOTAL ELAPSED appears along with the current track playing the total time playing on the CD.
TOTAL REMAIN appears along with the current track playing and the amount of time left on the CD.
SINGLE ELAPSED appears along with the current track playing and the time of that track.
Using the REPEAT Feature
The default mode for the Repeat feature is OFF. Pressing REPEAT consecutively changes the repeat options:
•TRACK- repeats the track that is playing.
•ALL- repeats the disc that is playing.
•REPEAT OFF
