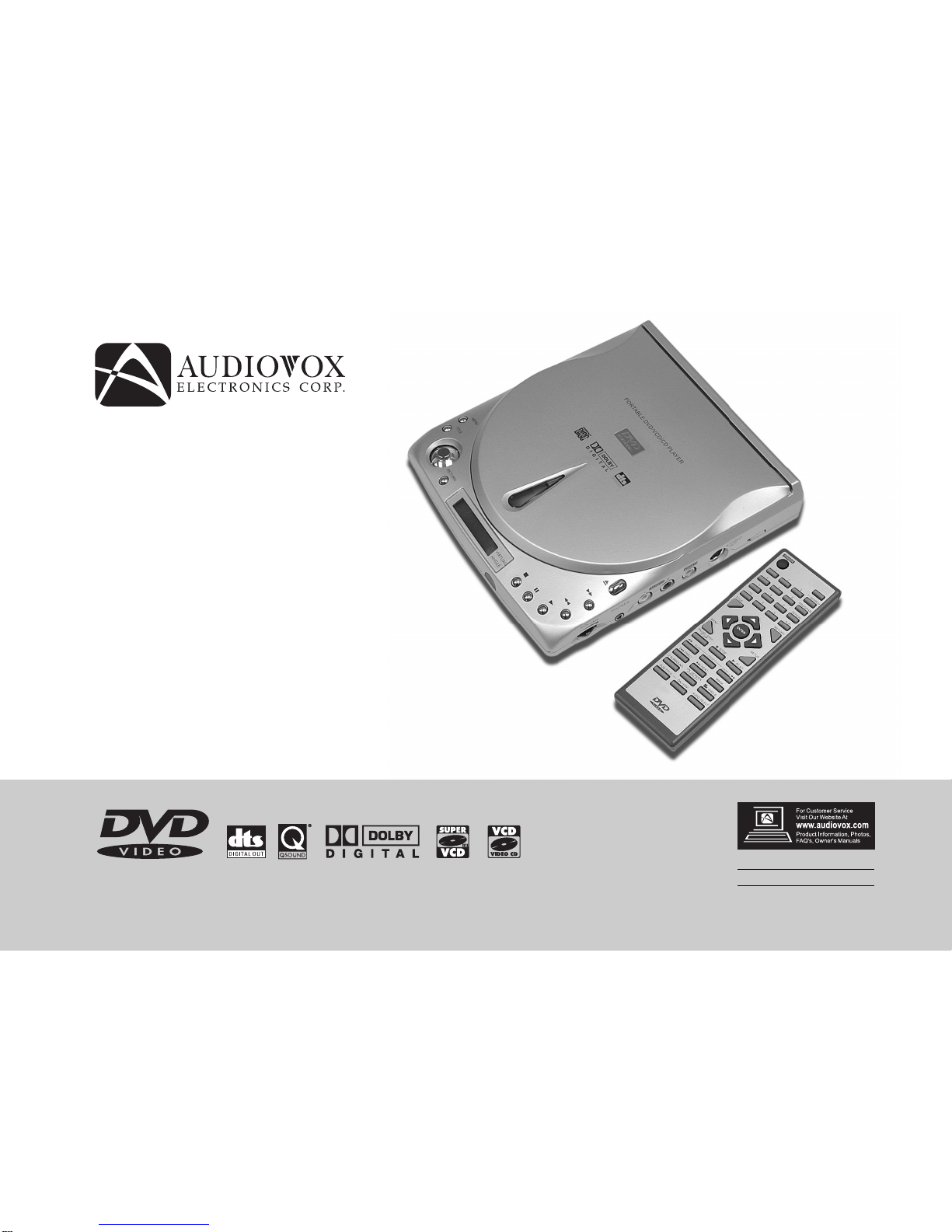

Audiovox D1708PK User manual

Owner’s Manual
PDVDNS
Portable DVD/VCD/CD Player
1-800-645-4994
Customer Service
Article Nr. 25070PD2000080
128-5944

2PD-200
IMPORTANT SAFETY CONSIDERATIONS - PLEASE READ FIRST
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with a damp cloth.
6. Do not block any of the ventilation openings. Install in accor-
dance with the manufacturer’s instructions.
7. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
8. Do not defeat the safety purpose of the polarized-type plug.
A polarized plug has two blades with one wider than the other.
The wide blade is provided for your safety. When the provided
plug does not fit into your outlet, consult an electrician for re-
placement of the obsolete outlet.
9. Protect the power cord from being walked on or pinched
particularly at plug, convenience receptacles, and the point
where they exit from the DVD.
11. Only use attachments/accessories specified by the manu-
facturer.
12. Unplug this DVD during lighting storms or when unused for
long periods of time.
13. Refer all servicing to qualified service personnel. Servicing
is required when the DVD has been damaged in any way, such
aspower-supplycordorplugisdamaged,liquidhasbeenspilled
or objects have fallen into the DVD, the DVD has been ex-
posed to rain or moisture, does not operate normally, or has
been dropped.

3
PD-200
indicates a warning or notice regarding product operation.
indicates to the presence of important operating and maintenance (servicing) instructions.
indicates of the presence of uninsulated dangerous voltage within the product’s enclosure.
WARNING SYMBOLS IN THIS MANUAL
This user’s manual employs four different symbols to indicate the different types of warning message:
The double-square symbol indicates a classification of IEC 417 No.5172, to identify equipment meeting the safety re-
quirementsofDOUBLE INSULATIONspecifiedfor Class II equipment.Itcan in nowaybe confused withthemanufacturer’s
name or other identifications.

4PD-200
LASER EMISSIONS WARNING
This product is fitted with a laser-emitting device. Make
sure the device is shut down prior to opening player lid.
Pleasefollow the followingprecautions when operating.
Failure to do so may result in fire, personal injury, or
equipment damage.
1. Do not operate controls, make adjustments, or per-
formproceduresother than as specified intheDVDdrive
installationguide.
2. Only an authorized service technician should effect
repairs.
3. All DVD-equipped systems comply with appropriate
safety standards, including IEC 825. The installed laser
device complies with Class 1 government laser perfor-
mance standards. This laser device does not emit haz-
ardous light and is fully enclosed during user operation
and maintenance.
OUTDOOR USE WARNING
To reduce the risk of fire or electric shock, do not expose
this product to rain or moisture.
USING AN EXTERNAL POWER SOURCE
This product is sold with a power cord appropriate for
accessing an external power source. Make sure to use
only an appropriate external power source, as indicated
on the electricity ratings label. If you are unsure regard-
ing the type of power source in your area, consult an au-
thorized service provider or the local power company.
Refer to enclosed operating instructions for instructions
regarding using batteries with this product.
IMPORTANT SAFETY CONSIDERATIONS - PLEASE READ FIRST

5
PD-200
BATTERY WARNING
The DVD player uses a NiMH battery pack as an
optionalitem.Ifhandled improperly, this battery pack
poses a risk of fire or burns. Do not disassemble,
crush, puncture, short external contacts, or dispose
of the battery pack in fire or water. Do not attempt to
open or service the battery pack. Replace only with
abattery pack designedspecifically for thisproduct.
Discard spent batteries in accordance with
manufacturer’s instructions.
USE AN APPROVED POWER CORD
If a power cord was not included with your pur-
chaseor you havelost the power cord,you should
purchase a power cord approved for use in your
countryand properly ratedforproduct voltage and
current requirements (refer to product electrical
rating label). The power cord voltage and current
rating should be greater than said ratings for the
product. Furthermore, power cord wire must be a
minimum 0.75mm2/18AWG with a recommended
length between 5 and 6.5 feet (1.5 to 2 meters).
Contact your authorized service provider regard-
ing further questions about power cord selection
and use.
ATTENTION
Il y a danger d’explosion s’il y a remplacement in-
correct de la batterie. Remplacer uniquement avec
une batterie du même type ou d’un type
recommandé par le constructer. Mettre au rébut les
batteries usagées conform ément aux instructions
du fabricant.
LASER BEAM WARNING
CAUTION - Laser radiation when open and inter-
lock defeated. DO NOT STARE INTO BEAM.

6PD-200
CAUTIONS ON USING THIS PLAYER
Do not move the player during playback
During playback, the disc spins at high speed, so do not
lift or move the player. Doing so may damage the disc.
When transporting the player
Be sure to remove the disc and close the lid when trans-
porting the player.
Also slide the power switch to turn off the power, then
unplug the power cord once “OFF” on the display window
turns off and the power indicator (red) lights. Transport-
ing the player with a disc loaded may result in damage.
Place of installation
Select a stable place near the TV or stereo system to
which you are going to connect the player.
Do not place the player on top of a TV or color monitor.
Install the player away from cassette decks or other de-
vices, which are easily affected by magnetic forces.
Do not place objects on top of the player
Do not place any objects on top of the player.
Turn off the power when not using the player
Depending on the TV reception conditions, stripes may
appear on the TV screen when the TV is turned on while
the player’s power is on. This is not a malfunction of the
playeror the TV.If this shouldhappen, turn offthe player’s
power. Noise may also be generated in the sound of a
radio when the player’s power is on.
Special note regarding use of player in vehicles
We strongly advise against using the player while driv-
ing.
Most countries and states have laws, which prohibit or
severely restrict the use of the player in vehicles while
driving.
Donot leavetheplayer orthe battery packin placeswhere

7
PD-200
the temperature is extremely low or extremely high, such
as inside the passenger cabin or trunk in midsummer.
Doing so may warp the outer case or reduce the perfor-
mance or quality of the battery pack.
When carrying on planes
Heed the airline company’s rules.
When carrying in hospitals
Heed the hospital’s rules.
“Dolby”,“AC-3” andthe double-Dlogo( ) aretrade-
marks of the Dolby Sound Laboratory (USA). Con-
fidential unpublished works. ©1992-1997 Dolby
Laboratories,Inc. All rights reserved.Manufactured
under license from Dolby Laboratories.
DTS is a registered trademark of Digital Theater
System (USA).
Thisproduct incorporates copyrightprotection tech-
nology that is protected by method claims of cer-
tain U.S. Patents and other intellectual property
rightsownedby Macrovision Corporation and other
rightsowners.Use of this copyrightprotection tech-
nology must be authorized by Macrovision Corpo-
ration, and is intended for home and other limited
viewing uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
It’s forbidden by law to copy, broadcast, show,
broadcast on cable, play in public, and rent copy-
righted material without permission. DVD video
discsarecopy protected, and anyrecordingsmade
from these discs will be distorted.

8PD-200
NTSC/PAL Viewing Area Standards
This player was configured to meet the
broadcastingstandardused in your coun-
try or area while in the factory. Under nor-
mal conditions, you need not adjust the
PAL /NTSCsetting. Most of Asia (exclud-
ing China) and the Americas use the
NTSCbroadcasting standard.Europe,Ja-
pan, and China / Hong Kong use the PAL
broadcasting standard. If you use this
product in an area using a standard dif-
ferent from your own, simply turn off the
power, select the appropriate NTSC/PAL
settingonthe back of the player, then turn
backon the power. Viewingdiscprograms
on hook up TVs with different broadcast-
ing standard will yield
poor image quality.
NOTE
Copy Guard Protection:
When the DVD player audio/video output is plugged into
the A/V input jacks of a Video Cassette Recorder (VCR)
using the audio/video cables, (red, white and yellow
RCA jacks) poor picture quality may result (i.e. screen
on TV getting brighter and dimmer) due to Macrovision
copy guard protection contained on some DVD discs.
NOTE
When the DVD player is used with the battery as a
power source, ensure that the battery has been charged
for at least eight hours prior to connecting it to the DVD
player. In certain situations connecting a low charged
battery to the DVD player can result in a lock up of the
DVD player Controls. If this occurs, unplug the battery
from the DVD player and let the unit sit for 10 minutes
before plugging into the AC Adapter or connecting a
fully charged battery.

9
PD-200
[BLANK]

10 PD-200
Thank You!
We appreciate your purchase of the portable DVD player. This product
incorporates the latest digital audio / video (AV) technologies to give you
the ultimate in listening and viewing pleasure. Before use, may we rec-
ommend you familiarize yourself with this user manual. The manual dis-
cusses player operation, the use of remote controller, system setup and
player maintenance. If you are interested in a specific topic(s), please
refer to the index on the next page. For quick start of using this player and
gaining fundamental operating information about this player, you can re-
fer to page 14 - Quick Starting Guide.
1

11
PD-200
Table of Contents
1 Thank You!........................................................................................... 10
2 Check Inventory................................................................................... 12
3 Quick Starting Guide............................................................................ 14
4 Player Functions .................................................................................. 18
5 Player Controls .................................................................................... 20
6 Remote Control Buttons ...................................................................... 32
7 System Setup ...................................................................................... 46
8 Changing Settings During Play............................................................ 58
9 Programmed Play ................................................................................ 66
10 Connecting Audio / Video (AV) Peripherals ......................................... 68
11 Setting the Password and Rating ........................................................ 74
12 Rechargeable Battery Installation and Use ......................................... 78
13 User Precautions and Simple Maintenance ........................................ 82
14 Specifications....................................................................................... 85

12 PD-200
Check Inventory
Beforeusing thisplayer,please makesure
that you received all the following items,
in good order, with your purchase. Some
of the following items may not come stan-
dard with your player or be offered for
optional purchase. Please contact your
authorized retailer service regarding any
questions.
2
2 Check Inventory
Standard Bundled Items
1. DVD Player - one
2. AC/DC Power Adapter -one
3. Digital Audio Signal Cable - one
4. AV Signal Cable - one
5. Power Cord - one
6. Wireless Remote Control - one
7. AAA Batteries for Remote Control - two
8. Owner Manual - one

13
PD-200
2 Check Inventory
9. Car Power Jack Adapter
10. S-Video Signal Cable - one
11. Stereo Earphones
Optional Items
1. Carrying Bag
2. Rechargeable NiMH battery

14 PD-200
Quick Starting Guide
1.Connecting to an External Power Source
Connect the power cord (provided with the player) to the side input plug and to a
wall outlet. The use of any other power supply device may result in unstable volt-
age or power spikes that could damage the player. Do not use the provided power
cord with any other device. The transformer on the end of the power cord will feel
slightly warm during player operation or when plugged into a socket. When player
is not in use, always unplug the transformer from the power source.
3
If you plan to power this DVD player using batteries, please first refer to page 78 of this manual.
3 Quick Starting Guide

15
PD-200
3 Quick Starting Guide
3.Plug AV signal wires into peripheral equipment
Next, plug the other end of AV signal wires into your preferred peripheral equip-
ment. More often than not, this will be a television set. Most TVs have input jacks
for AV signal wires. As with output plugs, please make sure same colored wires
connect to same colored jacks. Please refer to the instruction manual to deter-
mine how to set your TV to receive AV signal input from an external source.
2.Plug in the AV signal wires
Plug the AV signal wires into the 3 AV output connectors located on the left-side
panel. The red and white output plugs are configured such that the former pro-
vides right speaker audio, while the latter provides right speaker audio. The yel-
low plug provides video output.
To Next Page

16 PD-200
3 Quick Starting Guide
Align the center of the DVD disc with the center hole of the DVD player. Press
gently down on the DVD to snap the disc into place. Close the CD player cover.
Make sure that the laser-emitting device is never bumped or contaminated by
dust, etc. Try to keep the CD player cover closed as much as possible to seal
internal components from outside contamination.
4.Opening the Lid
Press the EJECT () button to open the player’s lid. Avoid pressing the EJECT
button during play. During normal player operation, be sure press STOP before
opening the lid.
While the lid is open, do not under any circumstances look directly at the
laser reader mechanism to avoid accidental damage to your eyes.
5.Inserting a DVD Disc
To Next Page

17
PD-200
3 Quick Starting Guide
6.Slide the Side Power Switch On
7.Press the (Play) Button
You are now ready to sit back and enjoy a great DVD experience. To stop play at
any time, press the (stop) button. Sliding the power button to ON/OFF will then
shut down the power supply. Finally, return the protective cover to the closed posi-
tion. In most cases, the DVD already inserted into the player will begin playing
automatically when power is turned on. If you insert a DVD (and close the CD
player cover) after turning on the power, the DVD should also begin play automati-
cally.
Atthe left sideofthe unit, positionthe POWER slideswitchto the ON/OFFposititon.
This switch is spring-loaded and will return to the center position after it is re-
leased.Positioningthe slide switch once againinthe same direction willturnpower
OFF.
Afterpressingthe STOP button,unlessthepower is alsodisabled,the loaded
disc should continue spinning.

18 PD-200
Player Functions
4
The player can play the following formats - DVD, SVCD (Super VCD),
VCD, and music CD. The player automatically recognizes the appropriate
format so all you need do is put in the disc, sit back, and enjoy.
To ensure the slimmest, lightest design possible, your player does not
come equipped with an on board monitor screen. To enjoy the fullest ef-
fects of your player, you will need to connect the included AV signal wires
into a television, amplifier, tape deck, or other AV peripheral equipment.
To enjoy audio, however, you need simply to connect up the standard
3.5mm earphones.
4 Player Functions
1AV Signal Output
2Multiple DVD Format Compatibility

19
PD-200
The player can output in full digital, allowing full enjoyment from DVDs with
surround sound or DTS when the player is connected into an amplifier with
digital decoding capability. The result, 5.1 channel, theater sound, is on
par with the best movie theaters.
On battery power, when your player power has been shut off for over 10
seconds. While the power used in this mode is minute, it is still sufficient to
keep the player on active standby, ready start immediately upon power on.
Please refer to page 28 for further information.
4 Player Functions
4Automatic Power Saving Design
3Digital Signal Output

20 PD-200
Player Controls (1)
1
2
5
5 Player Controls (1)
Pressing the PLAY () button will immediately play
the disc installed in your player. This button is also
available on the remote control. Refer to page 39
for relevant instructions.
PAUSE Button
PLAYButton
Pressing the PAUSE () button will pause play. If a
musicCDis paused, the music will temporarily stop.
If a video disc is played the screen will temporarily
freeze. Pressing the PLAY ()button will restore the
media to normal play. While paused, the disc will
still rotate but, as there are no contact parts, you
need not worry that an extended pause will cause
damage to the disc as happens with conventional
magnetic music tape. However, do remember that
while in pause, the player is still drawing the same
amount of power as in play mode. This button is
also available on the remote control. Refer to page
39 for relevant instructions.
1
2
3
4
5
