Audiovox D1817PK - DVD Player - 8 User manual

D1817PK
PORTABLE 8" LCD MONITOR AND DVD PLAYER IN ABAG

Notice:
This Productincorporates copyrightprotection technologythat is pro-
tectedby methodclaims of certain U.S. Patents andotherintellectual
property rights ownedby Macrovision Corporationandother rights own-
ers. Use ofthiscopyright protectiontechnologymust be authorizedby
MacrovisionCorporation,andisintendedforhomeandotherlimitedview-
inguses onlyunless otherwise authorized byMacrovision Corporation.
Reverse engineeringor disassemblyis prohibited.
AnLCDpanel and/or videomonitormaybeinstalled in amotor vehicle
and visible to the driver ifthe LCD panelor videomonitor is used for
vehicle information, system control, rear or side observationor
navigation.If the LCDpanelor video monitor is usedfortelevision
reception, video or DVD play, the LCDpanel or video monitor must be
installedsothat these featureswill onlyfunction when the vehicle is in
park”orwhenthevehicle’s parkingbrake isapplied.
AnLCD panelor video monitor used for television reception, videoor
DVDplay thatoperateswhenthevehicleis ingear or whentheparking
brakeis not appliedmust be installedtothe rearofthe driver’sseat
where itwill notbevisible, directly or indirectly, to theoperator of the
motor vehicle.

Content
A.Introduction..........................................................................4
B.CautionsandWarnings...................................................... 4
C.Contents............................................................................. 6
D.PoweringandInstallation .................................................... 6
E.VehicleInstallation..........................................................7
F.Controls, Indicators, andConnectors................................. 8
G.LoadingandPlaying aDisc................................................ 9
H.Setup....................................................................................10
I.BasicOperation................................................................ 18
J.Menu.................................................................................19
K.Display...............................................................................19
L.PlayingAudioCDS .............................................................25
M.Playing MP3Discs............................................................ 27
N.PlayingJPEGfiles...............................................................29
O.Connecting to aTVor another monitor ............................ 31
P.RechargeableBattery Installationand Use...................... 32
Q.Troubleshooting ................................................................ 34
R.Specifications ................................................................ 46

4
A.Introduction
Thankyoufor choosingthe D1817PK. The main features includea
8" Wide Screen (16:9 Aspect Ratio) LiquidCrystalDisplay(LCD)
monitorandaDVDplayer. The unit appliesthelateststate oftheart
electronicsand isdesignedfor useinhotels, offices, vehiclesor
your home. Theunit is constructed toprovideyears ofreliable,
trouble-free service, and is compact so that you can take itwithyou
anywhereand is designed forquickand easyinstallation.Please read
theentire instruction manual supplied withthis product prior to use.
Thedocumentation will assist youininstalling thesystem properlyto
obtain thebest equipment performance. Please savethismanual for
later use.
B. Cautions and Warnings
1. Placement
Toprevent fireorelectric shock,donotexpose this appliance to
rain or moisture.Donot place the set on an unstable cart, stand,
tripod, bracket ortable toprevent it fromfalling. Keeptheunit away
from strongmagnets,heatsources,directsunlight, excessive dust.
Ifthe unit is brought directlyfrom a cold to a warm location, mois-
ture maycondense inside the unit. When you move it from a cold
toa warm location, wait forabout one hourbefore operating the
unit, or removethe discandleave theunitturnedonuntilthemois-
ture evaporates.
2. Installation
Ensure that the D1817PK is usedin accordance with the instruc-
tions and illustrations provided in this manual.
3. Caution
Donotpushobjectsof anykindintothe unitthroughopenings;do
notspill or sprayliquid ofany kind on orin the system (this may
result in a fireor electricshock). Donot place anything heavyon
the unit. To ensure proper ventilation and proper operation, never
coverorblocktheslotsandopenings withaclothorothermaterial.

5
Keep theunit away fromanopenflamesuch as fire, candle etc.
Replace the battery onlywiththesame or equivalent type to pre-
ventdamagetothe unit. Inorder toprotecttheenvironmentplease
disposeof thebattery properly.Donot use the unitintemperatures
higher than 104 degrees Fahrenheit or 40 degrees Celsius.
4.Disassembly
Do not attempt to disassemble the cabinet. There is ariskofelec-
tricshock and/orexposure to LaserRadiation. Contact qualified
service personnel ifyour system needs repair.
5. Cleaning
Whencleaning,makesurethesystem isunplugged fromthepower
source. Donotuseliquid cleaners or aerosolcleaners. Usea cloth
lightly dampenedwith waterfor cleaningtheexterior ofthe system
only.
6. Disc
Do not use irregularlyshaped discs such asheart orstar-shaped
discs as theymay cause the unittomalfunction.Donotstickpaper,
tapeor glue on the disc. Do not expose thedisc to direct sunlight
or heat sources. Do not touchthe surface ofdisc. Handle thedisc
by itsedge. Cleanthedisc bywipingthedisc from the center out
with acleaning cloth. Removethe disc from the unit and store it in
its case after playing. Some playbackoperationsofdiscs maybe
intentionally fixed bysoftwareproducers. Since this unitplays discs
according to the disc contentsthesoftwareproducers designed,
some playbackfeatures maynot be available. Also refer to the in-
structionssuppliedwiththediscs.
7.Regional Coding
Both theDVDplayer and disc are coded by region. These
regional codes must match inorder for thedisc toplay.Ifthe
codesdon’t match, the disc won’t play. This unit’s code is region
1. DVD’swith other regionalcodes cannot beplayed in this unit.

6
C. Contents
1. 1x 8’’ LCD Monitor & DVD Player
2. 1 xAC to DC Adapter
3. 1 x Remote Control with battery(CR2025)
4. 1 x Instruction Manual
5.1xAudio/VideoAdapterCable
6. 1 xDC Power Adapter
7. 1x Rechargeable Battery
8. 1 x CarryBagWith Straps
9. 2 xFoldable Headphones
D. Powering and installation
1. Powering the system indoors (Refer to Figure 1)
Plug one end of the AC to DC adapter into the DC 9-12V jackon
the rightside ofthe main unit, then plugthe otherend intothe 120V
AC power outlet.
2. Powering the system in a car (refer to Figure 1)
Plugone endofthe DCPoweradapter intothe DC 9-12V jack on
theunit, thenplugthe other endinto the vehicle power outlet.
Figure1
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

7
Headrest Strap
Seat Back
Strap
E. Vehicle Installation
Installingthe DVD Player onto the seat back ina car
(Refer to Figure 2)
1).Unfoldthe carrybag, andplace the DVD player on the bag
beneaththe elastic straps. Ensurethat the unit’scornersare
secured bythe elasticstraps.
2).Securetheupper portion of the carry bag toheadrest support
barsusingthe headreststrap.Adjust the headreststrap untilthe
bag isfirmly secured.
3). Securethelowerportionofthecarry bagto the vehicleseat back
using the seatback strap.Adjust the seat back strap until the
bag isfirmly secured.
Elastic
Straps
CarryBagOpened
CarryBagClosed
VehicleSeat
Back
VehicleHeadrest
Figure2

8
F.Controls, Indicators, and Connectors
1. Unit View (Refer to Figure 3)
Figure3
*Usingheadphone jack1willdisabletheinternal speakers
1)LCD Panel Shut Off Switch
2) Wide Button
3) Stop Button
4) Previous Button
5) NextButton
6) Play Button
7) Menu Button
8) UpButton
9) RightButton
10) OK Button
11) DownButton
12) LeftButton
13)Open Door Switch
14)IR Sensor
15) PowerLED
16)Power on/offSwitch
17) Brightness Up/Down Control
18) Volume Up/DownControl
19) Headphone 1*
20)Headphone 2
21) E-Port
22)AVIN/OUT Switch
23)AVJack
24)DC9-12VInput Jack

9

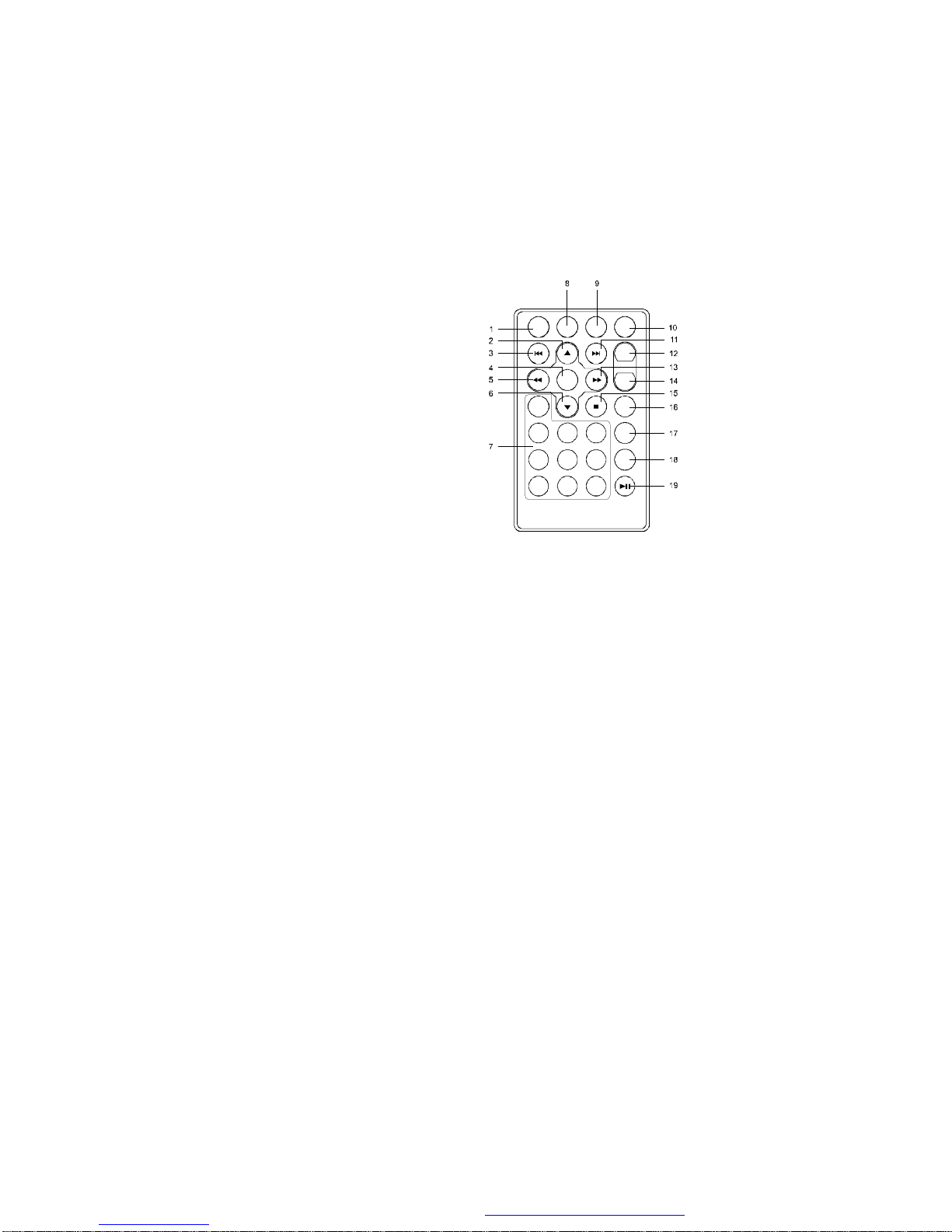

2. Remote ControlView (Refer to Figure4)
1) Setup Button
2) UpButton
3) Previous Button
4) Enter Button
5) Left/Reverse Button
6)DownButton
7)Numeric Buttons
8) DisplayButton
9) Zoom Button
10) Subtitle Button
11) NextButton
12) A-B Repeat Button
13) Right/Forward Button
14)1/ALLRepeat Button
15) Stop Button
16)MenuButton
17)Audio Button
18)Angle Button
19) Play/Pause Button
G. Loading and Playing a Disc
a.Afterconnecting power tothe unit, turn theDVD playeron withthe
power switch. The power indicatorwill light.
b.Open the disc traybyslidingtheOPEN switch in the direction of
thearrowand placea disc intothe tray with the label sidefacing
up.
c.Close the traybypressingthe area marked PRESS”on the disc
door. The unit willread the discand start playing.
d.Rotate theBRIGHTNESSandVOLUMEcontrolsto adjust the
brightness and the volume to the desired levels.
e.Tostopplayingadisc, pressSTOP.
f.Toturnoffthe DVDplayer,slidethe POWERON/OFFtoOFF.
TheDVD player’s POWER indicatorwill turn off.
Figure4

10
H.Setup
Press ‘SETUP’to displaythe Main screenofthe Setup Menu on the
screen.Press ‘SETUP’again toexittheSetupMenuand the unitwill
resume it’s last playbackmode.

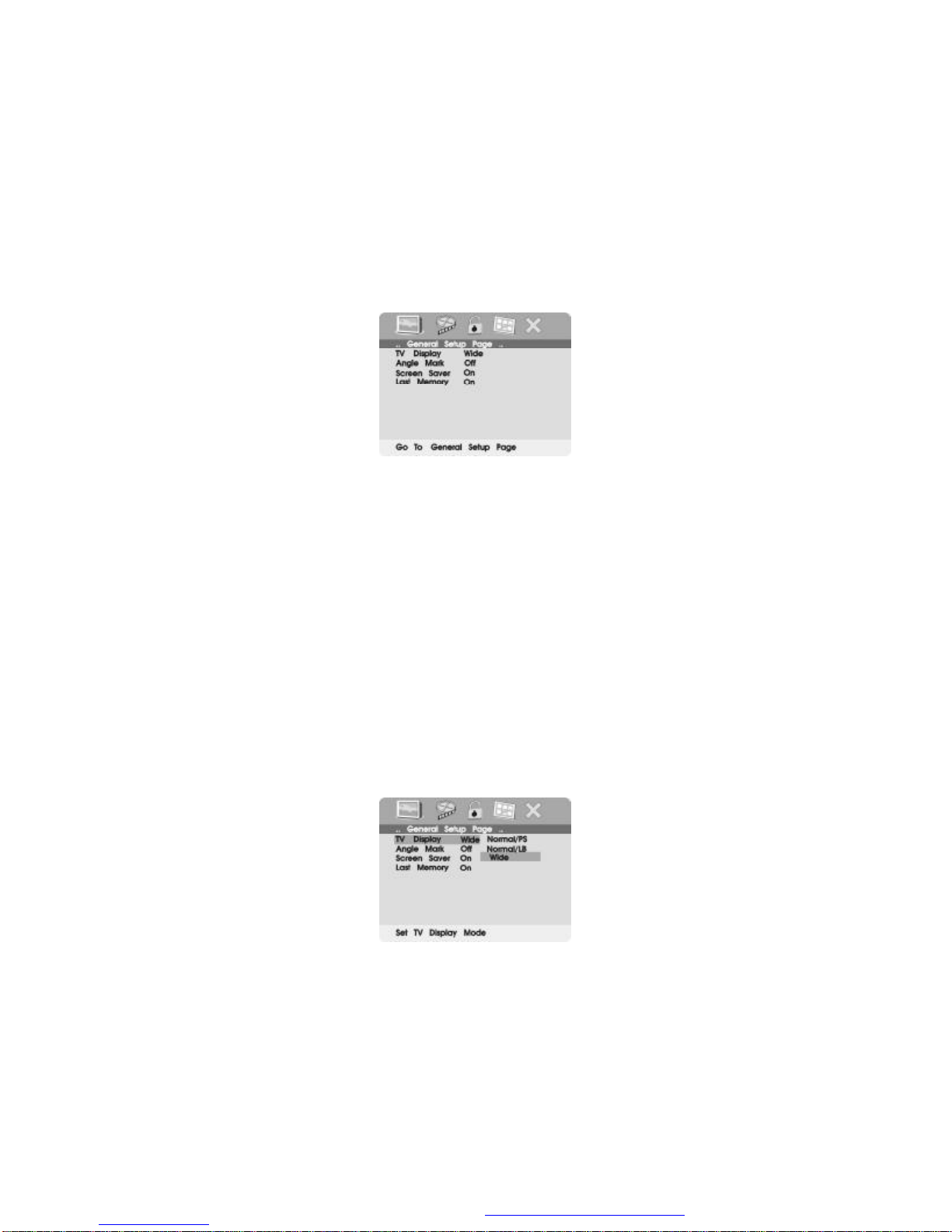

Main SetupMenu Screen
1) Press SETUP”, the ‘General Setup Page’will display on screen.
a).Select ‘TV Display’usingthe UP/DOWNbutton, andthen press
RIGHTtoenterthe submenu.Selectthe TVdisplaymode on the
screen using UP/DOWN, and press ENTER to confirm theset-
ting. Press LEFT to return.
*Normal/PS:Whentheplayerisconnectedto anormal TV,and
a widepicture is shown on the full screen.
*Normal/LB:When the playeris connectedto anormalTV, and
a widepictureisshown onthe screenwith a blackstripatboth
the top and bottom of the screen.
*Wide: Whenthe player is connected to a wide screen TV,a
wide picture is shown on the full screen.
TV DisplayScreen Display

11
b).Select ‘AngleMark’usingthe UP/DOWNbutton, and thenpress the
RIGHTbutton to enterthesubmenu. Choose Angle Markon or off
using the UP/DOWNbutton and then press ENTER to confirmthe
setting. Press the LEFT button to return.
AngleMark Screen Display
*On:Thescreenwillshow the angle mark icon.(*If an angle option is
available).
* Off:The screen will not display theAngle Mark
NOTE: Not all discs contain the above features. The abovefeatures
are disc dependent.
c).Select ‘ScreenSaver’usingtheUP/DOWNbutton,andthenpress
theRIGHTbuttontoenterthe submenu.Choose Screen Saveronor
off usingthe UP/DOWNbutton and then press ENTER to confirm
the setting. Press the LEFT button to return.
ScreenSaver ScreenDisplay
*On:Enables screensaver
*Off:Disables screen saver(off)
*NOTE: The DVD playerwill enter the Screen Savermode after ap-
proximately three minutes ifthe same imageremainsonthe screen.

12
d). Select ‘Last Memory’by UP/DOWNbutton.

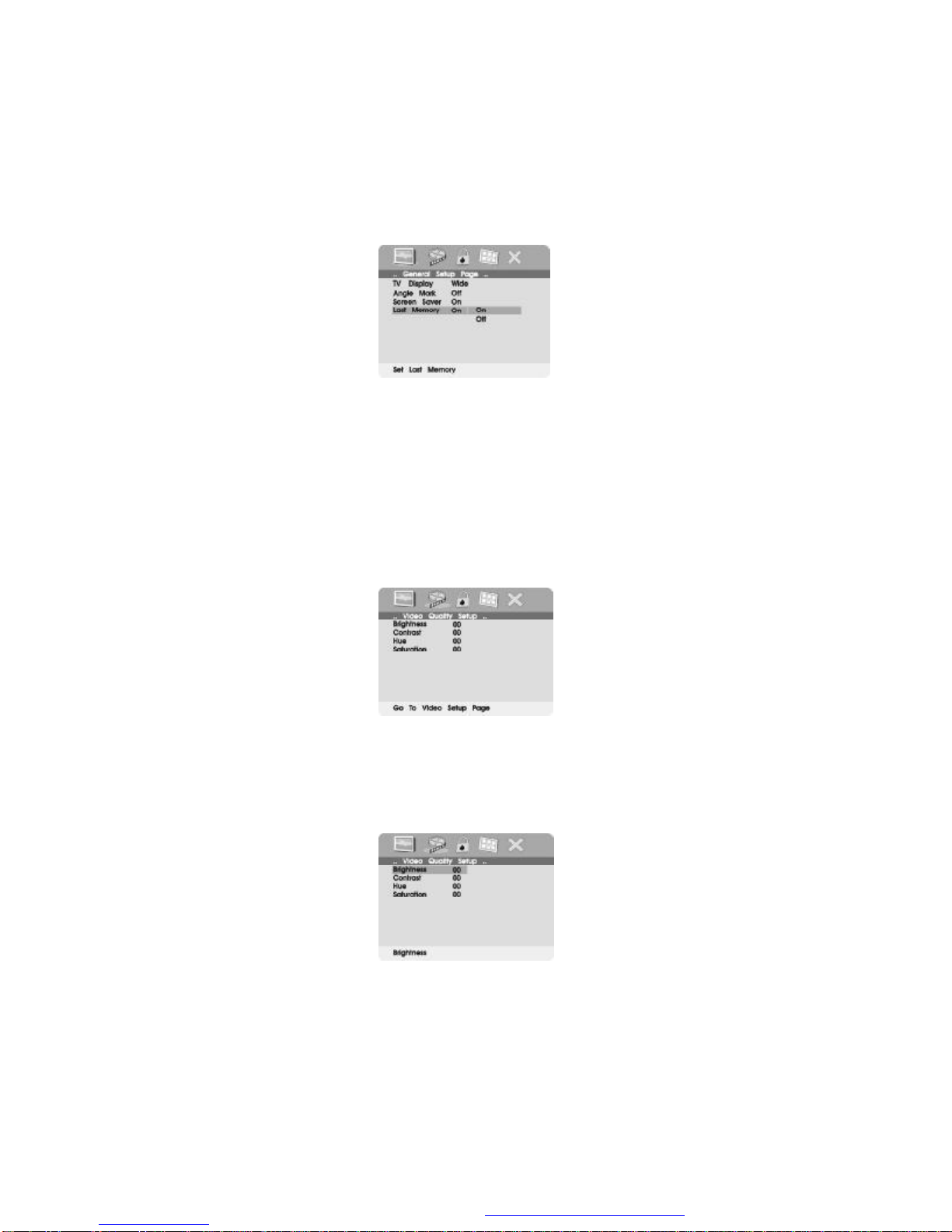

Last MemoryScreen Display
*on: Theunit will returntothe lastpositiononthedisc.
*off:The unit will not return to the last position on thedisc.
Note: The Last position memoryfunction willonly workwhen thepower
is on.
2) Select VideoQuality Setup”byusingtheLEFT/RIGHT button, press
ENTER to enterthevideoquality setuppage.
Video QualitySetup Screen Display
a).Select ‘Brightness’byusing the UP/DOWNbutton,thenpressEN-
TERyoucanchange the Brightnessby pressingtheLEFT/RIGHTbutton.
Toexit ‘Brightness’setting, pressENTER again toreturnthemainMenu.
Brightness Screen Display

13
b).Select ‘Contrast’byusingthe UP/DOWN button, then press ENTER
you can adjust the Contrastby pressingtheLEFT/RIGHTbutton.
ContrastScreen Display
To exit ‘Contrast’Setting, press ENTER again to return themain menu.
c).Select ‘Hue’byusingthe UP/DOWN button, then press ENTER you
canadjust theHue by pressingtheLEFT/RIGHT button.
Hue(Tint) ScreenDisplay
Toexit ‘Hue’Setting, press ENTERagainto return the main Menu.
d).Select ‘Saturation’byusing the UP/DOWNbutton,thenpress ENTER
youcanadjust the Saturation by pressing the LEFT/RIGHTbutton.
Saturation (Color) Screen Display

14
Toexit ‘Saturation’setting,pressENTER again toreturn tothe main Menu.
3).Select Password”using the LEFT/RIGHTbutton,thenpressthe
RIGHT button to enterthesubmenu.
Password Setup Page Screen Display
Press ENTER to enter the Password Change Page.Input the Old
Password ortheDefault Password, theNewPassword, andthe Con-
firmedNewPassword. Press ENTER to confirm the change.
PASSWORD VERIFYInput Screen Display
NOTE: TheDefaultPassword is 3308.Thispasswordis always
effectiveevenafter youhave selectedyourownpasswordand
changedit. Toavoid the possibility of othersusing thedefault
passwordtosettheparental level andchangethe password,you
canrecord this defaultpassword in anotherarea anddelete itfrom
this manual. Some discs canbe limited dependingon the age of
userswhilesomediscs cannot.

15

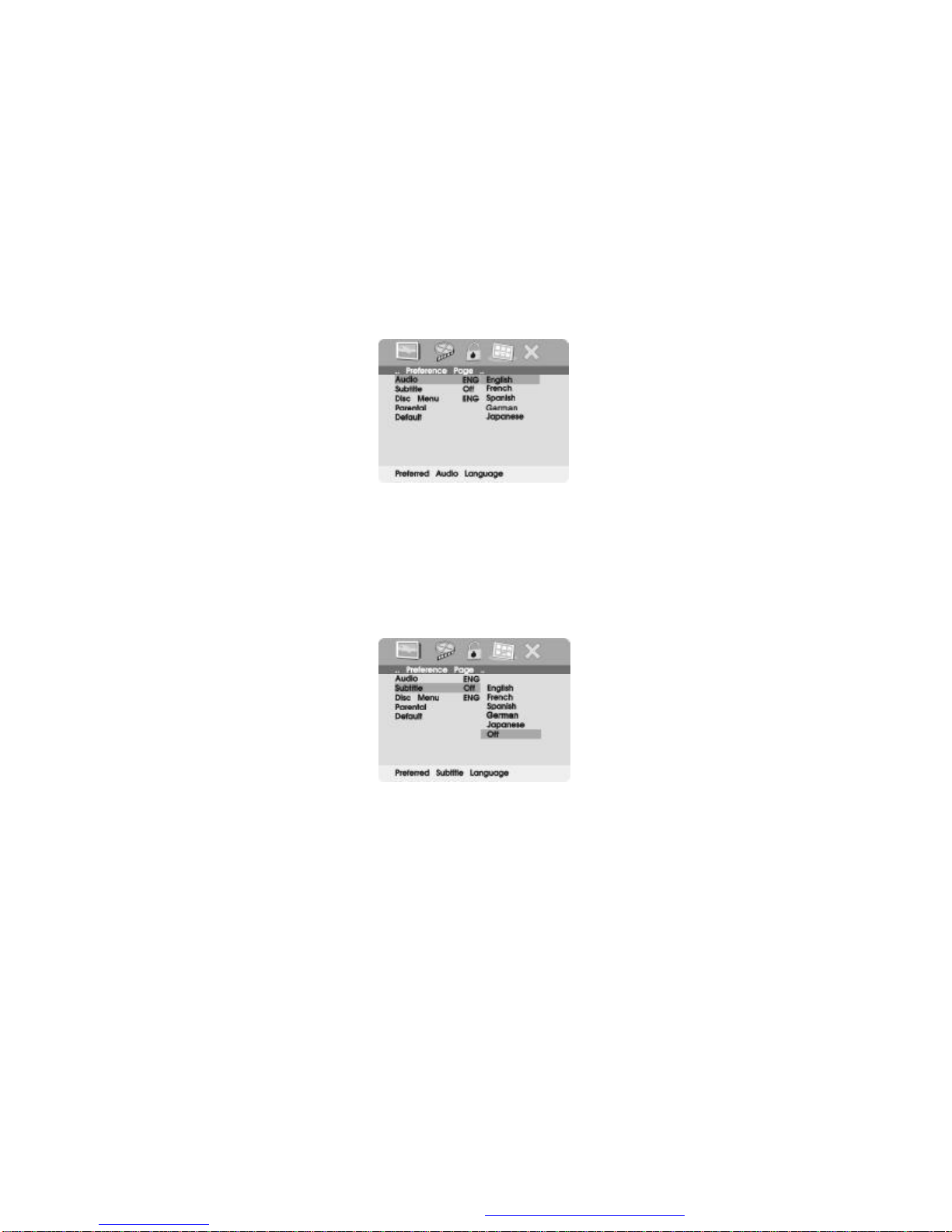

4).With nodisc inside the player select ‘Preference Page’usingthe LEFT /
RIGHTbuttons, thenpress ENTERto enterthe preference page.
a. Select ‘Audio’usingthe UP/DOWN button, thenpress RIGHTto
enterthe submenu. Selectthe audio languageyou desireusingthe
UP/DOWNbutton, thenpressENTERtoconfirm the setting. Press
LEFT toreturn.
PreferenceAudioLanguage
b. Select ‘Subtitle’theusing UP/DOWNbutton, then press RIGHT to
enterthe submenu.Selectthe desired subtitle languageorSubtitle
Offusing the UP/DOWNbutton, thenpressENTER to confirm the
setting. Press LEFT to return.
PreferenceSubtitleLanguage

16
Note: Language and subtitle selection isonly available fordiscs that
arerecorded intheabovelisted languages. If the selected, lan-
guageis not available,the playerwillplay and displayonthe screen
theoriginalrecordedlanguage contained in the disc.

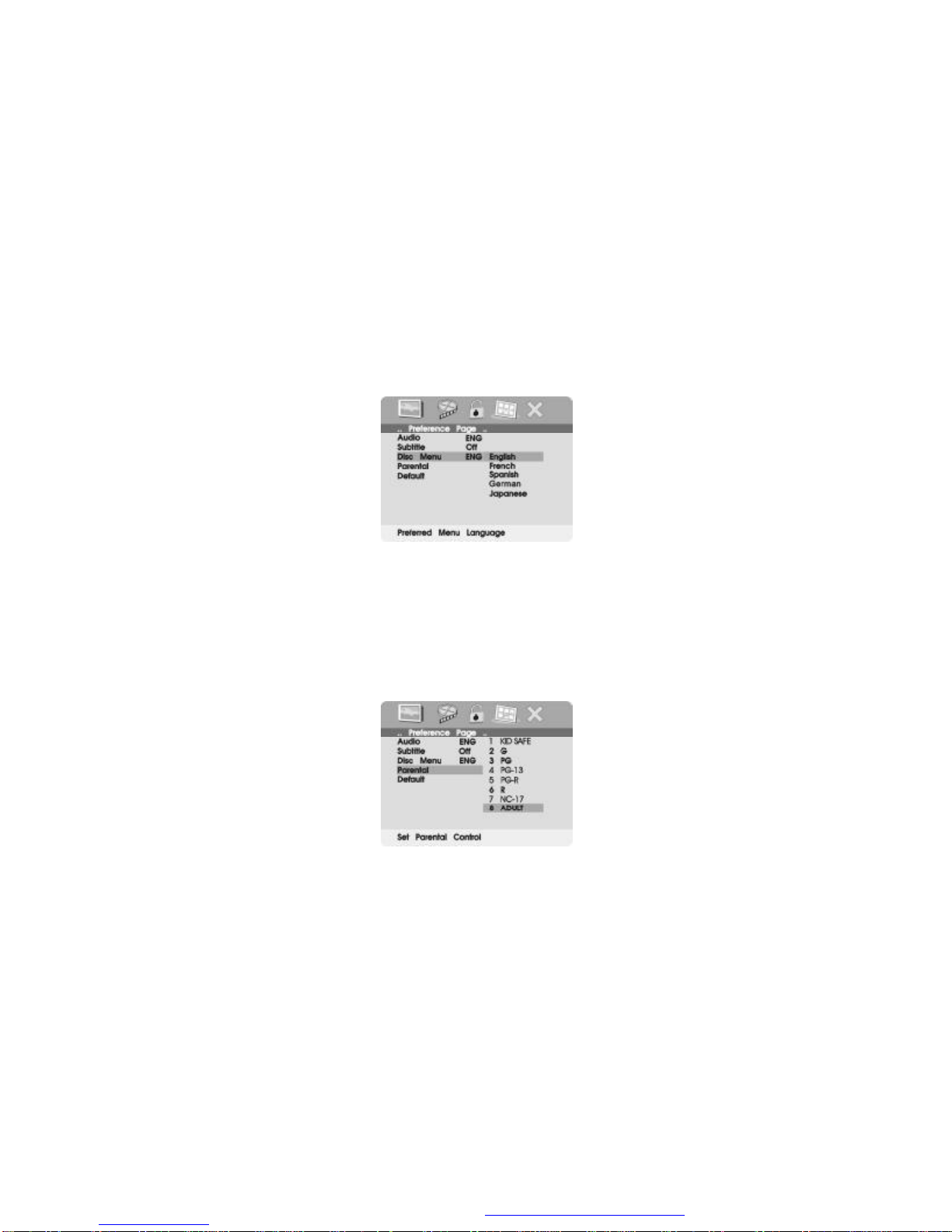

c. Select ‘Disc Menu’usingtheUP/DOWN button,then pressRIGHTto
enterthesubmenu.SelecttheDiscMenu Languageyou desire using
theUP/DOWNbutton,thenpressENTERto confirmthesetting.Press
LEFT toreturn.
PreferenceDisc MenuLanguage
Note: Language and subtitle selection isonly available for discs that
arerecorded in the abovelisted languages.If the selected,language
is notavailable,the playerwill playand displayon thescreen the origi-
nalrecorded language containedin thedisc.
d. Select ‘Parental’using the UP/DOWNbutton,thenpressRIGHT to
enter thesubmenu.
Parental PreferenceScreenDisplay
Select the parental level you desireusingtheUP/DOWN button for
discs with lock-out function or multiplerating levels. Theseare listed
fromthe lowestlevel (1Kid Safe)to the highestlevel (8Adult). Entera
4 digitpassword,then press ENTER to confirm theparentallevelset-
ting.
NOTE: The levelof8Adult isthe factorydefault.

17

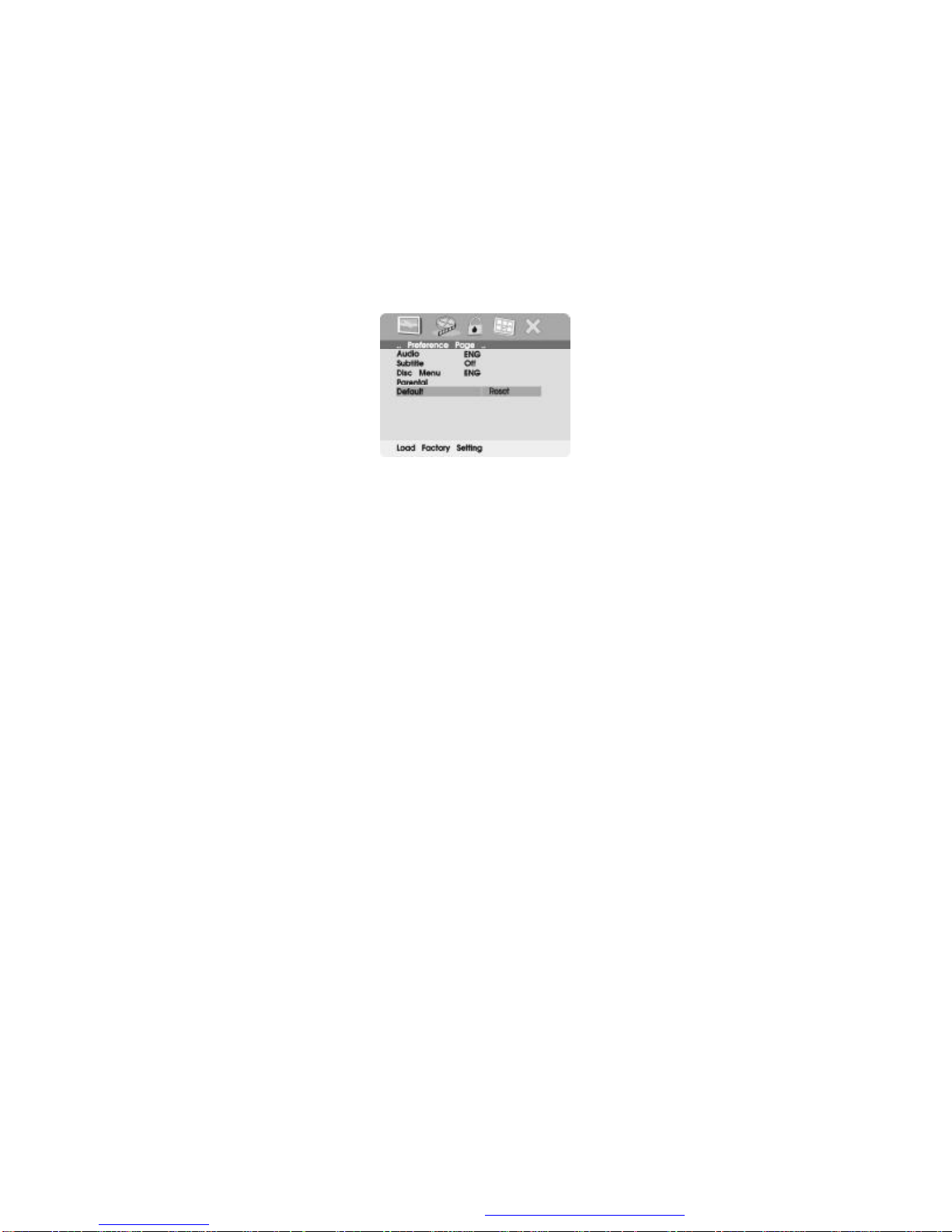

e.Select ‘Default’usingtheUP/DOWN button, then press RIGHTtoen-
terthesubmenu. PressENTER to make thesettingreturnto thefac-
tory-set mode.
NOTE: The parental setting isnotaffected bythedefault reset
function.
Loading FactorySetting

18
I. Basic Operation
POWER
OPEN
PLAY
PAUSE
STOP
NEXT
PREVIOUS
FORWARD
REVERSE
LEFT/RIGHT/UP/DOWN
ENTER
NUMBERS
MENU
1/ALL REPEAT
A-B
DISPLAY
ANGLE
SUBTITLE
AUDIO
ZOOM
SETUP
Turnthe uniton/off
Remove/load the disc
Start Play/Confirm item or setting
Still Picture
(1time) Stopatthepresentplaying point /
(2 times) Stop playing
Go tothe nextchapter, track orsceneduring
play back
Gobacktothe previous chapter, trackor
scene duringplay back
Scan forwardat2,4,8,16 or32xtimes speed
Scan backward at 2,4, 8, 16 or32x times
speed
Used forMenu Navigation
Execute item or confirm setting
Select item or setting
Display the mainmenu ofthe disc
Repeat playingtitle, chapter, or track
Repeat aspecific portionfrompointAtopoint
B ofthe disc
Display information (title,chapter, track, time,
etc.).
Changethe viewingangle of the scene
Selectthesubtitlelanguage andturn it on/off
Selecttheaudio language
Enlargean imageto 2, 3, or 4 times the
original size.
Displaythe setupmenutoselect andset
items, and exit the setup menu.

19
J.Menu
A DVD is divided into sections called titlesandchapters. When you
play a DVD,aroot menu ofthedisc will appearonthescreen ofyour
TV orMonitor. Thecontentsof themenu varyfrom disc todisc.Press
MENU duringplaybackto display the menu. Some DVDs onlyallow
you to select disc playbackoptionsusingtheDVD root menu.
K. Display

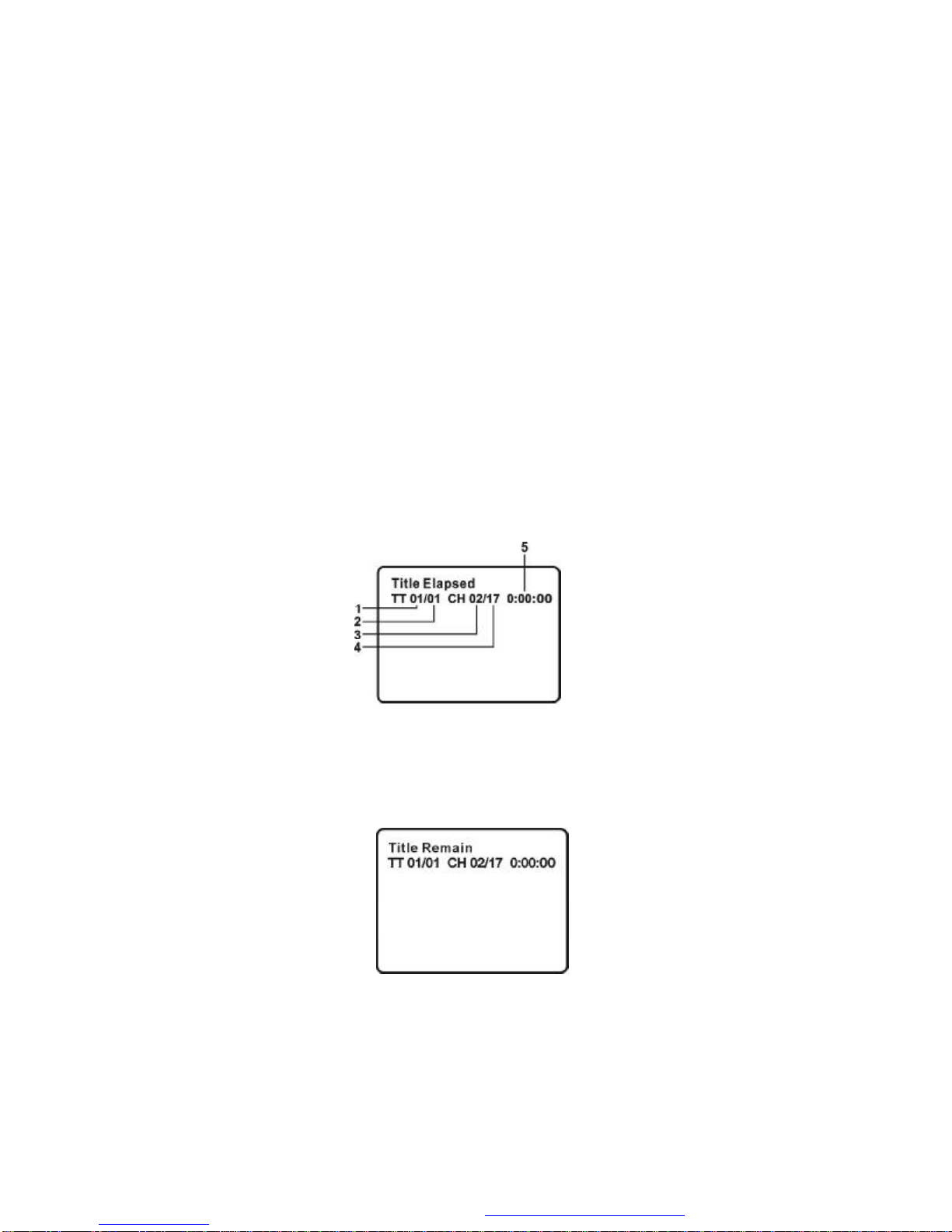

1. PLAYINGTIME AND REMAININGTIME
a. Duringplaybackpress the ‘DISPLAY’button to displaythe cur-
rent Title Number (1), the total Number ofTitles (2), the current
ChapterNumber (3), thetotal Numberof Chapters (4), andthe
Playing elapsedTimefor thetitle (5). Theheadingwill disappear
automaticallyafter 3 seconds ifDISPLAYbuttonis not pressed.
Title, Chapter Number, and TimeScreenDisplay
b.Press ‘DISPLAY’again todisplay the RemainingTime ofthe title.
The headingwill disappear automaticallyin 3 seconds.
Title Remaining TimeScreenDisplay

20
c.Press ‘DISPLAY’a3rdtime todisplaythe Elapsed Time forthe
chapter. The headingwill disappear automaticallyin3 seconds.
Chapter ElapsedTime ScreenDisplay
d. Press ‘DISPLAY’a 4th time to displaythe RemainingTime forthe
chapter. The headingwill disappear automaticallyin3 seconds.
Chapter Remaining TimeScreen Display
e.Press ‘DISPLAY’a 5thtime to exit, ‘DisplayOff’will be displayed
and will disappear automatically in 3 seconds.
2. ANGLE
Duringplayback ofadisc,press‘ANGLE’todisplaythe availableangles
fordiscscontainingmulti-angles*, with the current angle number (1)
andthetotal numberof angles(2) displaying.Press‘ANGLE’toselect
another angle, then press again to exitandreturn tothe normal
viewing angle.The angledisplaywill disappearautomatically if the
‘ANGLE’button is not pressed again within 3seconds.
*NOTE: Notall discscontain this feature.
