AUMA SAEx 07.2 User manual

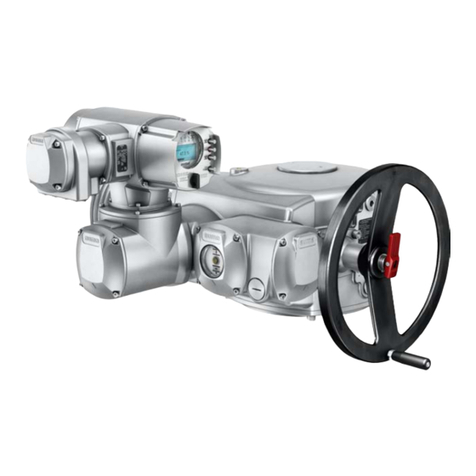

Multi-turn actuators
SAEx 07.2 –SAEx 16.2
SAREx 07.2 –SAREx 16.2
AUMA MATIC AMExC 01.1
Special version for Integral Motor Controls
Version FM/CSAEx (Class/Division System)
Assembly, operation, commissioningOperation manual

Read operation manual first.
●Observe safety instructions.
●This operation manual is part of the product.
●Preserve operation manual during product life.
●Pass on manual to any subsequent user or owner of the product.
●Proposition 65:This product may contain one or more substances or chemicals known to the state of
California to cause cancer.
Purpose of the document:
This document contains information for the installation, commissioning, operation and maintenance staff. It is
intended to support device installation and commissioning.
Reference documents:
Reference documents can be downloaded from the Internet (www.auma.com) or ordered directly from AUMA
(refer to <Addresses>).
Table of contents Page
51. Safety instructions................................................................................................................. 51.1. Basic information on safety 51.2. Range of application 61.3. Warnings and notes 61.4. References and symbols
82. Identification........................................................................................................................... 82.1. Name tag 112.2. Short description
123. Transport, storage and packaging........................................................................................ 123.1. Transport 123.2. Storage 123.3. Packaging
134. Assembly................................................................................................................................ 134.1. Mounting position 134.2. Handwheel fitting 134.3. Multi-turn actuator: mount to valve/gearbox 134.3.1. Output drive type A 144.3.1.1. Stem nut: finish machining 154.3.1.2. Multi-turn actuator (with output drive type A): mount to valve 164.3.2. Output drive types B 174.3.2.1. Multi-turn actuator with output drive types B: mount to valve/gearbox 174.4. Accessories for assembly 174.4.1. Stem protection tube for rising valve stem 184.5. Mounting positions of local controls 194.5.1. Mounting positions: modify
205. Electrical connection............................................................................................................. 205.1. Basic information 225.2. SE electrical connection 235.2.1. Terminal compartment: open 245.2.2. Cable connection
2
SAEx 07.2 –SAEx 16.2 / SAREx 07.2 –SAREx 16.2
Table of contents AUMA MATIC AMExC 01.1

255.2.3. Terminal compartment: close 265.3. KE/KES electrical connection 275.3.1. Terminal compartment: open 285.3.2. Cable connection 295.3.3. Terminal compartment: close 295.4. Accessories for electrical connection 295.4.1. Controls mounted to wall bracket 305.4.2. Parking frame 315.4.3. Protection cover 315.4.4. External earth connection
326. Operation................................................................................................................................ 326.1. Manual operation 326.1.1. Manual operation: engage 326.1.2. Manual operation: disengage 326.2. Motor operation 326.2.1. Local operation 336.2.2. Actuator operation from remote
347. Indications.............................................................................................................................. 347.1. Indication light 347.2. Mechanical position indication via indicator mark
358. Signals (output signals)......................................................................................................... 358.1. Feedback signals (analog)
369. Commissioning (basic settings)........................................................................................... 369.1. Heat-up time for low temperature version 369.2. Switch compartment: open 379.3. Torque switch setting 389.4. Limit switch setting 389.4.1. End position CLOSED (black section): set 389.4.2. End position OPEN (white section): set 399.5. Intermediate positions: set 399.5.1. Running direction CLOSE (black section): set 409.5.2. Running direction OPEN (white section): set 409.6. Test run 409.6.1. Direction of rotation: check 419.6.2. Limit switches: check 429.7. EWG 01.1 electronic position transmitter 439.7.1. Measuring range: set 449.7.2. Current values: adjust 449.7.3. LED end position signaling: switch on/off 449.8. Potentiometer 459.8.1. Potentiometer setting 459.9. RWG electronic position transmitter 469.9.1. Measuring range: set 469.10. Mechanical position indicator: set 479.11. Switch compartment: close
4810. Corrective action.................................................................................................................... 4810.1. Faults during commissioning 4810.2. Fuses
3
SAEx 07.2 –SAEx 16.2 / SAREx 07.2 –SAREx 16.2
AUMA MATIC AMExC 01.1 Table of contents

4810.2.1. Fuses within the actuator controls 5010.2.2. Motor protection (thermal monitoring)
5111. Servicing and maintenance................................................................................................... 5111.1. Preventive measures for servicing and safe operation 5111.2. Disconnection from the mains 5211.2.1. Disconnection from the mains with KES electrical connection 5211.3. Maintenance 5311.4. Disposal and recycling
5412. Technical data......................................................................................................................... 5412.1. Technical data Multi-turn actuators 5712.2. Technical data Actuator controls
5913. Spare parts............................................................................................................................. 5913.1. Multi-turn actuators SAEx 07.2 –SAEx 16.2/SAREx 07.2 –SAREx 16.2 KES Exd 6113.2. Actuator controls AUMA MATIC AMExC 01.1 SE 6313.3. Actuator controls AUMA MATIC AMExC 01.1 KES-Exd
65Index........................................................................................................................................
4
SAEx 07.2 –SAEx 16.2 / SAREx 07.2 –SAREx 16.2
Table of contents AUMA MATIC AMExC 01.1

1. Safety instructions
1.1. Basic information on safety
Standards/directives AUMA products are designed and manufactured in compliance with recognized
standards and directives.
The end user or the contractor must ensure that all legal requirements, directives,
guidelines, national regulations and recommendations with respect to assembly,
electrical connection, commissioning and operation are met at the place of installation.
Safetyinstructions/warn-
ings All personnel working with this device must be familiar with the safety and warning
instructions in this manual and observe the instructions given. Safety instructions
and warning signs on the device must be observed to avoid personal injury or property
damage.
Qualification of staff Assembly, electrical connection, commissioning, operation, and maintenance must
be carried out exclusively by suitably qualified personnel having been authorized by
the end user or contractor of the plant only.
Prior to working on this product, the staff must have thoroughly read and understood
these instructions and, furthermore, know and observe officially recognized rules
regarding occupational health and safety.
Work performed in potentially explosive atmospheres is subject to special regulations
which have to be observed.The end user or contractor of the plant is responsible
for respect and conformance to these regulations, standards, and laws.
Commissioning Prior to commissioning, it is important to check that all settings meet the requirements
of the application. Incorrect settings might present a danger to the application, e.g.
cause damage to the valve or the installation.The manufacturer will not be held
liable for any consequential damage. Such risk lies entirely with the user.
Operation Prerequisites for safe and smooth operation:
●Correct transport, proper storage, mounting and installation, as well as careful
commissioning.
●Only operate the device if it is in perfect condition while observing these instruc-
tions.
●Immediately report any faults and damage and allow for corrective measures.
●Observe recognized rules for occupational health and safety.
●Observe the national regulations.
●During operation, the housing warms up and surface temperatures > 140 °F
(60 °C) may occur.To prevent possible burns, we recommend checking the
surface temperature using an appropriate thermometer and wearing protective
gloves, if required, prior to working on the device.
Protective measures The end user or the contractor is responsible for implementing required protective
measures on site, such as enclosures, barriers, or personal protective equipment
for the staff.
Maintenance To ensure safe device operation, the maintenance instructions included in this manual
must be observed.
Any device modification requires prior consent of the manufacturer.
1.2. Range of application
AUMA multi-turn actuators are designed for the operation of industrial valves, e.g.
globe valves, gate valves, butterfly valves, and ball valves.
The devices described below are approved for use in hazardous classified locations
according to Class I, Division 1; Class II/III, Division 1 and Class I, Zone 1.
Other applications require explicit (written) confirmation by the manufacturer.
The following applications are not permitted, e.g.:
5
SAEx 07.2 –SAEx 16.2 / SAREx 07.2 –SAREx 16.2
AUMA MATIC AMExC 01.1 Safety instructions

●Industrial trucks
●Lifting appliances
●Passenger lifts
●Service lifts
●Escalators
●Continuous duty
●Buried service
●Continuous submersion (observe enclosure protection)
●Radiation exposed areas in nuclear power plants
No liability can be assumed for inappropriate or unintended use.
Observance of this operation manual is considered as part of the device's designated
use.
Information This operation manual is only valid for the "clockwise closing" standard version, i.e.
driven shaft turns clockwise to close the valve.
1.3. Warnings and notes
The following warnings draw special attention to safety-relevant procedures in this
operationmanual, eachmarkedbythe appropriate signal word(DANGER,WARNING,
CAUTION, NOTICE).
Indicates a hazardous situation that,if not avoided, will result in death or seri-
ous injury.
Indicates a hazardous situation that, if not avoided, could result in death or
serious injury.
Indicates a hazardous situation that, if not avoided, could result in minor or
moderate injury.
Indicates information considered important, but not hazard related (e.g. mes-
sages related to property damage).
Arrangement and typographic structure of the warnings
Type of hazard and respective source!
Possible consequence(s) in case of non-observance (option)
→Measures to avoid the danger
→Further measure(s)
Safety alert symbol warns of a potential personal injury hazard.
The signal word (here: DANGER) indicates the level of hazard.
1.4. References and symbols
The following references and symbols are used in these instructions:
Information The term Information preceding the text indicates important notes and information.
Symbol for CLOSED (valve closed)
Symbol for OPEN (valve open)
6
SAEx 07.2 –SAEx 16.2 / SAREx 07.2 –SAREx 16.2
Safety instructions AUMA MATIC AMExC 01.1

Important information before the next step.This symbol indicates what is required
for the next step or what has to be prepared or observed.
< > Reference to other sections
Terms in the brackets shown above refer to other sections of the document which
provide further information on this topic.These terms are either listed in the index,
a heading or in the table of contents and may easily be located.
7
SAEx 07.2 –SAEx 16.2 / SAREx 07.2 –SAREx 16.2
AUMA MATIC AMExC 01.1 Safety instructions

2. Identification
2.1. Name tag
Each device component (actuator, controls, motor) is equipped with a name tag.
Figure 1: Arrangement of name tags
[1] Actuator name tag
[2] Actuator controls name tag
[3] Motor name tag
[4] Additional tag, e.g.KKS tag (Power Plant Classification System)
[5] Approval plate for explosion-proof version
Actuator name tag
Figure 2: Actuator name tag (example)
[1] Name of manufacturer
[2] Address of manufacturer
[3] Type designation
[4] Order number (commission number)
[5] Actuator serial number
[6] Speed
[7] Torque range in direction CLOSE
[8] Torque range in direction OPEN
[9] Type of lubricant
[10] Permissible ambient temperature
[11] Can be assigned as an option upon customer request
[12] Enclosure protection
8
SAEx 07.2 –SAEx 16.2 / SAREx 07.2 –SAREx 16.2
Identification AUMA MATIC AMExC 01.1

Actuator controls name tag
Figure 3: Name tag for actuator controls (example)
[1] Type designation
[2] Order number (commission number)
[3] Serial number
[4] Actuator terminal plan
[5] Actuator controls terminal plan
[6] Mains voltage
[7] AUMA power class for switchgear
[8] Permissible ambient temperature
[9] Enclosure protection
[10] Control
Approval tag in explosion-proof version
Figure 4: Approval plates in explosion-proof version (examples)
[1] Ex symbol
[2] Number of test authority
[3] Classification
Division 1 (frequency or duration of occurrence of hazardous substances)
Class I = Gases, vapors or liquids (groups B, C, D)
Class II = Combustible dusts (groups E, F, G)
Class II = Fibers and Flyings
[4] Protection type of housing
[5] Temperature class / max.surface temperature
[6] Permissible ambient temperature
[7] Number of certificate (for CSA only)
Descriptions referring to name tag indications
Type designation Figure 5:Type designation (example)
1. Type and size of actuator
2. Flange size
3. Ex marking
9
SAEx 07.2 –SAEx 16.2 / SAREx 07.2 –SAREx 16.2
AUMA MATIC AMExC 01.1 Identification

Type and size
This manual applies to the following device types and sizes:
●Type SAEx: Multi-turn actuators for open-close duty
Sizes: 07.2, 07.6, 10.2, 14.2, 14.6, 16.2
●Type SAREx = Multi-turn actuators for modulating duty
Sizes: 07.2, 07.6, 10.2, 14.2, 14.6, 16.2
●Type AMExC = AUMA MATIC actuator controls
Size 01.1
Ex marking
Table 1:
Marking for explosion protection (example of /23B1111-)
-75.0
[1]
75.0
[1]
75.0
[1]
1B75.0
[3]
2/
Version (actuator with/without actuator controls)
1 = NORM (without actuator controls)
2 = with AUMA MATIC AMExC actuator controls
2
Electrical connection
1 = Terminal connection type: SE
2 = Terminal connection type: KE
3 = Terminal connection type: KES-Exd
(terminal compartment Ex d flameproof enclosure)
3
Cover of control unit
B = Without indicator glass
W = With indicator glass
B
Motor heater
1 = Without motor heater
2 = With motor heater
1
Motor insulation class
1 = Insulation class F
2 = Insulation class H
1
Cover of actuator controls
1 = not used
B = Without indicator glass
W = With indicator glass
1
Motor type
1 = ADX or VDX: 3-phase AC motor
2 = AEX, ACX,VEX, VCX: 1-phase AC motor
1
Order number The product can be identified using this number and the technical data as well as
order-specific data pertaining to the device can be determined.
Please always state this number for any product inquiries.
Actuator serial number Table 2:
Description of serial number (example of 0516UD12345)
UD123451605
Positions 1+2: Assembly in week = week 0505
Positions 3+4:Year of manufacture = 201616
Internal number for unambiguous product identificationUD12345
AUMA power class for
switchgear The switchgear used in the actuator controls (reversing contactors/thyristors) are
classified according to AUMA power classes (e.g.A1, B1, ....).The power class
defines the max. permissible rated power (of the motor) the switchgear has been
designed for.The rated power (nominal power) of the actuator motor is indicated in
HP [kW] on the motor name tag. For the assignment of the AUMA power classes to
the nominal power of the motor types, refer to the separate electrical data sheets.
10
SAEx 07.2 –SAEx 16.2 / SAREx 07.2 –SAREx 16.2
Identification AUMA MATIC AMExC 01.1

For switchgear without assignment to any power classes, the actuator controls name
tag does not indicate the power class but the max.rated power in HP [kW].
Control Table 3:
Control examples (indications on actuator controls name tag)
DescriptionInput signal
Control voltage 24V DC for OPEN-CLOSE control via digital inputs (OPEN,
STOP, CLOSE)
24 V DC
2.2. Short description
Multi-turn actuator Definition in compliance with EN ISO 5210:
A multi-turn actuator is an actuator which transmits to the valve a torque for at least
one full revolution.It is capable of withstanding thrust.
AUMA multi-turn actuators are driven by an electric motor and are capable of
withstanding thrust in combination with output drive type A. For manual operation,
a handwheel is provided.Switching off in end positions may be either by limit or
torque seating. Controls are required to operate or process the actuator signals.
Actuator controls AUMA MATIC actuator controls are used to operate AUMA actuators and are supplied
ready for use.The controls can be mounted directly to the actuator but also separately
on a wall bracket.The functions of the AUMA MATIC controls include standard valve
control in OPEN - CLOSE duty, position indications and different signals right through
to position control (option).
Local controls Operation (via push buttons), setting and indication can be performed directly at the
controls (contents of these instructions).
11
SAEx 07.2 –SAEx 16.2 / SAREx 07.2 –SAREx 16.2
AUMA MATIC AMExC 01.1 Identification

3. Transport, storage and packaging
3.1. Transport
For transport to place of installation, use sturdy packaging.
Hovering load!
Risk of death or serious injury.
→Do NOT stand below hovering load.
→Attach ropes or hooks for the purpose of lifting by hoist only to housing and NOT
to handwheel.
→Actuators mounted on valves: Attach ropes or hooks for the purpose of lifting
by hoist to valve and NOT to actuator.
→Actuatorsmountedto gearboxes:Attachropes or hooksforthe purposeoflifting
by hoist only to the gearbox using eyebolts and NOT to the actuator.
→Actuators mounted to controls: Attach ropes or hooks for the purpose of lifting
by hoist only to the actuator and NOT to the controls.
→Respect total weight of combination (actuator, actuator controls, gearbox, valve)
3.2. Storage
Danger of corrosion due to inappropriate storage!
→Store in a well-ventilated, dry room.
→Protect against floor dampness by storage on a shelf or on a wooden pallet.
→Cover to protect against dust and dirt.
→Apply suitable corrosion protection agent to uncoated surfaces.
Damages due to excessively low storage temperatures!
→AUMA MATIC actuator controls may NOT be stored below –40 °F (–40 °C).
Long-term storage If the device must be stored for a long period (more than 6 months) the following
points must be observed in addition:
1. Prior to storage:
Protect uncoated surfaces, in particular the output drive parts and mounting
surface, with long-term corrosion protection agent.
2. At an interval of approx.6 months:
Check for corrosion.If first signs of corrosion show, apply new corrosion protec-
tion.
3.3. Packaging
Our products are protected by special packaging for the transport ex works.The
packagingconsists of environmentallyfriendly materialswhich can easily beseparated
and recycled.We use the following packaging materials: wood, cardboard, paper,
and PE foil. For the disposal of the packaging material, we recommend recycling
and collection centers.
12
SAEx 07.2 –SAEx 16.2 / SAREx 07.2 –SAREx 16.2
Transport, storage and packaging AUMA MATIC AMExC 01.1

4. Assembly
4.1. Mounting position
The product described in this document can be operated without restriction in any
mounting position.
4.2. Handwheel fitting
Information For transport reason, handwheels with a diameter 15.7 inches (400 mm) and larger
are supplied separately within the scope of delivery.
Figure 6: Handwheel
[1] Spacer
[2] Input shaft
[3] Handwheel
[4] Retaining ring
1. If required, fit spacer [1] onto input shaft [2].
2. Slip handwheel [3] onto input shaft.
3. Secure handwheel [3] using the retaining ring [4] supplied.
4.3. Multi-turn actuator: mount to valve/gearbox
Danger of corrosion due to damage to paint finish and condensation!
→Touch up damage to paint finish after work on the device.
→After mounting, connect the device immediately to electrical mains to ensure
that heater minimizes condensation.
4.3.1. Output drive type A
Application ●Output drive for rising, non-rotating valve stem
●Capable of withstanding thrust
Design Output mounting flange [1] with axial bearing stem nut [2] form one unit.Torque is
transmitted to valve stem [3] via stem nut [2].
13
SAEx 07.2 –SAEx 16.2 / SAREx 07.2 –SAREx 16.2
AUMA MATIC AMExC 01.1 Assembly

Figure 7: Design of output drive type A
[1] Output mounting flange
[2] Stem nut with dog coupling
[3] Valve stem
Information To adapt the actuators to available output drive types A with flanges FA10 and FA14
(year of manufacture:2009 and earlier), an adapter is required.The adapter can be
ordered from AUMA.
4.3.1.1. Stem nut: finish machining
✔This working step is only required if stem nut is supplied unbored or with pilot
bore.
Figure 8: Output drive type A
[1] Stem nut
[2] Axial needle roller bearing
[2.1] Axial bearing washer
[2.2] Axial needle roller and cage assembly
[3] Spigot ring
1. Remove spigot ring [3] from output drive.
2. Remove stem nut [1] together with axial needle roller bearings [2].
3. Remove axial bearing washers [2.1] and axial needle roller and cage assemblies
[2.2] from stem nut [1].
14
SAEx 07.2 –SAEx 16.2 / SAREx 07.2 –SAREx 16.2
Assembly AUMA MATIC AMExC 01.1

4. Drill and bore stem nut [1] and cut thread.
Information: When fixing in the chuck, make sure stem nut runs true!
5. Clean the machined stem nut [1].
6. Apply sufficient suitable EP multi-purpose grease to axial needle roller and cage
assemblies [2.2] and axial bearing washers [2.1], ensuring that all hollow spaces
are filled with grease.
7. Place greased axial needle roller and cage assemblies [2.2] and axial bearing
washers [2.1] onto stem nut [1].
8. Re-insert stem nut [1] with bearings [2] into output drive.
Information: Ensure that dogs or splines are placed correctly in the keyway of
the hollow shaft.
9. Screw in spigot ring [3] until it is firm against the shoulder.
4.3.1.2. Multi-turn actuator (with output drive type A): mount to valve
Figure 9: Assembly of output drive type A
[1] Valve stem
[2] Output drive type A
[3] Screws to actuator
[4] Valve flange
[5] Screws to output drive
1. If the output drive type A is already mounted to the multi-turn actuator:Remove
screws [3] and remove output drive type A [2].
2. Check if the flange of output drive type A matches the valve flange [4].
3. Apply a small quantity of grease to the valve stem [1].
4. Place output drive type A on valve stem and turn until it is flush on the valve
flange.
5. Turn output drive type A until alignment of the mounting holes.
6. Screw in fastening screws [5], however do not completely tighten.
7. Fit multi-turn actuator on the valve stem so that the stem nut dogs engage into
the output drive sleeve.
➥The flanges are flush with each other if properly engaged.
8. Rotate multi-turn actuator until alignment of the mounting holes.
9. Reinstall multi-turn actuator with screws [3].
15
SAEx 07.2 –SAEx 16.2 / SAREx 07.2 –SAREx 16.2
AUMA MATIC AMExC 01.1 Assembly

10. Reinstall screws [3] crosswise with a torque according to table.
Table 4:
Tightening torques for screws
Tightening torque ft-lb [Nm]M threadsUNC threads
Strength class
A2-808.8
7 [10]8 [11]M61/4"
18 [24]18 [25]M85/16"
35 [48]38 [51]M103/8”
60 [82]64 [87]M121/2"
148 [200]158 [214]M165/8”
289 [392]318 [431]M203/4”
11. Turn multi-turn actuator with handwheel in direction OPEN until valve flange
and output drive A are firmly placed together.
12. Tighten fastening screws [5] between valve and output drive type A crosswise
applying a torque according to table.
4.3.2. Output drive types B
Application ●For rotating, non-rising valve stem
●Not capable of withstanding thrust
Design Connection between hollow shaft and valve or gearbox via output drive sleeve fixed
to the hollow shaft of the multi-turn actuator via retaining ring.
Changing output drive sleeve allows later retrofitting to a different output drive type.
●Output drive type B: Output drive sleeve with bore according to DIN 3210
●Output drive types B1 –B4:Output drive sleeve with bore according to EN ISO
5210
Figure 10: Output drive type B
[1] Multi-turn actuator flange (e.g. FA07)
[2] Hollow shaft
[3] Output drive sleeve (illustration examples)
[3] B/B1/B2 and [3]* B3/B4, respectively with bore and keyway
[4] Gearbox/valve shaft
16
SAEx 07.2 –SAEx 16.2 / SAREx 07.2 –SAREx 16.2
Assembly AUMA MATIC AMExC 01.1

Information Spigot at valve flanges should be loose fit.
4.3.2.1. Multi-turn actuator with output drive types B: mount to valve/gearbox
Figure 11: Mounting output drive types B
[1] Multi-turn actuator
[2] Valve/gearbox
[3] Valve/gearbox shaft
1. Check if mounting flanges fit together.
2. Check, if output drive of multi-turn actuator [1] matches the output drive of
valve/gearbox or valve/gearbox valve shaft [2/3].
3. Apply a small quantity of grease to the valve or gearbox stem [3].
4. Fit multi-turn actuator [1].
Information: Ensure that the spigot fits uniformly in the recess and that the
mounting faces are in complete contact.
5. Fasten multi-turn actuator with screws according to table.
Information: We recommend applying liquid thread sealing material to the
screws to avoid contact corrosion.
6. Fasten screws crosswise to a torque according to table.
Table 5:
Tightening torques for screws
Tightening torque ft-lb [Nm]M threadsUNC threads
Strength class
A2-808.8
7 [10]8 [11]M61/4"
18 [24]18 [25]M85/16"
35 [48]38 [51]M103/8”
60 [82]64 [87]M121/2"
148 [200]158 [214]M165/8”
289 [392]318 [431]M203/4”
4.4. Accessories for assembly
4.4.1. Stem protection tube for rising valve stem
—Option —
17
SAEx 07.2 –SAEx 16.2 / SAREx 07.2 –SAREx 16.2
AUMA MATIC AMExC 01.1 Assembly

Figure 12: Assembly of the stem protection tube
[1] Protective cap for stem protection tube (fitted)
[1]* Protective cap made of steel (screwed)
[2] Stem protection tube
[3] V-seal
1. Seal thread with Teflon tape or thread sealing material.
2. Screw stem protection tube [2] into thread and tighten it firmly.
Information: For stem protection tubes made of two or more segments, all
parts have to be thoroughly screwed together.
3. Push down the sealing ring [3] onto the housing.
Information: For mounting segments, push down seals of segments down to
the sleeve (connecting piece).
4. Check whether protective cap for stem protection tube [2] is available, in perfect
condition and tightly placed on or screwed to the tube.
4.5. Mounting positions of local controls
The mounting position of the local controls is designed according to the order. If,
after mounting the actuator to the valve or the gearbox on site, the local controls are
in an unfavorable position, the mounting position can be changed at a later date.
Four mounting positions shifted by respectively 90° are possible.
Figure 13: Mounting positions
18
SAEx 07.2 –SAEx 16.2 / SAREx 07.2 –SAREx 16.2
Assembly AUMA MATIC AMExC 01.1

4.5.1. Mounting positions: modify
Flameproof enclosure, danger of explosion!
Risk of death or serious injury.
→Before opening, ensure that there is no explosive gas and no voltage.
→Handle cover and housing parts with care.
→Joint surfaces must not be damaged or soiled in any way.
→Do not jam cover during fitting.
1. Loosen screws and remove local controls.
2. Loosen 3 screws of the board, turn board to the new position and tighten the
screws.
3. Check whether O-ring is in good condition, correctly insert O-ring.
4. Turn local controls into new position and re-place.
Cable damage due to twisting or pinching!
Risk of functional failures.
→Turn local controls by a maximum of 180°.
→Carefully assemble local controls to avoid pinching the cables.
5. Fasten screws evenly crosswise.
19
SAEx 07.2 –SAEx 16.2 / SAREx 07.2 –SAREx 16.2
AUMA MATIC AMExC 01.1 Assembly

5. Electrical connection
5.1. Basic information
Electric shock due to presence of hazardous voltage!
Failure to observe this warning can result in death, serious injury, or property damage.
→The electrical connection must be carried out exclusively by suitably qualified
personnel.
→Prior to connection, observe basic information contained in this chapter.
→After connection but prior to applying the voltage, observe the <Commissioning>
and <Test run> chapters.
Wiring diagram/terminal
plan The pertaining wiring diagram/terminal plan is in the cover of the electrical connection.
The operation manual is attached to the device in a weather-proof bag.
Protection on site For short-circuit protection and for disconnecting the actuator from the mains, fuses
and disconnect switches have to be provided by the customer.
The current values for respective sizing are derived from the current consumption
of the motor (refer to electrical data sheet) plus the current consumption of the
actuator controls.
Table 6:
Current consumption controls
Max. current consumptionMains voltage
575 mA100 to 120 V AC (±10 %)
275 mA208 to 240 V AC (±10 %)
160 mA380 to 500 V AC (±10 %)
500 mA24 V DC (+20 %/–15 %) and AC Motor
Table 7:
Maximum permissible protection
Max. protectionRated powerSwitchgear
16 A (gL/gG)up to 1.5 kWReversing contactor A1
32 A (gL/gG)up to 7.5 kWReversing contactor A2
63 A (gL/gG)up to 11 kWReversing contactor A3
If controls are mounted separately from actuator (controls on wall bracket):Consider
length and cross section of connecting cable when defining the protection required.
Power supply for the
controls (electronics) If the controls (electronics) are supplied externally with 24 V DC, the power supply
is smoothed via an internal 1,000 µF capacitor.When selecting a power supply, care
must be taken to consider the capacitor inrush current upon powering the unit up.
Safety standards All externally connected devices shall comply with the relevant safety standards.
Type of current, mains
voltage and mains fre-
quency
Type of current, mains voltage and mains frequency must match the data on the
motor name tag.
20
SAEx 07.2 –SAEx 16.2 / SAREx 07.2 –SAREx 16.2
Electrical connection AUMA MATIC AMExC 01.1
