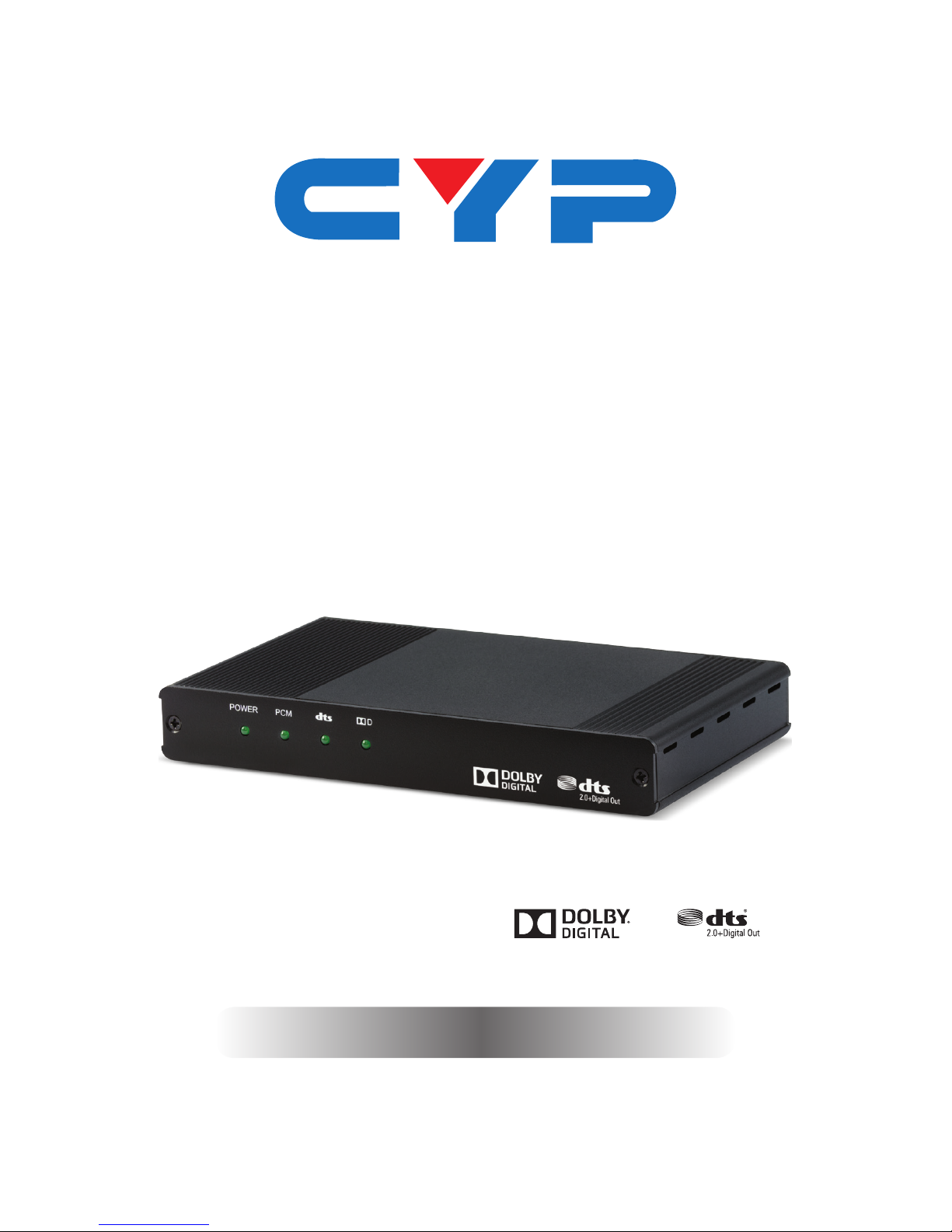

CYP CPRO-SE2DD User manual

CPRO-SE2DD
HDMI Audio Converter with Dolby®Digital and
DTS® 2.0+Digital Out Decoder
Operation Manual
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may
be trademarks of the companies with which they are associated.
Manufactured under license from Dolby Laboratories. “Dolby” and
the double-D symbol are trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent Nos: 5,956,674;
5,974,380; 6,487,535 & other U.S. and worldwide patents issued
& pending. DTS, the Symbol, & DTS and the Symbol together are
registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc.
Product includes software. © DTS, Inc. All Rights Reserved.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE (DD/MM/YY) SUMMARY OF CHANGE
VR0 03/06/15 Preliminary Release
VS1 12/06/15 Updated texts/diagrams

CONTENTS
1. Introduction..............................................1
2. Applications.............................................1
3. Package Contents .................................. 1
4. System Requirements.............................. 1
5. Features....................................................2
6. Operation Controls and Functions......... 3
6.1 Front Panel ..........................................3
6.2 Rear Panel...........................................4
7. Connection Diagram .............................. 5
8. Specications .......................................... 6
8.1 Technical Specications ...................6
8.2 Video Resolutions...............................7
8.3 Audio Specications..........................8
8.4 Input to Output Audio Formats ........8
9. Acronyms .................................................9

1
1. INTRODUCTION
The HDMI Audio Converter with Dolby®Digital and DTS®2.0+Digital
Out Decoder allows the audio signal from an HDMI input to be de-
embedded, downmixed and simultaneously output to both digital
(optical or coaxial) and analog audio outputs. This unit allows you
to utilize an additional audio output such as an AV receiver or set of
active speakers, or to further extend the audio signal pathway.
2. APPLICATIONS
• Home entertainment installation
• Audio extraction and extension
• Non-HDMI AV receivers or wider audio systems
3. PACKAGE CONTENTS
• HDMI Audio Converter with Dolby Digital and DTS 2.0+Digital Out
Decoder
• 5 V/2.6 A Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
HDMI equipped source device and display (TV/monitor) and/or
amplier/active speakers with connection cables.

2
5. FEATURES
• Features Dolby Digital Decoder technology
• Features DTS 2.0+Digital Out Decoder technology
• Integrated digital interpolator lter and Digital-to-Analog Converter
(DAC)
• Supports LPCM input sampling rates up to 96 kHz and 2CH output at
48 kHz
• Supports Dolby Digital/DTS sampling rates up to 48 kHz
• Supports simultaneous audio output on HDMI, analog L/R, Coaxial
and Optical connections
• HDMI (with 3D & 4K2K support) and HDCP compliant
• Supports HDTV resolutions up to 4K2K (3840×2160@24/25/30, 50/60
with YUV420 and 4096×2160@24, 50/60 with YUV420)
• Supports HDMI data rate from 300 Mbps to 3 Gbps and ‘Deep Color’
up to 1080p/36-bit

3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
POWER PCM
1 2 3 4
1POWER: This LED will illuminate when the device is connected to an
active power supply.
2PCM LED: This LED will illuminate when the input audio source is
PCM format.
3DTS LED: This LED will illuminate when the input audio source is DTS
2.0+Digital Out encoded.
4Dolby LED: This LED will illuminate when the input audio source is
Dolby Digital encoded.

4

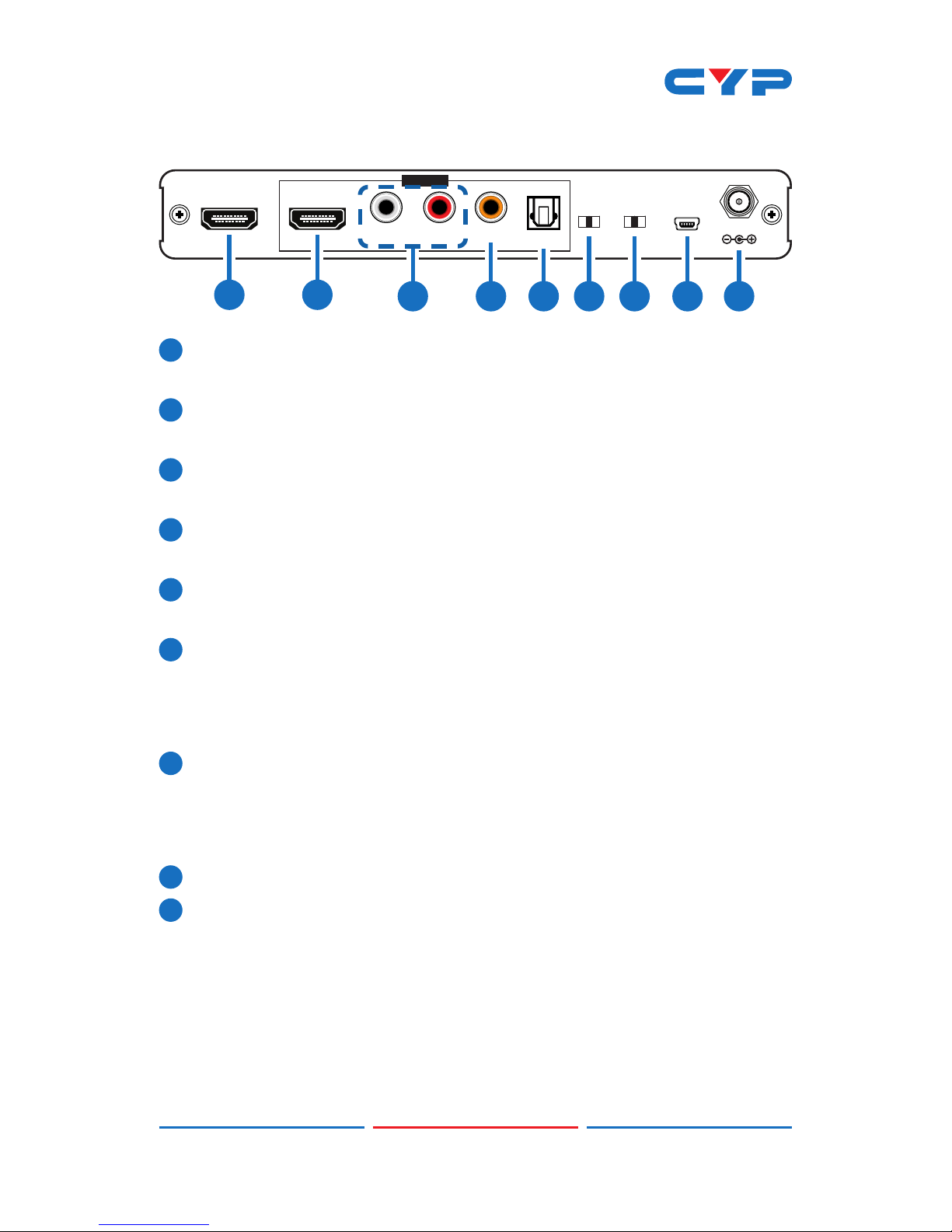

6.2 Rear Panel
HDMI IN HDMI HDMI
BYPASS/
2CH
SPDIF
BYPASS/
2CH
SERVICE
DC 5V
LRCOAX OPTICAL
OUTPUT
1 2 3 4 5 6 7 8 9
1HDMI IN: Connect to an HDMI source device such as a Blu-ray
player, Set-top Box or any HDMI equipped source device.
2HDMI OUTPUT: Connect to an HDMI equipped TV/display or AV
receiver for output image or audio display.
3L/R OUTPUT: Connect to the analog line level input of an amplier
or active speakers.
4COAX OUTPUT: Connect to the digital optical input of an AV
receiver.
5OPTICAL OUTPUT: Connect to the digital coaxial input of an AV
receiver.
6HDMI BYPASS/2CH: For the HDMI output port, switch to 'BYPASS'
to allow audio pass-through from HDMI input port; switch to '2CH'
to enable audio decoding and 2-channel down-mixing for Dolby
Digital or DTS audio signals from HDMI input port.
7SPDIF BYPASS/2CH: For the COAX and OPTICAL output ports, switch
to 'BYPASS' to allow audio pass-through from HDMI input port;
switch to '2CH' to enable audio decoding and 2-channel down-
mixing for Dolby Digital or DTS audio signals from HDMI input port.
8SERVICE: For manufacturer use only.
9DC 5V: Connect the adaptor included in the package to AC wall
outlet for power supply.

5
7. CONNECTION DIAGRAM
HDMI IN HDMI HDMI
BYPASS/
2CH
SPDIF
BYPASS/
2CH
SERVICE
DC 5V
LRCOAX OPTICAL
OUTPUT
DVD or Blu-ray Player
Power
Supply
Coaxial Digital
Audio Output
Analog Stereo
Output
HDMI
Bypass
Active Speakers AV Receiver
HDTV
Optical Digital
Audio Output
HDMI Input

6
8. SPECIFICATIONS
8.1 Technical Specications
Video Bandwidth 300 MHz/9 Gbps
Input Ports 1×HDMI, 1×USB (Service only)
Output Ports 1×HDMI, 1×Coaxial, 1×Optical, 1×R/L (2
RCA)
HDMI Cable Length Input: 10m@1080p, 5m@4K2K
Output: 10m@1080p, 5m@4K2K
Power Supply 5 V/2.6 A DC(US/EU standards, CE/FCC/UL
certied)
ESD Protection Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Dimensions 180 mm (W)×104 mm (D)×25mm (H)/Jacks
Excluded
180mm (W)×110.75 mm (D)×25 mm (H)/
Jacks Included
Weight 368 g
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0˚C~40˚C / 32 F ~104˚F
Storage Temperature −20˚C~60˚C / −4˚F~140˚F
Relative Humidity 20~90% RH (non-condensing)
Power Consumption 2.5 W

7
8.2 Video Resolutions
HDMI/DVI RESOLUTIONS INPUT OUTPUT
640×480@60/72/75/85 √ √
720×480@60 √ √
720×576p@50 √ √
800×600@56/60/72/75/85 √ √
1024×768@60/70/75/85 √ √
1280×720@50/60 √ √
1280×720p@60 √ √
1280×768@60/70/75/85 √ √
1280×800@60 √ √
1280×1024@60 √ √
1360×768@60 √ √
1600×1200@60 √ √
1920×1080i@50/60 √ √
1920×1080p@24/25/30/50/60 √ √
1920×1200@60 (RB) √ √
3840×2160@24/25/30 √ √
3840×2160@50/60 (YUV420) √ √
4096×2160@24/25/30 √ √
4096×2160@50/60 (YUV420) √ √

8
8.3 Audio Specications
OUT
IN Output Output Level
T.H.D+N
(A-Weight)
Frequency
Response SNR Crosstalk
HDMI
0dBFS
HDMI 0 dBFS <0.00001% ±1dBFS >140dB <-160dB
Optical 0 dBFS <0.00001% ±1dBFS >140dB <-160dB
Coaxial 0 dBFS <0.00001% ±1dBFS >140dB <-160dB
Line-Out 2Vrms +-0.1 <0.006% ±1dB >100dB <-110dB
8.4 Input to Output Audio Formats
Audio
Input
Input
Format
Audio Output
Analog L/R
HDMI S/PDIF
(Optical, Coaxial)
Switch Status Switch Status
BYPASS 2CH BYPASS 2CH
HDMI
LPCM
2CH
Analog
2CH
LPCM
2CH
LPCM
2CH LPCM 2CH LPCM 2CH
Dolby
Digital
Decoding
Lt/Rt
Bitstream
Pass-through
LPCM
Lt/Rt
Bitstream
Pass-through
LPCM
Lt/Rt
DTS Decoding
Lo/Ro
Bitstream
Pass-through
LPCM
Lo/Ro
Bitstream
Pass-through
LPCM
Lo/Ro

9
9. ACRONYMS
ACRONYM COMPLETE TERM
DTS Digital Theater System
DVI Digital Visual Interface
EDID Extended Display Identication Data
HDCP High-bandwidth Digital Content Protectionl
HDMI High-Denition Multimedia Interface
HDTV High-Denition Television
LCM Liquid Crystal Monitor
USB Universal Serial Bus
VGA Video Graphics Array
WUXGA Wide Ultra Extended Graphics Array

Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD
