Ausrv XL15 2021 User manual

Phone: [phone]
Copyright © Market Direct Group Pty Ltd 2021 All Rights Reserved
OWNER’S MANUAL
EDITION: 2021 - Version 1
XL15
OFFROAD CARAVAN
www.marketdirect.com.au

Contentswww.marketdirect.com.au Ph: 1300 494 494
Contents
My XL15 Hybrid Caravan .................................................1
Section 1. Introduction ......................................................2
Welcome to AusRV .............................................................2
Terminology & Abbreviations .........................................2
Tare Weight: ...........................................................................2
ATM: .........................................................................................2
GTM: .........................................................................................2
Ball Weight: ............................................................................3
GCM: ........................................................................................3
Camber: ...................................................................................3
Toe In/Out: .............................................................................3
Tow vehicle and Trailer Compatibility .........................3
Specications ........................................................................4
AUSRV Contact Details and Stores ..............................5
Safety Information ..............................................................6
WARNING - ...........................................................................6
Modications to The Product .........................................6
Gas Systems............................................................................6
Chassis ......................................................................................6
Jacking Your Caravan .........................................................7
Electrical Safety ....................................................................8
Vehicle Electrical Requirements ....................................9
Brake Controller ..................................................................9

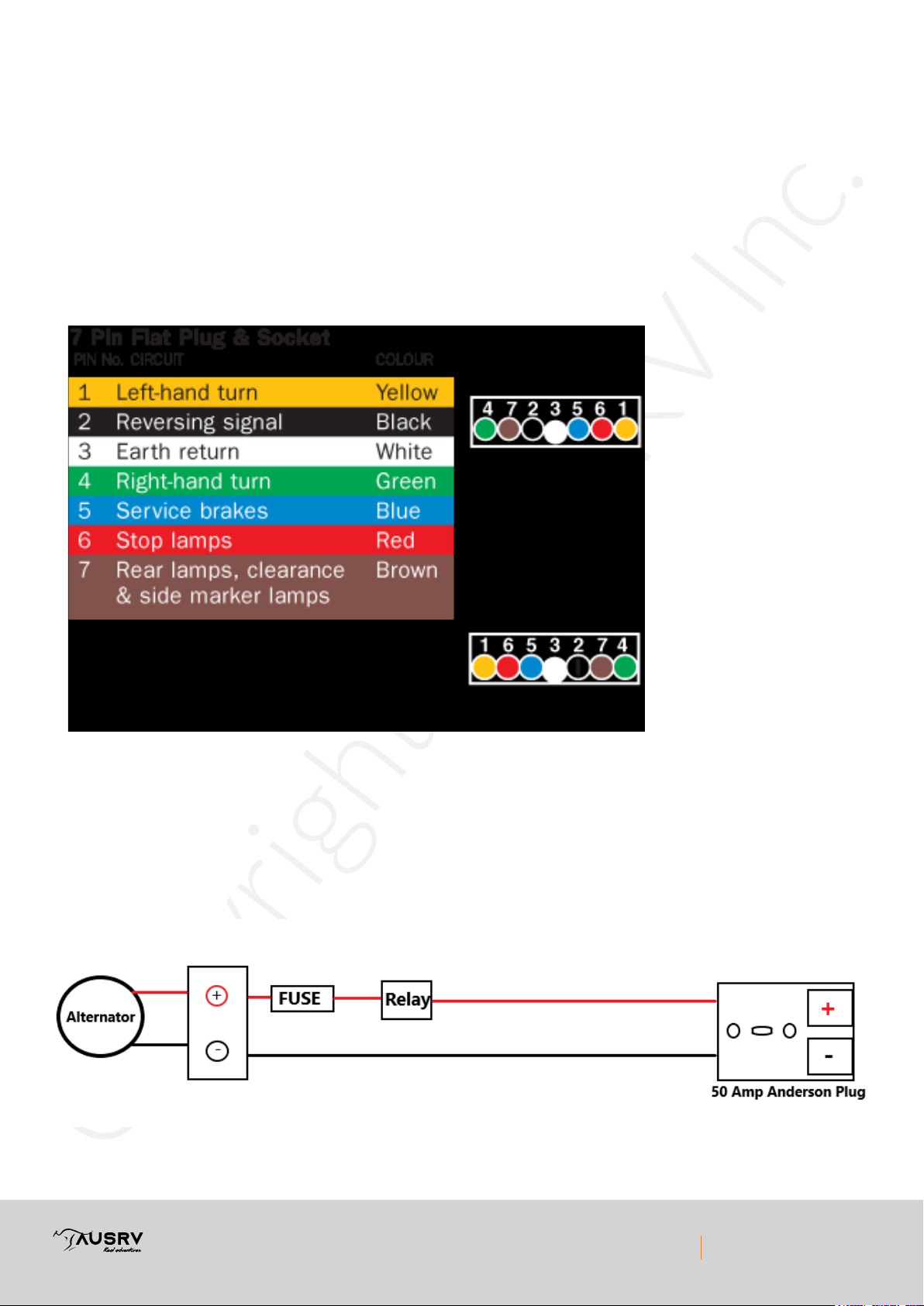

Correct Vehicle Wiring for AUSRV Caravans ...........9
Trailer Lights ....................................................................... 10
Charging Caravan ............................................................. 10
Gas & Appliance Safety ................................................... 11
Gas Certication................................................................ 11
General Safety .................................................................... 11
Gas Cylinder Safety .......................................................... 11
Gas Appliance Safety ....................................................... 12
Removing the Hot Water System Flue Cover ........ 12
Removing Door Vent Cover .......................................... 12
Ventilation and Flues........................................................ 13
Isolating Appliances.......................................................... 13
Truma Rapid How Water System ................................ 14
Operating Instructions ................................................... 14
Filling the Truma UltraRapid with Water ................. 15
Pressure and Temperature Relief Valve ................... 16
Draining the Water Heater ........................................... 16
Switching On Gas Operation ........................................ 17
Removing The Cowl Cover ............................................ 17
Select Water Heater Mode ........................................... 17
When using the vehicle switches ................................ 17
Switching Off Gas Operation ....................................... 17
Red Indicator Lamp “Fault” ........................................... 18
Maintenance ....................................................................... 18
Decalcication ................................................................... 18
Fuses ...................................................................................... 18
Circuit Breaker ................................................................... 18
Water Heater Trouble Shooting .................................. 19
Gas Operation..................................................................... 19
Water Supply....................................................................... 19
Safety Chains and Shackles .......................................... 20
Rated Shackles.................................................................... 20
Attaching Chains................................................................ 20
Connecting the Electrics................................................. 20
Connecting the Breakaway ........................................... 20
Using the Caravan ............................................................ 21
Weights and Payload Capacities ................................. 21
How to Load Your Caravan ........................................... 21
Load Distribution Guide ................................................. 21
Ball Weight .......................................................................... 22
Effects of Weight Distribution ..................................... 22
Tyre Pressures ................................................................... 22
Pre-Trip Inspection ........................................................... 23
Tyres ...................................................................................... 23
Wheel Nuts ......................................................................... 23
Hitch and Chains ............................................................... 23
Fire Extinguisher ............................................................... 23
Brakes & Breakaway System ........................................ 23
Lights ..................................................................................... 23
Gas .......................................................................................... 23
Finding a Suitable Spot ................................................... 24
Using Wheel Chocks and Ramps ................................ 24
Operating the Jockey Wheel ........................................ 24
Stabiliser Legs .................................................................... 24
Electric Awning/Annex ................................................... 25
Kitchen .................................................................................. 26
Main Electrical Panel ....................................................... 27
Connecting to Mains Power ......................................... 28
Charging the Caravan ..................................................... 28
Mains Power........................................................................ 28
Solar Power.......................................................................... 28

Contentswww.marketdirect.com.au Ph: 1300 494 494
Packing Up the Caravan ................................................. 28
Storing Your Caravan - Power ...................................... 29
Locks and Latches .............................................................30
Gas and Appliances ..........................................................30
Towing the Caravan ......................................................... 31
Hitch ...................................................................................... 31
Connecting the Hitch ...................................................... 31
Coupling ............................................................................... 33
Uncoupling .......................................................................... 35
Care and Maintenance of the Caravan ..................... 36
Protection of Finishes ..................................................... 36
Paint ....................................................................................... 36
Acrylic Windows ............................................................... 36
Internal Finishes ................................................................ 36
Ensuite Finishes ................................................................. 36
Mirrors .................................................................................. 36
Galvanised Finishes ......................................................... 36
High Tensile Bolt and Fittings ...................................... 36
Stainless Steel ..................................................................... 36
Fabrics ................................................................................... 36
Corrosion Protection ....................................................... 36
Roof Maintenance ............................................................ 37
Solar Panels ......................................................................... 37
Sealants ................................................................................ 37
Canopy Lifting Mechanism ............................................ 37
Roof Skirt Elastic Cord..................................................... 37
Caravan Body Maintenance ..........................................38
Locks and Latches ............................................................. 38
Rubber Seals........................................................................38
Sealants ................................................................................38
Mechanical Maintenance ...............................................38
Wheels and Tyres ..............................................................38
Brakes ....................................................................................38
Bearings and Seals ............................................................ 38
Suspension ........................................................................... 38
Handbrake............................................................................ 39
Adjuster ................................................................................ 39
Hitch ...................................................................................... 39
Ball Bearing Slides ............................................................ 39
Plumbing and Toilet .........................................................40
Truma Hot Water Heater ...............................................40
Grey Water Tank ...............................................................40
Fresh Water Tanks ............................................................40
Toilet Care and Maintenance .......................................40
Chemicals .............................................................................40
Thetford ................................................................................40
Moisture and Mould Protection .................................. 41
Condensation ..................................................................... 41
Protecting Your Investment ......................................... 42
Stone Stomper ................................................................... 42
Rock Tamer .......................................................................... 42
Anti-Theft Devices ........................................................... 42
Electrical ...............................................................................43
Trouble Shooting ............................................................... 45
240 Volt ................................................................................ 45
Inverter and Error Codes................................................ 45
12 Volt Trouble Shooting ...............................................48
Plumbing ............................................................................... 49
Hot Water System ............................................................ 49
Water Pump ........................................................................ 49
Driving Off Road ............................................................... 50
Recommended Recovery Products ............................51
Recovery points ..................................................................51
Hardware ..............................................................................51
Wheels and Tyres ............................................................. 53
Highway ................................................................................ 53
Off Road ............................................................................... 53
Suspension .......................................................................... 53
Shock Absorbers & Bushes ........................................... 53
Wheel Alignment .............................................................. 53
Hubs and Axles - Parts Identication........................ 54
Service Record ................................................................... 55
Warranty Statement ....................................................... 78
Supplier Details .................................................................80
Guide to Video Library .................................................... 81
Handover Video ................................................................. 81
Setup Tuition ....................................................................... 81
Pack Down Tuition ........................................................... 81
Annex Setup Tuition ......................................................... 81
External Ensuite Setup .................................................... 81

www.marketdirect.com.au Ph: 1300 494 494
1
Copyright © Market Direct Group Pty Ltd 2021 All Rights Reserved
All les and information contained in this Owner’s Manual are copyright by Market Direct Group Pty Ltd, and
may not be duplicated, copied, modied, or adapted, in any way without our written permission. Our Owner’s
Manual may contain our service marks or trademarks as well as those of our afliates or other companies, in the
form of words, graphics, and logos.
Your use of our Owner’s Manual does not constitute any right or license for you to use our service marks or
trademarks, without the prior written permission of Market Direct Group Pty Ltd.
Our Content, as found within our Owner’s Manual, is protected under Australian and foreign copyrights. The
copying, redistribution, use or publication by you of any such Content, is strictly prohibited. Your use of our
Owner’s Manual does not grant you any ownership rights to our Content.
DISCLAIMER: This manual is provided in good faith and Market Direct Group Pty Ltd.
may amend or update this owner manual from time to time.
Use of Product
The intent and purpose of this manual is to assist owners in the correct use and operation of the product and outline the
servicing schedule to be followed, ensuring the correct maintenance of the product.
Servicing
Servicing information contained in this owner manual is provided for those who have appropriate technical skills and
relevant to the subject matter the publication deals with in regard to maintenance and repairs. The servicing content of this
manual assumes a satisfactory technical knowledge and mechanical skills and experience. It is not suitable for people who
are not trained or qualied in the subject matter it deals with. If you do not have the appropriate skills and experience, or if
you do not have access to appropriate tools and equipment, you may injure yourself or others around you and/or you may
cause damage to the Caravan you are working on, including making it unsafe. Users of this owner manual must:
• Read all content thoroughly. It is especially important to have a good understanding of all the contents shown in the
INTRODUCTION and SAFETY Sections of this publication.
• Use only the correct tools and equipment for all repairs and servicing.
• If part replacement is necessary, replace the part with the same part number or equivalent part.
DO NOT replace it with a part of inferior quality.
• Observe all ‘Cautions’ and ‘Notices’ to reduce the risk of personal injury during service or repair, or improper service or
repair that may damage the Caravan or render it unsafe.
• Understand that the ‘Cautions’ and ‘Notices’ in this publication are not exhaustive because it is impossible to warn of
all possible hazardous consequences that might result from failure to follow the instructions in this publication.
You must carry out your own risk assessments as you work.
Market Direct Group Pty Ltd. does not accept any and all liability which may arise because a user of this
publication fails to follow directions in the publication or safe work methods associated with use and
maintenance of the product.
Those without the required skills, knowledge, tools, and experience to work on and maintain this product should seek the
services of a suitably qualied person or business. This publication is based on the latest product information at the time of
release. However, specications and procedures are subject to change without notice.

www.marketdirect.com.au Ph: 1300 494 494
1
My XL15 Hybrid Caravan
OWNERS NAME
MODEL
VIN
BUILD DATE
TARE
ATM
TYRE SIZE
DEALER
ADDRESS 1
ADDRESS 2
DISCLAIMER: By receiving this handbook, you confirm there you have read and agree to all
the terms and conditions and understood the use and maintenance care of AusRV®

www.marketdirect.com.au Ph: 1300 494 494
2

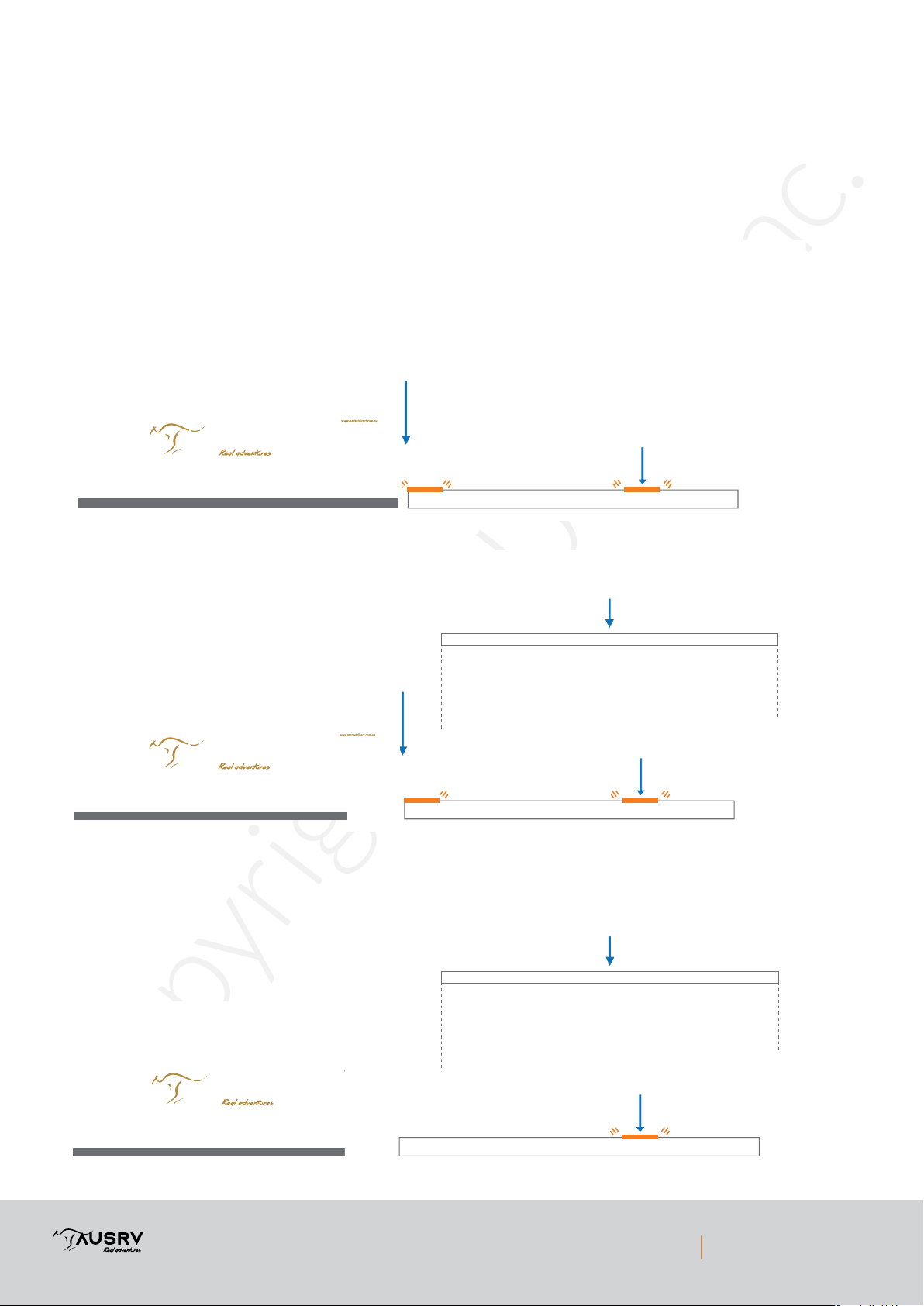

Coupling Mass
Weighbridge Reading = Tare Mass
Load
Weighbridge Reading must not exceed GTM Rang
Load
Coupling Mass
Weighbridge Reading must not exceed ATM Rang
Section 1. Introduction
WELCOME TO AUSRV
Off road caravanning is a rewarding way to travel and see our great country. Owning an AusRV Caravan or Hybrid
Caravan will afford you the opportunity to travel to remote places and stay in comfort. It is the intention of AusRV
for you to have the best possible owner experience and enjoy the great outdoors.
Terminology & Abbreviations
ATM (Aggregate Trailer Mass) Rating: The total permissible mass of the Trailer. This includes the coupling
mass and whatever you add as payload (e.g. water, gas, luggage)
up to the specified rating. The ATM Rating
must not be exceeded.
GTM (Gross Trailer Mass) Rating: The total permissible mass that can be supported by the wheels/ tyres of
the Trailer. This includes whatever you add as payload (e.g. water, gas, equipment and luggage), but does not
include the mass supported by the tow vehicle.
The GTM Rating must not be exceeded.
Tare Weight: The total weight of the trailer (load on tyres plus coupling load) with all options and fittings as
supplied by the manufacturer, with empty water tanks, excluding fluids not essential for operation on public
roads, and without luggage or personal effects.
Caravans for illustration purposes only.

www.marketdirect.com.au Ph: 1300 494 494
3
Terminology & Abbreviations
Ball Weight: The downward load exerted on the tow point of the vehicle by the trailer.
GCM: (Gross Combination Mass): This is the total allowable combined mass of tow vehicle and trailer as
determined by the tow vehicle manufacturer.
Camber: Camber angle is the measure in degrees of the difference between the wheel’s vertical alignment
perpendicular to the surface. If a wheel is perfectly perpendicular to the surface, its camber would be 0
degrees. Camber is described as negative when the top of the tyre begins to tilt inward towards the chassis
rail.
Toe In/out: Negative toe, or toe out, is the front of the wheel pointing away from the centreline of the vehicle.
Positive toe, or toe in, is the front of the wheel pointing towards the centreline of the vehicle.
Toe can be measured in linear units, at the front or rear of the tyre, or as an angular deflection. In the case of
AusRV products, the “toe in” is measured in millimetres at the front of the tyre from the chassis rail.
Tow vehicle and Trailer Compatibility
Your tow vehicle manufacturer has applied a maximum towing capacity to the vehicle which is the Aggregate Trailer
Mass (ATM) and a maximum Gross Combination Mass (GCM). These specifications MUST NOT be exceeded. It is
your responsibility to know, understand and follow these specifications. Vehicle manufacturers may also specify or
recommend “Weight Distribution Bars” when towing under certain conditions. You MUST ensure this is compatible
with the vehicle and trailer combination.
DANGER – Exceeding manufacturer weight and combination limits can result
in loss of control leading to death or serious injury. Your tow vehicle and hitch
must be rated for the Gross Vehicle Weight of the trailer.
DANGER

www.marketdirect.com.au Ph: 1300 494 494
4
Specifications
DIMENSIONS (CLOSED) 2230mm W x 6700mm L x 2600mm H (Incl. Air Conditioner & TV Aerial)
TOWBALL WEIGHT 235kg
TARE WEIGHT 2410kg
ATM 3000kg
BERTH 2
CHASSIS 120mm x 50mm x 3mm - Q345 Galvanised Steel RHS
DRAWBAR 150mm x 50mm x 4mm - Q345 Galvanised Steel RHS
BODY CONSTRUCTION Combination of welded 75 x 25 RHS and 50 x 25 RHS and 25 x 25
square aluminium alloy + bonded composite panels
STONEGUARD Front mounted Toolbox with forward facing integrated mudap protection
SUSPENSION Independent trailing arm with 4x shock absorbers and coil springs
WHEELS & TYRES 265/75 R16 Goodride radial mud terrain + 2x Spare Wheels
COUPLING Cruisemaster™ DO35 hitch
BRAKES 4WD 12” electric with hand brake
GAS CYLINDERS 2 x 4.5kg/9kg adjustable gas cylinder holders
JERRYCAN HOLDER Secure Mounting Points to hold 2 x 20L jerrycan holders
KITCHEN CONSTRUCTION Stainless steel slide out 4 burner stove & sink. 12V electric water
WATER TANK 120L + 120L fresh water & 80L grey water
WATER DELIVERY 12V electric pump x 1
HOT WATER SYSTEM Truma UltraRapid Boiler 14L (gas + electric)
INTERNAL ENSUITE Thetford C400 Casette Toilet + Hot/Cold Shower
EXTERNAL ENSUITE Hot/cold external shower includes van side mounted ensuite tent
AWNING Electric
BATTERY Enerdrive (EPL-200BT-12V-G2) B-TEC 12V 200Ah G2 Lithium Battery
AIR CONDITIONER Standard Inclusion. Truma Aventa Comfort, 2400W cooling output
and 1700W Heating Output (Reverse Cycle)
AC CHARGER Enerdrive (EN31240) ePOWER 12V 40A Battery Charger
DC CHARGER Enerdrive (EN3DC40+) 12V 40A DC2DC + Battery Charger
INVERTER Enerdrive (EN1120S-X) EPOWER 2000W True Pure Sinewave,
12V W/RCD & AC Auto Transfer
OUTLETS Multiple 12V, 240V x 3
JOCKEY WHEEL ARK XO, 10” swing up and lockable
STABILISER LEGS 4 x heavy duty lockable and adjustable drop down
MATTRESS 200mm custom pillow top King size innerspring
SOUND Head unit with internal & external speakers
SOLAR 3 x 100W solar panels included
ANNEX Included, Roof, Walls, and Floor
FRIDGE SLIDE (L X W X H) 1000mm L x 540mm W x 500mm H

www.marketdirect.com.au Ph: 1300 494 494
5
QUEENSLAND
Brisbane
3/711 Beaudesert Rd
Rocklea QLD 4107
Caboolture
4 Boeing Place
Caboolture QLD 4510
NEW SOUTH WALES
Sydney
1/12 Avalli Road,
Prestons NSW 2170
Newcastle
Unit 1, 2364 Pacic Hwy
Heatherbrae NSW 2324
VICTORIA
Melbourne
126 Canterbury Rd
Kilsyth South VIC 3137
Campbelleld
1551 Sydney RD
Campbelleld VIC 3061
WESTERN AUSTRALIA
Welshpool
18 Bellows Rd
Welshpool WA 6106
SOUTH AUSTRALIA
Adelaide
1246 South Rd
Clovelly Park SA 5042
AUSRV Contact Details and Stores
NATIONAL TOLL FREE WARRANTY HOTLINE SPARE PARTS
1300 4X4 4X4
1300 494 494
1300 AUSRV CARE
1300 632 2273
1300 AUSRV PARTS
1300 632 72787

www.marketdirect.com.au Ph: 1300 494 494
6
Safety Information
WARNING - Before using this product, you should read this manual, and those manuals
supplied by component manufacturers applicable to this product.
This manual is supplied as a reference to required maintenance of the product. Failure to use and maintain the
product in accordance with what is outlined in this manual may affect your warranty.
Incorrect and/or insufcient maintenance may cause product failure resulting in property loss, damage or
injury or death. Maintenance intervals are critical for normal use, extreme use may require shorter or additional
maintenance intervals. Manual content does not imply express or other any warranty, the owner should read the
limited warranty terms included in this booklet.
Before using this product, you should be certain your tow vehicle is suitably rated and equipped to tow the product
safely and legally. The trailer and vehicle pairing must we within the safe “Maximum Towing Capacity”,
“Ball Weight Capacity” and “Gross Combination Mass” as stated by the vehicle manufacturer.
This caravan is tted with electric brakes and a “Breakaway System”. Requirements for breakaway systems can
vary from state to state. It is mandatory to supply a maintenance charge to the breakaway battery source while
driving. You MUST ensure this capability is tted to your vehicle. The maintenance charge is supplied to the
caravan via the Anderson plug on the drawbar.
WARNING: BALL LOADING (DOWNWARD LOAD ON TOW HITCH) MUST NOT EXCEED 350KG OR THE
MAXIMUM ALLOWABLE LOAD BY THE VEHICLE MANUFACTURER OR TOW BAR RATING, WHICH EVER IS
THE LOWEST. Exceeding these limits may result in an accident causing serious injury or death and/or property
damage.
It is important to load your caravan correctly to distribute weight evenly and achieve a suitable ball weight load and
prevent loading in a manner that can cause a Caravan to sway and/or roll excessively left and right. The industry
optimum ball weight on a caravan is between 9 and 11% of the total Caravan weight. AusRV Caravans t into this
category and 10% should be used as the starting point.
Modications to The Product
Gas Systems
The installed gas system on this product is an approved and certied installation. Any changes, modications or
adjustment may render the system non-compliant and dangerous. Market Direct Group Pty Ltd does not condone,
recommend, or otherwise consent to any modications, adjustment, addition or tampering in any way with the
installed gas system on any and all products.
Chassis
All AusRV chassis are fully engineered and veried using Finite Element Analysis (FEA) software. This ensures that
the chassis for each model passes the relevant regulations and design rules as originally provided to the customer.
Any modication to the chassis or drawbar whatsoever (no matter how minor) will inevitably change this – whether
it impacts the towing dynamics, expected loads and stress points, safety chain attachment points, overall trailer
length etc.
Market Direct Group Pty Ltd does not condone, recommend, or otherwise consent to any modications,
adjustment, addition or tampering in any way with the drawbar, safety chains or safety chain attachment points.

www.marketdirect.com.au Ph: 1300 494 494
7
Under the chassis
Jacking Your Caravan
Your trailer is tted with purpose built jacking points and from January 2021 supplied with a suitable jack. An
appropriately rated bottle jack is an acceptable alternative, however when using the jacking point beneath the
trailing arm ensure the jack is of a retracted height that will t under the jacking point when the tyre is deated. A
suitably rated “High Lift” jack may be used on the jacking points on the side of the body behind the wheels provided
it has the correct positive engagement tting to match the trailer.
To ensure safe usage the following must be followed:
• The jack is to be used on level rm ground wherever possible.
• The wheels of the trailer should be chocked, and no person should remain inside the trailer whilst it is being
jacked.
• No person should place any portion of their body under a trailer that is supported by a jack.
• The trailer should be attached to the towing vehicle whilst being jacked.
• When performing maintenance ensure suitably rated jack stands are used.
Do not rely on the trailer being supported by the jack.

www.marketdirect.com.au Ph: 1300 494 494
8
Electrical Safety
Failure To Follow These Instructions May Result In Death Or Serious Injury!
Warning
When working with electrical equipment or lead acid batteries, have someone
nearby in case of an emergency.
Study and follow all the battery manufacturer’s specic precautions when
installing, using, and servicing the battery connected to the inverter.
Wear eye protection and gloves.
Keep unit away from moist or damp areas.
Avoid dropping any metal tool or object on the battery. Doing so could create a
spark or short circuit which goes through the battery or another electrical tool
that may create an explosion.
Warning
Shock Hazard! Keep Away From Children
Avoid moisture. Never expose unit to snow, water, etc.
Unit provides 230 VAC, treat the AC output socket the same as regular wall AC
sockets at home.
Read and understand the information in the Enerdrive manual before operating
this equipment
The 240v electrical system in your caravan has been certied by a trade qualied person. Under no circumstances
should an unqualied person interfere with, modify, or repair this system. An RCD safety device is tted to this caravan
for your safety.
• Always use a 15amp lead to connect to mains power.
• Do not modify the earth pin to accommodate a lesser lead.
• When connecting to 10amp mains, always use an approved adapter.
• Never coil power leads when in use. Lay the lead out in lengths in a safe manner that prevents
creating a trip hazard.

www.marketdirect.com.au Ph: 1300 494 494
9
Electrical Safety
The 240v electrical system in your caravan has been certied by a trade qualied person. Under no circumstances
should an unqualied person interfere with, modify, or repair this system. An RCD safety device is tted to this
caravan for your safety.
• Always use a 15amp lead to connect to mains power
• Do not modify the earth pin to accommodate a lesser lead
• When connecting to 10amp mains, always use an approved adapter
• Never coil power leads when in use. Lay the lead out in lengths in a safe manner that prevents creating a trip
hazard.
Vehicle Electrical Requirements
Brake Controller
All AusRV Caravans require an electric brake controller to be tted to the tow vehicle by law.
There is a wide range of controllers available that are suitable.
Correct Vehicle Wiring for AusRV Caravans
To comply with national laws on breakaway systems, you must supply a maintenance charge to the battery/batteries
that power the system should it be activated. In all AusRV products, the breakaway is powered by the house
batteries in the caravan. For this purpose and Anderson plug connection is tted to all AusRV caravans on the
drawbar. Your vehicle will need to be tted with a power supply to a 50 amp Anderson plug near the towbar so the
trailer can be connected. The vehicle only needs to supply power while it is running so a voltage sensitive relay or
switching device may be used to protect the start battery when the car engine is stopped.

www.marketdirect.com.au Ph: 1300 494 494
10
Trailer Lights
Plug type – 7 Pin Flat (7 pin round by request)
Pin 1 Yellow Left Indicator
Pin 2 Black Reversing Signal
Pin 3 White Earth Return
Pin 4 Green Right Indicator
Pin 5 Blue Service Brakes
Pin 6 Red Brake Lights
Pin 7 Brown Taillights, clearance lights and side markers
Charging Caravan
Plug Type – 50 amp Anderson Plug.
All Vehicles:
The Anderson plug can be connected to the start battery on the vehicle and should include the following to protect
the start battery.
1. 50 amp relay to stop power supply when vehicle is not running.
2. 50 amp fuse or circuit breaker at the battery

www.marketdirect.com.au Ph: 1300 494 494
11
Gas & Appliance Safety
Gas Certication
Your Caravan has been supplied gas tested and certied. Any additions or alterations to the gas system must be
performed by an authorised person and will require re-certication and testing. Also note any alterations may affect
your warranty on both the system and appliances.
General Safety
• Your Caravan may have a number of gas safety labels afxed throughout containing important information. All
instructions are to be followed and the labels shall not be removed for any reason.
• Make sure to close appliance valves before opening the cylinder valves.
• Where readily accessible, check connections at the appliances, regulator, hoses and cylinders periodically for leaks
with soapy water (or an equivalent) – this should be done every time a cylinder is changed or at least annually.
CAUTION – the ammonia present in some soaps and detergents can react with brass ttings and cause such ttings to
crack after a short period of time. Therefore, caution should be exercised when using soap solutions on brass ttings and
all connections should be rinsed thoroughly with fresh water as soon as possible after the application of the soap solution.
• Never use a match or ame when checking leaks.
• Never use cooking appliances for comfort heating.
• In the event of a re, immediately close cylinder valve if safe to do so.
• Appliances must not be altered without the authorisation of the manufacturer.
• In the event of an accidental gas leak, close cylinder valve and ventilate the area using a safe method until the
air is clear.
• Flexible hoses are used between the LP Gas Cylinder and regulator as well as between your slide-out kitchen
cooker (if tted) and the gas bayonet. These exible hoses are easily accessible and shall be inspected regularly
by a competent person.
Gas Cylinder Safety
• LP Gas cylinders have a 10-year lifespan between inspection and re-certication. Always use gas cylinders that
are within their compliance date.
• For drawbar mounted cylinders (if applicable), orient the cylinder relief valves of both cylinders discharge away
from both the trailer and towing vehicle as shown.
• For gas cylinders stored in a dedicated LP Gas Locker ensure the locker is kept closed at all times unless
changing or operating the cylinders.
• Close cylinder valves when appliances are not in use or while refuelling is in progress.
• Ensure cylinder valves are closed to prevent the unintended release of gas from a cylinder.
Discharge
Discharge 45˚
45˚
Cylinder
relief valve

www.marketdirect.com.au Ph: 1300 494 494
12
Gas Appliance Safety
• Gas appliances are certied and have a ame safeguard feature to stop gas ow in the event of the ame going
out. Never interfere with this function or replace appliances with a non-certied type.
• Slide-out kitchens with cookers should only be operated with an annex fully erected. Failing to do so may affect
the safety and operation of the gas appliance.
• Slide-out kitchens with cookers must only be used with a exible connecting hose that is disconnected from the
gas bayonet tting when in its stored position. Under no circumstances permanently connect this appliance.
• Only approved and suitable gas appliances with ame safeguard systems shall be connected to the gas bayonet
(if tted).
Removing the Hot Water System Flue Cover
To use your inbuilt Truma hot water system, the external ue covers must be removed prior to starting the unit.
Removing Door Vent Cover
The door vent must be uncovered at any time the caravan is occupied.
First, open the ue dust cover
shown.
Second, remove the Truma
factory cover by placing thumbs
in the middle of the cover and
pulling the top towards you with
your ngers.
The ue should look like this
when ready to use

www.marketdirect.com.au Ph: 1300 494 494
13
Caution
To use your inbuilt Truma hot water system, the external ue covers must be removed
prior to starting the unit.
Ventilation and Flues
• Check all permanent ventilators, ues (if applicable) and vents to ensure they are clear, open and unrestricted.
• Any supplied or 3rd party vent cover(s) (e.g. low level door vent) should only be used for covering the vents
during storage between use with all LP gas system valves closed. All vents (e.g. low level door vent) shall be
uncovered at all times the Caravan is in use.
Isolating Appliances
Internal gas appliances have an isolation valve tted in the gas line. During travel these should be turned to the off
position where practical and always turn the valve on the active gas bottle off when towing or refuelling.

www.marketdirect.com.au Ph: 1300 494 494
14
Truma Rapid How Water System
Operating Instructions
General Safety
*Read the included Truma operation manual supplied with you trailer.
The use of upright gas cylinders from which gas is taken in the gas phase is mandatory for the operation of gas
regulators, gas equipment and gas systems. Gas cylinders from which gas is taken in the liquid phase
(e.g. for forklifts) must not be used, since they would result in damage to the gas system. In the event of leaks in the
gas system or if there is a smell of gas:
• extinguish all naked ames
• do not smoke
• switch off all appliances
• shut off the gas cylinder
• open the windows and doors
• do not actuate any electrical switches
• have the entire system checked by an expert!
Repairs may only be carried out by an expert.
• This device may be used by children aged 8 years or above and by persons with reduced physical, sensory,
or mental capabilities or lack of experience and / or knowledge, only if they are supervised or have been
given instruction with regard to the safe use of the device and have understood the potential risks. Children
must not use the device as a toy.
• To avoid the risk of accidental resetting of the over-temperature guard, the device may not be supplied with
power via an external contactor, such as a timer, nor may it be connected to a power circuit that is regularly
switched on or off via a device.
• Water may drip from the discharge pipe of the P&T safety valve and this pipe must be left open to the
atmosphere.
• The P&T safety valve is to be operated regularly to remove lime deposits and to ensure that it is not
blocked.
• Any discharge pipe connected to the P&T safety valve is to be installed in a continuously downward
direction and in a frost free ambient.
• Always remove the cowl cover prior to operating the water heater.
• Do not place articles on or against this appliance.
• Do not use or store ammable materials near this appliance.
• Do not spray aerosols in the vicinity of this appliance while it is in operation.
• Do not modify this appliance.
• Any modications to the unit, including accessories and cowl, or the use of spare parts and accessories
that are important to the operation of the system that are not original Truma parts and failure to follow the
installation and operating instructions will void the warranty and release Truma from any liability claims. It
also becomes illegal to use the appliance, and in some countries, this even makes it illegal to use the vehicle.
Failure to operate the P&T safety valve (Fig. 1 - 4) at least once every
six months may result in the water heater splitting. Continuous leakage
of water from the valve may indicate a problem with the water heater!
DANGER

www.marketdirect.com.au Ph: 1300 494 494
15
• Any work involving connection or interconnecting wiring must be carried out by a licensed electrician. If the
mains cable (supply cord) is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
• Before accessing terminals, please ensure all supply circuits are disconnected (i.e. 230 V – 240 V and 12 V)
and that the gas supply is securely turned off.
• The operating pressure for the gas supply is 2.75 kPa (AUS – Propane) and must correspond to the
operating pressure of the appliance (see data plate).
• LPG systems and pressure regulators must comply with the technical and administrative regulations of
the country in which the appliance is used. For your own safety it is absolutely necessary to have the
complete gas installation regularly checked by an expert (at least every 2 years). The vehicle owner is always
responsible for arranging the gas inspection.
• Do not operate when travelling.
• Do not operate the water heater when refuelling the vehicle and when it is in the garage.
• Items sensitive to heat (e. g. spray cans) must not be stored in the installation area, since excess
temperatures may occur there under certain circumstances.
• During the initial operation of a brand new appliance (or after it has not been used for some time), an
amount of fumes and a slight smell may be noticed for a short while.
Always observe the operating instructions prior to starting!
The vehicle owner is responsible for correct operation of the appliance.
Before using the product for the rst time, it is essential to ush the entire water supply through with clean
warm water. Always mount the cowl cap when the water heater is not being operated! Drain the water
heater if there is a risk of frost! Warranty claims will not be accepted for frost damage.
Always remove the cowl cover prior to operating the water heater.
If connecting to a central water supply (rural or city connection) or when using more powerful pumps, a pressure
reducer must be used which prevents pressures of greater than 400 kPa occurring in the Truma UltraRapid.
Filling the Truma UltraRapid with Water
Check that the drain valve (3) and the P&T safety valve (Fig.2a - 4) in the cold water intake are closed.
• Close drain valve (Fig. 2 - 3). Lever in the “e” position (close).
• Test lever (Fig. 2a - 4a) of the pressure relief valve (4) must be in the “close” position.
– Open hot tap in bathroom or kitchen, with pre-selecting mixing taps or single-lever ttings set to “hot”.
– Switch on power for water pump (main switch or pump switch).
– Leave the tap open to let air escape while the water heater is lling. The heater is lled when water ows out of
the tap.

www.marketdirect.com.au Ph: 1300 494 494
16
Residues of frozen water can prevent lling if there is a frost. The water heater can be defrosted by switching on
the heater for a short period (max. 2 minutes). Frozen pipes can be defrosted by heating the room.
• If just the cold water system is being used, without water heater, the heater tank is also lled up with water.
In order to avoid damage through frost, water must be drained by means of the drain valve, even if the
heater has not been used. As an alternative, two shut-off valves, resistant to hot water, can be tted in front
of the cold and hot water connection.
Pressure and Temperature Relief Valve (P&T safety valve)
• Risk of scalding injury from hot water and/or tampering with the P&T safety valve!
• Do not actuate the P&T safety valve as long as the appliance is still hot.
• Do not place a plug or reducing coupling in the discharge pipe (Fig. 2a - 4b) of the P&T safety valve.
• Do not operate the water heater without a functioning P&T safety valve - this could cause an explosion.
The P&T safety valve (4) is a safety component and must not be removed for any reason other than replacement.
The P&T safety valve is not serviceable; if defective it must be replaced (failure to reuse an old P&T safety valve). It
must be replaced by a certied service technician.
Tampering with the P&T safety valve will void the warranty.
4 P&T safety valve
4a Test lever
4b Discharge pipe
Draining the Water Heater
• If the vehicle is not used during periods of frost, it is essential that the Truma UltraRapid be emptied.
• Disconnect power for water pump (main switch or pump switch).
• Allow the appliance to cool down.
• Open hot water taps in bathroom and kitchen.
• Open drain valve (Fig.2 - 3). Lever in the “f” position (drain). The water heater is now drained directly to the
outside via the drain valve (3).
• Check that the water has been completely drained (14 litres).
