Automatic Technology 62717 User manual

Doc # 160072_04
Released 01/04/20
GDO-6 EasyRoller®
Rolling Door Opener
Installation Manual

GDO-6 EasyRoller Installation Manual
2
Table of Contents
1. Installation Safety Warnings! 3
2. Kit Contents 4
3. Tools Required 4
4. Setup Requirements 5
5. Door Preparation 6
6. Fit the Weight Bar 6
7. Pinning the Door 7
8. Proping the Door 7
9. Mounting the Opener 8
9.1 Raising the Door: 8
9.2 Mounting the Opener: 8
10. Setting the Travel Limits 9
10.1 Initial Preparation: 9
10.2 Set the Limit Positions: 9
10.3 Resetting the Door Limit Positions 9
10.4 Setting the PET Mode position 9
10.5 Reset all Factory Defaults 9
11. Safety Testing 10
11.1 Test the Close Cycle 10
Testing the Open Cycle 10
11.2 Test the Manual Door Operation 10
11.3 Adjusting Safety Obstruction Force 10
11.4 To Increase Force Pressure 10
11.5 To Decrease Force Pressure 10
11.6 To Recall Factory Set Force 10
11.7 To Recalculate Force Margins 10
12. Accessories 11
12.1 Auxiliary Output 11
12.2 Keyswitch Connection 11
12.3 Remote Aerial 11
13. Auto-Close 11
13.1 Safety Beams 11
13.2 Auto Close Option 11
14. Coding a Transmitter 12
14.1 Storing the Transmitter Code 12
14.2 Coding a Button to Enable Vacation Mode 12
14.3 Coding to enable AUX Output 12
14.4 Setting to Operate PET (Pedestrian) Mode 12
14.5 Coding a Transmitter to the Courtesy Light 12
14.6 Easy Access Transmitter (EAT) Coding 13
14.7 Remotely Coding Transmitters 13
14.8 Erasing a Stored Transmitter Code 13
14.9 Erasing All Transmitter Codes 13
Installation Instructions
Home Owner Instructions
15. Home Owner Safety Warnings! 14
16. Opener Safety & Security 15
16.1 Your Door CAN NOT be used when: 15
16.2 Your Door CAN be used when: 15
16.3 To Disengage the Opener: 15
16.4 To Re-Engage the Opener: 15
17. Operating your Opener 15
18. User Operating Controls 16
19. Door Status Indicators 16
20. Specifications 17
21. Troubleshooting 18
22. After Installation Care 20
22.1 Service Checklist 20
22.2 Battery Replacement 21
22.3 Battery Disposal 21
22.4 Warranty 21

GDO-6 EasyRoller Installation Manual
3
1. Installation Safety Warnings!
WARNING! • The door may operate unexpectedly, therefore do not allow anything to stay in the path of
the door.
• When operating the manual release while the door is open, the door may fall rapidly due
to weak or broken springs, or due to being improperly balanced.
• The drive must not be used with a door incorporating a wicket door, unless the drive cannot
be operated with the wicket door open.
• The drive is intended to be installed at least 2.5m above the floor.
• Do not disengage the opener to manual operation with children/persons or any objects
including motor vehicles within the doorway.
• If the door is closing and is unable to re-open when obstructed, discontinue use. Do not
use a door with faulty obstruction sensing
• When using auto close mode, a Photo Electric beam must be fitted correctly and tested
for operation at regular intervals. Extreme caution is recommended when using auto close
mode. All safety rules must be followed.
ELECTROCUTION! • Place opener in protected area so that it does not get wet.
• Do not spray with water .
• Disconnect the power cord from mains power before making any repairs or removing covers.
Only experienced service personnel should remove covers from the opener.
• If the power supply cord is damaged, it must be replaced by an Automatic Technology
service agent or suitably qualified person.
• Connect the opener to a properly earthed general purpose 240V mains power outlet
installed by a qualified electrical contractor.
CAUTION:
Emergency Access • If garage has no pedestrian entrance door, an emergency access device should be
installed. This accessory allows manual operation of the garage door from outside in case
of power failure.
Muscular strain • Practice correct lifting techniques (carton weighs approx 9kgs)
• Practice correct lifiting techniques when required to lift the door as per installation instructions.
Fall from ladder • Ensure ladder is the correct type for job.
• Ensure ladder is on flat firm ground that will take the weight without the legs sinking.
• Ensure user has 3 points of contact while on ladder.
Crush injury from unsecured
door
• Place a 2 metre exclusion zone around area under the door while it is unsecured.
• Do not move under a door while it is on the door support (or ladder)
• Follow the installation instructions
• Fit door support (or ladder) snugly under door before removing bracket.
• Ensure door support (or ladder) is on flat ground
Garage Door • Examine the door installation, in particular, springs and mountings for signs of wear, damage
and imbalance.
• The garage door must be well balanced. Sticking or binding doors must be repaired by a
qualified garage door installer prior to installation of the opener.
• Remove or disengage all garage door locks and mechanisms prior to installation of the opener.
Entanglement • Never plug in and operate opener prior to installation.
• Keep hands and loose clothing clear of door and guides at all times.
Entrapment under
operating door
• DO NOT operate the opener unless the garage door is in full view and free from objects
such as cars and children/people. Make sure that the door has finished moving before
entering or leaving the garage
• In order for the opener to sense an object obstructing the door way, some force must be
exerted on the object. As a result the object, door and/or person may suffer minor damage
or injury.
• Ensure the garage door is in good working order by undertaking regular servicing.
• Install the optional wall transmitter in a location where the garage door is visible, but out
of the reach of children at a height of at least 1.5m.
• Photo Electric beams must be installed if the closing force at the bottom edge of the door
exceeds 400N (40kg)
This automatic garage door opener is designed and tested to offer safe service provided it is installed
and operated in strict accordance with the following safety warnings. Failure to comply with the following
instructions may result in death, serious personal injury or property damage.

GDO-6 EasyRoller Installation Manual
4
2. Kit Contents
1. 1 x drive unit
2. 2 x Locking Bar Covers
3. 2 x PTX-6 Transmitters (GDO-6V4) OR
2 x PTX-5V2 Transmitters (GDO-6V3)
4. 1 x Weight Bar
Fastner Bag
5. 2 x Nilock Nut
6. 2 x 3/16 x 1/2 flat washers
7. 2 x Pan Head Screw M4 x 50mm
1
2
3
5
6
7
4
Screwdrivers
Adjustable End Wrench
Sockets and Wrench
Pencil
Rope
Drill
Towel
Self-tapping Screws and Washers
(M10 x 32mm)
Stepladder
Door Stand
or suitable prop
3. Tools Required

GDO-6 EasyRoller Installation Manual
5
WARNING! A portable power generator
is not recommended due to spikes, surges
and fluctuations in the supply.
85
40
175
135
Minimum Side room Recommended Side room
4.2 Unsuitable Door Types
The drive must not be used with a door incorporating a wicket
door, unless the drive cannot be operated with the wicket door
open. The fitting of an opener to doors with removable mullions
is not recommended.
4.3 Sideroom
The minimum sideroom required from the edge of the door curtain
is 40mm to the inside of the door bracket, and 85mm to the wall.
If a Battery Backup is to be fitted, at least 135mm to the bracket
is required.
Therefore the recommended sideroom from the edge of the door
curtain is 135mm to the inside of the door bracket, and 175mm to
the wall as per diagram.
4. Setup Requirements
4.1 The Opener:
a. MUST BE installed in a dry position, protected from weather. (Moisture or corrosion not covered by Warranty)
b. Is factory set for RIGHT HAND SIDE installation (from inside garage), but capable of LEFT HAND SIDE installation.
c. REQUIRES properly earthed 3 pin single phase power within an arms length of door and at a suitable height
d. Requires a MINIMUM SIDEROOM of 40mm from the edge of the door to the inside of the door bracket and 85mm to the
wall.
e. CAN NOT be installed on a Door Axle Diameter that exceeds 35mm.
LEFT HAND SIDE RIGHT HAND SIDE
40mm 40mm
85mm
85mm

GDO-6 EasyRoller Installation Manual
6
6.1 If the door has a handle a weight bar must be fitted to ensure the door doesn’t balloon during operation:
a. Remove the door handle
b. Fit the weight bar 4and refit the handle using the two (2) M4x50mm Pan Head Screw 7and the two (2) Flat Washer 6
and the two (2) M4 Nilock Hex nut 5.
6.2 If the door does not have a handle:
a. Locate the centre of the door at the bottom rail.
b. Place the weight bar at this point and mark the two positions where the fasteners will go
c. Drill the two 4.5mm holes in the door and fit the weight bar 4using the two (2) M4x50mm Pan Head Screw 7and the
two (2) Flat Washer 6and the two (2) M4 Nilock Hex nut 5.
d. Check that the door is still balanced and smooth. If not, then the door may require servicing.
4
2
7
5. Door Preparation
5.1 Prepare the Door:
a. Clean the guides if there is any oil or wax present using a suitable white spirit. The only lubricant suitable for use on door guides
is silicon spray. DO NOT use WD-40, RP-7, petroleum grease, or similar.
b. Remove the locking bars or disable the lock.
c. Install the locking bar covers 2if there are locking bar holes in the guides. This ensures fingers cannot be placed in the
holes while the door operates
d. Affix the supplied warning labels where they are clearly visible on the inside of the door.
6. Fit the Weight Bar
WITH HANDLE WITHOUT HANDLE
5
6
4
7
5
6

GDO-6 EasyRoller Installation Manual
7
7. Pinning the Door
7.1 Pinning the Door to the drum:
Pinning the door’s curtain to its drum maintains security when the opener is
closed. If the curtain is not pinned the door can be partially opened manually.
a. Fully close the door.
b. Mark a minimum of two (2) drill holes on the drum to each end of the door.
c. Drill holes using 3.2mm (1/8”) drill bit.
d. Fit M10 x 32mm screws and washers (not supplied) to each of the four (4)
holes. This screw should be positioned as low as possible in the grove, but
make sure that it does not alter the curtain’s normal lead in to the guide.
BALLOONING DOOR
PINNED DOORFREE DOOR
Without locking
bars door can be
lifted
Not pinned and
without locking
bars door can be
lifted
Door secure and
will not lift
Pin Points
Screw into the
low part of
grove
8. Proping the Door
8.1 Prepare the Door:
a. At the end opposite to where the opener will be fitted, check that the U-bolt
which holds the door axle to the bracket is tightened securely.
b. Open the door completely and tie rope around the door roll. Do not tie the
rope too tight as damage to the curtain may ensue. This will stop the door
unrolling when taken off the bracket
c. At the end where the opener is to be fitted, support the door with a door stand
or suitable prop. Place a towel between the door and the prop to protect the
door from damage.
d. At the end where the opener will be fitted use a pencil to mark the position of
the U-bolt in the door bracket and the position of the door bracket on the wall
to assist in reassembling.
WARNING! The U-bolt must be done up tightly to ensure
the stored energy in the springs cannot be unexpectedly
released.
WARNING! Make sure the prop is
snug under the door and is stable.
U-bolts
Towel
Door stand
or prop Door
bracket

GDO-6 EasyRoller Installation Manual
8

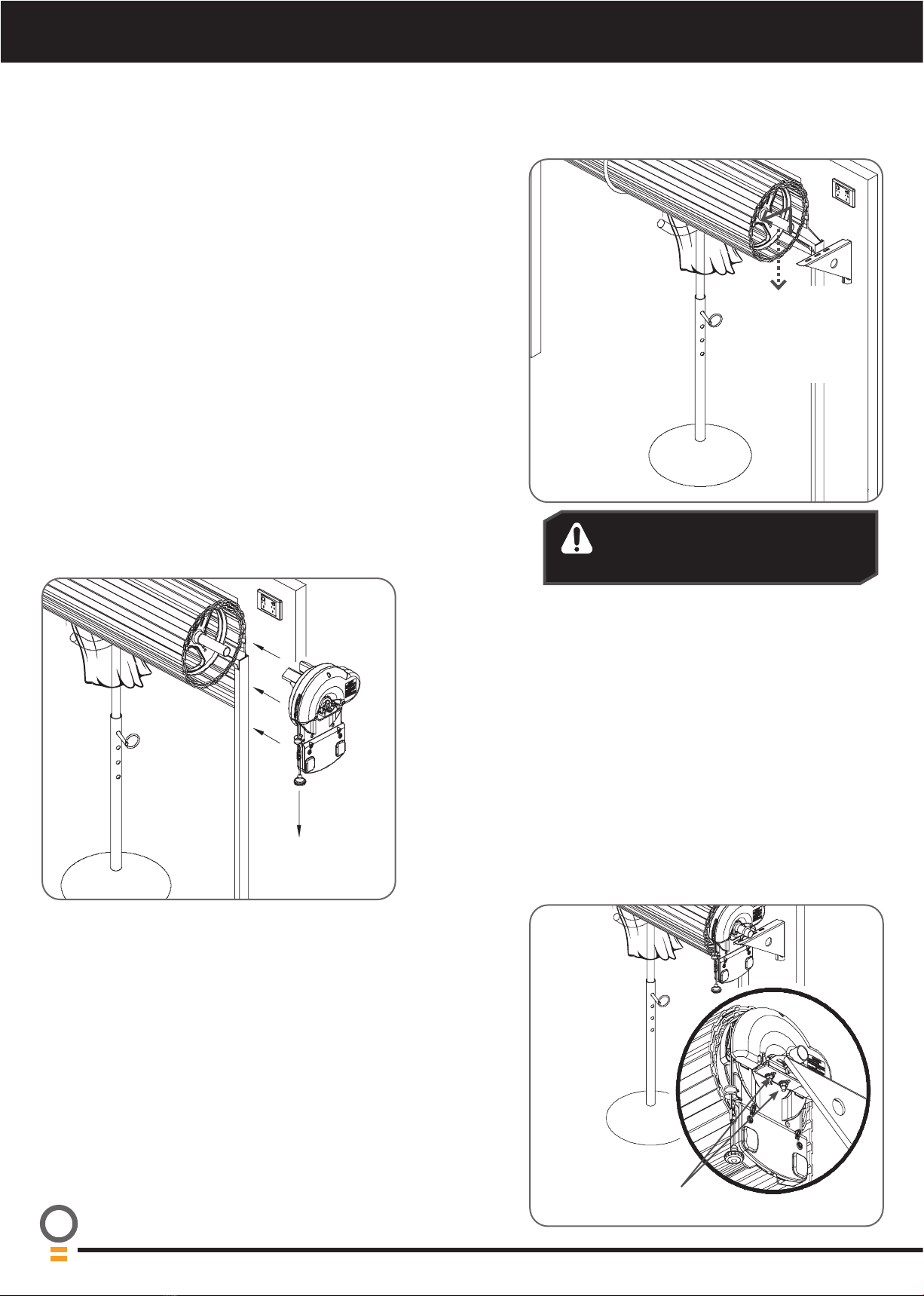

9.1 Raising the Door:
a. When in position, remove the U-bolt (or bolts) and saddle from the
door bracket.
b. Lift the door up and away from the wall until clear of the door
bracket, before lowering the door to rest on the door stand or prop.
NOTE: If there is limited ceiling space to lift the door, the door bracket
may have to be removed. If this is required, when refitting the door
bracket , use the reference marks on the wall for correct position and
ensure that it is secure to the wall and will support the door.
9. Mounting the Opener
Lift door
up, away
from wall
and down
onto prop
WARNING! For tight sideroom
installations the door may have to
be taken down.
9.2 Mounting the Opener:
a. Remove the opener from the box.
b. Check the drive gear rotates freely, by pulling the string handle
down (there will be a click) to disengage opener. Then move the
forks from side to side by hand.
c. Slide the opener over the door axle and into the drum of the door
as shown.
d. Push the opener in as far as possible (without interfering with the
curtain) SO ONE OF THE DOOR DRUM’S WHEEL SPOKES IS
BETWEEN THE OPENER’S DRIVE FORKS.
e. Raise the door off the door stand or suitable prop.
Tighten
U-bolts
Pull string
down to
disengage
opener
Slide
opener
over door
axle
f. Lift up and over the door bracket and use your reference marks on
the door bracket to position the door.
g. Refit the U-bolt and nuts and tighten.
h. Remove the safety rope and door stand or prop.
i. Connect the power cort to a suitable powerpoint, but DO NOT
switch on.
j. Secure the power cord away from any moving object (e.g the door)
with the cable clip supplied.
k. With the opener still disengaged, pull the door up and down to
make sure it runs freely.

GDO-6 EasyRoller Installation Manual
9

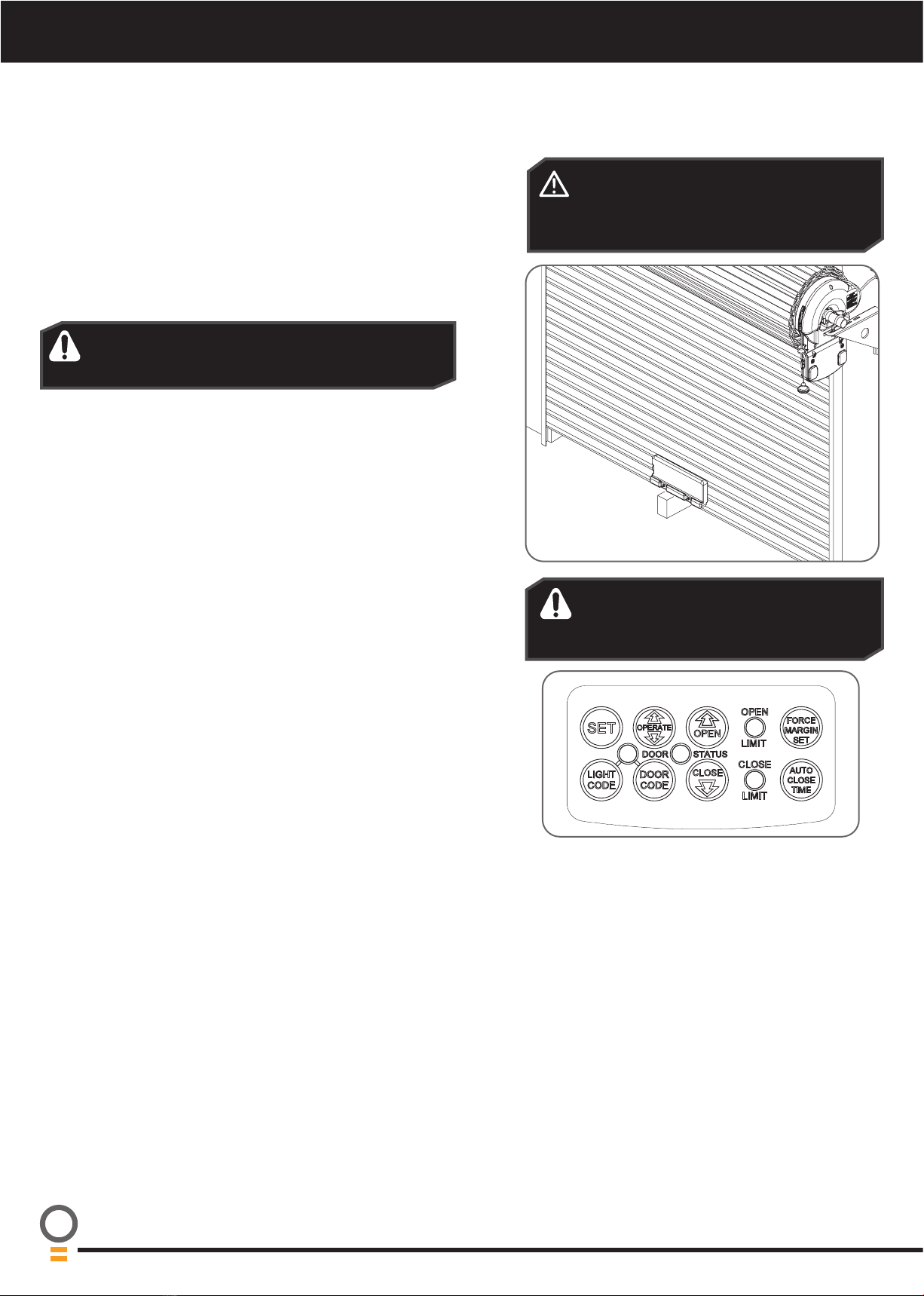

10. Setting the Travel Limits
10.1 Initial Preparation:
a. Move the door to the half way position.
b. Engage the opener by pulling down on the manual release
string until a click sounds.
c. Remove the clear button cover from the unit.
d. Switch power on to the opener. The red CLOSE LIMIT LED will
be flashing.
e. Press and hold the CLOSE button - the door should start
closing.
NOTE: If the door opens, release the CLOSE button and press
the OPERATE button once to change the motor’s direction.
Pull string
down to
engage
opener
10.2 Set the Limit Positions:
The Limit Positions can vary due to site conditions, such as uneven
ground. When setting the Close limits, ensure the position is when
the door makes first contact with the ground. Alternatively for the
Open limits the position should be at the height of the garage
opening.
a. Press and hold CLOSE button until the door reaches your
desired close limit position. The rubber strip at the bottom of
the door should form a good seal with the ground.
b. Release the CLOSE button when the door is near the desired
closed position. Single presses of the CLOSE button will inch
the door closer to the ground.
c. If the door overshoots press the OPEN button to move the
door in the open direction.
d. When the door is at the desired close position, press the SET
button, the OPEN LIMIT LED will now flash.
e. Press and hold the OPEN button until the door reaches your
desired open limit position. Single presses of the OPEN button
will inch the door open.
f. If the door overshoots press the CLOSE button to move the
door in the close direction.
g. When the door is at the desired open position, press the SET
button.
WARNING! In setting the close limit position, do
not force the door into the floor with excessive
force, as this can interfere with the ease of
operation of the manual release mechanism.
h. The door will now automatically close and open to calculate
the safety obstruction settings.
10.3 Resetting the Door Limit Positions
Limit positions can be deleted by:
a. Press and hold CLOSE button for six (6) seconds until the
CLOSE LIMIT LED flashes quickly.
b. Release the CLOSE button.
NOTE: If no action is taken within 30 seconds, the opener will
return to normal operating mode and restore the original settings.
c. Follow steps a - f in Set the Limits Poisitions to set new limit
positions.
WARNING! The door will automatically close,
open and close again after the next step. Ensure
that nothing is in the door’s path.
10.4 Setting the PET Mode position
When activated, PET mode drives the door to a preset
position from the close position, therefore allowing a
pet or parcel to go under the door.
a. Drive and stop the door at the deisred PET mode open
position by pressing the transmitter button coded for
Open/Stop/Close operation.
b. Press and hold the OPEN button on the opener for six
(6) seconds until the OPEN and CLOSE LED’s are lit to
record the new PET position.
c. Release the OPEN button.
10.5 Reset all Factory Defaults
a. Turn power to the opener off.
b. Press and hold the SET Button.
c. Turn power on while holding the SETbutton. Continue
to hold until all LED’s are off.
d. This will NOT erase transmitter codes stored in
memory.

GDO-6 EasyRoller Installation Manual
10
11. Safety Testing
11.1 Test the Close Cycle
a. Press the OPERATE button to open the door.
b. If the door closes, press the OPERATE button to stop the door,
then press OPERATE again to open.
c. Place a piece of timber approximately 40mm high (or the openers
cardboard box) on the floor directly under the door.
d. Press the OPERATE button to close door.
e. The door should strike the object and re-open.
f. Remove the timber or cardboard box.
Testing the Open Cycle
a. Press the OPERATE button to close the door.
b. Press OPERATE again to open the door.
c. When the door reaches approximately half way, firmly grab the
door’s bottom rail - the door should stop.
If the door does not reverse readily when closing, or stop when
opening, put the door into manual by pulling down on the manual
release string to diesengage the motor and contact 1300 133 944
for support.
11.2 Test the Manual Door Operation
Periodically disengage the opener and manually operate the door.
The door must be smooth to operate by hand. The force required on
the bottom rail should not exceed 20 kg.
CAUTION: Take care when completing a
safety test. Failure to follow this warning
can result in serious personal injury and/or
property damage.
WARNING! If the door is closing and is unable
to re-open when obstructed, discontinue use.
Do not use a door with faulty obstruction sensing.
Wood 40mm
high or opener
cardboard box
11.6 To Recall Factory Set Force
a. Holding down the FORCE MARGIN SET button
and the SET button for two seconds.
b. Release both buttons. The default setting should
now be recalled.
11.7 To Recalculate Force Margins
a. Press and hold the FORCE MARGIN SET Button for
six (6) seconds, the beeper will sound once.
b. The door will start to move and re-calculate force
margins. The door can move between the open and
close limit positions up to four (4) times (depending
on the position of the door and the power up
condition).
c. A single beep will be heard once the process is
complete.
d. Test the force again as per Testing Close Cycle and
Testing Open Cycle.
11.3 Adjusting Safety Obstruction Force
The Safety Obstruction Force is calculated automatically during
setup. Adjusting this is normally only necessitated by environmental
conditions such as windy or dusty areas, and areas with extreme
temperature changes.
11.4 To Increase Force Pressure
a. Press and Hold down the FORCE MARGIN SET button.
b. While holding the FORCE MARGIN SET button, press the OPEN
button. Each press will increases the force margin.
c. The OPEN LIMIT LED will flash each time the OPEN button is
pressed to indicate an increase in force.
d. If the OPEN LIMIT LED flashes continuously when the OPEN
button is being pressed, this indicates that the maximum force
setting has been reached.
e. Test the force again as per Testing Close Cycle and Testing Open
Cycle.
11.5 To Decrease Force Pressure
a. Press and Hold down the FORCE MARGIN SET button.
b. While holding the FORCE MARGIN SET button, press the CLOSE
button. Each press will decrease the force margin.
c. The CLOSE LIMIT LED will flash each time the CLOSE button is
pressed to indicate a decrease in force.
d. If the CLOSE LIMIT LED flashes continuously when the CLOSE
button is being pressed, this indicates that the minimum force
setting has been reached.
e. Test the force again as per Testing Close Cycle and Testing Open
Cycle.
WARNING! If the door fails these tests,
put the opener into manual mode, only
operate the door by hand and call for
service.

GDO-6 EasyRoller Installation Manual
11
12. Accessories
12.1 Auxiliary Output
The auxiliary output can be used to control
alarm or another garage door opener. A valid
transmission from the pre-coded transmitter
will cause the auxiliary output to pulse for
approximately 1 (one) second. The maximum
DC voltage must not exceed 35 volts DC.
Maximum current must not exceed 80 ma.
V+
SB1
0V
SB2
0V
OSC
AUX
30V PWR
PE
PE (OV)
GND
OSC
AUX
External device,
Alarm, Door or
Gate opener.
V+
SB1
0V
SB2
0V
OSC
AUX
30V PWR
PE
PE (OV)
GND
OSC
AUX

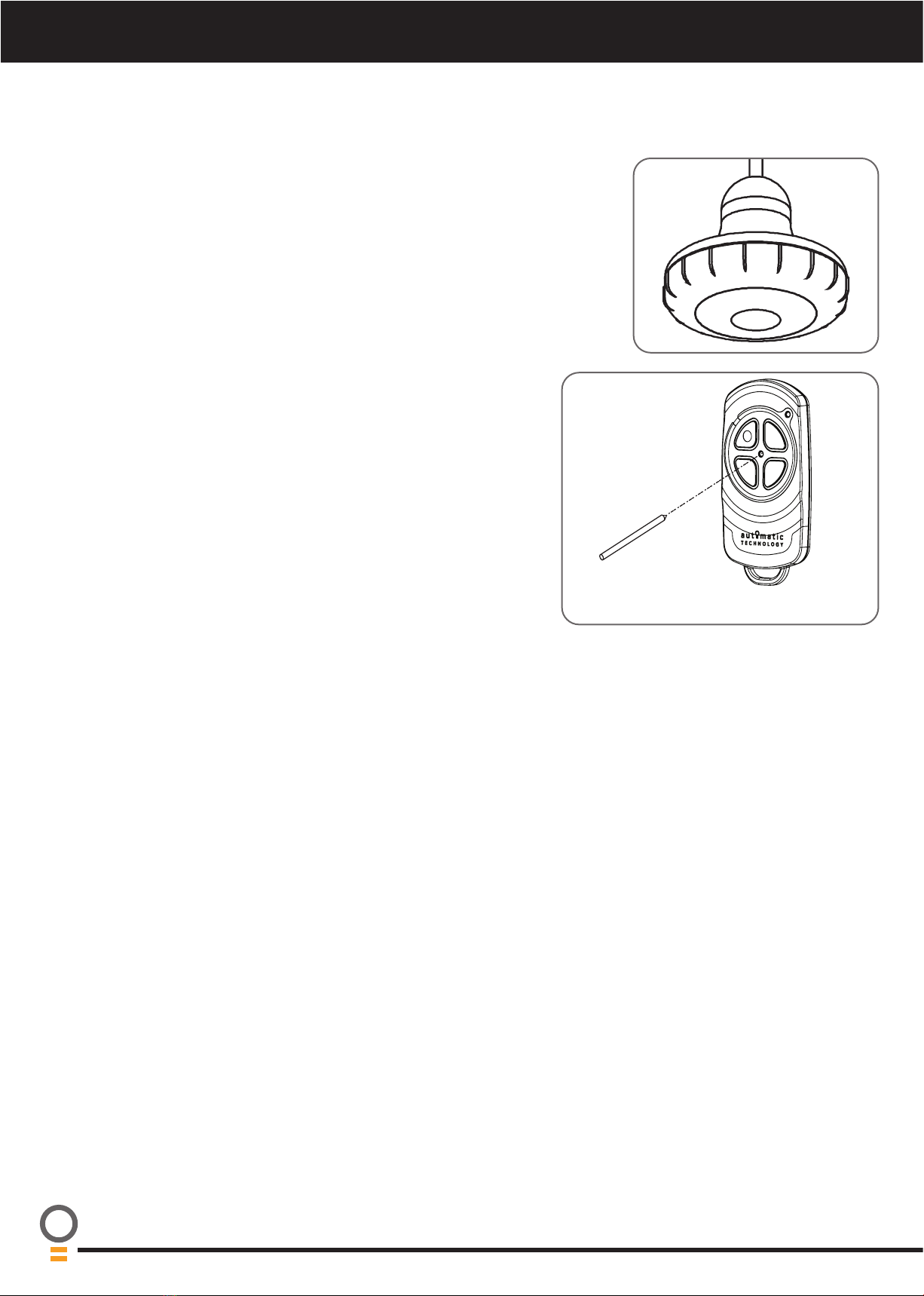

12.3 Remote Aerial
Some sites cause poor radio reception. Particularly problematic areas are those where there is a large amount of metal, like a
steel garage, or an underground car park with large masses of steel reinforced concrete. These issues, and others, can create
reception issues.
Poor radio reception will be noticed by a reduction in the operating range of the transmitters.
You can evaluate whether fitting an external aerial will benefit as follows;
i. Test the maximum operating range of the transmitter with the garage door closed; then
ii. Test the maximum operating range of the transmitter with the garage door open.
If the range improves when the door is open you can install a remote aerial kit to improve reception.
Mount the aerial to a suitable location on the outside of the garage.
Similar to a television aerial, the better the mounting position the better the reception will be. Where possible, mount the
aerial as high as possible, away from masses of metal and in line of sight position, to where you normally use your transmitter.
12.2 Keyswitch Connection
The GDO-6 has the input to connect bell
switch or keyswitch to open or close the door.
13. Auto-Close
13.1 Safety Beams
A Safety Beam Kit may be fitted to this opener. When this option is
fitted, the operation of this device is such that if an object (i.e car,
child etc) blocks the Infra-Red beam, then the garage door opener
will not close the door automatically. If the Safety Beam is fitted but
not operating correctly, then the door once opened automatically,
will not close automatically.
WARNING! It is compulsory to have
Safety Beams installed when using
Auto-Close mode.
13.2 Auto Close Option
Auto-Close mode is a function that automatically closes the door a
preset time after the Safety Beams recognise that a vehicle has left
the garage. The Auto-Close timer only starts after the Safety Beam’s
path is broken. If the safety beam path is not broken, the door will
remain open until the path is broken. If the opener incurs a physical
obstruction (i.e. not from the Safety Beams) while closing the door,
it will re-open and not Auto-Close until the Safety Beam’s path is
broken again.
To enable the Auto-Close function:
a. Hold down the AUTO CLOSE TIME button.
b. While holding in the AUTO CLOSE TIME button, press
the PLUS (+) button - each press will add one second to
the Auto-Close delay.
c. To decrease the delay time Hold down the AUTO CLOSE
TIME button and press the MINUS (-) button - each
press will deduct one second from the Auto-Close delay.
d. Press the Operate button or transmitter to open the door.
When the door is fully opened the Open Limit LED will
flash to indicate that Auto-Close mode is operational.
e. Break the Safety Beam’s path momentarily to initialise
Auto-Close. When the door reaches the fully opened
position, the door will pause for the set Auto-Close time
and then close.
GDO-6V4
GDO-6V4
GDO-6V3
GDO-6V3
Relay

GDO-6 EasyRoller Installation Manual
12
14. Coding a Transmitter
14.1 Storing the Transmitter Code
The opener can only operated from remote control transmitters that have
been programmed into its memory. Up to 64 codes can be stored in the
memory.
a. Press and hold the DOOR CODE button.
b. Press Button 1 on the transmitter for two seconds. Release and pause for
two seconds. Press the Button 1 again for two seconds.
c. Release the DOOR CODE button. The transmitter button is now coded,
press to test.
14.2 Coding a Transmitter Button to Enable Vacation Mode
The opener can be programmed into a “Vacation Mode” where the opener
will not respond to any transmitter except the button of the transmitter that
was programmed for vacation mode.
d. Briefly press the DOOR CODE button once, then press it again and hold
(will beep two times on second press).
e. Press one of the four (4) buttons on the transmitter for two (2) seconds,
pause for two (2) seconds, then press the same button again for two (2)
seconds.
f. Release DOOR CODE button.
g. Press and hold the transmitter button for six (6) seconds to set Vacation
Mode. The door code LED will stay lit while Vacation Mode is active.
h. To reset Vacation Mode, press the same button for two seconds.
14.3 Coding a Transmitter to enable AUX Output
Briefly press the DOOR CODE button two (2) times, then press it again and
hold (the opener will beep three (3) times on the third press.
a. Press one of the four buttons on the transmitter for two (2) seconds,
pause for two (2) seconds, then press the same button again for two (2)
seconds.
b. Release the DOOR CODE button.
c. Press the transmitter button to test.
14.4 Setting the Transmitter to Operate PET (Pedestrian) Mode
The PET mode position (see Setting the Limits) must set prior to coding a
transmitter.
a. Briefly press the DOOR CODE button three (3) times, then press it again
and hold (the opener will beep four times on the fourth press.
b. Choose a transmitter button not already coded into the receiver. Press
and hold this button for two (2) seconds, pause for two (2) seconds, then
press the same button again for two (2) seconds and release.
c. Release the DOOR CODE button.
d. Press the transmitter button to test.
14.5 Coding a Transmitter to the Courtesy Light
The transmitter can be programmed to operate the courtesy light on the
opener independently of the door moving.
a. Press and hold the LIGHT CODE button.
b. Press one of the four buttons on the transmitter for two (2) seconds, pause
for two (2) seconds, then press the same button again for two (2) seconds.
c. Release the LIGHT CODE button.
d. Press the transmitter button to test.
Button 1
PTX-6 shown

GDO-6 EasyRoller Installation Manual
13
14. Coding a Transmitter
14.6 Easy Access Transmitter (EAT) Coding
a. Press and hold the DOOR CODE button.
b. Press the EAT’s buttonfor two (2) seconds, pause for two (2) seconds,
then press the button again for two (2) seconds.
c. Release the DOOR CODE button.
d. Press the transmitter button to test.
14.7 Remotely Coding Transmitters
Using this method transmitters can be coded without access to the
opener’s control panel as long as a pre-coded transmitter is available.
a. Take any pre-coded transmitter. Press the button for the function to be
duplicated and release.
b. Using a small needle / pen, press and hold firmly for two seconds the
middle button, through the Coding Hole.
c. Within ten (10) seconds take the additional transmitter you wish to
code. Hold the new transmitter’s button for two seconds, pause for two
seconds, hold again for two seconds and then release.
d. Wait for ten (10) seconds and then press the new transmitter’s button
to test.
14.8 Erasing a Stored Transmitter Code
a. Select the transmitter you want to delete.
b. Press and hold the DOOR CODE BUTTON.
c. Press the transmitter button you would like to delete for two seconds,
pause for two seconds, press again for two seconds and then release.
d. Release the DOOR CODE BUTTON. The code should now be deleted.
Confirm this by pressing the transmitter button - the function (e.g. door
opening) should not respond.
14.9 Erasing All Transmitter Codes
a. Turn off power to the opener.
b. While switched off, press and hold the DOOR CODE BUTTON.Turn on
power to the opener while holding this button.
c. The OPEN LIMIT, CLOSE LIMIT and DOOR STATUS LEDs will illuminate
for about five seconds. These LED’s will turn off and the CODING LED
will illuminate.
d. Release the DOOR CODE BUTTON. All stored codes will now be
deleted. Confirm this pressing buttons on any previously coded
transmitters - the opener should not respond.
PTX-6 shown

GDO-6 EasyRoller Installation Manual
14
Please read these important safety warnings!
This automatic garage door opener is designed and tested to offer safe service provided it is installed
and operated in strict accordance with the following safety warnings. Failure to comply with the following
instructions may result in death, serious personal injury or property damage.
WARNING! • When operating the manual release while the door is open, the door may fall rapidly due to
weak or broken springs, or due to being improperly balanced.
• DO NOT disengage the opener to manual operation with children/persons or any objects
including motor vehicles within the doorway.
• If the door is closing and does not re-open when obstructed, discontinue use. DO NOT use a
door with faulty obstruction sensing.
ELECTROCUTION!
• Place opener in protected area so that it does not get wet.
• DO NOT spray with water .
• DO NOT open the protective covers.
• DO NOT operate opener if cable is damaged.
DO NOT DO IT
YOURSELF
• Keep the garage door balanced. Sticking or binding doors must be repaired. Garage doors,
door springs, brackets and their hardware are under extreme tension and can cause serious
personal injury. DO NOT attempt any garage door adjustment. DO NOT use if repair or
adjustment is needed. Call for a professional garage door service.
CAUTION:
Emergency access • If your garage has no pedestrian entrance door, an emergency access device should be
installed. This accessory allows manual operation of the garage door from outside in case of
power failure.
Entrapment under
operating door
• Watch the moving door and keep people away until the door is completely opened or closed.
DO NOT operate door when persons are near the door.
• DO NOT allow children to play with door controls or transmitters.
• Regularly conduct Open and Close cycle testing.
• Ensure the garage door is in good working order by undertaking regular servicing.
• Wall transmitters should be installed in a location where the garage door is visible, but out of
the reach of children at a height of at least 1.5m.
• Install Safety Beams (recommended).
Fall from Ladder • Ensure ladder is the correct type for the job.
• Ensure ladder is on flat ground.
• Ensure user has 3 points of contact while on ladder.
Entanglement in or
laceration from
moving door
• Keep hands and loose clothing clear of door and guides at all times.
• Keep hands clear of moving door as sharp edges can cause cuts or lacerations.
DIY
15. Home Owner Safety Warnings!

GDO-6 EasyRoller Installation Manual
15
16. Opener Safety & Security
16.1 Your Door CAN NOT be used by the opener when:
a. There is a locking device installed.
b. There is a power failure.
16.2 Your Door CAN be used when:
a. There is an emergency, by disengaging the opener.
b. There is a power failure, by disengaging the opener.
16.3 To Disengage the Opener:
a. It is recommended to do so with the door in the closed position.
b. Pull down on the manual release cord, until you hear a click.
c. Move the door manually.
16.4 To Re-Engage the Opener:
a. Check the door has not been locked by a locking device.
b. Pull down on the manual release cord, until you hear a click.
c. The door will now operate from the opener.
CAUTION: When the opener is manually disengaged,
the door is no longer locked. To lock the door
manually, re-engage the opener after the door is
closed.
WARNING! Please test the manual release mechanism
to ensure that the manual release is easy to operate.
No more than 20kg of force should be required to
disengage the door using the manual release cord.
If excessive force is required reset the close limit
position (Section 10. Resetting Door Limits).
17. Operating your Opener
17.1 To Operate the opener:
a. Press the programmed transmitter button until your
door begins to move (usually 2 seconds). Make sure
you can see the door when you use the transmitter.
b. If you are in a vehicle you should aim the transmitter
through your windscreen as shown.
c. Check that the door is fully open or closed before you
drive in or away.
d. If you press the transmitter whilst the door is moving
the door will stop. The next press of the transmitter
will move the door in the opposite direction.
1.
TO DISENGAGE:
PULL HANDLE DOWN
& RELEASE
2.
TO RE-ENGAGE:
REPEAT ACTION
PULL
HANDLE
WARNING! When operating the manual
release (while the door is open) the door
may fall rapidly due to weak or broken
springs, or due to being improperly
balanced.
Do not disengage the opener to manual
operation with children/persons or any
objects including motor vehicles within
the doorway.
PTX-6 shown

GDO-6 EasyRoller Installation Manual
16
18. User Operating Controls
19. Door Status Indicators
05
06
07
01
02
03
04
Button Function
1. OPERATE Opens/stops/closes the door
2. CODING LED (Red) Flashes when a code is being stored or when the transmitter button is pressed
3. LIGHT CODE (White) Is used for storing or erasing the transmitter button (code) you wish to use to switch the
courtesy light on the opener on or off.
4. DOOR CODE (Blue) Is used for storing or erasing transmitter buttons for door operation
5. OPEN LED (Green) Illuminates and flashes as the door opens and remains on when the open limit position has
been reached.
6. DOOR STATUS LED (Yellow) Illuminates when Service is due.
7. CLOSE LED (Red) Illuminates and flashes as the door opens closes, and remains on when the close limit
position has been reached.
Door Status Indicators OPEN LED (green) CLOSE LED (red) Beeper
Open On
Close On
Opening Flashing
Closing Flashing
Door travel stopped Flashing Flashing
Door obstructed when opening Flashing Beeps while door is
moving
Door obstructed when closing Flashing Beeps while door is
moving
Opener overloaded Alternating flashes Alternating flashes
Door in open position with
Auto-Close mode selected
One second flashes
Mains power interrupted Rapid flashes

GDO-6 EasyRoller Installation Manual
17
20. Specifications
Technical Specifications GDO-6V4
EasyRoller®
GDO-6V3
EasyRoller®
Power supply 230V - 240Va.c. 50Hz 230V - 240Va.c. 50Hz
Maximum door opening
Door Height:
Maximum Door Weight:
Door Area:
Door must be well balanced and
able to be operated by hand, as per
warranty conditions and standard
AS/NZS 4505:2012
3.25 turns of the drum wheel
(approx. 3000mm)
110kg
16.5m2
3.25 turns of the drum wheel
(approx. 3000mm)
110kg
16.5m2
Minimum sideroom 40mm 40mm
Lift Force 600N 600N
Nominal force 150N (15kg) 150N (15kg)
Receiver type Multi-frequency UHF FM
(433.47, 433.92 & 434.37MHz)
Multi-frequency UHF FM
(433.47, 433.92 & 434.37MHz)
Receiver code storage capacity 64 X TriocodeTM128
4-button Transmitters 14 X TriocodeTM128 4-button Transmitters
Coding System TrioCodeTM 128 Type TrioCodeTM 128 Type
Coding type Non-linear encryption algorithm Non-linear encryption algorithm
Number of code combinations Over 100 billion random codes Over 100 billion random codes
Transmitter battery CR2032 (3 Volts) CR2032 (3 Volts)
Courtesy light LED (Light Emitting Diodes) Festoon style lamp 24volts 15 watts
Network connectivity Network compatible,
(requires optional
Smart Phone Control Kit)
Not Available
Note: Intermittent operations may occur in areas which experience very strong winds. The strong wind puts extra pressure on the
door and tracks which may in turn intermittently trigger the safety obstruction detection system.

GDO-6 EasyRoller Installation Manual
18
Symptom Possible cause Remedy
The opener does
not work from the
transmitter
The opener does not have power
The battery in the transmitter is flat
Transmitter does not contain
Tri-Tran+Technology
The opener has been put into
“Vacation Mode”
The transmitter button is not
programmed to operate the door.
Door Code LED is flashing yet the
opener is not working.
Plug a device of similar voltage (e.g. a hairdryer) into
the power point and check that it is OK
Replace the battery
Check that the transmitter has grey buttons and the
model number on the back displays V2. Contact
dealer for support if otherwise.
Turn off “Vacation Mode”
(Section 14)
Code in the transmitter
Ensure the correct button on the transmitter is being
pressed.
One transmitter works
but the other/s do not
Faulty transmitter
Flat battery
Replace transmitter
Replace battery
The motor is running
but the door remains
stationary
The opener is disengaged Re-engage the opener
The transmitter range
varies or is restricted
Variations are normal depending on
conditions e.g. temperature or external
interference
The battery life is exhausted
Position of the transmitter in the motor
vehicle
Make sure you can see the door when you use the
transmitter.
Check the battery status by pressing a button
(flashing or no light requires battery to be changed)
Aim the transmitter through the windscreen.
The Courtesy light does
not work
LED has failed Change LED.
The door reverses for
no apparent reason
This may occur occasionally from
environmental conditions such as areas
that are windy, dusty or have extreme
temperature changes.
If Safety beams are installed they may
be partially obstructed.
Ensure the door runs smoothly before increasing the
force pressure.
Ensure the beam path is not obstructed. Check the
Alignment.
The door stops or
moves very slowly.
Garage door in poor condition e.g.
springs may be broken.
(Optional Battery Back Up Accessory)
The batteries may have little OR no
charge
Check the door’s operation.
Connect mains power and leave the batteries to
charge. The batteries may take 24 to 48 hours to
reach their maximum charge capacity.
21. Troubleshooting

GDO-6 EasyRoller Installation Manual
19
Symptom Possible cause Remedy
The SERVICE LED has
started to flash and
is beeping numerous
times
A Fault has been detected. The fault
will be active each time an attempt is
made to operate the door.
Record opener function (How many beeps?) then
press the SET button once to reset the opener. If the
fault continues to be tripped contact 1300 133 944
for support.
The Open (Green) LED
and Close (Red) LED are
flashing alternatively
Opener is overloaded Check the doors operation by disengaging the motor
and ensuring the door runs smoothly. If necessary
make door adjustments or discontinue use and
contact 1300 133 944 for support.
The Open (Green) LED
continues to flash
Door obstructed when opening Clear away any obstructions and test door opens
correctly. (If door is damaged, contact your door
professionl).
The Close (Red) LED
continues to flash
Door obstructed when closing
Limits may be cleared
Clear away any obstructions and test door closes
correctly. (If door is damaged, contact your door
professional).
Remove all power sources (including the battery
backup). Wait till all lights are out (10-15 secs), then
reconnect power. If Red LED is flashing, limits are not
set. Reset Limits.
21. Troubleshooting
If You Need a Service Call
If the opener needs a service please call the dealer who installed the garage door opener (their contact details are usually
on a sticker on the back of your garage door). For product assistance contact 1300 133 944 within Australia.
BEFORE CALLING you should have the following information to assist in providing the appropriate service:
1. Has anything happened since the opener last operated OK, e.g. a storm, a jolt to the door etc.?
2. What is the current light status on the opener?
3. Manually disengage the door (Section 16).
How easy is it to manually open and close the door?
4. What model is the opener? (Model no. information is located at the rear of the opener)
5. Who installed the opener? (Dealer details should be on a sticker on the back of your garage door)
6. When was it installed? (If known)
Date Time Number of Beeps

GDO-6 EasyRoller Installation Manual
20
22. After Installation Care
22.1 Service Checklist
Preventative servicing of your garage door and opener, is just as
important as servicing your car. Much like the engine of your car, your
garage door is made up of numerous moving parts designed to lift and
lower your door safely and efficiently.
Ongoing preventative servicing ensures that your door continues to
function within factory specifications, greatly reduces the risk of failure
and repair bills down the track and ensures you maintain your Warranty.
DO NOT DO IT YOURSELF:
WARNING! Failure to maintain your your
garage door voids the warranty on your
garage door opener.
DIY
Door adjustments should only be
carried out by experienced persons,
as this function can be dangerous if
not performed under strict safety
procedures.
Run the Safety Testing procedures MONTHLY in
Section 11 to ensure garage door is fit for use.
tip
TECHNICIAN CHECKLIST
1. Lubrication of the critical moving parts including chain drive, tracks, wheels or cable drum.
2. Tightening of door mounting points along with door bolts, screws, cables and connectors.
3. Adjustment of spring tension to limit ‘spring fatigue’.
4. Adjustment of opener travel limits and force margin to ensure the door opens and closes to specification.
5. Assessment and adjustment of safety components and accessories including safety beams, Auto-Lock and Safe Lock (if
installed)
6. Assessment of the door alignment and the diagnosis of irregular operation remedies.
7. Record Cycle count at each service to establish next date of service (as per table)
SERVICE 1
(12 months after installation
or 3,000 cycles)
SERVICE 2
(3 years after installation)
SERVICE 3
(5 years after installation)
DATE:
BUSINESS NAME:
TECHNICIAN NAME:
PG3 COUNTERS OPEN CLOSE OPEN CLOSE OPEN CLOSE
STALLS
OBSTRUCTIONS
SENSOR FAULTS
OVERLOADS / CUT-OUTS
WARRANTY CYCLES
FIRMWARE UPDATE AVAILABLE?
IF ‘YES’ PLEASE UPDATE FIRMWARE YES NO YES NO YES NO
CURRENT FORCE MARGIN
TECHNICAL SIGNATURE:
SERVICE 4
(7 years after installation)
SERVICE 5
(9 years after installation)
DATE:
BUSINESS NAME:
TECHNICIAN NAME:
PG3 COUNTERS OPEN CLOSE OPEN CLOSE
STALLS
OBSTRUCTIONS
SENSOR FAULTS
OVERLOADS / CUT-OUTS
WARRANTY CYCLES
FIRMWARE UPDATE AVAILABLE?
IF ‘YES’ PLEASE UPDATE FIRMWARE YES NO YES NO
CURRENT FORCE MARGIN
TECHNICAL SIGNATURE:
