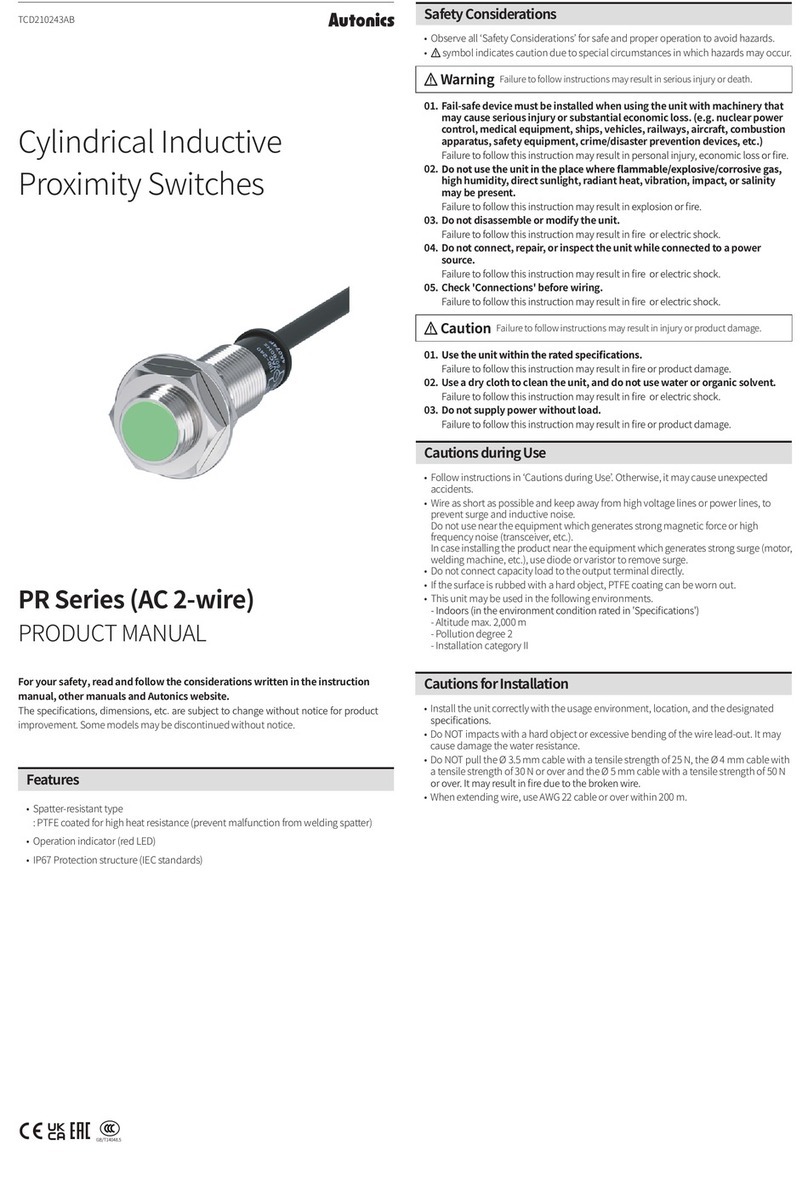

Autonics PR Series User manual

Autonics

Autonics PR Series User manual

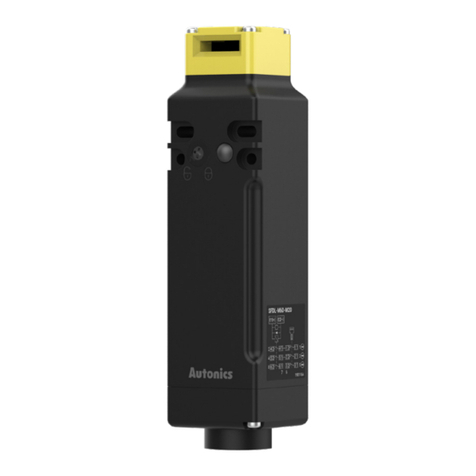

Autonics SFDL Series User manual

Autonics

Autonics SFDL Series User manual

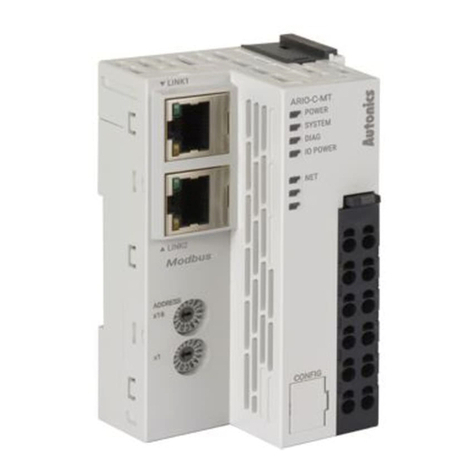

Autonics ARIO-C-MT User manual

Autonics

Autonics ARIO-C-MT User manual

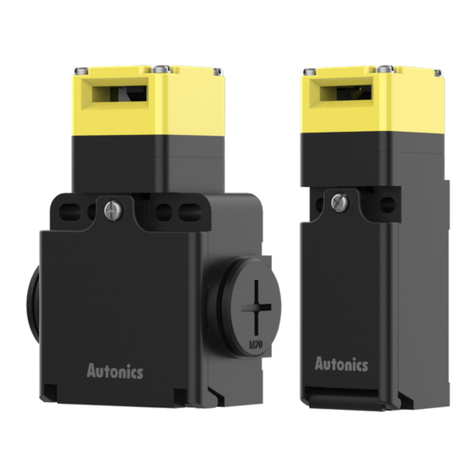

Autonics SFD Series User manual

Autonics

Autonics SFD Series User manual

Autonics AS Series User manual

Autonics

Autonics AS Series User manual

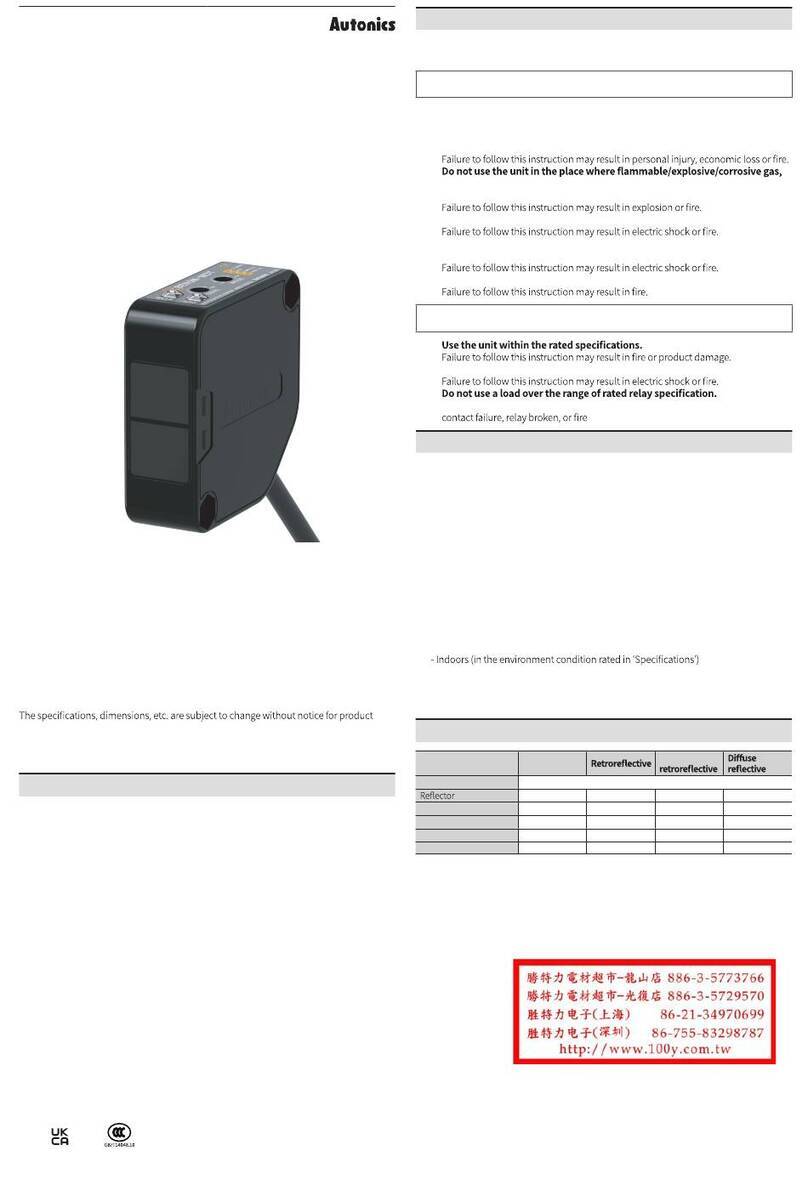

Autonics BEN Series User manual

Autonics

Autonics BEN Series User manual

Autonics SPB Series User manual

Autonics

Autonics SPB Series User manual

Autonics SFEN Series User manual

Autonics

Autonics SFEN Series User manual

Autonics SFDL2 Series User manual

Autonics

Autonics SFDL2 Series User manual

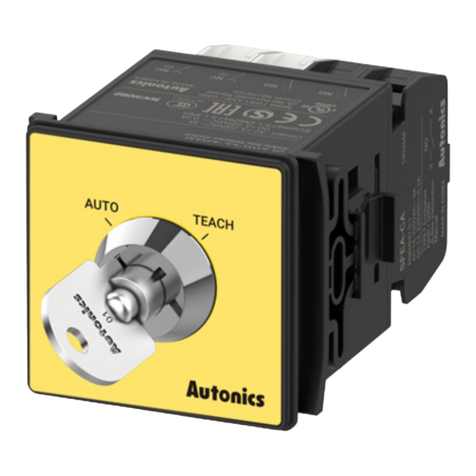

Autonics SF2KR Series User manual

Autonics

Autonics SF2KR Series User manual

Popular Switch manuals by other brands

TRENDnet TK-401R null

TRENDnet

TRENDnet TK-401R null

TRENDnet TK-200K null

TRENDnet

TRENDnet TK-200K null

TRENDnet TE100-S8 null

TRENDnet

TRENDnet TE100-S8 null

URC Total Control MFS-8 installation manual

URC

URC Total Control MFS-8 installation manual

Azbil HPQ-D11 user manual

Azbil

Azbil HPQ-D11 user manual

Sony DFS-900M operating instructions

Sony

Sony DFS-900M operating instructions

SICK i17S operating instructions

SICK

SICK i17S operating instructions

F&F SZR-277 quick start guide

F&F

F&F SZR-277 quick start guide

Shure UAMS/BK user guide

Shure

Shure UAMS/BK user guide

Dräger X-zone Switch Off Instructions for use

Dräger

Dräger X-zone Switch Off Instructions for use

Asco Joucomatic 349 Series manual

Asco

Asco Joucomatic 349 Series manual

BT Mini Hub user guide

BT

BT Mini Hub user guide

D-Link DES-1226G manual

D-Link

D-Link DES-1226G manual

Johnson Controls FS80-C installation instructions

Johnson Controls

Johnson Controls FS80-C installation instructions

MicroNet SP1200A user manual

MicroNet

MicroNet SP1200A user manual

Ruijie RG-PF2920 Series Hardware  installation and reference guide

Ruijie

Ruijie RG-PF2920 Series Hardware installation and reference guide

Altinex DA1914SX user guide

Altinex

Altinex DA1914SX user guide

RJM MASTERMIND PBC/6X user manual

RJM

RJM MASTERMIND PBC/6X user manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

TCD210253AB
Rectangular Flat-type
Inductive Proximity Switch
PFI Series (DC 3-wire)
PRODUCT MANUAL
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
improvement. Some models may be discontinued without notice.
ᜢᜫ
Features
•Flat, compact design (10 mm height) allows easy installation in limited spaces
•Operation indicator (red LED)
•IP67 protection structure (IEC standard)
CautionsforInstallation
•Install the unit correctly with the usage environment, location, and the designated
•Do NOT impacts with a hard object or excessive bending of the wire lead-out. It may
cause damage the water resistance.
•Do NOT pull the Ø 2.5 mm cable with a tensile strength of 20 N, the Ø 4 mm cable with
a tensile strength of 30 N or over and the Ø 5 mm cable with a tensile strength of 50 N
•When extending wire, use AWG 22 cable or over within 200 m.
•Tighten the installing screws with under 1.47 N m torque.
Safety Considerations
•Observe all ‘Safety Considerations’ for safe and proper operation to avoid hazards.
•᜸symbol indicates caution due to special circumstances in which hazards may occur.
᜸Warning Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery that
may cause serious injury or substantial economic loss. (e.g. nuclear power
control, medical equipment, ships, vehicles, railways, aircraft, combustion
apparatus, safety equipment, crime/disaster prevention devices, etc.)
Failure to follow this instruction may result in personal injury, economic loss or
02.
high humidity, direct sunlight, radiant heat, vibration, impact, or salinity
may be present.
03. Do not disassemble or modify the unit.
04. Do not connect, repair, or inspect the unit while connected to a power
source.
05. Check 'Connections' before wiring.
᜸Caution Failure to follow instructions may result in injury or product damage.
01.
02. Use a dry cloth to clean the unit, and do not use water or organic solvent.
Cautionsduring Use
•Follow instructions in ‘Cautions during Use’. Otherwise, it may cause unexpected
accidents.
•12-24 VDCᜡpower supply should be insulated and limited voltage/current or Class 2,
SELV power supply device.
•Use the product, after 0.8 sec of supplying power.
•Wire as short as possible and keep away from high voltage lines or power lines, to
prevent surge and inductive noise.
Do not use near the equipment which generates strong magnetic force or high
frequency noise (transceiver, etc.).
In case installing the product near the equipment which generates strong surge (motor,
welding machine, etc.), use diode or varistor to remove surge.
•This unit may be used in the following environments.
- Indoors (in the environment condition rated in ‘Specifications’)
- Altitude max. 2,000 m
- Pollution degree 2
- Installation category II
-|Transparent Guide|-

󹮬 󹮬󹮬󹮬

 
  
 
  
Return Return


NPN

HH
L L
PNP

HH
L L


ON ON
OFF OFF



NPN
LOAD




PNP
LOAD



 

LOAD

LOAD


󹃐
PFI 25 󹮵8 

󹮶󹮬󹮬󹮬
󹮶󹮬󹮬󹮬
󹮶󹮬󹮬󹮬
󹮶󹮬󹮬󹮬
󹃑
 
 󹮵

󹮬
 󹮬
 󹮬󹮬󹮴󹮬󹮬
Hysteresis 󹮬󹮬󹮬󹮬󹮬󹮬

󹮸 󹮬󹮬󹮬󹮬󹮬󹮬
󹮳 󹮬
󹃐
 󹮬󹮬󹮬󹮬󹮬󹮬󹮬󹮬󹮬󹮬󹮬
 󹮬󹮬󹮰󹮱
 󹮬
 󹮬󹮬󹮬


 󹮳󹮬󹮬󹮰󹮬󹮳󹮶󹮬󹮬󹮬󹮱󹮲󹮬󹮬󹮶󹮬󹮳󹮬
 󹮬󹮬
 󹮬󹮬
 󹮬󹮴󹮬
 󹮬󹮬󹮲󹮬󹮬󹮬󹮬󹮬󹮬
󹮲󹮬󹮬󹮬
 󹮬󹮬󹮬󹮰󹮬󹮬󹮱
 󹮲󹮬󹮬󹮵󹮬󹮬󹮬󹮬󹮬
 󹮬󹮬󹮬󹮬󹮬󹮬󹮬󹮬󹮬󹮰󹮬󹮬󹮱󹮬󹮬󹮬󹮲󹮬󹮲󹮬
󹮬󹮬󹮬󹮬
 󹮬󹮵󹮬󹮰󹮬󹮬󹮱󹮬󹮬󹮬󹮬
 󹮳󹮬󹮬󹮬󹮲󹮬󹮶󹮬󹮳󹮬󹮬󹮬󹮬󹮰󹮳󹮬󹮬󹮳
󹮱
 󹮬󹮬󹮬󹮲󹮬󹮶󹮬󹮬󹮬󹮬󹮬󹮰󹮳󹮬󹮬󹮳
󹮱

󹮬󹮰󹮬󹮱
 󹮬󹮬
 󹮬󹮬󹮲󹮬󹮳󹮲󹮬󹮬
 󹮬󹮬󹮰󹮴󹮬󹮲󹮬󹮳󹮱󹮲󹮬󹮬󹮶󹮬󹮬󹮴󹮬
 󹮶󹮬󹮲󹮬󹮬󹮬󹮬󹮰󹮱󹮶󹮬󹮬󹮬󹮰󹮱
Dimensions
•Unit: mm, For the detailed dimensions of the product, follow the Autonics web site.
6.7
10.2
11
43.8
49
Ø 4, 2 m
25.7
2-Ø 4.2
Operation indicator (red)
SettingDistance Formula
Detecting distance can be changed
by the shape, size or material of the
target.
For stable sensing, install the unit
within the 70% of sensing distance.
Setting distance (Sa)
= Sensing distance (Sn) × 70%
Sensing target
: Up-Down movement
Sensing target
: Right-Left movement
Sa Sn Sa Sn
■Mutual-interference
A100 mm B80 mm
A
[Face to Face] [Parallel] B
■
d15 mm m5 mm
m m
d
Earth-plate
SensingDistance FeatureData byParallel(Left/Right)
Movement
Sensing
area (Y)
Sensing
distance (X)
Sensing distance X (mm)
Left ←Center →Right
Sensing area Y (mm)
6.0 4.0 2.0 0.0 2.0 4.0 6.0
8.0
6.0
5.0
4.0
3.0
2.0
1.0
SensingDistance Feature DatabyTargetMaterialandSize
Sensing distance X
□d
One side
length
9.00
8.00
7.00
6.00
5.00
4.00
3.00
2.00
1.00
0.00
Sensing distance X (mm)
One side length of sensing target d (mm)
4 8 10 12 15 18 20 25 30 35 40 45 50 60 70 75 80 90 100
Iron (SS401)
Brass (C3601)
Aluminum (ALS052)
Copper (C1100)
SUS364
