Avalla T-5 User manual

Steam Mop
T-5 T-9 T-20
Read this manual carefully before use and keep it for future
reference. Failure to do so may result in injury, property
damage and may void the warranty.
avalla.com

02 En
Contents
02 Contents
04 Quick start guide: T-5
• Parts guide
05 • Assembly and operation
05 • Accessories
06 Quick start guide: T-9
• Parts guide
07 • Assembly and operation
07 • Accessories
08 Quick start guide: T-20
• Parts guide
09 • Assembly and operation
10 Health and safety
• General safety instructions
• Disposal
12 Troubleshooting
12 Specications

03En

04 En
Quick start guide: T-5

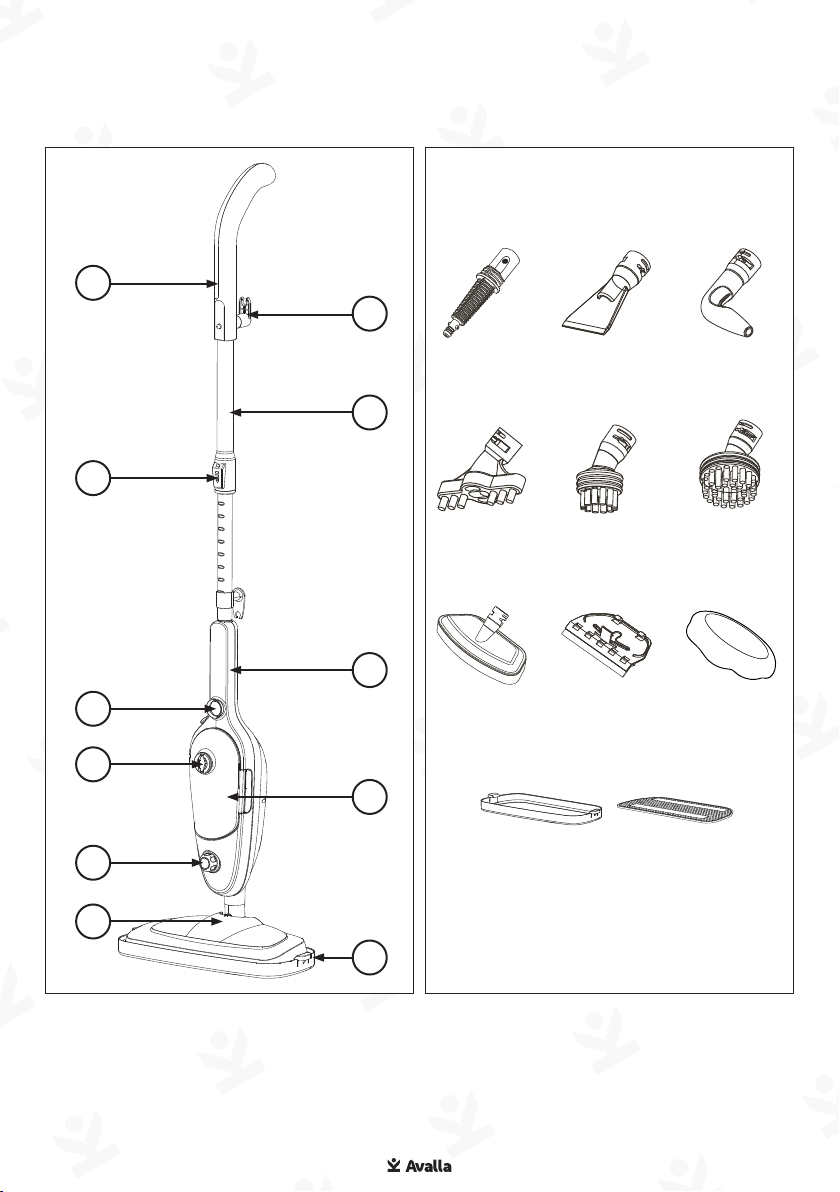

Parts guide
Carpet
glide
Large
brush
Angled
nozzle
Head
adapter
Mop
pad
Focused
scraper
Flat
brush
Window
head Micro head
Accessory
adapter
Small
brush
Filler
cup
01. Handle
02. Power cable tidy
03. Telescopic extension
04. Telescopic catch
05. Body
06. Power button
07. Filler port
08. Water tank
09. Steam head
10. Carpet glide
01 02
08
05
03
10
04
06
07
09

05En

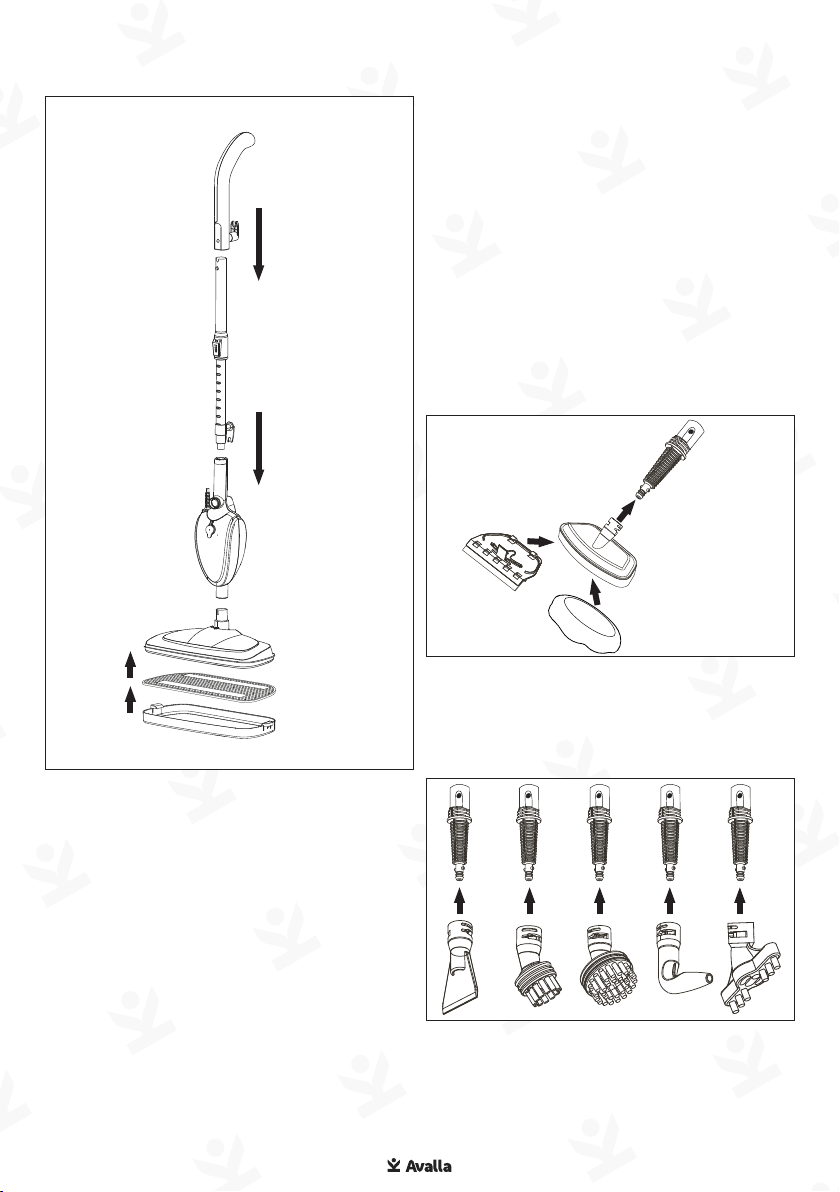

Assembly and operation Accessories
• Slot the handle over the
telescopic extension and click
into place.
• Slot the telescopic extension
and steam head into the body.
• Attach a mop pad to the
underside of the steam head.
• Openthellerport.Usingthe
llercup,llthewatertankto
themaxline.Closetheller
port.
• For carpet cleaning, clip on the
carpet glide.
• Power on the unit and allow it
to reach temperature.
The body can be detached
from the telescopic extension
and steam head, becoming
a portable and versatile
steam cleaner with a range of
accessories.
Slot the accessory adapter into
the body. The head adapter can
be used with either the micro
head or window head.
The accessory adapter is used
for all brushes, the nozzle and
scraper attachments.
Warning: Make sure the unit
is fully cooled and unplugged
from the mains before swapping
parts. Make sure attachments
are securely locked in place
before use.

06 En
Quick start guide: T-9
Parts guide
Carpet glide
Large
brush
Angled
nozzle
Head
adapter
Mop pad
Focused
scraper
Flat
brush
Window
head Micro head
Accessory
adapter
Small
brush
01. Handle
02. Power cable tidy
03. Telescopic extension
04. Telescopic catch
05. Body
06. Power button
07. Filler port
08. Water tank (removable)
09. Temperature dial
10. Steam head
11. Carpet glide
01
02
08
05
03
11
04
06
07
09
10

07En

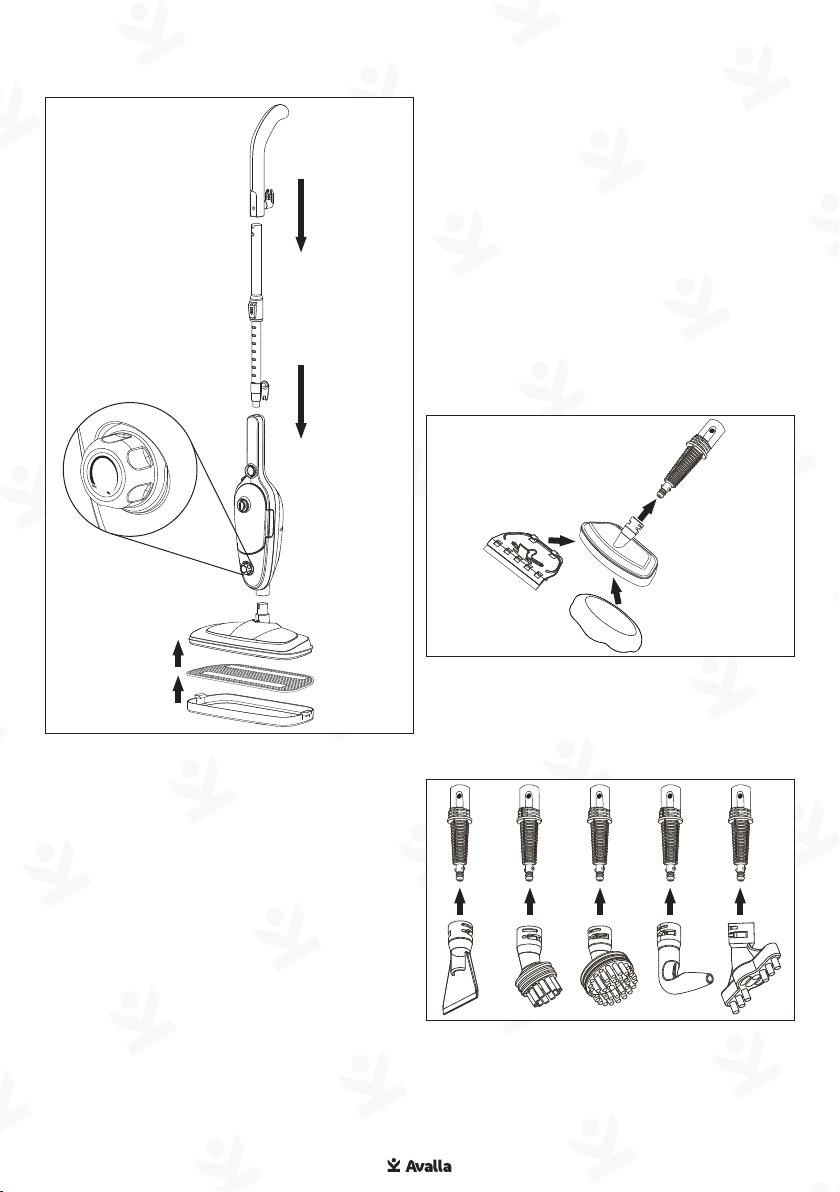

Assembly and operation Accessories
• Slot the handle over the
telescopic extension and click
into place.
• Slot the telescopic extension
and steam head into the body.
• Attach a mop pad to the
underside of the steam head.
• Detach water tank. Open the
llerportandllthewater
tank to the max line. Close the
llerport.
• Adjust the steam temperature
using the temperature dial.
• For carpet cleaning, clip on the
carpet glide.
• Power on the unit and allow it
to reach temperature.
The body can be detached
from the telescopic extension
and steam head, becoming
a portable and versatile
steam cleaner with a range of
accessories.
Slot the accessory adapter into
the body. The head adapter can
be used with either the micro
head or window head.
The accessory adapter is used
for all brushes, the nozzle and
scraper attachments.
Warning: Make sure the unit
is fully cooled and unplugged
from the mains before swapping
parts. Make sure attachments
are securely locked in place
before use.

08 En
Quick start guide: T-20

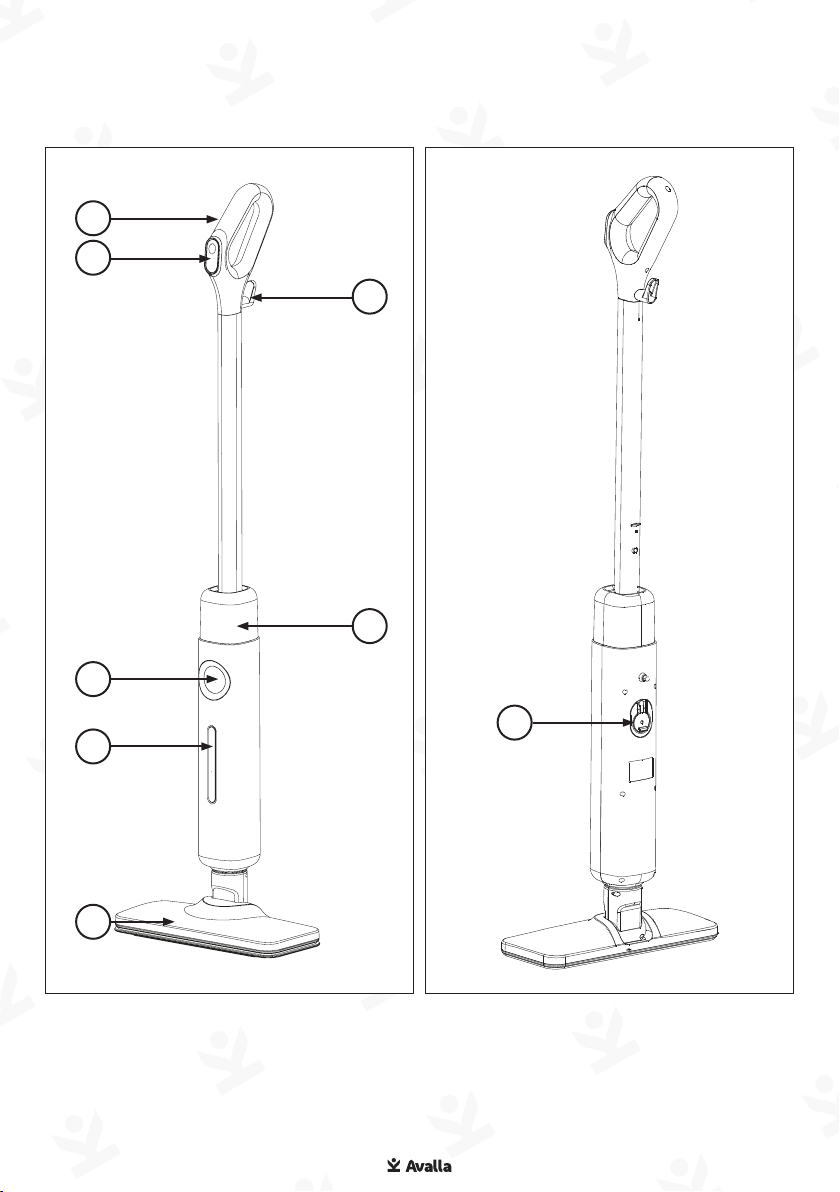

Parts guide
01. Handle
02. Power button
03. Power cable tidy
04. Body
05. Temperature display
06. Water level window
07. Steam head
08. Filler port
01
02
03
04
05
06
08
07

09En
Assembly and operation
• Ensure the unit is unplugged
from the power supply.
• Slot the handle into the body
and clip into place.
• Attach a mop pad to the
underside of the steam head.
• Openthellerport.Usingthe
llercup,llthewatertankto
themaxline.Closetheller
port.
• For carpet cleaning, clip on the
carpet glide.
• Press the power button once
to turn on to high power. Press
again for max power. Press
once more to power off.
For carpet cleaning, clip on the
carpet glide.
High power mode:
Produces high levels of steam up
to 120ºC
Max power mode:
Produces the maximum amount
of steam for intense cleaning.
Mop pad installation.

10 En
Health and safety
General safety instructions
The following must always be observed for safety
Warning: Danger of scalding. The steam emitted from the appliance is very hot
and may cause scalding. Please use caution when using the appliance.
• This appliance is not intended to be used by children, keep it away from
children. Persons with lack of experience or knowledge, reduced physical,
sensory, or mental capabilities, can use this appliance if they have been given
supervision or instruction concerning use of the appliance in a safe way.
• When in use never turn the appliance over on its side or direct steam toward
people, pets or plants.
• Component parts must only be replaced with identical repair parts.
• The appliance must be disconnected from its power source during servicing,
cleaning or when not in use. Do not use chemicals to clean the appliance.
• Always operate the unit from power outlet of equal voltage, frequency and
ratingasindicatedontheproductidenticationplate.
• Do not operate with wet hands. Be careful not to allow any sources or water,
moisture, or any other liquids to come into contact with any areas of the unit
other than the water tank and steam outlet.
• Do not leave the unit running unattended. Do not unplug the unit while it is in
operation.
• Do not put any objects into the steam nozzle openings. Discontinue use if the
steam nozzle is blocked.
• Do not unplug by pulling on the power cord, use cord as a handle, close a door
on cord, or pull cord around sharp edges or corners. Do not run the appliance
over the cord. Keep the cord away from heated surfaces.
• Do not put objects on the unit, climb or sit on the unit.
• Do not operate the unit if it is dropped, damaged or showing signs of product
malfunction.
• The unit must be installed in accordance with national wiring regulations.
• The appliance must be stored in a manner to prevent mechanical damage.
• Do not place in direct sunlight or near objects that may cause mechanical
vibration or shock.
• Donotusetheappliancewherecombustible/ammablegasesorvapoursare
present.
• Do not use the appliance outdoors, it is designed only for indoor use.
• Do not use for space-heating purposes.
• Do not put hands or feet under the appliance. It gets very hot.
• Do not use on leather, wax-polished furniture, synthetic fabrics, velvet, or other
delicate, steam-sensitive materials.
Symbols from the unit, packaging and instruction manual
Read the
instruction
manual
UK
Conformity
Assessed
European
Conformity
Class I
Construction
(Earthed)
Ingress protection
rating. Resistant
to water splashing
against the
enclosure from any
direction shall have
no harmful effect.
WEEE - Waste
Electrical & Electronic
Equipment. Do not
dispose of Waste
Electrical & Electronic
Equipment in with
domestic rubbish.

11En
• Do not add cleaning solutions, scented perfumes, oils, or any other chemicals to
the water used in the appliance. If you live in a hard-water area, we recommend
using distilled water in your appliance.
• Never leave any mop pad in one spot while using or storing for any period of
time.
• The liquid or steam must not be directed towards equipment containing
electrical components, such as the interior of ovens.
• When cleaning the exterior of the appliance, unplug the power cord from the
electrical outlet and clean the appliance with a dry or damp cloth.
• Extreme caution should be exercised when using the appliance to clean stairs.
• Neveruseappliancewithoutthemoppadattachedunlessotherwisespecied
in this manual.
• Keep your work area well lit.
• Store appliance indoors in a cool, dry place.
• To avoid circuit overload, do not operate another appliance on the same socket
(circuit) as the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
serviceagentorsimilarlyqualiedpersonsinordertoavoidahazard.
• To avoid scalding injuries, always unplug and allow the appliance to cool before
removing or changing mop heads or accessories.
• Thisapplianceisdesignedtocleanhard-oorsurfacesthatwillwithstandhigh
heat.Donotuseonunsealedwoodorunglazedceramicoors.Onsurfaces
thathavebeentreatedwithwaxandonsomeno-waxoors.Itisalways
recommended to test an isolated area of the surface to be cleaned before
proceeding. We also recommend that you check the use and care instructions
fromtheoormanufacturer.
Connection to power supply
Caution: Risk of electric shock. Do not open.
• This appliance is supplied with a moulded 3 pin mains plug for your safety.
Thevalueofthefusettedismarkedonthepinfaceoftheplug.Shouldthe
fuse need replacing, ensure the substitute is of the correct rating, approved to
BS1362 and ASTA or BSI Kite marked.
ASTA: BSI:
• The fuse cover is removable with a small plain slot screwdriver. Ensure the fuse
cover is replaced before attempting to connect the plug to an electrical outlet. If
the cover is missing, a replacement must be obtained or the plug replaced with
a suitable type.
• Ifareplacementplugistobettedthismustbecarriedoutbyaqualied
electrician.
• The damaged or incomplete plug, when cut from the cable should be disabled
to prevent connection to a live electrical outlet.
• This appliance is Class I and is designed for connection to a power supply
matchingthatdetailedontheratinglabelandcompatiblewiththeplugtted.
• If an extension lead is required, use an approved and compatible lead rated for
this appliance. Follow all the instructions supplied with the extension lead.
• Class I :Products with this symbol must have metal parts connected to
electrical earth by an earth conductor. The basic requirement is that no single
failure can result in dangerous voltage becoming exposed so that it might
cause electric shock.
• Important: If using an extension lead, follow the instructions that came with
your lead regarding maximum load while cable is wound. If in doubt, ensure
thattheentirecableisunwound.Usingacoiledextensionleadwillgenerate
heatwhichcouldmelttheleadandcauseare.
Failure to abide by any of these warnings could result in a re, explosion,
electric shock, injury, death, and property damage.

12 En
Troubleshooting
Issue Solution
Steam is not produced Ensure the water tank is topped up.
Make sure the suction hose is submerged.
Too much water on ground after use Check if mop pad is over saturated; replace
or allow to dry.
Floor still dirty after use Check mop pad is not too dirty.
Stain may require pre-treatment.
Mopisdifculttopush Make sure mop pad is correctly installed. If
on carpet, ensure the carpet glide is in place.
Specications
T-5 T-9 T-20
Steam pressure 1 Bar 1 Bar 1 Bar
Steam temp 100ºC 100ºC 120ºC
Heating time 20 sec 20 sec 15 sec
Water tank capacity 280ml 450ml 500ml
Steamowrate 25ml/min 18-42ml/min 20-47ml/min
Max runtime 10min 25min 25min
Power 230V 230V 230V
Weight 1.9 Kg 2.1 Kg 2.3 Kg
AvallaLtd.UnitA73,CommonRoad,Chandler’sFord,
Eastleigh,SO531HE.UnitedKingdom
Company no. 13477899
[e-mail]
Disposal
Do not dispose of electrical appliances in general waste. Contact your
local government for information regarding the disposal options available.
Ifelectricalappliancesaredisposedofinlandllsordumps,hazardous
substances can leak into the groundwater and cause a hazard for wildlife
and human health.
Did you know?
If a mop pad is heavily soiled, you can machine wash to extend its lifespan
and cut down on waste. We recommend washing alone, on a medium cycle
at 600.
i
