Avantco A36503 User manual

Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 1/48
ORIGINAL INSTRUCTIONS
Please Read This Document Before Operating The Machinery
Avant Screening Bucket A36503
Operator`s manual

Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 2/48
Wheatway Solutions Ltd would like to take this opportunity to
thank you for choosing a Gyru-Star product, which is built to high
quality standard and designed for durability. we are confident the
product will give you an excellent service.
Please see and sign back page for you warranty cover
This manual covers:
•Installation
•Operation
•Maintenance
•Troubleshooting
•Adjustment
•Specifications
Gyru-Star compact screening system
Models covered3-120A
Manufactured By
Wheatway Solutions Ltd
B3 Brearley, Baird Road
Waterwells Business Park
Gloucester, GL2 2AF
England

Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 3/48
Table of contents
Introduction ________________________________________________________ 4
Intended Purpose_________________________________________________________ 4
Product Description _______________________________________________________ 5
Technical Data ___________________________________________________________ 8
Dimensions ____________________________________________________________ 10
Compatibility with Avant loaders ____________________________________________ 11
Safety Instructions__________________________________________________ 12
WARNINGS ____________________________________________________________ 12
General _______________________________________________________________ 13
Before operation ________________________________________________________ 14
Safety Instructions _______________________________________________________ 15
During operation ________________________________________________________ 15
Safety Decals___________________________________________________________ 18
Lifting and Handling Instructions______________________________________ 22
Lifting using a forklift _____________________________________________________ 24
Installation Instructions _____________________________________________ 26
Coupling to Avant loader __________________________________________________ 26
Coupling hydraulic hoses to Avant loader _____________________________________ 30
Operating Instructions ______________________________________________ 32
Rotor direction __________________________________________________________ 33
Operation angle _________________________________________________________ 34
Material handling ________________________________________________________ 35
Maintenance _______________________________________________________ 37
Daily Maintenance _______________________________________________________ 37
Periodic or Monthly Maintenance____________________________________________ 37
Long Term Storage ______________________________________________________ 37
Maintenance Instructions__________________________________________________ 38
Flexi-Star replacement____________________________________________________ 39
Stripper plate and combs __________________________________________________ 43
Troubleshooting _________________________________________________________ 44
Hydraulic Circuits ________________________________________________________ 47

Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 4/48
Introduction
These operation instructions for the Avant compact screening system are de- signed to help the user
become familiar with the technical details, operating proce-dure, safety precautions and
maintenance to ensure the Avant compact screeningsystem is used safely, correctly and for it`s
intended purpose.
Operating instructions are intended for operators and maintenance personnel.
Operating instructions should be available at the location of the Avant compact screening
system at all times.
This document is based on current information at the time of printing.
Each person working on/with the Avant compact screening system
must;
- Have read and understood these operating instructions before starting work on
the Avant compact screening system.
- Must observe and apply the instructions and safety warnings to the work site.
The Avant compact screening system may only be operated under the condi- tions described
in this manual. Under no circumstances may the specified limit values be exceeded. Your
safety and the safety of others is dependant on your how you operate your Avant compact
screening system.
Intended Purpose
The Avant compact screening system is to be used for the screening, aerating, separating
and mixing of soils, aggregates and compost.
The Avant compact screening system is to be used exclusively for the purpose intended, e.g.
Not to be used as a primary digging bucket. The operator of the Avant compact screening
system is responsible for damage resulting from the Avant compact screening system not
being used for the purpose intended. This also includes following the manufacturer’s
instructions for the operation and maintenance of the Avant compact screening system.

Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 5/48
Product Description
Scope
The Avant compact screening system is a bucket type attachment fitted either to a hydraulic
excavator or a wheeled loader replacing the standard digging bucket.
The bucket shell is a steel structure with welded joints, integrated driveline cavities, triple
skin floor and wear resistant cutting edge. The shell has been tested up to 1.5x maximum
permissible load.
The horizontal shafts fitted with Polyurethane flexi-stars that rotate in the same upwards
direction. The rotors are supported at each end by a sealed bearing unit and is driven by a
hydraulic motor via a carbon chain belt and drive pulley system.
The hydraulic motor, driveline and bearings are all housed within the main structure of the
bucket with access via a bolted panel. The hydraulic power is produced by the excavator or
wheeled loader’s hydraulic pump and control system via its auxiliary/option circuit, and is
transferred through by flexible hoses to the Avant compact screening system`s hydraulic
motors.
The Non-Hazardous material to be screened is loaded into the Avant compact screening
system in the same manner as a standard excavator or wheeled loader bucket. Once the
bucket has been loaded with material to be screened and positioned, the excavator or
wheeled loaders auxiliary hydraulic circuit is activated causing the star rotors to turn in an
upwards direction.
The efficient screening process is created by the star rotors agitating the material, causing
the fines to flow through the rotating stars leaving the oversize material in the bucket.
Once the screening process is completed the oversize material is tipped out and the
process is repeated.

Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 6/48
Gyru-Star Screening Bucket
Model
Serial Number
Weight
Year of Mfg
Max Pressure
Wheatway Solutions Ltd
Max Flow
B3 Brealey Place, Baird road, Gloucester Gl2 2AF
CE Certification
The CE certification indicates that the Avant compact screening system ful-fils the
relevant machinery directives and recognised safety regulations.

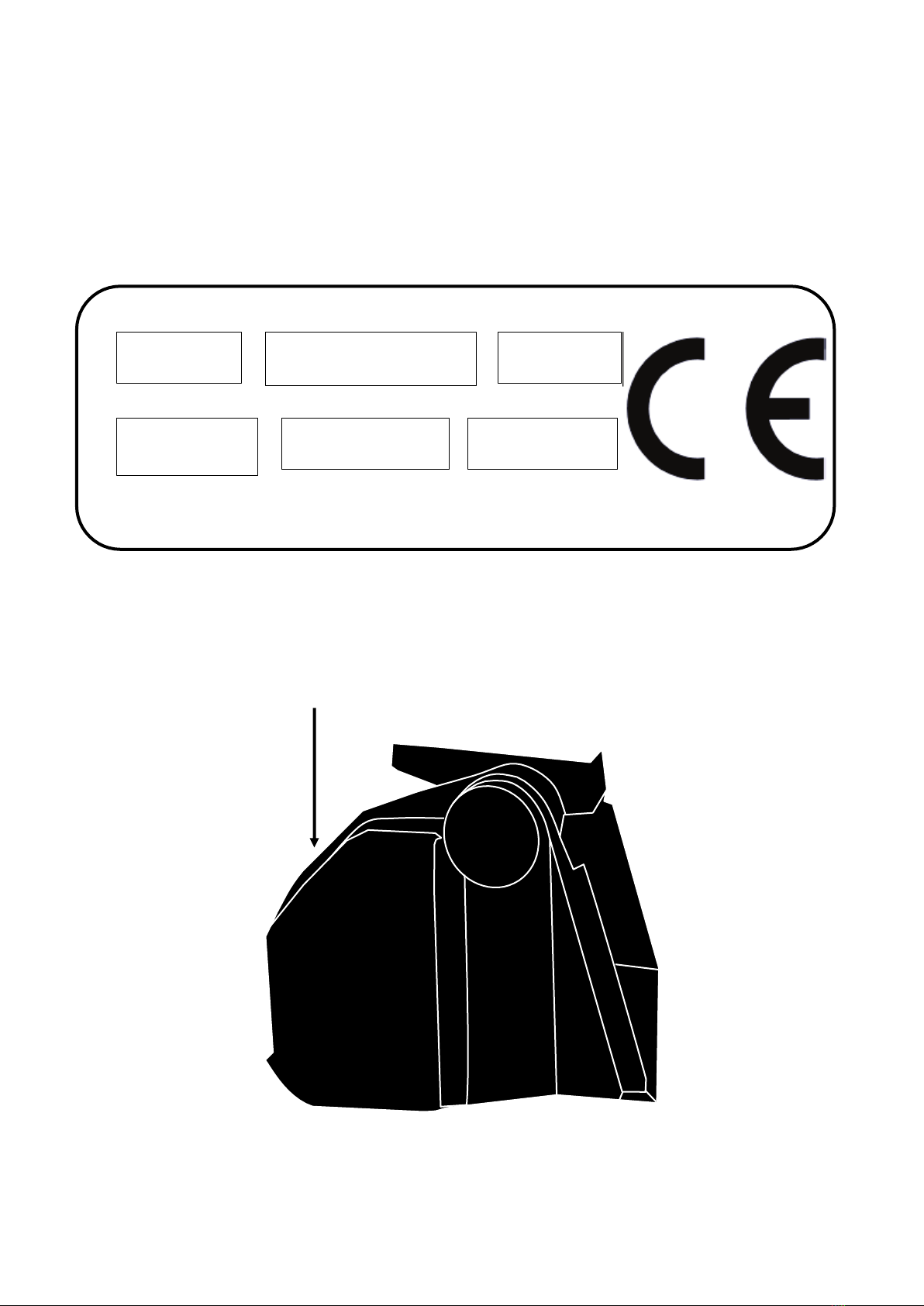

The CE plate is located on the top right hand side of the bucket when looking
at the bucket with the flexi-stars closest to you.
This certificate is supplied with this manual and warranty documents.This holds
information which is also listed on the CE Plate.

Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 7/48

Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 8/48
Technical Data
The operator is responsible for ensuring the Avant compact screening system is suitable for
the intended carrier. The Avant compact screening system should never exceed the carrier’s
safe working capacity limit when fully loaded.
Under no circumstances may the specified limit
values be exceeded.
HE Carriers
Excavator (Kg) Loader (Kg)
3-120A 5,000 - 7,000 1,000 - 3,000
Capacity
HE
Capacity (m³)
3-120A 0.26
Weigth
HE
Weight (Kg)
3-120HE 405
Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. Page 8 Technical Data

Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 9/48
HE

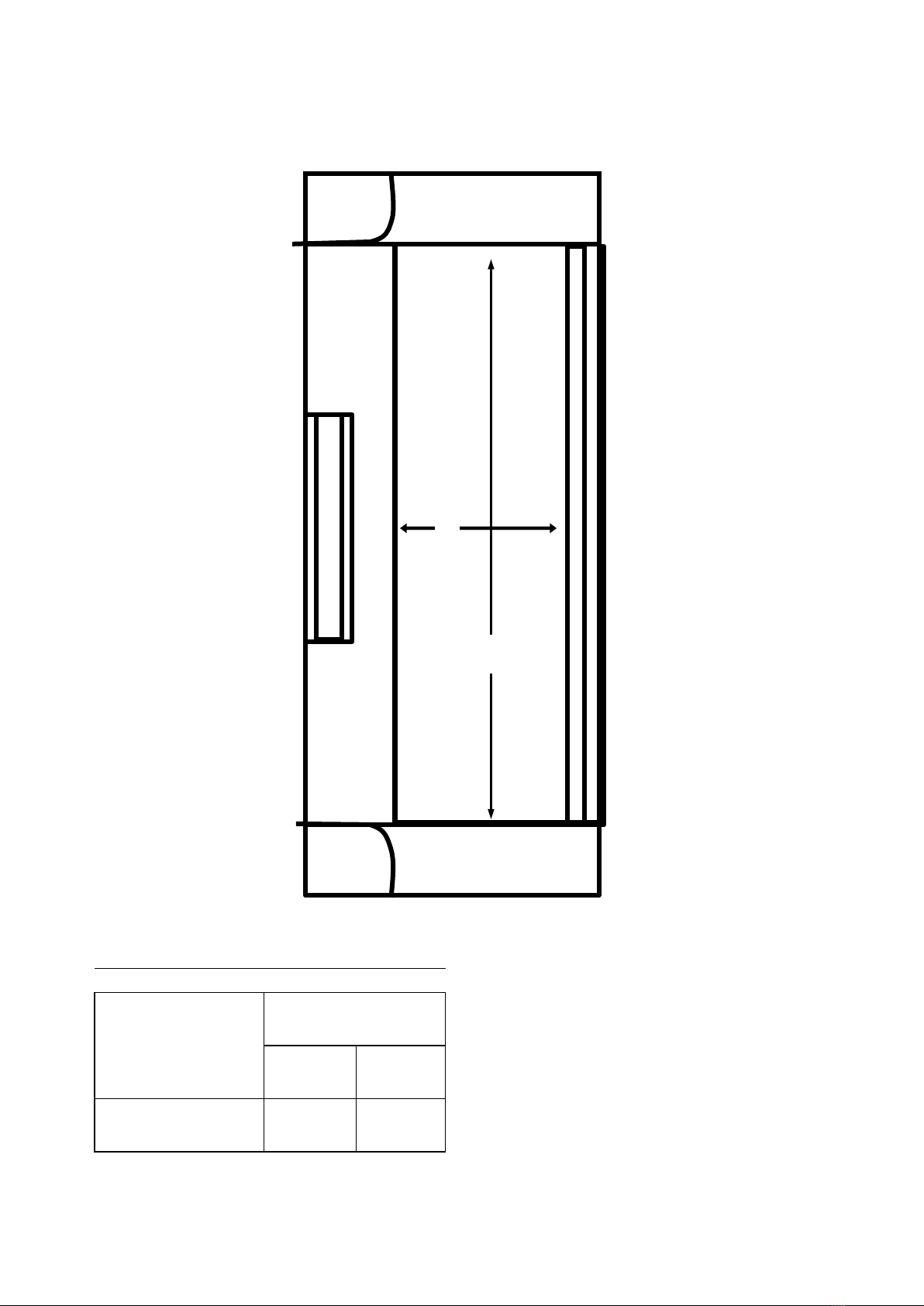

Screening Area
(mm)
A B
3-120A 430 1,200

Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 10/48

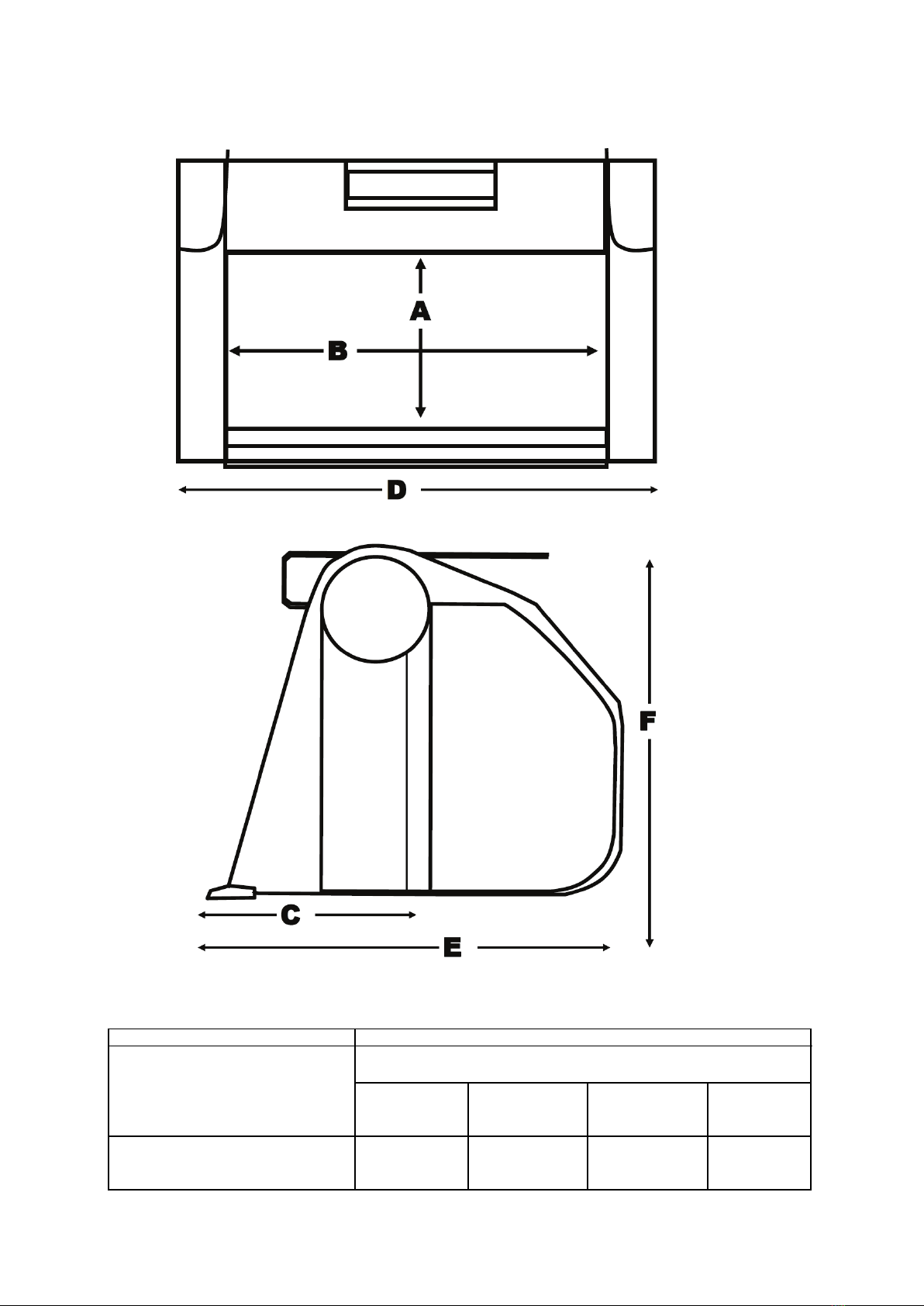

Dimensions
HE
General Dimensions (mm)
C D E F
3-120A 500 1,410 760 640

Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 11/48
Compatibility with Avant loaders
Avant
220
series 2
225
313S
320S
320S+
419
420
423
520
R20
523
525LPG
R28
528
630
R35
635
640
735
745
750
755
760i
850
860i
e5
e6
A36856
-
-
-
(•)
•
•
•
(•)
It is recommended to use the attachment only with loaders marked with •·in Table 1. When
using with models marked with (•), full performance may not be achieved. Additional
counterweights may also be required. For compatibility with a model not shown in table, contact
your Avant dealer.
Hydraulic Requirements
Optional pressure compensated flow regulator will be required if the carriersauxiliary
hydraulic circuit exceeds the maximum permissible flow.
Optional pressure relief valve will be required if the carriers auxiliary hydrauliccircuit exceeds
the maximum permissible pressure.
HE Hydraulic Requirement
Flow (L/m) Pressure (Bar)
3-120A 65 200

Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 12/48
Safety Instructions
WARNINGS
Throughout this manual these symbols & notes are used to indicate the
following;
DANGER
Imminent danger that is likely to cause serious injury
or loss of life.
WARNING
Safety situations that may cause serious injury or
loss of life.
CAUTION
Safety situations that may cause problems or damage
to the equipment.
NOTE
To draw attention to procedures or information which
it is essential to observe for correct operation.

Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 13/48
WARNING
General
•Wear suitable PPE (hard hat, safety glasses and high visibility clothing).
Under no circumstances should any personnel work around the Avant com-
pact screening system without suitable PPE.
•The Avant compact screening system should only be operated by trained
and competent personnel.
•The operator must have read and understood the operating manual before
working with the Avant compact screening system, or carrying out any
maintenance work.
•Special attention must always be paid to the safe use and maintenance of
the Avant compact screening system.
•Do not use, the Avant compact screening system for anything other than its
intended purpose e.g. lifting, or use as a primary digging bucket.
•National laws and health and safety regulations applying to the country in
which the Avant compact screening system is being operated must be ad-
hered to.
•Learn and apply site rules relative to the work site.
•Establish communications with other personnel in case of incident, accident
or fire.
•Do not allow unauthorised personnel onto the work site.

Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 14/48
Before operation
•Before use, the operator is responsible for ensuring the screening
bucket is suitable for the intended carrier. The Avant compact screening
system should never exceed the carrier’s safe working capacity limit
when fully loaded.
•The Avant compact screening system must be fitted correctly to the exca-
vator or wheel loader before use. The operator is responsible for ensur-
ing that all locking devices, mounting pins, and hydraulic connections are
made and fitted correctly.
•A visual Inspection must be carried out before operating, by qualified
personnel, to ensure the Avant compact screening system and hydraulic
hoses are in a safe and working order.
•Guard’s need to be fitted correctly and inspected before use. Any defects
need to be reported and rectified, before operating the Screening Bucket.
•The Avant compact screening system is to only be used for the in-
tended purpose of; screening, aerating, separating and mixing of soils,
aggregates, woodchip and compost.
•The operator must wear appropriate PPE (hard hat and safety glasses)
when used with a carrier without a full operators cabin.
•Clear the working area with a distance of 10m from obstacles and other
potential hazards.

Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 15/48
Safety Instructions
WARNING
During operation
•Always ensure a safe working area of 10 meters in case of flying material.
•Test run the Avant compact screening system with the unit empty.
•Under no circumstances should anybody stand, or walk underneath the
suspended bucket.
•Under no circumstances should the Avant compact screening system swing
over anybody or the cabs of other machinery.
•Do not leave the excavator or wheeled loader Unattended while the rotors are
turning.
•Do not operate the Avant compact screening system when visibility is re-
duced by; fog, dust or smoke.
•Do not operate the Avant compact screening system when it is overloaded.
•If loading into a truck or trailer ensure you do not hit the side.
•Under no circumstances should the Avant compact screening system be
used as a battering ram.
•Do not operate the Avant compact screening system at a speed which cannot
be controlled.
•Only operate the Avant compact screening system while safely inside the
carrier.

Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 16/48
Safety Instructions
WARNING
After operation
•Lower the Avant compact screening system onto flat level ground; free
from falling material and flooding.
•Allow hydraulic oil to cool down and any pressures to decay before
disconnecting the hydraulic hoses. Ensure that correct PPE is worn when
handling any hydraulic hoses.
•Clean and inspect the Avant compact screening system for abnormali-
ties.
Maintenance
•Do not carry out any inspections, maintenance, adjustments, or cleaning
until the excavator or wheeled loader has fully stopped and the auxiliary
hydraulics has been isolated.
•Ensure the Avant compact screening system is on a flat level surface be-
fore carrying out any maintenance, cleaning or adjustments.

Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 17/48
Safety Instructions
Operators Requirements
•Operators must have reached the minimum legal age.
•Operators must be physically and mentally fit
•Operators must not be under the influence of drugs or
alcohol.
•Operators must observe Instructions and safety warnings.
•Operating instructions must be read and understood before
using the Avant compact screening system.
Environmental Concerns
National Laws applying to hazardous materials in the country in which
the Bucket is being operated must be observed and upheld.
Hydraulic oil is a hazardous material and must be disposed of properly
according to the regulations of the local authorities.

Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 18/48
Safety Decals

Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 19/48

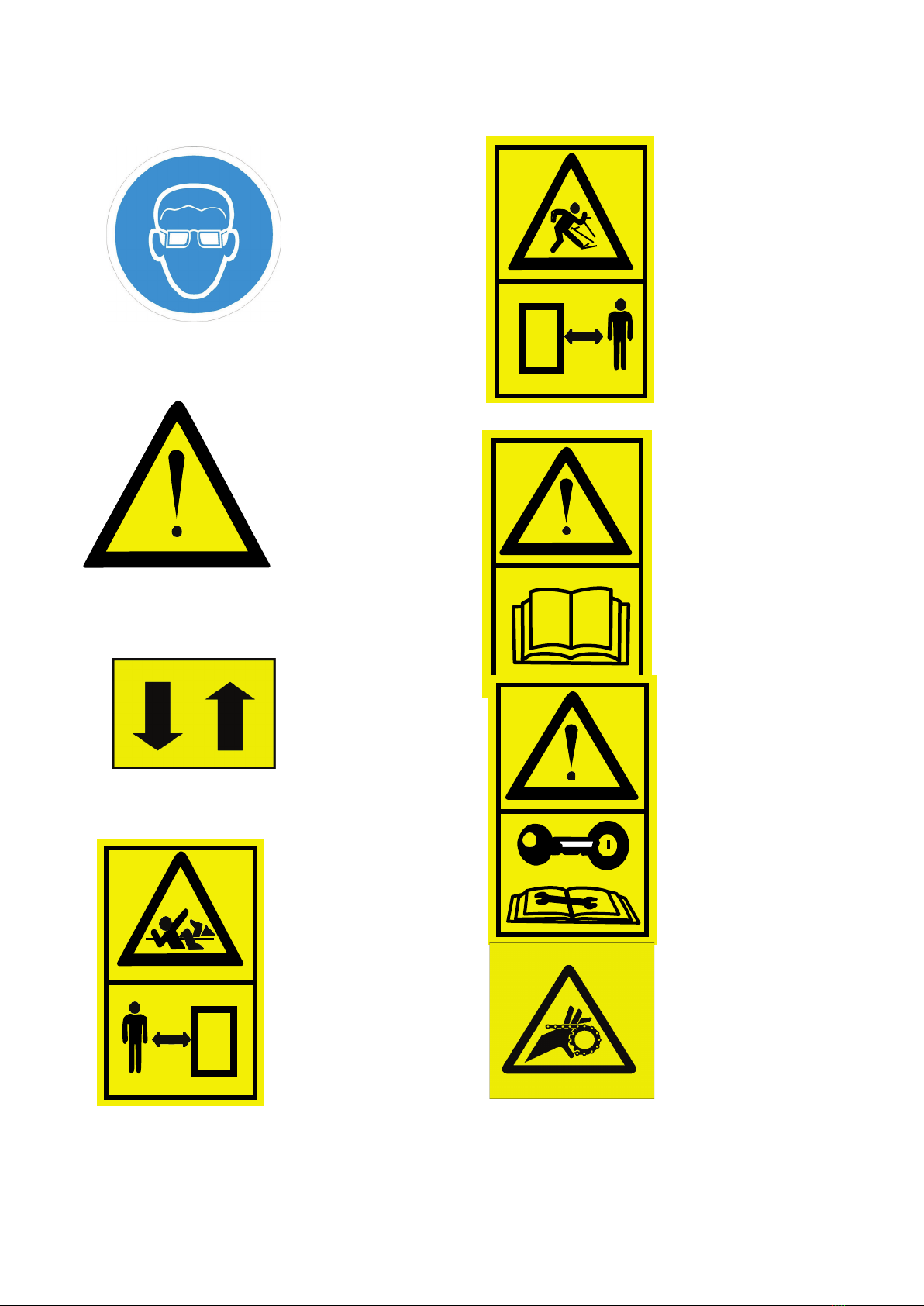

Safety Decals
Wear eye
protection
Warning!
Thrown or
flying objects
stay at safe
distance.
Read
operations
manual
Oil flow
direction
Turn off
machinery
and isolate
auxiliary oil
flow.
Entanglementin
machinery Stay
safe distance
awayfrom
hazard.
Warning!
Entanglementin
belt drive

Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 20/48

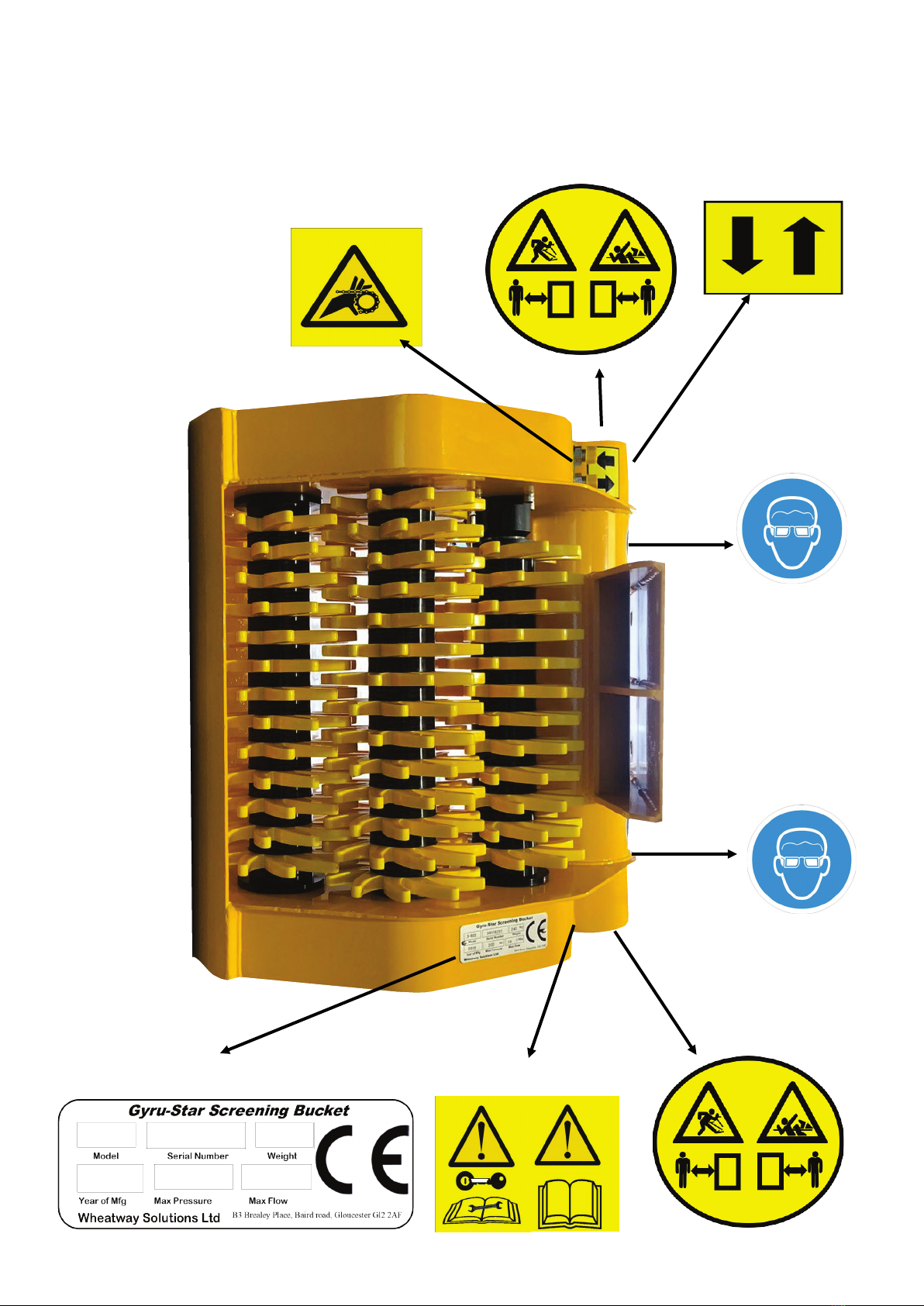

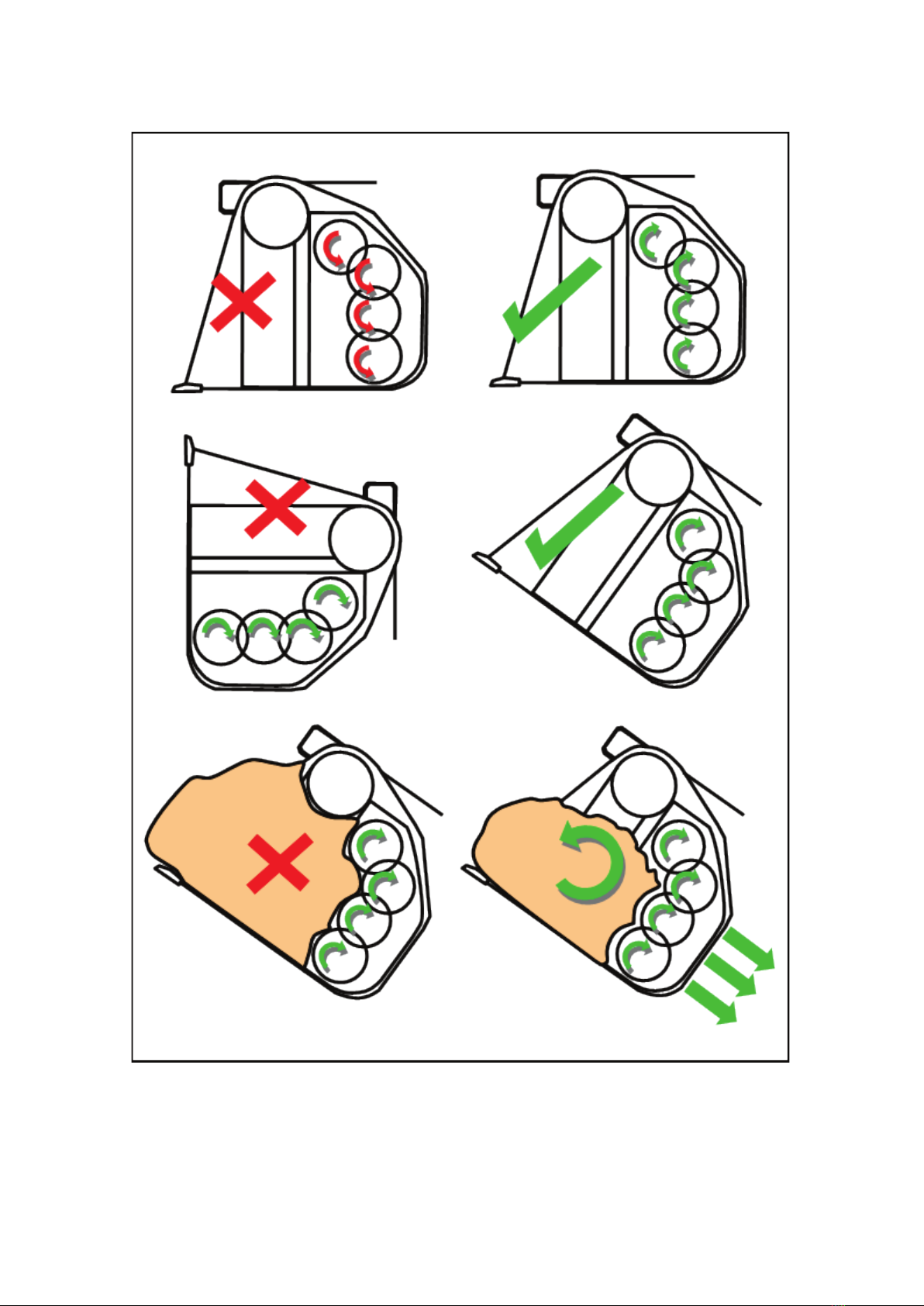

For description please see operating instructions
Advisory Decal location
