Avanti SWBC250D User manual

INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
Model Number / No. de Modelo: SWBC250D
WINE CHILLER / BEVERAGE COOLER VINERA / REFRIGERADOR PARA BEBIDAS
(Image may vary)
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
La sección en español empieza en la página 12.
Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and
specifications without notice.
Avanti Products, A Division of The Mackle Co., Inc.
P.O. Box 520604 -Miami, Florida 33152
www.avantiproducts.com

2
TABLE OF CONTENTS
Help Us Help You
3
Parts and Features
4
Important Safety Instructions
5
Installation Instructions
5
Before Using Your Appliance
5
Installation of Your Appliance
5
Electrical Connection
6
Extension Cord
6
Operating Your Appliance
7
Temperature Control
7
Storage Capacity
8
Interior Light
8
Care and Maintenance
8
Cleaning Your Appliance
8
Power Failure
8
Moving Your Appliance
8
Energy Saving Tips
8
Troubleshooting Guide
10
Service for Your Appliance
11

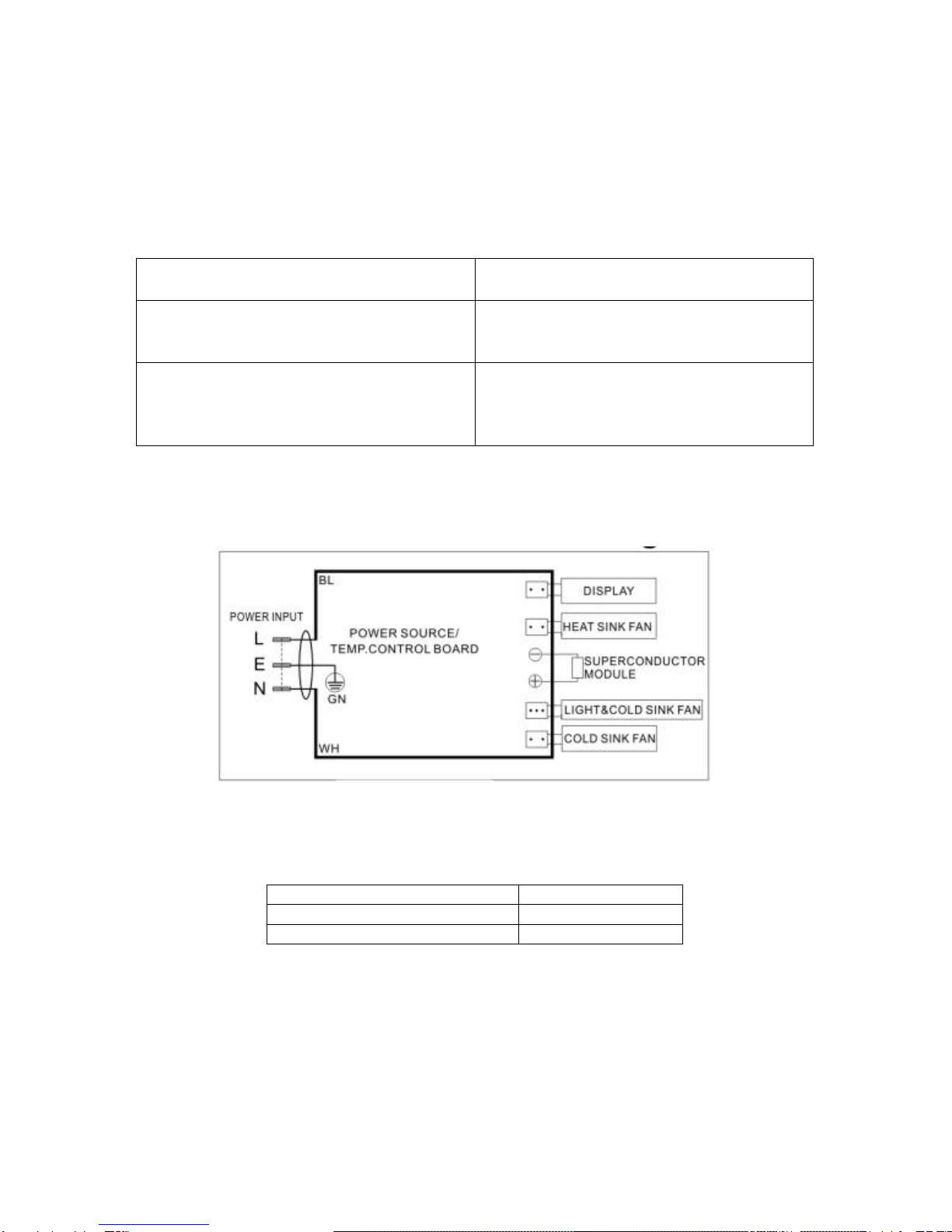

Wiring Diagram
11
Your Avanti Products Warranty
12
Instrucciones en Español
13 – 15
Registration Information and Registration Card
16

3
HELP US HELP YOU...
Read this guide carefully.
It is intended to help you operate and maintain
your new appliance properly.
Keep it handy to answer your questions.
If you don't understand something or you
need more assistance, please call:
Avanti Customer Service
800-220-5570
Keep proof of original purchase date (such as
your sales slip) with this guide to establish the
warranty period.
Write down the model and serial numbers.
You'll find them on a plate located on the rear
outside wall of the appliance.
Please write these numbers here:
____________________________________
Date of Purchase
____________________________________
Model Number
____________________________________
Serial Number
Use these numbers in any correspondence or
service calls concerning your appliance.
If you received a damaged appliance,
immediately contact the dealer (or builder) that
sold you the appliance.
Save time and money. Before you call for
service, check the Troubleshooting Guide. It
lists causes of minor operating problems that
you can correct yourself.
IF YOU NEED SERVICE
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are some
steps to follow for further assistance.
FIRST, contact the people who serviced your
appliance. Explain why you are not pleased. In
most cases, this will solve the problem.
NEXT, if you are still not pleased, write all the
details, including your telephone number, and
send it to:
Customer Service
Avanti Products
10880 NW 30 Street
Miami, FL 33172 USA
CAUTION:
THIS WINE CHILLER IS NOT
DESIGNED FOR THE STORAGE
OF MEDICINE OR OTHER
MEDICAL PRODUCTS.

4

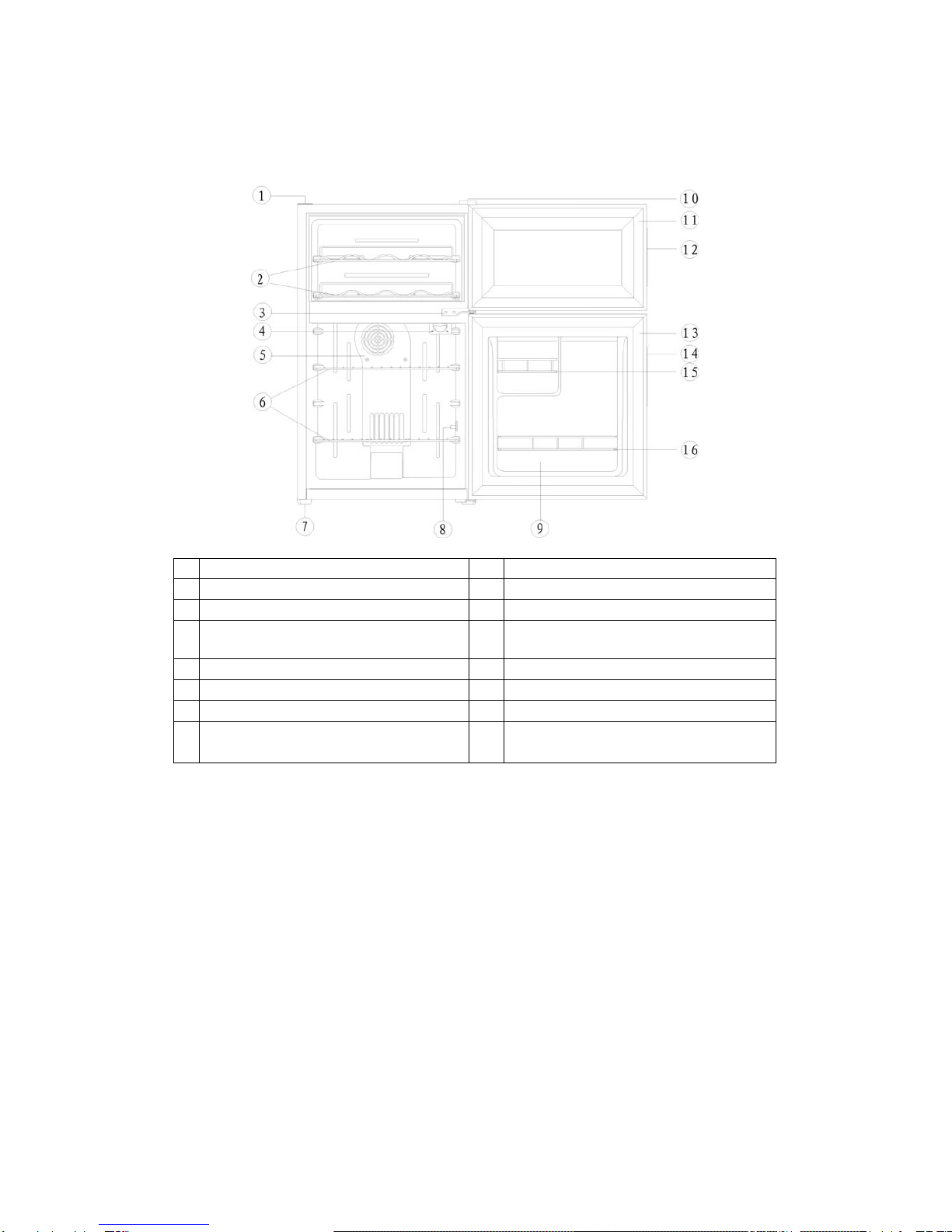

PARTS & FEATURES
SWBC250D
1
Plastic cover
9
Refrigerator Door
2
Wine chiller shelf(Total 2)
10
Upper hinge cover
3
Hinge
11
Wine Chiller Door
4
Temperature control knob
(Refrigerator Section)
12
Wine Chiller Door Handle
5
Fan cover
13
Refrigerator Door Gasket
6
Beverage cooler shelf(Total 2)
14
Refrigerator Door Handle
7
Leveling legs
15
Small Door Bin
8
Light Switch
(Refrigerator Section)
16
2-Liter Bottle Storage

5
IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock,
or injury when using your appliance, follow
these basic precautions:
•Read all instructions before using the Machine.
•DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned
appliances are still dangerous . . . even if they will “just sit in the garage a few days”.
•Before you throw away your old Machine: Take off the door. Leave the shelves in
place so that children may not easily climb inside.
•Never allow children to operate, play with, or crawl inside the appliance.
•Never clean appliance parts with flammable fluids. The fumes can create a fire
hazard or explosion.
•Do not store or use gasoline or any other flammable vapors and liquids in the vicinity
of this or any other appliance. The fumes can create a fire hazard or explosion.
•Do not repair or replace any part of the appliance or attempt any servicing unless
specifically recommended in the user-maintenance instructions or in published user-
repair instructions. Replace the fuse with the same type.
-Save these instructions-
INSTALLATION INSTRUCTIONS
Before Using Your Machine
•Remove the exterior and interior packing.
•Check to be sure you have all of the following parts:
Upper wine chiller
Bottom beverage cooler
(2) Shelves (2) Shelves
Total (1) Instruction Manual
•Clean the interior surface with lukewarm water using a soft cloth.
Installation of Your Machine
•This Machine is designed to be free standing installation only, and should not be recessed or
built-in (Fully recessed).
•Place your Machine on a surface that is strong enough to support it when it is fully loaded.
•Allow 5 inches of space between the back and sides of the appliance, which allows the proper air
circulation to cool the heat sink.
•Locate the Machine away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform
properly.
•This Machine uses superconductor refrigeration technology (no compressor) and is not designed
for storage in hot areas like garages, warehouses or outdoors since it is designed to operate at a
maximum of 30 degrees below the ambient temperature.
•Avoid locating the unit in moist areas.
•Plug the Machine into an exclusive, properly installed-grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized Avanti Products service center.

6
•After plugging the Machine into a wall outlet, allow the unit to cool down for 2-3 hours before
placing any items in the compartment.
Electrical Connection
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the
possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power cord supplied.
For personal safety, this appliance must be properly grounded.
This appliance requires a standard 115 Volt AC / 60Hz electrical ground outlet with three-prong. Have
the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation
to have it replaced with a properly grounded 3-prong wall outlet.
The cord should be secured behind the appliance and not left exposed or dangling to prevent
accidental injury.
The appliance should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the rating label on the appliance. This provides the best performance and also
prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never
unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from
the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
Extension Cord
Because of potential safety hazards under certain conditions, it is strongly recommended that you do
not use an extension cord with this appliance. However, if you must use an extension cord it is
absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord
having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at
least 10 amperes.

Warning

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized Avanti Products service center.

7
OPERATING YOUR MACHINE
Upper Zone - Wine Chiller
It is recommended you install the Machine in a place where the ambient temperature is between 23º-
26ºC/ 72º-78ºF. If the ambient temperature is above or below recommended temperatures, the
performance of the unit may be affected. For example, placing your unit in extreme cold or hot
conditions may cause interior temperatures to fluctuate. The range of 8º-18ºC/46º-65ºF may not be
reached. Recommended Temperatures for Chilling Wine.
Red Wines
14º - 18º C
57– 65º F
Dry/White Wines
9º - 14º C
49 – 58º F
Rose Wines
10º - 11º C
51 – 53º F
Sparkling Wines
5º - 9º C
40 – 49º F
Temperature Ranges For Your Wine Chiller
Temperature Range
8 - 18º C
46 – 64º F
CONTROL PANEL
SETTING THE TEMPERATURE CONTROL
Your Wine Cellar has been equipped with an “automatic” control panel lock, that will activate 12
seconds after the last time a button has been touched.
Push the and button simultaneously for 3 seconds to unlock the control panel. You will
hear a “BEEP” sound to alert you that the control is now active.
You can set the temperature as you desire by pushing the or button on the control
panel for each zone. The temperature that you desire to set will increase 1ºF or 1ºC if you push
the button once, on the contrary the temperature will decrease 1ºF or 1ºC if you push the
button once.
When you store mostly red wines, the temperature needs to be set at between 14º - 18ºC (57º -
65ºF).The indicator marked “RED” will light up in Red.
When you store mostly white wines, the temperature needs to be set at between 9º - 14ºC (49º -
58ºF).The indicator marked “WHITE” will light up in Blue.
When you store mostly sparkling wines, the temperature needs to be set at between 5º - 9ºC (40º
- 49ºF). The indicator marked “WHITE” will light up in Blue.
You can select temperature display setting from Fahrenheit to Celsius degree by pushing this
button. Fahrenheit or Celsius degrees indicator will appear in white color in the LCD temperature
display window with blue background.

8
NOTE:
•When you use the wine chiller for the first time or restart the wine chiller after having been shut off
for a long time, there could be a few degrees variance between the temperature you select and
the one indicated on the LED readout. This is normal and it is due to the length of the activation
time. Once the wine chiller is running for a few hours everything will be back to normal.
Storage Capacity
Wine chiller: You can place 8 standard bottles in this wine chiller.
Many bottles may differ in size and dimensions. As such the actual number of bottles you may be able
to store may vary. Bottle capacities are approximate maximums when storing traditional Bordeaux
750ml bottles and include bulk storage.
Interior Light
You can turn the interior light ON or OFF by pushing the button marked with the “Light” symbol
The light will be turned off automatically if it remains ON for 10 minutes. You have to push the button
marked with the “Light” symbol again and the light will turn back on.
Lower Zone - Beverage Cooler
Temperature Control
Setting the Temperature Control
•Your refrigerator has only one control for regulating the temperature. The temperature control
is located on the upper right hand corner of the compartment.
•To control the internal temperature, adjust the control knob according to the ambient
temperature or purpose of use.
•The first time you turn the unit on, set the temperature control to “HI”.
•The range of the temperature control is from position "OFF” to “HI”.
NOTE:
Turning the temperature control to "OFF" position stops the cooling cycle but does not shut off the
power to the appliance.
Interior Light
This refrigerator is provided with a LED light located on the upper right hand corner of the
compartment. The light will be on when the door is opened and be off when the door is closed.

9
CARE AND MAINTENANCE
Cleaning Your Machine
•UNPLUG the Machine, and remove all items including shelves.
•Wash the inside surfaces with a warm water and baking soda solution. The solution should be
about 2 tablespoons of baking soda to a quart of water.
•Wash the shelves with a mild detergent solution.
•Wring excess water out of the sponge or cloth when cleaning area of the controls, or any
electrical parts.
•Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with
a clean soft cloth.
CAUTION
Failure to unplug the Machine could result in electrical shock or personal injury.
Power Failure
•Most power failures are corrected within a few hours and should not affect the temperature of
your appliance if you minimize the number of times the door is opened. If the power is going to be
off for a longer period of time, you need to take the proper steps to protect your contents.
Moving Your Machine
•Remove all bottles.
•Securely tape down all loose items (shelves) inside your appliance.
•Tape the door shut.
•Protect outside of appliance with a blanket, or similar item.
Energy Saving Tips
•The Machine should be located in the coolest area of the room, away from heat producing
appliances, and out of the direct sunlight.
•One characteristic of superconductor units is the length of time it requires to recover from having
the door opened and shut frequently. It may be necessary to wait longer for the temperature to
return to its former level once the door has been opened for too long. This is normal for this type
of unit.

10
PROBLEMS WITH YOUR MACHINE?
You can solve many common Wine Chiller problems easily, saving you the cost of a possible service
call. Try the suggestions below to see if you can solve the problem before calling the servicer.
TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE CAUSE
Machine does not operate.
Not plugged in.
The circuit breaker tripped or a blown fuse.
Control panel is locked
Push the and button simultaneously for
3 seconds to unlock the control panel.
Wait for beep sound.
Machine is not cold enough.
Check the temperature control setting.
External environment may require a higher
setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
The Machine does not have the correct
clearances.
Abnormal voltage.
The light does not work.
Not plugged in.
The circuit breaker tripped or a blown fuse.
The light button is “OFF”.
Vibrations.
Check to assure that the Machine is level.
The door will not close properly.
The Machine is not level.
The door was not properly installed.
The gasket is dirty.
The shelves are out of position.

11
SERVICE FOR YOUR MACHINE
We are proud of our customer service organization and the network of professional service
technicians that provide service on your Avanti appliances. With the purchase of your Avanti
appliance, you can have the confidence that if you ever need additional information or assistance, the
Avanti Products Customer Service team will be here for you. Just call us toll-free.
AVANTI PRODUCTS CUSTOMER SERVICES
Product Information
800-323-5029
Whatever your questions are about our products,
help is available.
Part Orders
800-220-5570 You may order parts and accessories that will be delivered directly to your home by personal
check, money order, Master Card, or Visa.
In-Home Repair Service
800-220-5570 An Avanti Products authorized service center will provide expert repair service, scheduled at a time
that is convenient for you. Our trained servicers
know your appliance inside and out.
WIRING DIAGRAM
TECHNICAL / ELECTRICAL SPECIFICATIONS
Rated Voltage
115V
Rated Frequency
60Hz
Rated Input Power
83W

12
YOUR Avanti Products WARRANTY
Staple your sales receipt here. Proof of
original purchase date is needed to obtain
service under warranty.
WHAT IS COVERED
LIMITED ONE-YEAR
WARRANTY
For one year from the date of
purchase by the original owner, Avanti
Products will, at its option, repair or
replace any part of the unit, which
proves to be defective in material or
workmanship under normal use.
During this period Avanti Products will
provide all parts and labor necessary
to correct such defects free of charge,
so long as the unit has been installed
and operated in accordance with the
written instructions in this manual. In
rental or commercial use, the warranty
period is 90 days. Avanti Products will
provide you with a reasonably similar
replacement product that is either new
or factory refurbished. All Avanti
Appliances of 3.5 cubic feet capacity
or less must be brought/sent to the
appliance service shop for repair.
•Content losses of food or other, due to
spoilage.
•Incidental or consequential damages.
•Parts and labor costs for the following will
not be considered as warranty:
•Door springs, and/or frames.
•Inner door panels, door rails and/or door
supports.
•Light bulbs and/or plastic housing.
•Plastic cabinet liners.
•Repairs performed by unauthorized
servicers.
•Shipping and handling costs associated
with the replacement of the unit.
•Service calls that do not involve defects in
material or workmanship such as
customer education, door reversal, or
proper installation.
•Service calls that are related to external
problems, such as abuse, misuse,
inadequate electrical power, accidents,
fire, floods, or acts of God.
•Surcharges including, but not limited to,
any after hour, weekend, or holiday
service calls, tolls, ferry trip charges, or
mileage expense for service calls to
remote areas, including the State of
Alaska
•Replacement of house fuses or resetting
circuit breakers.
•Failure of the product if it is used for other
than its intended purpose.
•This warranty does not apply outside the
Continental USA.
WHAT IS NOT COVERED

13
INSTRUCCIONES DE SEGURIDAD
ATENCION
INSTRUCCIONES PARA
LA CONEXION A TIERRA
Este aparato electrodoméstico debe estar conectado a tierra. En caso de un cortocircuito eléctrico, la
conexión a tierra reduce el riesgo de choque eléctrico proporcionando un cable a tierra con una
enchufe de conexión a tierra. Este enchufe debe estar conectado en un tomacorriente instalado
correctamente y conectado a tierra.
ADVERTENCIA – El uso inadecuado del enchufe de conexión a tierra puede resultar en un riesgo de
choque eléctrico. Consulte con un electricista o persona de reparaciones competente si no
comprenden bien las instrucciones de conexión a tierra o si existe alguna duda sobre si el aparato
esta conectado a tierra correctamente.
NO USE UN CORDON DE
PROLONGACION ELECTRICA
Use un tomacorriente de pared exclusivo. No conecte su vinera a cordones de prolongación eléctrica
o junto a cualquier otro electrodoméstico en el mismo tomacorriente de pared.
ADVERTENCIA IMPORTANTE:
Una vinera vacía es una atracción muy peligrosa para los niños. Saque todas las juntas,
pestillos, tapas o puerta de todo electrodoméstico que no esté en uso, o tome alguna
medida para asegurar que no presente peligro.
INSTRUCCIONES DE INSTALACION
Saque los embalajes exteriores, limpie bien el exterior con un paño suave seco, y el interior con un
paño húmedo y tibio. Evite colocar la vinera cerca de una fuente de calor, luz de sol directa, o lugar
húmedo.
Ubicación
1. Seleccione un lugar con su piso fuerte y nivelado.
2. Deje cinco pulgadas de espacio entre la parte posterior de la vinera y toda pared contigua.
3. Las bodegas superconductores necesitan cierto tiempo de recuperación cuando la puerta se
abre y se deja abierta por mucho tiempo. Esto es normal para este tipo de unidad.
4. Evite la luz directa del sol o calor. La luz directa del sol puede afectar la capa de acrílico.
Las fuentes de calor en su proximidad provocarán un consumo mayor de electricidad.
5. Para un mejor desempeño, nivele la vinera utilizando las patas ajustables o tornillos
niveladores.
OPERACION
Para evitar vibraciones, el compartimiento interior debe estar bien nivelado. La temperatura variará
dependiendo de la cantidad de botellas almacenadas y la frecuencia con que se abre la puerta.
Cuando la vinera no se use por un período largo, desconecte el enchufe y deje la puerta entreabierta.

14
CONTROL DE TEMPERATURA:
Se recomienda que Ud coloque su vinera en un lugar donde la temperatura ambiental se mantenga
entre 23º-26ºC / 72º-78ºF.
Si la temperatura ambiental oscila fuera de esos límites, pueda afectar la temperatura de la unidad.
Por ejemplo, si su unidad está situada en lugares donde hay temperaturas muy frías o calientes
también puede afectar la temperatura de la unidad y no alcanzará los límites 8º-18ºC/46º-65ºF).
Temperaturas recomendadas para enfriar vinos:
Vinos rojos
14º - 18º C
57 – 65º F
Vinos blancos
9º - 14º C
49 – 58º F
Vinos tintos
10º - 11º C
51 – 53º F
Vinos espumantes
5º - 9º C
40 – 49º F
Rango de Temperatura de su vinera
Rango De Temperatura
8 - 18º C
46 – 64º F
Panel de controles
Control de temperatura
El panel de control de su vinera se anulará automáticamente 12 segundos después que cualquier
botón haya sido presionado.
Para activar el panel de control de su vinera, presione simultaneamente los botones marcados
ypor 3 segundos. Espere por el sonido.
Ud. se puede seleccionar la temperatura preferida presionando los botones marcados
▲ o ▼. Cuando Ud. presione uno de los dos botones por primera vez la temperatura
seleccionada originalmente en la factoría aparecerá en la pantalla. (12ºC / 54ºF).
La temperatura que Ud. selecciona subirá 1ºC/F cada vez que presione el botón marcado ▲ al
contrario la temperatura bajará 1ºC/F cada vez que presione el botón marcado .
AVISO:
Cuando Ud. encienda su vinera por primera vez o después de un largo tiempo de estar apagado,
habrá una diferencía entre la temperatura que Ud. selecciona y la temperatura indicada en la pantalla
digital. Este situación es normal debido al tiempo de que estuvo apagado. En cuanto la unidad esté
encendida por un par de horas la temperatura volverá a su nivel normal.
Luz interior
Ud. puedes encender o apagar la luz interior presionando el botón marcado . La luz interior se
apagará automáticamente si está encendida por 10 minutos seguidos. Ud. necesita presionar el
botón de nuevo para encender la luz

15
CUIDADO Y MANTENIMIENTO
Limpieza
Para limpiar el interior, use un paño suave con una solución de una cucharada de bicarbonato de
sodio por cada cuarto de agua, o una solución de espuma de jabón suave, o un detergente suave.
Para lavar las rejillas, sáquelas deslizándolas con cuidado, y use una solución de detergente suave;
luego séquelas con un paño suave. Limpie el exterior con un paño húmedo suave y un poco de
detergente suave o productos de limpieza para electrodomésticos.
Corte de corriente
La mayoría de los cortes de corriente se corrigen en una o dos horas y no afectarán las temperaturas
de su vinera. Sin embargo, Ud. deberá reducir la cantidad de veces que abra la puerta cuando la
corriente esté apagada. Durante los cortes de corriente de larga duración, tome medidas para
proteger sus botellas de vino.
Si Ud. se muda
Saque o asegure todos los artículos dentro de su vinera. Para evitar que los tornillos nivelantes se
averíen, gírelos completamente hacia la base.
Algunas reglas importantes para el uso correcto de la vinera.
•Las bebidas deben guardarse en botellas cerradas.
•No sobrecargue el compartimiento interior.
•No abra la puerta a menos que sea necesario.
•Nunca cubra los estantes del compartimiento para vinos con papel de aluminio o cualquier otro
material para cubrir estantes que puedan obstruir la circulación del aire.

16
REGISTRATION INFORMATION
Thank you for purchasing this fine Avanti product. Please fill out this form and return it within 100
days of purchase and receive these important benefits to the following address:
Avanti Products, A Division of The Mackle Co., Inc.
P.O. Box 520604 -Miami, Florida 33152 USA
Protect your product:
We will keep the model number and date of purchase of your new Avanti product on file to
help you refer to this information in the event of an insurance claim such as fire or theft.
Promote better products:
We value your input. Your responses will help us develop products designed to best meet
your future needs.
----------------------------------------------------------(detach here)----------------------------------------------------------
AVANTI REGISTRATION FORM
__________________________________ _____________________________________
Name Model # Serial #
__________________________________ _____________________________________
Address Date Purchased Store/Dealer Name
__________________________________ ______________________________________
City State Zip Occupation
__________________________________ As Your Primary Residence, Do You:
Area Code Phone Number Own Rent
Did You Purchase An Additional Warranty: Your Age:
Extended None under 18 18-25 26-30
Reason For Choosing This Avanti Product: 31-35 36-50 over 50
Please indicate the most important factors Marital Status:
that influenced your decision to purchase Married Single
this product. Is This Product Used In The:
Price Home Business
Product Features How Did You Learn About This Product:
Avanti Products Reputation Advertising
Product Quality In Store Demo Personal Demo
Salesperson Recommendation Other______________________________
Friend/Relative Recommendation Comments____________________________
Warranty _____________________________________
Other_______________________ _____________________________________

17
PRINTED IN CHINA
