User Manual
2
EN
HT5009
Table of Contents
Box Contents•••••••••••••••••••••••••••••••••••••••••••••••••• 3
Product Introduction (Headphones)•••••••••••••••••••••••••••••• 
Product Overview •••••••••••••••••••••••••••••••••••••••• 4
Button Functions ••••••••••••••••••••••••••••••••••••••••• 4
LED Indicators ••••••••••••••••••••••••••••••••••••••••••• 5
Product Introduction (Transmitter)••••••••••••••••••••••••••••••• 6
Product Overview •••••••••••••••••••••••••••••••••••••••• 6
Button Functions •••••••••••••••••••••••••••••••••••••••• 7
LED Indicators ••••••••••••••••••••••••••••••••••••••••••• 7
Setting Up •••••••••••••••••••••••••••••••••••••••••••••••••••• 8
Connecting to Your TV •••••••••••••••••••••••••••••••••••• 8
Connecting the Headphones to the Transmitter •••••••••••••• 11
Setting Up Your TV(For Optical Connections Olny) •••••••••••• 12
Charging the Headphones ••••••••••••••••••••••••••••••••••••• 13
Advanced Features ••••••••••••••••••••••••••••••••••••••••••• 14
Listening with a Soundbar •••••••••••••••••••••••••••••••• 14
Adding a Second Pair of Headphones••••••••••••••••••••••• 15
Using the Headphones with Your Phone/Tablet •••••••••••••• 17
Specications •••••••••••••••••••••••••••••••••••••••••••••••• 18
FAQ ••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 19
Contact Us •••••••••••••••••••••••••••••••••••••••••••••••••• 113

User Manual
3
EN
HT5009
Box Contents
Charging Cable for
Headphones
Transmitter
Optical Audio Cable
AUX 3.5mm to RCA
Adapter
AUX 3.5mm Audio
Cable
Power Cable for
Transmitter
Headphones
PAIROFF
ON
EQ

User Manual
4
EN
HT5009
Product Introduction (Headphones)
Product Overview

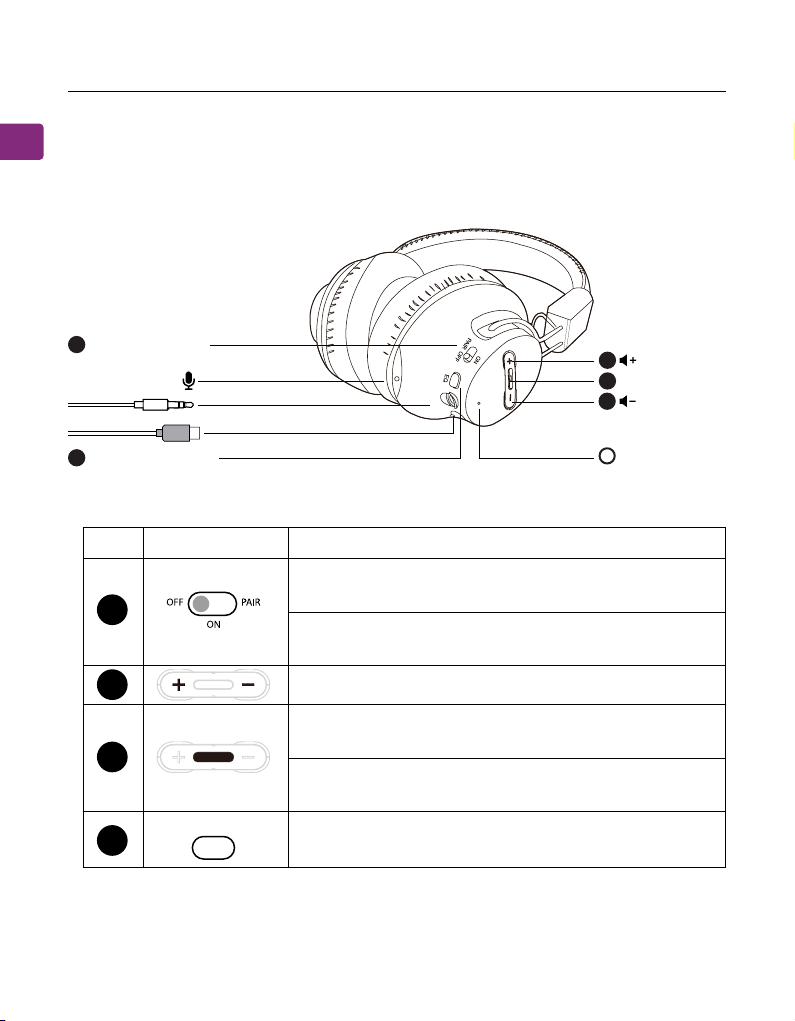

Button Functions
11
44
22
33
22
OFF / ON / PAIR
EQ mode button LED indicator
MFB button
A
Switch to“ON / OFF”position to turn the
headphones on / o
Hold in“PAIR”position for 3 seconds to
enter pairing mode
Press once to switch between balanced and
clear voice modes
Press once to play / pause audio (when used
separately with phone / tablet)
Press once to accept / end call (when used
separately with phone / tablet)
Press or hold to adjust volume
1
2
3
4
No. Button Functions
EQ

User Manual
5
EN
HT5009
Solid blue for 1 second
Flashing red & blue
Solid blue
Red ashes
Solid red
Solid red, then o
Blue ashes every 2
seconds
Solid red for 2 seconds,
then o
Power ON
Power OFF
Pairing
Connected
Low battery
Charging
Charging complete
Attempting to reconnect
No. Status LED Indicator Voice Prompt
Welcome to
Avantree
Goodbye
Pairing
Connected
Low Battery
N / A
N / A
N / A
LED Indicators
A

User Manual
6
EN
HT5009
Product Introduction (Transmitter)

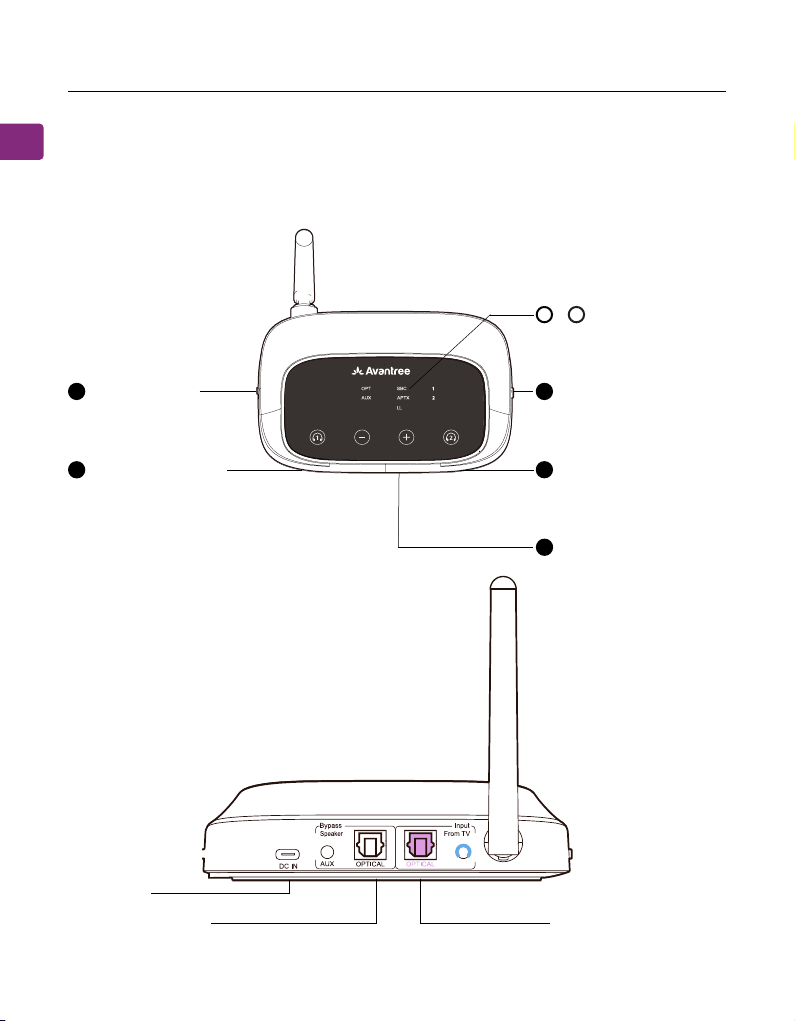

Product Overview
Mono / Stereo
switch ON / OFF
LED indicators
Pairing button for
1st headphones
Volume control
buttons
Power Port
Output To Speaker Input From TV
Pairing button for 2nd
pair of headphones
6655
77
88
99
BD
～
AUX

User Manual
7
EN
HT5009
Button Functions
LED Indicators
5
6
7
8
9
Switch to turn the transmitter on / o
Press & hold for 2 seconds to enter pairing mode
Press once to adjust volume
Press & hold for 2 seconds to enter pairing mode
Solid white light Valid audio signal
Invalid audio signal
Current codec indicator
Pairing
Headphones successfully connected
Flashing white light
Solid white light
Flashing white & green
Solid white light
Switch between mono and stereo modes (only
works with AUX inputs)
C
B
D
No. Indicator Status
ON OFF
Stereo Mono
SSD(AUX input)
No. Button Function
C
BD

User Manual
8
EN
HT5009
Setting Up
Connecting to Your TV
The transmitter must be connected to a power source via the provided power
cable in order to function. Plug the transmitter into either:
• A TV’s USB power port (we recommend this so that they auto power ON /
OFF in tandem with your TV), OR
• A nearby wall outlet - 5V / 500mA-2A rated USB charger (e.g. your phone
charger should work.) (requires USB adapter, please contact support@avantree.
com if you’d like to claim a free one)
Oncethetransmitterisconnectedtoitspowersource,slide the
switch to the ON position andconnectthe
transmittertoyourTV.Youcanchooseoneof3dierentwaystodothis:

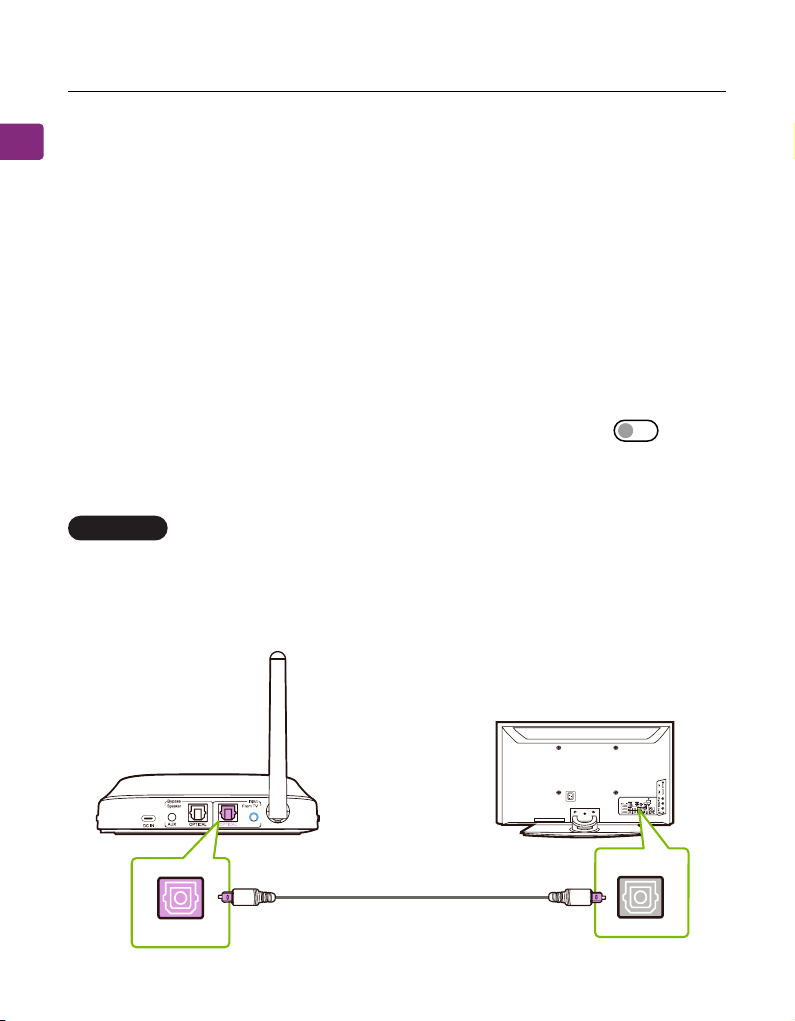

Plug the provided optical audio cable into the TV’s optical OUT or OPT OUT
port, then plug the other end into the transmitter’s optical port in the “INPUT
FROM TV” section.
Optical port (recommended)
OPTION 1
ON OFF
AUX
OPTICAL
OPT OUT
TV

User Manual
9
EN
HT5009
NOTE: MostTVs support audio output through only one digital output
port at a time, so if your TV’s HDMI ARC port is in use, the optical port may
be disabled. You can either unplug the HDMI ARC, or try connecting the
transmitter via RCA / AUX.

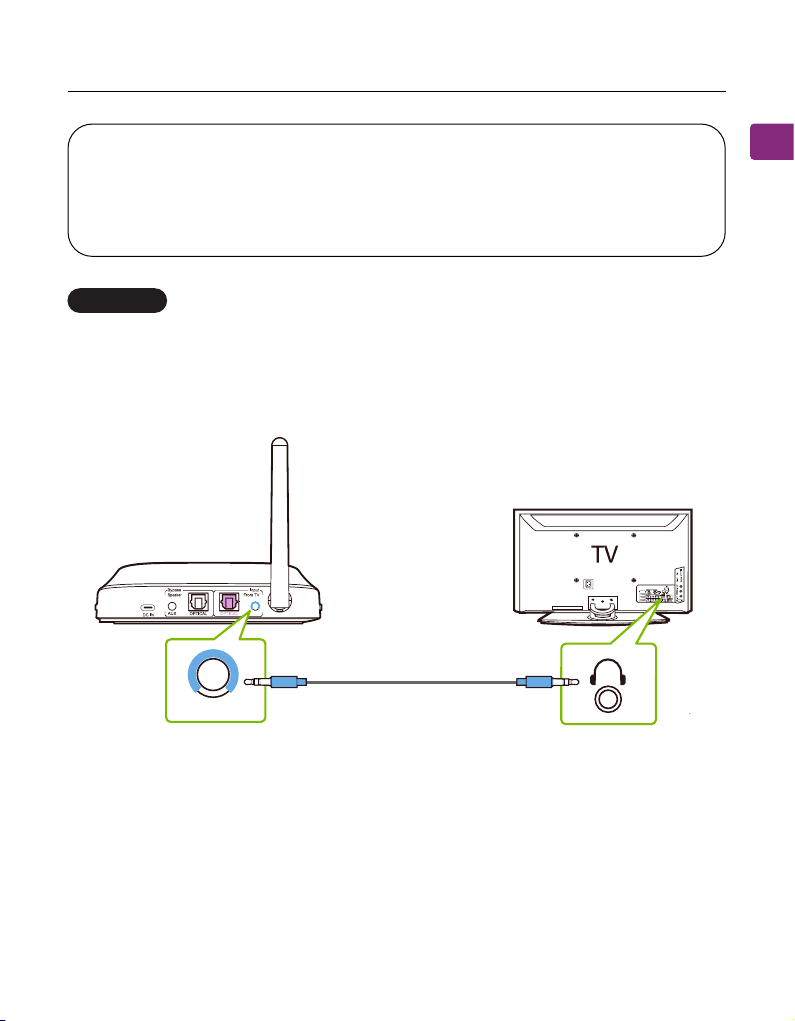

Plug the provided AUX 3.5mm audio cable into the TV’s AUX 3.5mm output
port, then plug the other end into the transmitter’s AUX 3.5mm port in the
“INPUT FROM TV” section.
AUX 3.5mm port
OPTION 2
AUX
AU X

User Manual
10
EN
HT5009
Note: Double check to ensure that optical / RCA cables are plugged into
the TV’s audio OUT ports and not the AUDIO IN / COMPONENT IN ports.

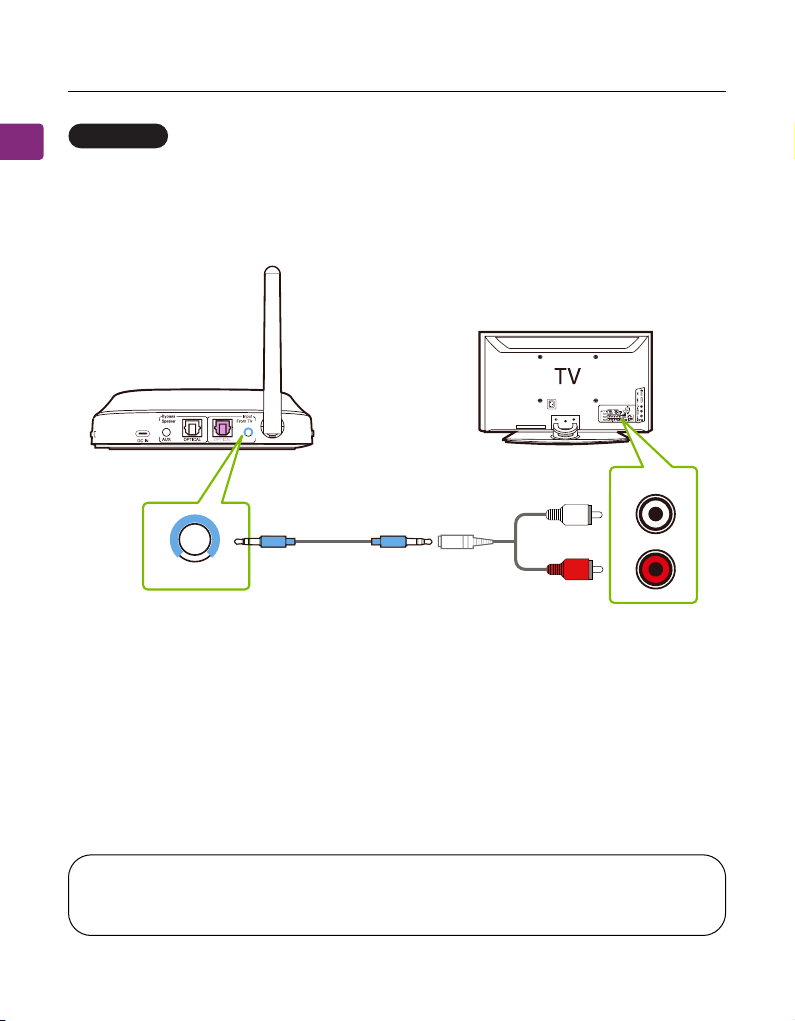

Connect the provided RCA adapter to the AUX 3.5mm audio cable. Plug the red
& white RCA connectors into the TV’s “AUDIO OUT” ports, then plug the other
end into the transmitter’s AUX 3.5mm port in the“INPUT FROM TV” section.
RCA port
OPTION 3
AUX
AUX
AUDIOOUT

User Manual
11
EN
HT5009
Connecting the Headphones to the Transmitter
STEP 1
Power the transmitter on by sliding the switch to the ON position.
The“1” LED will ash white.
STEP 2
On your headphones, slide the switch to the ON position.The LED
indicator should start ashing blue.
STEP 3
Keep the headphones close to the transmitter; they should connect within 3-5
seconds. Once connected, the headphones’ LED indicator will turn solid blue,
while the“1”indicator on the transmitter will turn solid white.
ON OFF
NOTE: Some smart TVs will automatically scan for and try to pair with any
Bluetooth devices in its vicinity. If your TV prompts you to connect your
Bluetooth headphones or the transmitter, please “DENY” the request so
that your device can properly pair with the transmitter.
Solid white

User Manual
12
EN
HT5009
If you connected to your TV via the optical OUT or “OPT OUT” port, you’ll need
to congure your TV settings before you’ll receive audio.
STEP 1
Using your TV’s remote control, press the SETTINGS button and navigate to the
AUDIO tab within the settings menu. (Please note that there may be
dierences in the setting names depending on your brand of TV).
STEP 2
Proceed to AUDIO OUTPUT and select“OPTICAL OUT / DIGITAL OUT”. Many TVs
will do this automatically; skip this step as needed.
STEP 3
Set Audio Output format to“PCM / STEREO” ON or“DOLBY” OFF.
If you’re having trouble nding these settings, you can scan the QR code
correlating to your TV’s brand OR visit avantree.com/5009/tv-audio-settings for
a more detailed guide.
Sound
Audio Out Optical Out Digital
Audio
Format
or
PCM/Stereo
Dolby - OFF
Setting Up Your TV(For Optical Connections Olny)

User Manual
13
EN
HT5009

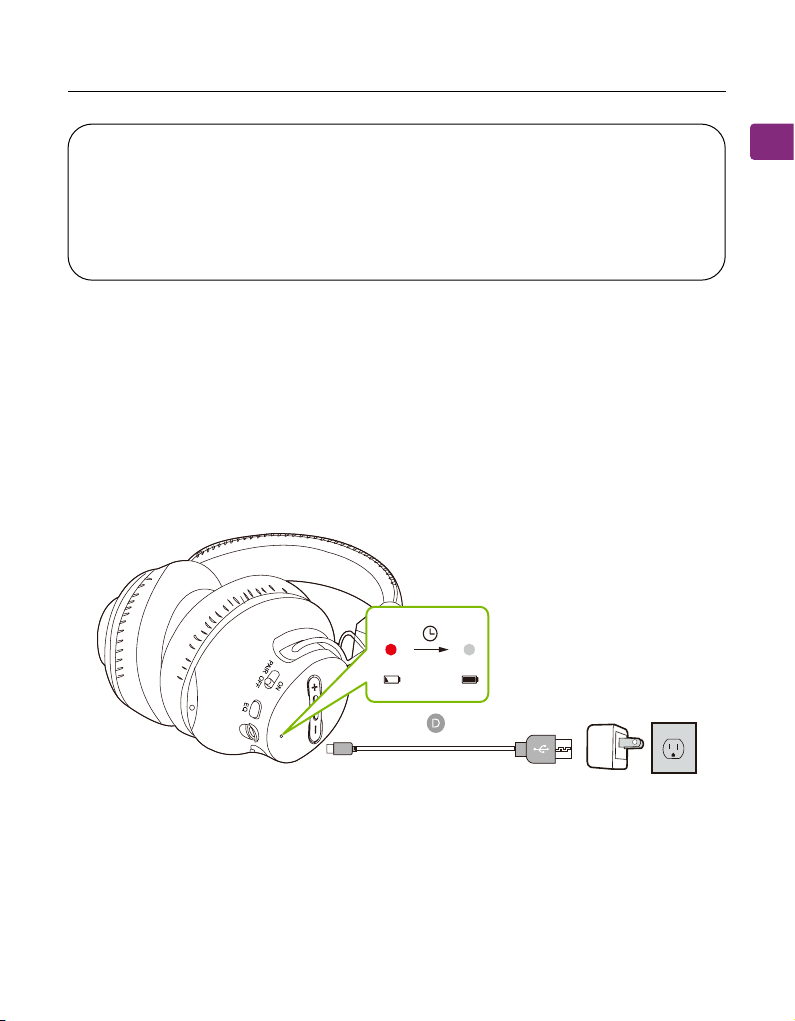

Charging the Headphones
Charge the headphones using the provided USB C charging cable and a 5V /
500mA-2A rated USB adapter (your phone charger or similar should work).
A solid red light indicates that charging is in progress; once the light turns o,
your headphones will be at full battery. It takes about 3.5 hours for the
headphones to fully charge.
NOTE 1: Smart TVs automatically reset their settings after system updates.
Make sure your audio output / input format is set to “PCM”and NOT
“AUTO” or“Dolby.”
NOTE 2: When using Netix or Amazon Prime, you may need to start the
movie / show before changing the audio settings to“PCM.”

User Manual
14
EN
HT5009
Advanced Features
Listening with a Soundbar
The HT5009’s pass-through function allows you to listen through both the
headphones and an external soundbar / stereo AVR simultaneously.
STEP 1

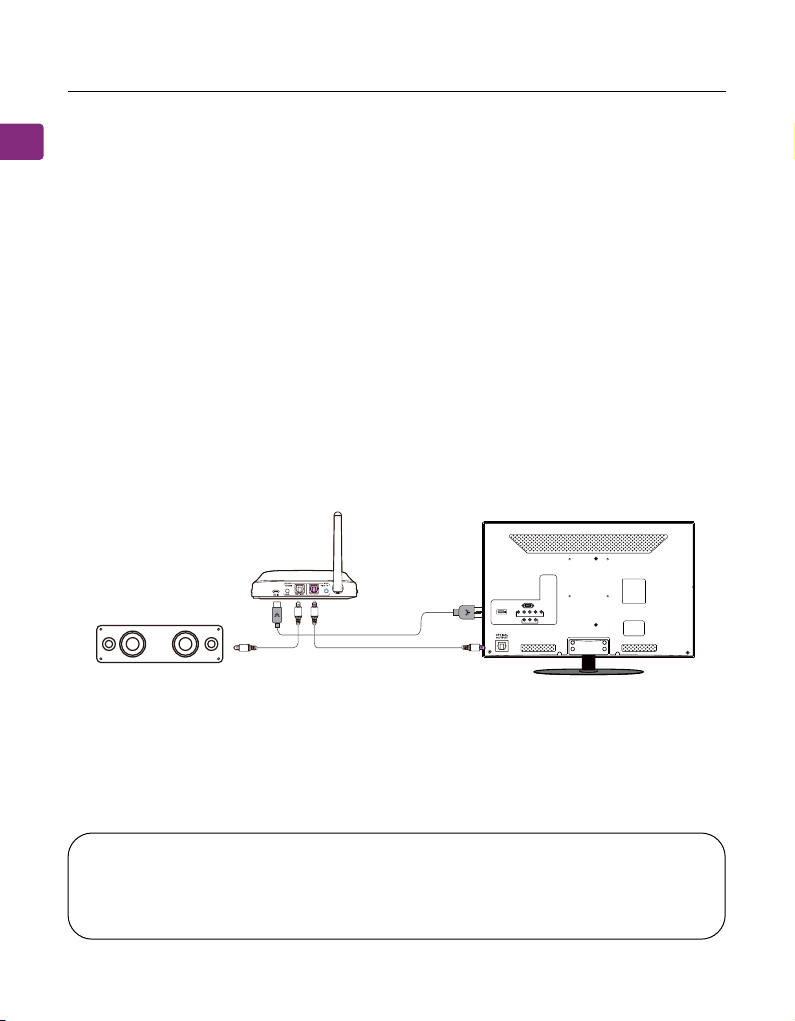

Plug an additional optical, 3.5mm AUX, or RCA audio cable into the correlating
audio port in the transmitter’s“BYPASS / SPEAKER” section.
STEP 2
Plug the other end into your external sound system, then you’re good to go.
NOTE: Bypass only works with the same type of input / output, i.e. if you
connect to your TV via OPT, you’ll need to connect to your speaker via
OPT as well.
AUX
TV/Audio Source
Sound System

User Manual
15
EN
HT5009
You can add a second pair of HT5009 headphones (Audition headphones) to
your setup while maintaining low latency.
STEP 1
Make sure your original HT5009 headphones & transmitter have connected.
STEP 2

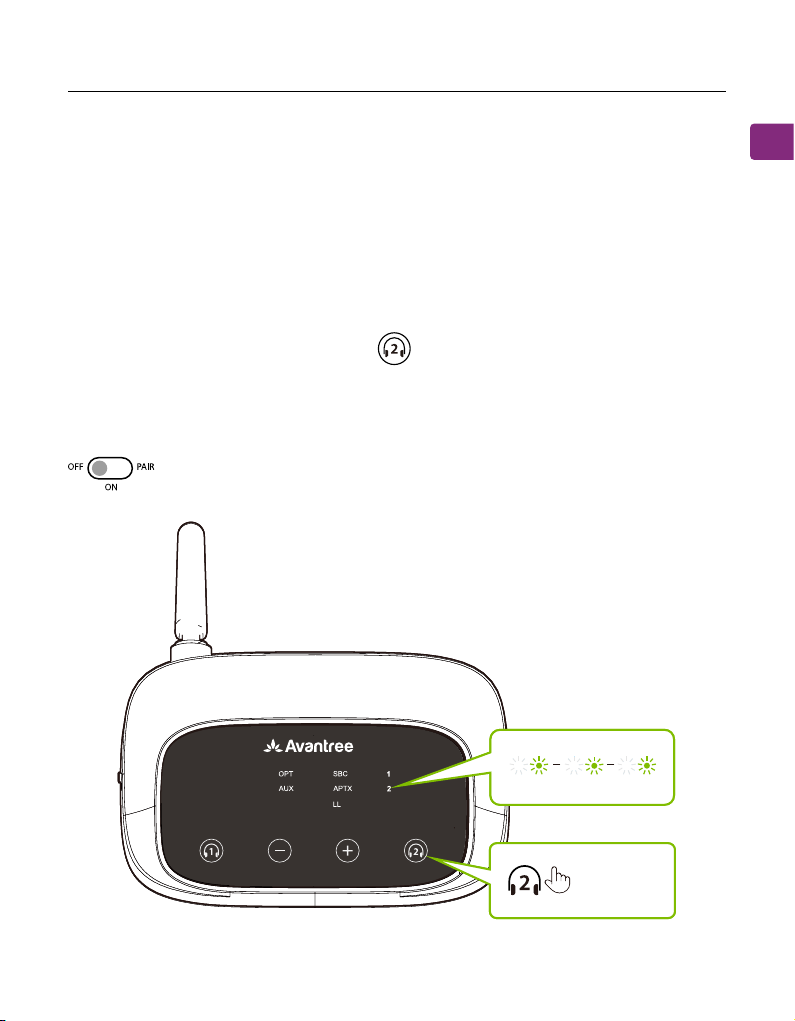

On your transmitter, press & hold the button until the LED indicator ashes
white and green.
STEP 3

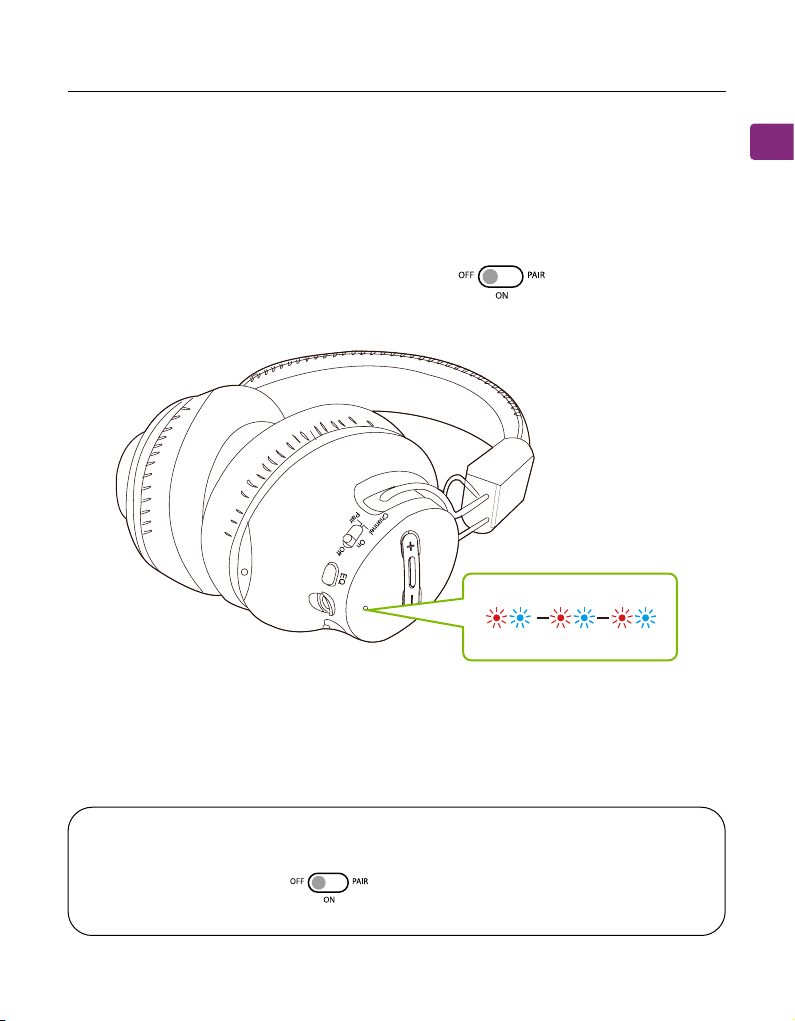

Turn on your second pair of Audition headphones, then slide & hold the
switch to the PAIR position until the LED indicator ashes red & blue.
Adding a Second Pair of Headphones
hold for 2shold for 2s

User Manual
16
EN
HT5009
STEP 4
Once connected, the headphones’ LED indicator will turn solid blue, while the
“2”indicator on the transmitter will turn solid white.
To purchase Audition headphones, scan the QR code below
hold for 3s

User Manual
17
EN
HT5009
Using the Headphones with Your Phone/Tablet
STEP 1
Turn o or unplug the transmitter.
STEP 2
Turn on the headphones, then slide & hold the switch to the PAIR
position until the LED indicator ashes red & blue.
STEP 3
Turn on your audio source’s Bluetooth and select“Avantree AS9S“ from the
Bluetooth menu.
NOTE: The headphones are factory locked with the transmitter, so they
won’t automatically reconnect to your phone / tablet. For subsequent use,
you can either slide the switch to the PAIR position once, or
select “Avantree AS9S” from your phone / tablet’s Bluetooth menu.

User Manual
18
EN
HT5009
Specications
Bluetooth version
Bluetooth version
Battery life
v5.0
v5.0
Frequency response
Frequency response
Impedance
20Hz - 20KHz
20Hz - 20KHz
Operating range
Bluetooth proles
Net weight 200g
Up to 164ft / 50m
A2DP v1.2, AVRCP v1.4, HSP v1.2, HFP v1.6
Bluetooth proles A2DP v1.3.1, AVRCP1.6
FastStream, SBC
Supported audio codecs
Supported audio codecs
aptX-Low Latency, FastStream, aptX, SBC
Up to 40 hours
32
Headphones
Transmitter
