User Manual Quartet
2
EN
Table of Contents
Box Contents•••••••••••••••••••••••••••••••••••••••••••••••••• 3
Product Introduction (Headphones)•••••••••••••••••••••••••••••• 4
Product Overview •••••••••••••••••••••••••••••••••••••••• 4
Button Functions •••••••••••••••••••••••••••••••••••••••• 4
LED Indicators ••••••••••••••••••••••••••••••••••••••••••• 5
Product Introduction (Transmitter)••••••••••••••••••••••••••••••• 5
Product Overview •••••••••••••••••••••••••••••••••••••••• 5
Button Functions ••••••••••••••••••••••••••••••••••••••••• 6
LED Indicators ••••••••••••••••••••••••••••••••••••••••••• 6
Setting Up •••••••••••••••••••••••••••••••••••••••••••••••••••• 7
Connecting to Your TV •••••••••••••••••••••••••••••••••••• 7
Connecting the Headphones to the Transmitter •••••••••••••• 10
Setting Up Your TV(For Optical Connections Olny) •••••••••••• 10
Charging the Headphones ••••••••••••••••••••••••••••••••••••• 12
Advanced Features ••••••••••••••••••••••••••••••••••••••••••• 13
Listening with a Soundbar •••••••••••••••••••••••••••••••• 13
Adding More Headphones•••••••••••••••••••••••••••••••• 14
Specications •••••••••••••••••••••••••••••••••••••••••••••••• 15
FAQ ••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 16
Contact Us ••••••••••••••••••••••••••••••••••••••••••••••••••• 81

User Manual Quartet
3
EN

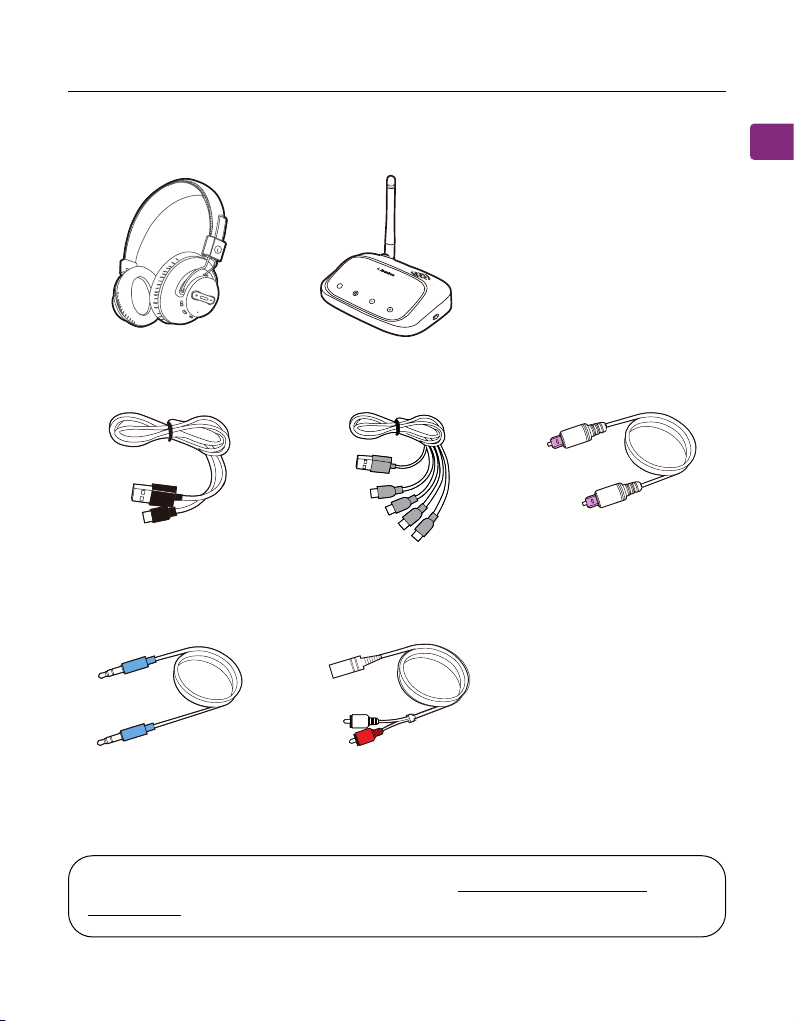

Box Contents
4 in 1 Charging Cable
for Headphones
Transmitter
Optical Audio Cable
AUX 3.5mm to RCA
Adapter
AUX 3.5mm Audio
Cable
Power Cable for
Transmittet
Headphonnes x 4
OPT
AUX
LinkBoost
Narmal
Boost
Volume
Setting
Normal
PAIR
To purchase Quartet accessories, please visit avantree.com/quartet/
accessories
PA
I
R
O
FF
O
N
E
Q

User Manual Quartet
4
EN

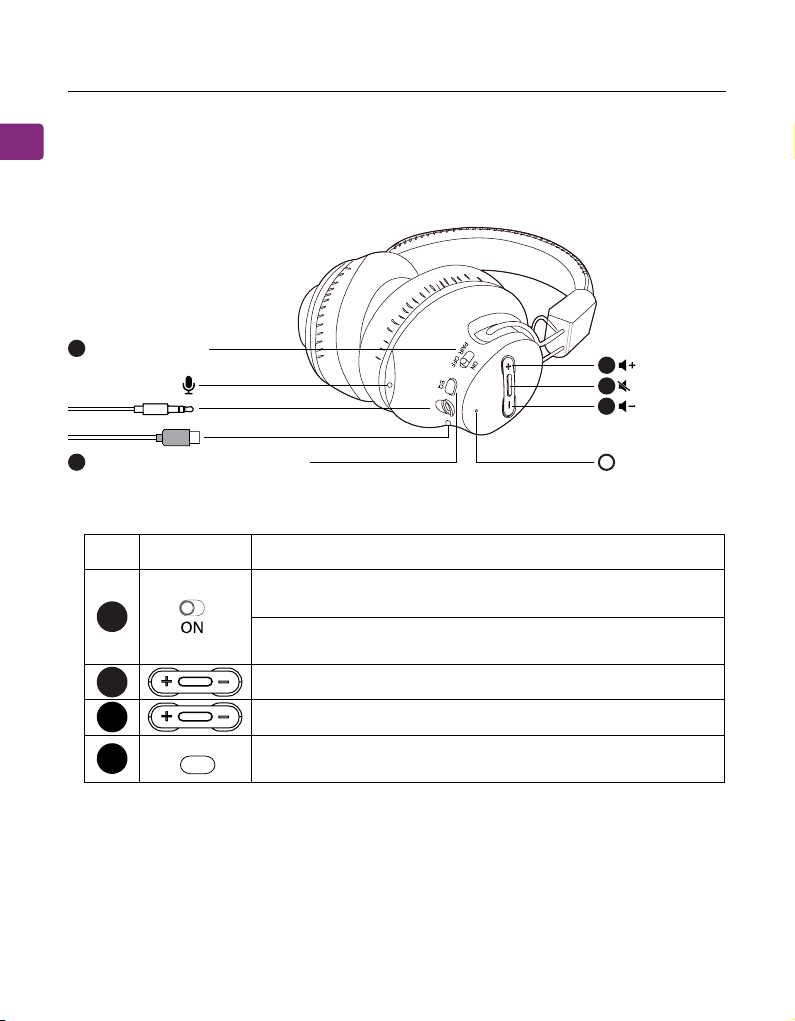

No. Button Functions
Switch to the“ON / OFF”position to turn the headphones on
/ o
Hold in the“PAIR”position for 3 seconds to enter pairing
mode
Press or hold to adjust volume
Press once to mute / unmute the headphones
Press once to switch between balanced and clear voice
modes
1
2
Product Introduction (Headphones)
Product Overview
Button Functions
3
4
11
44
22
33
22
OFF / ON / PAIR
EQ:Music / Clear Voice Mode LED indicator
A
EQ
OFF PAIR

User Manual Quartet
5
EN
LED Indicators
Product Introduction (Transmitter)
Product Overview
Antenna
AUX
Boost
Volume
Setting
Normal
OPT
AUX
LinkBoost
Narmal
PAIR
Status lndicators
ON / OFF
AUX / OPT Switch
(Press Once)
Pair
55
66
77
88
lnput From TV
99
Bypass Output
To Speaker
Volume Setting
Normal Boost
C
D
B

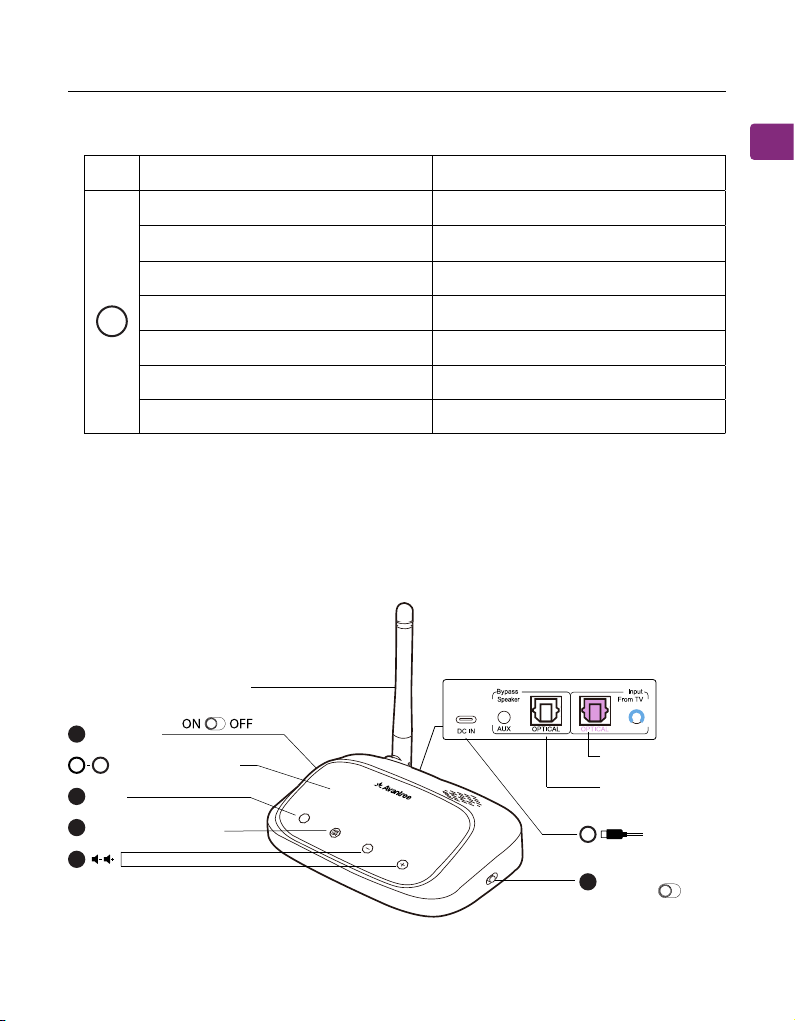

No. Status LED Indicator
Power ON Flashing Blue
Power OFF O
Pairing Flashing Blue Rapidly
Connected Solid Blue
Low battery Flashing Red
Charging Solid Red
Charging complete O
A

User Manual Quartet
6
EN

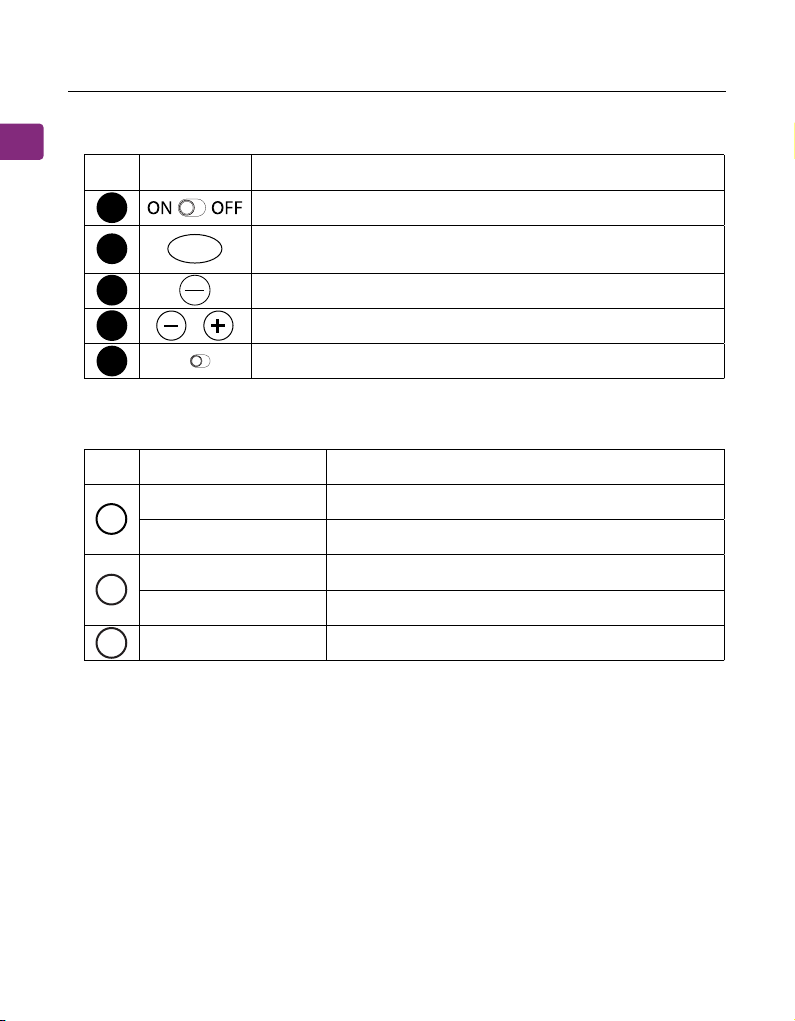

No. Button Functions
Switch to turn the transmitter on / o
Press & hold for 2 seconds to add more
Quartet-Extra headphones
Press once to switch between AUX / OPT audio input
Press once to adjust volume
Switch between Normal and Boost mode
No. Indicator Status
Solid white Power on / Connected
Flashing white Pairing mode
AUX solid white AUX audio signal
OPT solid white OPT audio signal
Solid white light Volume mode - boosted / normal
Button Functions
5
6
7
8
9
LED Indicators
PAIR
AUX
OPT
Normal Boost
C
B
D

User Manual Quartet
7
EN
Setting Up
Connecting to Your TV
The transmitter must be connected to a power source via the provided power
cable in order to function. Plug the transmitter into either:
• A TV’s USB port (we recommend this so that the transmitter auto powers
ON / OFF in tandem with your TV), OR
• A nearby wall outlet - 5V/500mA-2A rated USB charger (requires a USB
adapter, your phone charger should work. Please contact support@avantree.
com if you’d like to claim a free one)
Oncethetransmitterisconnectedtoitspowersource,slide the
switch to the ON position andconnectthe transmittertoyourTV.
Youcanchooseoneof3dierentwaystodothis:
STEP 1
Plug the provided optical audio cable into the TV’s optical OUT or OPT OUT
port, then plug the other end into the transmitter’s optical port in the “INPUT
FROM TV” section.
Optical port (recommended)
OPTION 1
TV
DC IN AUX AUX
OPTICALOPTICAL
RX Output
To Speaker
TX Input
From TV
OPT OUT
OPTICAL

User Manual Quartet
8
EN
STEP 2
Check the transmitter’s audio signal indicators and ensure that“OPT”is lit up. If
it isn’t, press the button.

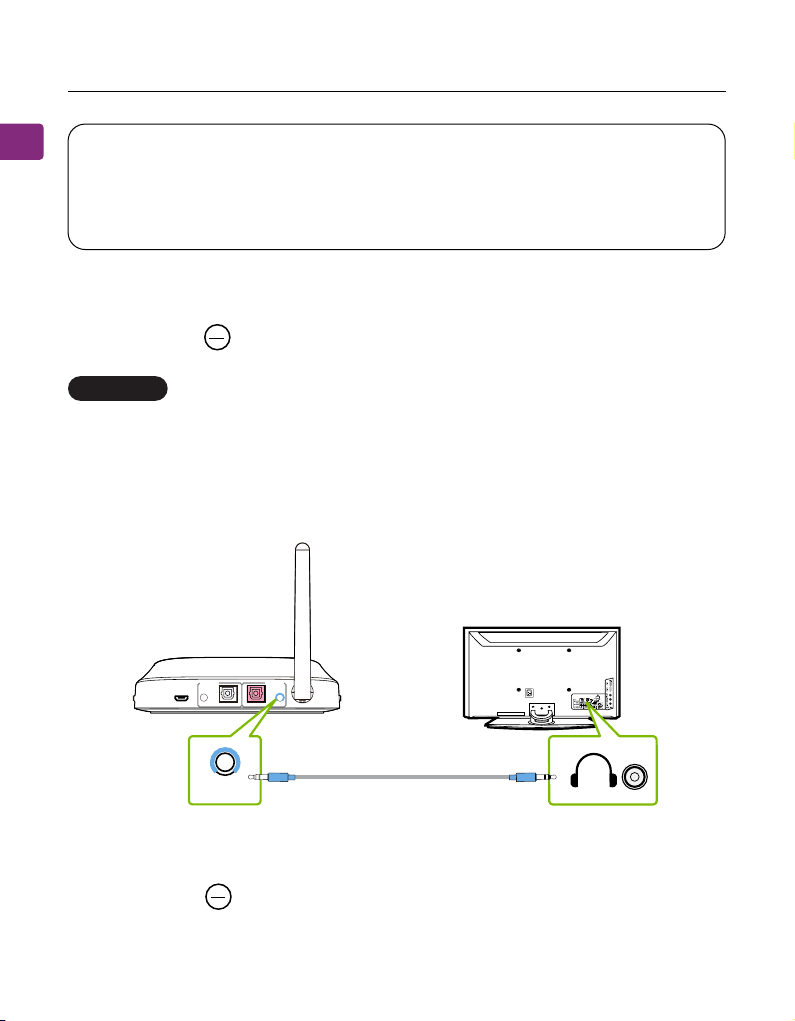

STEP 1
Plug the provided AUX 3.5mm audio cable into the TV’s AUX 3.5mm output
port, then plug the other end into the transmitter’s AUX 3.5mm port in the
“INPUT FROM TV” section.
AUX 3.5mm port
OPTION 2
NOTE: MostTVs support audio output through only one digital output
port at a time, so if your TV’s HDMI ARC port is in use, the optical port may
be disabled. You can either unplug the HDMI ARC device, or try connecting
the transmitter via RCA / AUX.
STEP 2
Check the transmitter’s audio signal indicators and ensure that“AUX” is lit up. If
it isn’t, press the button.
AUX
OPT
AUX
OPT
DC IN AUX AUX
OPTICAL OPTICAL
RX Output
To Speaker
TX Input
From TV
TV
AUX

User Manual Quartet
9
EN
STEP 2
Check the transmitter’s audio signal indicators and ensure that“AUX” is lit up. If
it isn’t, press the button.
NOTE : Double check to ensure that optical / RCA cables are plugged into
the TV’s audio OUT ports and not the AUDIO IN / COMPONENT IN ports.
STEP 1
Connect the provided RCA adapter to the AUX 3.5mm audio cable. Plug the red
& white RCA connectors into the TV’s “AUDIO OUTAUDIO OUT” ports, then plug the other
end into the transmitter’s AUX 3.5mm port in the “INPUT FROM TV”section.
RCA port
OPTION 3
AUX
OPT
DC IN AUX AUX
OPTICALOPTICAL
RX Output
To Speaker
TX Input
From TV
AUDIOOUT
TV
AUX

User Manual Quartet
10
EN
Connecting the Headphones to the Transmitter
STEP 1
Power the transmitter on by sliding the switch to the ON position.
STEP 2
On your headphones, slide the switch to the ON position.
STEP 3
Keep the headphones close to the transmitter; they should connect within 2-5
seconds. Once connected, the headphones’ LED indicator will turn solid blue.
OFF PAIR
Setting Up Your TV(For Optical Connections Olny)
If you connected to your TV via the optical OUT or“OPT OUT” port, you’ll need
to congure your TV settings in order to receive audio.

User Manual Quartet
11
EN
STEP 1
Using your TV’s remote control, press the SETTINGS button and navigate to the
AUDIO tab within the settings menu. (Please note that there may be dierenc-
es in the setting names depending on your brand of TV).
STEP 2
Proceed to AUDIO OUTPUT and select“OPTICAL OUT / DIGITAL OUT”. Many TVs
will do this automatically; skip this step as needed.
STEP 3
Set Audio Output format to“PCM / STEREO”ON or“DOLBY” OFF.

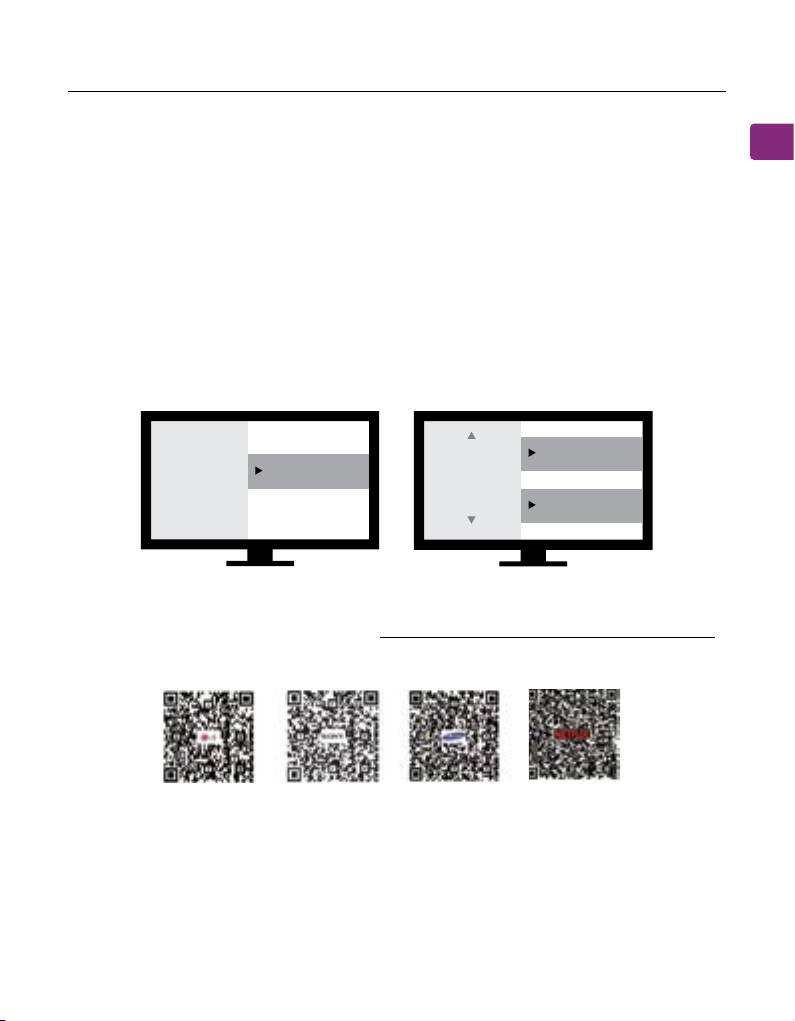

If you’re having trouble nding these settings, you can scan the QR code
correlating to your TV’s brand OR visit avantree.com/quartet/tv-audio-settings
for a more detailed guide.
Sound
Audio Out Optical Out Digital
Audio
Format
or
PCM/Stereo
Dolby - OFF
LG SONY SAMSUNG NETFLIX /
AMAZON PRIME

User Manual Quartet
12
EN
Charging the Headphones

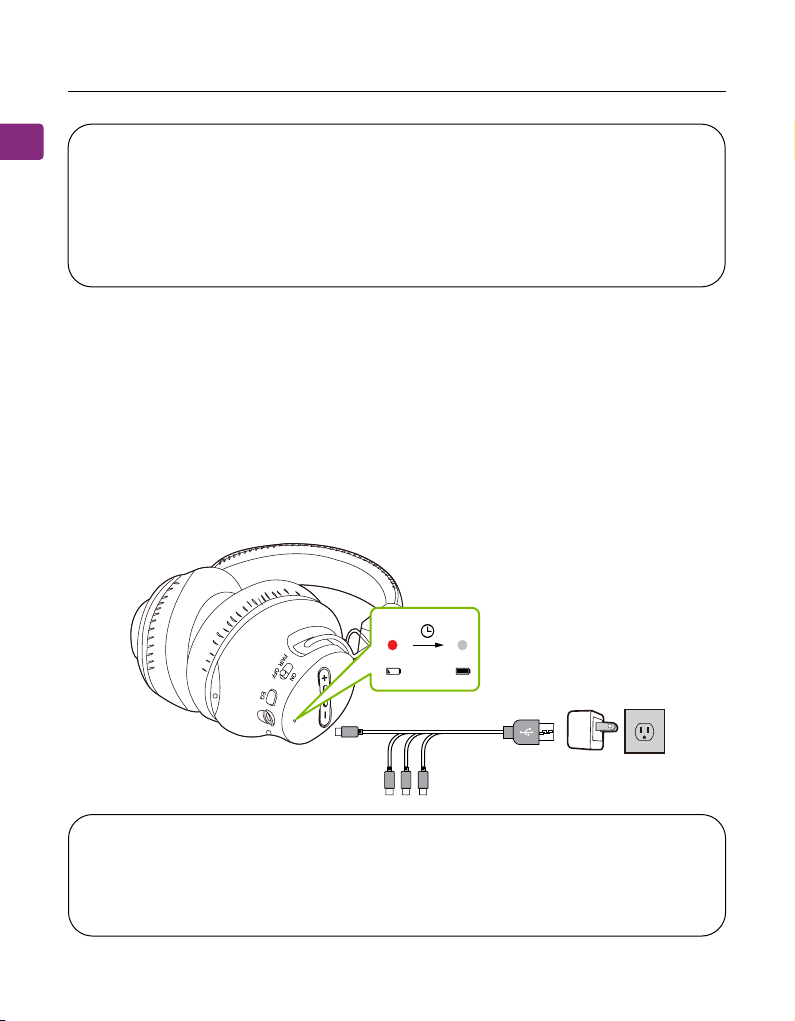

Charge the headphones using the provided USB C 4 in 1 charging cable and
a 5V/500mA-2A rated USB adapter (your phone charger or similar should work).
A solid red light indicates that charging is in progress; once the light turns o,
your headphones are fully charged. It takes about 3 hours for the headphones
to fully charge.
NOTE 1: Smart TVs automatically reset their settings after system updates.
After an update, make sure your audio output / input format is set to
“PCM”and NOT “AUTO” or “Dolby.”
NOTE 2: When using Netix or Amazon Prime, you may need to start the
movie / show before changing theaudio settings to“PCM.”
NOTE: We recommend using a USB adapter rated 1A-2A to charge the
headphones, especially when charging four headphones simultaneously.
Charging with a 500mA adapter may result in longer charging times when
charging multiple headphones at once.

User Manual Quartet
13
EN
Advanced Features
Listening with a Soundbar
The Quartet’s pass-through function allows you to listen through both the
headphones and an external soundbar / stereo AVR simultaneously.
STEP 1
Set up the transmitter and connect it to your TV
STEP 2

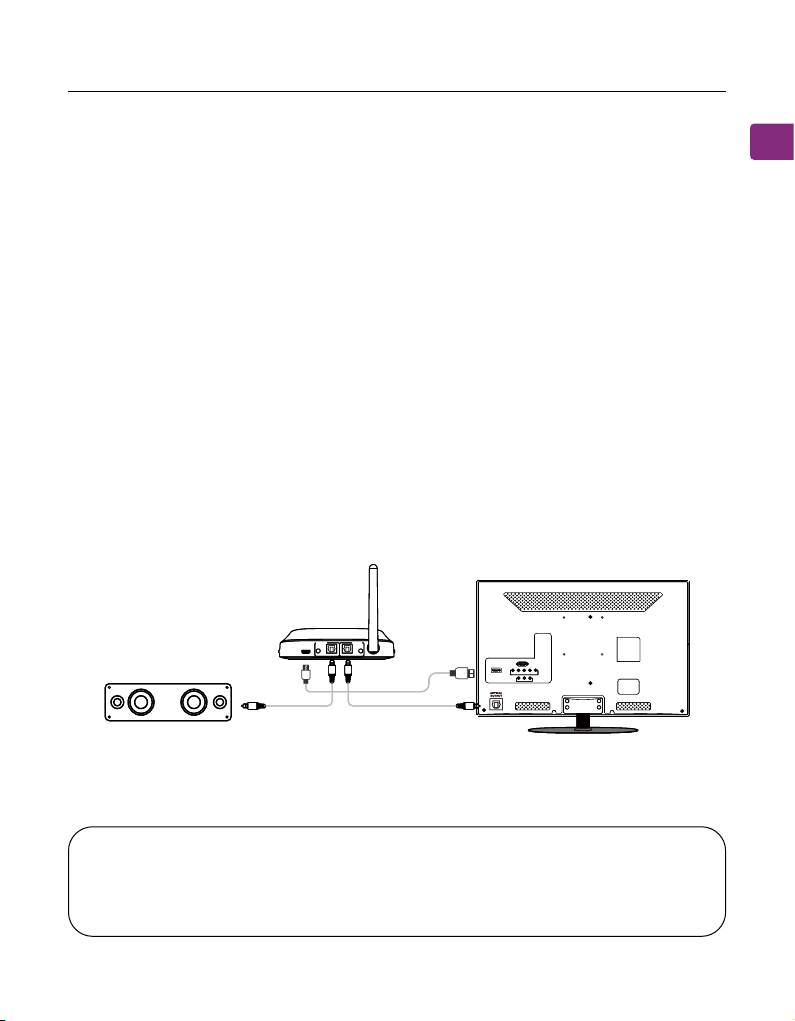

Plug an additional optical, 3.5mm AUX, or RCA audio cable into the correlating
audio port in the transmitter’s “BYPASS / SPEAKER”section.
STEP 3
Plug the other end into your external sound system, then you’re good to go.
DC INAUX AUX
OPTICAL OPTICAL
RX Output TX Input
TV/Audio Source
Sound System DC INAUX AUX
OPTICAL OPTICAL
RX Output TX Input
TV/Audio Source
Sound System
NOTE : Bypass only works with the same type of input / output, i.e. if you
connect to your TV via OPT, you’ll need to connect to your speaker via OPT
as well.

User Manual Quartet
14
EN
Adding More Headphones
You can add up to 100 Quartet-Extra headphones to your setup while
maintaining low latency. Please note that ONLY Quartet-Extra / Duet-Extra
headphones are compatible due to private protocol connections.
STEP 1
On your transmitter, press & hold the“PAIR”button for 2 seconds. The“Link”
LED indicator will ash white.
STEP 2
Turn on your pair of Quartet-Extra headphones, then slide and hold the power
switch to the“PAIR”position until the LED indicator ashes blue rapidly.
STEP 3
Hold them close together and wait. Once connected, the headphones’
connection LED indicator will turn solid blue.
Repeat these steps to add up to 100 headphones to your setup.
To purchase Quartet Extra headphones, scan the QR code below.

User Manual Quartet
15
EN
Specications
Technology
Technology 2.4GHz
Headphones net weight 200g
2.4GHz
Frequency Response (Hz)
Battery life Up to 20 hours
Power supply 5V/1-2A
20Hz-20KHz
Operating range
Time to fully charge 3 hours
Power port USB C
Up to 100ft / 30m
Power supply
Distortion 0.5%
5V/1-2A
Power port
Signal to noise ratio 85dB
USB C
Headphones
Transmitter

User Manual Quartet
16
EN
FAQ
Below are some of the most common questions people have during setup.
Can I have audio through my TV’s speakers and wireless headphones at
the same time?
This completely depends on whether or not your TV supports the ability to
output audio to 2 sources simultaneously. You can try a few dierent methods
to test if your TV is capable of this or not – refer to avantree.com/quartet/sound
for more details.
Why don’t I get sound when watching Netix / Prime Video?
You may need to change your TV’s audio settings an additional time when
watching Netix / Prime Video. This can be due to the movie being in Dolby
Digital Surround Sound format, or because you’re watching with a separate
streaming device / cable box.
While Netix / Prime Video is open, go into your TV’s audio settings and make
sure that the audio output is set to“PCM / STEREO”and that“DOLBY” is turned
OFF.
Why am I getting Wi-Fi router interference?
It’s best to keep your transmitter at least 3ft / 1m away from Wi-Fi routers in
order to avoid interference.
For answers to questions like these, you can visit avantree.com/support/
quartet for a full FAQ list, or you can contact us directly for additional
assistance.

Benutzerhandbuch Quartet
17
DE
Inhaltsverzeichnis
Lieferumfang •••••••••••••••••••••••••••••••••••••••••••••••• 18
Produkteinführung (Kopfhörer) •••••••••••••••••••••••••••••••• 19
Produktüberblick•••••••••••••••••••••••••••••••••••••••• 19
Tastenfunktionen•••••••••••••••••••••••••••••••••••••••• 19
LED-Anzeigen •••••••••••••••••••••••••••••••••••••••••• 20
Produkteinführung (Transmitter) ••••••••••••••••••••••••••••••• 20
Produktübersicht•••••••••••••••••••••••••••••••••••••••• 20
Tastenfunktionen•••••••••••••••••••••••••••••••••••••••• 21
LED-Anzeigen •••••••••••••••••••••••••••••••••••••••••• 21
Enrichtung••••••••••••••••••••••••••••••••••••••••••••••••••• 22
Verbinden mit Ihrem TV-Gerät••••••••••••••••••••••••••••• 22
Anschließen des Kopfhörers an den Transmitter •••••••••••••• 26
Einrichtung Ihres TV-Geräts (nur für den optischen Anschluss) •• 26
Auaden der Kopfhörer ••••••••••••••••••••••••••••••••••••••• 28
Erweiterte Funktionen •••••••••••••••••••••••••••••••••••••••• 29
Wiedergabe mit einer Soundbar ••••••••••••••••••••••••••• 29
Hinzufügen weiterer Kopfhörer •••••••••••••••••••••••••••• 30
Technische Angaben •••••••••••••••••••••••••••••••••••••••••• 32
FAQ – Häug gestellte Fragen •••••••••••••••••••••••••••••••••• 33
Kontaktieren Sie uns •••••••••••••••••••••••••••••••••••••••••• 81

Benutzerhandbuch Quartet
18
DE
Lieferumfang
4-in-1-Ladekabel für
Kopfhörer
Transmitter
Optisches Audiokabel
AUX 3,5 mm auf
RCA-Adapter
AUX 3,5 mm
Audiokabel
Netzkabel für
den Transmitter
Kopfhörer x 4
OPT
AUX
LinkBoost
Narmal
Boost
Volume
Setting
Normal
PAIR
Um Quartet-Zubehör zu kaufen, besuchen Sie bitte avantree.com/quartet/
accessories
PA
I
R
O
FF
O
N
E
Q
