AVer SF2121-BHR-30 User manual

AVer Rugged Bullet type Camera
Installation Guide

Table of Contents
Important Safeguard .......................................................................1
Package Contents............................................................................2
The following items are included in the package.........................2
Optional Accessories......................................................................2
Bullet IP Camera Parts....................................................................3
Mounting the IP Camera.........................................................................4
Deploying Network..................................................................................4
Network Connection via Ethernet Switch ..........................................4
Power over Ethernet Connection.......................................................5
Connecting External Devices to I/O Terminal Block................................6
Mounting the IP Camera.........................................................................7
Focusing the IP Camera with BNC Monitor ..................................8
Insert microSD Card to System .....................................................9
Hardware Reset .............................................................................10
Technical Specifications...............................................................10
Federal Communications Commission Statement (Class B)....12
Class B (EMC)................................................................................13
COPYRIGHT ...................................................................................13
NOTICE...........................................................................................13
WARNING .......................................................................................13
Limited Warranty ...........................................................................13
Limitations of Warranty.................................................................14
Disclaimer of Warranty .................................................................14
Limitation of Liability ....................................................................14
Governing Law and Your Rights..................................................14

1
Impor tant Safe guard
- Do not use power supply with different
voltage other than DC12V/PoE.
- Do not submerge the unit in the water.
- Unplug the power of this unit as soon as
smoke or unusual odor is detected.
- Unplug the power supply before cleaning.
Use only a lens cleaning cloth and never
use benzene, thinner, or other solvent for
cleaning.
- Do not attempt to service this unit by
yourself. Always refer all servicing to
qualified service personnel.
- Do not place the unit in unsteady surface
and also do not drop the unit.
- Keep the IP camera housing close and
prevent the dust from getting in the
housing.

2
Package Contents
The following items are included in the package.
AVer rugged bullet type camera
Software & Manual CD
2 L-type Wrenches
Sun Shield
2 Sun Shield Bolts
Torx Pin Head Bolt
Wall Mount Bracket
Alignment Sticker
3 Screws
3 Washers
3 Plastic Anchors
Hex Socket Cap Bolt
Optional Accessories
Power Adapter (12V, 2A)
* The power adapter will vary depending on the
standard power outlet of the country where it is
sold. Depending on your package the power
adapter maybe included.

3
Bullet IP Camer a Par ts
(4)
(10)
(1)
(3)
(5)
(6)
(7)
(8)
(9)
(2)
No.
Function
(1)
Sun Shield
(2)
Camera Lens
(3)
Light Sensor
(4)
Latch
(5)
Power Jack
(6)
BNC Jack (Video Out)
(7)
RJ45 Ethernet Jack
(8)
I/O Terminal Block
(9)
Phone Jack (Audio In)
(10)
Phone Jack (Audio Out)

4
M o un t i n g t h e I P C a m e r a
This section provides useful tips on how to adjust the IP camera to meet your needs.
Deploying Network
Network Connection via Ethernet Switch
Connect the RJ45 cable from the Ethernet switch to RJ45 Ethernet jack of camera
Ethernet Switch
Connect the power adapter to power jack ofcamera.
Power
Adapter
W
all Outlet

5
Power over Ethernet Connection
Ruggedb bullet type casmera is fully complies with PoE standard. It allows you to use PoE
enabled switch or PoE injector to transmit data and power thru single Ethernet cable.
PoE Enabled Switch Connection Diagram
PoE Switch
PoE Injector Connection Diagram
PoE Injector
Power cable
W
all outlet
Ethernet Switch

6
Connecting External Devices to I/O Terminal Block
Note: Maximum power output is 12V/100mA
No.
Function
(1)
Power 12V
(2)
Digital Output
(3)
Digital Input
(4)
Ground
Power LED
LED
Status
(1) Steady Red
Heating
(2) Blinking Green
System working
(3) Steady Green
Booting
Firmware updating
(4) No Light
Power off
Internal Connection Diagram of DI/DO

7
Mounting the IP Camera
1. Use the supplied 2 sun shield bolts and
secure the sun shield on the IP camera.
2. Place the sticker on the wall surface.
Then spot the mark and drill the 4 holes
indicated on the sticker.
It’s not necessary to drill the biggest
hole if you are going to run the wire on
the side.
3. Insert the 3 plastic anchors in the wall.
Place the washer on the 3 screws and
secure the mounting bracket on the
wall.
4. Hook the IP Camera and use the hex
socket cap bolt to secure the IP camera on
the mount bracket.
5. After adjusting the focus and zoom
control, use the torx pin head bolt to
secure the IP camera from being tampered.

8
Focusing the IP Camera with BNC Monitor
The IP camera is supported with BNC analog video out jack which allows you to connect an
analog display devices such as an LCD BNC monitor for you to adjust the camera focus
and zoom.
1. Connect the LCD BNC monitor to the BNC jack.
VIDEOIN
BNCPO
R
T
LCD BNC Monitor

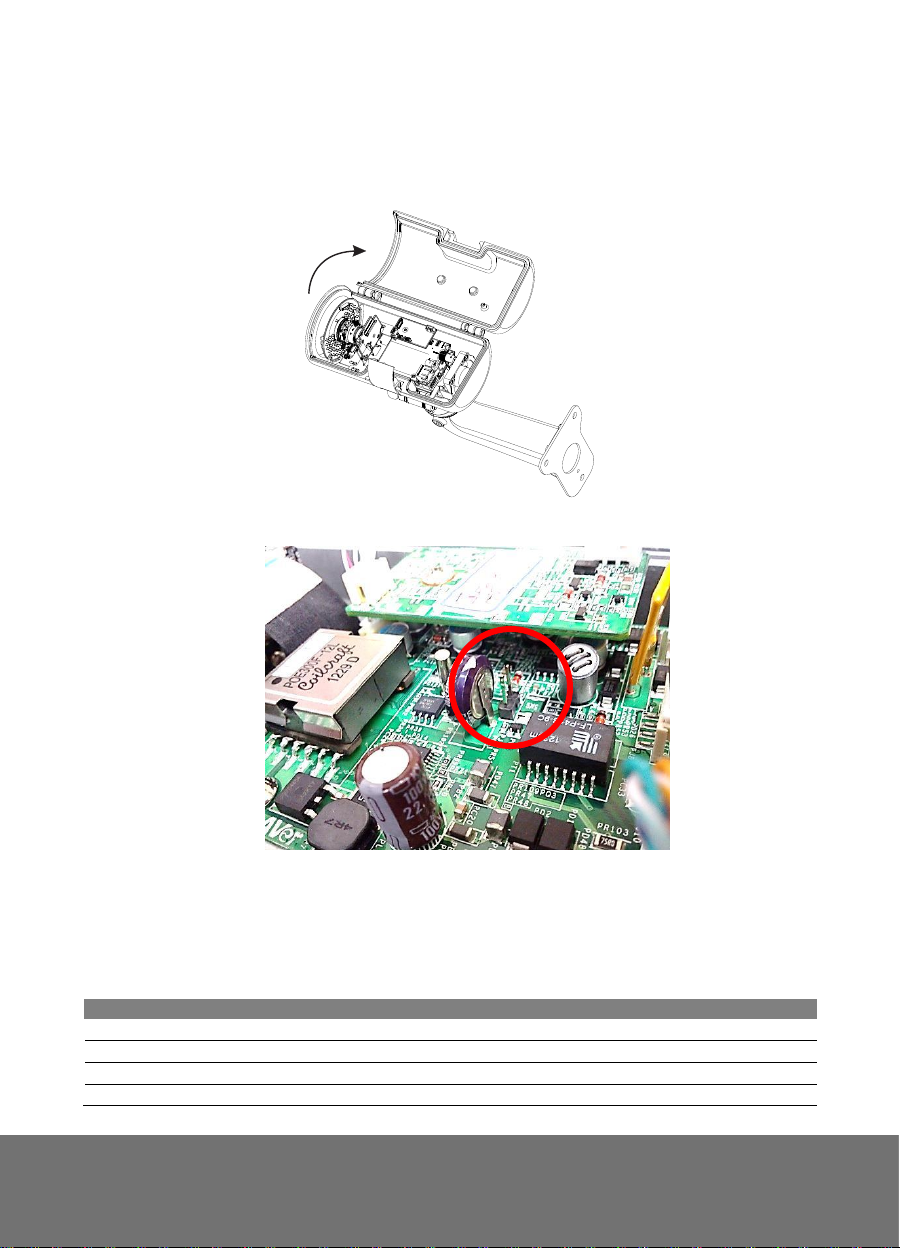

2. Open up the IP camera case.
3. Slightly loosen the focus and zoom
control knobs and adjust the focus and
zoom range. Slightly tighten the focus
and zoom knobs once you are done
adjusting.
ZoomKnob
&Control
FocusKnob
FocusControl
