AVLink MaitreView 4KPlus User manual

MaitreView™4KPlus
Quick Start Guide
QSG-MaitreView™ 4KPlus-v1
MaitreView™ 4KPlus User Manual

MaitreView™ 4KPlus Quick Start Guide 1
BEFORE YOU BEGIN
▪Follow all instructions marked on the device during use.
▪Provide proper ventilation and air circulation and do not use near water.
▪It is better to keep it in a dry environment.
▪Place the device on a stable surface (for example cart, stand, table, etc.).
▪The system should be installed indoors only. Install either on a sturdy rack or desk in a well-ventilated place.
▪Make sure the rack is level and stable before extending a device from the rack if necessary.
▪Make sure all equipment installed on the rack including power strips and other electrical connectors are properly
grounded.
▪Only use the power cord supported by the device.
▪Do not use liquid or aerosol cleaners to clean the device.
▪Always unplug the power to the device before cleaning.
▪Unplug the power cord during lightning or after a prolonged period of non-use to avoid damage to the equipment.
▪Do not stand on any device while installing the device to the rack.
▪Do not attempt to maintain the device by yourself. For any faults, please contact your vendor.
▪Save this manual properly for future reference.
COPYRIGHT AND TRADEMARKS
All rights reserved by AV LINK GROUP LTD. No part of this document may be reproduced in any form or by any means
without written permission from the product manufacturer. Changes are periodically made to the information in this
document. They will be incorporated in subsequent editions. The product manufacturer may make improvements and
changes in the product described in this document at any time.
(Note: If there is any discrepancy with the latest version, please refer official website as the primary source of Information)
CONTACT INFORMATION
AV LINK GROUP LTD.
Headquarters: 13F.-1, No. 2, Jian 8th Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.)
TEL: [phone]
FAX: [phone]
E-mail: [e-mail]
Website: https://avlinksystem.com
For Warranty:
Please follow the warranty policy according to AV LINK’s local official distributor; during the warranty period, it
is recommended to keep your proof of purchase, accessories, and packaging in place.

MaitreView™ 4KPlus Quick Start Guide 2
OVERVIEW
Thank you for purchasing AV LINK’s Multi-window Video Processor: the MaitreView™4KPlus is a true 4K HDMI Video
Processor that can generate powerful uncompressed 4K video algorithms driving on FPGA. It allows up to 4 HDMI inputs
and 2 HDMI outputs with independent layouts on each output. It’s flexible to most scenarios for conferencing and
collaborative work, where inputs and outputs support uncompressed 4K / 60Hz 4:4:4 (18 Gbps bandwidth) that never
loses any details on important data. It offers flexible control of the Web GUI, tablet APP (Android tablet & iPad), front
panel buttons, RS232, and APIs (Application Programming Interfaces). This quick start guide will introduce basic
functions to get started with the MaitreView™4KPlus.
APPLICATIONS
The MaitreView™ 4KPlus is a powerful device that can be used in:
⚫Corporate
⚫Design House
⚫Education
⚫Entertainment
⚫E-Sport
⚫Fashion
⚫Government
⚫Health Care
⚫House of worship
⚫Retail
And any application which requires seamless switching and powerful video processing.
FEATURES
⚫Unparalleled video processing engine
⚫Uncompressed 4K / 60Hz, 4:4:4
⚫Seamless Drag & Drop for region movement
⚫4 split layers (4K) each output
⚫Independent layouts on 2 outputs
⚫Seamless switching
⚫Intuitive Management
⚫Front panel display (LCM)
⚫Control by the front panel, Web GUI, and tablet APP (Android tablet & iPad)
⚫Revolution for conferencing and collaborative work
⚫Feeling the power of flexibility

MaitreView™ 4KPlus Quick Start Guide 3
PANEL DESCRIPTION
Front Panel
A POWER
Press to power on / off the device
B RESET
Long press over 5 seconds to reset the
device to default
C INPUT 1~4
Shows connection for input 1~4
D OUTPUT 1~2
Shows connection for output 1~2
E VIDEO OFF
Press to enable / disable video for output
1~2
F AUDIO MUTE
Press to enable / mute audio for output 1~2
G OSD
Press to enable / disable OSD for outputs 1~2
H MENU
Press to switch the device information shown on LCM
I LCM
LCM shows the IP address and system version,
resolution of output 1~2, and status of the device
information (booting, shutting down, upgrading,
resetting, error code)

MaitreView™ 4KPlus Quick Start Guide 4
Back Panel
H IN 1~4
HDMI input port. Associate to input
channels 1 to 4, respectively
I OUT 1~2
HDMI output port. Associated with output 1
and 2 respectively
J AUDIO OUT
3.5mm audio output
K S / PDIF OUT
S / PDIF audio output
L USB 2.0
For debugging purposes only
M LAN
For Ethernet connection
(For Web GUI or tablet APP)
N RS-232 (terminal block format)
The order of RS-232 pins is RX, GND, TX
(From the left to the right)
O DC 12V
Power port for DC 12V power adaptor
(included)
1

MaitreView™ 4KPlus Quick Start Guide 5

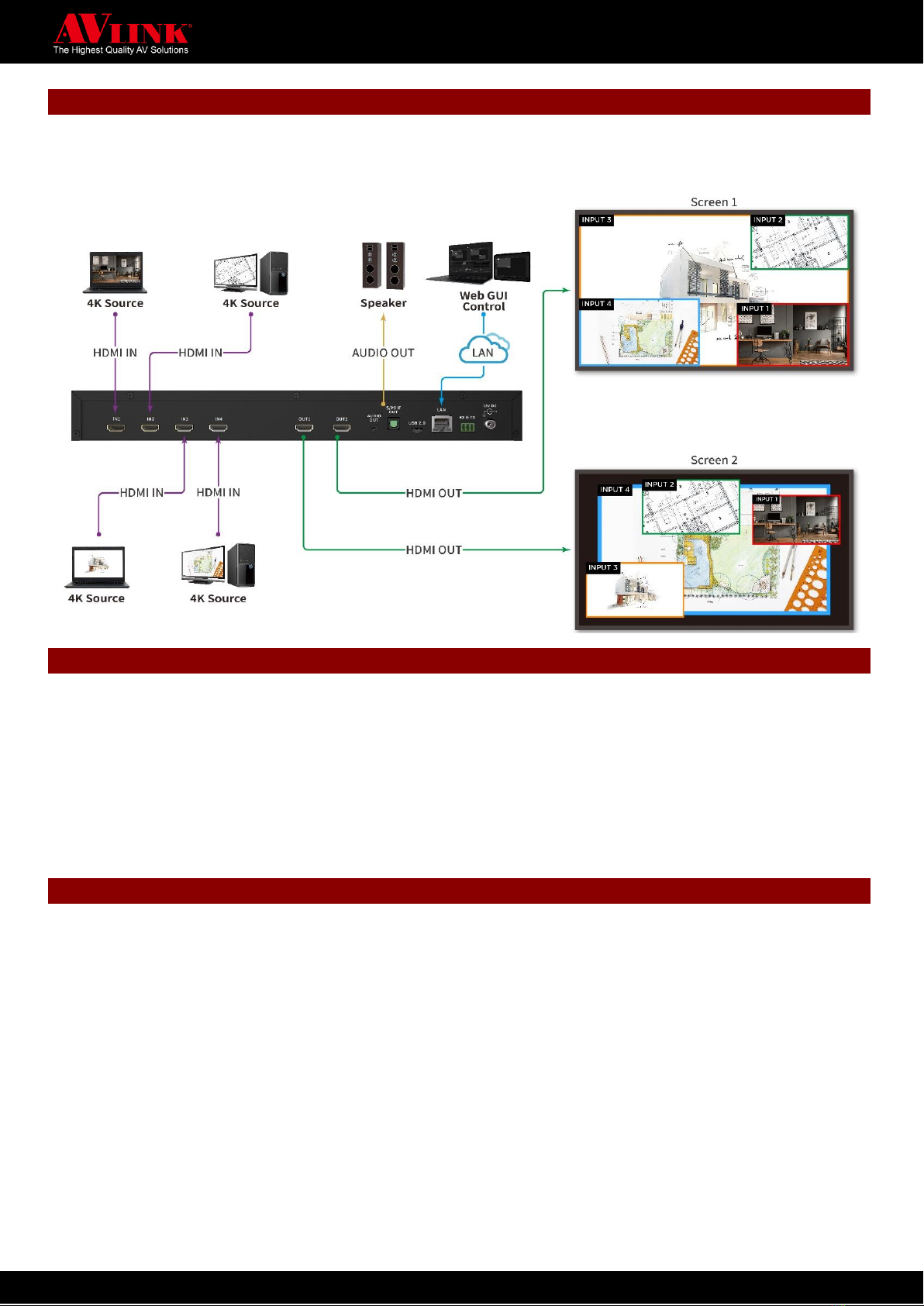

CONNECTION DIAGRAM
2
MaitreView™ 4KPlus allows the user to connect up to FOUR 4K / UHD multi-video sources which may simultaneously
3
output on TWO 4K / UHD displays.
4
PACKAGE CONTENTS
5
⚫MaitreView™4KPlus unit
6
⚫Rack-Mount Bracket * 2
7
⚫Screws (for Brackets) * 6
8
⚫Adaptor: IN:100V-240VAC OUT: DC 12V / 5A LOCK DC JACK
9
⚫Quick Start Guide
10
SYSTEM REQUIREMENTS
11
Minimum:
12
⚫720p / HD input source
13
⚫1080p / FHD output display
14
Recommended:
15
⚫4K / UHD input source * 4
16
⚫4K / UHD output display * 2
17
⚫Ethernet cable (Cat 5e, for Web GUI and tablet APP) * 1
18
⚫Web browser: Google Chrome (latest version)
19
⚫For Android tablet APP: Android tablet with Android 7.0
20
⚫For iPad APP: iPad with the latest iPadOS version
21

MaitreView™ 4KPlus Quick Start Guide 6
INSTALLATION
22
Note: Turn the power off for displays and video sources before beginning the installation.
23
1. Connect each video source to the input ports respectively.
24
2. Connect each display to the output ports respectively.
25
3. Connect the power adapter to the DC 12V power port, and lock the DC power jack. The power LED will turn blue
26
after being connected successfully.
27
4. Power on your device: press the POWER button once, the blue power LED will start to blink for around 30
28
seconds. After the power LED turns green, the device is ready to use.
29
5. Power off your device: Long press the POWER button for more than 3 seconds, and the power LED will blink
30
in blue for around 20 seconds, and then the device will shut down.
31
WEB GUI
32
Connect the LAN port to the ethernet to get the IP address for the device.
33
If the device is connected directly to PC, then the IP address will be automatically assigned as: 169.254.xxx.xxx.
34
To control the device through the Web GUI, type in the IP address shown on the LCM to the web browser,
35
https://xxx.xxx.xxx.xxx
36
Once successfully connected, the login page will show.
37
Note: Our system only supports HTTPS with AV LINK's self-signed certificate. You may see the warning of
38
security, press advanced to bypass the security check.
39
Type the account and password to log in.
40
41
Type in account
Type in password
Press Login
Advanced
Note:
Default account: admin
Default password: admin

MaitreView™ 4KPlus Quick Start Guide 7

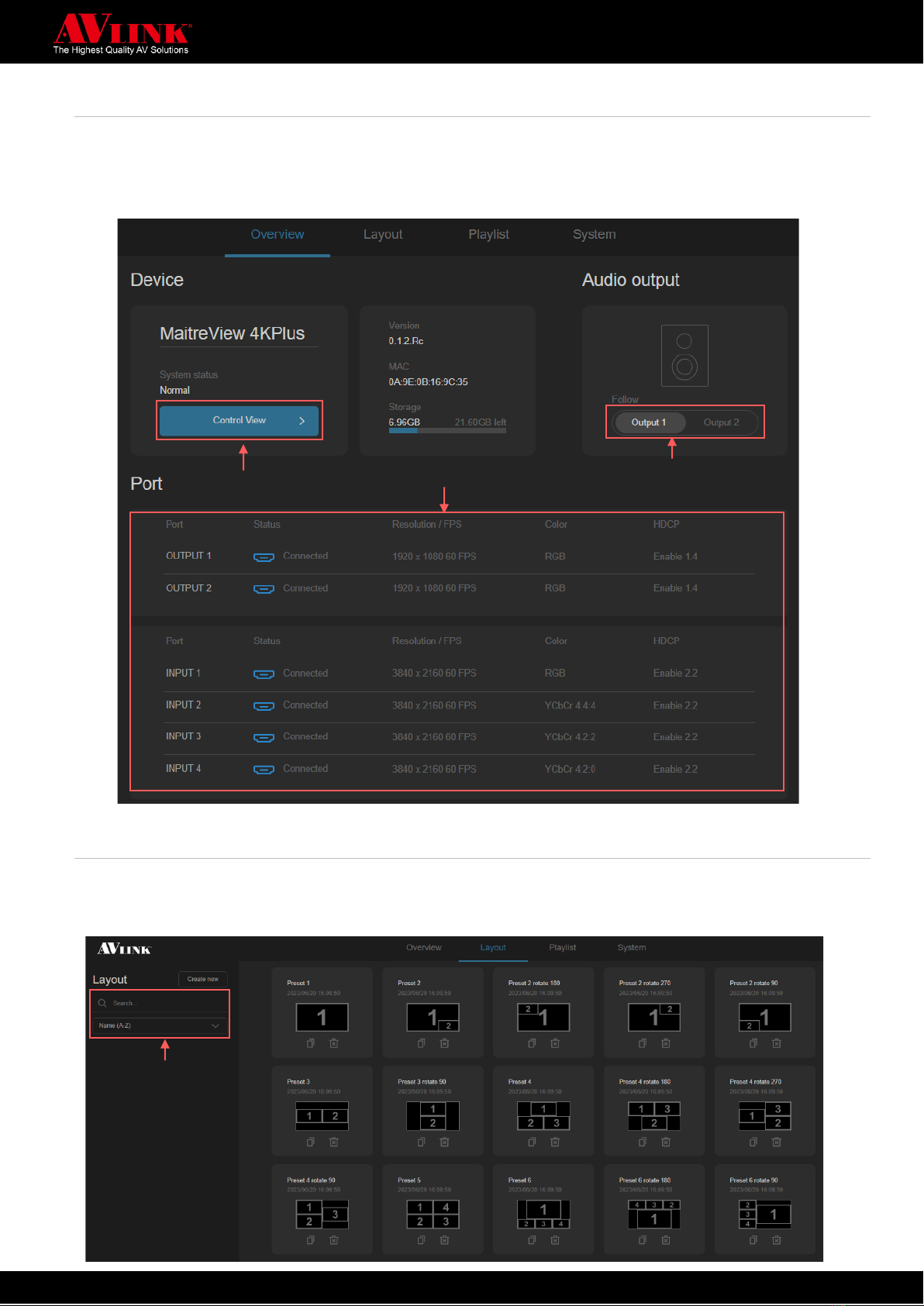

Overview
42
The Overview page shows the device information such as (device name, status, system version, MAC address,
43
storage, Input & Output information, and the additional audio output (3.5mm & S / PDIF) switcher.
44
45
Layout
46
The Layout page serves the following function: create the customized layout, edit the layout, and shows all layout
47
in the device.
48
Use search bar or
drop-down list to
sort and find
layout
Audio Output 3.5mm & S / PIDF
switcher. (Follow output 1 or 2)
Control View
Output and Input information

MaitreView™ 4KPlus Quick Start Guide 8

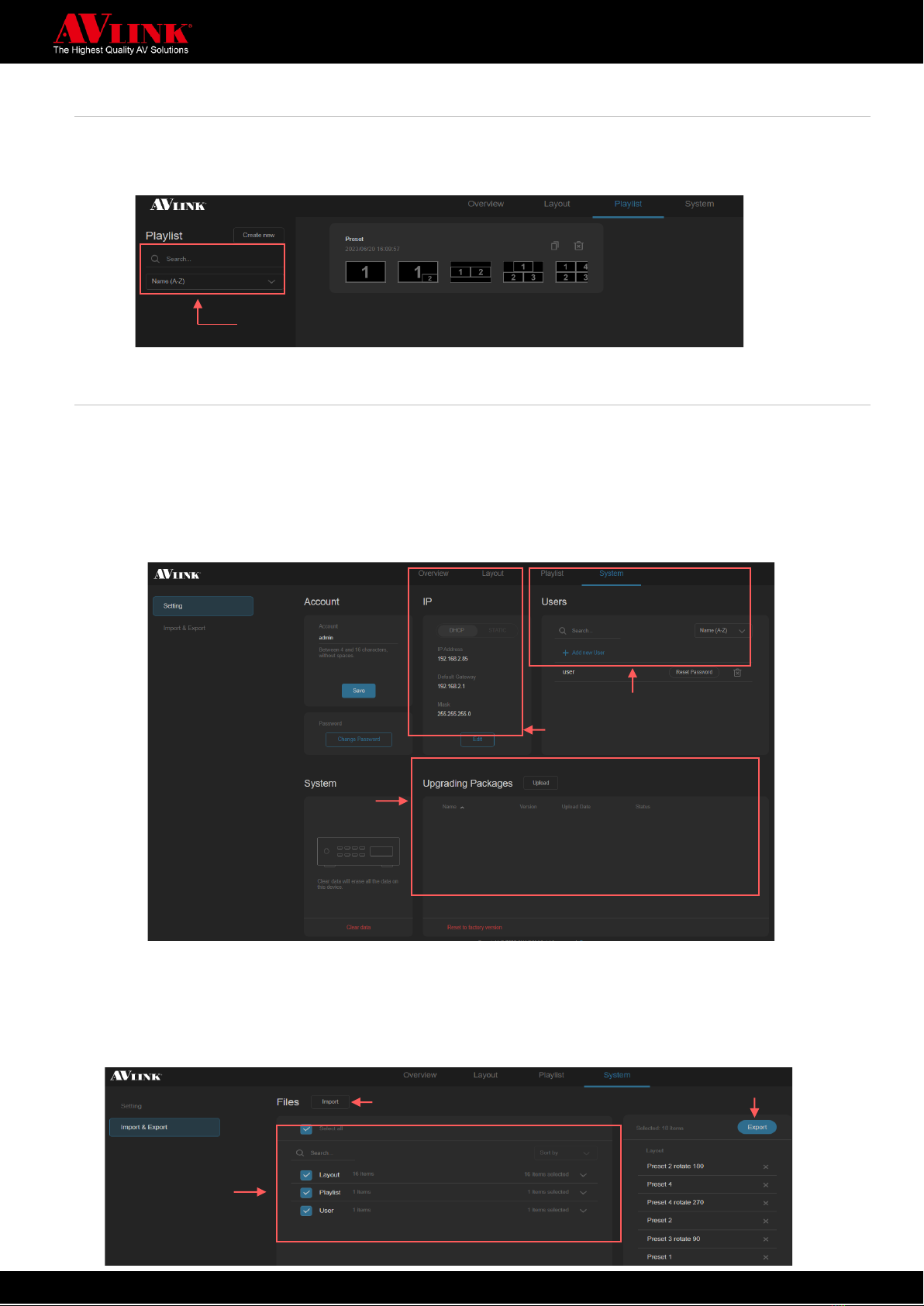

Playlist
49
The Playlist page serves the following function: create the customized playlist, edit the playlist, and shows all
50
playlist on the device.
51
System
52
The System page serves two main functions: Setting, and Import / Export.
53
Setting
54
The Setting subpage shows information for the admin account / password, device IP setting, user management,
55
upgrade package management, and resets the device to the factory version.
56
Import / Export
57
The Import / Export subpage serves the function of importing layouts, playlists, and users configurations from
58
other MaitreView™4KPlus devices, or export layouts, playlists, and users configurations to other MaitreView™
59
4KPlus devices or for backup purposes.
60
61
62
63
64
65
66
67
Use search bar or drop-down list to sort and find layout playlist
File to import
Import
Export
Device IP setting / configuration
User Management
Upgrade package management

MaitreView™ 4KPlus Quick Start Guide 9

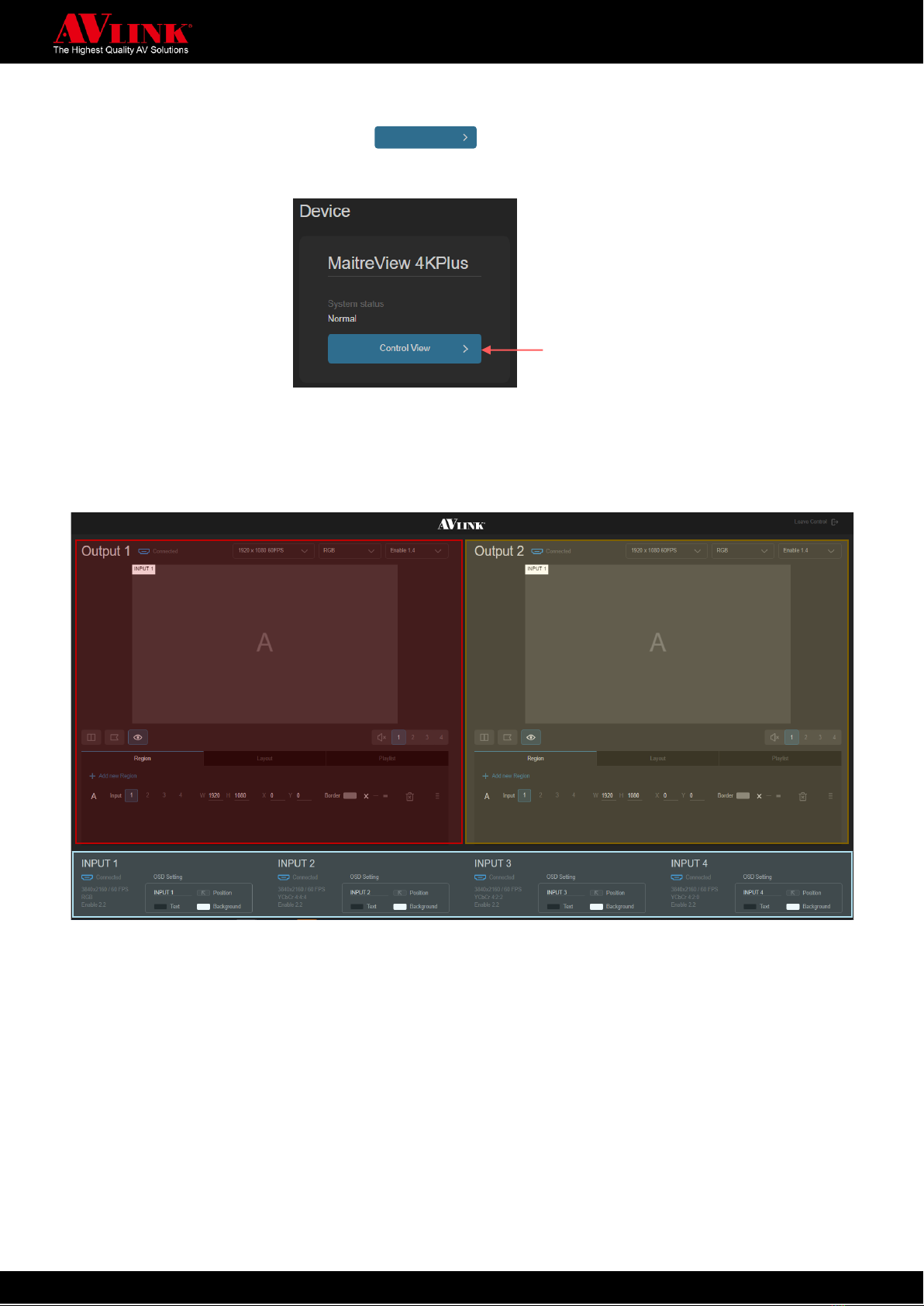

Control View
68
On the Overview page, the ControlView button is under the Device section, click on this button to
69
go to the control view.
70
71
On the Control View page, you can manage the configuration of each output. Each output has an independent
72
layout with a maximum of 4 regions. You can change configurations of the output port, input OSD, region,
73
layout, and playlist on this page.
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
For input 1~4, you can edit OSD text, text position on region, text color, and background color.
91
92
There are more functions to explore to make the best use of the MaitreView™4KPlus, for more detail, please
93
refer to the MaitreView™4KPlus user manual.
94
95
96
97
98
Click to go to control view
Control view

MaitreView™ 4KPlus Quick Start Guide 10
Specifications
99
100
101
Video Processing
Technology
MaitreView™
Performance
Inputs & Outputs up to 4K / 60Hz
Max. number of the split layer
4 split layers on each output port
Region
1 per layer, Max 4 layers per output
Seamless Switch
Available when changing sources or Presets
Configuration & Control
Interface
Front panel, Web GUI, tablet APP (Android tablet & iPad)
Front Panel
LCM
Display IP & device information (status)
LED
System Status
Control Ports
Ethernet
RJ45 Connector
Speed
10 / 100 / 1000Mbps
RS-232
3-pin Terminal Block Header
Video Inputs
Input connectors
4 x HDMI –HDMI 1.4~2.0 & HDCP 1.4 & 2.2 compatibility
Resolution support
4096x2160p, 30 / 50 / 60Hz
3840x2160p, 30 / 50 / 60Hz
1920x1080p, 60Hz
1280x720p, 60Hz
XGA 1024x768, 60Hz
SXGA+ 1400x1050, 60Hz
UVGA 1600x1200, 60Hz
WXGA 1280x800, 60Hz
WSXGA 1680x1050,60Hz
WUXGA 1920x1200, 60Hz
Video Output
Output connectors
2 x HDMI –HDMI 1.4~2.0 & HDCP 1.4 & 2.2 compatibility
Resolution support
4096x2160p, 30 / 50 / 60Hz
3840x2160p, 30 / 50 / 60Hz
2560x1080p, 50 / 60Hz
1920x1080p, 50 / 60Hz
Analog Audio Output
Connector
3.5mm phone Jack
Format
Analog output
Supported sampling rate
48kHz
Sample size
24-bits
Supported channels
Stereo 2 channel
Digital Audio Output
Connector
Toslink
Format
Digital output
Supported sampling rate
48kHz
Sample size
24-bits

MaitreView™ 4KPlus Quick Start Guide 11
102
103
104
Supported channels
S / PDIF
Mechanical
Dimensions (L x W x H)
383 mm x 170 mm x 43 mm
Net Weight
2.017kg
Housing
SGCC (Galvanized steel plate)
Environmental
Operating Temperature
0º to +40ºC (+32º to +104ºF)
Storage Temperature
-10º to +70º C (+14º to +158º F)
Power Supply
External
IN:100V-240VAC OUT: DC 12V / 5A
Connector
Locking
Power consumption
40W (Max consumption during machine operation)
Accessories included
The MaitreView™4KPlus unit
x 1
Power Adapter
x 1
Rack-Mount Bracket
x 2
Quick Start Guide
x 1
