AVstumpfl FULLWHITE User manual

05CS
FULLWHITE
MANUAL

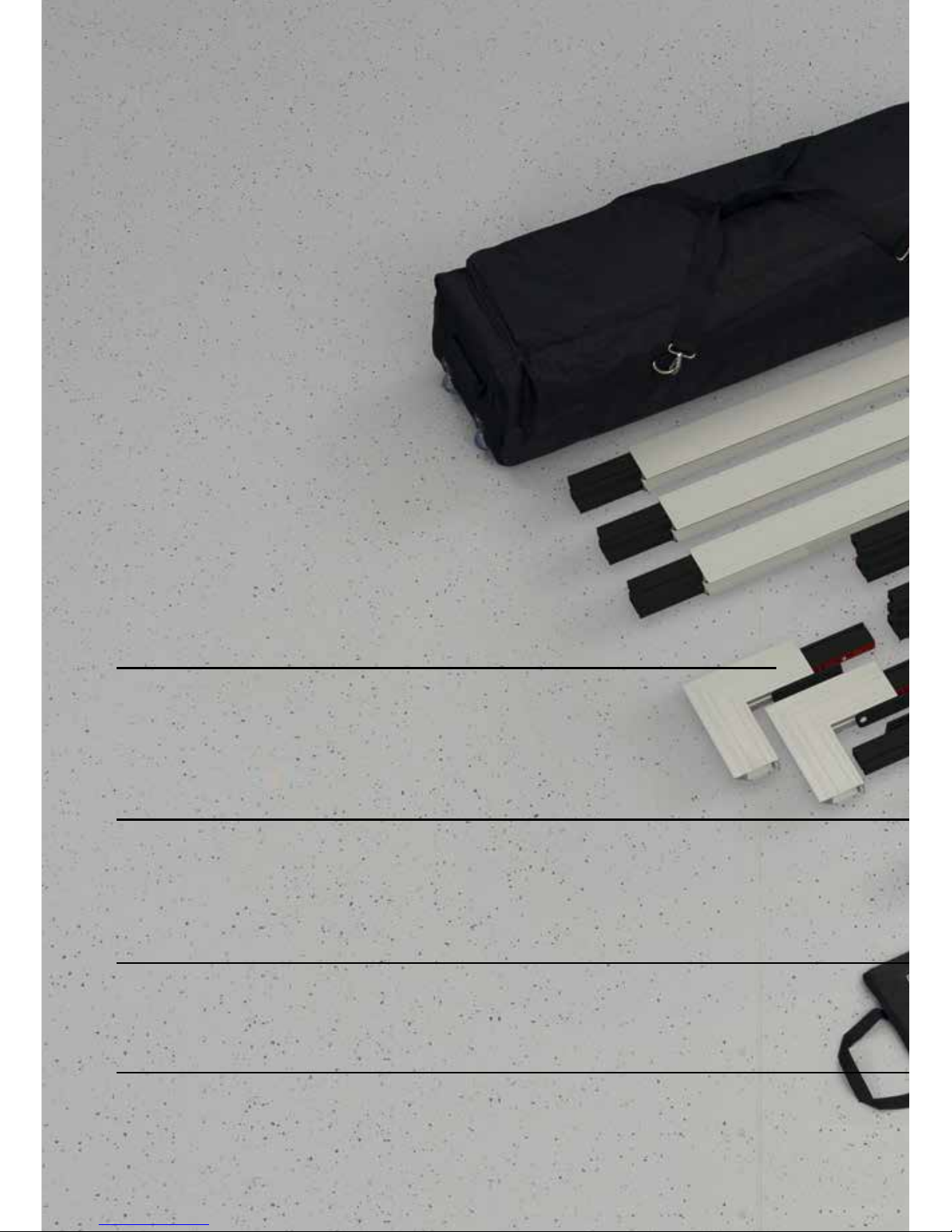

CORNER ELEMENTS
4 pieces- basic frame 52x52 cm
(fig.: including SET UP SUPPORT,optional)

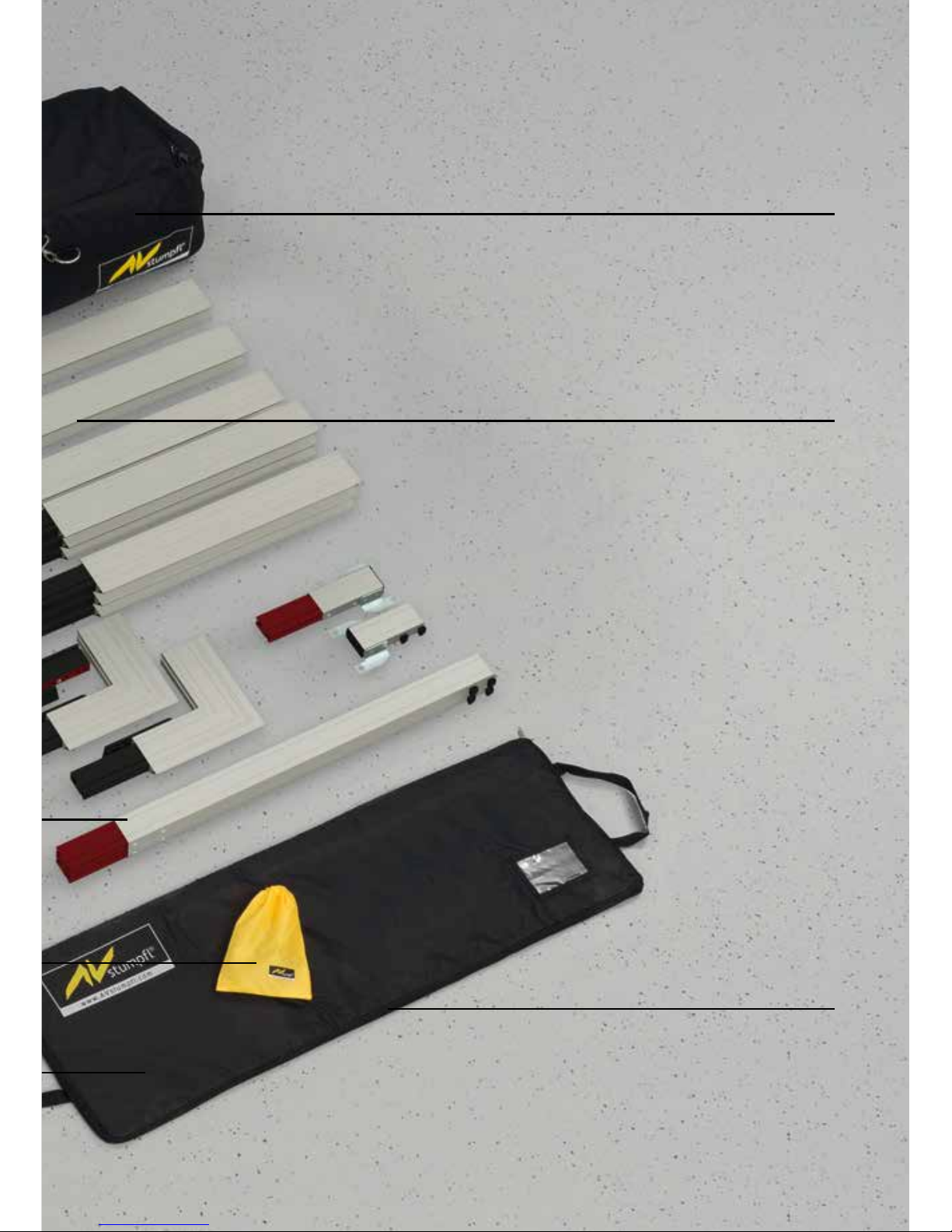

ACCESSORY BAG
Yellow bag for mounting accessories
PROJECTION SCREEN BAG
Lined storage bag for folded projection screen
(Optional transport tube for rolled delivery)
CENTRE SUPPORT
Consists of plug in elements with integrated screw connection

SOFTBAG WITH WHEELS
padded , tearproof nylonbag
with wheels and carrying straps
small 128x25x30 cm
big 133x31x35 cm
(optional Flightcase)
ASSEMBLY INSTRUCTION
FULLWHITE FRAME
Modular plug-in frame system
Basic frame (4 corners 52x52 cm),
Frame components in custom length
Fullwhite compact: standard and
supplementary frame components
in short lengths for small transport volume

©www.pi-tec.com
INDEX
SCOPE OF DELIVERY 2
GENERAL 5
OVERVIEW 6
FULLWHITE FRAME COMPONENTS 7
CLAMP CONNECTION 8
FRAME MOUNTING WITH SET UP SUPPORT 10
CENTER SUPPORT 11
PIVOT NUTS 13
ATTACHMENT OF SET UP SUPPORT 13
MOUNTING OPTIONS 14
FRAME MOUNTING WITHOUT SET UP SUPPORT 15
ACCESSORIES 16
4

QUALITY AND SAFETY:
This projection screen is in accordance with the safety regulations in DIN standard 19045 and DIN 56950.
The screen fabric is comply with DIN 4102 part 1 and the specications of the according data sheet.
WARRANTY:
The warranty period for production deciencies is 5 years for the frame elements and 24 months
for the projection surface. The projection screen is developed for indoor use only. Any damage and
consequential damage caused by outdoor use is not covered by warranty.
FRAME ELEMENTS:
The frame elements, accessories and additional elements are maintenance-free!
PROJECTION SURFACE:
The projection surface is packed into a separate soft bag to avoid any damage by the frame parts,
bleaching and discoloration. Additionally following handling instructions have to be adhered to:
! Do not bring printed and coloring objects (instructions, magazines, etc.) in contact with the
projection surface
! Do not mark the projection surface!
Colors penetrate the projection surface and cannot be cleaned anymore!
Store the projection surface cleaned and dry at room temperature only!
COLD BREAK
A projection foil must never be stored or transported below 0 ° C. There is a risk of a cold break! The
lm becomes very brittle and splinters like glass! When transporting the projection surface at low
temperatures, do not mount the surface unless it has reached its full elasticity at room temperature.
Otherwise there is the risk of cold break of the projection screen.
FOLDED STORAGE
The projection surface has to be folded with the front layer inside and we recommend to lay out the
enclosed foamed plastic foil between the surface layers to avoid permanent marks, soil and
damage.
ROLLED STORAGE
Packing the projection surface we recommend to lay out the enclosed foamed plastic foil between the
surface layers to avoid permanent marks.
CLEANING OF THE PROJECTION SURFACE:
Use a white clean cotton cloth saturated with clear water (optionally mild soap water) and wipe the area
gently in one direction (no circular motion). Wipe dry with another cotton cloth.
To clean a stubborn stain, use methylated spirit and follow the same procedure.
Clean rear projection surfaces in case of imperative only!
Subject to modications, errors expected !
GENERAL
5

OVERVIEW
SYSTEM COMPONENTS:
The hollow chamber prole with trapezoid shape
gives an extra high stability and allows a perfect
wrinkle-free application of the projection surface
on the backside of the prole with hooks or Velcro.
The clamp connectors with the patented shape of
the clamping prole (red) guarantees a secured
and solid connection, like a monolithic system.
The corner parts are designed as a single piece
construction with a minimum tolerance, thereby
ensuring the highest precision.
Further development of the mobile projection screens for applications where hidden technology and
puristic design is required.
With the minimalistic design this projection screen ts easily in every optical superior installation.
Universal, invisible mounting options as well as high stability and exibility are essential features of this
projection system.
clamp connector with
clamping prole (red)
frame prole
clamp screws safety screw
6

1 2
3 4
6
5
6
5
5 5
5 5(6) 6
(6) 6
7
8
10
9

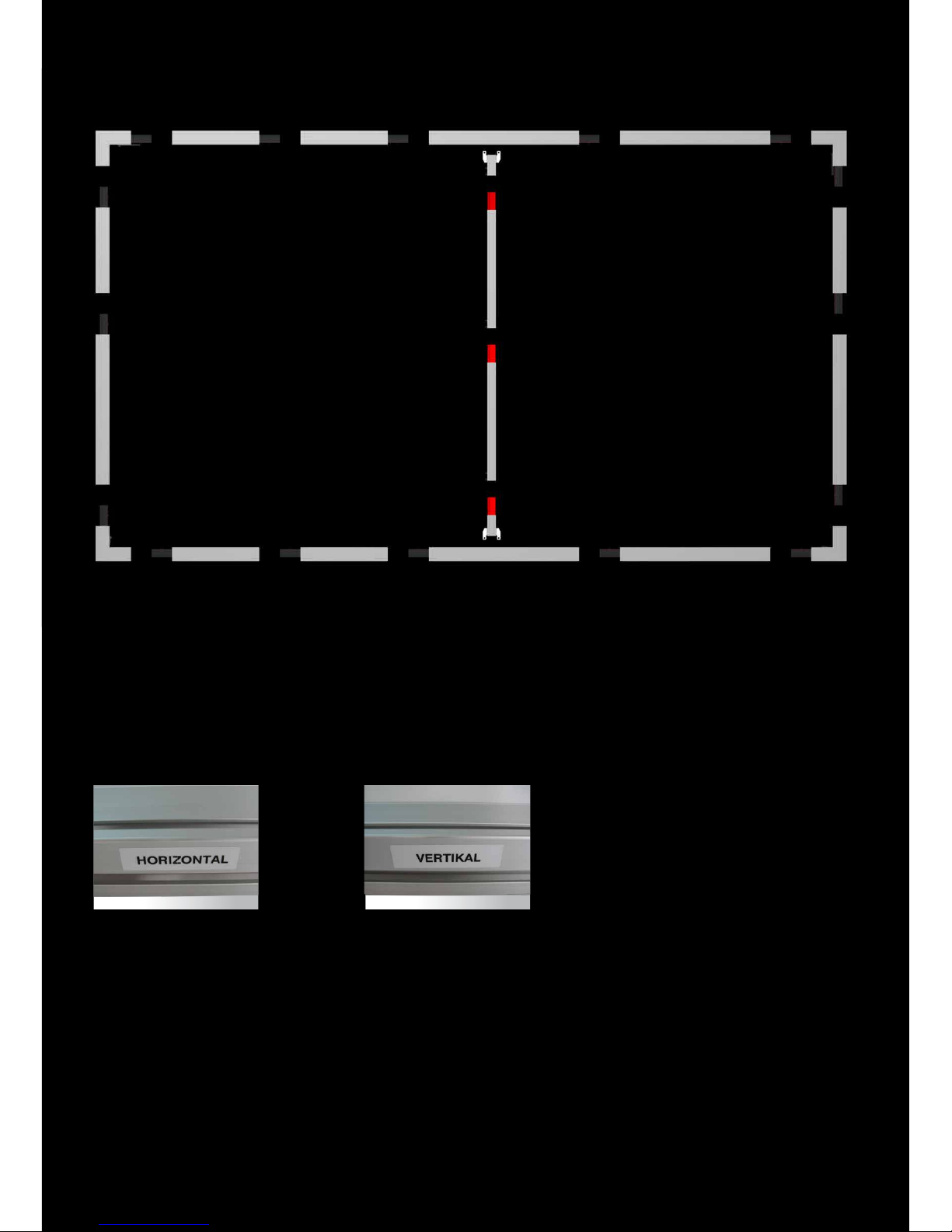

FULLWHITE FRAME COMPONENTS
FULLWHITE
All components of the projection screen are labeled. For assembly, start with the basic frame. Place
the corner elements 1 to 4 according to drawing above. Afterwards separate the frame components to
„horizontal“ and „vertikal“ and halve the number for each frame site.
FULLWHITE compact
For small component lenghts we recommend the frame assembly according to the following description:
Insert the standard elements 5 (110cm) and supplementary frame components 6 (smaller than 110cm)
according to their labeling (see sketch above). In case of two supplementary frame components 6 and (6)
per frame side, the standard elements 5 (110cm) have to be placed in between of the two supplementary
frame components 6 and (6).
or
7

231

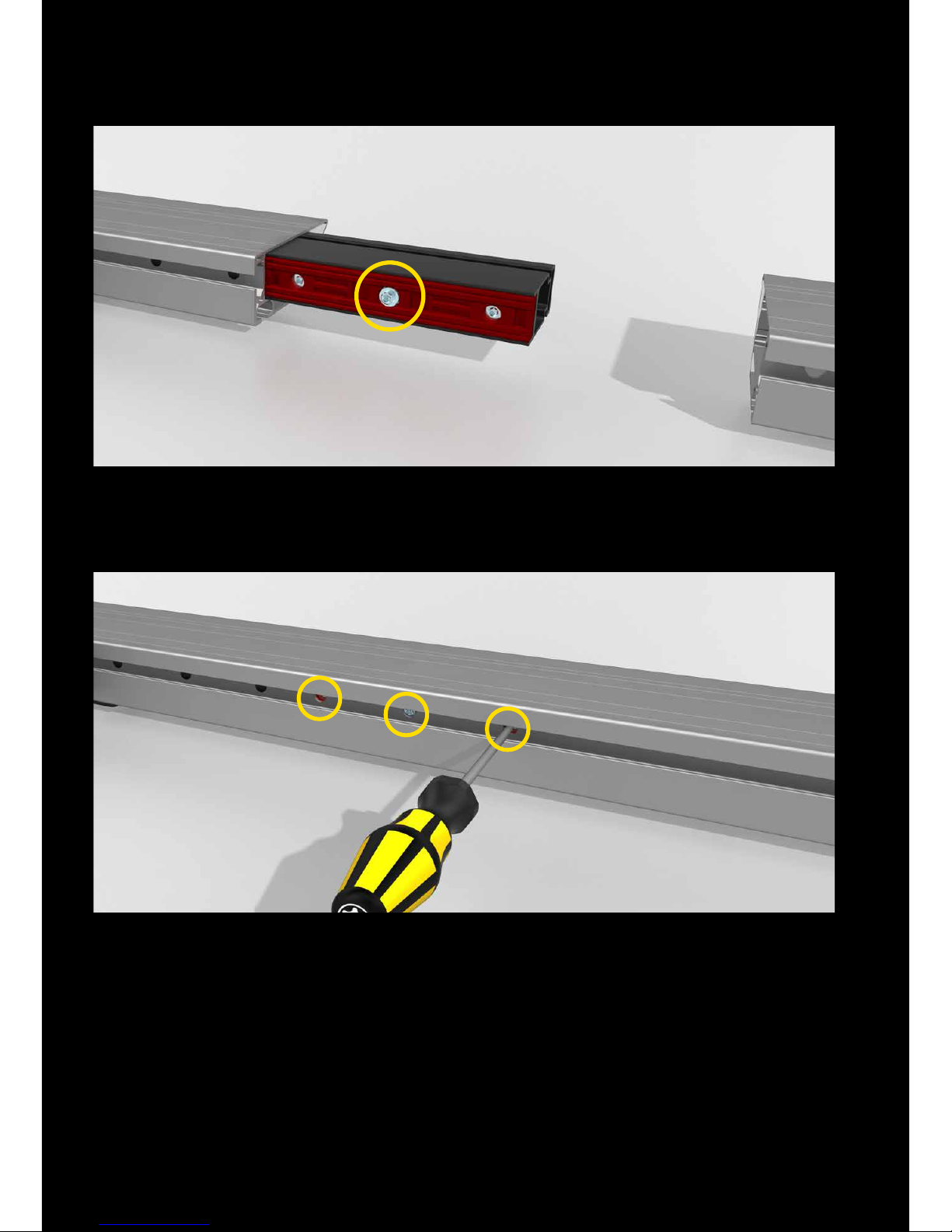

CLAMP CONNECTION
The Fullwhite clamp connector is equipped with a center safety screw.
The clamp connection is tightened with the two screws (1&2) and additionally secured with a center
safety screw (3). Therefore use the included TORX screwdriver TX25.
8

231
FRAME MOUNTING WITH SET UP SUPPORT
FRAME MOUNTING
Detailed instruction for SET UP SUPPORT (optional accessory) on page 13
NOTE: SET UP SUPPORTS can remain folded up on the frame after mounting.
All components of the projection screen are labeled. For assembly, start with the basic frame. Place
the corner elements 1 to 4 according to drawing above. Afterwards separate the frame components to
„horizontal“ and „vertikal“ and halve the number for each frame site.
Put together the connected upper and lower horizontal frame elements with corner parts on each end.
Clamp the connection by turning the two clamp screws clockwise and secure the connections with the
center safety screw. Next plug in the vertical elements, clamp and secure them in the same way.The
vertical connections must always be secured with the center safety screw!
In order to meet international safety requirements during ying applications the clamp connection must
be locked with the integrated safety screw.
PROTECTIVE FOIL
Before you unroll the projection surface with the projection side down, the oor has to be cleaned com-
pletely and the supplied protective foil has to be laid out.
The protective foil is to prevent dirt and damage of the projection surface.
9

2
3 4
5
1
CENTER SUPPORT
1-2 Put together the center support according
to the labels and secure the connections with
the two wing nuts.
3Detach the pivot nuts from the top and
bottom center support element and insert
them into the inner slot of the horizontal frame
bar. (For the insertion of the pivot nut refer to
page 13)
4-5 Place the center support and secure it
on top and bottom with the Phillips screws.
Screwdriver not included.
10

3
21
3 4
SURFACE ATTACHMENT
3-4 Lay out the surface on the frame with the label „OBEN-TOP“ corresponding with the upper frame
bar. It is necessary to carry out this step with several people to avoid damage of the projection surface.
1-2 Foldaway legs hold the projection screen’s frame in position above the oor to allow the surface
attachment from top.
11

5 6
7
1
3
4
2
Finally stretch all the remaining hooks one by one over the prole edge and put them into the bottom
prole slot.
! Please mind the instructions for projection surfaces in chapter GENERAL on page 5!
5-6 Attach the surface by starting at the rst corner to x one vertical and horizontal hook to the corner
clip. Repeat this step according to the order in picture 7.
12

3

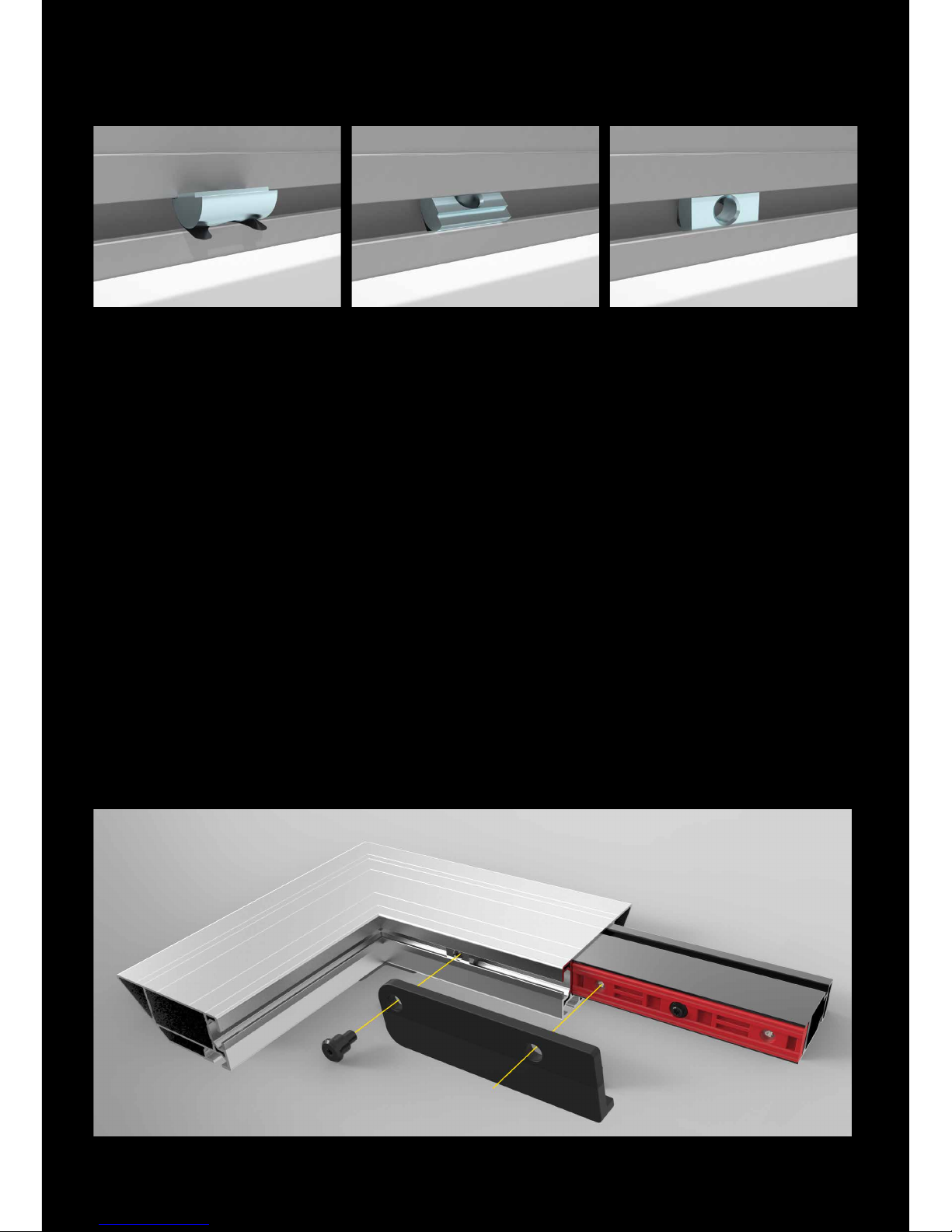

PIVOT NUTS
ATTACHMENT OF SET UP SUPPORT
General attachment of pivot Nuts M8 with exible tongue
(Dierent to the illustration above, the pivot Nuts M8 for SET UP SUPPORT is equipped with a spring
loaded ball)
The installation of the projection surface with large FULLWHITE is done by using SET UP SUPPORTS.
Those foldaway legs hold the frame approx. 12 cm above the oor to allow the surface attachment
from top.
Laying out the projection surface and the frame on the ground is no longer necessary.
NOTE: SET UP SUPPORTS can remain folded up on the frame after mounting.
The SET UP SUPPORTS are attached to each corner and the remaining ones should be mounted
regularely on the horizontal and vertical bars .
Insert the pivot nut into the frame slot and position the SET UP SUPPORT according to the picture
below. The additional opening of the SET UP SUPPORT has to be aligned with the screw of the clamp
connector to get access for tightening.
13

MOUNTING OPTIONS
MOUNTING BRACKET FOR WALL
MOUNTING
Optional as vertical or horizontal mounting point
MOUNTING BRACKET FOR CEILING
SUSPENSION
MOUNTING BRACKETS FOR LEGS:
Individually movable mounting brackets for
legs can be mounted at the inner side of the
frame prole.
14

1
2
3
FRAME MOUNTING WITHOUT SET UP SUPPORT
In case of frame mounting without SET UP SUPPORT the proles have to be placed on the oor with the
prole groove to the top .
15

PROTECTIVE FOIL
Before you unroll the projection surface with the projection side down, the oor has to be cleaned
completely and the supplied protective foil has to be laid out.
The protective foil is to prevent dirt and damage to the projection side of the projection surface.

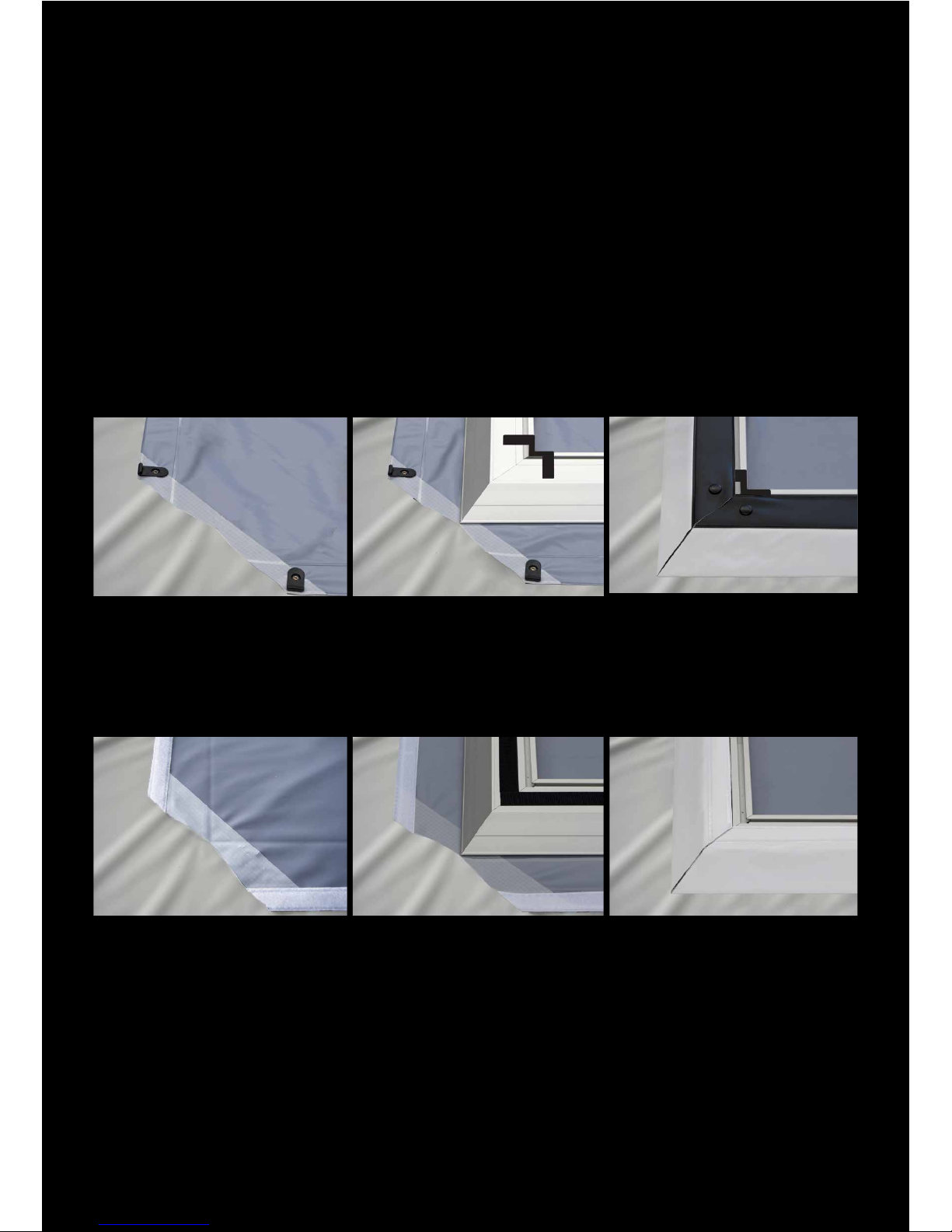

SURFACE MOUNTING
The frame now needs to be placed at onto the backside of the projection surface according to the
photo.This step has to be carried out with several people to avoid any damage of the projection
surface!
Fold the surface to the backside of the frame and thighten it with the Velcro.
PROJECTION SURFACE WITH VELCRO
PROJECTION SURFACE WITH HOOKS
Fold the surface to the backside of the frame, thighten it and x it with the hooks in the slot
The projection surface is kept in position by the special corner clips.
16

3
1 2
ACCESSORIES
RAISING SUPPORT
The interlock of the raising support has to be
secured by pulling back the red angle bracket.
The raising support has to be placed into the
inner groove 1and turned outwards. Doing so
will release the interlock and the angle will slide
in the bottom groove and secures the raising
support 2. When the surface has been attached
to the Fullwhite®projection screen frame and
the screen needs to be raised these devices
keep the projection screen away from the oor
to prevent damaging of the sensitive surface 3.
CONNECTION BRACKETS AND CONNECTION PLATES
To connect Fullwhite frames, several types of connection are available on request.
Example 1: Connection bracket outside corner 90° Example 2: Connection bracket inner corner
17
