AX2V DV-880WM User manual

Model: DV-880WM
2K(1600P) QHD
WIRELESS DASH CAM
User Manual

Thank you for choosing this AX2V DV-880WM 2K(1600P) QHD Wi-
Fi Dash Camera. Please read this user manual carefully before
using the device, keep the manual properly for future use.
■The dash camera combined with functions like WDR, HDR, Loop
Recording, 170° Wide Angle, Night Vision, Parking Monitor and
Time-lapse video recording (Dedicated ACC hardwire kit required),
G-Sensor. With built-in 32G eMMC flash memory storage. Also
provide the Wi-Fi wireless connection via Application to your
smartphone for live monitor, review, download and setting the Dash
Cam device.
■This manual should be kept for installation, operation, and
specification checks. (Specifications may vary upgrades, updates,
and other reasons to change, to prevail in kind.)
Before use:
■Download and install the "Viidure " Application from App Store (iOS)
or Google Play (Android) to your smartphone. Power on the dash cam and
test the smartphone connectivity before the Installation. Make sure the
function works as normal, then start the dash cam installation into your
vehicle.
<<< Preface >>>

■The dash camera with built-in 32G high-speed flash memory as the
video storage space. The external MicroSD Card slot as the optional if you
want to make the backup of the recorded files to the card. (It is
recommended to use a high-speed Calss10 MicroSD card (with C10
marked) for this Dash Cam, Max 128GB supported. (The other low speed
MicroSD card may cause the system slow or other malfunction during the
use.) Format the MicroSD card monthly by Dash Cam via the application
setting menu on the smartphone, or for first use of other MicroSD card.)
■Remove the lens protective film to avoid affecting the recording effect
after installing the product for the first time.
■The Parking Mode functions as the optional functions of this device
(Parking Monitor Collision Detection or Time-lapse Video recording)
required a DC12V power kit hard wire to work with together. (Sold
separate, search ASIN: B0B468JMG1 from Amazon.com)
■ The default SSID of this dash camera is initial letters with
"AX2V_CarDV_xxxx ". The default passcode is: 12345678. You can
change the SSID or passcode from the APP setting menu after connect
the device via a smartphone connection.
■ The dash camera system time and date will be sync with the
smartphone automatically after the device connected to the phone.

Function Keys:
Multi-function Button:
⚫Press to mark as locked of the current recording video. (The file
will be saved at “Lock” folder)
⚫Press and hold for 10s to Reset the hardware and load the default
settings (included the SSID/ PSW of Wi-Fi), after then the dash
camera will be restarted automatically.
Photo Button: Press to take a snapshot.
LED Indicator:
There has 2 LEDs (Upper and lower), Upper LED with Blue color for inner
eMMC storage; Lower LED with Red color for external SD card.
Blue LED Constant On --- Power On but not recording.
Blue LED Slow Flashing --- Recording on eMMC.
Blue LED Off --- Power Off.
<<< Appearance & Function keys >>>

Red LED Constant On --- The external SD card insert, but not recording.
(Can be set On / Off from the setting via APP)
Red LED Slow Flashing--- Video Recording on SD card.
Red LED Off --- The external SD card not insert or not been detected.
For iOS devices: Please search the “Viidure ” from APP Store
download for free.
For Android devices: Please search “Viidure ” from Google
Play download for free.
Or scan the below QR code for quick download.
For iOS device For Android device
<<< APPLICATION Installation >>>

Main UI of APP
<<< APPLICATION QUICK GUIDE >>>

Real-Time Display Interface of APP

File Browse Interface of APP
Click icon from real-time display page into files browse.
Choose “Built-in Storage (eMMC)” to browse the files that saved on eMMC;
Choose “External Storage (TF card)” to browse the files that saved on external
Micro SD card;
Folders:
"Loop": Normal recorded video files with loop recording coverage.
"Snapshot": Snapshot image folder (The Android devices will be downloading the
images to the Smartphone photo album and delete the files on the SD card
automatically after exit APP.)
"Locked": Locked files that won't be auto overwrite in short time (Actives by
Collision during normal recording or Parking Monitor or Time-lapse video recording
modes)
"Parking"：Time-lapse recorded video files

Video Playback Interface of APP
Click any video file from preview folder, into the playback interface.
Kindly note:
The files recorded on the external SD card just with 1080P resolution.
The files downloaded to the smartphone album via Wi-Fi just with 720P resolution.

How to save the 2K resolution original files?
The Dash Camera provide 2K 1600P QHD resolution recording. To save the card
usage space, the 2K files only be saved on the internal eMMC storage; To make a
copy of original 2K resolution files, please follow below instruction.
1. Tap and hold the file that you want to copy till it been selected.
2. Tap “Copy” icon at the bottom of UI, then the file will be saved on the external SD
card.
3. Take out the SD card and use the PC to check or save the files on card via a card
reader.

Dash Camera Setting Options Interface of APP
Paraphrase (Default setting as bold blue marked):
Sound Recording：On/Off
Speaker Volume： Off/Low/Middle/High
Video Resolution: 1600P/1440P/1080P
Loop Recording Options: Off/1Minute/3Minutes/5Minutes
Video Encoding Type：H264/H265
Anti-Flicker：50HZ/60HZ
Time Watermark：On/Off (Date and time display on video)
Flip：On/Off （Flip video up and down）
External Storage Video：On/Off （Set as On to save
copy on external SD Card 1080P only）
Collision Sensing: Off/Low/Middle/High
Low Voltage Regulation (car battery protection) ：
11.8V/12.0V/12.2V
Parking Monitor Collision Detection:
Close/Low/Middle/High (Wake up and record a 30s
video if there detect a collision during parking.)
Parking Record Time：
12Hours/24Hours/48Hours/72Hours/96Hours
(Sustain recording time of time-lapse video)
Time-lapse Video FPS：Off/1FPS/3FPS/5FPS

Wi-Fi Name: Wi-Fi SSID can be customized
Wi-Fi Password: Wi-Fi passcode can be customized
(Press and hold the multi-function button for 10s to
rest the passcode to default "12345678")
Firmware Version: Device Firmware version
Format SD Card: Card format (Built-in eMMC or external
SD card can be chosen). All contents on the card will be
Delete, save the needed files before formatting.
Default Settings: Load the default settings of all
parameters (except Wi-Fi SSID and passcode settings).
The device will be turn off and restart automatically.

Notice: The dash camera recommends to be mounted at the top-middle of
windshield, behind the rear-view mirror. Which not block the driver's vision or
impede the operation.

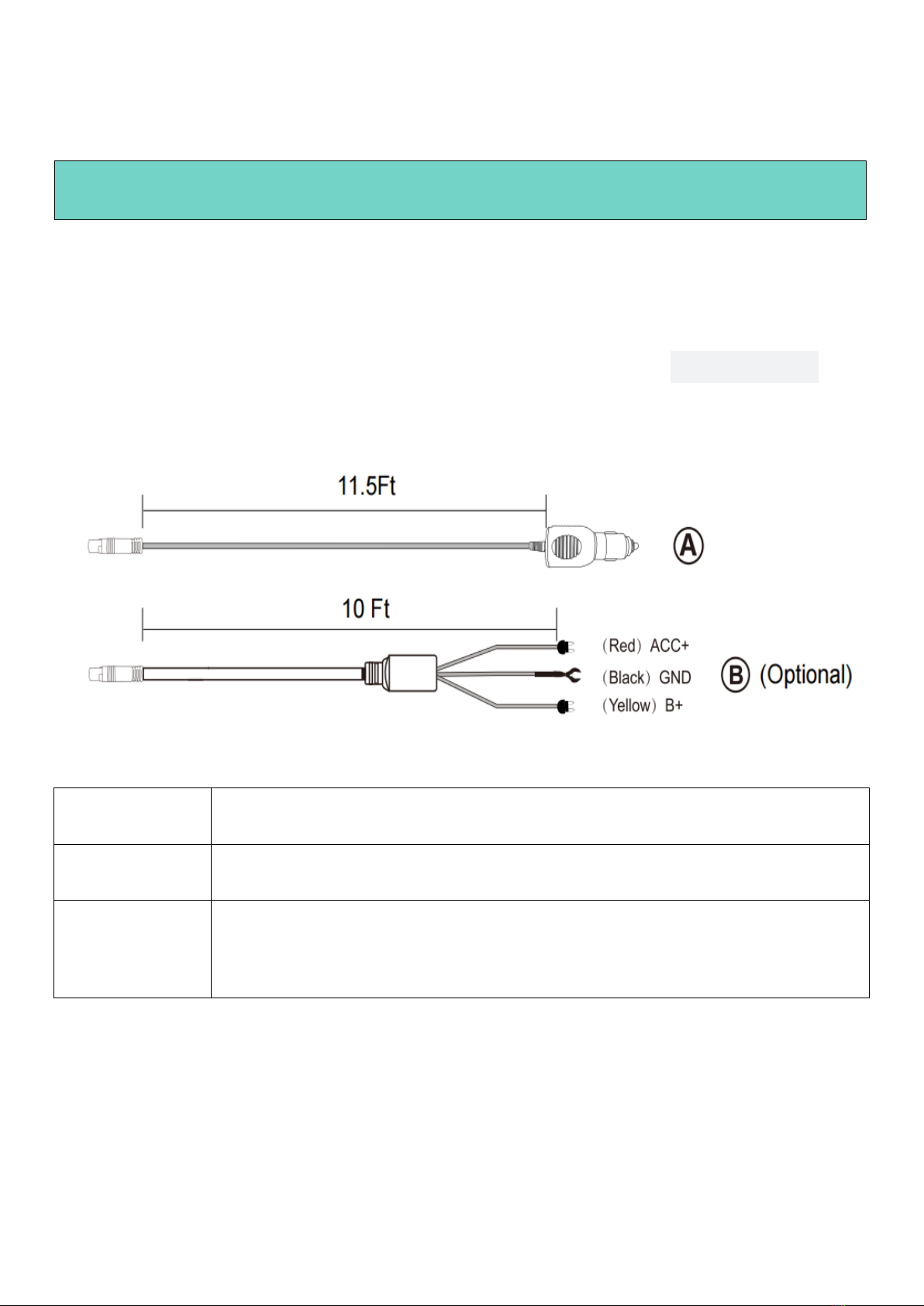

There have two options of the wiring diagram to get the power.
Option A: Use the car cig charger that come with the box. The dash camera
will be power on after the ignition on, and auto power off once engine off.
Option B: Use the ACC power hardware kit to get power from car fuse box.
If there has any question about the installation, please contact with us by email:
[e-mail]
<<< Installation Demo >>>

Note: ACC+ power hardwire kit as an optional accessory for Parking Mode functions
(both Parking Monitor Collision Detection or Time-lapse Video recording), not
included in the package and sold separate. (Search ASIN: B0B468JMG1 from
Amazon.com)
(Red) ACC+
Connect to the ACC DC +12V Power
(Black) GND
Connect to the vehicle metal body
(Yellow) B+
Connect to the car battery constant DC+ 12V power. (Required
for Parking mode / Time lapse functions)
<<< Wiring Diagram >>>

Image Processor: H.264/H.265; 2K 1600P@30fps
Image Sensor: 5M Pixels COMS sensor
Lens: 170°Wide-Angle High-Definition Camera, F1.8
Video Recorder:
Normal recording, time-lapse recording and Collision locked
Video resolution: 2K QHD 1600P@30fps; 1080P@30fps, 720P@30fps
Video format: .TS (H.264 or H.265)
Photo resolution: 2M Pixels
Micro SD card capacity: Class10, up to 128GB card supported.
Wi-Fi: Built-in 2.4G Wi-Fi module
Gravity Sensor: Built-in three-axis collision acceleration sensor
Parking Mode (Optional): Parking Monitor Collision Detection or Time-lapse
Video Recording 2 choose 1 at a time.
Microphone: Built-in，Can be set On/Off via APP Supported
Voice notice: Voice notice of major functions by built-in speaker
Working temperature: -4℉ ~ +149℉ (﹣20℃~ +70℃)
Working Voltage: DC 12V / 1.0A Max
Rate Power: 12W Max
<<< Specification >>>

SD card files path as follows (for PC browsing):
"Loop": Normal recorded video files
"Snapshot": Snapshot image folder (The Android devices will be
downloading the images to the Smartphone photo album and delete the
files on the SD card automatically after exit APP.)
"Locked": Locked files that won't be auto write over (Actives by
Collision during normal recording or Parking Monitor or Time-lapse video
recording modes)
"Parking Mode"：Time-lapse recorded video files
What In the box:
- DV-880WM dash cam x 1pc;
- Mounting Pad with adhesive x 1pc;
- Car Cig Charger × 1pc (Cable Length (11.5FT))
- User Manual x 1pc;
- Crowbar x 1pc
- Electrostatic Film × 1pc;
(Recommend to stick the electrostatic film on the windshield, and then paste the dash cam on the
electrostatic film, so that you can easily adjust the position to get a suitable viewing angle by just
move the film position.)

1. Camera can’t Power On:
Use the original car cig charger that come with box, check the car cig charger LED
indicator is on; Check the Power USB connector been plugged into the dash cam
USB port. Or if use the power hardware kit, check the B+ and ACC wiring are correct,
and make sure that the car is in ignition state.
2. The dash cam recorder cannot record, or the video has
dropped frames or freezes：
① Before use, format the both internal eMMC flash and external SD card (if using)
via setting menu from APP.
② Check the SD card status, a high-speed SD card or above C10 is required for this
device. The low-speed card might cause the system slow or malfunction of the dash
camera.
3. After connecting the recorder Wi-Fi, there is no display from
the APP：
① The permission requirements when opening the app for the first time must be
agreed, otherwise the app cannot be used normally, and it needs to be uninstalled
and reinstalled to obtain the permission again.
② Check the SSID name of the Wi-Fi that connected, should be initial with letters
"AX2V_CarDV_xxxx", otherwise, disconnect the WIFI and reconnect to the correct
WIFI SSID.
③ Ensure that the smartphone does not automatically cut off the Wi-Fi of the recorder.
<<< Common troubleshooting >>>

4. Forget the Wi-Fi passcode
Press and hold the Multifunction Button for 10s, to reset the hardware and load the
default settings, included the passcode of Wi-Fi to "12345678".
If there has any questions or suggestions during the using of the product, please feel
free to let us know, we are 7x24h stand by and will try to find out the best solution for
you ASAP.
Before you return the product, please contact with us first, there might has a
better and prompt solution to solve the issue for you. Make every user satisfied
is our final goal.
For Products information: [e-mail]
For Tech Support or After service: [e-mail]
Notice:
Do not operate the phone or dash cam while driving. The wireless control of dash cam via
Smartphone only after the vehicle safely parked.
Apple, iPhone, iPod, iPad, and APP Store are trademarks of Apple Inc., registered in the U.S. and other countries.
Android, Google Play, and Google are trademarks of Google Inc.
Other trademarks and trade names are those of their respective owners.
iPhones, Android smartphones or any other accessories shown or listed are not supplied and must be purchased
separately.
Design and specifications are subject to change without notice.
Printed in China
