I. Overview
The CAN (ControllerArea Network) is a serial bus system and is
usually used in structuring intelligent industrial device networks and
building smart automatic control systems. The iCON-101CU is a
cost-efficient industrial converter for pairs to PC using the standard
USB interface. It supports CAN monitor tool that displays the CAN
received message in decimal or hexadecimal mode. This converter
shows the time stamp of each received message. The GUI
management program and programming guide both are ready for
use. The CAN host, monitor or HMI can access and control CAN
device through iCON-101CU.
There is a User’s Manual CD-ROM for the iCON-101CU
system. Please consult your local vendor for assistance if
you have any difficulties in installing.

iCON-101CU Quick Installation Guide
©Copyright 2011AXIOMTEK Co., Ltd.
Version A1 Oct2011
Printed in Taiwan
9413C101000E
2
II. Features
Full compliance with USB 1.1/2.0 (fully speed)
Full compliance with CAN 2.0A and CAN 2.0B
D-sub DB9 CAN port support 3KV isolation
Easily setup to CAN terminator by software configuring
CAN transmission speed up to 1Mbps
Powered by the USB bus
USB type B connector Complies with Class 1, DIV II minimum
withdrawal requirement of 15N
Provides DIN-Rail mounting, Status LED indicators
Driver supports Windows® Server 2008; 2003/Vista/2000/XP/7
and Linux OS
-40~70℃wide temperature operating Suitable for industrial
automation and power automation field applications
III. USB connector
IV. CAN interface connector
Pin Signal Pin Signal
1 5V 2 D-
3 D+ 4 GND
Pin Signal Function
1 NC No connect
2 CAN_L CAN data line (Low)
3 ISOGND Ground
4 NC No connect
5 NC No connect
6 ISOGND Ground
7 CAN_H CAN data line (High)
8 NC No connect
9 5V (option) 5V (Option)
All Components are fragile and sensitive. If you need to replace or return any components for repair, you must
contact authorized technicians for a professional handling.

iCON-101CU Quick Installation Guide
©Copyright 2011AXIOMTEK Co., Ltd.
Version A1 Oct2011
Printed in Taiwan
9413C101000E
3

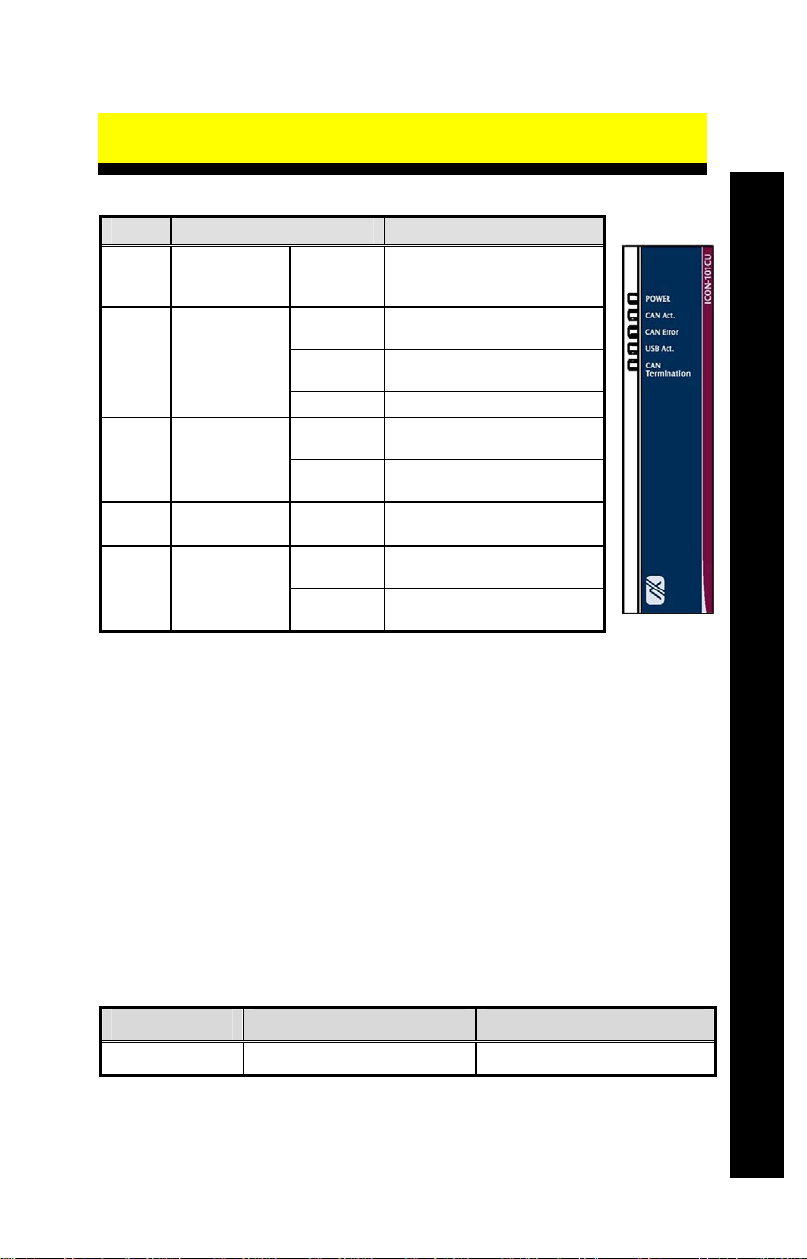

V. LED indicator
VI. Driver
It is necessary to install driver so the iCON-101CU can work properly
under operating system.About how to install the device driver under
Windows XP. You can follow the user manual instructions to install
the driver.
VII. Commands
To meet user’s application purpose, commands are provided for
CAN module management, transmitting and receiving messages
through iCON-101CU. Each command consists of 3 parts: StartByte,
ContentOfCommand and StopByte.
StartByte ContentofCommand StopByte
@CMD 0x0d (carriage return)
LED Color Function
D1 Green
(POWER) Light on Power status indicator. The
LED light is on when
iCON-101CU is powered on.
Light on PC is sending data to CAN
network.
Flashing PC is reading data from
CAN network.
D2 Green
(CAN Act.)
Light off CAN transmission is idle.
Light on CAN transmission error
occurred.
D3 Orange
(CAN Error) Light off CAN transmission is
working properly.
D4 Green
(USB Act.) Flashing The LED light flashes during
USB data transmission.
Light on CAN termination resistor is
enabled.
D5 Orange
(CAN
Termination)
Light off CAN termination resistor is
disabled.
There is a User’s Manual CD-ROM for the iCON-101CU
system. Please consult your local vendor for assistance if
you have any difficulties in installing. the system.

iCON-101CU Quick Installation Guide
©Copyright 2011AXIOMTEK Co., Ltd.
Version A1 Oct2011
Printed in Taiwan
9413C101000E
4
Operation can be set to command and data mode. In command
mode, CAN module accepts commands and this is the default mode.
Data mode is the mode that only and automatically report CAN
messages to UART port or USB port based on settings until user
inputs command string ‘+++’.
VIII. Utility
You can use hyperterminal program to send and retrieve command
messages from iCON-101CU. Or Use AXCAN utility to configure
CAN communication parameters. It is also used to transmit or
receive CAN messages for simple function testing.About how to
installAXCAN software utility please follow the user manual
instructions.
