Axis FA54 User manual

AXISFA54MainUnit
UserManual

AXISFA54MainUnit
TableofContents
Solutionoverview...........................................3
Productoverview...........................................4
Connectsensorunits.............................................4
Findthedeviceonthenetwork................................6
Openthedevice'swebpage.......................................6
Securepasswords...............................................6
Congureyourdevice........................................7
Webpageoverview..............................................7
Monitorlongandnarrowareas....................................7
Viewlivevideostreamonamonitor................................
Maximizethedetailsinanimage..................................
Reducebandwidthandstorage....................................
Bitratecontrol..................................................9
Handlesceneswithstrongbacklight................................10
Applications....................................................1 1
Thedeviceinterface.........................................14
Status........................................................14
Video.........................................................14
Audio.........................................................22
Recordings.....................................................23
Apps..........................................................23
System........................................................24
Maintenance...................................................3
Specications..............................................40
LEDIndicators..................................................40
SDcardslot....................................................40
Buttons.......................................................40
Connectors....................................................40
Troubleshooting............................................43
Resettofactorydefaultsettings...................................43
Checkthecurrentrmwareversion.................................43
Upgradethermware............................................43
Technicalissues,clues,andsolutions................................44
Performanceconsiderations.......................................45
2

AXISFA54MainUnit

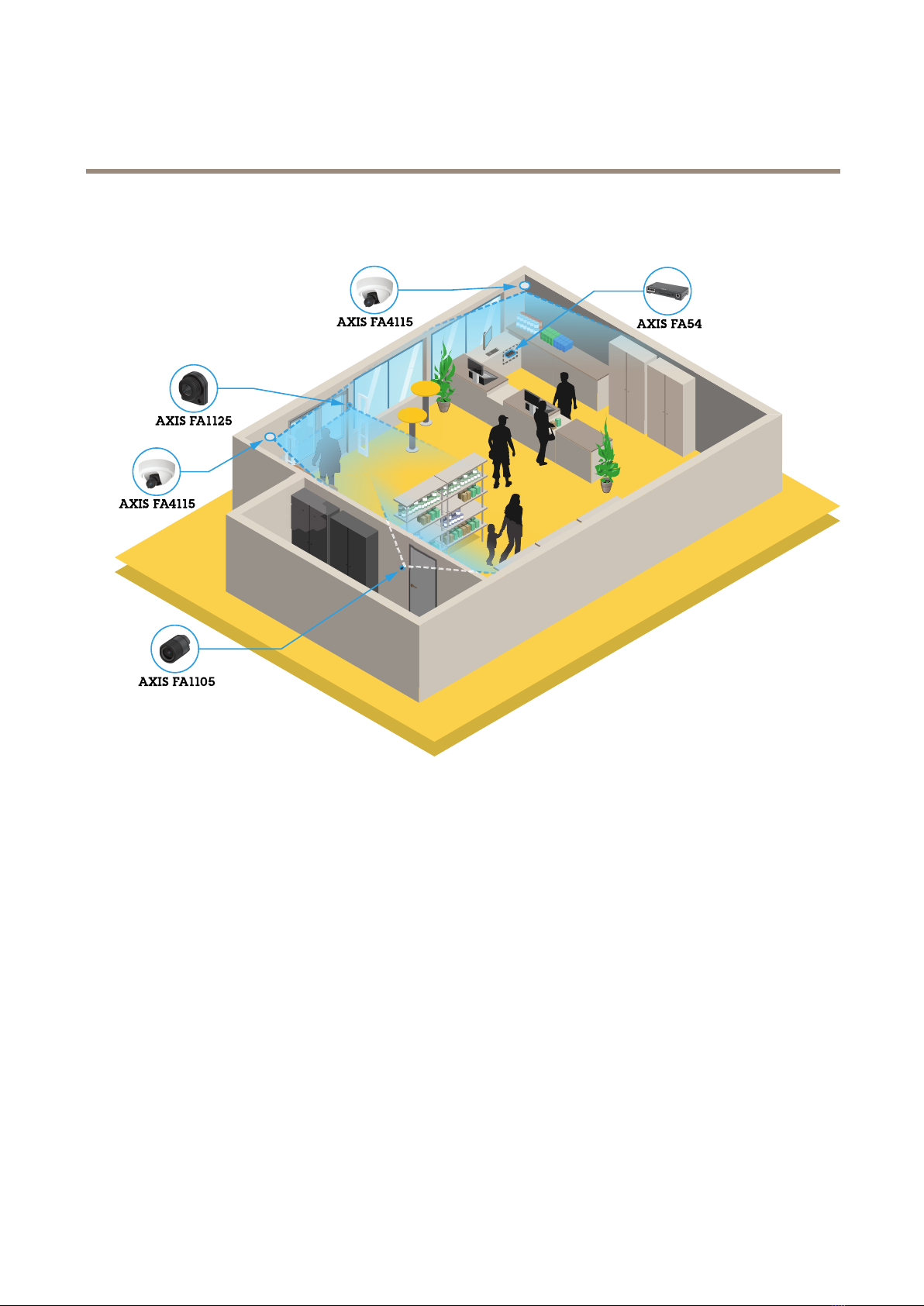

Solutionoverview
Solutionoverview
3

AXISFA54MainUnit
Productoverview
Productoverview
1StatusLED
2RJ12connector(4x)
3HDMI
4Audioin(2x)
5Audioout
6I/connector
7Powerconnector
8Networkconnector(DCinput)
9Controlbutton
10microSDcardslot
Connectsensorunits
Whenyouconnectasensorunittoamainunit,werecommendthatyoumaketheconnectionbeforeyoupowerupthemainunit.If
youdisconnectasensorunitandconnectadifferentone,youmustrestartthemainunit.
Shortenthesensorunitcable
Note
•Thesensorunitcablecannotbeextendedorsplit.
•Whenroutingthesensorunitcable,theminimumbendingradiusis40mm.
Thesensorunitisdeliveredwithacable.Toshortenthecablefollowthesesteps:
1.Cutthecabletothedesiredlength.Measurefromthesensorunit.
2.Striptheplasticoutercoatingfromtheendofthecable.
3.Peelbacktheshield.
4.Flattenthecoloredwiresintheorderdescribedbelow.
1Brown
2White/brown
3Notused
4Notused
4

AXISFA54MainUnit
Productoverview
5White/blue
6Blue
5.Insertthewiresallthewayintoashielded6P6CRJ12connector.
N N
NTICE TICE TICE
Makesurethatthewiresstayinthecorrectorderandthatthecableshieldmakesgoodcontactwiththeconnectorshield.
6.Useacrimpingtooltofastentheconnectortothecable.
5

AXISFA54MainUnit
Findthedeviceonthenetwork
Findthedeviceonthenetwork
TondAxisdevicesonthenetworkandassignthemIPaddressesinWindows®,useAXISIPUtilityorAXISDeviceManager.Both
applicationsarefreeandcanbedownloadedfromaxis.com/support.
FormoreinformationabouthowtondandassignIPaddresses,gotoHowtoassignanIPaddressandaccessyourdevice.
Openthedevice'swebpae
1.OpenabrowserandentertheIPaddressorhostnameoftheAxisdevice.
IfyoudonotknowtheIPaddress,useAXISIPUtilityorAXISDeviceManagertondthedeviceonthenetwork.
2.Entertheusernameandpassword.Ifyouaccessthedeviceforthersttime,youmustsettherootpassword.SeeSeta
newpasswordfortherootaccountonpage6.
Securepasswords
Important
Axisdevicessendtheinitiallysetpasswordincleartextoverthenetwork.Toprotectyourdeviceaftertherstlogin,set
upasecureandencryptedHTTPSconnectionandthenchangethepassword.
Thedevicepasswordistheprimaryprotectionforyourdataandservices.Axisdevicesdonotimposeapasswordpolicyasthey
maybeusedinvarioustypesofinstallations.
Toprotectyourdatawestronglyrecommendthatyou:
•Useapasswordwithatleastcharacters,preferablycreatedbyapasswordgenerator.
•Don’texposethepassword.
•Changethepasswordatarecurringinterval,atleastonceayear.
Setanewpasswordfortherootaccount
Thedefaultadministratorusernameisroot.There’snodefaultpasswordfortherootaccount.Yousetapasswordtherst
timeyoulogintothedevice.
1.Typeapassword.Followtheinstructionsaboutsecurepasswords.SeeSecurepasswordsonpage6.
2.Retypethepasswordtoconrmthespelling.
3.ClickAdduser.Thepasswordhasnowbeencongured.
Important
Ifyoulosethepasswordfortherootaccount,gotoResettofactorydefaultsettingsonpage43andfollowtheinstructions.
6

AXISFA54MainUnit
Confiureyourdevice
Confiureyourdevice
Webpaeoverview
Thisvideogivesyouanoverviewofthedeviceinterface.
Towatchthisvideo,gotothewebversionofthisdocument.
www.axis.com/products/online-manual/32947#t10157625
Axisdevicewebinterface
Needmorehelp?
Youcanaccessthebuilt-inhelpfromthedevice’swebpage.Thehelpprovidesmoredetailedinformationonthedevice’sfeaturesand
theirsettings.
Monitorlonandnarrowareas
Usecorridorformattobetterutilizethefulleldofviewinalongandnarrowarea,forexampleastaircase,hallway,road,ortunnel.
7

AXISFA54MainUnit
Confiureyourdevice
1.Dependingonyourdevice,turnthecameraorthe3-axislensinthecamera90°or270°.
2.Ifthedevicedoesn’thaveautomaticrotationoftheview,gotoVideo>nstallation.
3.Rotatetheview90°or270°.
Findoutmoreataxis.com/axis-corridor-format.
Viewlivevideostreamonamonitor
ThecameracantransmitalivevideostreamtoanHDMImonitorwithouttheneedforanetworkconnection.Themonitorcanbe
usedforsurveillancepurposes,orforpublicviewing,e.g.inastore.
1.ConnectanexternalmonitorusingtheHDMIconnector.
2.OpentheHDMIsettings,underSettings>System>HDM.
3.SelectwhattoviewontheHDMIoutput.TouseSinglesource—selecttherequiredcamera.
N N
NTICE TICE TICE
•TheoptionsavailabletoshowoverHDMIwillvarydependingontheconnectedsensorunits(optical,thermalora
combinationofthese).
•Pleaserestartthemainunitafterchangingthecombinationofconnectedsensors.
Note
ImageandtextoverlaywillnotbedisplayedonvideostreamoverHDMI.
Overlaysaresuperimposedoverthevideostream.Theyareusedtoprovideextrainformationduringrecordings,suchasatimestamp,
orduringproductinstallationandconguration.Youcanaddeithertextoranimage.
Maximizethedetailsinanimae
Important
Ifyoumaximizethedetailsinanimage,thebitratewillprobablyincreaseandyoumightgetareducedframerate.
•Makesuretoselectthecapturemodethathasthehighestresolution.
•GotoVideo>Stream>Generalandsetthecompressionaslowaspossible.
•Belowtheliveviewimage,clickandinVideoformat,selectMJPEG.
•GotoH.264andH.265encodingandturnoffZipstreamfunctionality.
Reducebandwidthandstorae
Important
Reducingthebandwidthcanresultinlossofdetailsintheimage.
1.GotoVideo>Stream.
2.Clickintheliveview.
3.SelectVideoformatH.264.
4.GotoVideo>Stream>GeneralandincreaseCompression.
8

AXISFA54MainUnit
Confiureyourdevice
5.GotoVideo>Stream>H.264andH.265encodinganddooneormoreofthefollowing:
-SelecttheZipstreamlevelthatyouwanttouse.
-TurnonDynamicFPS.
-TurnonDynamicGOPandsetahighUpperlimitGOPlengthvalue.
Bitratecontrol
Withbitratecontrol,youcanmanagethebandwidthconsumptionofyourvideostream.
Variablebitrate(VBR)
Withvariablebitrate,thebandwidthconsumptionvariesbasedonthelevelofactivityinthescene.Themoreactivityinthescene,
themorebandwidthyouneed.Youareguaranteedconstantimagequalitybutitrequiresstoragemargins.
Maximumbitrate(MBR)
Withmaximumbitrate,youcansetatargetbitratetohandlebitratelimitationsinyoursystem.Youmayseeadeclineinimage
qualityorframeratewhentheinstantaneousbitrateiskeptbelowthespeciedtargetbitrate.Youcanchoosetoeitherprioritize
imagequalityorframerate.Werecommendthatyoucongurethetargetbitratetoahighervaluethantheexpectedbitrate.This
givesyouamarginforadditionalcomplexitythatneedstobecaptured.

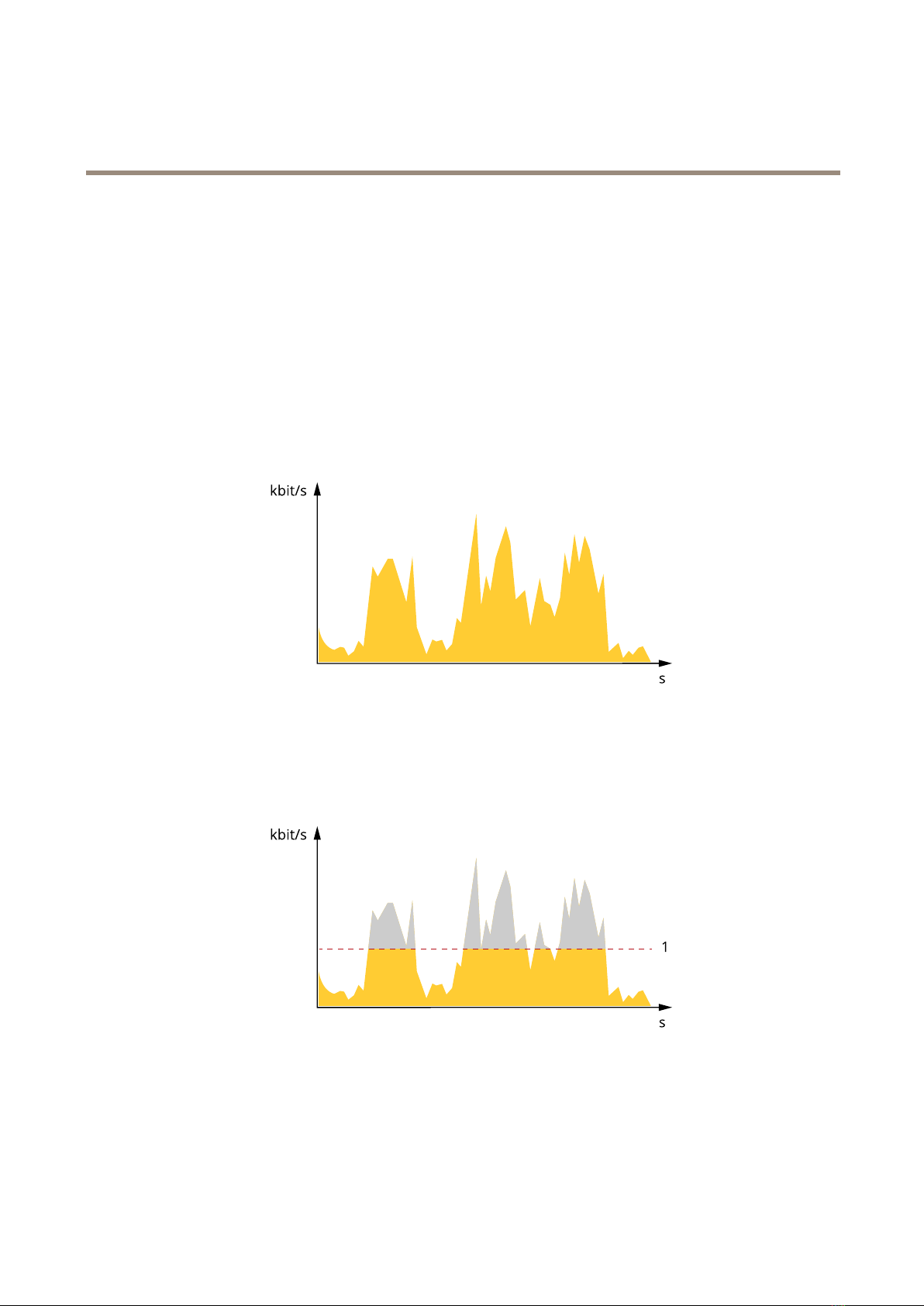

1Targetbitrate
Averagebitrate(ABR)
Withaveragebitrate,thebitrateisautomaticallyadjustedoveralongertimescale.Thisissoyoucanmeetthespeciedtargetand
providethebestvideoqualitybasedonyouravailablestorage.Bitrateishigherinsceneswithalotofactivity,comparedtostatic
scenes.Youaremorelikelytogetbetterimagequalitywhenneededwhenusingtheaveragebitrateoption.Youcandenethetotal
9

AXISFA54MainUnit
Confiureyourdevice
storagerequiredtostorethevideostreamforaspeciedamountoftime(retentiontime)whenimagequalityisadjustedtomeetthe
speciedtargetbitrate.Specifytheaveragebitratesettingsinoneofthefollowingways:
•Tocalculatetheestimatedstorageneed,setthetargetbitrateandtheretentiontime.
•Tocalculatetheaveragebitrate,basedonavailablestorageandrequiredretentiontime,usethetargetbitratecalculator.
kbit/s
s
1
2
1Targetbitrate
2Actualaveragebitrate
Youcanalsoturnonmaximumbitrateandspecifyatargetbitratewithintheaveragebitrateoption.
kbit/s
s
1
2
1Targetbitrate
2Actualaveragebitrate
Handlesceneswithstronbackliht
Dynamicrangeisthedifferenceinlightlevelsinanimage.Insomecasesthedifferencebetweenthedarkestandthebrightest
areascanbesignicant.Theresultisoftenanimagewhereeitherthedarkorthebrightareasarevisible.Widedynamicrange
(WDR)makesbothdarkandbrightareasoftheimagevisible.
10

AXISFA54MainUnit
Confiureyourdevice
ImagewithoutWDR.
ImagewithWDR.
Note
•WDRcancauseartifactsintheimage.
•WDRmaynotbeavailableforallcapturemodes.
1.Gotomage>Widedynamicrange.
2.TurnonWDR.
3.UsetheLocalcontrastslidertoadjusttheamountofWDR.
4.Ifyoustillhaveproblems,gotoExposureandadjusttheExposurezonetocovertheareaofinterest.
FindoutmoreaboutWDRandhowtouseitataxis.com/web-articles/wdr.
Applications
AXISCameraApplicationPlatform(ACAP)isanopenplatformthatenablesthirdpartiestodevelopanalyticsandotherapplications
forAxisproducts.Tondoutmoreaboutavailableapplications,downloads,trialsandlicenses,gotoaxis.com/applications.
TondtheusermanualsforAxisapplications,gotoaxis.com.
Note
•Severalapplicationscanrunatthesametimebutsomeapplicationsmightnotbecompatiblewitheachother.Certain
combinationsofapplicationsmightrequiretoomuchprocessingpowerormemoryresourceswhenruninparallel.Verify
thattheapplicationsworktogetherbeforedeployment.
11

AXISFA54MainUnit
Confiureyourdevice
Towatchthisvideo,gotothewebversionofthisdocument.
www.axis.com/products/online-manual/32947#t10001688
Howtodownloadandinstallanapplication
Towatchthisvideo,gotothewebversionofthisdocument.
www.axis.com/products/online-manual/32947#t10001688
Howtoactivateanapplicationlicencecodeonadevice
AXISPeopleCounter
AXISPeopleCounterisananalyticapplicationthatyoucaninstallonanetworkcamera.Youcanusetheapplicationtocounthow
manypeoplepassthroughanentrance,inwhatdirectiontheypass,andifmorethanonepersonpassesduringapredenedinterval.
Youcanalsouseittoestimatehowmanypeoplearecurrentlyoccupyinganarea,andtheaveragevisitingtime.
Theapplicationrunsembeddedinthecamerawhichmeansyoudon’tneedadedicatedcomputertoruntheapplication.
AXISPeopleCounterissuitableforanyindoorenvironment,likestores,libraries,orgyms.
Howdoesestimatingoccupancywork?
Youcanusetheapplicationtoestimateoccupancyinareaswithoneorseveralentrancesandexits.Eachentranceandexitneedstobe
equippedwithanetworkcamerawithAXISPeopleCounterinstalled.Ifthereareseveralcameras,theycommunicatewitheachother
overthenetworkinaprimaryandsecondaryconcept.Theprimarycameracontinuouslyfetchesdatafromthesecondarycamerasand
12

AXISFA54MainUnit
Confiureyourdevice
presentsthedataintheliveview.Everyfteenminutes,theprimarycamerasendsthestatisticaldatatoAXISStoreDataManager.
Consequently,thereportsgeneratedfromAXISStoreDataManagercanpresentthedatainaminimumof15minutestimeinterval.
13

AXISFA54MainUnit
Thedeviceinterface
Thedeviceinterface
Note
Supportforthefeaturesandsettingsdescribedinthissectionvariesbetweendevices.
Showorhidethemainmenu.
Accesstheproducthelp.
Changethelanguage.
Setlightthemeordarktheme.
Seeinformationabouttheuserwhoisloggedin.
Thecontextmenucontains:
•Analyticsdata:Accepttosharenon-personalbrowserdata.
•Feedback:Shareanyfeedbacktohelpusimproveyouruserexperience.
•Legal:Viewinformationaboutcookiesandlicenses.
•About:Viewdeviceinformation,includingrmwareversionandserialnumber.
Status
NTPsync
ShowsNTPsynchronizationinformation,includingifthedeviceisinsyncwithanNTPserverandthetimeremaininguntil
thenextsync.
NTPsettings:ClicktogototheDateandtimepagewhereyoucanchangetheNTPsettings.
Deviceinfo
Showsdeviceinformation,includingrmwareversionandserialnumber.
Upgradermware:ClicktogototheMaintenancepagewhereyoucandoarmwareupgrade.
Video
Clicktoplaythelivevideostream.
Clicktofreezethelivevideostream.
Clicktotakeasnapshotofthelivevideostream.Theleissavedinthe‘Downloads’folderonyourcomputer.Theimage
lenameis[snapshot_YYYY_MM_DD_HH_MM_SS.jpg].Thesizeofthesnapshotdependsonthecompressionthatisapplied
fromthespecicweb-browserenginewherethesnapshotisreceived,therefore,thesnapshotsizemayvaryfromtheactual
compressionsettingthatisconguredinthedevice.
14

AXISFA54MainUnit
Thedeviceinterface
ClicktoshowI/Ooutputports.Usetheswitchtoopenorclosethecircuitofaport,forexampletotestexternaldevices.
ClicktomanuallyturnonorturnofftheIRillumination.
Clicktoturnonorturnofftheavailableon-screencontrols.
Clicktomanuallyturnontheheaterforaselectedperiodoftime.
Clicktostartacontinuousrecordingofthelivevideostream.Clickagaintostoptherecording.Ifarecordingisongoing,it
willresumeautomaticallyafterareboot.
Clicktoshowthestoragethatisconguredforthedevice.Tocongurethestorageyouneedtobeloggedinasan
administrator.
Clicktoaccessmoresettings:
•Videoformat:Selecttheencodingformattouseintheliveview.Ifyouselectaformatwithvideocompression,it
resultsinahigherCPUandmemoryusage.
•Clientstreaminformation:Turnontoshowdynamicinformationaboutthevideostreamusedbythebrowserthat
showsthelivevideostream.Thebitrateinformationdiffersfromtheinformationshowninatextoverlay,becauseof
differentinformationsources.Thebitrateintheclientstreaminformationisthebitrateofthelastsecond,andit
comesfromtheencodingdriverofthedevice.Thebitrateintheoverlayistheaveragebitrateofthelast5seconds,
anditcomesfromthebrowser.Bothvaluescoveronlytherawvideostreamandnottheadditionalbandwidth
generatedwhenit’stransportedoverthenetworkthroughUDP/TCP/HTTP.
•Adaptivestream:Turnontoadapttheimageresolutiontotheviewingclient’sactualdisplayresolution,toincrease
theuserexperienceandhelppreventapossibleoverloadoftheclient’shardware.Theadaptivestreamisonly
appliedwhenyouviewthelivevideostreaminthewebinterfaceinabrowser.Whenadaptivestreamisturnedon,
themaximumframerateis30fps.Ifyoutakeasnapshotwhileadaptivestreamisturnedon,itwillusetheimage
resolutionselectedbytheadaptivestream.
•Levelgrid:Clicktoshowthelevelgrid.Thegridhelpsyoudecideiftheimageishorizontallyaligned.Click
tohideit.
•Pixelcounter:Clicktoshowthepixelcounter.Dragandresizetheboxtocontainyourareaofinterest.Youcan
alsodenethepixelsizeoftheboxintheWidthandHeightelds.
•Refresh:Clicktorefreshthestillimageintheliveview.
Clicktoshowtheliveviewatfullresolution.Ifthefullresolutionislargerthanyourscreensize,usethesmallerimageto
navigateintheimage.
Clicktoshowthelivevideostreaminfullscreen.PressESCtoexitfullscreenmode.
15

AXISFA54MainUnit
Thedeviceinterface
Installation
Capturemode:Acapturemodeisapresetcongurationthatdeneshowthecameracapturesimages.Whenyouchangethe
capturemode,itcanaffectmanyothersettings,suchasviewareasandprivacymasks.
Mountingposition:Theorientationoftheimagecanchangedependingonhowthecameraismounted.
Powerlinefrequency:Selectthefrequencythatisusedinyourregiontominimizeimageicker.TheAmericanregions
usuallyuse60Hz.Therestoftheworldmostlyuses50Hz.Ifyou'renotsureofyourregion'spowerlinefrequency,check
withthelocalauthorities.
Rotate:Selectthepreferredimageorientation.
Imae
Appearance
Saturation:Usetheslidertoadjustthecolorintensity.Youcanforexamplegetagrayscaleimage.
Contrast:Usetheslidertoadjustthedifferencebetweenlightanddark.
Brightness:Usetheslidertoadjustthelightintensity.Thiscanmakeobjectseasiertosee.Brightnessisappliedafterimage
capture,anddoesn’taffecttheinformationintheimage.Togetmoredetailsfromadarkarea,it’susuallybettertoincrease
gainorexposuretime.
Sharpness:Usetheslidertomakeobjectsintheimageappearsharperbyadjustingtheedgecontrast.Ifyouincreasethe
sharpness,itmayincreasethebitrateandtheamountofstoragespaceneededaswell.
16

AXISFA54MainUnit
Thedeviceinterface
Widedynamicrange
WDR:Turnontomakebothbrightanddarkareasoftheimagevisible.
Localcontrast:Usetheslidertoadjustthecontrastoftheimage.Ahighervaluemakesthecontrasthigherbetweendark
andlightareas.
Tonemapping:Usetheslidertoadjusttheamountoftonemappingthatisappliedtotheimage.Ifthevalueissettozeroonly
thestandardgammacorrectionisapplied,whileahighervalueincreasesthevisibilityintheimage.
Whitebalance
Whenthecameradetectsthecolortemperatureoftheincominglight,itcanadjusttheimagetomakethecolorslookmore
natural.Ifthisisnotsufcient,youcanselectasuitablelightsourcefromthelist.
Theautomaticwhitebalancesettingreducestheriskofcolorickerbyadaptingtochangesgradually.Ifthelightingchanges,or
whenthecameraisrststarted,itcantakeupto30secondstoadapttothenewlightsource.Ifthereismorethanonetype
oflightsourceinascene,thatistheydifferincolortemperature,thedominatinglightsourceactsasareferenceforthe
automaticwhitebalancealgorithm.Thisbehaviorcanbeoverriddenbychoosingaxedwhitebalancesettingthatmatches
thelightsourceyouwanttouseasareference.
Lightenvironment:
•Automatic:Automaticidenticationandcompensationforthelightsourcecolor.Thisistherecommendedsetting
whichcanbeusedinmostsituations.
•Automatic–outdoors:Automaticidenticationandcompensationforthelightsourcecolor.Thisistherecommended
settingwhichcanbeusedinmostoutdoorsituations.
•Custom–indoors:Fixedcoloradjustmentforaroomwithsomearticiallightotherthanuorescentlightingand
goodforanormalcolortemperaturearound200K.
•Custom–outdoors:Fixedcoloradjustmentforsunnyweatherconditionswithacolortemperaturearound5500K.
•Fixed–uorescent1:Fixedcoloradjustmentforuorescentlightingwithacolortemperaturearound4000K.
•Fixed–uorescent2:Fixedcoloradjustmentforuorescentlightingwithacolortemperaturearound3000K.
•Fixed–indoors:Fixedcoloradjustmentforaroomwithsomearticiallightotherthanuorescentlightingand
goodforanormalcolortemperaturearound200K.
•Fixed–outdoors1:Fixedcoloradjustmentforsunnyweatherconditionswithacolortemperaturearound5500K.
•Fixed–outdoors2:Fixedcoloradjustmentforcloudyweatherconditionwithacolortemperaturearound6500K.
•Streetlight–mercury:Fixedcoloradjustmentforultravioletemissioninmercuryvaporlightscommon
instreetlighting.
•Streetlight–sodium:Fixedcoloradjustmentthatcompensatesfortheyelloworangecolorofsodiumvapor
lightscommoninstreetlighting.
•Holdcurrent:Keepthecurrentsettingsanddonotcompensateforlightchanges.
•Manual:Fixthewhitebalancewiththehelpofawhiteobject.Dragthecircletoanobjectthatyouwantthe
cameratointerpretaswhiteintheliveviewimage.UsetheRedbalanceandBluebalancesliderstoadjustthe
whitebalancemanually.
Exposure
17

AXISFA54MainUnit
Thedeviceinterface
Exposuremode:Selectanexposuremodetoreducerapidlychangingirregulareffectsintheimage,forexampleickerproduced
bydifferenttypesoflightsources.Werecommendyoutousetheautomaticexposuremode,orthesamefrequencyasyour
powernetwork.
•Automatic:Thecameraadjuststheaperture,gainandshutterautomatically.
•Automaticaperture:Thecameraadjuststheapertureandgainautomatically.Theshutterisxed.
•Automaticshutter:Thecameraadjuststheshutterandgainautomatically.Theapertureisxed.
•Holdcurrent:Locksthecurrentexposuresettings.
•Flicker-free:Thecameraadjuststheapertureandgainautomatically,andusesonlythefollowingshutter
speeds:1/50s(50Hz)and1/60s(60Hz).
•Flicker-free50Hz:Thecameraadjuststheapertureandgainautomatically,andusestheshutterspeed1/50s.
•Flicker-free60Hz:Thecameraadjuststheapertureandgainautomatically,andusestheshutterspeed1/60s.
•Flicker-reduced:Thisisthesameasicker-free,butthecameramightuseshutterspeedsfasterthan
1/100s(50Hz)and1/120s(60Hz)forbrighterscenes.
•Flicker-reduced50Hz:Thisisthesameasicker-free,butthecameramightuseshutterspeedsfaster
than1/100sforbrighterscenes.
•Flicker-reduced60Hz:Thisisthesameasicker-free,butthecameramightuseshutterspeedsfaster
than1/120sforbrighterscenes.
•Manual:Theaperture,gainandshutterarexed.
Exposurezone:Theexposurezonetellsthecameratoprioritizeimagequalityinthemostimportantpartofthescene.Selectthe
partofthesceneofgreatestinteresttocalculatetheautomaticexposurelevels,forexampletheareainfrontofanentrancedoor.
Note
Theexposurezonesarerelatedtotheoriginalimage(un-rotated),andthenamesofthezonesapplytotheoriginalimage.
Thismeans,forexample,thatifthevideostreamisrotated90°,thentheUpperzonebecomestheRightzoneinthe
stream,andLeftbecomesLower.
•Automatic:Suitableformostsituations.
•Center:Usesaxedareainthecenteroftheimagetocalculatetheexposure.Theareahasaxedsizeand
positionintheliveview.
•Full:Usestheentireliveviewtocalculatetheexposure.
•Upper:Usesanareawithaxedsizeandpositionintheupperpartoftheimagetocalculatetheexposure.
•Lower:Usesanareawithaxedsizeandpositioninthelowerpartoftheimagetocalculatetheexposure.
•Left:Usesanareawithaxedsizeandpositionintheleftpartoftheimagetocalculatetheexposure.
•Right:Usesanareawithaxedsizeandpositionintherightpartoftheimagetocalculatetheexposure.
•Spot:Usesanareawithaxedsizeandpositionintheliveviewtocalculatetheexposure.
•Custom:Usesanareaintheliveviewtocalculatetheexposure.Youcanadjustthesizeandpositionofthearea.
Maxshutter:Selecttheshutterspeedtoprovidethebestimage.Lowshutterspeeds(longerexposure)mightcausemotionblur
whenthereismovement,andatoohighshutterspeedmightaffecttheimagequality.Maxshutterworkswithmaxgainto
improvetheimage.
Maxgain:Selectthesuitablemaxgain.Ifyouincreasethemaxgain,itimprovesthevisiblelevelofdetailindarkimages,but
alsoincreasesthenoiselevel.Morenoisecanalsoresultinincreaseduseofbandwidthandstorage.Ifyousetthemaxgain
toahighvalue,imagescandifferalotifthelightconditionsareverydifferentfromdaytonight.Maxgainworkswithmax
shuttertoimprovetheimage.
18

AXISFA54MainUnit
Thedeviceinterface
P-risupload:Selecttheinstalledandsupportedlens.Restartthecameraforthechangestotakeeffect.
Blur-noisetrade-off:Usetheslidertoadjusttheprioritybetweenmotionblurandnoise.Ifyouwanttoprioritizelowbandwidth
andhavelessnoiseattheexpenseofdetailsinmovingobjects,movetheslidertowardsLownoise.Ifyouwanttoprioritizethe
preservationofdetailsinmovingobjectsattheexpenseofnoiseandbandwidth,movetheslidertowardsLowmotionblur.
Note
Youcanchangetheexposureeitherbyadjustingtheexposureorbyadjustingthegain.Ifyouincreasetheexposuretime,
itresultsinmoremotionblur,andifyouincreasethegainitresultsinmorenoise.IfyouadjusttheBlur-noisetrade-off
towardsLownoise,theexposurewillpreferlongerexposuretimesoversensorgainwhentheexposureisincreased,and
theoppositeifyouadjustthetrade-offtowardsLowmotionblur.Boththegainandexposuretimewilleventuallyreach
theirmaximumvaluesinlow-lightconditions,regardlessofthepriorityset.
Lockaperture:TurnontokeeptheaperturesizesetbytheApertureslider.Turnofftoallowthecameratoautomaticallyadjust
theaperturesize.Youcan,forexample,locktheapertureforsceneswithpermanentlightconditions.
Aperture:Usetheslidertoadjusttheaperturesize,thatis,howmuchlightpassesthroughthelens.Toallowmorelighttoenter
thesensorandtherebyproduceabrighterimageinlow-lightconditions,movetheslidertowardsOpen.Anopenaperturealso
reducesthedepthofeld,whichmeansthatobjectsclosetoorfarfromthecameracanappearunfocused.Toallowmoreof
theimagetobeinfocus,movetheslidertowardsClosed.
Exposurelevel:Usetheslidertoadjusttheimageexposure.
Defog:Turnontodetecttheeffectsoffoggyweatherandautomaticallyremovethemforaclearerimage.
Note
WerecommendyounottoturnonDefoginsceneswithlowcontrast,largelightlevelvariations,orwhentheautofocusis
slightlyoff.Thiscanaffecttheimagequality,forexample,byincreasingthecontrast.Furthermore,toomuchlightcan
negativelyimpacttheimagequalitywhendefogisactive.
Stream
General
Resolution:Selecttheimageresolutionsuitableforthesurveillancescene.Ahigherresolutionincreasesbandwidthandstorage.
Framerate:Toavoidbandwidthproblemsonthenetworkorreducestoragesize,youcanlimittheframeratetoaxedamount.
Ifyouleavetheframerateatzero,theframerateiskeptatthehighestpossiblerateunderthecurrentconditions.Ahigher
frameraterequiresmorebandwidthandstoragecapacity.
Compression:Usetheslidertoadjusttheimagecompression.Highcompressionresultsinalowerbitrateandlowerimagequality.
Lowcompressionimprovestheimagequality,butusesmorebandwidthandstoragewhenyourecord.
H.26xencoding
19

AXISFA54MainUnit
Thedeviceinterface
Zipstream:Abitratereductiontechnology,optimizedforvideosurveillance,thatreducestheaveragebitrateinanH.264orH.265
streaminrealtime.AxisZipstreamappliesahighbitrateinsceneswheretherearemultipleregionsofinterest,forexamplein
sceneswithmovingobjects.Whenthesceneismorestatic,Zipstreamappliesalowerbitrate,andtherebyreducestherequired
storage.Tolearnmore,seeReducingthebitratewithAxisZipstream
Selectthedesiredlevelofbitratereduction:
•Off:Nobitratereduction.
•Low:Novisiblequalitydegradationinmostscenes.Thisisthedefaultoptionanditcanbeusedinalltypes
ofscenestoreducethebitrate.
•Medium:Visibleeffectsinsomescenesthroughlessnoiseandaslightlylowerlevelofdetailinregionsoflower
interest,forexamplewherethere’snomovement.
•High:Visibleeffectsinsomescenesthroughlessnoiseandalowerlevelofdetailinregionsoflowerinterest,
forexamplewherethere’snomovement.Werecommendthislevelforcloud-connecteddevicesanddevicesthat
uselocalstorage.
•Higher:Visibleeffectsinsomescenesthroughlessnoiseandalowerlevelofdetailinregionsoflowerinterest,
forexamplewherethere’snomovement.
•Extreme:Visibleeffectsinmostscenes.Thebitrateisoptimizedforsmallestpossiblestorage.
DynamicFPS(framespersecond):Turnontoallowthebandwidthtovarybasedonthelevelofactivityinthescene.More
activityrequiresmorebandwidth.
Lowerlimit:Enteravaluetoadjusttheframeratebetweenminimalfpsandthestreamdefaultfpsbasedonscenemotion.We
recommendyoutouselowerlimitinsceneswithverylittlemotion,wherethefpscoulddropto1orlower.
DynamicGOP(GroupofPictures):TurnontodynamicallyadjusttheintervalbetweenI-framesbasedonthelevelofactivity
inthescene.
Upperlimit:EnteramaximumGOPlength,thatis,themaximumnumberofP-framesbetweentwoI-frames.
P-frames:EnterthedesirednumberofP-frames.Thehigherthenumber,thelessbandwidthisrequired.However,ifthereare
networkcongestion,therecouldbeanoticeabledeteriorationinthevideoquality.
H.264prole:
•Baseline:Useifthevideomanagementclientdoesn’tsupportCABACentropycoding.
•Main:UseifthevideomanagementclientsupportsCABACentropycoding,toachievehighercompressionwith
maintainedvideoquality.Itrequiresmoreprocessingpowertodecodecomparedtothebaselineprole.
•High:UseifthevideomanagementclientsupportsCABACentropycoding,toachieveevenhighercompressionthan
withthemainprole.Itrequiresmoreprocessingpowertodecodecomparedtothemainprole.
Bitratecontrol:
•Average:Selecttoautomaticallyadjustthebitrateoveralongertimeperiodandprovidethebestpossibleimage
qualitybasedontheavailablestorage.
-Clicktocalculatethetargetbitratebasedonavailablestorage,retentiontime,andbitratelimit.
-Targetbitrate:Enterdesiredtargetbitrate.
-Retentiontime:Enterthenumberofdaystokeeptherecordings.
-Storage:Showstheestimatedstoragethatcanbeusedforthestream.
-Maximumbitrate:Turnontosetabitratelimit.
-Bitratelimit:Enterabitratelimitthatishigherthanthetargetbitrate.
•Maximum:Selecttosetamaximuminstantbitrateofthestreambasedonyournetworkbandwidth.
-Maximum:Enterthemaximumbitrate.
•Variable:Selecttoallowthebitratetovarybasedonthelevelofactivityinthescene.Moreactivityrequiresmore
bandwidth.Werecommendthisoptionformostsituations.
Orientation
Rotate:Rotatetheimagetomatchyourrequirements.
Mirror:Turnontomirrortheimage.
Audio
20
