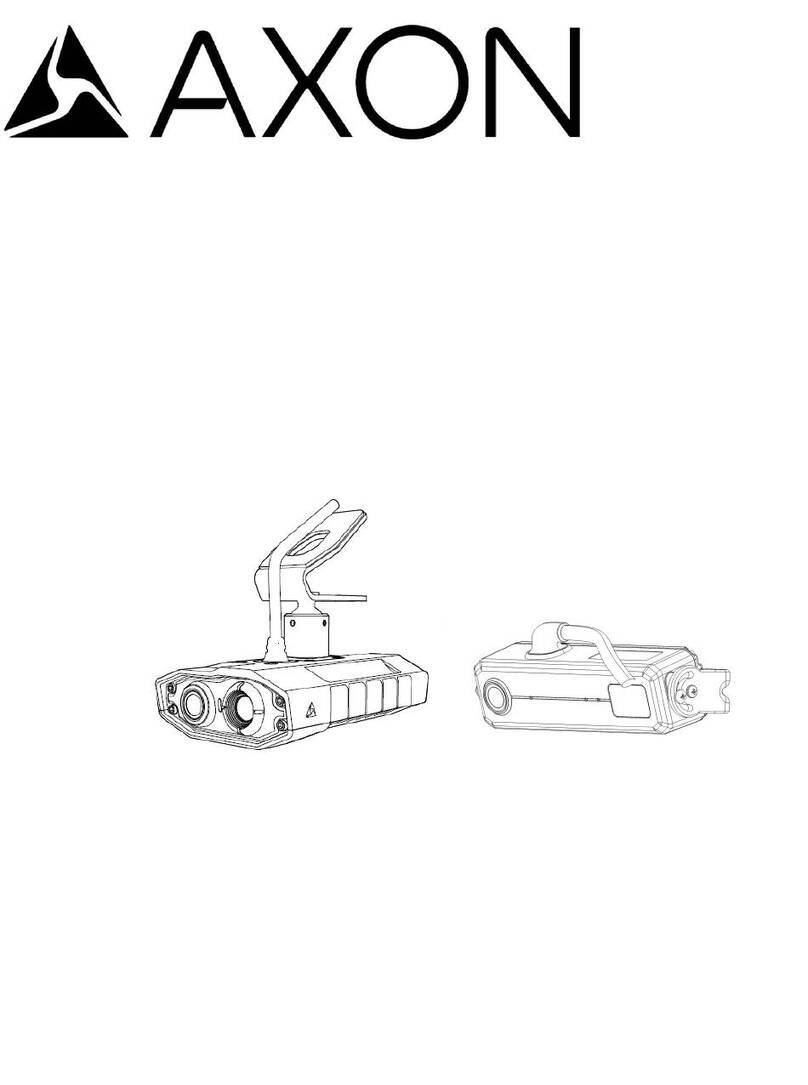

Axon Fleet 3
Installation Guide
Document Revision: B
January 2023

Axon Fleet 3 Installation Guide
Axon Enterprise, Inc. Page 2 of 47
3M and VHB are a trademarks of 3M Company; Bluetooth is a trademark of Bluetooth SIG, Inc.; Cradlepoint and
NetCloud are trademarks of Cradlepoint, Inc.; LTE is a trademark of the Institut Européen des Normes; de
Télécommunication; Wi-Fi is a trademark of the Wi-Fi Alliance; and Windows is a trademark of Microsoft
Corporation; Android is a trademark of Google, Inc.
, AXON, Axon Body 2, Axon Body 3, Axon Device Manager, Axon Evidence, Axon Fleet, Axon Flex 2,
and Axon Signal are trademarks of Axon Enterprise, Inc., some of which are registered in the US and other
countries. For more information, visit www.axon.com/legal.
All rights reserved. ©2023 Axon Enterprise, Inc.

Axon Fleet 3 Installation Guide
Axon Enterprise, Inc. Page 3 of 47
Table of Contents
Introduction...................................................................................................................................................................5
Axon Fleet 3 Communication Overview Diagram..................................................................................... 5
Pre-Installation Information ..........................................................................................................................................6
Packages and Parts.......................................................................................................................................... 6
Fleet 3 Hardware Package...........................................................................................................................6
Fleet 3 Body-Worn Camera Signal Package................................................................................................8
Cradlepoint Package....................................................................................................................................8
Airgain Antenna & Router Compatibility ....................................................................................................9
Axon Professional Services Package.........................................................................................................10
Wiring Information ........................................................................................................................................ 11
Power and Signal Harness and Axon Signal Vehicle Fleet 3 Harness......................................................12
Electrical Requirements................................................................................................................................ 12
Battery Power ............................................................................................................................................12
Electrical Ground .......................................................................................................................................14
Ignition Sensing Source .............................................................................................................................15
Hub Signal Input Wiring.............................................................................................................................15
Determining a Mount and Wiring Plan...................................................................................................... 16
Tools and Supplies......................................................................................................................................... 17
Additional Reading......................................................................................................................................... 18
Upgrading from Fleet 1 and 2 ..................................................................................................................... 19
Differences between Fleet 3 and Fleet 1 and 2........................................................................................19
When Upgrading from Fleet 1 or Fleet 2 to Fleet 3..................................................................................20
Installation Information...............................................................................................................................................22
Unboxing and Preparing Hardware .............................................................................................................................22
Installing the Router and Exterior Antenna.................................................................................................................25
Installing the Interior Antenna ....................................................................................................................................26
Interior Antenna Installation ....................................................................................................................... 26
Installing the Power and Signal Harness and Ethernet Cables ....................................................................................27
Connecting to Power..................................................................................................................................... 28
Signal Connections ........................................................................................................................................ 28
Axon Signal Vehicle Device Connections ..................................................................................................29

Axon Fleet 3 Installation Guide
Axon Enterprise, Inc. Page 4 of 47
Camera Ethernet Cables............................................................................................................................... 29
MDC Ethernet Cable...................................................................................................................................... 30
Installing Cameras........................................................................................................................................................30
Dual-View Camera ......................................................................................................................................... 30
Installing the Pigtail Support Brackets ......................................................................................................34
Interior Camera .............................................................................................................................................. 37
Installing Axon Signal Vehicle Device...........................................................................................................................38
Installing the Fleet Hub................................................................................................................................................39
Registration and Firmware Updates............................................................................................................................44
Testing the System.......................................................................................................................................................44
Hardware Testing........................................................................................................................................... 45
Fleet Dashboard Installation, Registration and Updates....................................................................... 45
Software Testing............................................................................................................................................. 46

Axon Fleet 3 Installation Guide
Axon Enterprise, Inc. Page 5 of 47
Introduction
The Axon Fleet 3 solution is a purpose-built in-vehicle recording system capable of capturing
audio and video, supplemented by artificial intelligence designed for use in high-risk
environments encountered by law enforcement, corrections, military, emergency medical
services (EMS), and security activities. The Axon Fleet 3 system records events for secure
storage, retrieval, and analysis leveraging Axon’s Evidence services. The recorded events are
transferred securely to Axon Evidence using LTE, Wi-Fi or manual operations.
Axon Fleet 3 Communication Overview Diagram
Axon Fleet 3 requires an Ethernet connection to an in-vehicle mobile router to facilitate
communications between the Fleet 3 Hub and Axon Evidence leveraging LTE, Wi-Fi, or both.
The following diagram provides an overview of the Axon Fleet 3 in-vehicle connections and
communications.

Axon Fleet 3 Installation Guide
Axon Enterprise, Inc. Page 6 of 47
Pre-Installation Information
This section provides information about available Axon Fleet 3 packages, along with
requirements, wiring information, tools, and supplies needed for installation. It also includes
information on upgrading to Axon Fleet 3 from Axon Fleet 1 and 2.
Prior to Fleet 3 equipment populating in Axon Evidence, the system must be locally powered
on and registered to an active agency instance of Axon Evidence. In doing so, the Fleet Hub
will become an assignable device in the Vehicle Creation process in Axon Evidence >
Inventory > Vehicles > Guided Vehicle Creation.
Packages and Parts
Information about the standard Axon Fleet 3 hardware kit is provided in this section.
Fleet 3 Hardware Package
The Fleet 3 components necessary to install one vehicle can be shipped in a single box. The
following table lists the components for a standard two-camera vehicle installation.
Part Count SKU Image
Hub 1 72010
Dual-View Camera 1 72000

Axon Fleet 3 Installation Guide
Axon Enterprise, Inc. Page 7 of 47
Interior Camera 1 72037
Interior 3-in-1 Antenna 1 72033
Hub mount bracket 1 72011
DVC windshield mount
(includes Connector
Support Clip)
1 72001
IC interior mount
(includes Connector
Support Clip)
1 72002
Power and Signal
Harness
1 72013

Axon Fleet 3 Installation Guide
Axon Enterprise, Inc. Page 8 of 47
Power Over Ethernet
cable CAT6
-1x 6ft
-1x 15ft
-2x 20ft
3 72030
72031
72032
Fleet 3 Body-Worn Camera Signal Package
Customers who use Body-Worn cameras and are not reusing their Axon Signal Vehicle (ASV)
units will require a new unit and cable assembly. Customers reusing their ASV units may
need a new cable assembly. The ASV units and cable assemblies are boxed separately from
other components.
Part Count SKU Image
Axon Signal Vehicle (ASV) unit 1 70112
Axon Signal Unit, Cable Assembly 1 70117
Cradlepoint Package
Cradlepoint routers purchased through Axon are shipped directly from Cradlepoint. Note
that SIM cards can be pre-inserted by request.
The following table lists the SKU for the Cradlepoint IBR900-1200M-NPS router, which is used
in a standard installation. Customers desiring to use a different router should contact their
Axon representative before installation to confirm router compatibility. Other routers can be
used, each with a compatible externally mounted antenna, and the SKU will depend on the
selected router.
Part Count SKU Image
Cradlepoint IBR900 1 11634
Ethernet cable, 25FT 1 74110

Axon Fleet 3 Installation Guide
Axon Enterprise, Inc. Page 9 of 47
Airgain Antenna & Router Compatibility
Axon supplies an externally mounted Airgain antenna in conjunction with the purchase of a
Cradlepoint router as part of the Axon Fleet 3 solution. Each router requires a certain
antenna configuration Please refer to the below chart for Router and Antenna compatibility.
Axon supplies a selection of the below antennas in WHITE color. Please reach out to your
Axon representative to order.
IBR900 Router and Antennas
R1900 Router and Antennas

Axon Fleet 3 Installation Guide
Axon Enterprise, Inc. Page 10 of 47
IBR1700 Router and Antennas
Axon Professional Services Package
Axon Fleet Professional Services is Included as part of the Axon Fleet 3 Standard 2 Camera
Kit (SKU 72036) package and includes the following:
•Assistance configuring network policy and laptop software
•Assistance configuring Fleet 3, ALPR, and Respond Settings
•Installation of Fleet 3 hardware and, when purchased through Axon, Router, and
External Antenna
•Train the trainer - when third-party installation is required, Axon will own training
and quality control
•TAP Upgrades require services to be attached
Additionally, Axon offers a refresh/re-installation service.

Axon Fleet 3 Installation Guide
Axon Enterprise, Inc. Page 11 of 47
Wiring Information
This section provides an overview of the vehicle wiring layout for Axon Fleet 3. The
information should be used with the image on the following page.
•The Vehicle MDC connects to the Cradlepoint router with an Ethernet cable (yellow
line).
•The Fleet 3 Hub connects to the Cradlepoint router using an Ethernet cable (yellow
line).
•Axon Fleet 3 Cameras connect to Hub using Ethernet cables (blue line). The cameras
also receive power from the Hub through the cables.
•The Interior Antenna connects to Hub for Wi-Fi/Bluetooth to support GPS and Body-
Worn Camera connectivity (white line).
•The Power and Signal Harness provides power (red line), ignition (red line), and
signal inputs (green line) for Hub, Cradlepoint router.
•The Axon Signal Vehicle Fleet 3 cable assembly is connected to the Power and Signal
harness to extend the same inputs to the ASV.

Axon Fleet 3 Installation Guide
Axon Enterprise, Inc. Page 12 of 47
Power and Signal Harness and Axon Signal Vehicle Fleet 3 Harness
The following image shows the combined Axon Fleet 3 Power and Signal harness plus the
ASV Fleet 3 Harness
SKU 72013 – FLEET 3 HUB, CABLE ASSEMBLY, POWER
NOTE: There is no current product firmware support for the relay connections. The relay
connections are present in the Fleet 3 wiring harness to support potential future
configurations and feature implementation.
Electrical Requirements
Axon Fleet 3 power, ground, ignition, and signal wiring specifications and requirements are
listed below:
Battery Power
Voltage:

Axon Fleet 3 Installation Guide
Axon Enterprise, Inc. Page 13 of 47
•Recommended range is the normal automotive 12V vehicle power, commonly 11.6V
to 14.8V.
•Operational limits are less than 1,250 milliseconds below 10.8V or above 19.5V.
•Voltage protection up to +40V or -40V.
Note: The system will not be damaged by reverse voltage, or voltages between +40V or -
40V, it simply will not operate.
Fuse Information:
Axon recommends you use the included Fleet 3 Power and Signal Harness, which has the
following fuses:
•One 15A for the entire hardware system (Hub, Axon Signal Vehicle, router)
•One 5A for the Axon Signal Vehicle unit and router
•One 7.5A for the Hub
If multiple power lines are used to provide power to each separate device, the system must
include the following fuses for each device:
•Axon Signal Vehicle unit - 1A
•Router - 2A
•Hub – 7.5A
When wiring a single power line to provide power to all Fleet devices (Hub, router, and Axon
Signal Vehicle), use a 15A fuse.
Power Source:
•The Fleet 3 Power and Signal Harness includes #12 AWG wires for power and
ground, and #16 AWG for the ignition signal. The red Power line is equipped with a
7.5A fuse to the Hub, and a 3A fuse for the #16AWG power branch for the router.
•Axon recommendsa source of constant power is provided to the system directly
from vehicle battery with in-line fuse.
•Minimum Power/Power Shutoff Timer: The shutoff timer time must be set so that
it is equal to or longer than the Power Off Delay setting configured on the Axon
Evidence – Admin – Fleet 3 Settings page.
•If installing a Cradlepoint dual-modem router with RX-30 Managed Accessory, or other
third-party router, Axon recommends bypassing the Fleet 3 power harness and wiring the

Axon Fleet 3 Installation Guide
Axon Enterprise, Inc. Page 14 of 47
third-party manufacturer-provided power cable directly to vehicle power, with adherence
to fusing recommendation for that product.
Electrical Ground
Impedance to Static Chassis Ground must be 0Ω - 0.25Ω
•Warning: Do not use a floating ground.
•Warning: Do not use a ground path that may be compromised by vehicle shock and
vibration.
•Axon Recommendsthat you use dedicated ground buss bars or connect directly to
the chassis. If the installation connects ground onto a metal partition or divider (for
example, a partition between front and rear seats), be sure that the partition is
connected securely to the chassis ground via a braided cable. The connection from
the metal partition to chassis ground may seem fine (resistance of 0Ω) while the
vehicle is parked. But that ground connection may be of a much higher resistance or
even briefly go away as the vehicle passes over bumps while driving. A braided
grounding strap helps to maintain a solid ground path during such events.
Distance from Fleet 3 System Ground to High Current Load Ground should be greater than
12 inches.
•Warning: Do not use ground paths that are shared with high current loads.
Devices with high current loads (those with 30W or more, can create interference and
disrupt the operation of Fleet 3 systems. Fleet 3 devices and wiring should be distanced from
any devices, AMPs, antennas, and power lines carry high current load. Axon developed the
following standards by testing 30W and 50W UHF/VHF radios:
•Fleet 3 devices should be maximally distanced from devices, wires, and antennas
that carry a high load.
oOptimal Distance: 12 or more inches
oHub Minimum Distance: 3 inches
oCamera Minimum Distance: 6 inches
•Fleet 3 power, ignition, and ground cables should be distanced from any high current
load devices, AMPS, antennas, and power lines carrying a high current load
(particularly UHF/VHF radios). Use the following recommendations:
oMinimum Parallel Distance: 18 inches

Axon Fleet 3 Installation Guide
Axon Enterprise, Inc. Page 15 of 47
oOptimal Crossing Angle: 90 degrees
oMinimum Crossing Angle: 45 degrees
•Fleet 3 Ethernet cables should be distanced from any devices, AMPS, antennas, and
power lines carrying a high current load. Use the following recommendations:
oMinimum Parallel Distance: 6 inches
Ignition Sensing Source
The Fleet Hub and some routers can sense ignition to determine when to power on and off.
Locate a source of ignition power.
Note: Voltage between -40V and 40V will not damage the system.
•Key ON Voltage: 4V - 19.5V
The Hub draws 0.10mA (0.0001A) or less when powered off. Wire is 12AWG for
standardization.
Note: Voltage below 4V may cause the Host to come on, as the threshold varies slightly
from one unit to the next. Occasionally, an ignition signal as low as 3.3V can cause the
Hub to boot up.
•Key OFF Voltage: 0V - 2V
Hub Signal Input Wiring
The Hub Signal 12V input wires are used for triggering camera activation or Video Overlays
(e.g., Lightbar, Door trigger, etc.).
•Signal wires are #22 AWG.
•Hub timing for trigger inputs 5 through 10, 13, and 14:
oLow to High Transition: 200 ms
oHigh to Low Transition: 200 ms
•Hub timing for trigger inputs 11 and 12:
These inputs are intended to reduce the likelihood of nuisance videos from
extraneous triggers caused by some progressive slide switch control modules
(common in light bars). These controllers can cause the input voltage of Axon Signal
Vehicle to drop below 3.6 VDC when transitioning between switch positions.
oLow to High Transition: 200 ms

Axon Fleet 3 Installation Guide
Axon Enterprise, Inc. Page 16 of 47
oHigh to Low Transition: 2.5 s
•Do not wire the Fleet 3 Hub to any pulsing/bouncing/intermittent 12V signal
inputs (ex. Lightbar). Ensure that the Fleet 3 Hub receives steady and constant
12V+ when the input is active/high.
Determining a Mount and Wiring Plan
Use the following guidelines to locate the Dual-View Camera, Interior Camera, Hub, Axon
Signal Vehicle unit, router, MDC, and Interior Antenna mounting locations.
•The Dual-View Camera is commonly mounted facing out the front windshield.
•The Interior Camera is commonly mounted on the prisoner partition, facing the
prisoner compartment.
•The Hub and Axon Signal Vehicle (ASV) unit are best mounted near each other. The
ideal location is near the siren/light controller unit since this is typically where most
activation sources originate. There should also be a good source of battery power
near this location.
Hub Mounting: The Hub is equipped with narrow air vents on the top and bottom of
the front cover. Do not block the air vents.
•Locate electrical inputs
oAxon recommends you use the included Power and Signal Harness.
oLocate 12V power source for the Hub, router, and ASV.
oLocate an electrical ground.
oLocate ignition sensing source for the Hub and router.
oLocate any Signal 12V input wires used for triggering camera activation or
Video Overlays (lightbar, door trigger, etc.)
o(Optional) If installing brake sensing, also locate a 12V brake power source.
•Determine the mounting location of the Interior Antenna. It must be mounted with
an unobstructed view of the sky. Common locations include:
oRear deck, behind the rear seat headrests in a sedan.
oOn the third row (fixed) window in an SUV.

Axon Fleet 3 Installation Guide
Axon Enterprise, Inc. Page 17 of 47
oOn the dashboard or upper corner of the windshield.
•Determine how all inputs will connect into Power and Signal Harness and how the
Power and Signal Harness will connect to the Hub, ASV, and router
•Determine how all Ethernet cables will route through the vehicle to connect the
devices:
oHub to router
oHub to Dual-View Camera
oHub to Interior Camera
oMDC to Router
•(Optional) Determine where the power shutoff timer or PSU will be installed and
connect into Fleet 3. If using a power shutoff timer or PSU, Fleet 3 ignition sensing
should still be connected to vehicle ignition.
Tools and Supplies
The following tables list the devices, tools, and supplies needed to install Axon fleet 3.
Devices
Device Purpose
Windows computer Device registration and configuration
Android device w/Bluetooth enabled Update Axon Signal Vehicle (ASV) firmware.
This may be needed if reusing ASV units in
the installation. The ASV must have
firmware version v4.3.1 or later.
Tools
Tool Purpose
Multimeter Testing for power, ground, true ignition, etc.
#1 Phillips screwdriver Interior camera mount installation
#2 Phillips screwdriver Hub installation to Hub bracket
Mini screwdriver set or multi-bit mini set
with mini ratcheting screwdriver
General installation
Power drill/impact driver set General installation
Mini ratchet/socket General installation

Axon Fleet 3 Installation Guide
Axon Enterprise, Inc. Page 18 of 47
Tool Purpose
8mm ratcheting box wrench (McMaster-
Carr 5163A24 ratcheting combination
wrench recommended)
Dual-View Camera and SMA connector
installation
Wire cutters and crimper General installation
Wire strippers General installation
Allen wrench set (metric and standard) 1.5 mm Allen wrench is needed for
adjusting the Dual-View Camera set screws.
Multi-end crimp set General installation
Hole Saws and arbors - Ensure a 7/8′′ hole
saw (22 mm)
For Exterior Antenna installation
Drill bit set General installation
General Supplies
Item Purpose
Paper Towels General installation
Cable ties General installation
Wiring harness cloth tape (Maxwell
VERSAF51217 High Temperature harness
cloth tape or TESA High Heat Harness Tape
51036)
Securing cable connectors
3M Electrical tape General installation
Metal or nylon fishing tape Running wires through channels
3M 5962 VHB Double-sided tape Backup for mounting IC or Interior Antenna
3M Adhesive promoter wipes Backup for mounting DVC or IC or Interior
Antenna
Spare 15A & 7.5A fuses (fast blow mini
blade)
Backup for Power and Signal Harness fuses
Spare 2 amp to 15-amp fuses for vehicle Backup for vehicle fuses
Spare wire (12 AWG for power connection,
22 AWG for signal connection)
Backup for wire installation
Additional Reading
This manual explains how to install the Axon Fleet 3 hardware. Other manuals cover
additional aspects of the Axon Fleet 3 system. These documents are available from the
Product Guide section of my.axon.com.

Axon Fleet 3 Installation Guide
Axon Enterprise, Inc. Page 19 of 47
•The Axon Fleet 3 – Axon Evidence Setup Guide provides information on setting up Axon
Fleet 3 vehicles, cameras, and Signal settings in Axon Evidence.
•The Axon Evidence User and Administrator Reference Guide provides instructions on
managing users, vehicles, cameras, and other agency settings.
For installation of the router and the antenna, refer to the appropriate manufacturer’s
instructions for installation.
•Cradlepoint installation (https://customer.cradlepoint.com/s/article/Vehicle-
Installation-Guide-for-COR-Series-Mobile-Routers)
•Airgain Antenna Installation (https://airgain.com/installation-and-removal-guides/)
Upgrading from Fleet 1 and 2
If your agency had Axon Fleet 1 or 2, this section provides an overview of the items that are
kept, changed, and discarded when upgrading.
For additional information see the Axon Fleet 1 and 2 Removal Guide.
Differences between Fleet 3 and Fleet 1 and 2
•Workflow
oIf configured to leverage LTE, Hub will begin evidence upload to Axon
Evidence immediately upon recording termination
oEvidence also remains on the Hub after upload for an agency configured
period.
•MDC
oFleet 3 uses a new application called the Fleet Dashboard. The Dashboard
app is effectively a browser that loads webpages from the Hub.
oThe MDC is not required for recording and upload of evidence
•System
oThe system uses a hub and spoke model with a central brain, the Fleet Hub,
and wired cameras.
oThe Hub is connected to cameras using Ethernet cables that provide power
and communication.

Axon Fleet 3 Installation Guide
Axon Enterprise, Inc. Page 20 of 47
•Power
oThe Hub senses ignition on/off and can delay shutdown for an agency
configured period.
oPower, ignition, and Signal inputs are forked from the Power and Signal
Harness to the Hub, Axon Signal Vehicle device, and router.
•Signal
oThe Hub activates the Ethernet connected Fleet 3 cameras.
oThe Axon Signal Vehicle device only activates Axon Body-Worn Cameras that
are in Bluetooth range.
When Upgrading from Fleet 1 or Fleet 2 to Fleet 3
The following items do not normally change and can be reused:
•Cradlepoint router
•Airgain 5-in-1 antenna
•MDC to router Ethernet cable
•Axon Signal Vehicle device
What items are new or change:
•The deploy script to Cradlepoint NetCloud for Internet QoS.
•A new Cradlepoint NetCloud Manager (NCM) Group is used.
•The router’s NCM Configuration.
•Updates for the router’s modem firmware and NCOS.
•Windows configuration
•Firewall, VPN, and Proxy configuration
•Automated License Plate Reader (ALPR) enablement (optional).
•Axon Respond enablement (optional).
The following items are removed and will not be reused:
•Axon Fleet Power Units
