Azkoyen Vitro S1 MIA Operating instructions

Avda. San Silvestre s/n
31350 Peralta (Navarra)
Tfno. 948 709 709
https://cliente.azkoyenvending.es
V0-10082-EN
1
PROGRAMMING GUIDE VITRO S1 MIA

Programming Guide Vitro S1 MIA
2
2
CONTENT
1. PROGRAMMING........................................................................ 3
1.1 DEFINITIONS............................................................................................ 3
1.2 ACCESS TO THE PROGRAMMING MENU.................................................. 3
1.3 KEYBOARD FUNCTIONS ........................................................................... 3
1.4 CUSTOMIZATION OF PROGRAMMING MENU.......................................... 4
2. PROGRAMMING FUNCTIONS.................................................... 5
2.1 NEW FUNCTIONALITIES IN VITRO S1 MIA................................................ 5
2.2 DESCRIPTION OF NEW FUNCTIONALITIES................................................ 6
2.3 GENERAL LIST OF PROGRAMMING FUNCTIONS. ....................................13
2.4 DESCRIPTION OF THE DEFAULT PROGRAMMING FUNCTIONS................15
2.5 SPECIAL PROGRAMMING FUNCTIONS....................................................68

1. PROGRAMMING
1.1 DEFINITIONS
•Programming status: when the machine is in a position to program any of its
functions.
•Working status: when the machine is operational ready and available for the
dispensing of beverages.
•General menu: set of all programming functions.
•Custom menu: selection of functions that the operator decides to be displayed on the
display. Features not included will remain hidden.
1.2 ACCESS TO THE PROGRAMMING MENU
To access Programming act on the PROG button. which has the
electronic door plate on the opposite side of the buttons of the
product selection keys.
A quick press of the PROG key. , allows access to a small number of
functions, being able to modify data related to these functions. The
editing and modification of data is done through the product
selection buttons.
1.3 KEYBOARD FUNCTIONS
Once the PROG button for access to programming has been pressed, the first available function can
be displayed on the machine's display:
010 LISTINGS

Programming Guide Vitro S1 MIA
4
4
Navigation keys
Using the 4 keys in the top row (A –B –C –D) you navigate through the menu functions.
Direct action keys
The second row of keys contains shortcut to machine functions (E –F –G –H).
The function of each of the selection keys is as follows:
A
Next menu function
B
Previous menu function
C
Exit, return to Ready Mode
D
ENTER or CONFIRMATION
E
Direct activation of 1 free vend
F
Mixers rinsing
G
View of current boiler Temperature
H
Cleaning MIA
1.4 CUSTOMIZATION OF PROGRAMMING MENU
When accessing the programming menu using the PROG button, only some of the functions available
on the machine are visible. It is possible to modify parameters associated with these visible functions.
If you want to act on other functions, you must first program them so that they are visible when
accessing the programming menu.
By holding down the PROG key for 5 seconds, it is possible to view all the functions of the machine,
being able to mark those that you want to see in the programming menu. Functions marked with P
will be visible.
A B C D
E F G H

001 –FILL TUBES
Pressing selection D
001 P FILL TUBES
By pressing selection A, proceed to the next function
02 -EMPTY TUBES
2. PROGRAMMING FUNCTIONS
2.1 NEW FUNCTIONALITIES IN VITRO S1 MIA
•The Vitro S1 MIAmodel incorporates a freshmilkmodule, which allows this ingredient
to be integrated into the beverages dispensed.
•Natural milk is stored in a refrigerated container attached to the machine.
•The cooling unit has the option of connecting to the machine via the I2C bus
integrated into the fresh milk module. A refrigerator without communication with
the machine can also be used.
•The fresh milk module brings two new ingredients to recipes: liquid and foamed milk,
which can be dispensed at a predetermined temperature or at room temperature.
•In the programming of Vitro S1 MIA, the following functions or new features have
been added to existing functions.
Function
New
Add
Detail
Comments
F030
●
CLEAN. FRESHMILK
ACID CLEANING
FRIDGE TEST
TEST AIR INPUT
TEST MILK OUTPUT
Functions for cleaning, test
and components
calibration.
F315
●
ING. MILKLIQ
ING. MILKFOAM
New ingredients for recipes.
F333
●
FRIDGE
Fresh milk parameters
F461
●
TEMPERATURE FRESHMILK
Milk temperature setting

Programming Guide Vitro S1 MIA
6
6
2.2 DESCRIPTION OF NEW FUNCTIONALITIES
•The following describes the new functionalities in terms of their purpose and the meaning
of the steps and results.
•The operation of access, navigation, execution and output of functions and subfunctions
is described in the following chapter along with the other existing functions.
2.2.1 F030 –CLEANING FRESHMILK
NOTE: The alkaline cleaning function can be started, alternatively, by pressing PROG + H at
any time.
•Daily cleaning procedure of the fresh milk module with alkaline detergent.
•Daily cleaning is advised. The minimum level is to do it 1 time every 48 h.
•If it is not done within 48 hours the system will block the dispensing of fresh milk until
the cleaning is complete.
The process starts by requesting to insert the cleaning jug and start the initial rinse
by pressing D.
INT.
After a few seconds the system asks to empty the cleaning container, discarding the
water resulting from rinsing. It is requested to reintroduce the cleaning container,
this time adding 20 cl of the cleaning solution inside.
The process restarts by pressing D and has a total duration of 10 minutes.
Upon completion, the display displays the successfully completed process and
prompts confirmation with the D key. Confirmation by pressing D to reset the
cleaning cycle counter is important.
INTRODUCE JAR AND
PRESS D
CHANGE JAR AND
PRESS D

2.2.2 F030 –ACID CLEANING
Depending on the type of milk used, the hardness of the service water and whether the machine
incorporates a water filter, a cleaning with acid cleaner must be carried out at most every three
months.
To carry out acid cleaning you can follow the steps described in the previous point but using the Acid
cleaning liquid.
NOTE: The acid cleaning function must always be started from the F030, unlike the alkaline which can
be activated directly by pressing PROG + H.
This cleaning has a total duration of 20 minutes.
For more information consult the Technical Manual of Vitro S1 MIA.
2.2.3 F030 - TEST FRIDGE
•Functionality by which a communication with the cooling unit is established.
•The cooling unit returns its state and the current temperature of the chamber.
Inside F030 navigate with A to the TEST FRIDGE subfunction.
The cooling unit returns its state and the current temperature of the chamber.
If the refrigerator is not the one recommended by Azkoyen it will not respond to
this request. Nor will it be answered if in the F333 a profile has been configured that
dispenses with the functions of the Smart fridge (e.g. profiles 01 and 02)
The display will display a text like the following.
•The numerical value following T = [04] represents the temperature in the
chamber [4º C]
•OK if the level detects that there is milk in the container.
Exit the function by pressing C.
T 04: Milk OK
Always use the cleaner supplied by AZKOYEN with reference 41531580 ACIDIC LIQUID
CLEANER KIT FOR MACHINES WITH FRESH MILK.
.

Programming Guide Vitro S1 MIA
8
8
2.2.4 F030 - TEST AIR INPUT
•This test measures the equivalent volume of air that would enter the milk circuit during
a pump time of 10 seconds.
•Instead of air intake, the test uses water in the opposite direction, that is, from the
machine to the outside.
•This function in combination with TEST MILK OUTPUT are used to calibrate the cream
generation system.
•On display, the test result would look like this:
Run by pressing D
•The resulting value of the test offers us information about the level of calibration and
the possibility of actuation:
•A correct calibration would be to obtain in this test a value that turns out to be 60%
of the value measured in TEST MILK OUTPUT.
▪If the value is higher, it would be necessary to close the manual air intake
valve.
▪If the value is lower, it would be necessary to open the manual air inlet valve.
2.2.5 F030 - TEST MILK OUTPUT
•This test complements the TEST AIR INPUT to obtain a calibration value of the cream
system.
•When executed, the volume in cubic centimeters of water that comes out of the milk
TEST AIR INPUT
52 cc

EV will be measured in a time of 10 seconds.
•The value obtained must be between 70 cc and 100 cc.
•A lower value means that there is a failure in the milk circuit.
•It would be necessary to check that there are no obstructions in the milk tube.
•If the tubes and connections of the circuit have been replaced, the value is still less
than the minimum volume, the milk pump should be replaced because it is damaged.
On display, the test result would look like this:
Run by pressing D
The value obtained, within the working margins, must be contrasted with that of the
air intake (AIR IN = 60% MILK OUT).
Para salir pulsar C.
2.2.6 F315 PROG. SERVICES (NEW INGREDIENTS)
•The Vitro S1 MIA model brings two new ingredients to the recipe set.
•The ingredients are shown on display as: MILKLIQ (milk) and MILKFOAM (cream)
•The dispensed volume is defined in CC.
•Through the machine keyboard (F315) you can not vary the temperature of a predefined
service. This can be done through the PC configurator.
•The temperature of the ingredients MILKLIQ and MILKFOAM corresponds, by default, to the
milk temperature set in the F461. These ingredients can also be cold-summed, without
heater activation during dispensing. This adjustment must be made through the
TEST MILK OUTPUT
90 cc

Programming Guide Vitro S1 MIA
10
10
configurator. On the ingredient bar within the recipe, right-click, select Edit Step and check
the box with the indication Cold milk.
•The treatment of these ingredients through the programming keyboard is like that of any
other ingredient in the recipe. The time in which it should begin to dispense and the
amount represented in cc is indicated.
•From the F315 you can: Add, Delete and Modify steps with these ingredients.
2.2.7 F333 REFRIGERATOR
•Function 333 is used to configure options for the use of fresh milk in machines equipped
with fresh milk.
•The refrigerator that AZKOYEN recommends has an integrated milk level and temperature
control system, in the event that you use a refrigerator not approved by AZKOYEN, you will
not be able to make use of these features.
•When you access this function you can program a "Profile" that contemplates the activation
or not, of the following options:
•Temperature Sensor –used to control the temperature at which the milk is in the
refrigerator. This option can only be activated in "Smart" type refrigerators.
•Level Sensor –Used to control the minimum level of milk. The machine will warn you if that
level has dropped enough to not be able to perform the fresh milk service correctly. Option
also only available with "Smart" type refrigerators.
•Option of Conversion to soluble milk –When this option is activated the machine will
perform services with soluble milk in the event that the machine runs out of fresh milk or
cannot supply it due to a problem.
•Message type –The machine, depending on the profile, can communicate incidents in two
ways:
•Warning that there is an incident, placing an exclamation point on the screen. You must
access the schedule to know what the incident has been. In the table it is indicated as "!" .

•Displaying a message on the screen, as an alternative to the default message, indicating the
incident that has occurred. In the table it is indicated as "A".
You can choose from the following 10 profiles:
Profile
Temp.
Sensor
Level
sensor
Conversion to
soluble milk
Message
type
Profile 1
No
No
No
!
Profile 2
No
No
No
A
Profile 3
Yes
No
No
!
Profile 4
Yes
No
No
A
Profile 5
Yes
Yes
No
!
Profile 6
Yes
Yes
No
A
Profile 7
Yes
Yes
Yes
!
Profile 8
Yes
Yes
Yes
A
Profile 9
No
No
Yes
!
Profile 10
No
No
Yes
A
The possible messages are the following:
Message
Meaning
CLEAN MILK SYS. REQUIRED
The machine has not been cleaned within the period established for
cleaning
ERROR HEATER
The heater is not working properly
ERROR TEMP SENSOR
Refrigerator temperature sensor is not connected
LOW MILK FLOW
Temperature sensor detects overheating due to low amount of milk
ERROR SANITARY TEMP.
The temperature of the milk has exceeded 8ºC for more than 8 hours,
or the machine has been turned off for more than 6 hours.
LOW MILK LEVEL
The level sensor has detected a small amount of milk in the tank
These messages will be displayed in the language programmed by the machine as the communication
language.
In addition to the profile, in function 333 you can program:
•Position of the refrigerator with respect to the machine, Right, Left or different lengths.
•The hours that must elapse for the machine to request the cleaning of the milk. The value to
be programmed is between 20 and 50.

Programming Guide Vitro S1 MIA
12
12
The temperature of the refrigerator should ALWAYS be higher than 3ºC, otherwise,
the milk could freeze during long periods of inactivity, such as one night, especially if
the amount of milk in the tank is scarce.
•Instant Milk option. Program the operation only with soluble milk, deactivating the fresh milk
in case you had it.
2.2.8 F461 TEMPERATURE
•This function defines the setpoint temperature of the milk.
•It appears as a second option after you have set the temperature of the Espresso.
•The maximum temperature for milk is limited to 70 ºC.
•On the display it will be displayed as follows:
Modify the value of T and validate with the D key to set it.
To exit press C.
T. REG. ALGORITHM
T FRESHMILK?070

2.3 GENERAL LIST OF PROGRAMMING FUNCTIONS.
The following list details all the machine's programming functions, in the order in which they are
shown on the display. In the factory default setting, a selection of the most important ones is
shown (green).
Function
Description
With
EXECUTIVE
protocol
With MDB
protocol
1
Empty Change Tubes
●
Yes
2
Fill Change Tubes
●
Yes
10
Error Log
Yes
Yes
30
Machine test
Yes
Yes
90
Software Versions
Yes
Yes
92
Load programming
Yes
YES
97
Delete Flash
Yes
Yes
99
Reset the machine
Yes
Yes
110
Amount of sales by selection
Yes
Yes
111
Vends by selection
Yes
Yes
113
Units sold in "free sale" mode
Yes
Yes
114
Meter for maintenance and cleaning
Yes
Yes
115
Product accounting
Yes
Yes
120
Economic amount of all sales
Yes
Yes
121
Total Vends
Yes
Yes
122
Total money collected in "free sale" mode
Yes
Yes
125
Total money raised in the pre-selections
Yes
Yes
126
Units sold in each preselection
Yes
Yes
141
Total amount in Piggy Bank
Yes
Yes
142
Total amount in the revolving tubes
Yes
Yes
143
Amount in each of the return tubes
●
Yes
148
Total amount collected from recharging prepaid cards
●
Yes
149
Total amount of sales made with tickets
●
Yes
162
Total amount of sales made with tokens
●
Yes
171
Delete Accounts
Yes
Yes

Programming Guide Vitro S1 MIA
Function
Description
With
EXECUTIVE
protocol
With MDB
protocol
174
Deletion of the accounting data of the mixers
●
Yes
180
Accumulated total amount of sales
Yes
Yes
183
Accumulated of the total amount in money box
Yes
Yes
185
Accumulation of the total amount manually dispensed from
the returns
●
Yes
186
Accumulated of the total amount of the non-delivered
changes
●
Yes
187
Accumulated total amount of prepaid card sales
●
Yes
188
Accumulated total amount of recharges on prepaid cards
●
Yes
189
Accumulated total amount of sales paid with tickets
●
Yes
190
Accumulated total amount of sales paid with tokens
●
Yes
191
Accumulated total amount of sales for each selection
Yes
Yes
193
Accumulated of the total amount of sales made in the "free
sale" mode
Yes
Yes
201
Programming the sales price for each selection
Yes
Yes
202
Copy the sales prices in several selections
Yes
Yes
203
Alternative sales prices
Yes
Yes
204
Price Whole Machine / Single Price
Yes
Yes
206
Prevents minors from purchasing product
Yes
Yes
209
Enables a discount or a surcharge on pre-selections
Yes
Yes
210
Program the spindle stroke: 180º or 360º.
Yes
Yes
211
Schedule the number of days you can sell a product
Yes
Yes
220
Free sale
●
Yes
221
Sale in single, multi-sale or forced sale mode
●
Yes
228
Prevents minors from purchasing product
Yes
Yes
300
Associated selections to channels
Yes
Yes
302
Allows to associate selections that are alternated so that
the discharge is homogeneous
Yes
Yes
303
Not operational
309
It associates motors to work simultaneously when pressing
a selection.
Yes
Yes
315
Schedule water and product quantities
Yes
Yes
317
Modify the values of some presets
Yes
Yes
320
Preheating of the product mixers
Yes
Yes

2.4 DESCRIPTION OF THE DEFAULT PROGRAMMING FUNCTIONS
Group 000: Shares
Function030
MACHINE TEST
Test for different elements of the
machine.
Executes a functional check of all elements of the machine.
The display shows the first item to be checked.
Repeatedly until the first new LIMP function. FRESHMILK
The cleaning of the milk module is executed
Remove milk container, insert cleaning container and continue
by pressing D.
Run the test
Go back and exit to the menu.
The process is always the same, and the elements on which the test can be done are
Product Extractors
Product mixers
Electrovalves
Erogation group movement
Group’s lower piston movement
Coffee Grinder
Grind coffee doser
Cups extractor arm
Cups detector
Cleaning Fresh Milk
Acid cleaning for Fresh Milk
Fridge test for refrigerator verification

Programming Guide Vitro S1 MIA
Cream system calibration Test Air Input
Cream system calibration Test Milk Output
Etc.
Calibration of the product hoppers: soluble and grain
During the test run of the product and grinder extraction motors, if this test is not stopped
by pressing the C key, both the motors and the grinder work for 10 seconds; after this
time, the machine's display offers the possibility of writing down the amount of product
extracted or ground coffee during those 10 seconds. To do this, the extracted product must
be collected, and this quantity must be weighed on a suitable scale.
This process is called calibration of the product hoppers; once this has been done, in
function 315, the machine offers the possibility of programming the quantities of soluble
product or ground coffee in grams.
Function 090
<<SW>>VERSION
Software version that the machine
has installed.
It shows the version that the software has of each one of the
Modules.
The display shows different options. For each of them it
shows the date of update and the program code.
Go back and exit to menu.
It is possible to make the calibration of all or part of the hoppers of soluble
products and coffee beans.

Function 092
<< LOADING PROG.>>
Accepts an animation file.
Only machines with
PMC card
Allows the machine to record an animation file that is saved in an
external USB-type device and displayed on the screen.
Select configuration.
Search for the desired
configuration
Confirm.
Go back and exit to the
menu.
Function 097
<< DELETE FLASH.>>
Perform a flash memory
reset.
Only machines with
PMC card
Allows you to delete the backup program stored in the flash
memory. This program serves to update the program version of
the different cards, for example when a replacement card is
inserted.

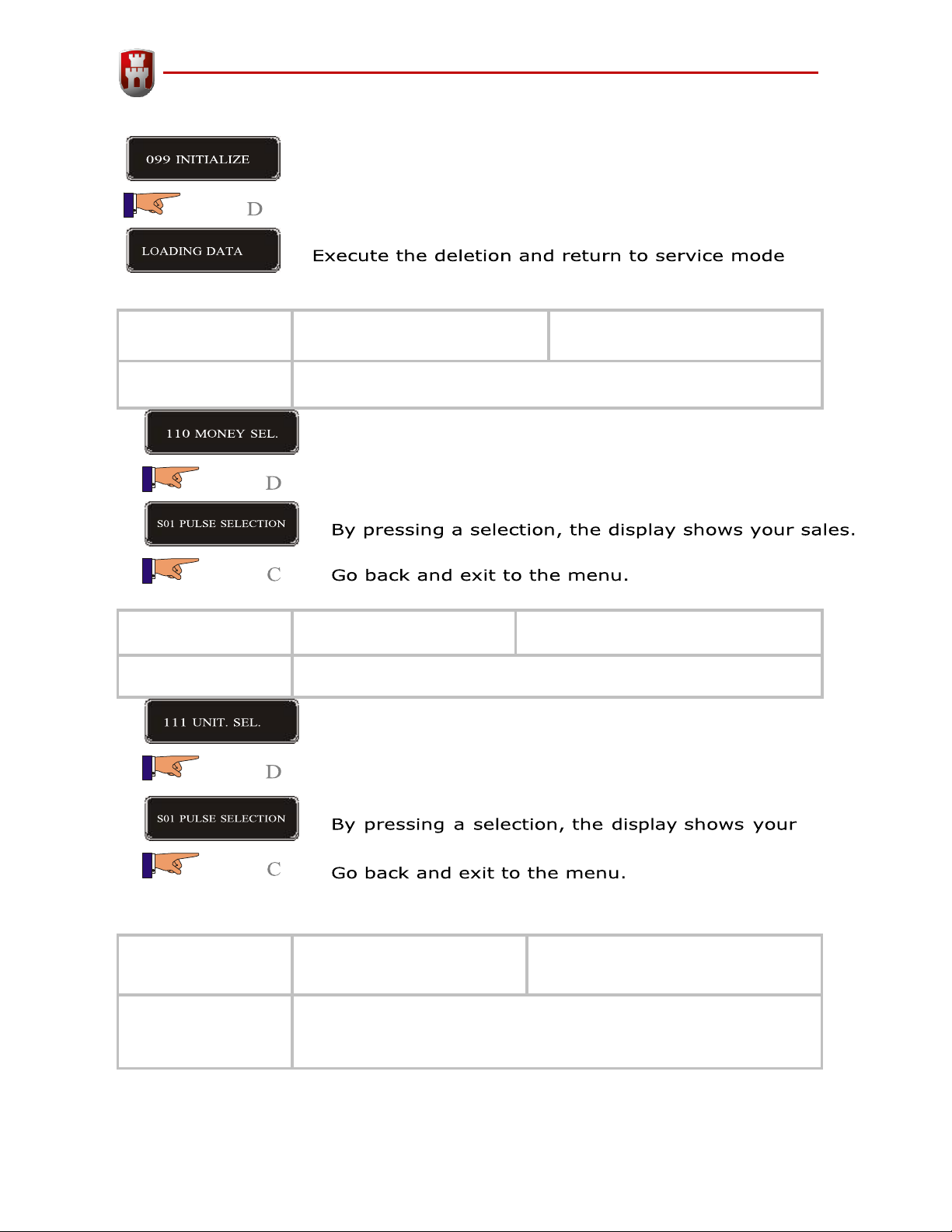

Function 099
<<INITIALIZE>>
It performs a complete reset of the
machine's programming.
Executing this function deletes the EEPROM memory and
automatically recovers the last settings entered in the machine:
either from function 401 or from function 82.
Function 92 is only operational if a "USB key" is connected
A o B

Programming Guide Vitro S1 MIA
Group 100: Accounting
Function 110
<<SELECT MONEY.>>
Economic amount of sales of
each product selection.
Shows the amount of sales for each product selection.
Function 111
<<SALES SEL.>>
Units sold for each product
selection.
Shows the number of sales made by each product selection
Function 113
<<UNTS/IN F.S.>>
Units sold in "free sale".
It shows the number of sales made in the "free sale" mode (no
money).

Function 114
<< COUNTERS>>
Meter for maintenance and
cleaning
From a certain number of services, it shows the need to clean the
filter of the espresso or fresh brew group, as well as the need to
change the water filter.
When you press D, it shows the services performed since the
last deletion.
Pressing A you can choose "delete YES" and pressing D you
make the deletion.
It allows to program the number of services from which and
when entering in programming, the machine shows the need
to change the water filter.
Services performed since the last filter cleaning of the
espresso group and, allows to program the number of
services to indicate the need for cleaning.

Programming Guide Vitro S1 MIA
It shows the services performed since the last filter
change of the "Fresh Brew" group and, allows to
program the number of services from which, it shows
the need to perform its cleaning.
Go back and exit to the menu.
Function 115
<< PRODUCT ACCOUNTING>>
Accounting for
product consumed
from each hopper
If the "hopper calibration" has been carried out from function 30,
in this function it is possible to see the product consumption of
each hopper and reset the meter.
Shows the grams consumed since the last deletion.
By pressing Ayou can choose "delete YES" and by pressing
D
you make the deletion.
It shows the remaining grams of product in the hopper.
Show the rest of the products.
Go back and exit to the menu.
