Azkoyen VITRO S-1 Manual

Technical information
VITRO S1
Avda. San Silvestre, s/n
31350 Peralta (Navarra) Spain
Tel.: [phone]
Cliente.azkoyenvending.es

Technical Principles
1ª review – UK 06 – 2019
2
I N E X
1. INTRO UCTION
1.1. DEFINITIONS
1.2. MODELS
1.3. PRINCIPAL TECHNICAL CHARACTERISTICS
2. ESCRIPTION OF COMPONENTS
2.1. PRINCIPAL COMPONENTS
2.2. HYDRA LIC CIRC IT
3 INSTALLATION AN SWITCHING ON
3.1. INSTALLATION
3.2. WATER CONNECTION
3.3. ELECTRIC CONNECTION AND START P
3.4. FILLING CANISTERS
3.5. FILLING BOILER
4. ERROR MESSAGES ON ISPLAY
5. CONTROL POINTS
6. CLEANING AN MAINTENANCE
7. WORKING CON ITIONS AN NORMS
8. IMENSIONS

Technical Principles
1ª review – UK 06 – 2019
3
1. INTRO UCTION
The semiautomatic machines of the Vitro S1 series are destined for the elaboration of
espresso coffee and soluble drinks consisting of the mixing of warm water with product in
powder or granulated.
In the rest of the book, and for major briefness, the elements that are
indicated will be named like:
The machines of the series Vitro S1: machine or machines.
The coffee brewer or coffee group: group or brewer.
The electroválvulas: EV.
1.1. EFINITIONS
Espresso coffee: Infusion of coffee elaborated according to the following conditions:
-7 g of ground coffee.
-The temperature of the infusion water between 92º C and 96º C.
-The water pressure at 8 kg/cm²La presión del agua de erogación a 9 kg/cm².
-The infusion time of the coffee between 12 and 20 seconds.
-The volume of water in the infusion 50 ml.
Infusion: this is the name given to the process of passing hot water through the ground
coffee to extract its oils and essences.
-Volumetric infusion: when the process of infusion uses a constant volume of
water.
Coffee tablet: the residual compressed coffee grounds after the infusion process.
Programming mode: when the machine is ready for any of its functions or parameters to be
programmed.
Working mode: when the machine is in the working state and ready to prepare any of the
services it offers.

Technical Principles
1ª review – UK 06 – 2019
4
1.2 MO ELS
The Vitro S1 S range is made up of models to elaborate espresso coffee and instant
beverages.
• The models with espresso coffee elaborate espresso coffee and can elaborate
instant beverages.
• The instant models only elaborate instant beverages.
1.3 PRINCIPLE TECHNICAL CHARACTERISTICS
 To push a button is enough to elaborate any service; espresso or instant.
It grinds the coffee when it is ordered.
Characteristics of each machine model:
Model Coffee
beans
Instant
coffee
Decaffeinated Chocolate Milk Hot
water
S1 Espresso Yes Yes
S1 Espresso+2 Yes Yes Yes Yes
S1 Instant Yes Yes Yes Yes Yes
 The water temperature is programmable.
 The ground coffee dose is programmable between 5 g and 8 g.
 Water pump for water pressure incorporated in the machine.
Volume dosage of water in the different espresso coffee services is programmable.
 Electrical consumption:
VITRO S1 espresso and soluble Voltage Power Longitud
Mains voltage See characteristics
plate
Heating element See characteristics
plate
1100 W
Mains flex 1.800 mm

Technical Principles
1ª review – UK 06 – 2019
5
2. ESCRIPTION OF COMPONENTS

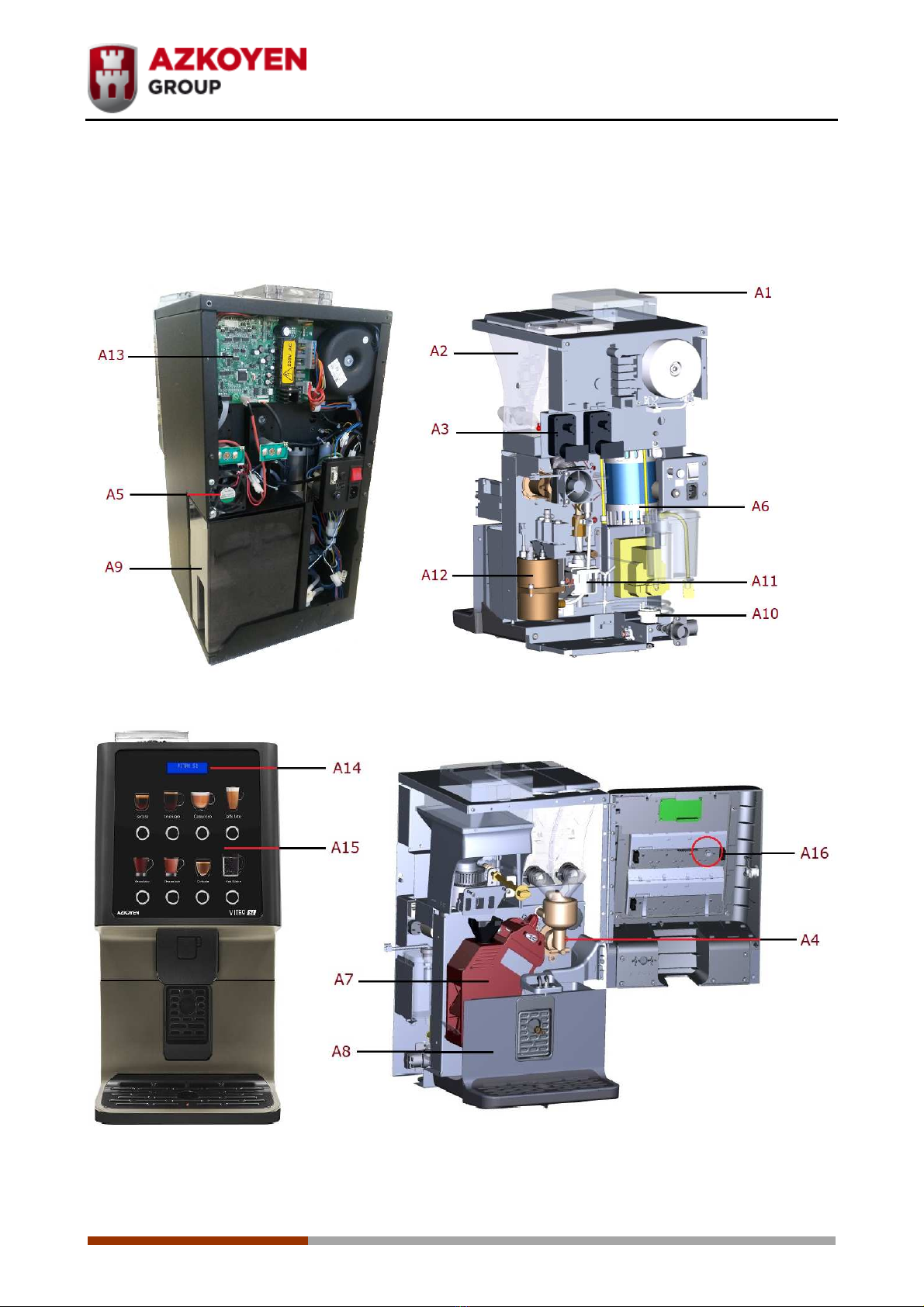

2.1. MAIN COMPONENTS

Technical Principles
1ª review – UK 06 – 2019
6
A1. Coffee beans hopper/canister
It has a capacity of 1,1 kilograms.
A manual lock allows the user to remove the canister without loosing any
bean. Before removing the canister, it is needed to unlock the top cabinet
cap which is fixed with 4 screws.
A2. Instant product hopper
With a capacity of 1,6 litres in each one of the hoppers of instant for instant products.
The approximate weight of the product is:
Capacity in grams
Product Vitro espresso Espresso+2 Instant
coffee 400
ecaffeinatted 400
Milk 600 600
Chocolate 800 800
A3. Product extractor
This motor will move the spindle inside the canister to move instant poder out to the mixing
bowls. These motors are from Componenti.
Motor manufacturer: Componenti
Voltage: 24 V cc
Speed: 140 rpm
A4. Beaters/Mixers/Whippers
The mixing of the products with hot water from the boiler is done with these elements.
B1. Assembly beater motor
B2. Mixer blade impellor
B3. Whipper chamber
B4. Stream hood
B5. Screw
B6. Mixer fixing pivots
B7. Mixing motor clips

Technical Principles
1ª review – UK 06 – 2019
7
A motor spins the mixing Blade. Motor technical data:
Motor manufacturer Mabuchi
Voltage 34 Vcc
Power 20 w
Speed 15.000 rpm
Mixing assy can be removed by pulling untill free the clipping pivots. Then unscrew the fixing
screw and twist the motor to the right to set free the clips.
In case of total
dissambly; pay
attention to the details
shown in the pictures
next to this text.
As shown in the pictures, grey inside base must be moved to the motor. If not, the base will be
in friction provoking a break in the motor.
The tool reference 10040130 can be used as a help.
A5. Extractor
Extractor
The steam and vapour that is generated
by the beaters can reach the product
containers and if they become damp they
form lumps in the powder. This
consequently results in the irregular
extraction of the product. T
o avoid this,
the extractor is used to remove the steam
and vapour from the interior of the
machine. It works on 24 Vdc

Technical Principles
1ª review – UK 06 – 2019
8
A6. Coffee grinder
It’s the M03 Azkoyen model. Technical characteristics:
Turning the handle anticlockwise gives a coarser grind and moving it clockwise gives a finer
grind. The grinder used in Vitro s1 is regulated by time. Grinder programming in function 315
(check details in programming manual)
To get the desired amount of coffee for your Service: first adjust the “grinding point” using
the handle. After set a time for the grinder in the function 315 “grinding time”. It is advised
to scale the ground coffee in each Service. Last, adjust the piston washers in the best position
(check in section A7. Coffee Group+Piston).
Turning the handle that adjusts the grinding point will have an effect on
ground coffee granulometry, but also on ground coffee Flow. Reme
mber that
grinder is controlled by time: 3 seconds of coarse coffee will make more
grams than 3 seconds of thin coffee.
It can be said that turning right or left the grinding point handle will vary the amount of coffee
ground for your Service. In that case, the grinding time set in function 315 must be modify as
well to keep getting the desired amount of coffee for each Service.
A7. Espresso Group+Piston/Brewer
Made of resin, it is the element that the machine uses to make the espresso coffee.
The group has moving parts that are activated by a 24 Vdc motor that moves a crank which
moves the coffee from the dosage element to the piston. At the same time it also moves a
lever that activates a micro switch; this indicates the position of the infusion element to the
control board.
Voltage 230 Vac
Nominal power 400 w
Speed 1250 rpm
Diameter of the grinders 63 mm
Grind points 0.026 mm

Technical Principles
1ª review – UK 06 – 2019
9
To remove the group from its position
of anchor, both must be turned
levers that fix it to its support, such
as indicated in the photograph. If the group
was in
brewing position, to remove it,
it is necessary to remove the piston first,
as indicated a side.
Pull out the clip Remove the piston
To put the group back on the machine, it can be in any position and not
matter that it has been turned out of the machine: Just put it in its place and fix its two
anchor levers; the engine of the group will position it correctly.
C1. Piston
C2. Group
C3. Filter
C4. Holding handle
C5. Position microswitch
C6. group movement handle
C7. Group motor
The piston has a spring and tow spacers that, depending on how it is placed, will vary the
capacity of ground coffee the chamber will hold.
The possible regulation of the capacity of the infusion element, using the washer, and the
position of the dosage handle are shown in the table below:
Dose Piston washer position Dosage position
5 g nder nder 1
5,5 g nder nder 2
6 g nder Over 3
6,5 g nder Over 4
7 g nder Over 5
7,5 g Over Over 6
8 g Over Over 7

Technical Principles
1ª review – UK 06 – 2019
10

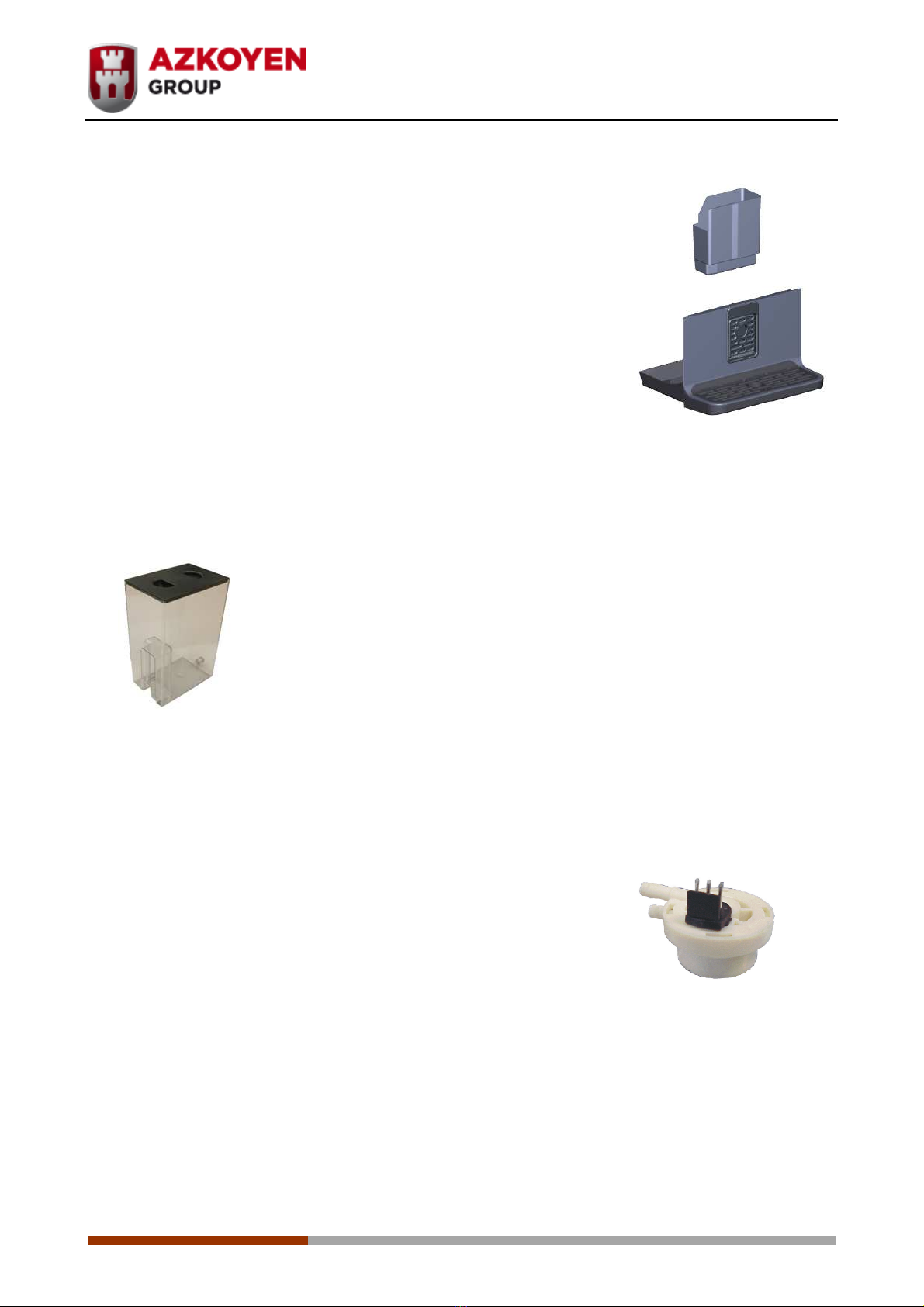

A8. Tray of liquid residues and coffee cakes deposit
Coffee cakes deposit collects “coffee cakes” coming from coffee
group. It has capacity for 60 cakes. After 60 coffee services the
display will show a message asking to empty the deposit. If the
counter want to be disabled use your laptop and the Configurator
app to modify the settings cmq file.
Tray of liquids collects all the liquid residues that the machine
generates. It has capacity for 1 litre.
Both parts can be removed with the machine lock. Pull the tray to
remove both parts.
A9. Water eposit
It has capacity for 4 litres. It is at atmospheric pressure and
temperature. From this deposit is taken the water to elaborate the
espresso coffee and instant beverages If you wish to connect the
machine to the mains/water network, there is a separate kit
available.
A10. Volumetric counter
Its function is to measure the quantity of water that is pumped
for the elaboration of the espresso coffee
A blade inside it spins boosted by the water flow. Two magnets
on the blades activate a terminal locate on the counter cap. The
three terminals on the cap are positive, negative (5V cc) and the
_П_ (square signal symbol). If it is measured between negative
and _П_ when water is pumped through the counter it will be
gotten the voltage difference 0V and 5V. In a digital tester it will
be shown 2.5V which indicates that the counter is working well.

Technical Principles
1ª review – UK 06 – 2019
11
A11. Water pump
This element has the job of pumping water
from the cold water deposit to the hot
water boiler; the cold
water pushes the hot
water towards the EVs for the instant
products or towards the infusion element
for making espresso coffee
When an espresso coffee is elaborated, the water pressure needed is quite high to be able to
pass through the compressed ground coffee in the infusion element. This resistance the coffee
offers makes the water pressure in the boiler increase up to a pressure of 9 Kg/cm². At this
pressure the by-pass opens allowing a small amount of water to return; sufficient to prevent
the water pressure from going over the 9 Kg/cm².
The by-pass is a small hole covered with a ball that is held in place by a spring. This spring will
hold a pressure of 9 Kg/cm², but over this pressure it compresses and allows the water to
pass.
The pressure of 9 Kg/cm² is considered the ideal for elaborating espresso coffee.
When the instant beverages are elaborated, there is no resistance offered and so during there
elaboration the water pump works at lower pressures than when elaborating espresso coffees.
Technical characteristics:
Voltage 230 Vdc
Power 48 w
Working pressure 9 Kg/cm²
Maximum pressure 12 Kg/cm²
The pump has an anti return valve that prevents the return of water from the boiler.

Technical Principles
1ª review – UK 06 – 2019
12
A12. Boiler
The boiler works under pressure and has a capacity of 320 cc.It warms up the water for the
elaboration of the products, espresso coffee or soluble products.
D1. Electrovalves
D2. Temperature sensor (PTC)
D3. Clixon, rated at 120º C
D4. 1100 W heatting element
D5. upper cover
D6. lower cover
The boiler is made of brass and does not need any device to control the level of water as the
boiler fills automatically from the moment the machine is switched on. After this the water that
is used is replaced with water from the cold deposit so the boiler is always full.
There are three outlets; one through a 3-way EV for the elaboration of espresso coffee. This EV
has an outlet from the boiler, another goes to the infusion element, and the third that, at rest,
allows the infusion element to be at atmospheric pressure.
E1. Solenoid
E2. Valve
E3. 3rd outlet
When the machine is in the espresso coffee making process, the third is closed while the outlet
from the boiler and the inlet to the infusion element are open to each other.
F1. 3rd outlet closed
F2. To the infusion group
F3. From the boiler
When the machine finishes elaborating an espresso coffee, the EV goes to rest state and closes
the outlet from the boiler leaving the infusion element open to the third outlet. In this way the
water that did not pass through the coffee and was retained in the infusion element goes out
through the third outlet to the residue bucket.

Technical Principles
1ª review – UK 06 – 2019
13

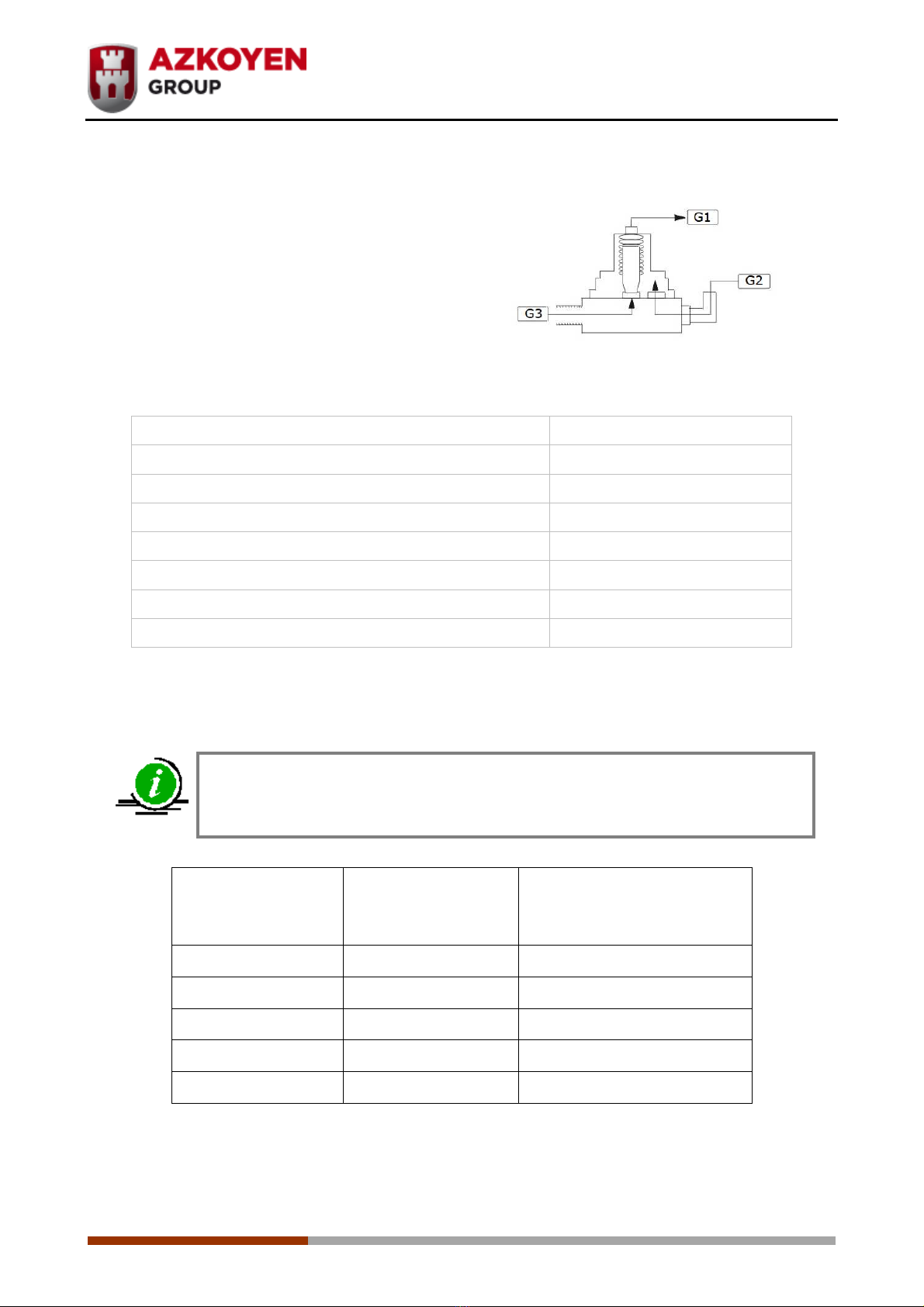

The water recedes back from the infusion element towards the third outlet because of the
pressure it was submitted to by the pump in the infusion process.
G1. 3rd outlet open
G2. Infusion element joined to atmospheric pressure
G3. Boiler water closed
Technical Characteristics:
Heating element voltage 230 Vca
Power 1.100 w
Temperature programming 70ºC -94ºC
Safety protection with manual reset 120º C
Voltage of 3-way EV 24 Vcc
Power of 3-way EV 10 w
Maximum pressure of EV 14 Kg./cm²
Working temperature of EV -10º C a 140º C
Temperature control of the water in the boiler is done with a PTC100. Default Temperature
from factory is programmed to 85ºC, it can be programmed up to 94ºC.
It must be taken into account that, depending on the altitude at which the
machine is installed, the water can boil at a temperature below 100ºC.
Altitud (meters)
(above sea level)
Boiling water
temperature
Max. advised temp. in
boiler (F461)
1500 95ºC 92ºC
1800 94ºC 91ºC
2100 93ºC 90ºC
2400 92ºC 89ºC
2700 91ºC 88ºC
The following table shows the resistance values that the PT100 gives according to the
temperature that it is submitted. Boiler Tª can be programmed in function 461 with a max. of
94ºC.

Technical Principles
1ª review – UK 06 – 2019
14
ºC 0 1 2 3 4 5 6 7 8 9
0 100,00 100,39 100,78 101,17 101,56 101,95 102,34 102,73 103,12 103,51
10 103,90 104,29 104,68 105,07 105,46 105,85 106,24 106,63 107,02 107,40
20 107,79 108,18 108,57 108,96 109,35 109,73 110,12 110,51 110,90 111,28
30 111,67 112,06 112,45 112,83 113,22 113,61 113,99 114,38 114,77 115,15
40 115,54 115,93 116,31 116,70 117,08 117,47 117,85 118,24 118,62 119,01
50 119,40 119,78 120,16 120,55 120,93 121,32 121,70 122,09 122,47 122,86
60 123,24 123,62 124,01 124,39 124,77 125,16 125,54 125,92 126,31 126,69
70 127,07 127,45 127,84 128,22 128,60 128,98 129,37 129,75 130,13 130,51
80 130,89 131,27 131,66 132,04 132,42 132,80 133,18 133,56 133,94 134,32
90 134,70 135,08 135,46 135,84 136,22 136,60 136,98 137,36 137,74 138,12
100 138,50 138,88 139,26 139,64 140,02 140,39 140,77 141,15 141,53 141,91
110 142,29 142,66 143,04 143,42 143,80 144,17 144,55 144,93 145,31 145,68
120 146,06 146,44 146,81 147,19 147,57 147,94 148,32 148,70 149,07 149,45
130 149,82 150,20 150,57 150,95 151,33 151,70 152,08 152,45 152,83 153,20
140 153,58 153,95 154,32 154,70 155,07 155,45 155,82 156,19 156,57 156,94
150 157,31 157,69 158,06 158,43 158,81 159,18 159,55 159,93 160,30 160,67
160 161,04 161,42 161,79 162,16 162,53 162,90 163,27 163,65 164,02 164,39
170 164,76 165,13 165,50 165,87 166,24 166,61 166,98 167,35 167,72 168,09
180 168,46 168,83 169,20 169,57 169,94 170,31 170,68 171,05 171,42 171,79
190
172,16
172,53 172,90 173,26 173,63 174,00 174,37 174,74 175,10 175,47
200
175,84
176,21 176,57 176,94 177,31 177,68 178,04 178,41 178,78 179,14
210
179,51
179,88 180,24 180,61 180,97 181,34 181,71 182,07 182,44 182,80
220
183,17
183,53 183,90 184,26 184,63 184,99 185,36 185,72 186,09 186,45
230
186,82
187,18 187,54 187,91 188,27 188,63 189,00 189,36 189,72 190,09
240
190,45
190,81 191,18 191,54 191,90 192,26 192,63 192,99 193,35 193,70
250
194,07
194,44 194,80 195,16 195,52 195,88 196,24 196,60 196,96 197,33
260
197,69
198,05 198,41 198,77 199,13 199,49 199,85 200,21 200,57 200,93
270
201,29
201,65 202,01 202,36 202,72 203,08 203,44 203,80 204,16 204,52
280
204,88
205,23 205,59 205,95 206,31 206,67 207,02 207,38 207,74 208,10
290
208,45
208,81 209,17 209,52 209,88 210,24 210,59 210,95 211,31 211,66
300
212,02
212,37 212,73 213,09 213,44 213,80 214,15 214,51 214,86 215,22
310
215,57
215,93 216,28 216,64 216,99 217,35 217,70 218,05 218,41 218,76
320
219,12
219,47 219,82 220,18 220,53 220,88 221,24 221,59 221,94 222,29
330
222,65
223,00 223,35 223,70 224,06 224,41 224,74 225,11 225,46 225,81
340
226,17
226,52 226,87 227,22 227,57 227,92 228,27 228,62 228,97 229,32
350
229,67
230,02 230,37 230,72 231,07 231,42 231,77 232,12 232,47 232,82
360
233,17
233,52 233,87 234,22 234,56 234,91 235,26 235,60 235,96 236,31
370
236,65
237,00 237,35 237,70 238,04 238,39 238,74 239,09 239,43 239,78
380
240,13
240,47 240,82 241,17 241,51 241,86 242,20 242,55 242,90 243,24
390 243,59 243,93 244,28 244,62 244,97 246,69 245,31 245,66 246,00 246,35
400 247,04

Technical Principles
1ª review – UK 06 – 2019
15

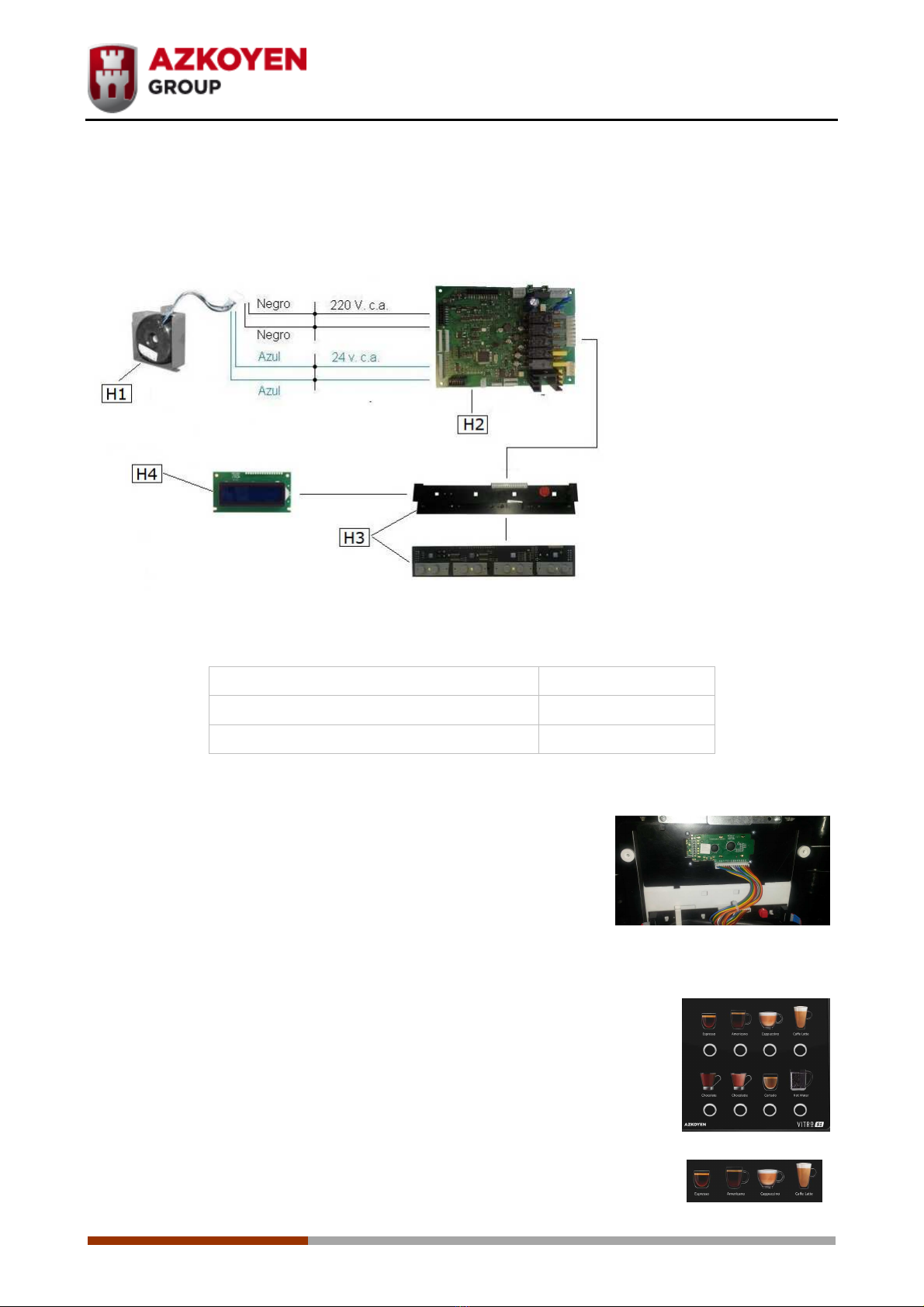

A13. Control board
Vitro s1 range machines have only one pcb, called control board. It is powering the rest of
components and managing the machine.
This board is the same as in Zen, Zintro or Vitro s5, but with different software.
H1. Transformer
H2. Control pcb
H3. Display
H4. Push buttons board
H1 Transformer “technical characteristics”:
Primary 230 Vca
Secondary (blue-blue) 24 Vca
Power 88 VA
A14. isplay
All Vitro S1 range machines come with a LCD display blue
colour. 2 lines with 16 characters each. It is easy to remove it, it
is fixed with 4 clic points.
A15. Push buttons board.
Selection buttons are in a LEDs backlight frame. There are two boards
with 4 buttons each.
Product labels are two strips with 4 products each, iluminated by Led
strips.
The 2 button boards are connected to the control board.
Remove the display before removing the panel.

Technical Principles
1ª review – UK 06 – 2019
16
A16. Programming button
This button allows the access to the machine programming.
A quick push gives access to operator functions.
Press the button for 5 seconds to get access to all
programming functions. Select here the ones you wish t osee
in operators menu.
First 4 selection buttons are used to navigate in the
programming functions. (see in programming manual)
2.2. Hydraulic circuit
In the following diagram are represented all the elements of the machine that are needed to
control and make the water reach the infusion element or the instant beverage beaters.
I1. Water deposit
I2. Flowmeter
I3. Pressure pump
I4. Overpressure pump
I5. Boiler

Technical Principles
1ª review – UK 06 – 2019
17
3. INSTALLATION AN SWITCHING ON
3.1. Installation
The power supply of the machine requires a socket, or another system, that allows its disconnection.
The method used must guarantee the complete disconnection of both poles.
Elemental safety requirements:
a) Never touch any mechanisms with wet hands or feet.
b) Never connect or use the machine barefoot.
c) Never pull on the flex to unplug the machine.
d) Never leave the machine exposed to the elements: sun, rain, snow, etc.
3.2 Water connection
Mains supply KIT
The machine can work with its water deposit of 4 litres (see point
A.14) or connected to the mains. To connect the machine to the
mains, use a ¾” male connection. The mains supply must
provide drinking water at a minimum of 5 litres/minute and a
pressure of between 0.5 and 10 kg/cm².
Following low voltage safety requirements, the water connection
and the socket must be separated by at least 1 metre.
Depending on the quality of the water, hardness, chlorine, bleach, etc, the connection should be
complemented with a filter.
If the machine is fitted with a filter, the minimum water pressure should be 1.5 Kg/cm².
3.3 Electrical connection
The supply voltage of the machine is indicated in the characteristics plate, there is one inside the
machine and another on the back. Depending on the machine code and the country, it can
operate at 110 or 220 Vac, with a frequency of 50 or 60 Hz. The installation must have:
• An earthed socket
• A minimum power rating of 2000 w
• The installation site must have a breaker switch and a good ground connection
3.4 Filling the product containers

Technical Principles
1ª review – UK 06 – 2019
18
To put products in the containers, you should lift the cover of the machine. Otherwise it is
necessary to remove the container from the machine.
After filling the containers for instant beverages, it is advised to request a
service of each as the first time it is used, only a small quantity of product is
served
1. coffee beans hopper
2. soluble product hoppers
1 2
Now the machine can be switched on.
3.5 Filling the hot water boiler
Start the machine and hot water boiler will be filled automatically.
In the espresso coffee machines, the following process occur:
- The volumetric counter is tested, and the boiler is filled with the EVs closed. When
the counter stops spinning, the boiler is full. Then the instant product EVs open to
let out the air in the lines and boiler.
4. ERROR MESSAGES

Technical Principles
1ª review – UK 06 – 2019
19
In the following table there are described the errors that the machine can detect.
LOW TEMPERATURE The machine displays this warning for approx. 1
min. on being started up.
ERROR: NO WATER Check the water supply.
Fill the water tank
NO COFFEE BEANS Load the hopper with coffee
Check the position of the group outlet shutter
WASTE BIN FULL Remove the waste tray, clean it and refit it
LONG DISTRIBUTION
Adjust the grinding time to coarser.
Clean the group showers
Check that there is voltage to the input solenoid.
RESIST. FAULTY Element broken or disconnected
TEMP.SENSOR ERR. Probe broken or disconnected
FAIL.WATER LEVEL
Check mains pressure.
Input solenoid or level ball broken or
disconnected.
DOSAGE ERROR . Dosser broken or disconnected
F.ESPRSS.UNT.POS The group motor does not work.
The position detector does not work properly.
NO WASTE BIN The tray is missing or not fitted properly.
5. CONTROL POINTS
Heatting element

Technical Principles
1ª review – UK 06 – 2019
20
Meassured in the control board in the conector jp11
Between pins 1 and 3, will be 220 Vca when heatting element is working. (if 10A fuse is
fine)
Erogation pump
Meassured in the control board in the conector jp10
Between pins 1 and 7 will be 220 Vca when ulka pump is working.
Erogation group motor
Meassured in the control board in the conector jp10
Between pins 2 and 7 will be 220 Vca when the group is working.
Coffee doser
Meassured in the control board in the conector jp10
Between pins 3 and 7 will be 220 Vca when doser is activated.
Grinder
Meassured in the control board in the conector jp10
Between pins 4 and 7 will be 220 Vca when grinder is working.
Transformer
Meassured in the control board in the conector JP12
Pins 1 and 2 = 220 Vca (black looms).
Pins 4 and 5 = 24 Vca (blue looms).
Pressure electrovalve
Meassured in the control board in the conector jp8
Between pins 1 and 4 will be 25 Vcc when la electrovalve is activated.
Volumetric counter
Meassured in the control board in the conector jp1.
Pin 1 corresponds to +, pin 4 is ground and pin 12 is signal.
When volumetric is turning. The multimeter will show 2,5 Vcc meassuriing between pins
12 and 4.
oser microswitch
Meassured in the control board in the conector jp1.
Between pins 4 and 11 will be 5 Vcc when doser is full.
