BaByliss 2990U User manual

Model 2990U
DUAL BIG HAIR

DUAL BIG HAIR

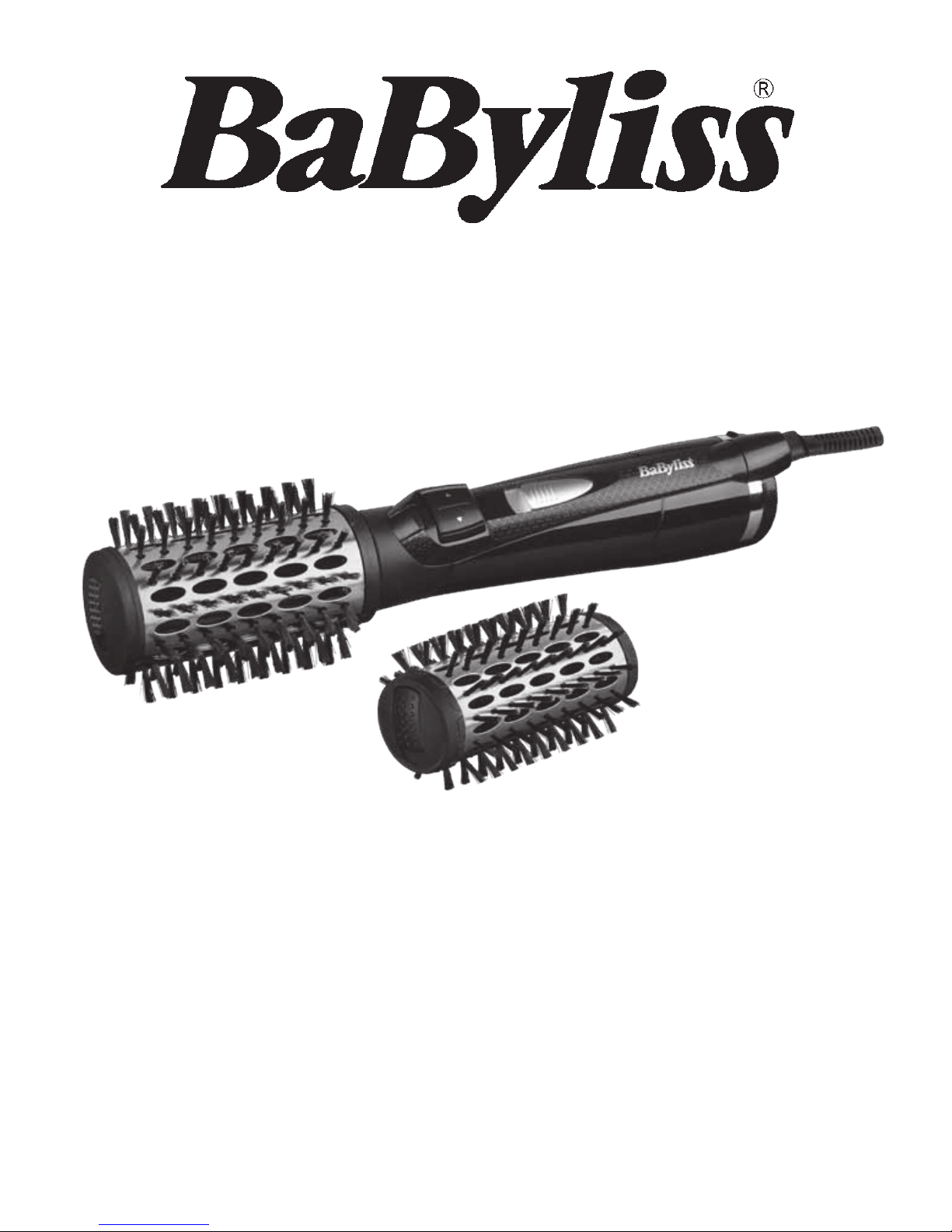

The BaByliss Dual Big Hair airstyler with rotating action creates a salon
perfect blow-dry nish. Two interchangeable barrel sizes give fullness,
body and shape for complete styling versatility on all hair lengths. A
select mixture of soft bristles with super smoothing ionic conditioning
system for instant frizz-control and shine.
FEATURES
• 700W
• 50mm barrel for adding volume, body and shape
• 39mm barrel for shorter styles, layers and fringes
• Interchangeable brush heads with secure locking system
• Select mixture of soft bristles for superior smoothness and shine
• Super smoothing ionic conditioners for instant frizz-control
• 2 heats plus a cool setting
• 2 rotation speeds for total control
• Multi-directional spinning brush
• Hinged rear lter
• Bristle protection shields
• 2.5m swivel cord
• 3 year guarantee

SAFETY CAUTIONS
This appliance should only be used as described within
this instruction booklet. Please retain for reference.
IMPORTANT CHILD SAFETY
WARNING! Polythene bags over a product or package
may be dangerous. To avoid danger of suffocation, keep
this wrapper away from babies and children. This bag is
not a toy.
WARNING! THIS APPLIANCE GETS HOT!
• ALWAYS keep out of reach of children (during and after
use and whilst cooling)
• This appliance should not be used, cleaned or
maintained by children.
• Always take extra care if used on children or near
children.
• Do not use on very young children.
IMPORTANT SAFETY
• UK Only: This appliance must not be used in the
bathroom. If using the appliance in a bathroom, unplug
after use as the proximity of water can be dangerous
even if the appliance is switched off. For additional
protection the installation of a residual current device
(RCD) with a rated residual operating current not
exceeding 30mA is advisable in the electrical circuit
supplying the bathroom. Ask your installer for advice.
WARNING! Do not use this appliance near water
contained in basins, bathtubs or other vessels.
• Do not use this appliance in the bathroom.

•Do not immerse the appliance in water or other
liquids.
• Always inspect the appliance before use for noticeable
signs of damage. Do not use if damaged or if the
appliance has been dropped. In the event of damage
contact the Conair Customer Care Line (refer to ‘UK
After Sales Service’ section for further information).
• Do not use the appliance if the lead is damaged. In
the event of damage contact the Conair Customer
Care Line (refer to ‘UK After Sales Service’ section
for further information).
• Do not leave the appliance unattended when switched
on or plugged in.
• This unit is equipped with a safety thermostat. In the
event of overheating the appliance will either stop
automatically or run hot and cold intermittently. Should
this happen, switch the airstyler to the “0” position,
unplug and allow to cool for 10 minutes. Before use,
ensure the rear lter is clear of hair and other debris.
Plug in and switch on. If the appliance continues to
overheat discontinue use immediately, switch off and
unplug, and contact the Conair Customer Care Line
(refer to ‘UK After Sales Service’ section for further
information).
• Do not place the appliance on any heat sensitive
surface whilst in operation.
• Take care to avoid the hot surface of the appliance
coming into direct contact with the skin, in particular
the ears, eyes, face and neck.
• Always ensure that the rear air lter is kept away from
hair during use to prevent it being dragged into the

fan which may cause the appliance to overheat.
• Take care using this appliance when wearing
jewellery, in particular necklaces and earrings to avoid
entanglement in the rotating brush heads.
• This appliance should not be used by adults whose
reduced physical, sensory or mental capabilities, or
whose lack of experience and knowledge, might cause
a hazard, unless they have been correctly instructed to
understand the safe use and hazards involved and are
adequately supervised.
• After use, do not coil the lead around the appliance as
this may cause damage to the lead. Instead, coil the
lead loosely by the side of the appliance.
• This appliance complies with the requirements
of Directives 2004/108/EC (Electromagnetic
Compatibility) and 2006/95/EC (Electrical Safety of
Domestic Appliances).
Super Ionic Technology
Many aspects of modern living, including air conditioning, contact with
man-made bres and air pollution contribute to a build-up of static
electricity in the hair. Even brushing and towel drying the hair can
increase these levels, causing the surface of the cuticle to become
rough. Consequently, hair may have a dull appearance. High levels of
static charge can also cause the hair to become “y-away” and difcult
to style. The super ion generator releases more negative ions than a
regular ionic port which act to neutralise the static charge, smoothing
the hairs cuticle for noticeably smooth, shiny, manageable hair.

Heat Settings
There are 2 heats plus a cool setting. Slide the ‘on/off’ switch to the
rst position to select the cool setting ‘*’, the second position for the
low heat ‘I’, and the third position for the high heat ‘II’.
Rotation Settings
There are two rotation speed settings. To make the brush head rotate,
press the buttons marked < and >, this will make the brush head rotate
clockwise and anti-clockwise. When the appliance is set on the high
heat setting the brush head rotation will be faster. When the appliance
is set on the low heat setting the brush head rotation will be slower.
Use the rotating brush feature to create styles with gorgeous volume,
shape and shine.
NOTE: When the appliance is used on the cool setting, the brush head
will not rotate.
Bristle Protection Shields
After every use, always ensure the protective shield is placed over the
brush head. This protects the bristles from damage. When placing
the protective shield over the brush head, ensure to line it up with the
grooves around the top of the airstyler so it slides easily into place.
NOTE: The diagram on the protective shield demonstrates the direction
it should be placed on to the brush head. If placed on incorrectly it may
be difcult to remove.
INSTRUCTIONS FOR USE
• The 50mm brush is perfect for styling longer hair lengths whilst the
39mm brush is perfect for short layers and fringes.
• If you have long or thick hair, you may nd it quicker and easier to
use a hairdryer rst, to rough dry your hair and remove the excess
moisture. For added volume, turn your head upside down as you dry.
• Once the hair is 80% dry, you should start to create your style using
the styler.

Interchangeable Brush Heads
• To attach a brush head, place it over the body of the unit and slide it
down into position.
• Lock the brush head in place by sliding the switch on the top of the
brush to the locked position.
• To remove a brush head, ensure the switch on the top of the brush
head is in the open position.
• Gently slide the brush head up and off the unit to remove.
Volume, Body & Shape
1) Start by sectioning the hair and combing through to remove any
tangles.
2) To turn the appliance on, slide the ‘on/off’ switch to the correct heat
setting for your hair.
3) Place the brush underneath the hair section close to the roots and
brush through the section to remove any tangles.
4) For added root lift, hold the brush in place at the root for a few
seconds.
5) Starting at the root, move the brush through the hair section. Towards
the end of the hair section start to rotate the brush away from your
head by pressing and holding the appropriate rotation button, this
will create shape and movement through the lengths of the hair.
6) As you do this, resist the rotation of the brush by pulling the brush
downwards. This will create tension through the section of hair.
IMPORTANT! It may take several attempts to perfect this technique,
if the brush spins too quickly, simply release the rotation button and
remove from the hair.
7) For maximum volume, place the brush at the end of the hair section
and allow the brush to rotate up the hair section by pressing and
holding the appropriate rotate button. Wind the entire section of hair
around the barrel until you reach the root. Release the rotate button
and then hold the brush in the hair for a few seconds.
8) Slide the switch to the cool setting ‘*’ for a further few seconds, this
cools the hair to create longer lasting volume.

9) To release the section, move the switch back to the ‘I’ or ‘II’ setting
and then press and hold the opposite rotation button to unwind the
hair section.
10) Repeat as necessary.
11) After use, switch off and unplug the appliance.
12) Allow to cool before storing away.
13) Place the protective shield over the brush head to protect the
bristles. Please see the ‘Bristle Protection Shields’ section for
direction.
Helpful Hints and Tips
• To dene layers and add shape to the ends of the hair, follow steps
5 - 6 and repeat through the sections.
• To get root volume and body through the top section of hair, follow
steps 7 - 9 using an upward motion.
CLEANING & MAINTENANCE
To help keep your appliance in the best possible condition follow the
steps below:
General
• Do not wrap the lead around the appliance, instead coil the lead
loosely by the side when storing away.
• Do not use the appliance at a stretch from the power point.
• Always unplug after use.
Cleaning the Filter
• Unplug the appliance and let it cool completely before cleaning.
• Holding the handle of the appliance rmly pull the top of the rear lter
towards you, this will enable the rear lter to open.
• Using a soft brush, clean any hair and other debris from the lter.
• Replace the rear lter by pushing back into position.
• To clean the outside of the appliance, wipe with a damp cloth. Make
sure no water enters the appliance and it is completely dry before
use.

UK GUARANTEE
This BaByliss appliance is guaranteed for consumer use for 3 years. This
guarantee covers defects under normal use from date of purchase and
ceases to be valid in the event of alteration or repairs by unauthorised
persons. If the appliance does not perform satisfactorily due to defects
in materials or manufacture, it will be repaired or replaced through
Conair UK After Sales Service. The Conair Group Ltd reserves the right
to amend terms and specications without prior notice.
This guarantee in no way affects your statutory rights.
UK AFTER SALES SERVICE
For further advice on using the appliance, contact the Conair
Customer Care Line on 0870 5 133191 (09:00 to 17:00 Monday to
Friday) or email your enquiry to [e-mail]
If you should need to return your appliance to us please send it to the
following address:
Customer Care Centre
Conair Logistics
Unit 4
Revolution Park
Buckshaw Avenue
Buckshaw Village
Chorley
PR7 7DW
Please enclose your name and address, together with a copy of proof
of purchase and details of the fault.

SAFE DISPOSAL
The symbol on the product or on its packaging indicates that this
product may not be treated as household waste. Instead it should be
handed to an appropriate collection point for the recycling of Electrical
and Electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for
the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. For more detailed
information about the recycling of this product, please contact your
local council ofce or your household waste disposal service.
UK WIRING INSTRUCTIONS
The wires in the mains lead are coloured in accordance with the
following code:
• BLUE = NEUTRAL
• BROWN = LIVE
As the colours of the wire in the mains lead of this appliance may not
correspond with the colour marking identifying the terminals on your
plug, proceed as follows:
• The wire which is coloured BLUE must be connected to the terminal
which is marked with the letter N.
• The wire which is coloured BROWN must be connected to the
terminal which is marked with the letter L.
• Neither the BLUE nor BROWN wires should be connected to the
terminal which is marked with the letter E or the symbol.
This appliance is supplied tted with a BS1363 mains plug and a
BS1362 5A fuse. If this plug is removed from the appliance please
ensure it is disposed of safely as a disconnected plug is dangerous if
reconnected to the mains. If any other type of plug is used, a 5A fuse
must be tted.
